Presentation Transcript

  1. SECTION 1 SKILLSAnalyzing Data Using Excel 1.1 Start Microsoft Excel 2013 1.1 The Excel Screen 1.1 Open a Workbook 1.1 Save a Workbook 1.1 Print a Workbook 1.2 Start a New Workbook 1.2 Enter Labels and Values 1.2 Use Fill Options 1.3 Perform Calculations Using Formulas CHECKPOINT 1 1.4 Use the SUM Function 1.5 Copy Formulas 1.6 Test the Worksheet 1.6 Improve the Worksheet Appearance 1.6 Sort CHECKPOINT 2 1.7 Use Help 1.8 Preview a Worksheet 1.8 Change Page Orientation 1.8 Print a Worksheet 1.9 Display Formulas 1.9 Navigate a Worksheet CHECKPOINT 3

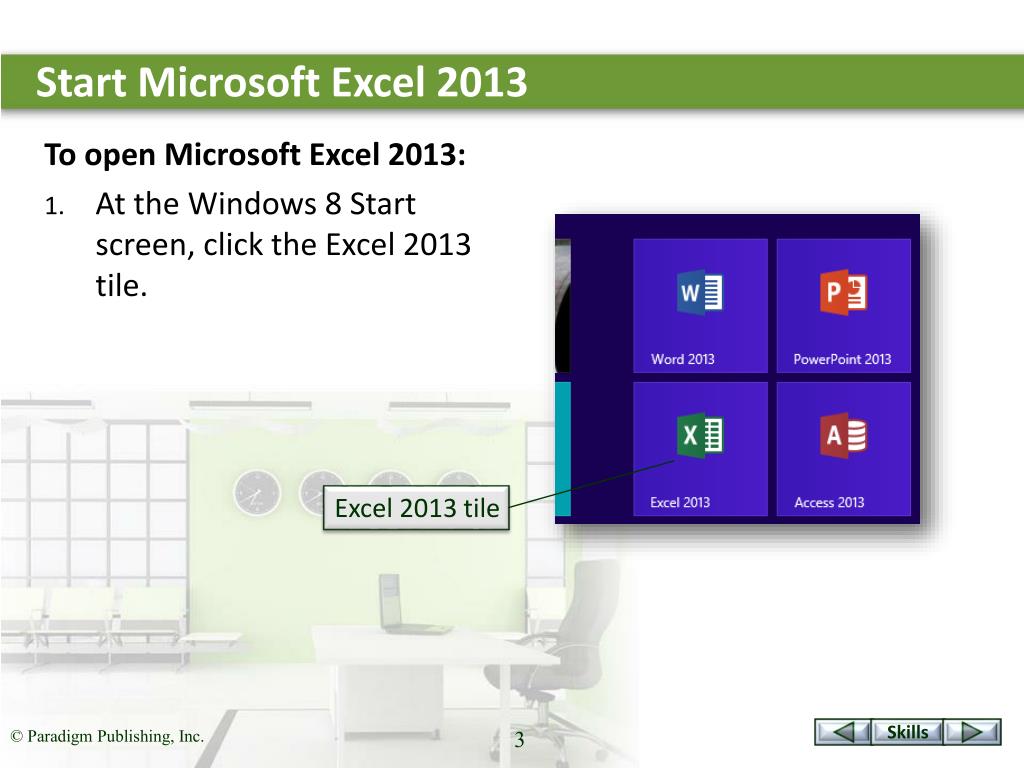

  2. Start Microsoft Excel 2013 To open Microsoft Excel 2013: • At the Windows 8 Start screen, click the Excel 2013 tile. Excel 2013 tile

  3. The Excel Screen Collapse the Ribbon button Title bar tabs Quick Access toolbar ribbon dialog box launcher Formula bar group Name box column active cell scroll box cell pointer worksheet area row vertical scroll bar sheet tabs horizontal scroll bar Status bar

  4. Excel Screen Features

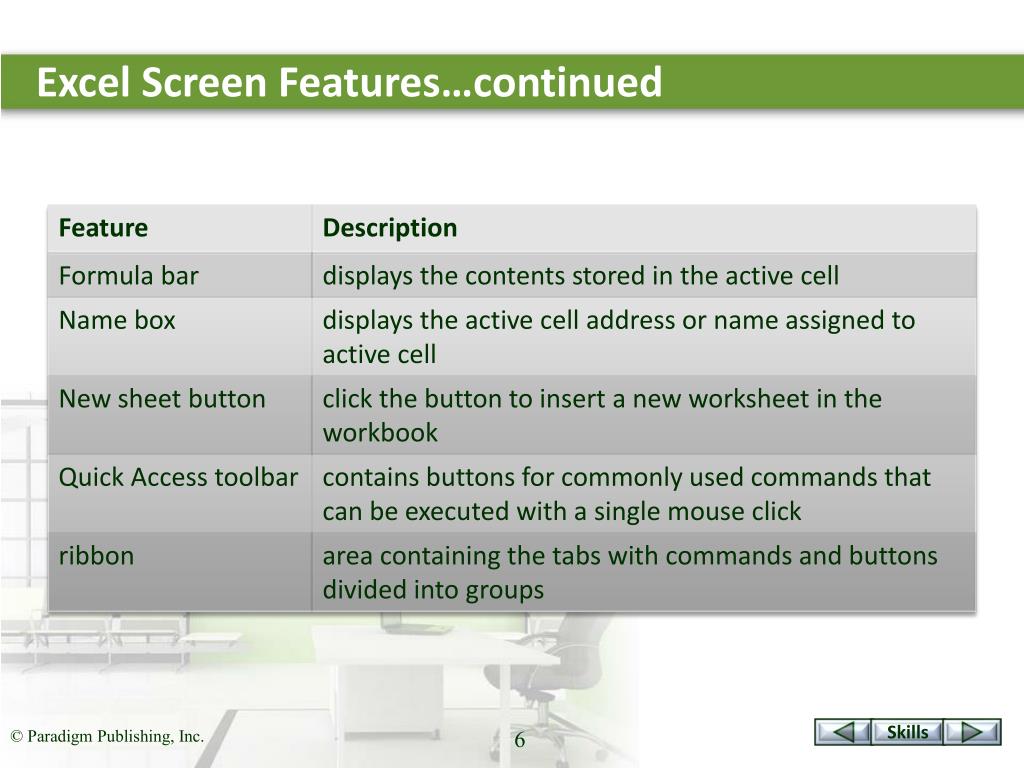

  5. Excel Screen Features…continued

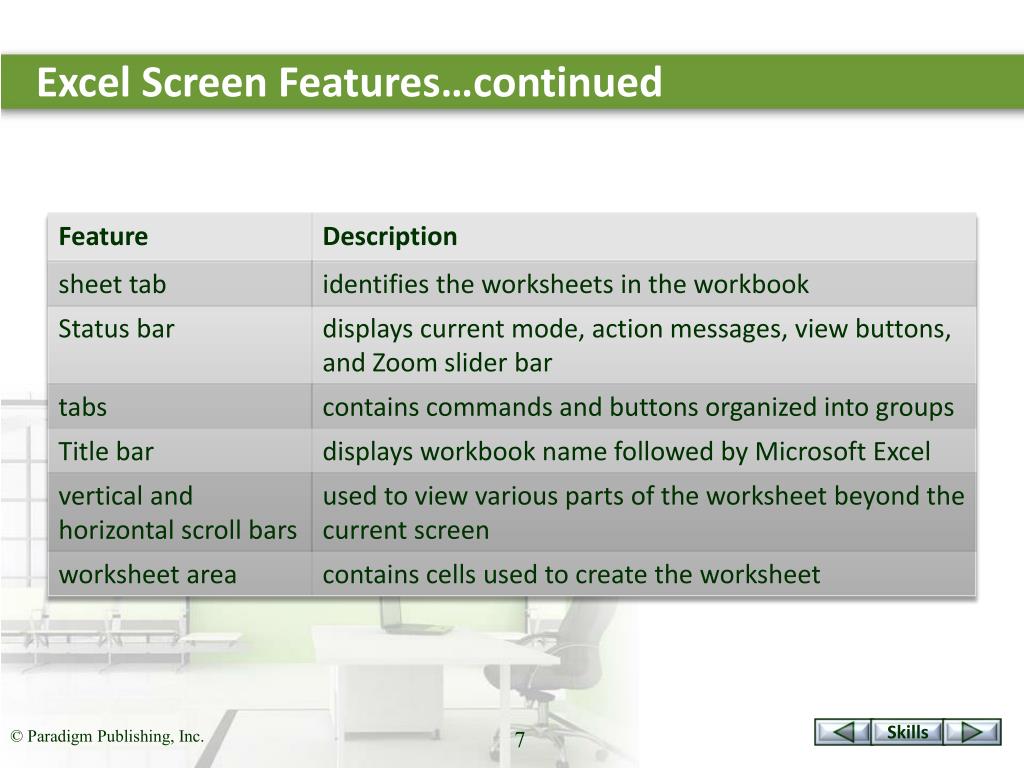

  6. Excel Screen Features…continued

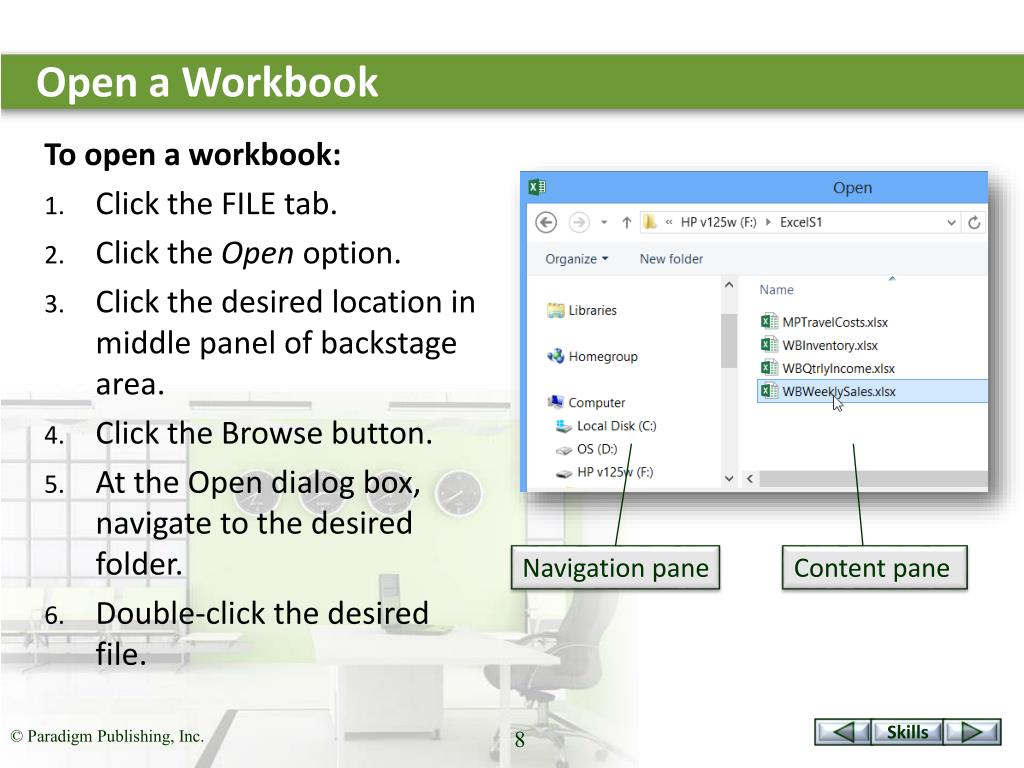

  7. Open a Workbook To open a workbook: • Click the FILE tab. • Click the Open option. • Click the desired location in middle panel of backstage area. • Click the Browse button. • At the Open dialog box, navigate to the desired folder. • Double-click the desired file. Navigation pane Content pane

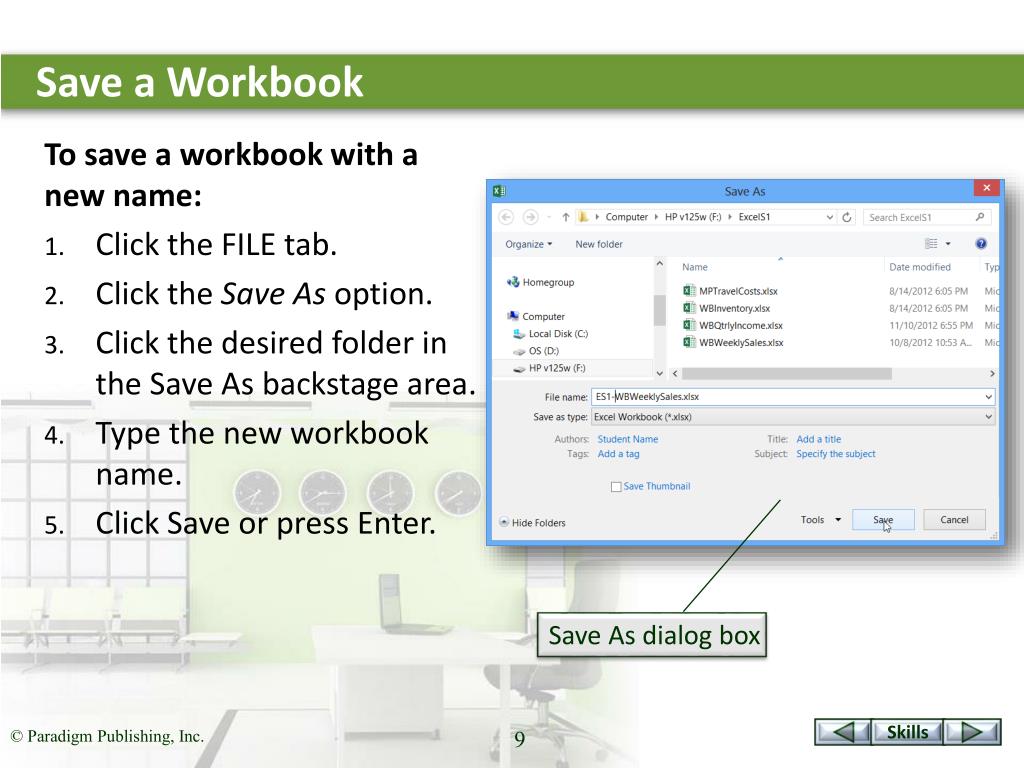

  8. Save a Workbook To save a workbook with a new name: • Click the FILE tab. • Click the Save As option. • Click the desired folder in the Save As backstage area. • Type the new workbook name. • Click Save or press Enter. Save As dialog box

  9. Print a Workbook To print a workbook: • Click the FILE tab. • Click the Print option. • Click the Print button. Print button

  10. Start a New Workbook To start a new workbook: • Click the FILE tab. • Click the New option. • Click the Blank workbook template. Blank workbook template

  11. Enter Labels and Values • A label is an entry in a cell that helps the reader relate to the values in the corresponding column or row. • Labels are generally entered first when creating a new worksheet since they define the layout of the data in the columns and rows. • By default, Excel aligns labels at the left edge of the column. • A value is a number, formula, or function that can be used to perform calculations in the worksheet. • By default, Excel aligns values at the right edge of the column. • Take a few moments to plan or sketch out the layout of a new worksheet before entering labels and values. • Decide the calculations you will need to execute and how to display the data so that it will be easily understood and interpreted.

  12. Enter Labels and Values…continued Enter button Cancel button Entry appears in the Formula bar and in the active cell.

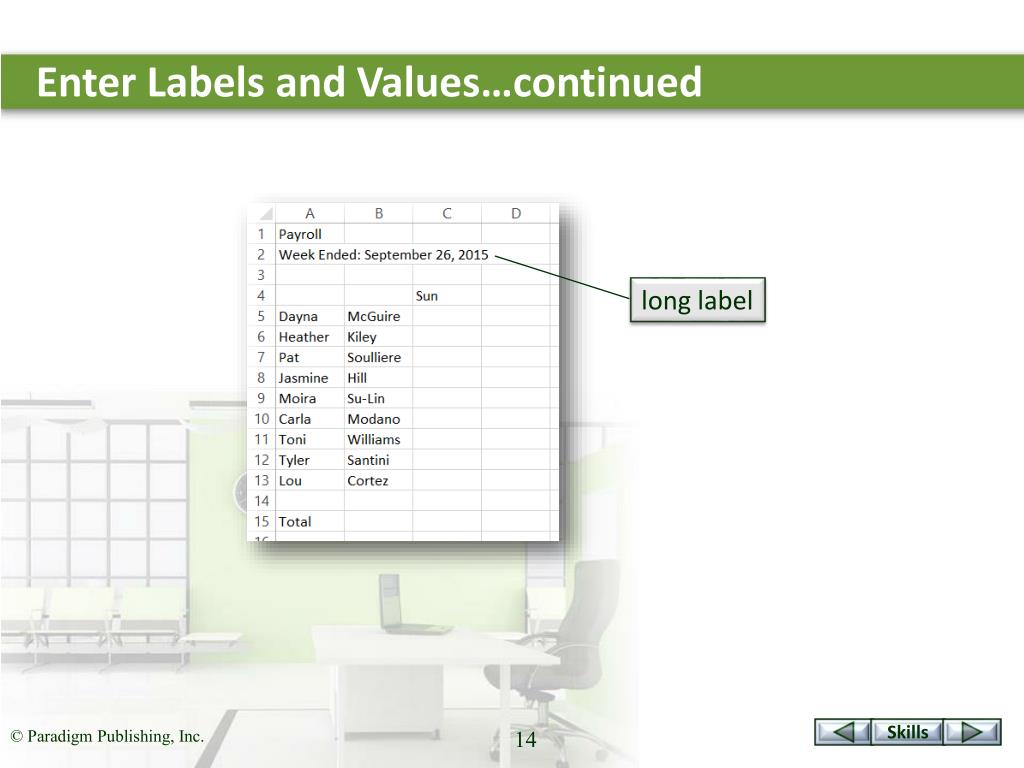

  13. Enter Labels and Values…continued long label

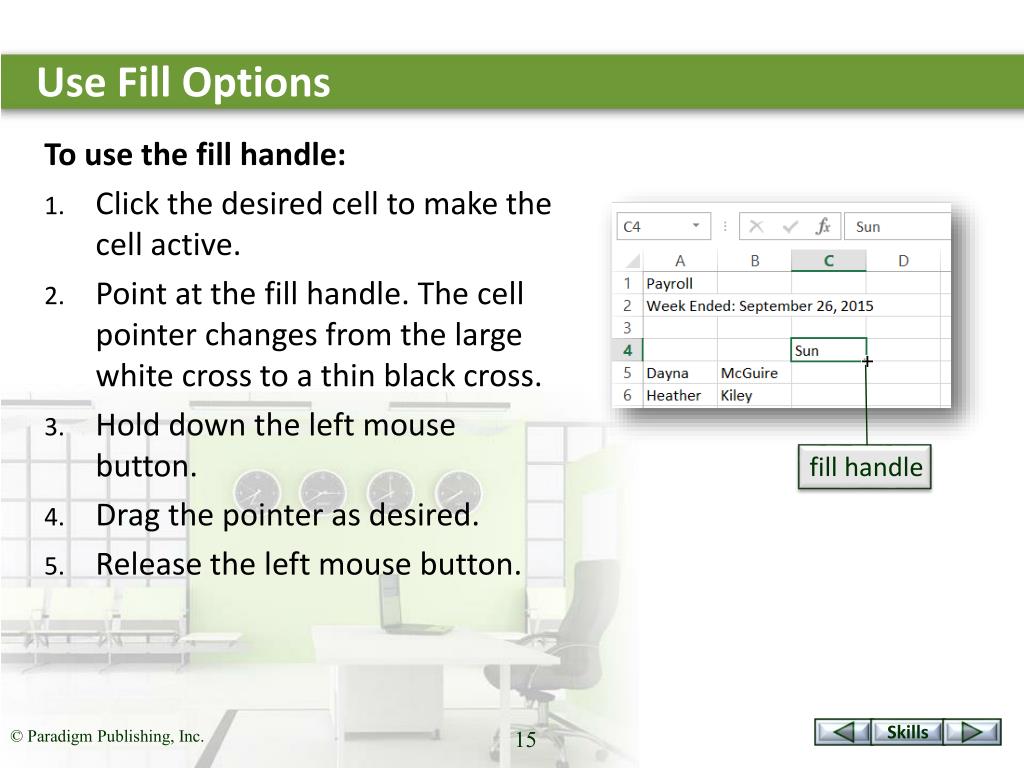

  14. Use Fill Options To use the fill handle: • Click the desired cell to make the cell active. • Point at the fill handle. The cell pointer changes from the large white cross to a thin black cross. • Hold down the left mouse button. • Drag the pointer as desired. • Release the left mouse button. fill handle

  15. Use Fill Options…continued Auto Fill Options button

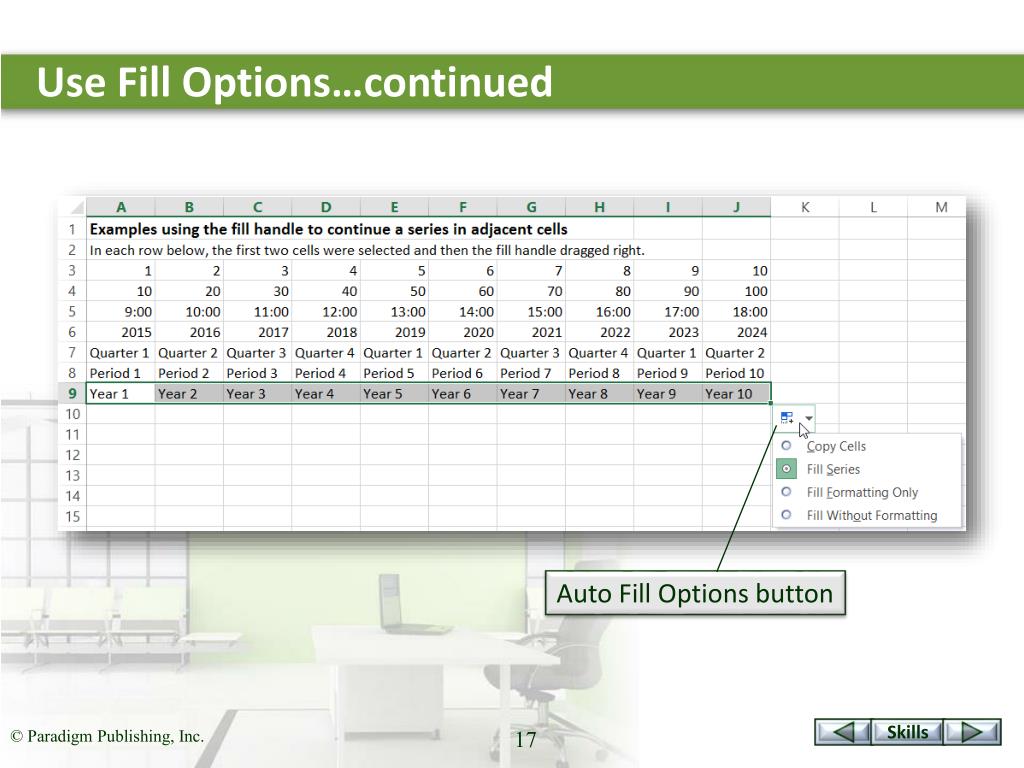

  16. Use Fill Options…continued Auto Fill Options button

  17. Use Fill Options…continued To use the fill feature on a range: • Select the desired range. • Click the HOME tab. • Click the Fill button in the Editing group. • Click the desired option at the drop-down list. Fill button selected range

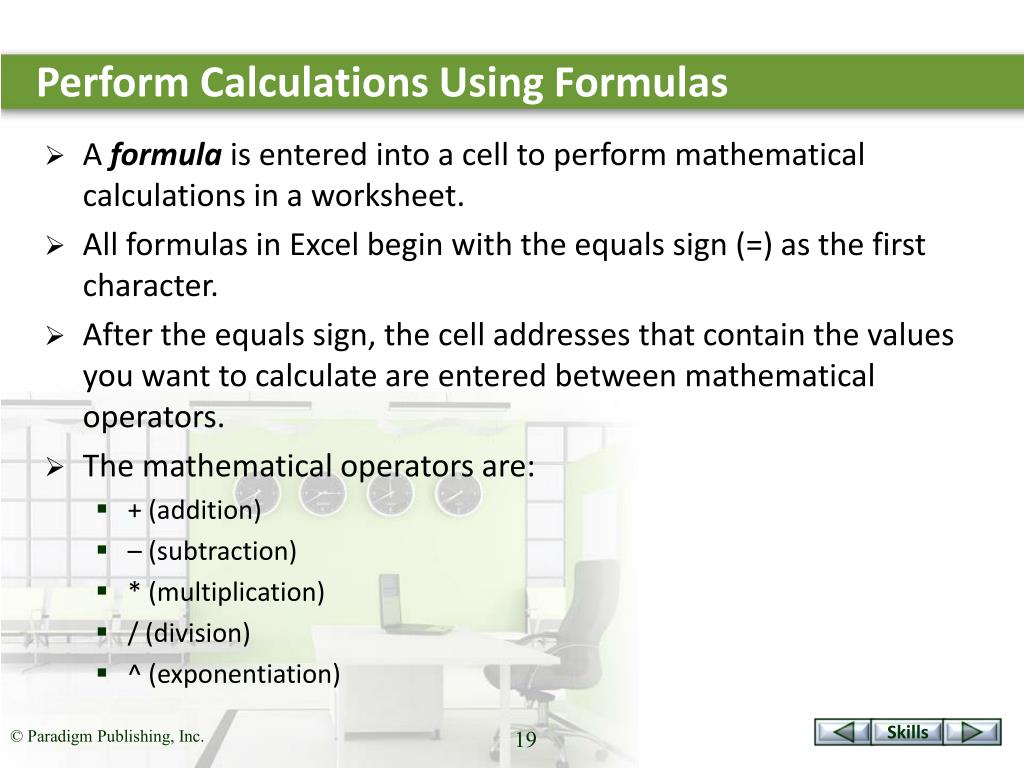

  18. Perform Calculations Using Formulas • A formula is entered into a cell to perform mathematical calculations in a worksheet. • All formulas in Excel begin with the equals sign (=) as the first character. • After the equals sign, the cell addresses that contain the values you want to calculate are entered between mathematical operators. • The mathematical operators are: • + (addition) • – (subtraction) • * (multiplication) • / (division) • ^ (exponentiation)

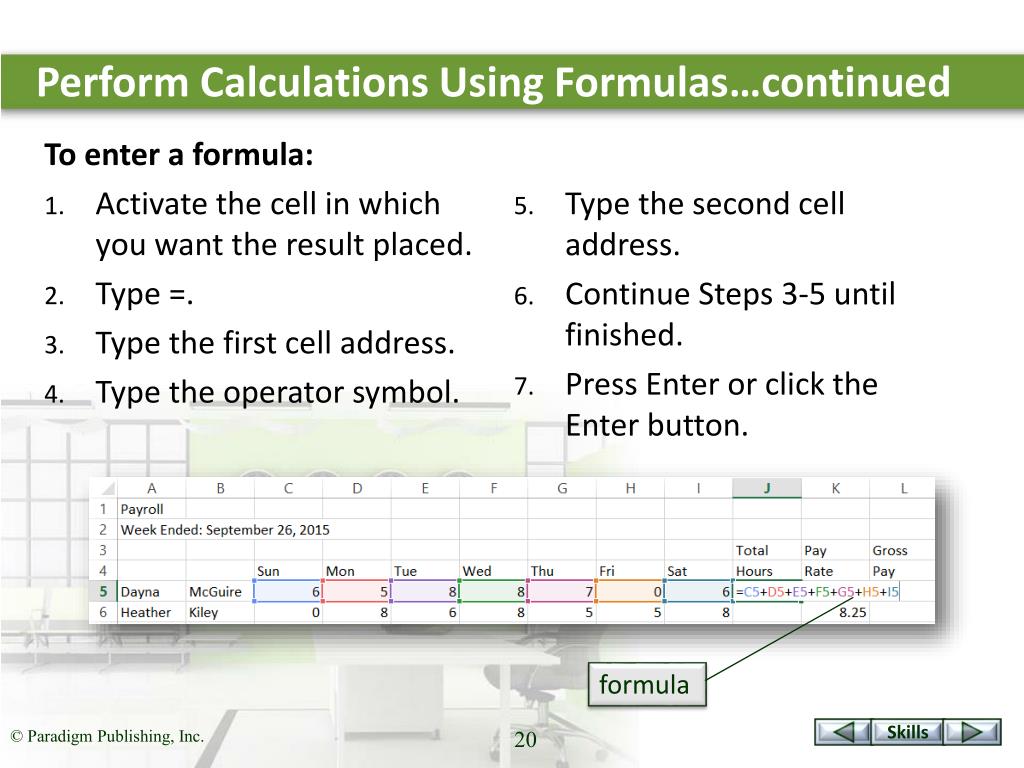

  19. Perform Calculations Using Formulas…continued To enter a formula: • Activate the cell in which you want the result placed. • Type =. • Type the first cell address. • Type the operator symbol. • Type the second cell address. • Continue Steps 3-5 until finished. • Press Enter or click the Enter button. formula

  20. Perform Calculations Using Formulas…continued To enter a formula using the pointing method: • Activate the cell in which you want the result placed. • Type =. • Click the first cell. • Type the operator symbol. • Click the second cell. • Continue Steps 3-5 until finished. • Press Enter or click the Enter button. marquee

  21. CHECKPOINT 1 • This is what the intersection of a column with a row is called. • fill handle • pointer • insertion point • cell • This is the name of the small green square that displays at the bottom right corner of the active cell. • fill handle • pointer • insertion point • cell Answer Answer Next Question Next Question • By default, values are aligned at what edge of the column? • left • right • top • bottom • Always type this symbol before entering a formula. • asterisk (*) • plus sign (+) • equals sign (=) • minus sign (-) Answer Answer Next Question Next Slide

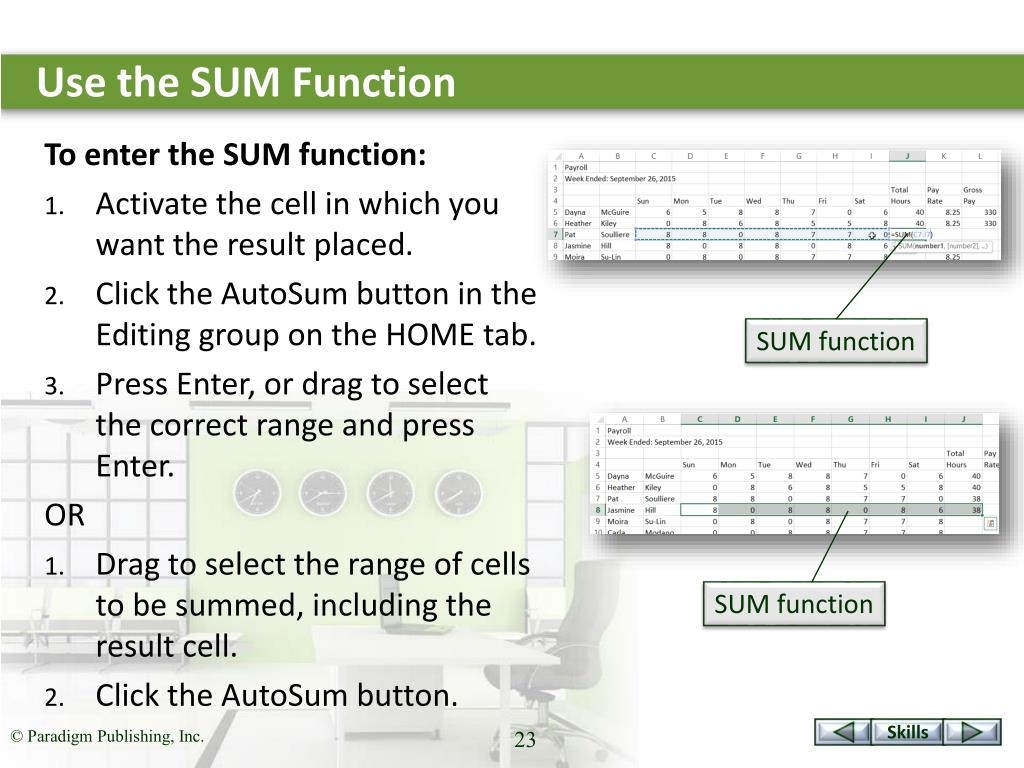

  22. Use the SUM Function To enter the SUM function: • Activate the cell in which you want the result placed. • Click the AutoSum button in the Editing group on the HOME tab. • Press Enter, or drag to select the correct range and press Enter. OR • Drag to select the range of cells to be summed, including the result cell. • Click the AutoSum button. SUM function SUM function

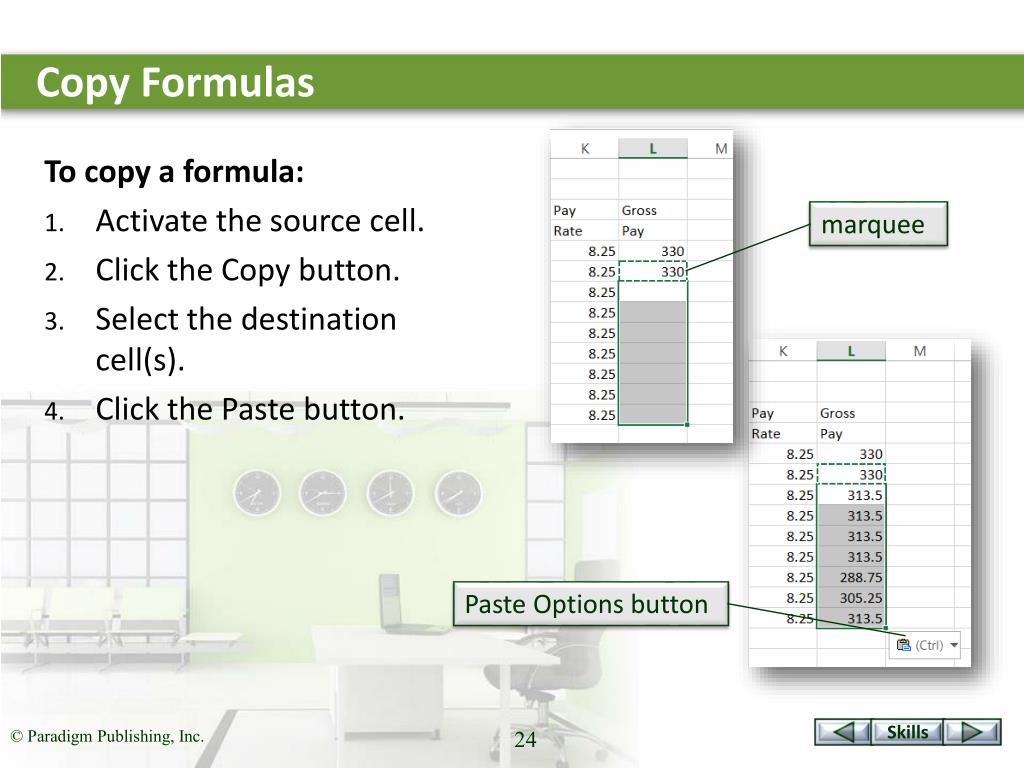

  23. Copy Formulas To copy a formula: • Activate the source cell. • Click the Copy button. • Select the destination cell(s). • Click the Paste button. marquee Paste Options button

  24. Copy Formulas…continued fill handle

  25. Test the Worksheet To test the worksheet: • Enter proof formulas. proof formula

  26. Improve the Worksheet Appearance Labels do not align directly over values. Decimal places are not consistent.

  27. Improve the Worksheet Appearance…continued To format a range to the accounting number format: • Select the desired range. • Click the Accounting Number Format button in the Number group on the HOME tab. Accounting Number Format button ScreenTip

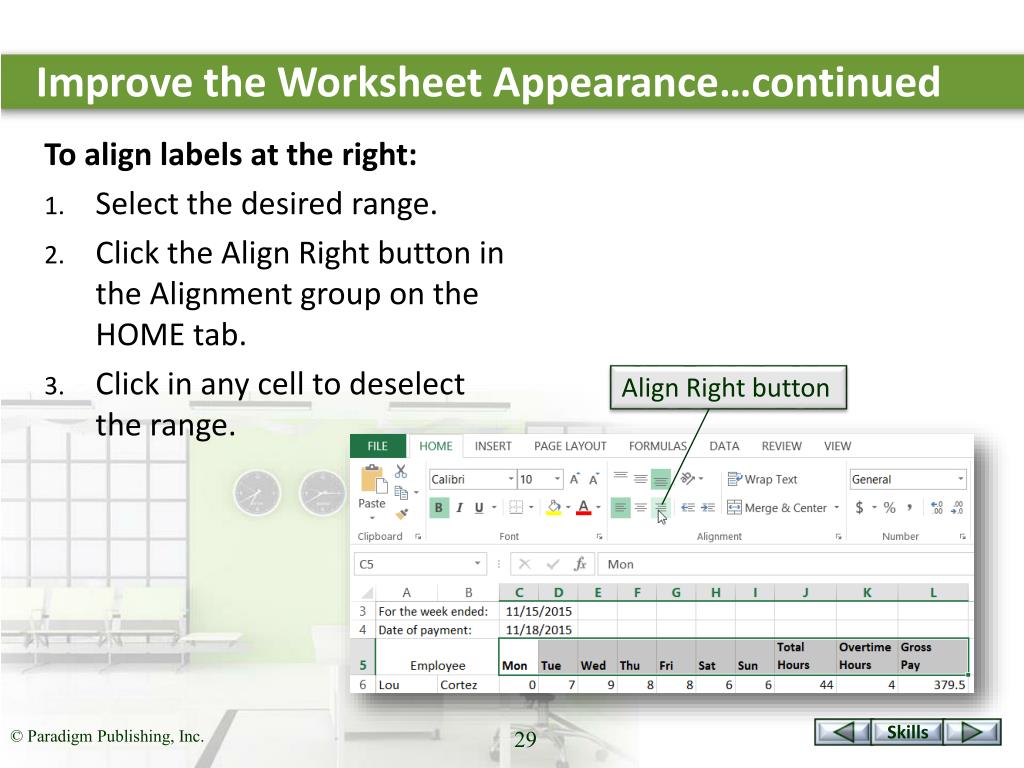

  28. Improve the Worksheet Appearance…continued To align labels at the right: • Select the desired range. • Click the Align Right button in the Alignment group on the HOME tab. • Click in any cell to deselect the range. Align Right button

  29. Improve the Worksheet Appearance…continued To rotate text in cells: • Select the desired range. • Click the Orientation button in the Alignment group on the HOME tab. • Select the desired option. Orientation button

  30. Sort To sort a range: • Select the range. • Click the Sort & Filter button in the Editing group on the HOME tab. • Click Custom Sort at the drop-down list. • At the Sort dialog box, click the down-pointing arrow at the right of Sort by in the Column section and then select the desired column at the drop-down list. Sort & Filter button Sort dialog box

  31. CHECKPOINT 2 • Use this built-in function to add a range of values. • ADD function • SUM function • TOTAL function • RANGE function • Excel uses up to how many decimal places when calculating values? • 1 • 5 • 10 • 15 Answer Answer Next Question Next Question • This is a temporary storage location used when copying. • Clipboard • Copyboard • Storageboard • Tempboard • This button is used to rotate text within cells. • Orientation • Rotate • Angle • Text Answer Answer Next Question Next Slide

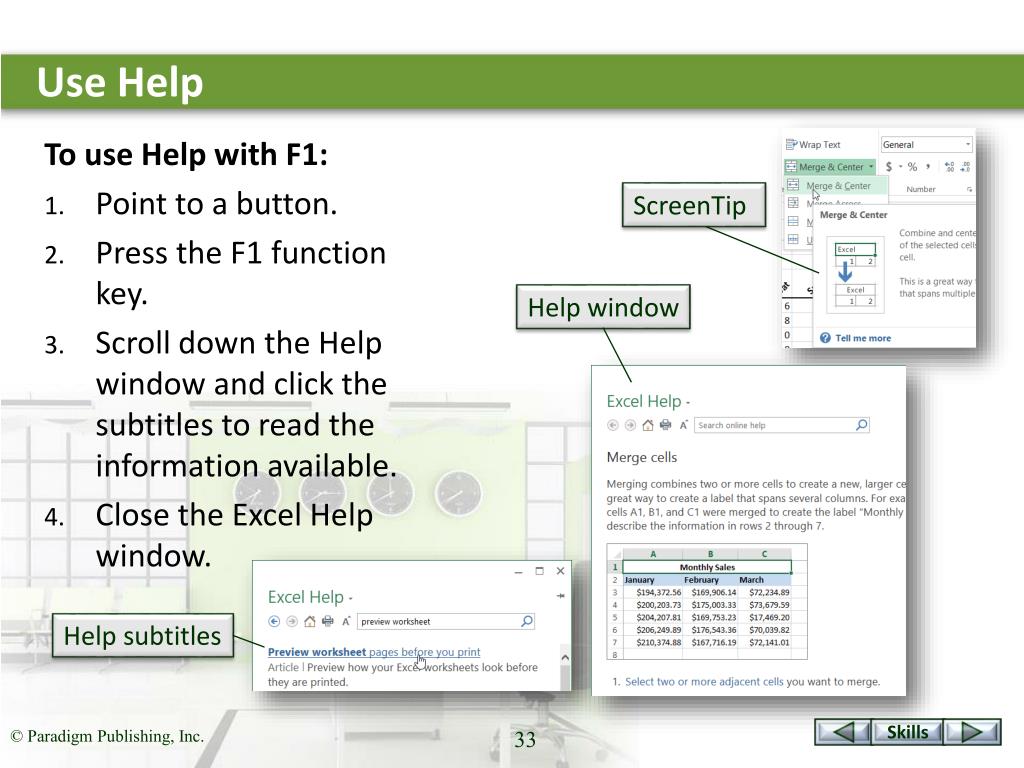

  32. Use Help To use Help with F1: • Point to a button. • Press the F1 function key. • Scroll down the Help window and click the subtitles to read the information available. • Close the Excel Help window. ScreenTip Help window Help subtitles

  33. Use Help…continued To use Help with the Help button: • Click the Microsoft Excel Help button. • Type a word or phrase in the Search text box. • Click the Search button or press Enter. • Click the desired hyperlink. • Read the information that displays in the window. • Close the Excel Help window. Search text box

  34. Use Help…continued Home Keep Help on Top Back Use Large Text Forward Print

  35. Preview a Worksheet To preview a worksheet: • Click the FILE tab. • Click the Print option. Pages indicator

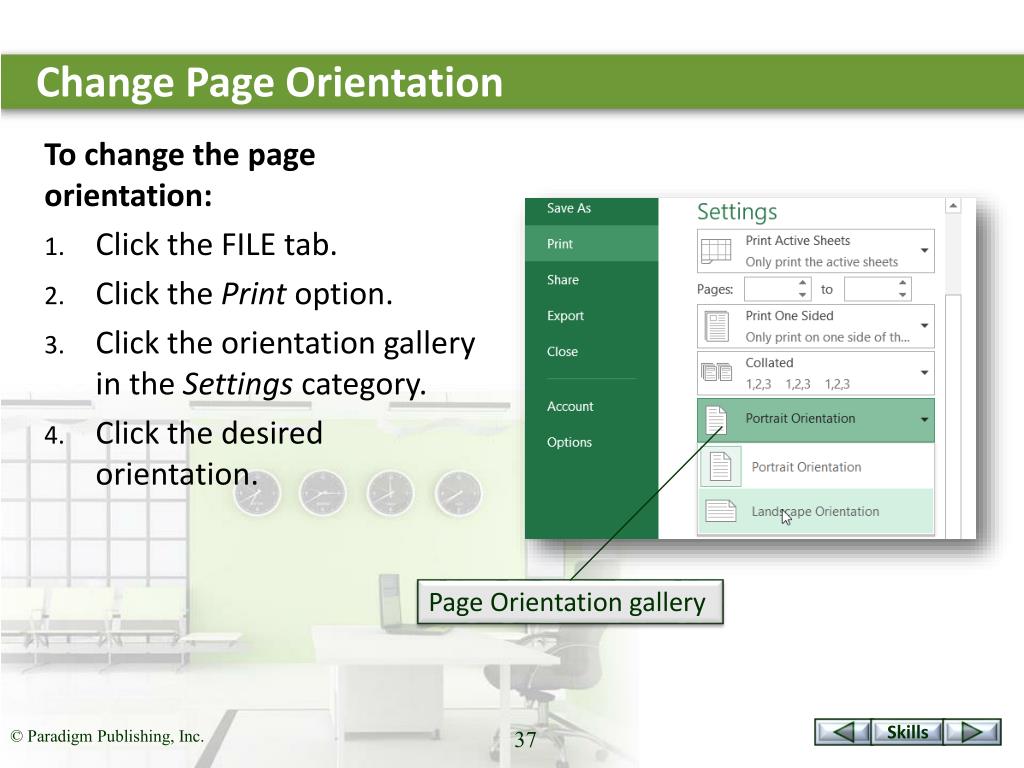

  36. Change Page Orientation To change the page orientation: • Click the FILE tab. • Click the Print option. • Click the orientation gallery in the Settings category. • Click the desired orientation. Page Orientation gallery

  37. Print a Worksheet To print a worksheet: • Click the FILE tab. • Click the Print option. • Click the Print button. Print button

  38. Display Formulas To display formulas: • Click the FORMULAS tab. • Click the Show Formulas button in the Formula Auditing group. Show Formulas button

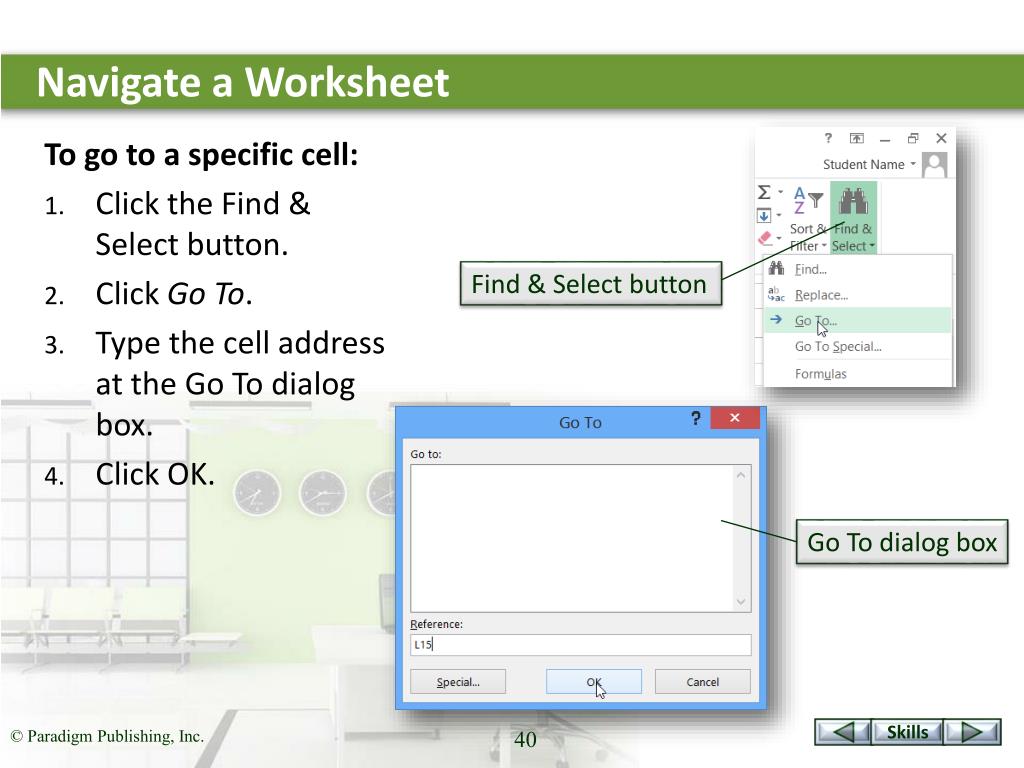

  39. Navigate a Worksheet To go to a specific cell: • Click the Find & Select button. • Click Go To. • Type the cell address at the Go To dialog box. • Click OK. Find & Select button Go To dialog box

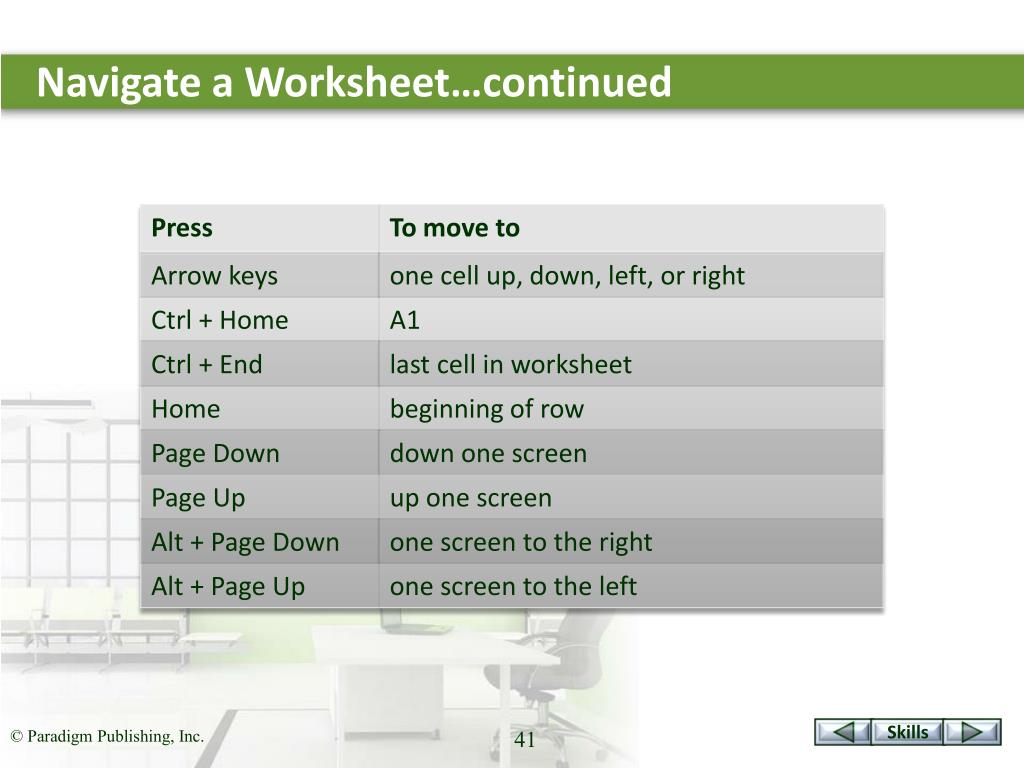

  40. Navigate a Worksheet…continued

  41. CHECKPOINT 3 • Pressing this function key is one way to access the Help window. • F1 • F2 • F3 • F4 • To display formulas, click the Show Formulas button on this tab. • FORMULAS • HOME • INSERT • VIEW Answer Answer Next Question Next Question • In this orientation, the page is printed on paper taller than it is wide. • scenic • landscape • portrait • design • Pressing these keys will move the insertion point to A1. • Alt + Page Down • Alt + Page Up • Ctrl + End • Ctrl + Home Answer Answer Next Question Next Slide
