  1. A System for Creating Specialized DDS Architectures Research and Work By: Tom Puzak Nathan Viniconis Solomon Berhe Jeffrey Peck Project web site: http://www.revrick.net/CSE333/ProjectTimeline.htm

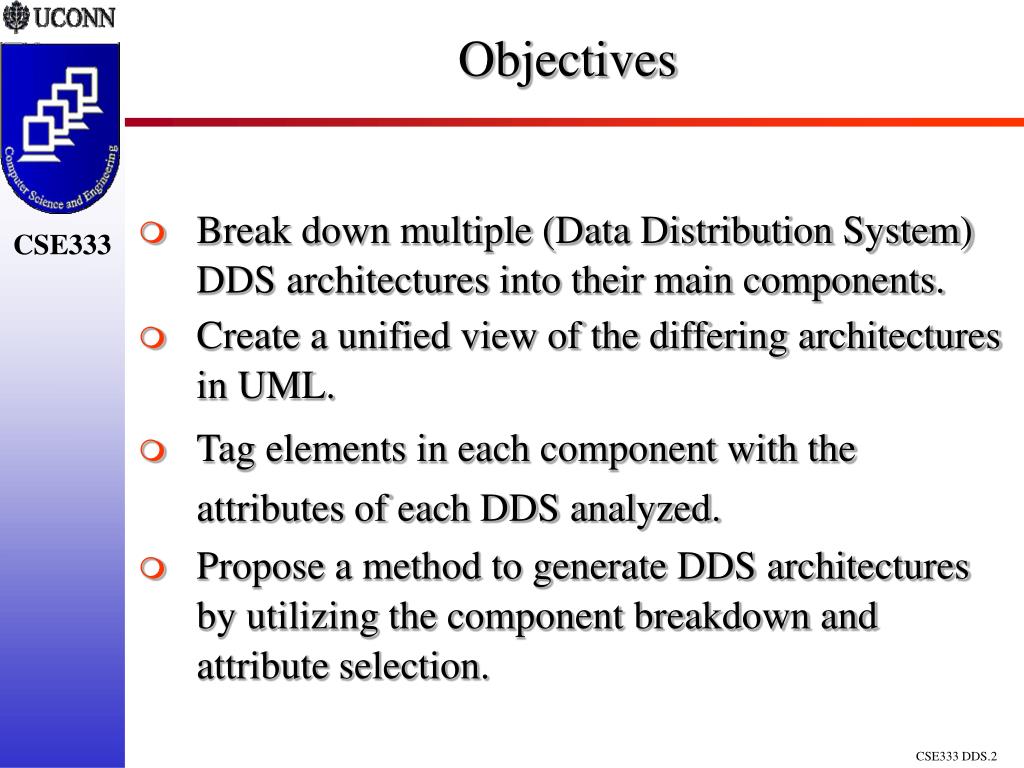

  2. Objectives • Break down multiple (Data Distribution System) DDS architectures into their main components. • Create a unified view of the differing architectures in UML. • Tag elements in each component with the attributes of each DDS analyzed. • Propose a method to generate DDS architectures by utilizing the component breakdown and attribute selection.

  3. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

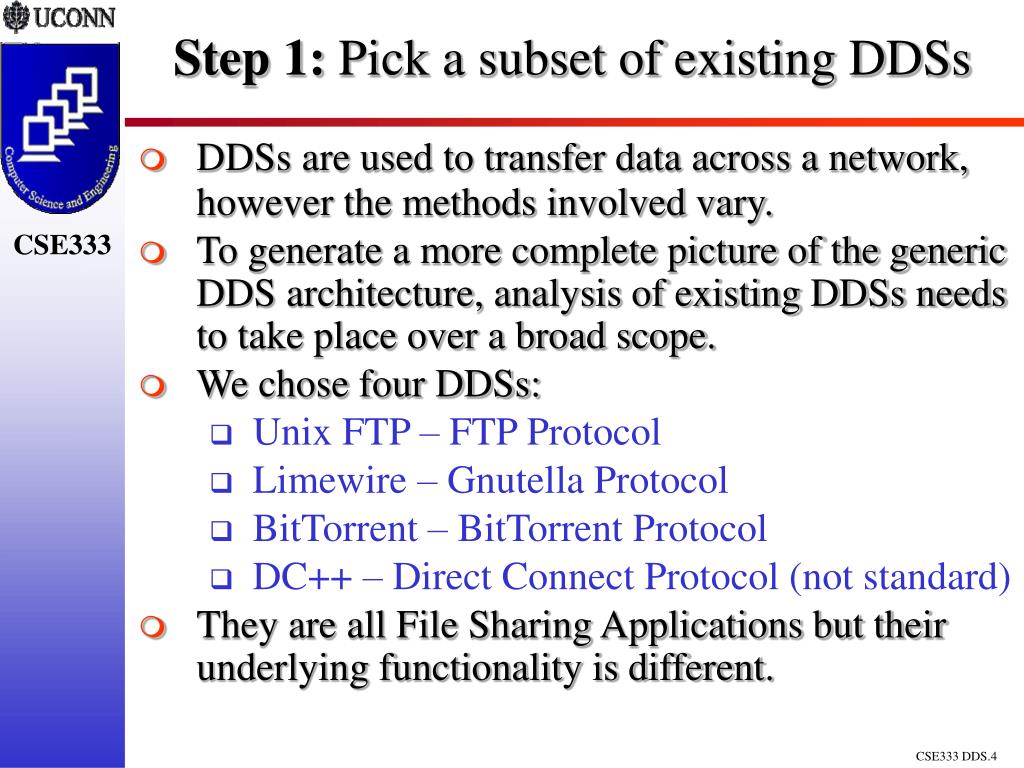

  4. Step 1: Pick a subset of existing DDSs • DDSs are used to transfer data across a network, however the methods involved vary. • To generate a more complete picture of the generic DDS architecture, analysis of existing DDSs needs to take place over a broad scope. • We chose four DDSs: • Unix FTP – FTP Protocol • Limewire – Gnutella Protocol • BitTorrent – BitTorrent Protocol • DC++ – Direct Connect Protocol (not standard) • They are all File Sharing Applications but their underlying functionality is different.

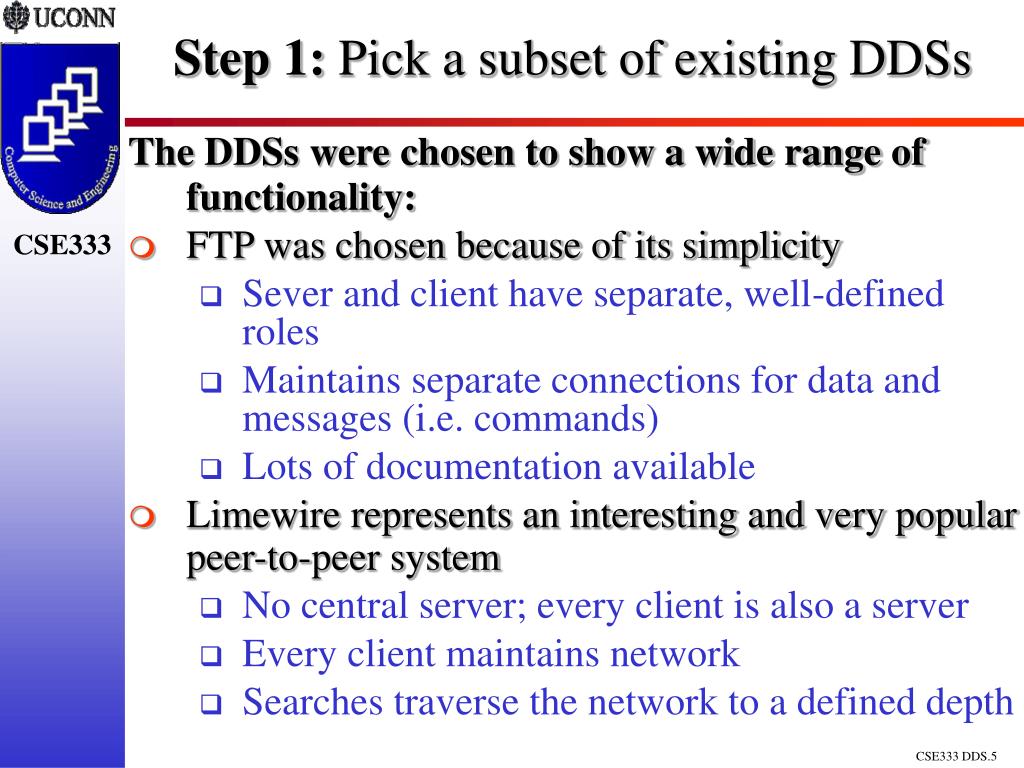

  5. Step 1: Pick a subset of existing DDSs The DDSs were chosen to show a wide range of functionality: • FTP was chosen because of its simplicity • Sever and client have separate, well-defined roles • Maintains separate connections for data and messages (i.e. commands) • Lots of documentation available • Limewire represents an interesting and very popular peer-to-peer system • No central server; every client is also a server • Every client maintains network • Searches traverse the network to a defined depth

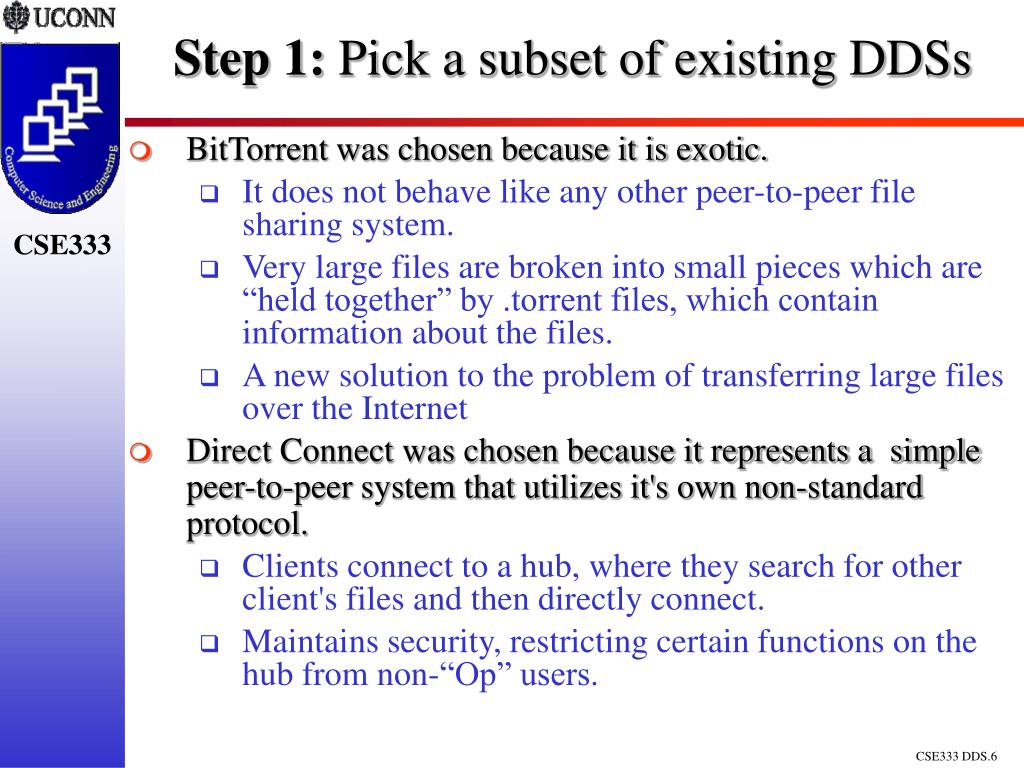

  6. Step 1: Pick a subset of existing DDSs • BitTorrent was chosen because it is exotic. • It does not behave like any other peer-to-peer file sharing system. • Very large files are broken into small pieces which are “held together” by .torrent files, which contain information about the files. • A new solution to the problem of transferring large files over the Internet • Direct Connect was chosen because it represents a simple peer-to-peer system that utilizes it's own non-standard protocol. • Clients connect to a hub, where they search for other client's files and then directly connect. • Maintains security, restricting certain functions on the hub from non-“Op” users.

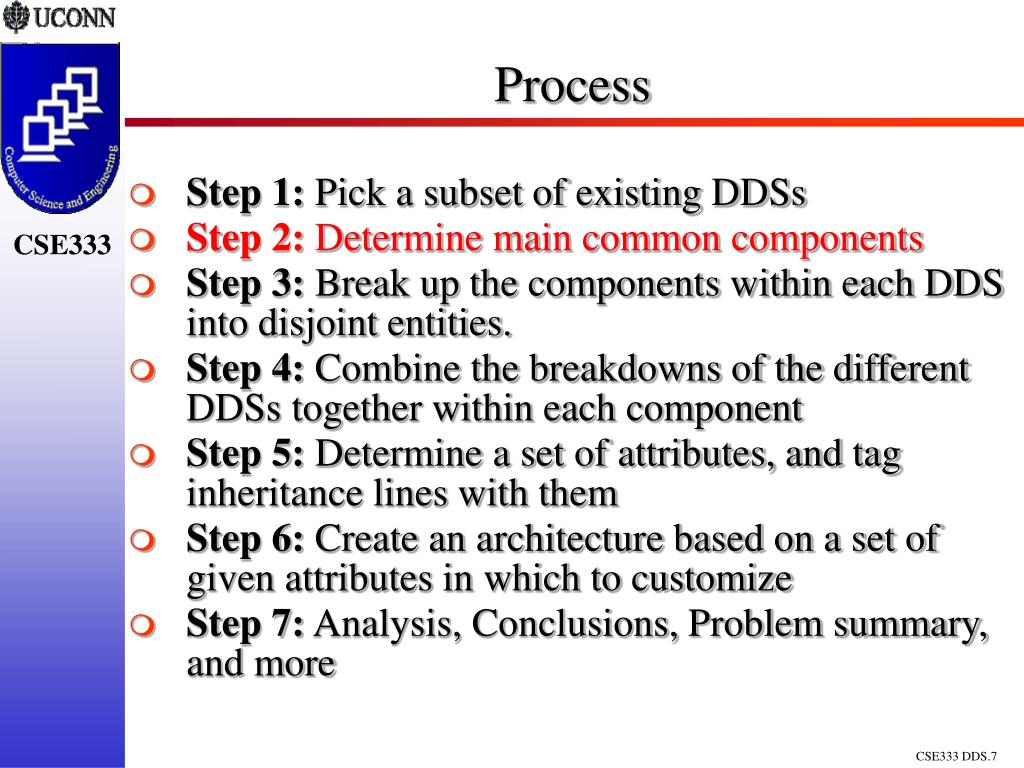

  7. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

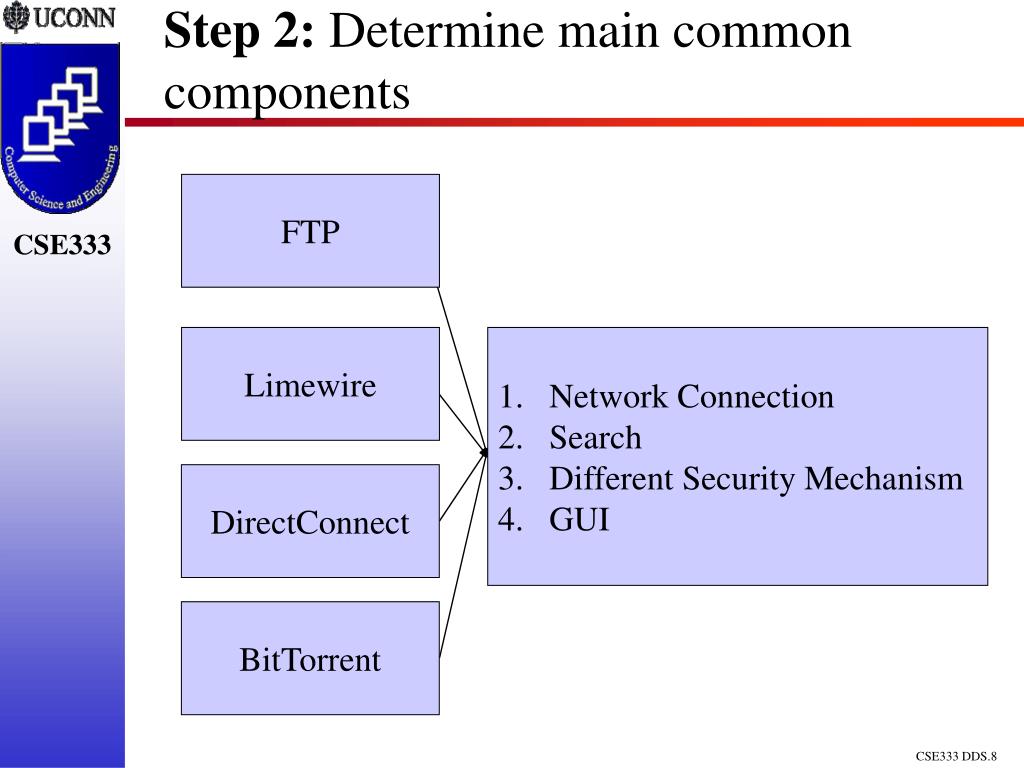

  8. Step 2: Determine main common components FTP Limewire • Network Connection • Search • Different Security Mechanism • GUI DirectConnect BitTorrent

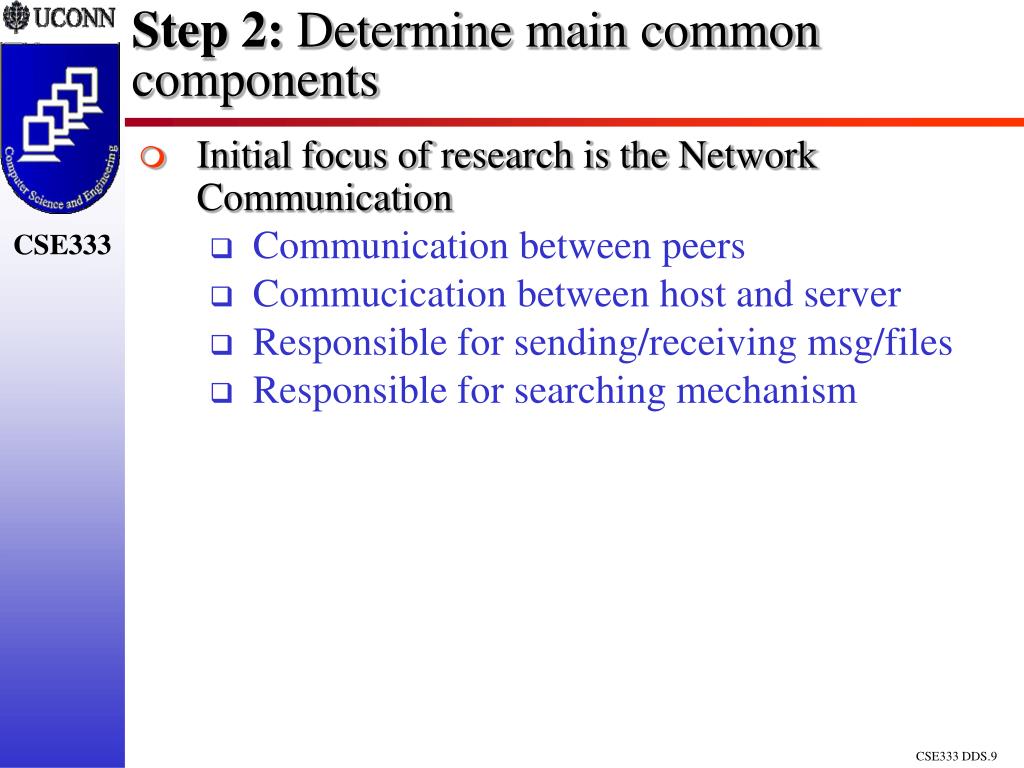

  9. Step 2: Determine main common components • Initial focus of research is the Network Communication • Communication between peers • Commucication between host and server • Responsible for sending/receiving msg/files • Responsible for searching mechanism

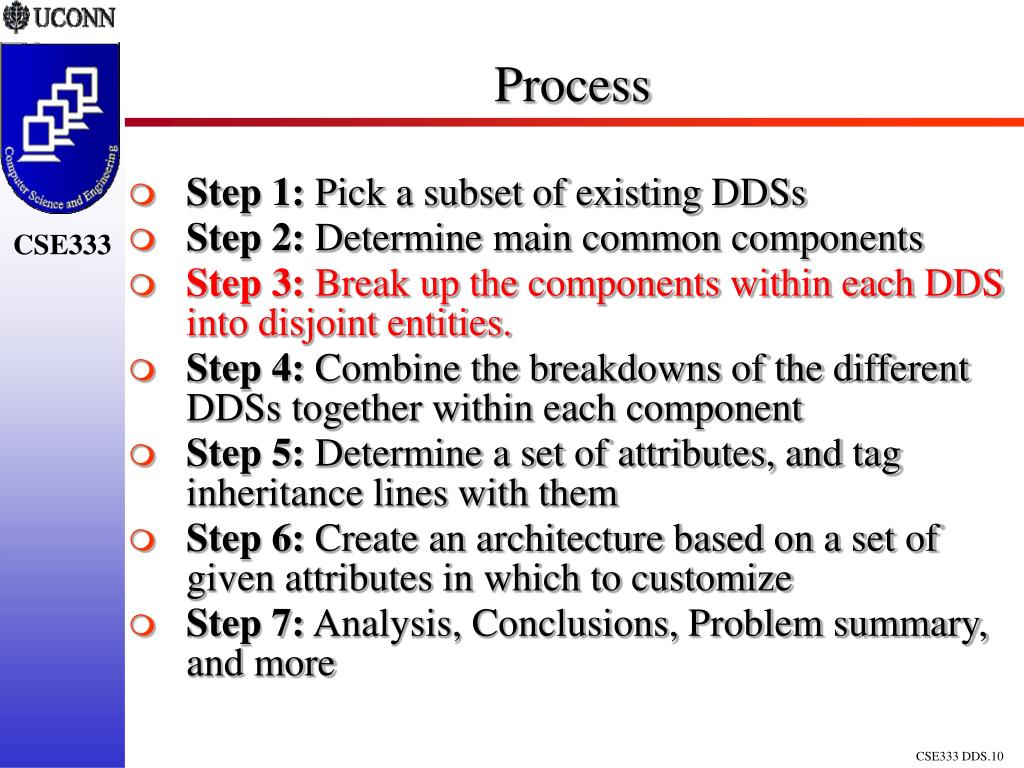

  10. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

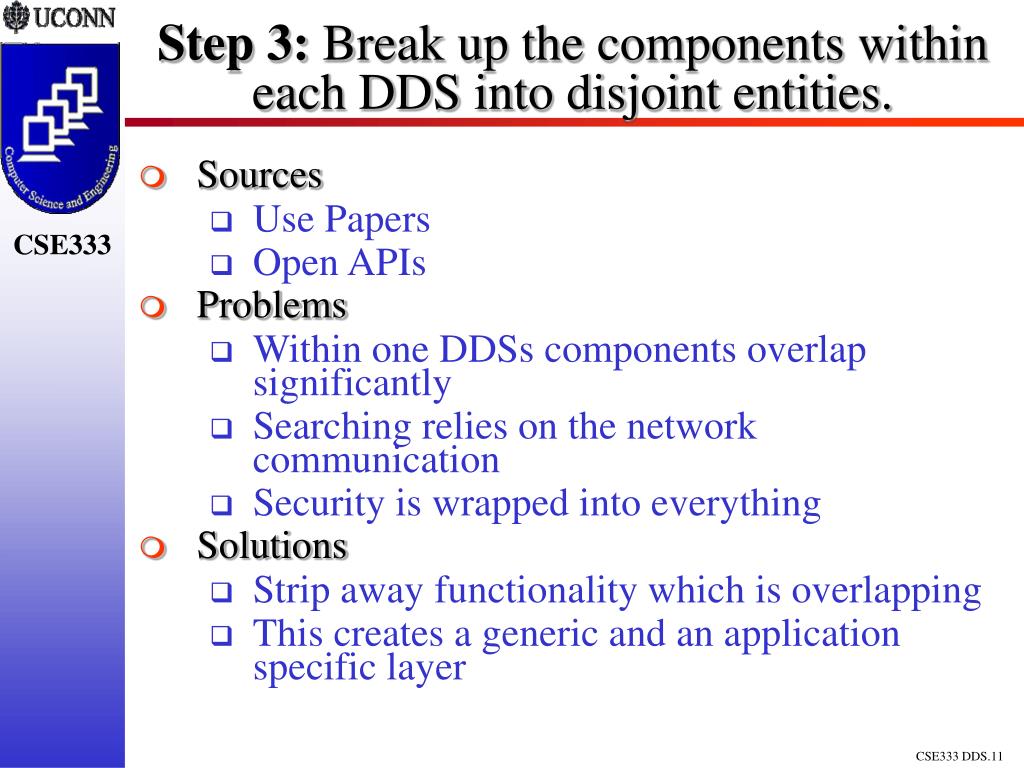

  11. Step 3: Break up the components within each DDS into disjoint entities. • Sources • Use Papers • Open APIs • Problems • Within one DDSs components overlap significantly • Searching relies on the network communication • Security is wrapped into everything • Solutions • Strip away functionality which is overlapping • This creates a generic and an application specific layer

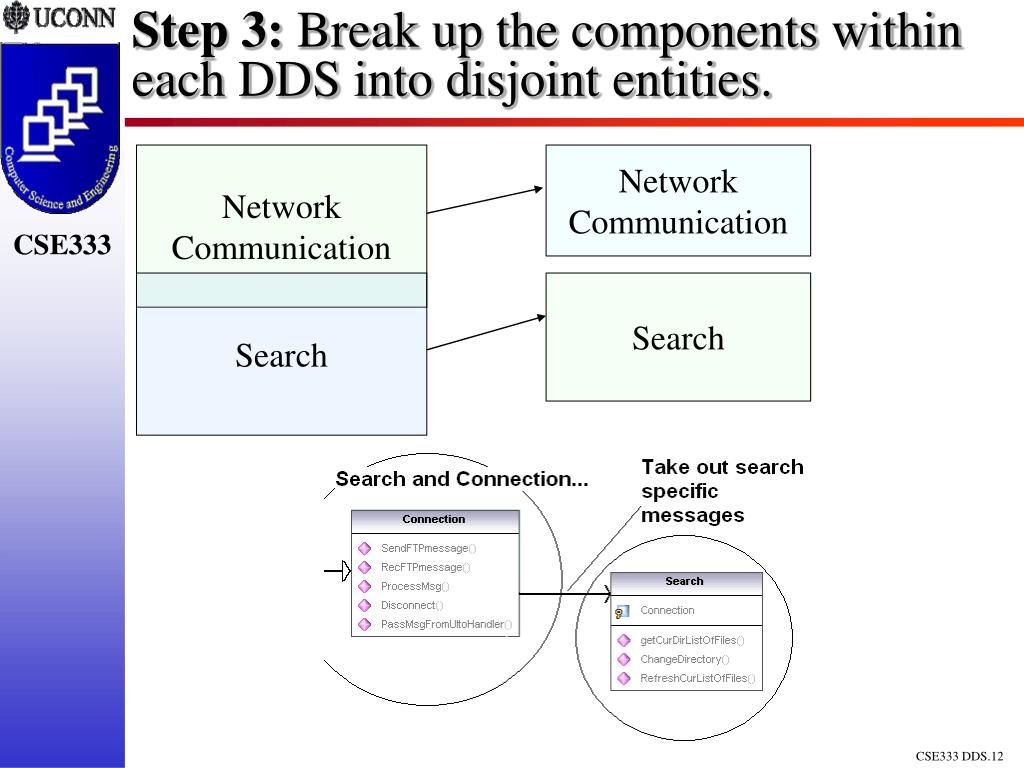

  12. Step 3: Break up the components within each DDS into disjoint entities. Network Communication Network Communication Search Search

  13. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

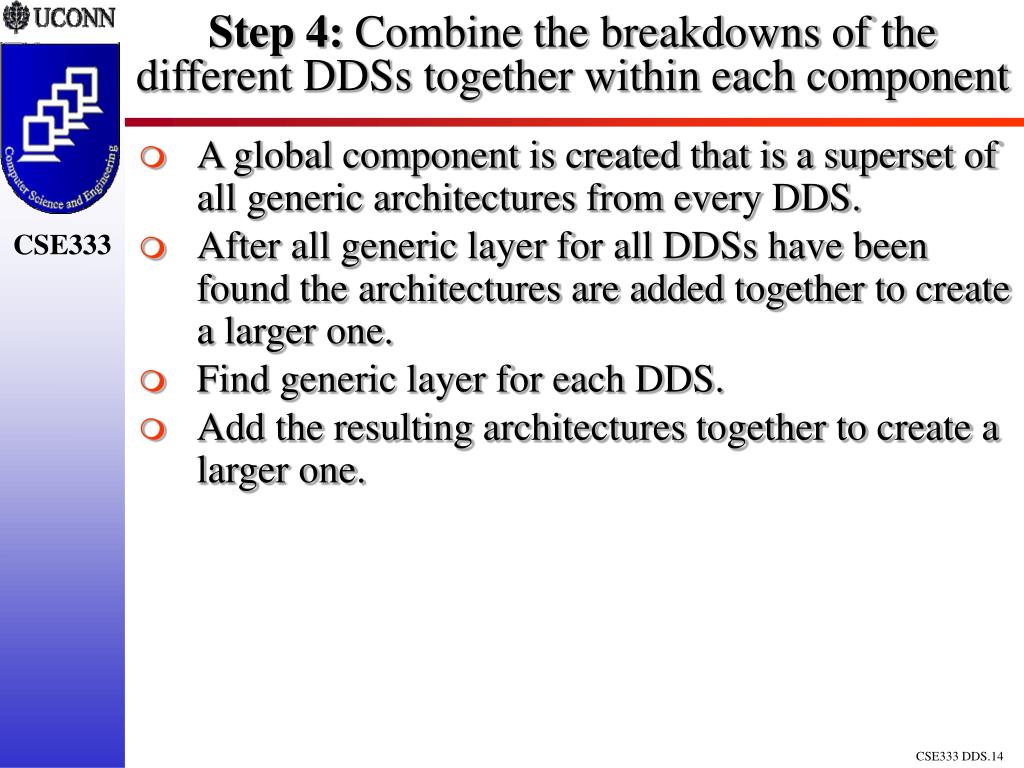

  14. Step 4: Combine the breakdowns of the different DDSs together within each component • A global component is created that is a superset of all generic architectures from every DDS. • After all generic layer for all DDSs have been found the architectures are added together to create a larger one. • Find generic layer for each DDS. • Add the resulting architectures together to create a larger one.

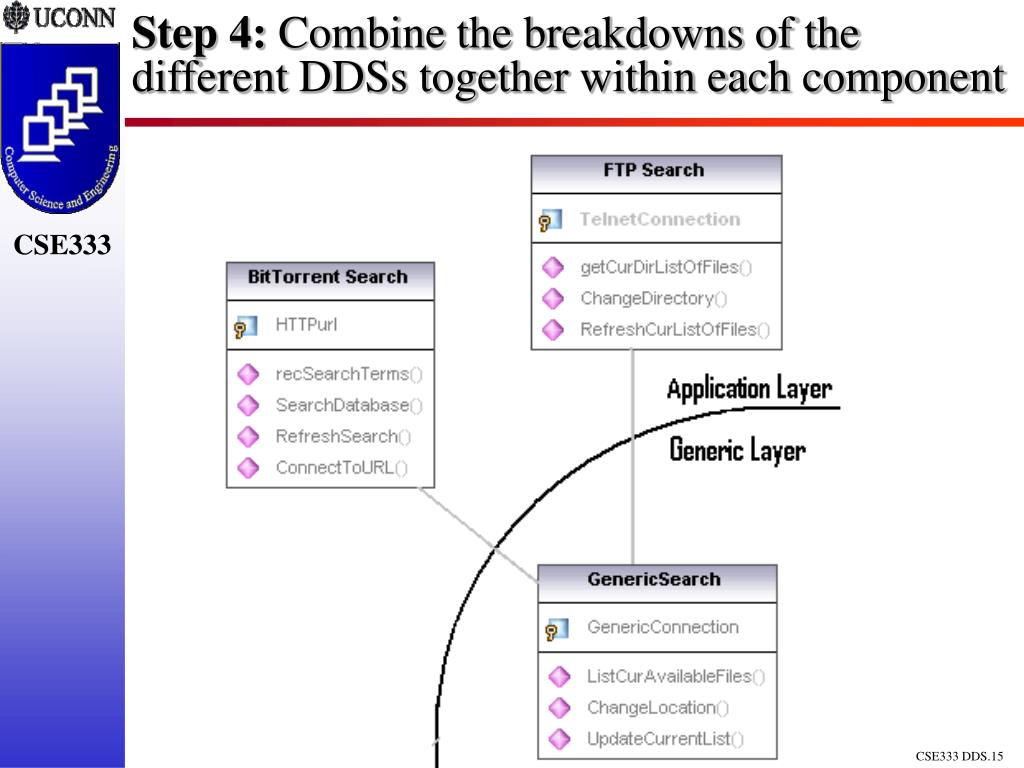

  15. Step 4: Combine the breakdowns of the different DDSs together within each component

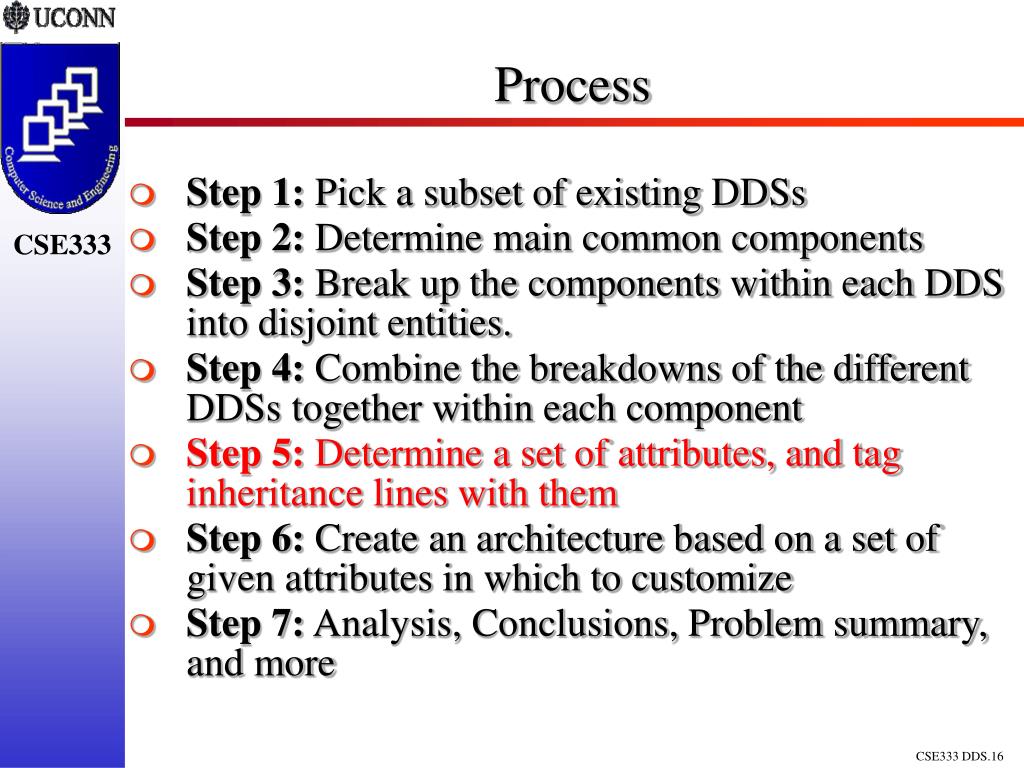

  16. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

  17. Step 5: Determine a set of attributes, and tag inheritance lines with them • Each component has been broken up into a generic and application layer. • The generic layers’ components are inherited by each DDS. • Attribute sets for each inheritance through the generic layer will be found.

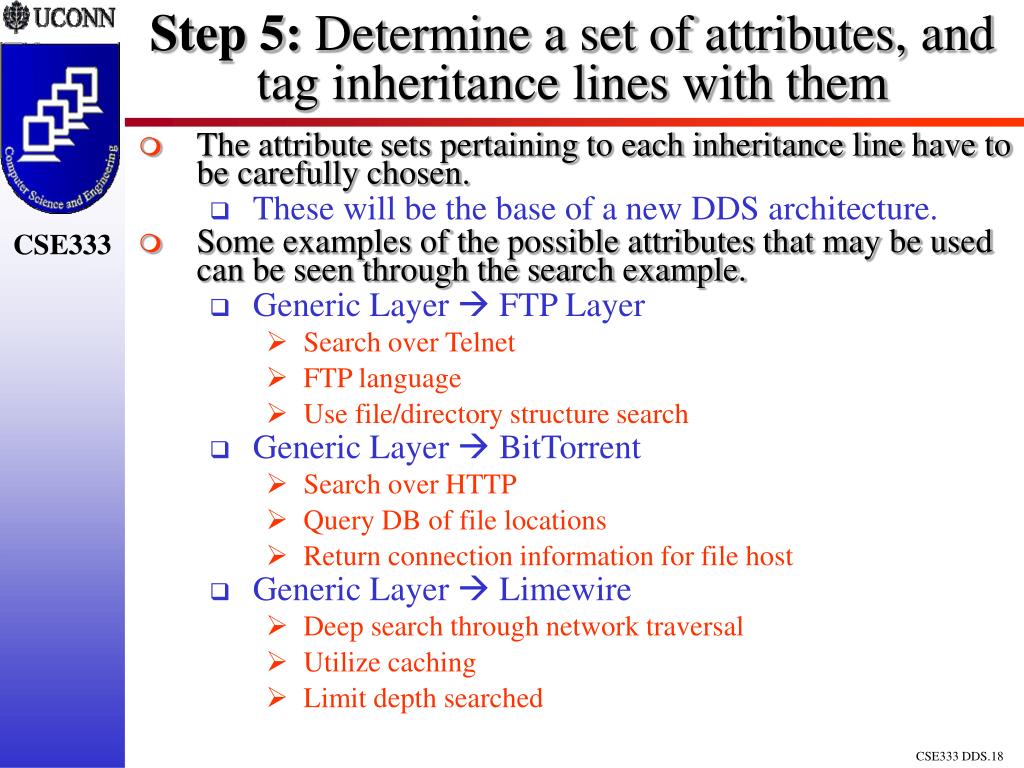

  18. Step 5: Determine a set of attributes, and tag inheritance lines with them • The attribute sets pertaining to each inheritance line have to be carefully chosen. • These will be the base of a new DDS architecture. • Some examples of the possible attributes that may be used can be seen through the search example. • Generic Layer  FTP Layer • Search over Telnet • FTP language • Use file/directory structure search • Generic Layer  BitTorrent • Search over HTTP • Query DB of file locations • Return connection information for file host • Generic Layer  Limewire • Deep search through network traversal • Utilize caching • Limit depth searched

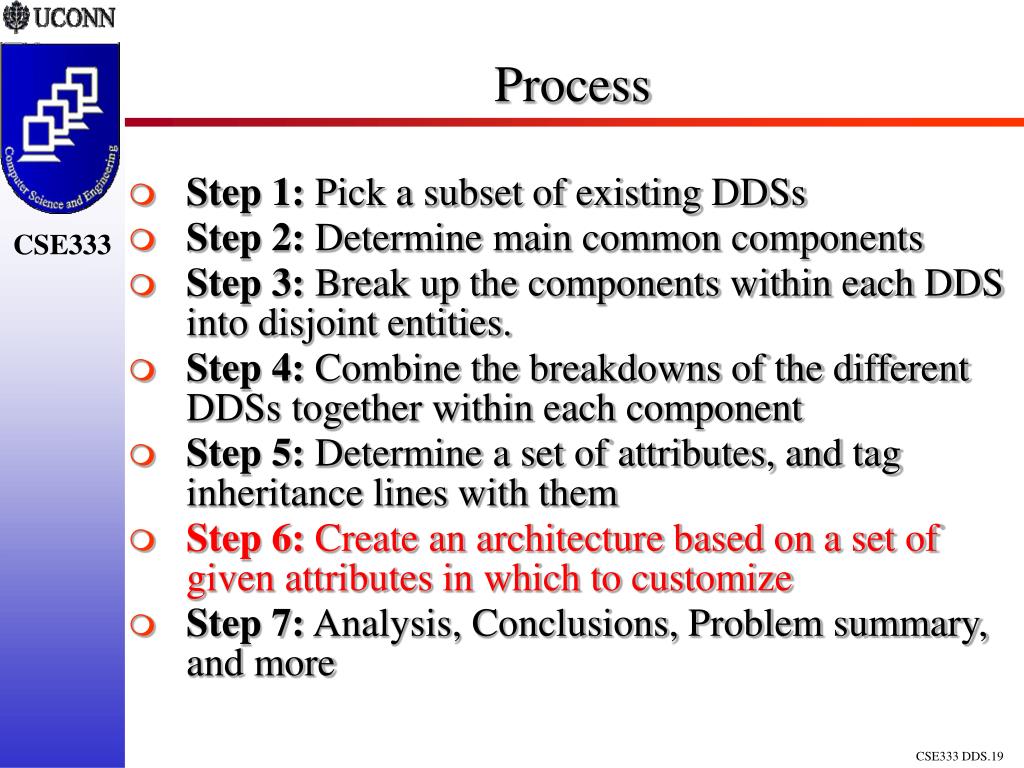

  19. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

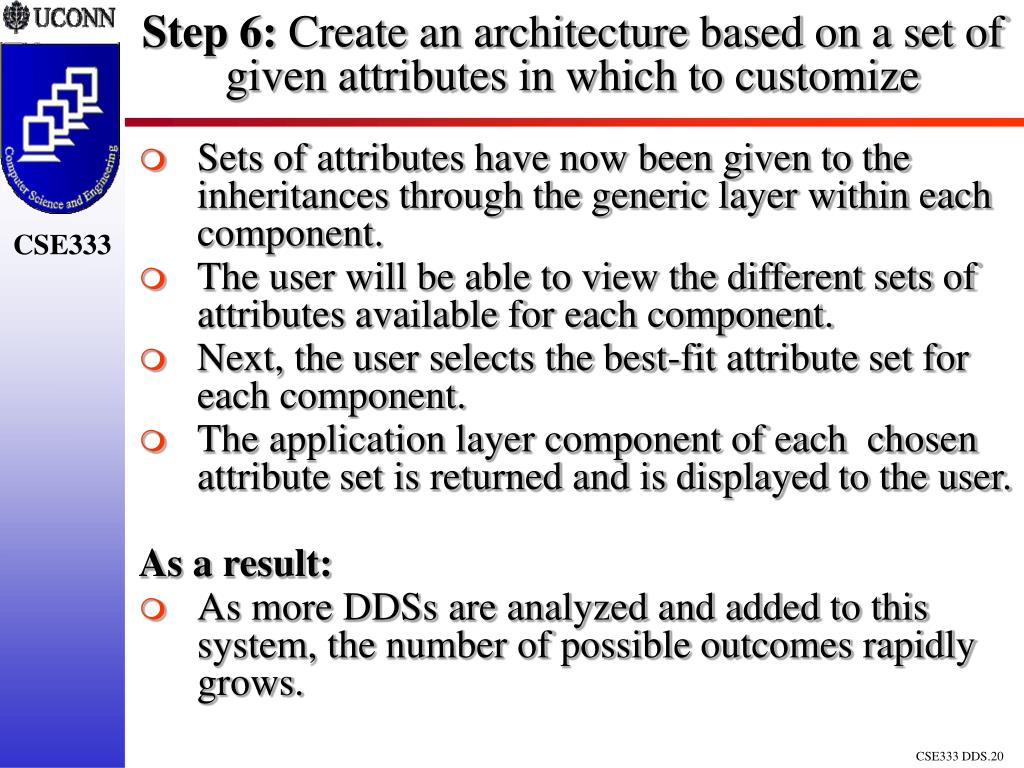

  20. Step 6: Create an architecture based on a set of given attributes in which to customize • Sets of attributes have now been given to the inheritances through the generic layer within each component. • The user will be able to view the different sets of attributes available for each component. • Next, the user selects the best-fit attribute set for each component. • The application layer component of each chosen attribute set is returned and is displayed to the user. As a result: • As more DDSs are analyzed and added to this system, the number of possible outcomes rapidly grows.

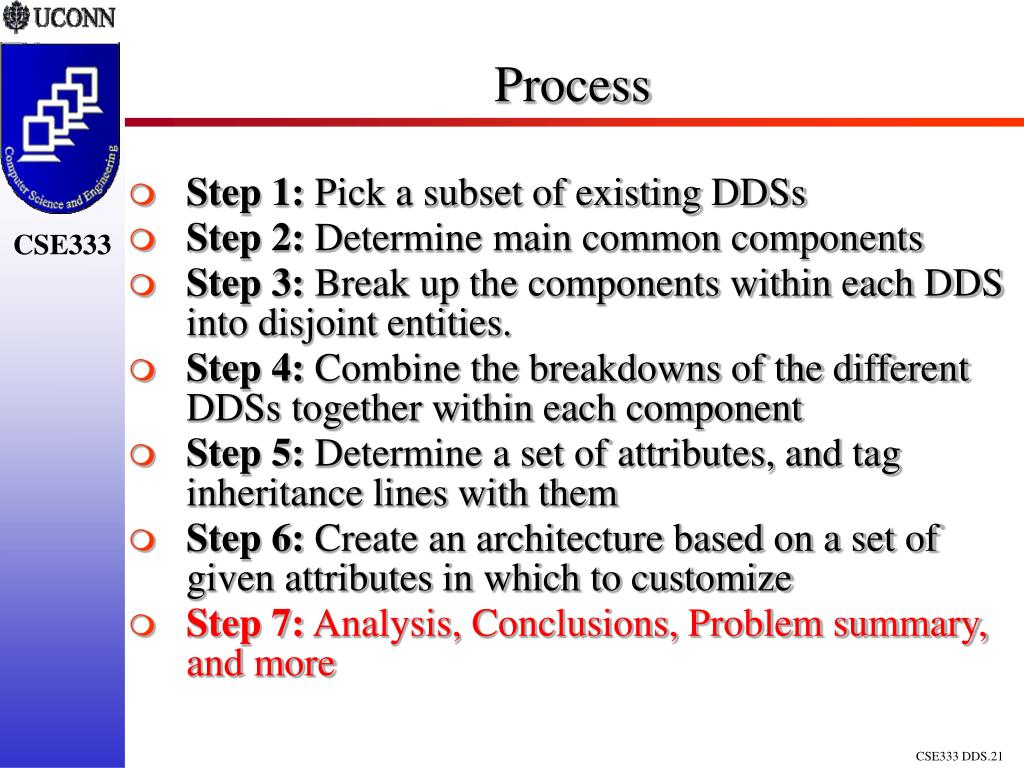

  21. Process • Step 1: Pick a subset of existing DDSs • Step 2: Determine main common components • Step 3: Break up the components within each DDS into disjoint entities. • Step 4: Combine the breakdowns of the different DDSs together within each component • Step 5: Determine a set of attributes, and tag inheritance lines with them • Step 6: Create an architecture based on a set of given attributes in which to customize • Step 7: Analysis, Conclusions, Problem summary, and more

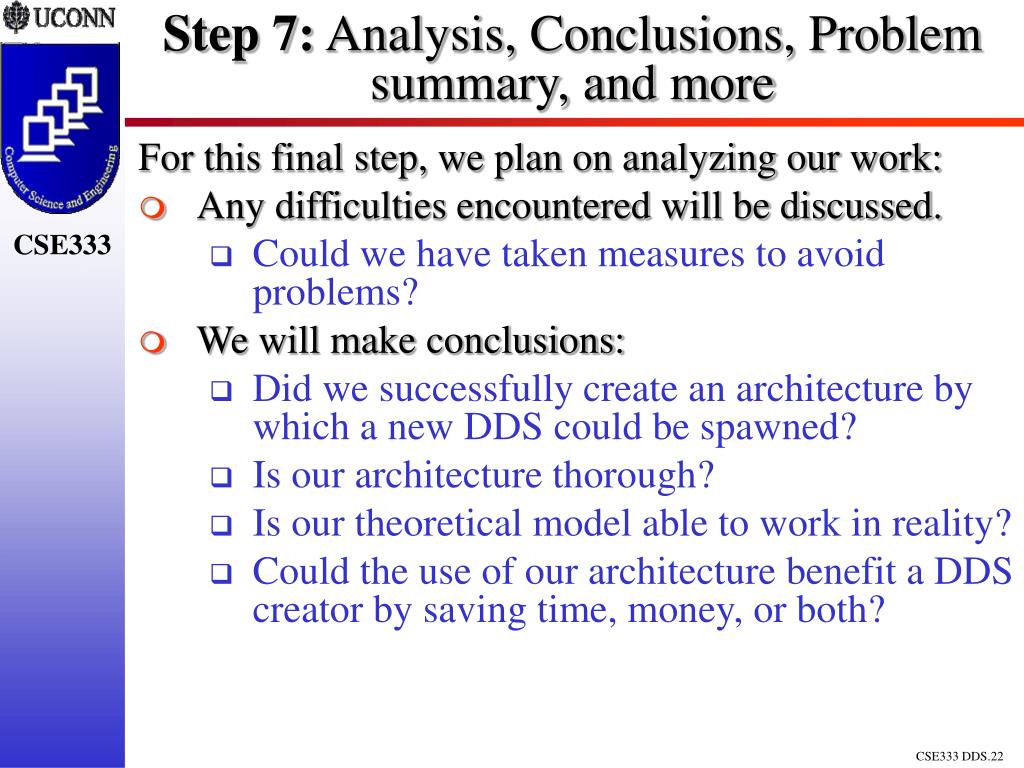

  22. Step 7: Analysis, Conclusions, Problem summary, and more For this final step, we plan on analyzing our work: • Any difficulties encountered will be discussed. • Could we have taken measures to avoid problems? • We will make conclusions: • Did we successfully create an architecture by which a new DDS could be spawned? • Is our architecture thorough? • Is our theoretical model able to work in reality? • Could the use of our architecture benefit a DDS creator by saving time, money, or both?

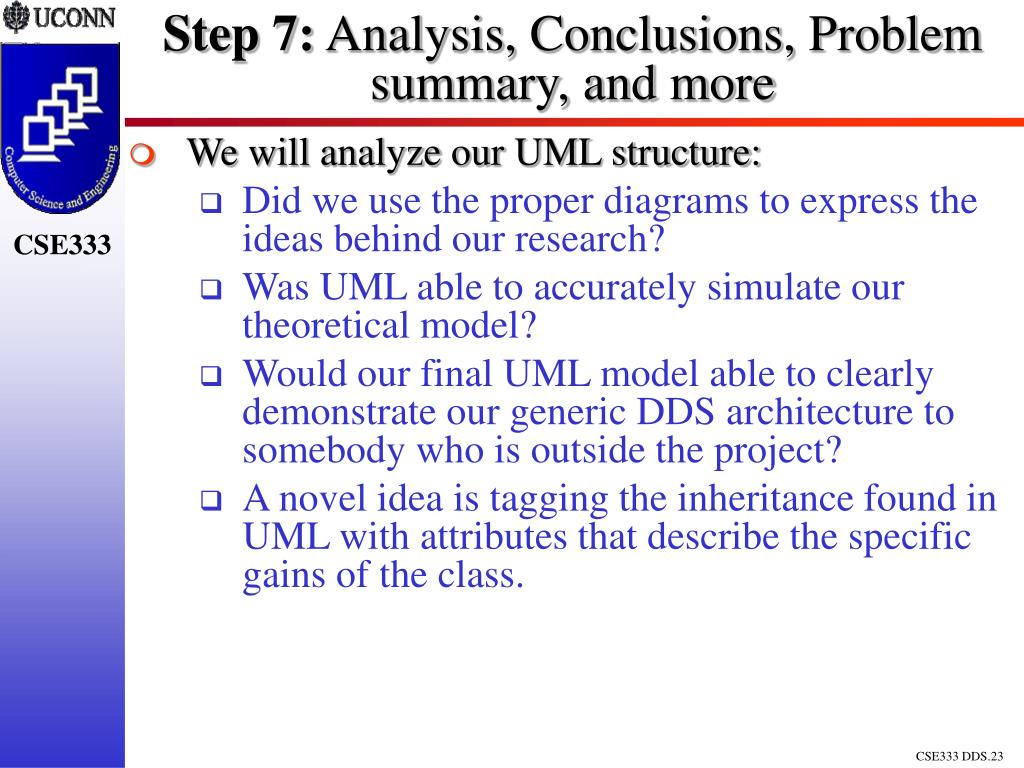

  23. Step 7: Analysis, Conclusions, Problem summary, and more • We will analyze our UML structure: • Did we use the proper diagrams to express the ideas behind our research? • Was UML able to accurately simulate our theoretical model? • Would our final UML model able to clearly demonstrate our generic DDS architecture to somebody who is outside the project? • A novel idea is tagging the inheritance found in UML with attributes that describe the specific gains of the class.

  24. Individual Focus • Each group member took a different DDS to break down and analyze. • Solomon Berhe: Limewire • Jeff Peck: DC++ • Tom Puzak: FTP • Nate Viniconis: BitTorrent • The responsibilities include: • Creating an overview UML class diagram describing the workings of the application • Breaking the UML diagram into the main components • Proposing a generic layer for each main component contained within.

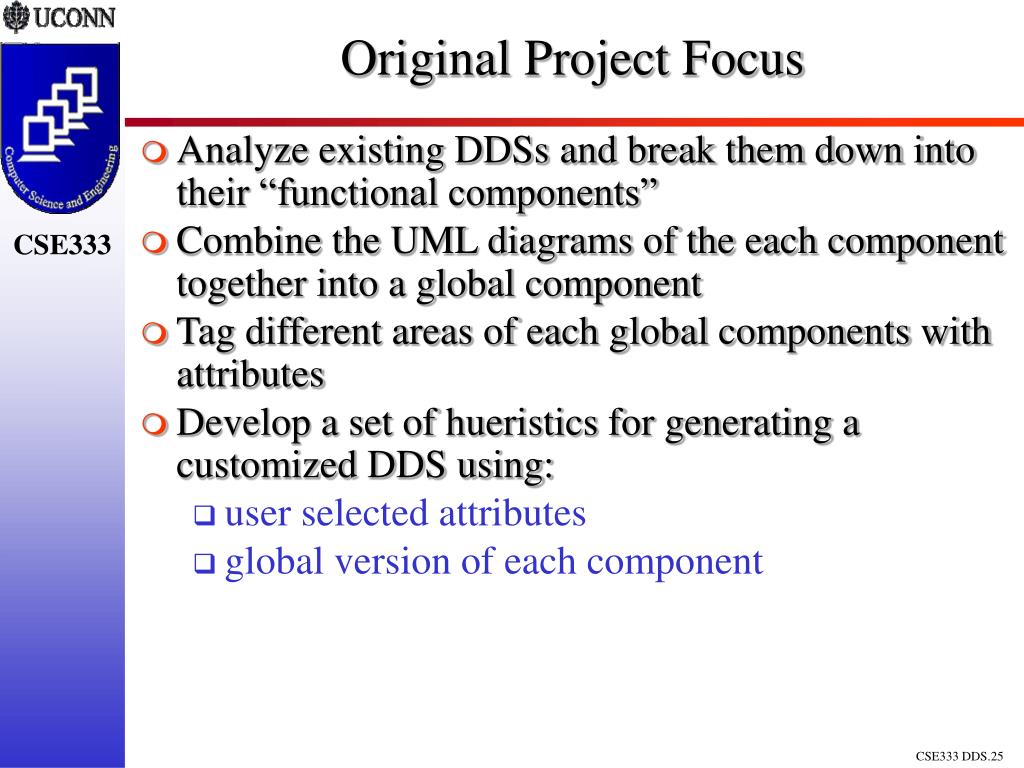

  25. Original Project Focus • Analyze existing DDSs and break them down into their “functional components” • Combine the UML diagrams of the each component together into a global component • Tag different areas of each global components with attributes • Develop a set of hueristics for generating a customized DDS using: • user selected attributes • global version of each component

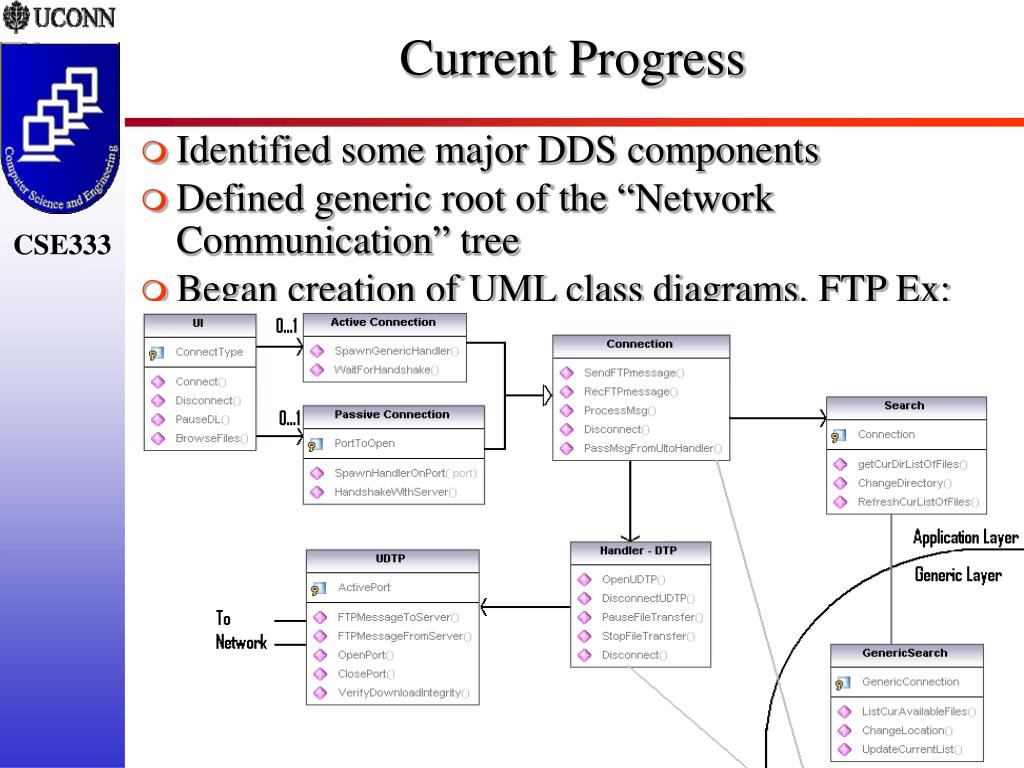

  26. Current Progress • Identified some major DDS components • Defined generic root of the “Network Communication” tree • Began creation of UML class diagrams. FTP Ex:

  27. Planned Future Activities • Finalize list of common components • Diagram components with UML • Discretize overlapping components in UML diagrams • Break down components into their most generic pieces • Develop unified view of broken down components • Inheritence hierarchy

  28. Future Activities (Continued) • Describe inheritence in terms of attributes • Propose method for creating customized DDS architectures based on attributes • Analyze the performance the architecture engine

  29. References (1)

  30. References (2)
