QsoNet the new way of radio?

VOIP] "is the most important shift in the entire history of modern communication since the invention of the telephone." FCC Chairman, Michael Powell. QsoNet the new way of radio?.

pavel
Télécharger la présentation

QsoNet the new way of radio?

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. VOIP] "is the most important shift in the entire history of modern communication since the invention of the telephone." FCC Chairman, Michael Powell

  2. QsoNet the new way of radio? • QsoNet uses the internet to receive audio signals from a ham radio transmitting station, then instantly reflects the audio back to all stations listening on that frequency. There is no RF. Everything is done over the internet. The result is a simulated ionosphere for worldwide amateur radio communication. Stations can use either voice or data. • QsoNet works with dialup, ADSL and cable internet connections. There is no need to configure router ports. The network consists of an array of internet servers which provide streaming voip audio between stations. After installing transceiver software, QsoNet stations are connected to a central server by a single, outbound TCP connection.

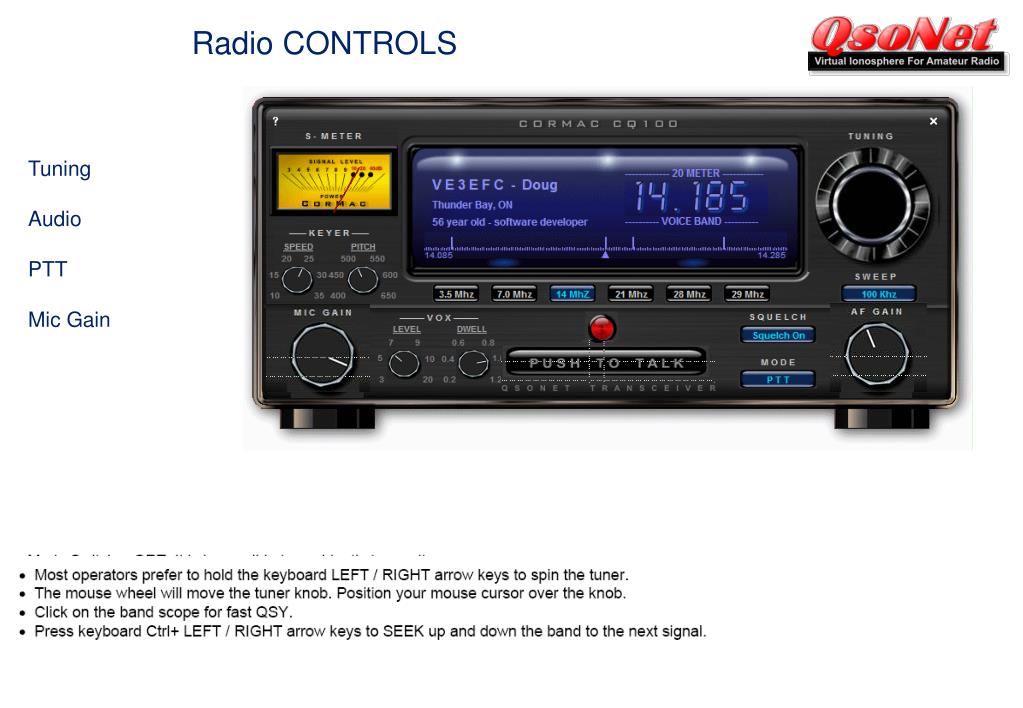

  3. Radio CONTROLS Tuning Audio PTT Mic Gain

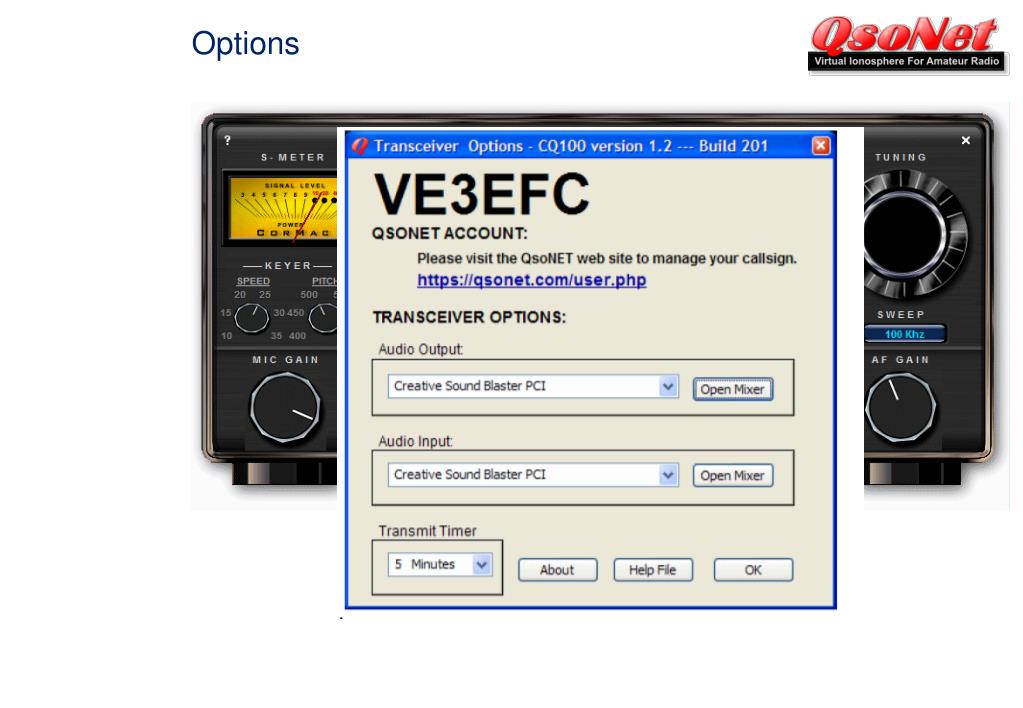

  4. Options

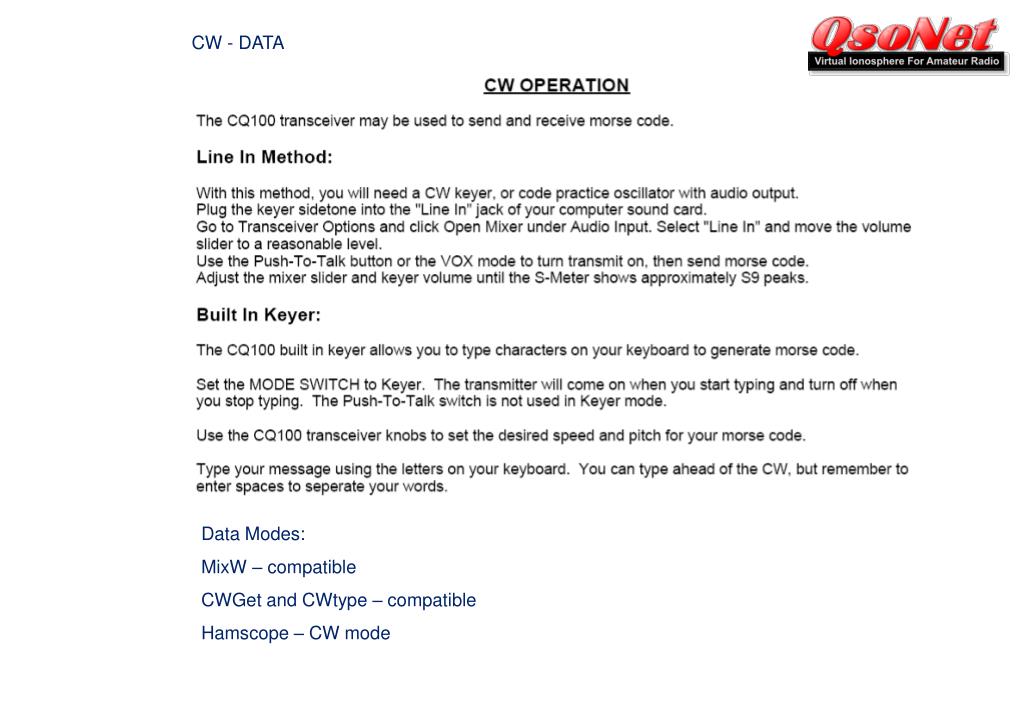

  5. CW - DATA Data Modes: MixW – compatible CWGet and CWtype – compatible Hamscope – CW mode

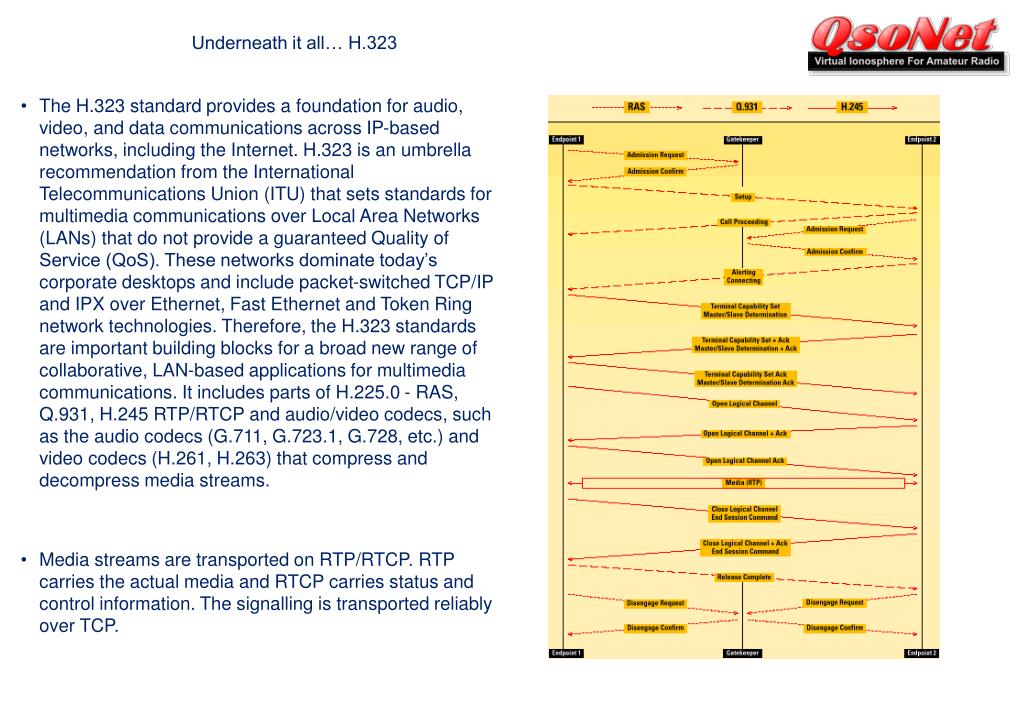

  6. Underneath it all… H.323 • The H.323 standard provides a foundation for audio, video, and data communications across IP-based networks, including the Internet. H.323 is an umbrella recommendation from the International Telecommunications Union (ITU) that sets standards for multimedia communications over Local Area Networks (LANs) that do not provide a guaranteed Quality of Service (QoS). These networks dominate today’s corporate desktops and include packet-switched TCP/IP and IPX over Ethernet, Fast Ethernet and Token Ring network technologies. Therefore, the H.323 standards are important building blocks for a broad new range of collaborative, LAN-based applications for multimedia communications. It includes parts of H.225.0 - RAS, Q.931, H.245 RTP/RTCP and audio/video codecs, such as the audio codecs (G.711, G.723.1, G.728, etc.) and video codecs (H.261, H.263) that compress and decompress media streams. • Media streams are transported on RTP/RTCP. RTP carries the actual media and RTCP carries status and control information. The signalling is transported reliably over TCP.

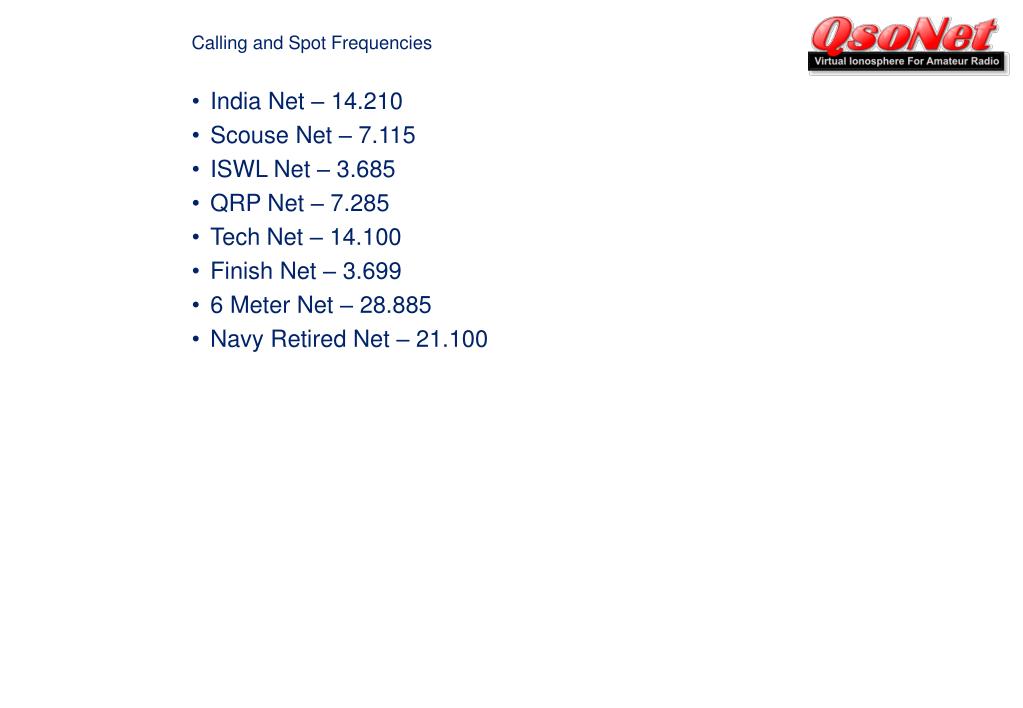

  7. Calling and Spot Frequencies • India Net – 14.210 • Scouse Net – 7.115 • ISWL Net – 3.685 • QRP Net – 7.285 • Tech Net – 14.100 • Finish Net – 3.699 • 6 Meter Net – 28.885 • Navy Retired Net – 21.100

  8. Web Address : www.qsonet.com • Cost : $32 USD per year • Must be a registered amateur to use • And no obligation 90day trial period
