  1. Flow Control

  2. Overview • Open Loop flow control • No feedback, traffic shaping • Closed Loop control • Feedback used to do source to destination control. • Absolute peak control • Allocating peak bandwidth for each channel. No statistical multiplexing possible

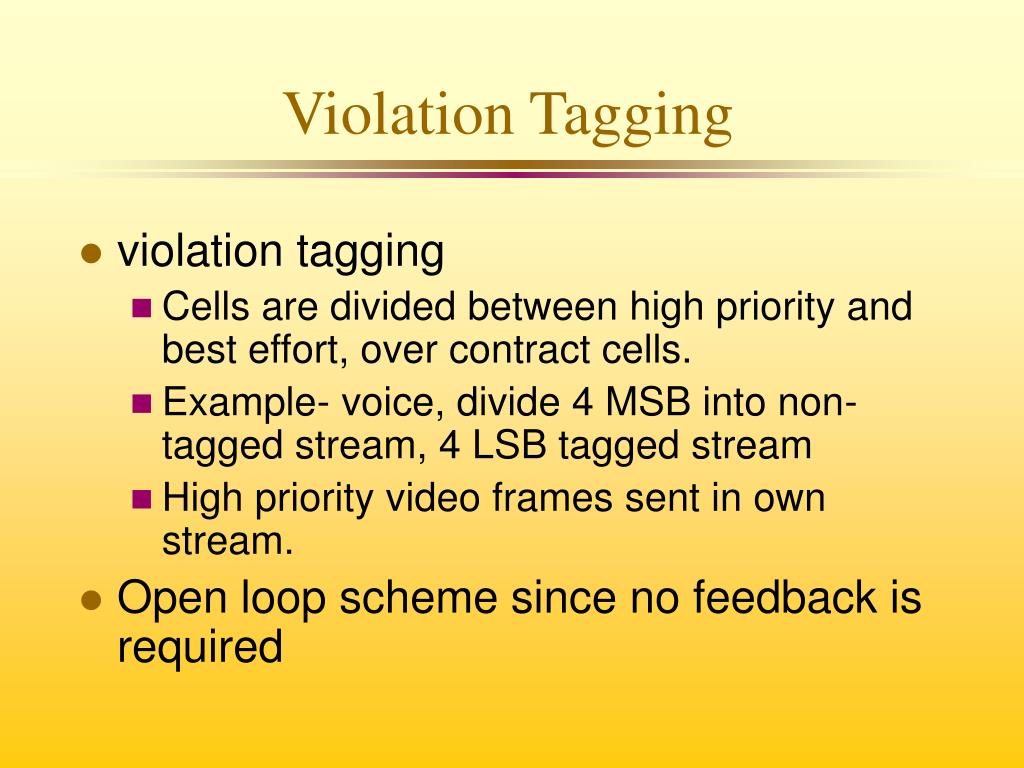

  3. Violation Tagging • violation tagging • Cells are divided between high priority and best effort, over contract cells. • Example- voice, divide 4 MSB into non-tagged stream, 4 LSB tagged stream • High priority video frames sent in own stream. • Open loop scheme since no feedback is required

  4. Congestion • Congestion • Delays increase rapidly • Buffers overflow • Cells are dropped • Throughput drops • Deadlock

  5. Congestion Control • Recognize congestion early before cells are dropped • Send signal to source • Source invokes control

  6. Recognizing Congestion • Average queue length threshold • TCP uses timeout • Global queue occupancy?

  7. Congestion Indication • Forward Explicit Congestion Notification FECN bit in Payload type field • Set in packet to destination • Backward Explicit Congestion Notification BECN • Set in packet in reverse direction, to source

  8. Invoking Control • Window Control • Specifies a limit on the number of unacknowledged segments • Window size can be lowered on congestion • Rate Control • Leaky bucket rate varied by congestion information (RM cells) • Credit based control • Source limited to a specified number of cells before waiting for more credits

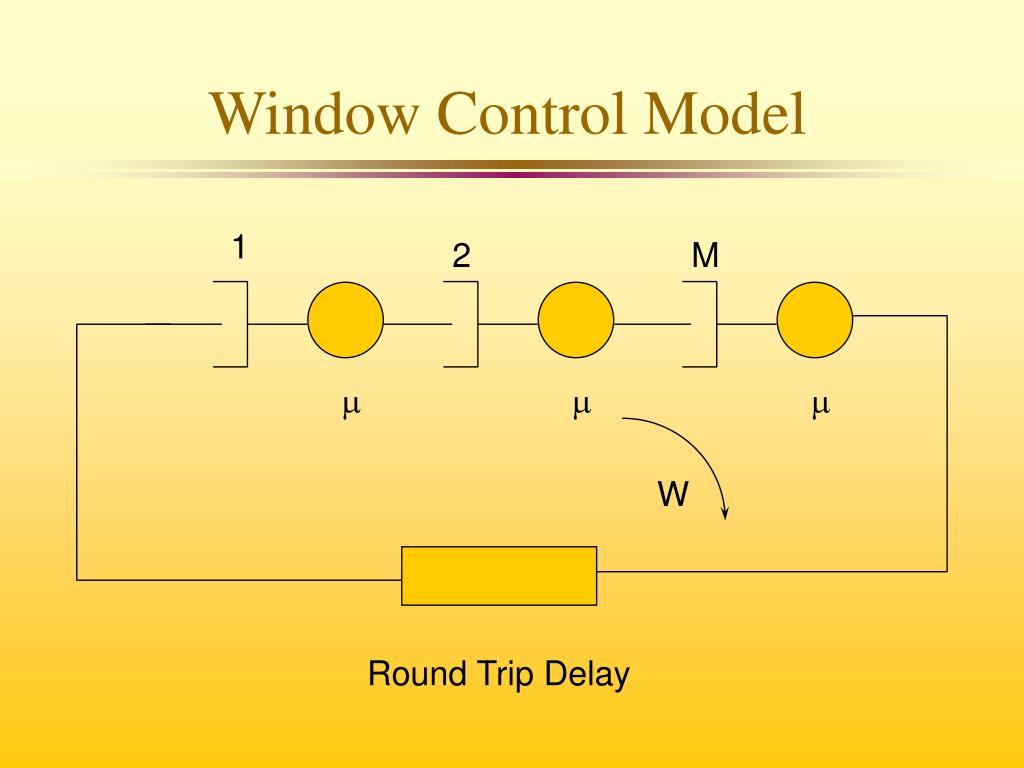

  9. m m m Window Control Model 1 2 M W Round Trip Delay

  10. Window based control • Congestion recognized by queue thresholds • W=dW exponential reduction Q(q) > L • d < 1 • W=W+b linear increase Q(q) < L

  11. Explicit Binary Feedback • Ramakrishnan and Jain • Similar to FECN • Set bit in acknowledgment if congestion in switch • If 50% of acks have bit set W=.875W • Otherwise W = W+1 • Internet uses W=.5W

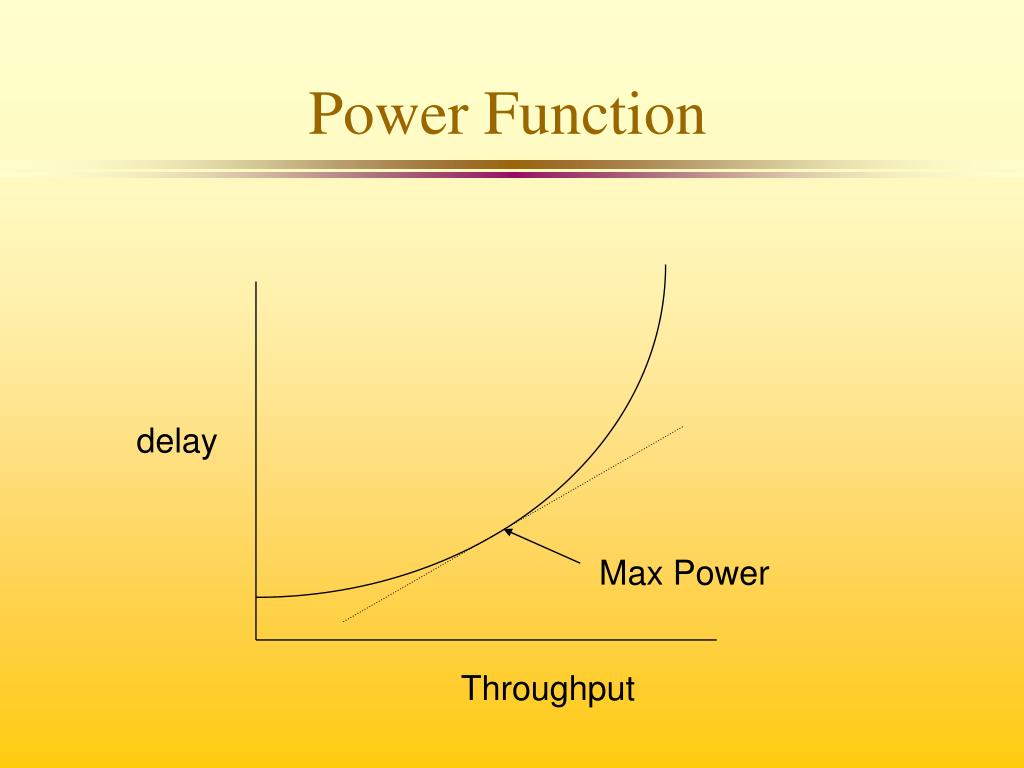

  12. Power Function delay Max Power Throughput

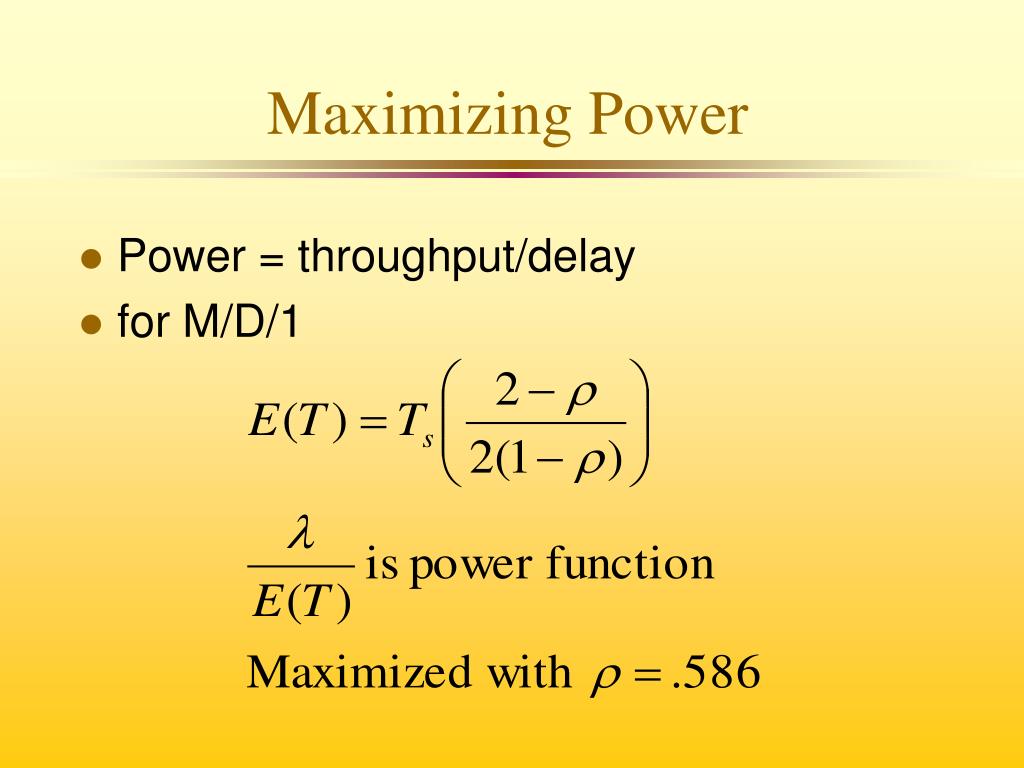

  13. Maximizing Power • Power = throughput/delay • for M/D/1

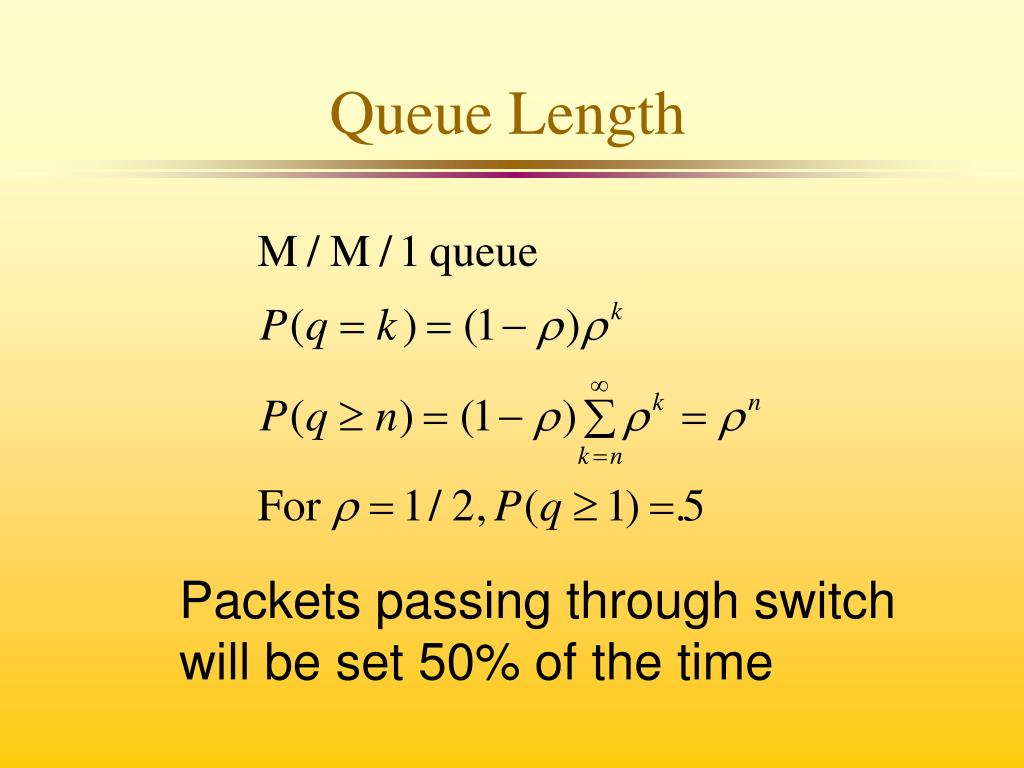

  14. Queue Length Packets passing through switch will be set 50% of the time

  15. Rule • Use rule that if 50% of bits are set, reduce rate

  16. Oscillations • methods proposed to dampen oscillations • Base action on average queue level, not current level • Reduce window size at a smaller rate

  17. Maximum Rate

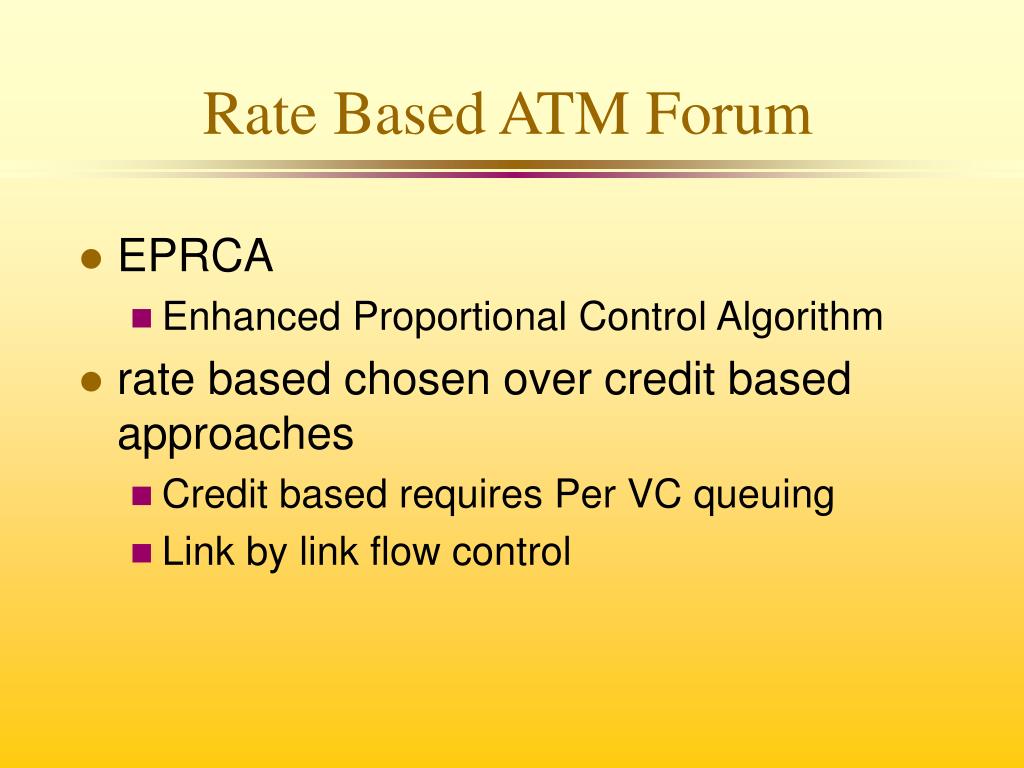

  18. Rate Based ATM Forum • EPRCA • Enhanced Proportional Control Algorithm • rate based chosen over credit based approaches • Credit based requires Per VC queuing • Link by link flow control

  19. EPRCA • VC transmits at Allowed Cell Rate (ACR) • Rate is reduced by ADR after each cell • Every Nrm cells, generate RM cell in backward direction • When received from Destination, increment rate by Nrm*ADR • Rate is reduced if RM cell is lost

  20. RM Cells • RM Cell • Resource Management Cell • PT=110 • Backward or forward indication • Congestion Indication set by destination if EFCI bit is set • Explicit Cell Rate ER, Minimum Cell Rate MCR, Current Cell Rate CCR, Allowable Cell Rate ACR, Initial Cell Rate ICR

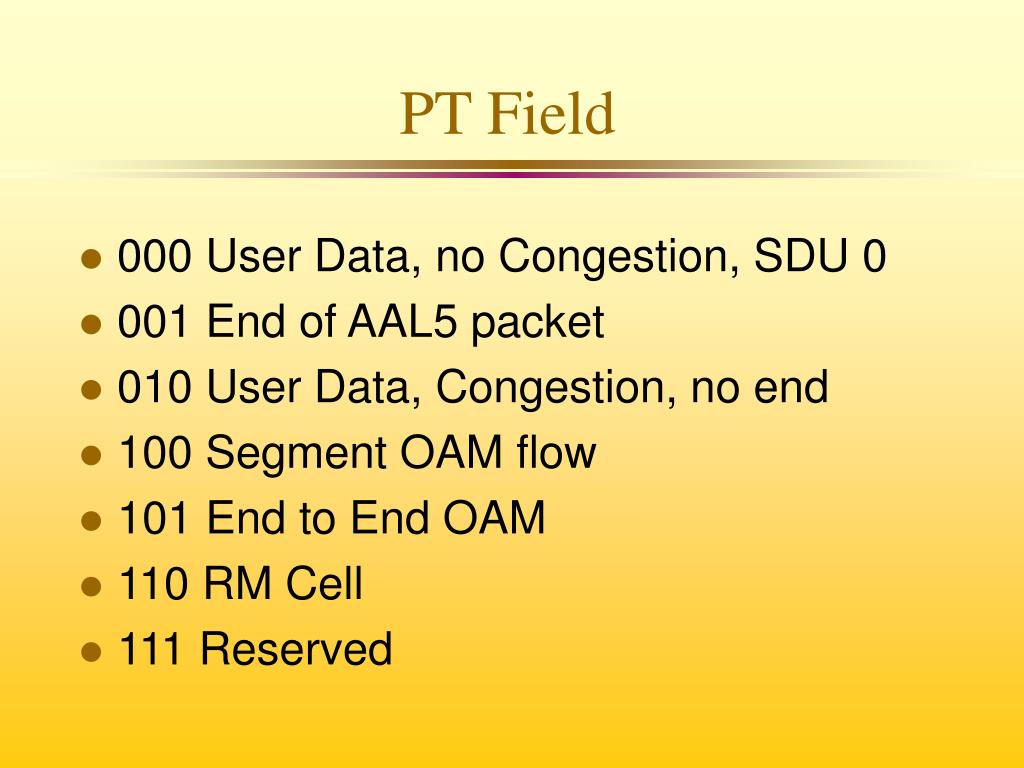

  21. PT Field • 000 User Data, no Congestion, SDU 0 • 001 End of AAL5 packet • 010 User Data, Congestion, no end • 100 Segment OAM flow • 101 End to End OAM • 110 RM Cell • 111 Reserved

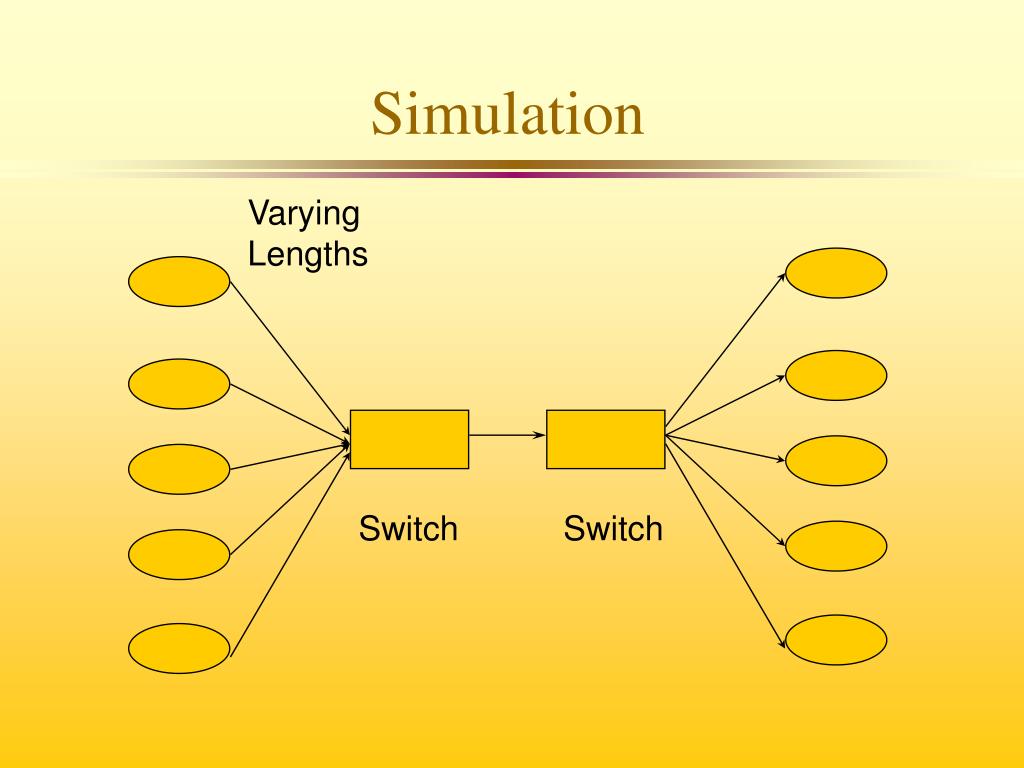

  22. Simulation Varying Lengths Switch Switch

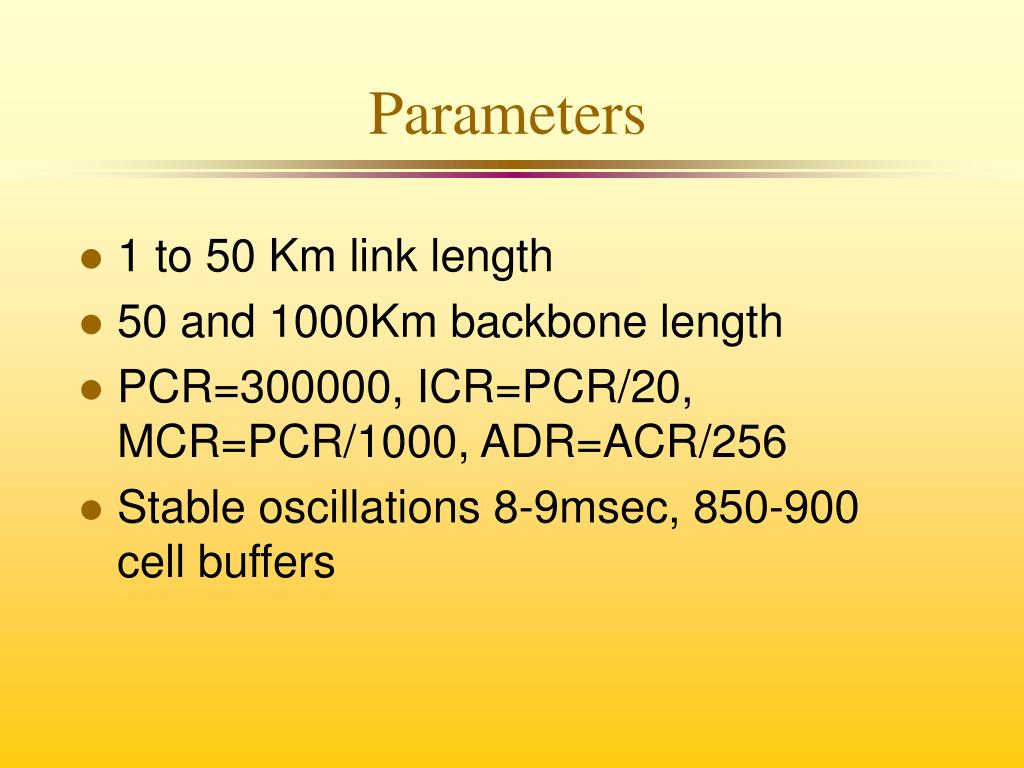

  23. Parameters • 1 to 50 Km link length • 50 and 1000Km backbone length • PCR=300000, ICR=PCR/20, MCR=PCR/1000, ADR=ACR/256 • Stable oscillations 8-9msec, 850-900 cell buffers

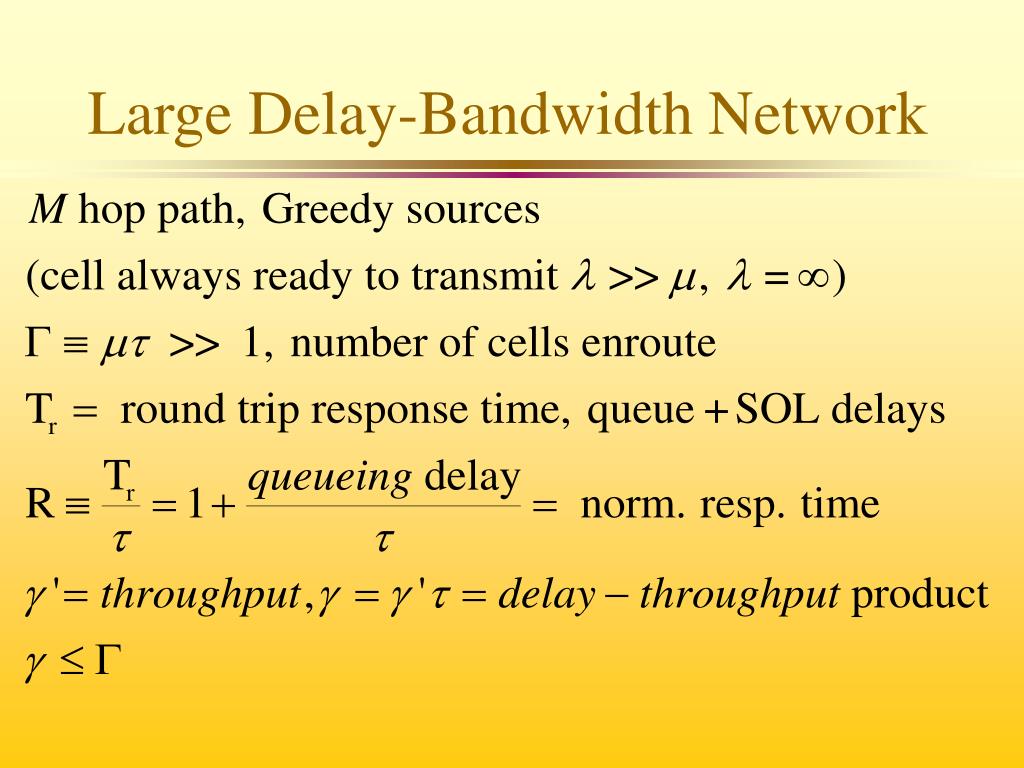

  24. Large Delay-Bandwidth Network

  25. m m m Heavy Traffic Case M Switches 1 2 M W Round Trip Delay

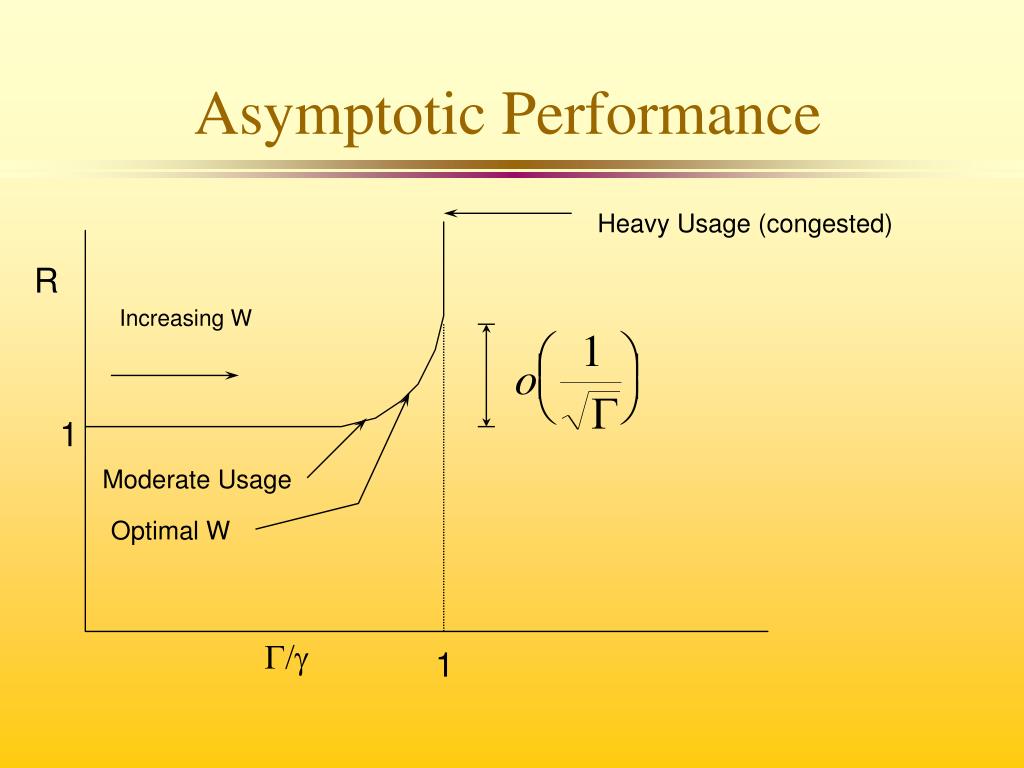

  26. Asymptotic Performance Heavy Usage (congested) R Increasing W 1 Moderate Usage Optimal W G/g 1

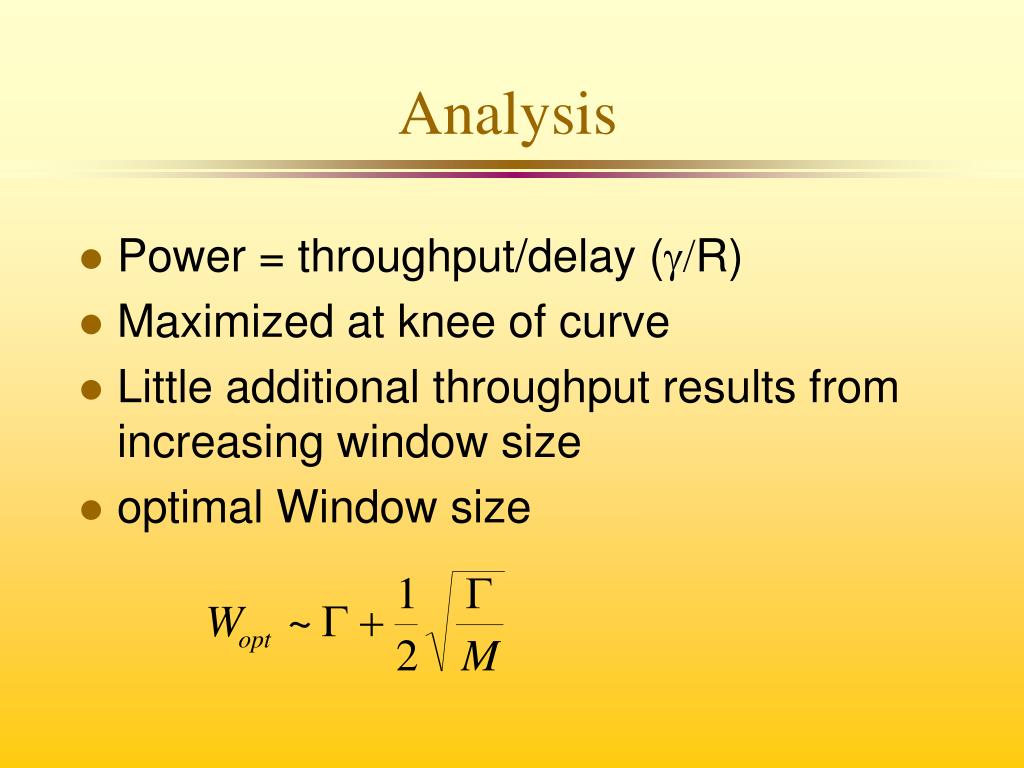

  27. Analysis • Power = throughput/delay (g/R) • Maximized at knee of curve • Little additional throughput results from increasing window size • optimal Window size

  28. Example • a) 2.4Gbps, 1000Km path, 10 switches • G=28000 cells • b) 45Mbps, 1000Km path, 10 switches • G=530 cells

  29. Rule of thumb • set W to G

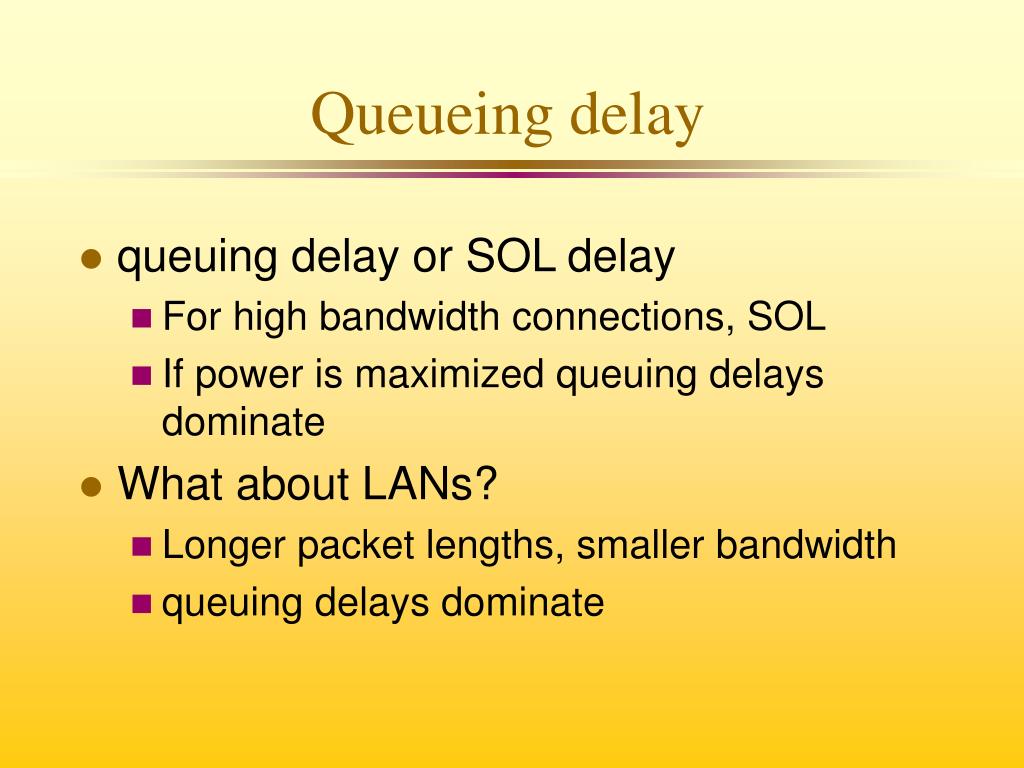

  30. Queueing delay • queuing delay or SOL delay • For high bandwidth connections, SOL • If power is maximized queuing delays dominate • What about LANs? • Longer packet lengths, smaller bandwidth • queuing delays dominate

  31. Other Conclusions • Where are most of the cells in the network? Are they in buffers, or on the communication links? • Most of the cells are on the links in high bandwidth-delay networks

  32. Little’s Law

  33. Mitra’a algorithm • Stay at maximum power point • As throughput increases, decrease window size • Maintain equations

  34. Delayed-feedback, rate-control • Unstable equilibrium point • queue length q= • oscillation period O(t) • fluxuations bounded by • throughput within • response time at most
