  1. Cplant™ I/OA Quick Discussion and How-ToRuth Klundt (rklundt@sandia.gov)Lee Ward (lee@sandia.gov)Dept. 9223

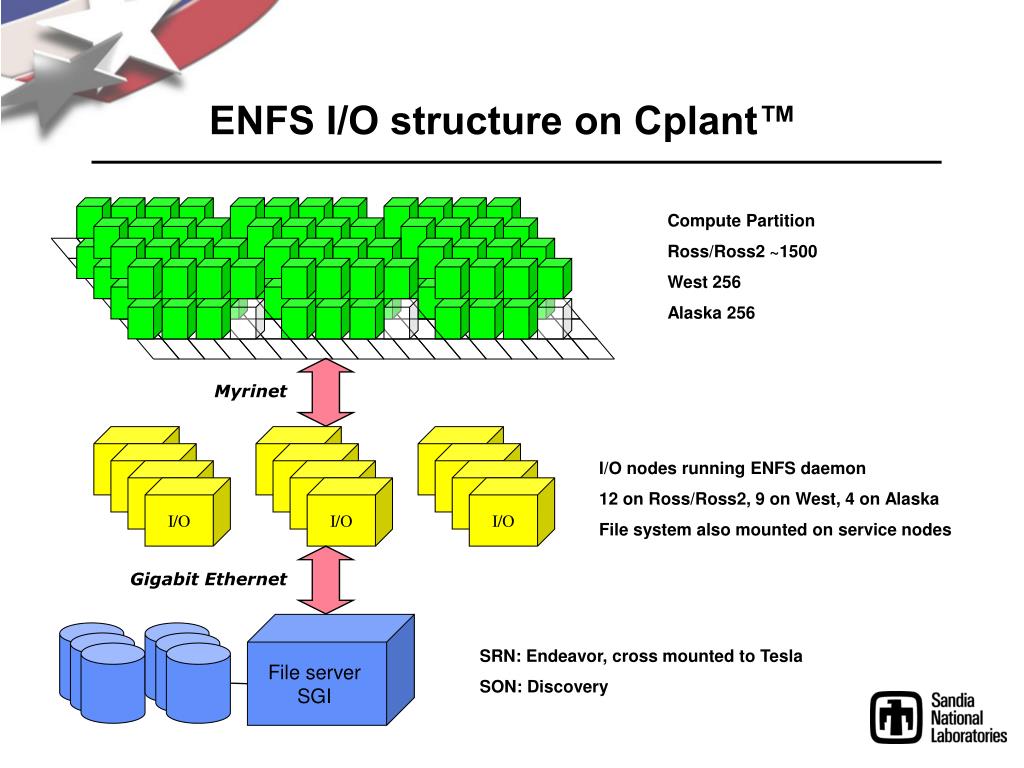

  2. I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O I/O File server SGI ENFS I/O structure on Cplant™ Compute Partition Ross/Ross2 ~1500 West 256 Alaska 256 Myrinet I/O nodes running ENFS daemon 12 on Ross/Ross2, 9 on West, 4 on Alaska File system also mounted on service nodes Gigabit Ethernet SRN: Endeavor, cross mounted to Tesla SON: Discovery

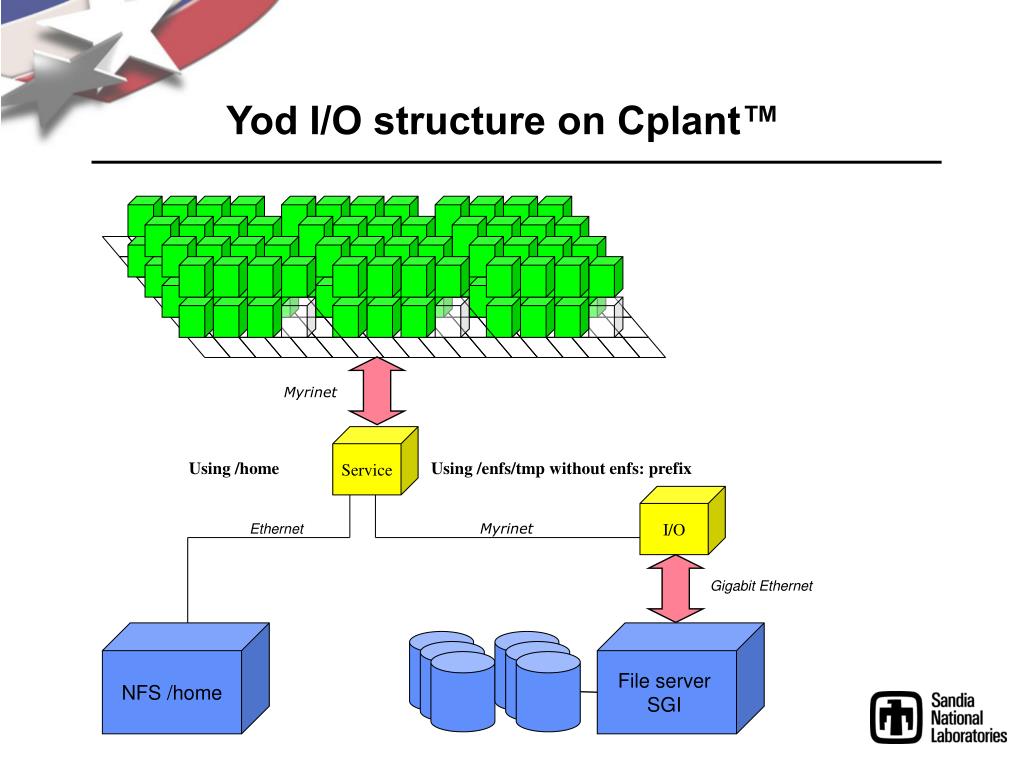

  3. I/O File server SGI Yod I/O structure on Cplant™ Myrinet Service Using /home Using /enfs/tmp without enfs: prefix Ethernet Myrinet Gigabit Ethernet NFS /home

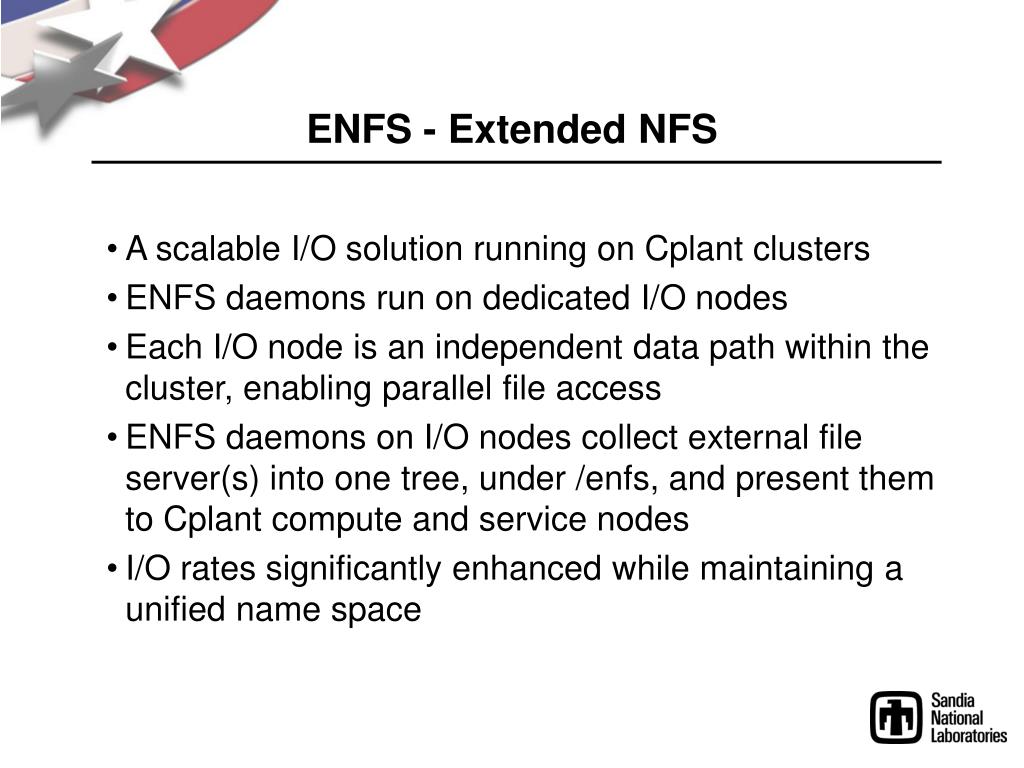

  4. ENFS - Extended NFS • A scalable I/O solution running on Cplant clusters • ENFS daemons run on dedicated I/O nodes • Each I/O node is an independent data path within the cluster, enabling parallel file access • ENFS daemons on I/O nodes collect external file server(s) into one tree, under /enfs, and present them to Cplant compute and service nodes • I/O rates significantly enhanced while maintaining a unified name space

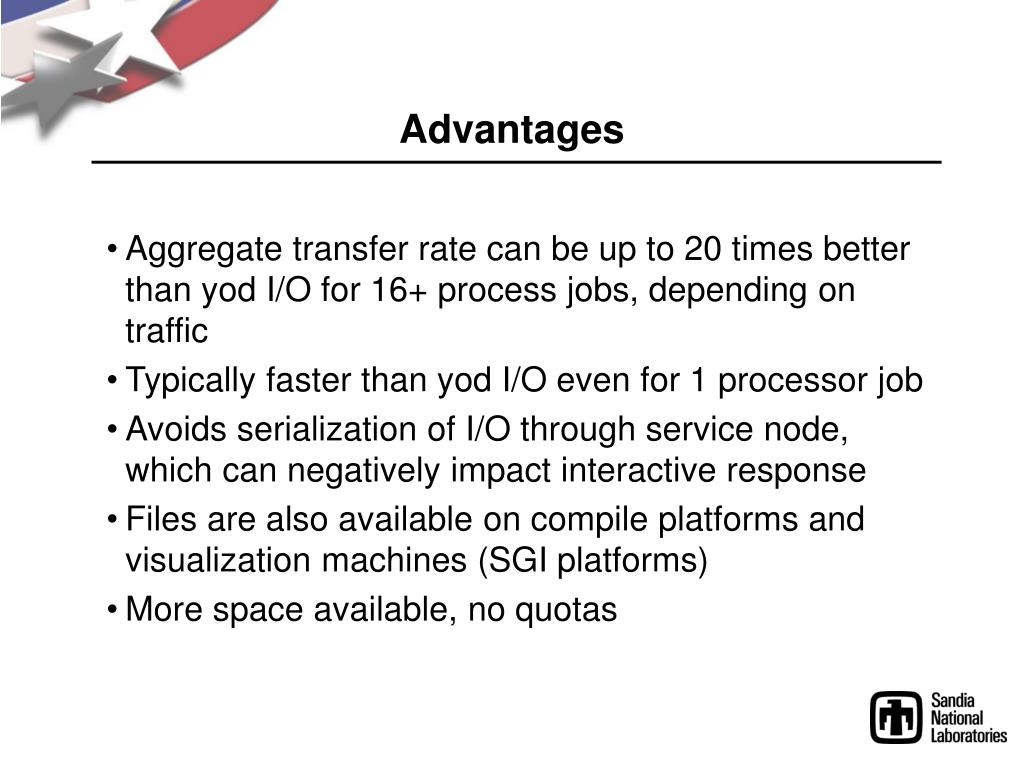

  5. Advantages • Aggregate transfer rate can be up to 20 times better than yod I/O for 16+ process jobs, depending on traffic • Typically faster than yod I/O even for 1 processor job • Avoids serialization of I/O through service node, which can negatively impact interactive response • Files are also available on compile platforms and visualization machines (SGI platforms) • More space available, no quotas

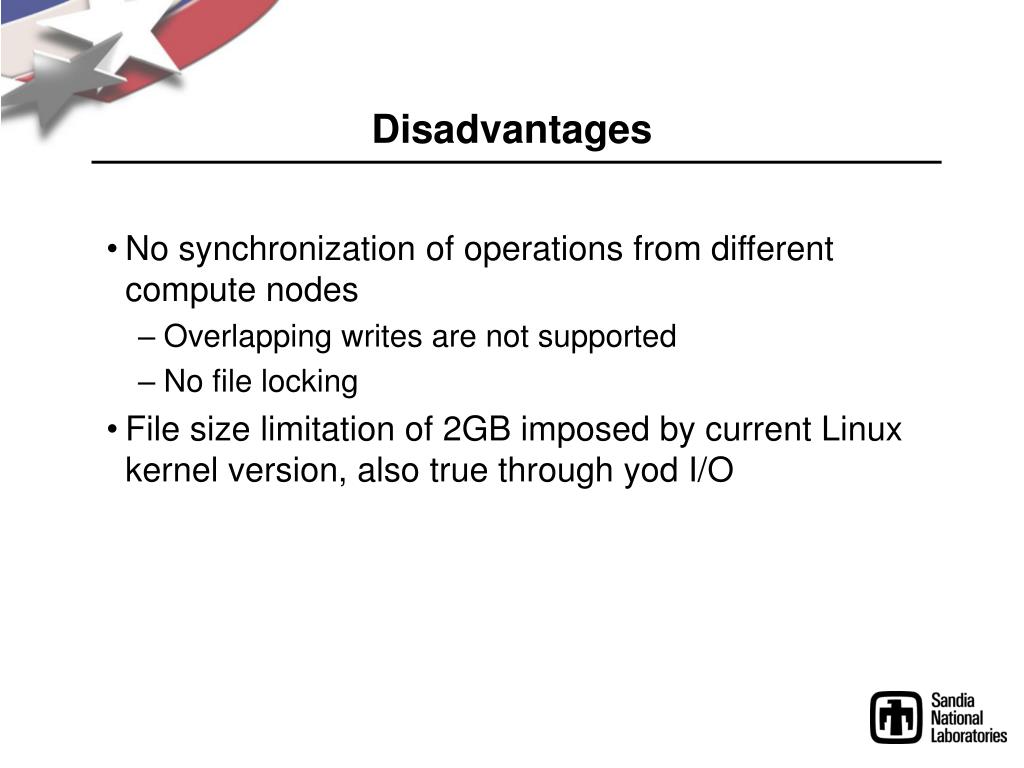

  6. Disadvantages • No synchronization of operations from different compute nodes • Overlapping writes are not supported • No file locking • File size limitation of 2GB imposed by current Linux kernel version, also true through yod I/O

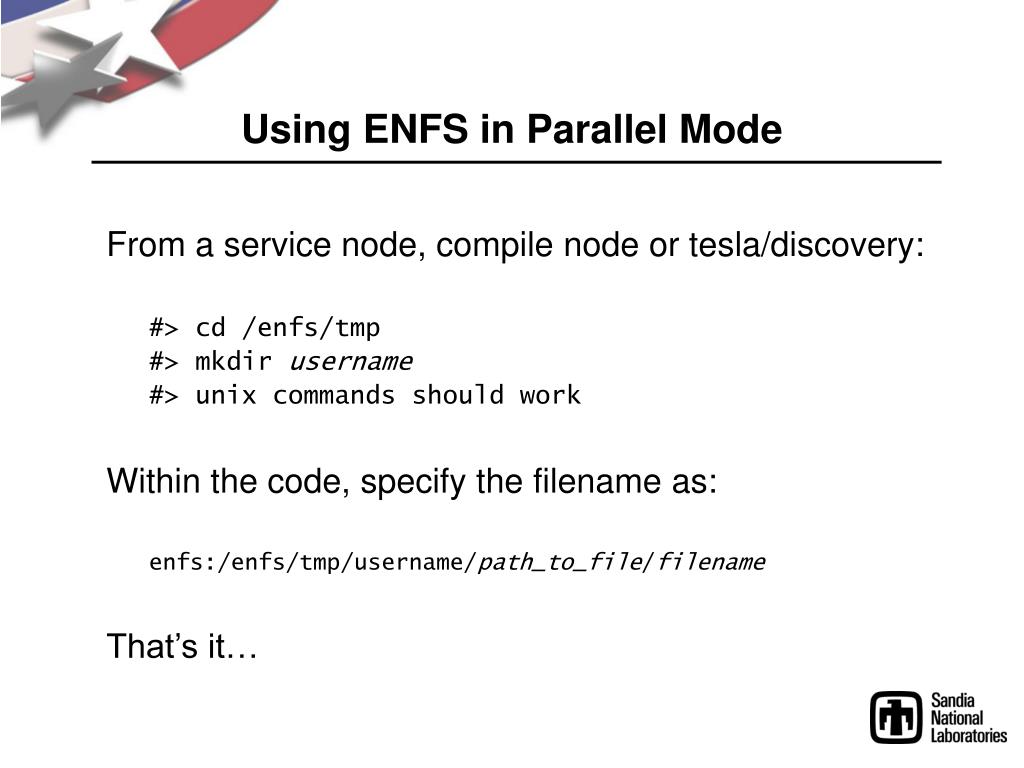

  7. Using ENFS in Parallel Mode From a service node, compile node or tesla/discovery: #> cd /enfs/tmp #> mkdir username #> unix commands should work Within the code, specify the filename as: enfs:/enfs/tmp/username/path_to_file/filename That’s it…

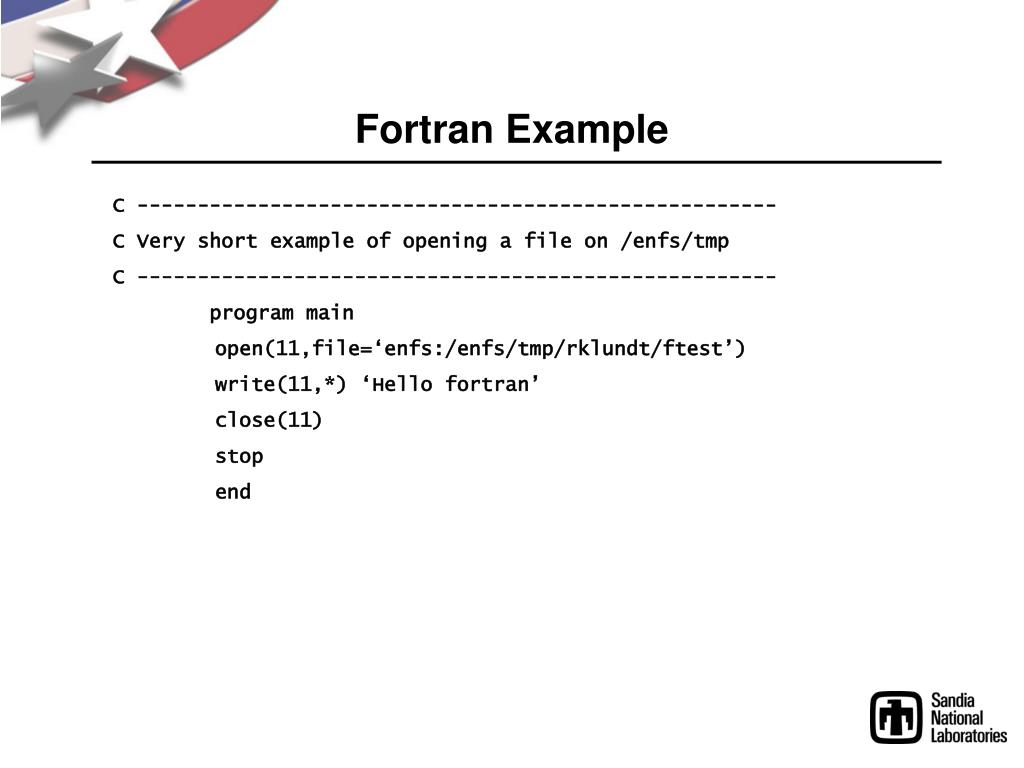

  8. Fortran Example C ----------------------------------------------------- C Very short example of opening a file on /enfs/tmp C ----------------------------------------------------- program main open(11,file=‘enfs:/enfs/tmp/rklundt/ftest’) write(11,*) ‘Hello fortran’ close(11) stop end

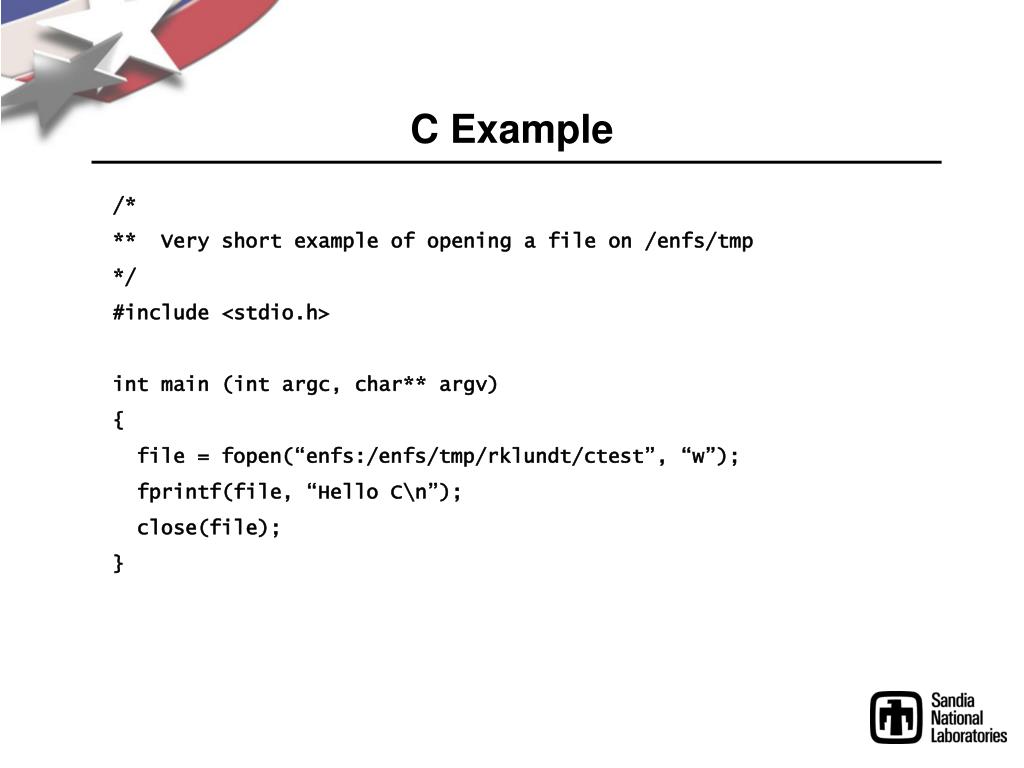

  9. C Example /* ** Very short example of opening a file on /enfs/tmp */ #include <stdio.h> int main (int argc, char** argv) { file = fopen(“enfs:/enfs/tmp/rklundt/ctest”, “w”); fprintf(file, “Hello C\n”); close(file); }

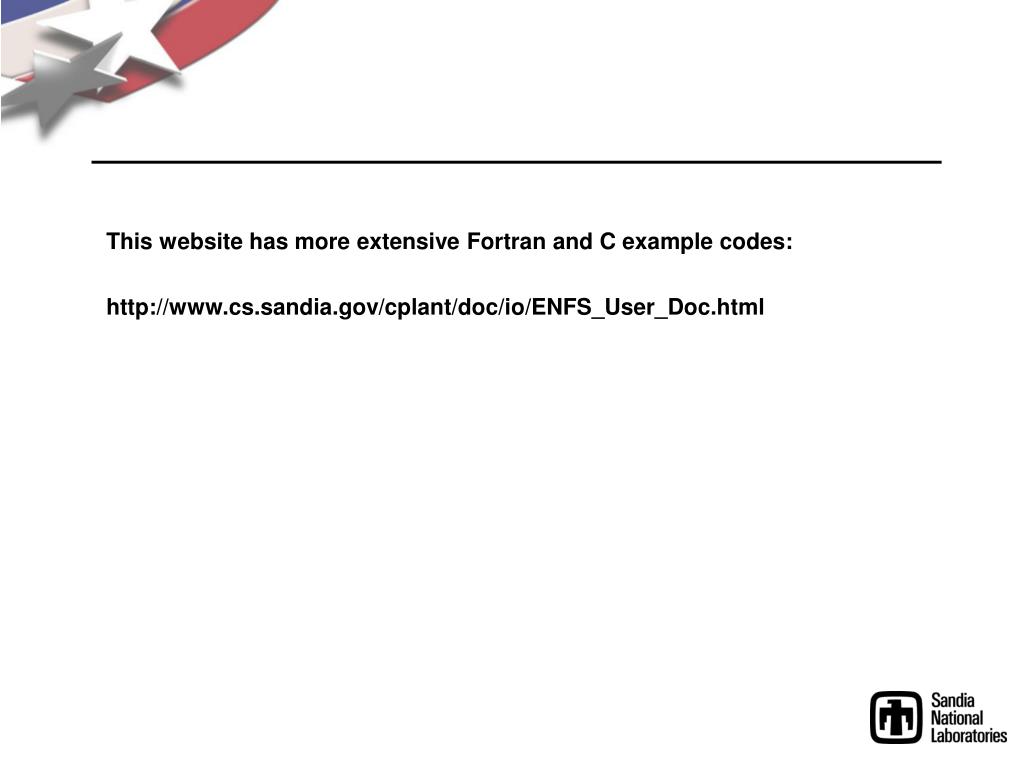

  10. This website has more extensive Fortran and C example codes: http://www.cs.sandia.gov/cplant/doc/io/ENFS_User_Doc.html
