  1. Cape Pharma28 The New Solution astra plastique

  2. Avantages vs Alu Cap • Easy to use: • First opening and opening again • Security : • Tamper evident band • No risk of cutting yourself • Personalization: • Different colors • Engraving on the top

  3. Product Overview Cape Pharma • Designed for Pilferproof 28 neck : • glass, PE or PET • Sealing: • liner • suitable for a wide range of inner diameter (within PP 28 standard) • 19, 20 & 22 mm • thickness : from 1.2 to 1.8 mm, diameter : 26.3 mm • Tamper evidence: • drop band • slitted bridges • Material: • HDPE, pharmaceutical compliance • weight : 2.1 gr +/- 0.15 • Feeding: • continuous motion or pick & place

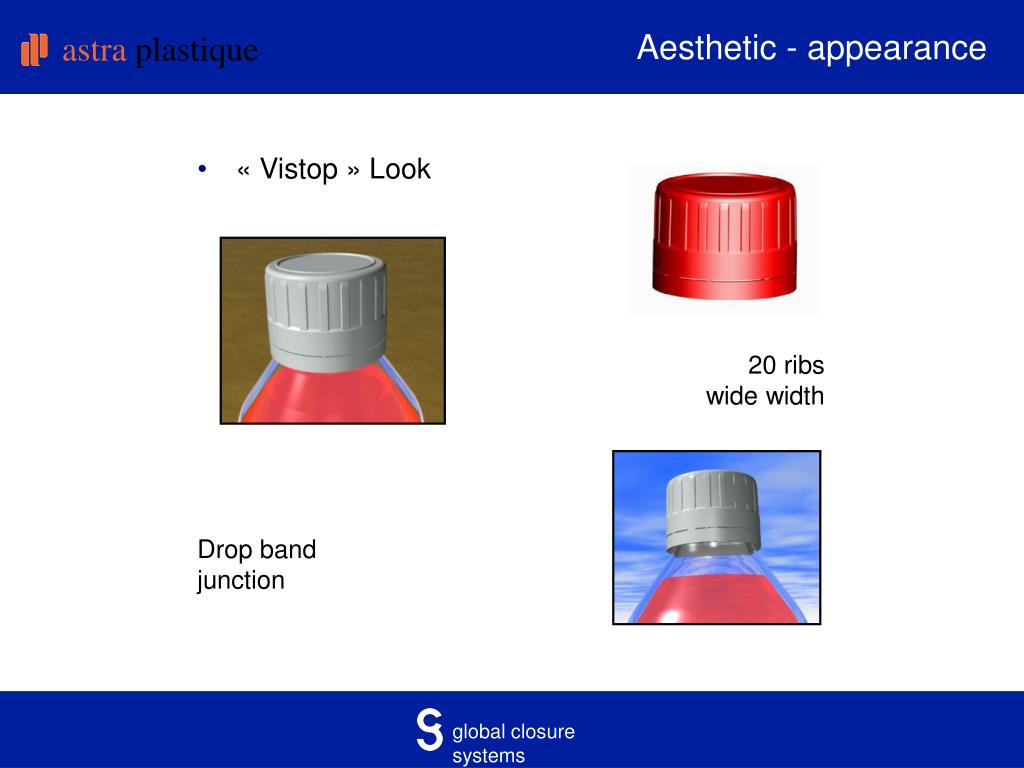

  4. « Vistop » Look • 20 ribs • wide width • Drop band • junction Aesthetic - appearance

  5. List of Specifications expected performances • Screwing torque • Over-screwing resistance • Unscrewing torque • Vacuum sealing • Sealing before opening / 20°C • Compatibility / product contact / stress • Drop test resistance • Packaging suitability • Permeability • Migration • Tamper evidence • Liner handling through shelf life

  6. Processing on filling line • Existing line / machine features • bottle family (material / volume / etc.) • Orientation, cap feeding • feeding mode • selecting mode • Output • current / required • Capping on line • new module • tuning on existing means • Technical Support: A technical engineer could help you and advise you about the utilisation of our caps into your filling line. This service is free of charge.
