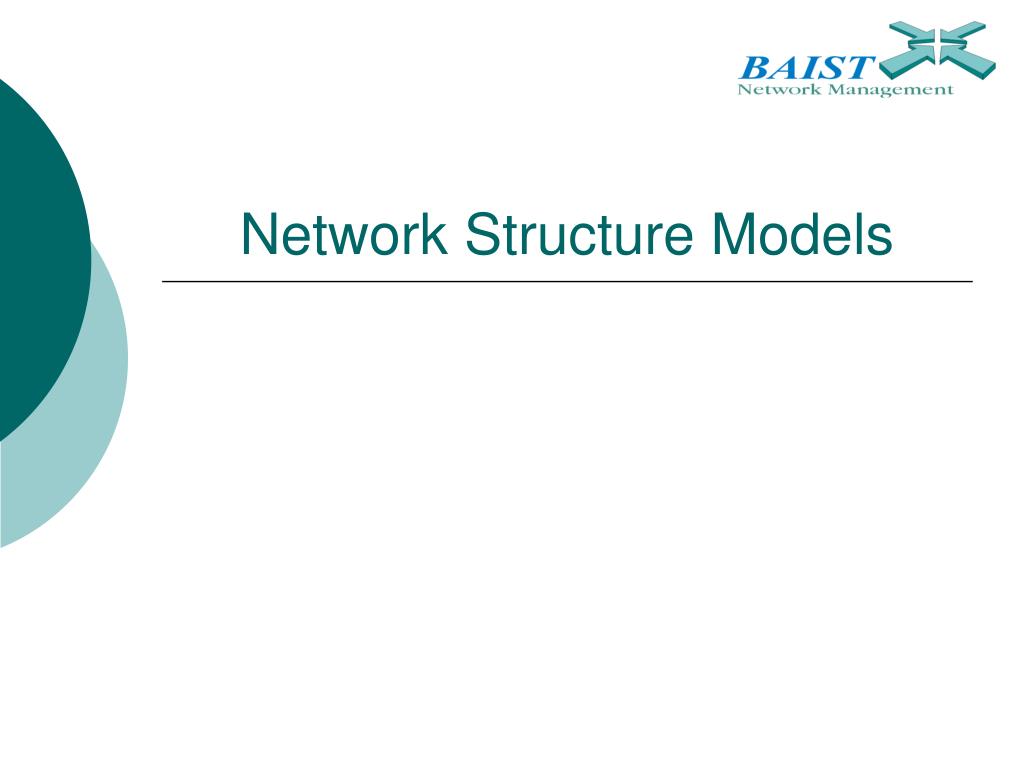

  1. Network Structure Models

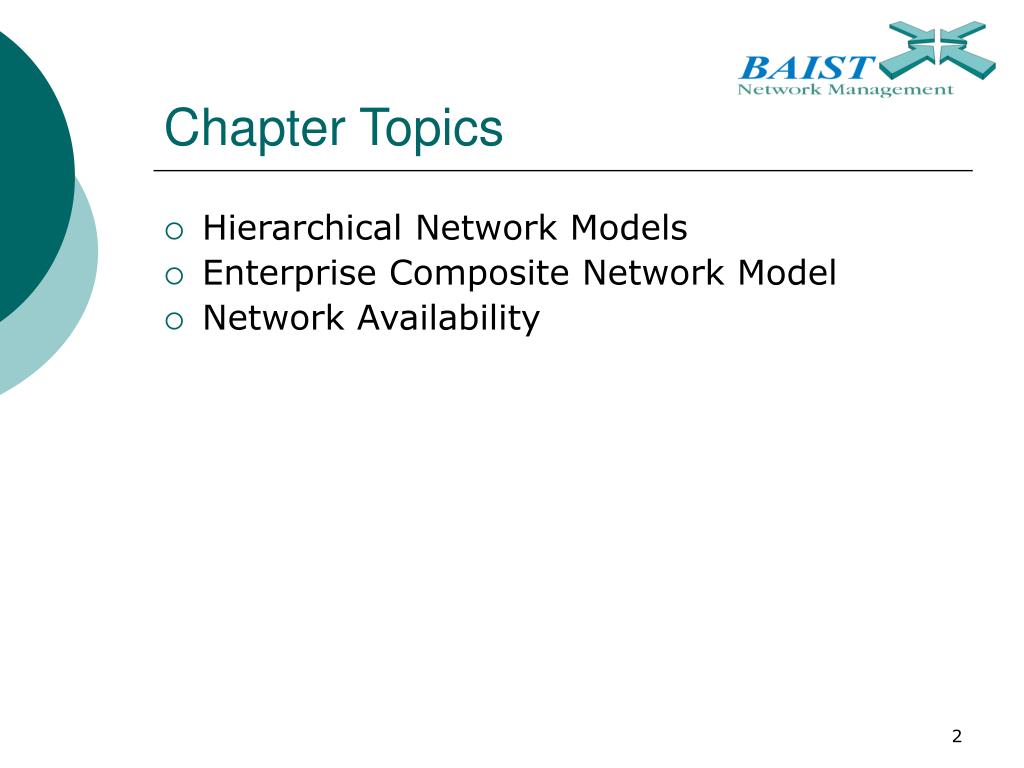

  2. Chapter Topics • Hierarchical Network Models • Enterprise Composite Network Model • Network Availability

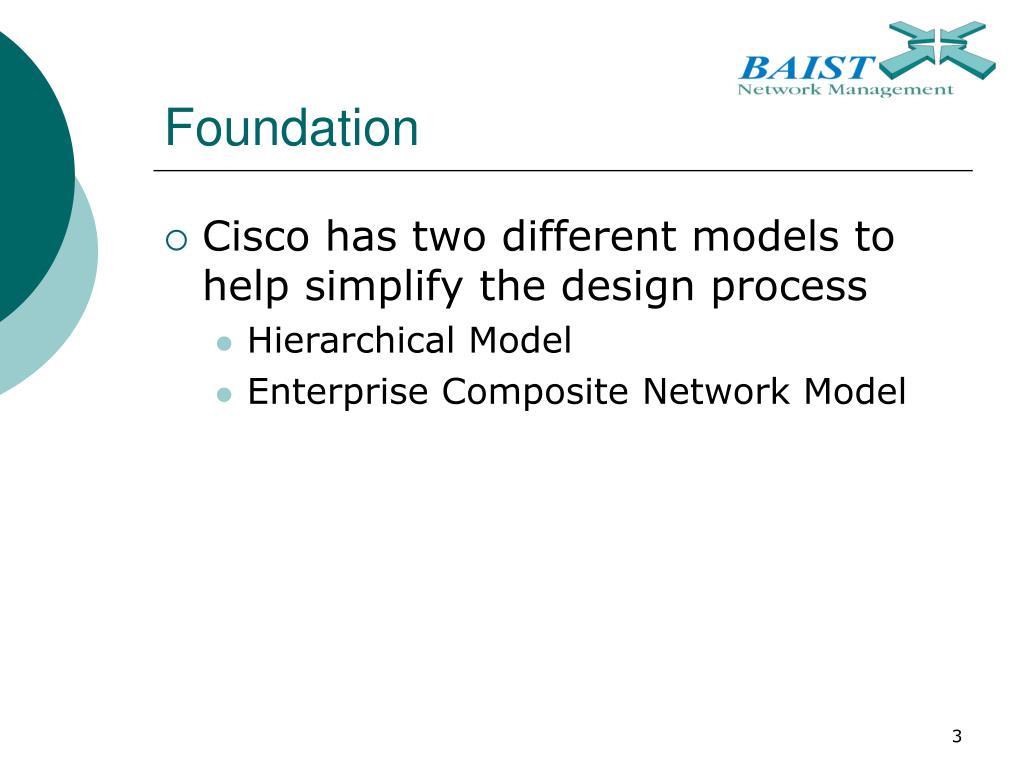

  3. Foundation • Cisco has two different models to help simplify the design process • Hierarchical Model • Enterprise Composite Network Model

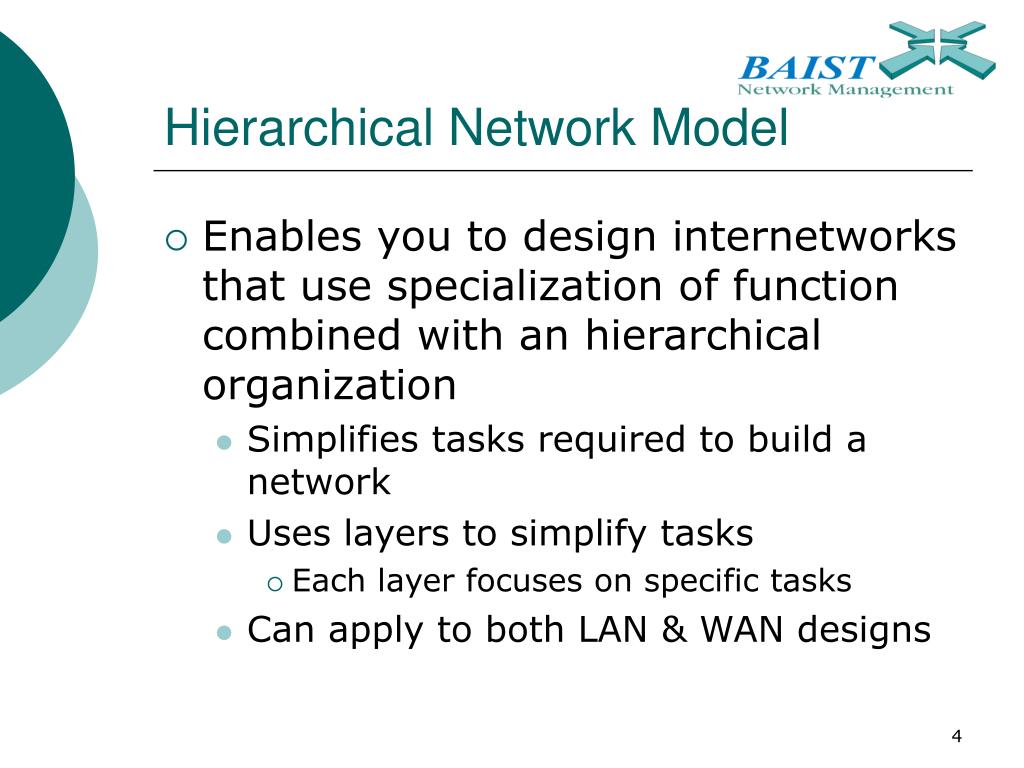

  4. Hierarchical Network Model • Enables you to design internetworks that use specialization of function combined with an hierarchical organization • Simplifies tasks required to build a network • Uses layers to simplify tasks • Each layer focuses on specific tasks • Can apply to both LAN & WAN designs

  5. Benefits of the Hierarchical Model • Cost Savings • Modular design means no longer doing everything on one platform • Conserve bandwidth within each layer • Ease of Understanding • Easy model means easy design • Leads to ease of understanding • NM Software can be distributed easier, meaning easier to control the network • Helps to keep costs down as well

  6. Benefits of the Hierarchical Model • Modular Network Growth • If your network grows, change or upgrade the layer that needs it, not the entire network • Improved Fault Isolation • Managers knows where transition points are, thereby identifying failures more quickly

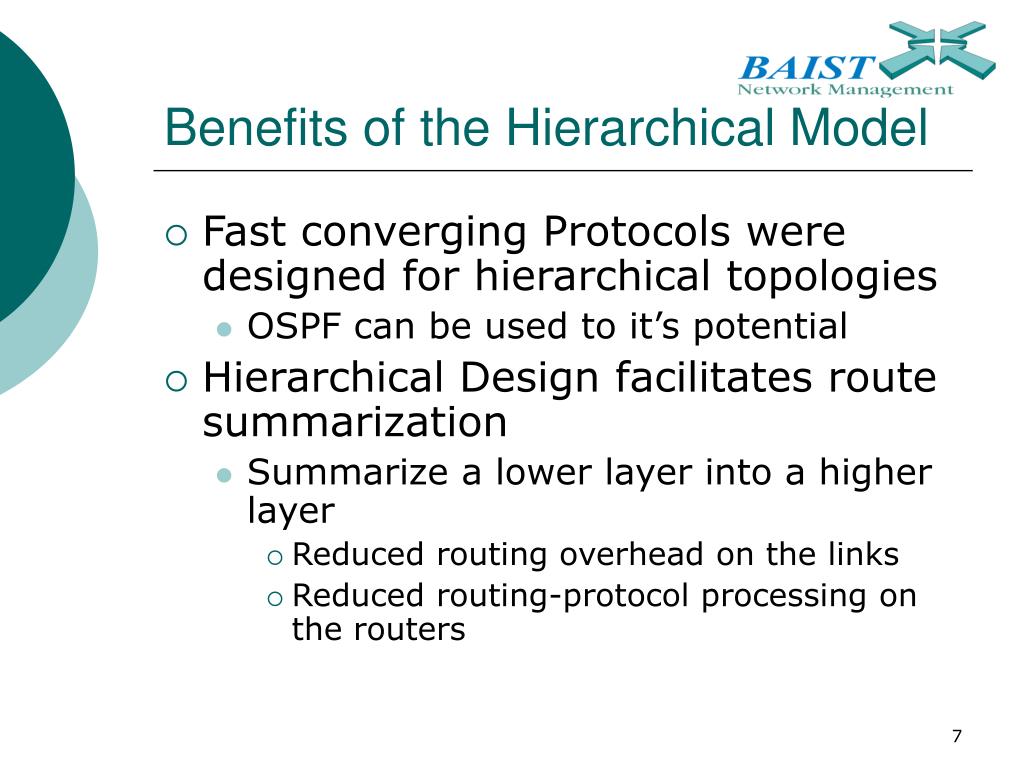

  7. Benefits of the Hierarchical Model • Fast converging Protocols were designed for hierarchical topologies • OSPF can be used to it’s potential • Hierarchical Design facilitates route summarization • Summarize a lower layer into a higher layer • Reduced routing overhead on the links • Reduced routing-protocol processing on the routers

  8. Hierarchical Network Design • Three Layers to a traditional hierarchical design • Core • Distribution • Access • Each layer provides necessary functionality to the enterprise network • Layers do not need to be separate physical devices • Smaller networks could collapse multiple layers to a single device

  9. The Hierarchical Design Model

  10. Core Layer • The high-speed switching backbone of the network • Crucial to corporate communications • Plan to have a consistent diameter • # of router hops from edge to edge • Distance from any End Station to a server should be consistent • Limiting diameter size also provides better predictability and ease of troubleshooting

  11. Characteristics of the Core Layer • Fast transport • High reliability • Redundancy • Fault tolerance

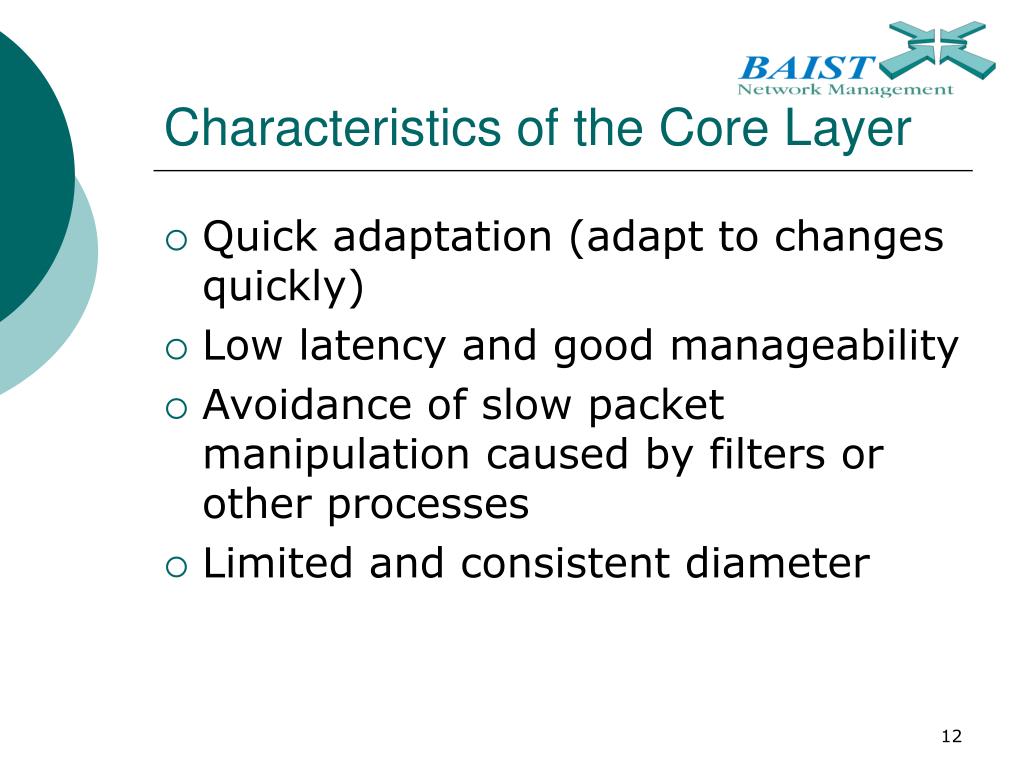

  12. Characteristics of the Core Layer • Quick adaptation (adapt to changes quickly) • Low latency and good manageability • Avoidance of slow packet manipulation caused by filters or other processes • Limited and consistent diameter

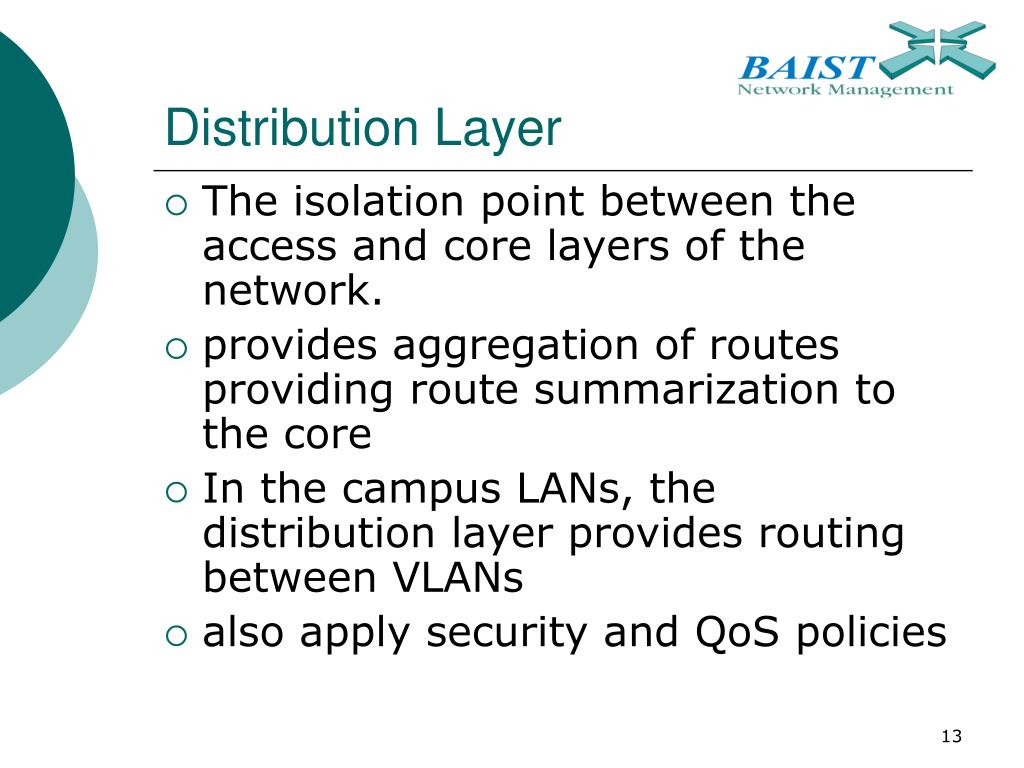

  13. Distribution Layer • The isolation point between the access and core layers of the network. • provides aggregation of routes providing route summarization to the core • In the campus LANs, the distribution layer provides routing between VLANs • also apply security and QoS policies

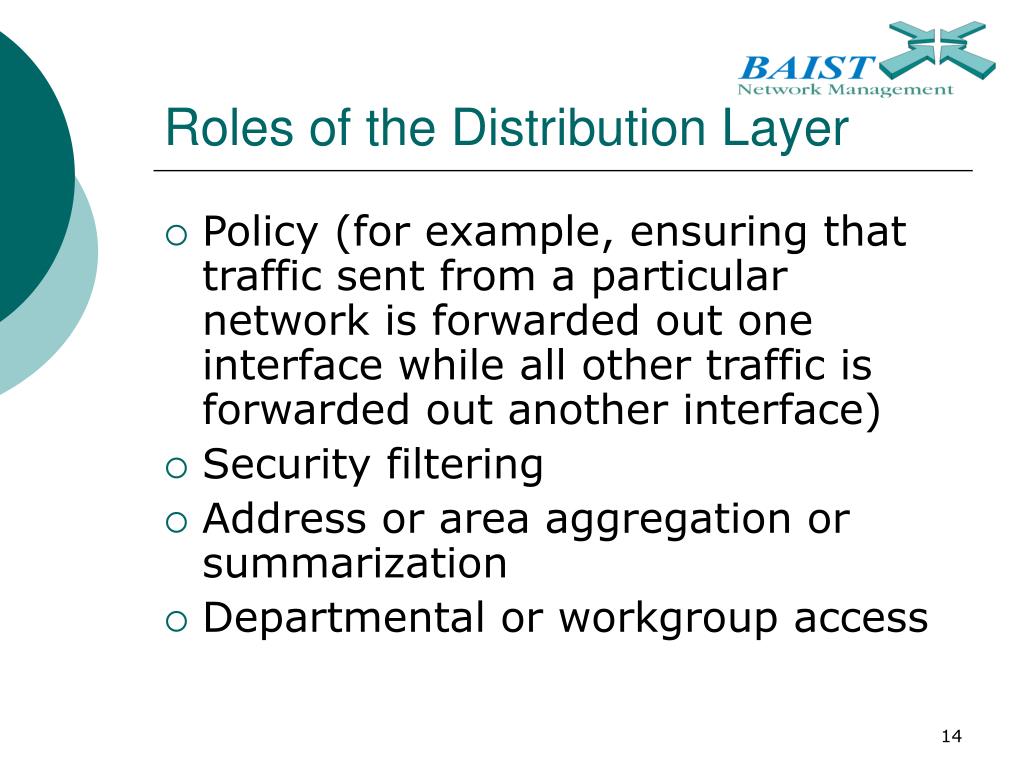

  14. Roles of the Distribution Layer • Policy (for example, ensuring that traffic sent from a particular network is forwarded out one interface while all other traffic is forwarded out another interface) • Security filtering • Address or area aggregation or summarization • Departmental or workgroup access

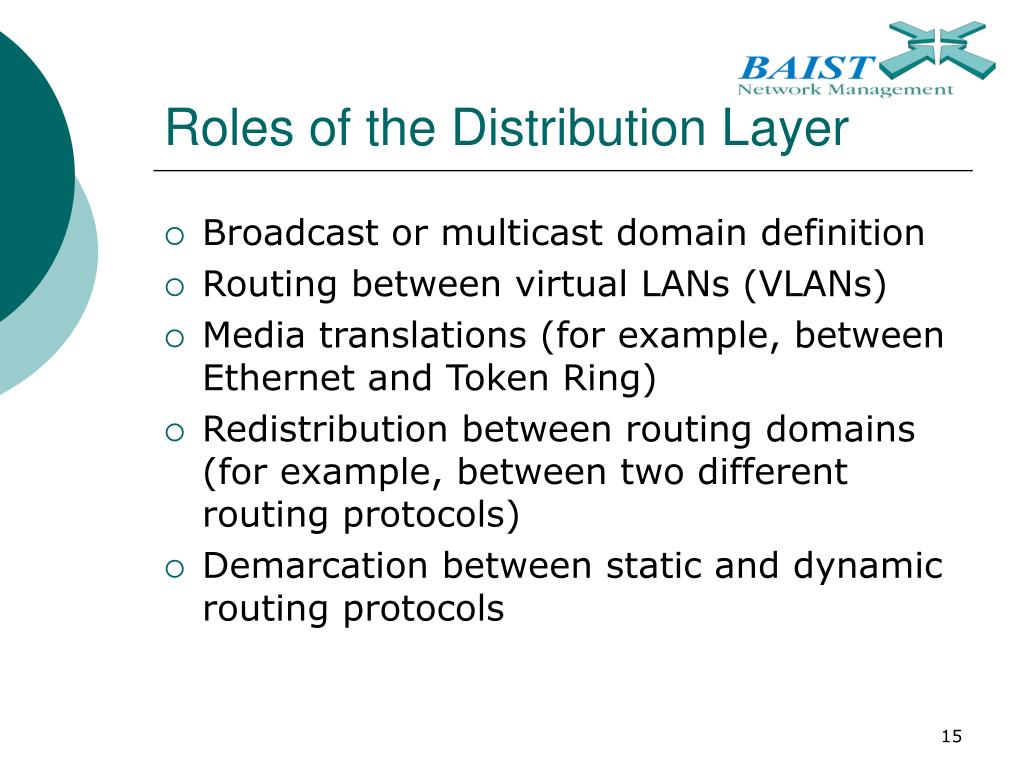

  15. Roles of the Distribution Layer • Broadcast or multicast domain definition • Routing between virtual LANs (VLANs) • Media translations (for example, between Ethernet and Token Ring) • Redistribution between routing domains (for example, between two different routing protocols) • Demarcation between static and dynamic routing protocols

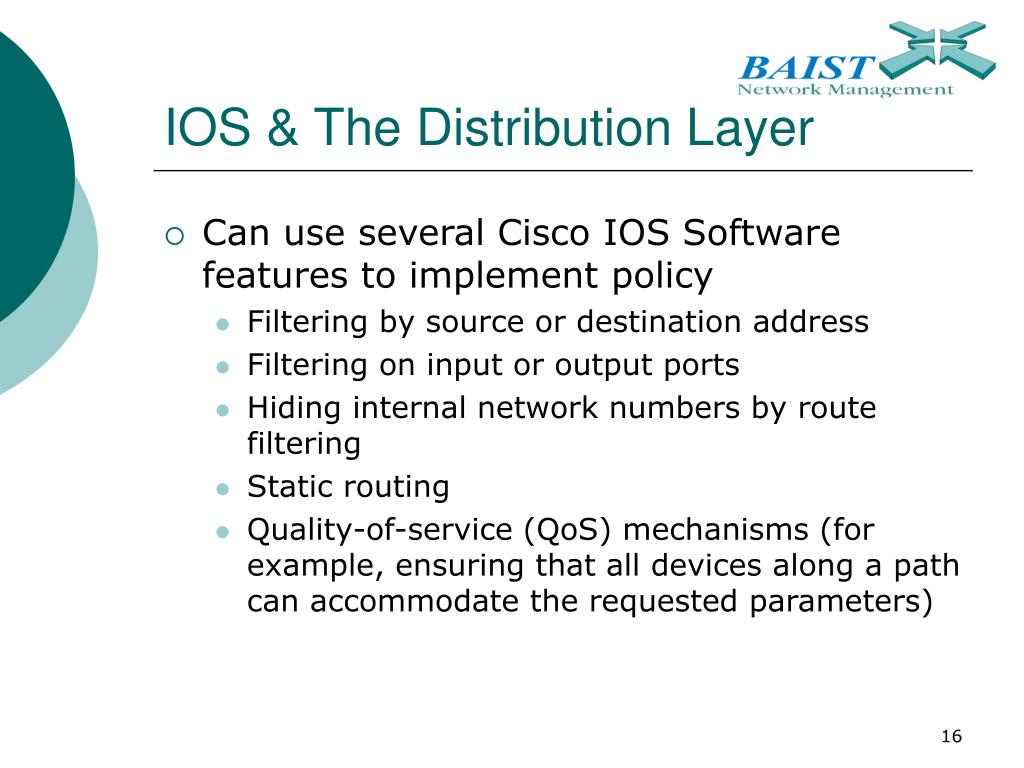

  16. IOS & The Distribution Layer • Can use several Cisco IOS Software features to implement policy • Filtering by source or destination address • Filtering on input or output ports • Hiding internal network numbers by route filtering • Static routing • Quality-of-service (QoS) mechanisms (for example, ensuring that all devices along a path can accommodate the requested parameters)

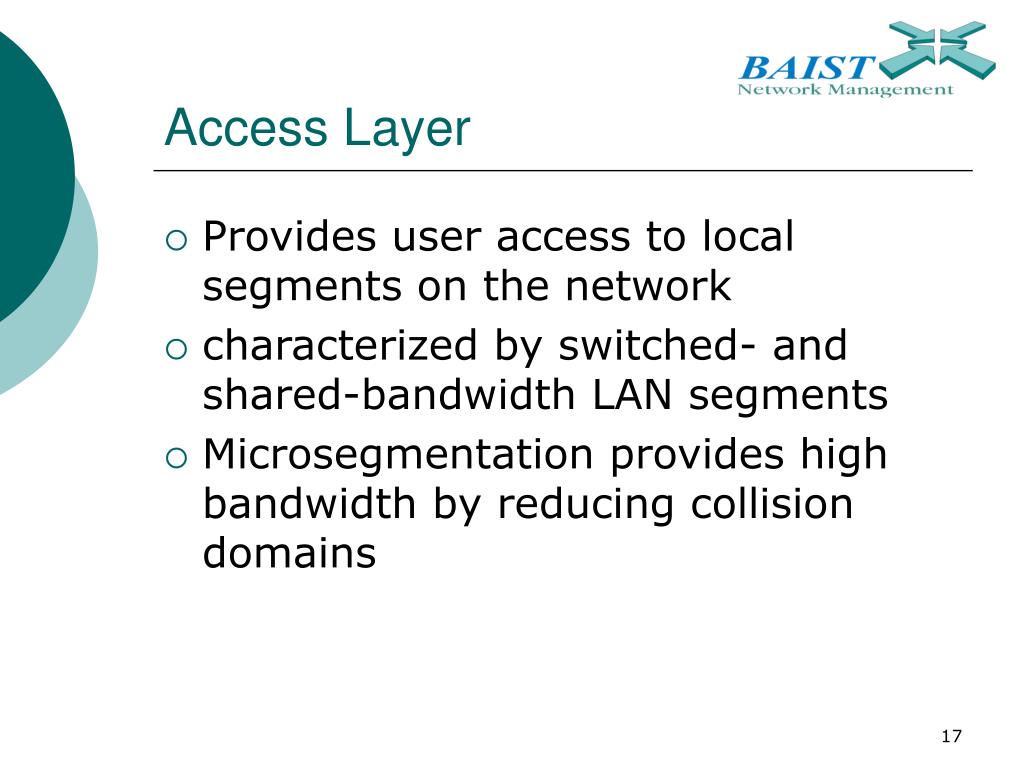

  17. Access Layer • Provides user access to local segments on the network • characterized by switched- and shared-bandwidth LAN segments • Microsegmentation provides high bandwidth by reducing collision domains

  18. Roles of the Access Layer • High availability • Port security • Rate limiting • Address Resolution Protocol (ARP) inspection • Virtual access lists • Trust classification

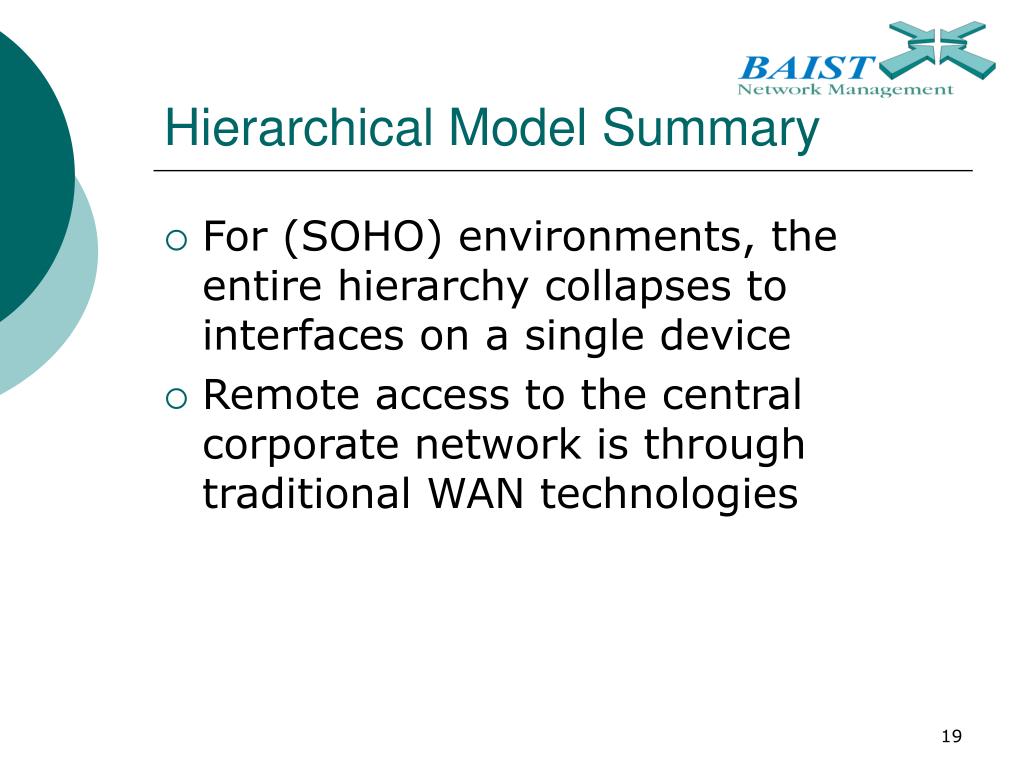

  19. Hierarchical Model Summary • For (SOHO) environments, the entire hierarchy collapses to interfaces on a single device • Remote access to the central corporate network is through traditional WAN technologies

  20. Hierarchical Model Summary • Implement features such as dial-on -demand routing (DDR) and static routing to control costs • Remote access can include virtual private network (VPN) technology

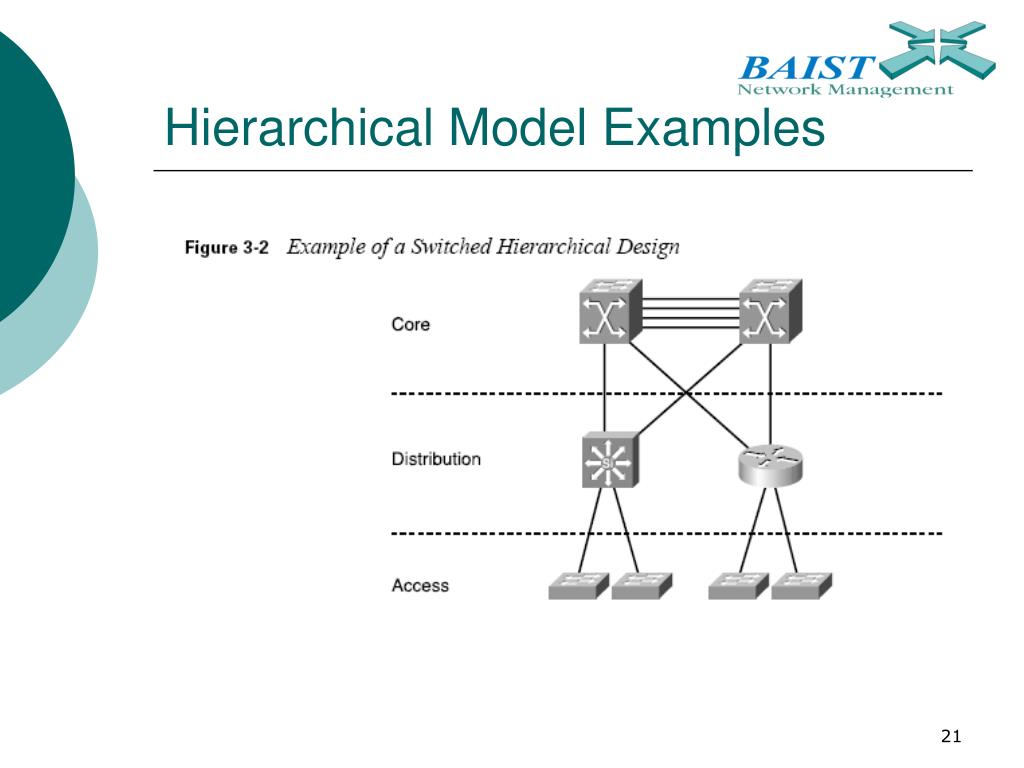

  21. Hierarchical Model Examples

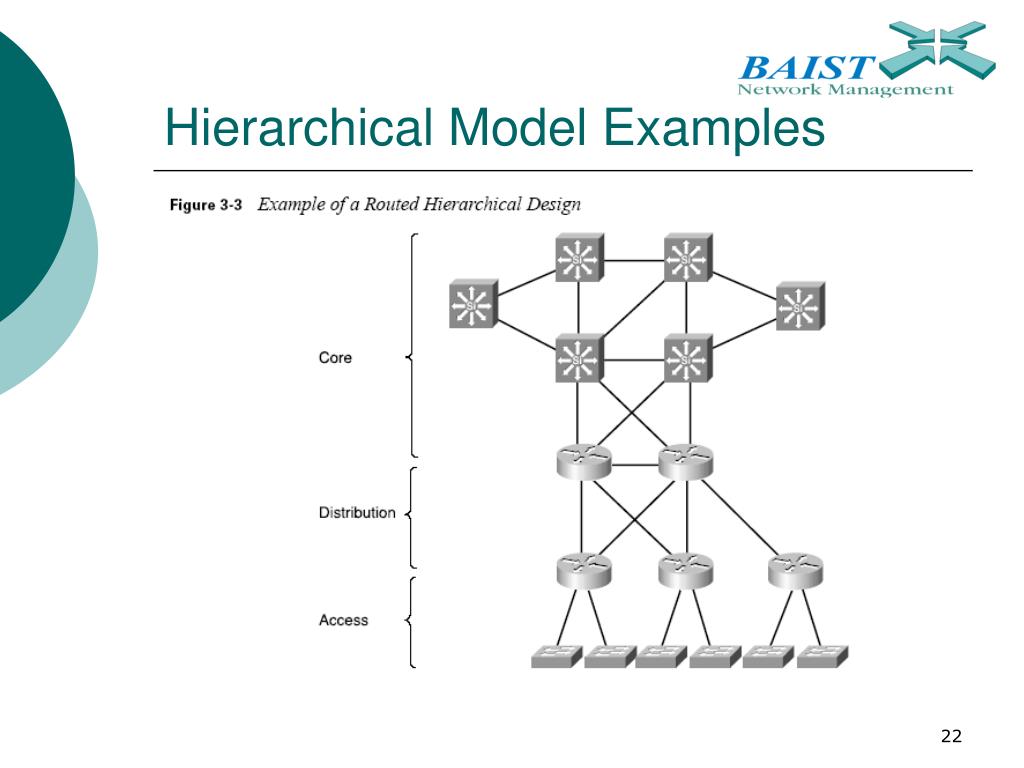

  22. Hierarchical Model Examples

  23. Enterprise CompositeNetwork Model • Facilitates the design of larger, more scalable networks • As networks become more sophisticated, it is necessary to use a more modular approach to design • The model divides the network into functional components • functional areas containing network modules

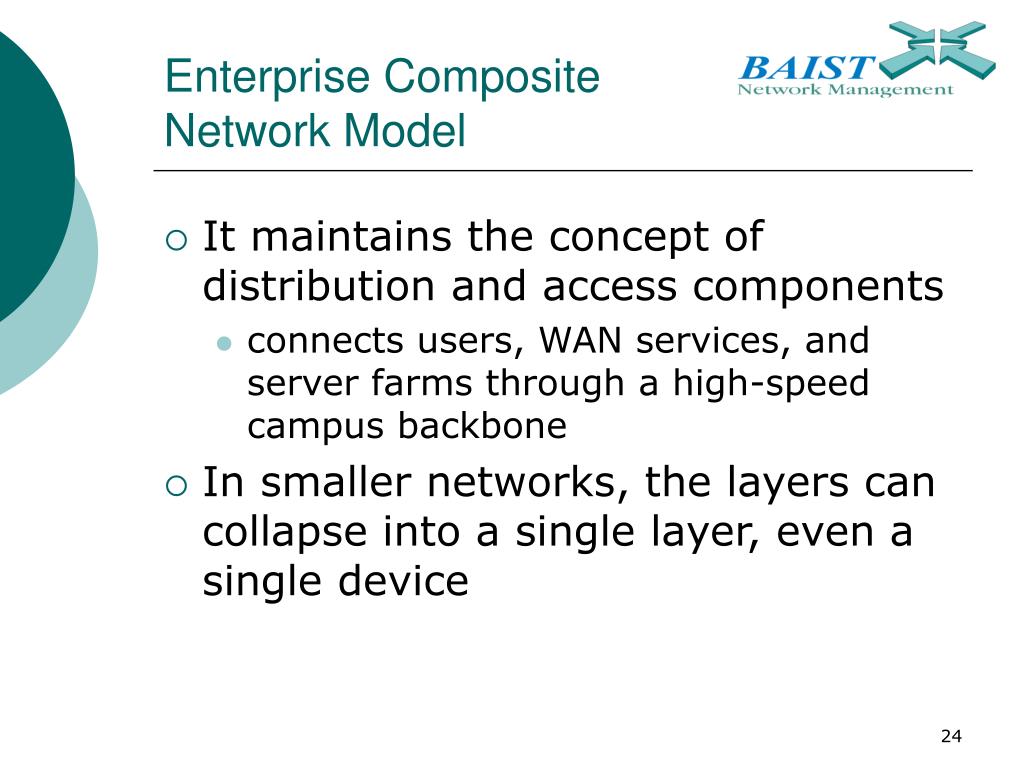

  24. Enterprise CompositeNetwork Model • It maintains the concept of distribution and access components • connects users, WAN services, and server farms through a high-speed campus backbone • In smaller networks, the layers can collapse into a single layer, even a single device

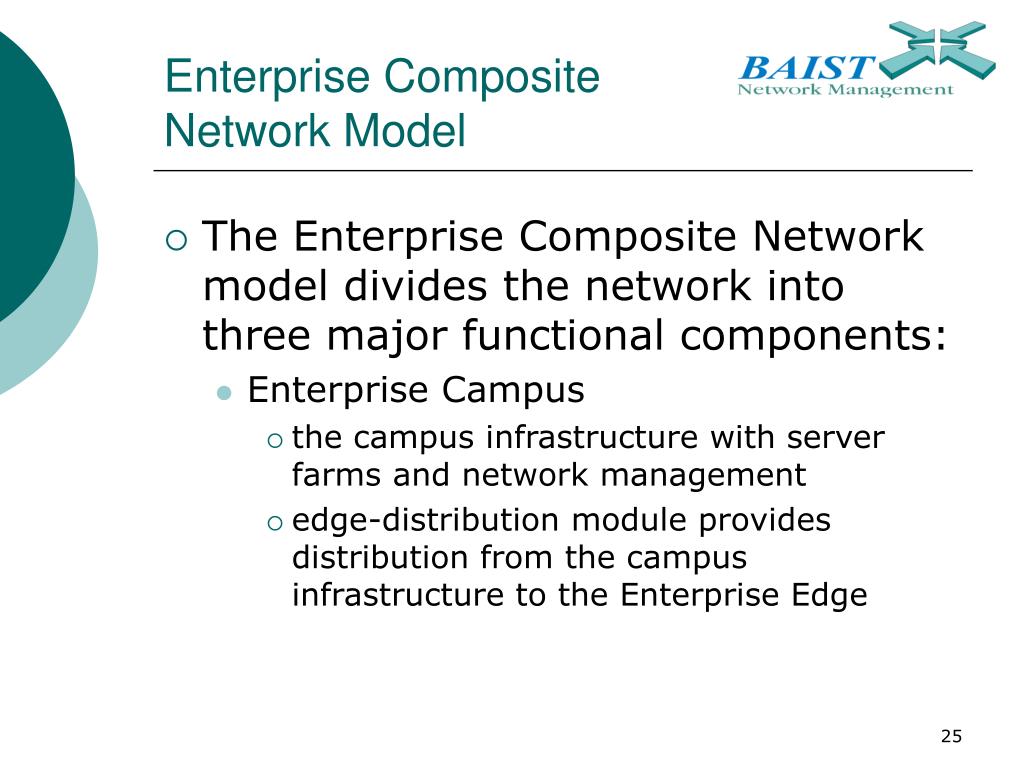

  25. Enterprise CompositeNetwork Model • The Enterprise Composite Network model divides the network into three major functional components: • Enterprise Campus • the campus infrastructure with server farms and network management • edge-distribution module provides distribution from the campus infrastructure to the Enterprise Edge

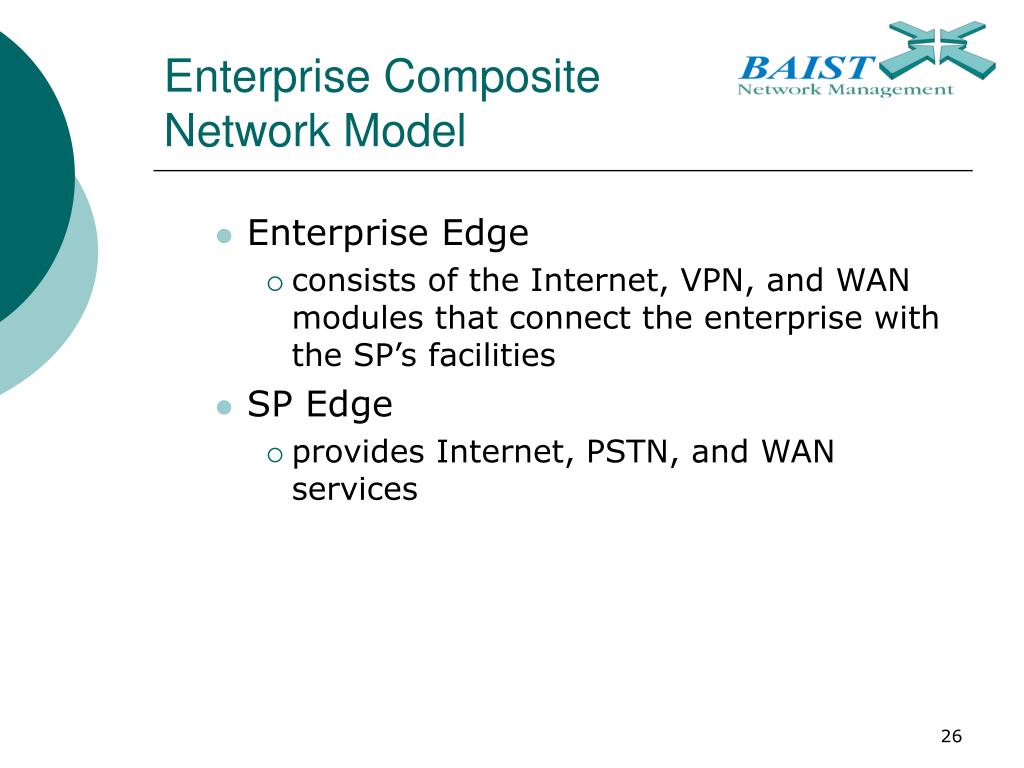

  26. Enterprise CompositeNetwork Model • Enterprise Edge • consists of the Internet, VPN, and WAN modules that connect the enterprise with the SP’s facilities • SP Edge • provides Internet, PSTN, and WAN services

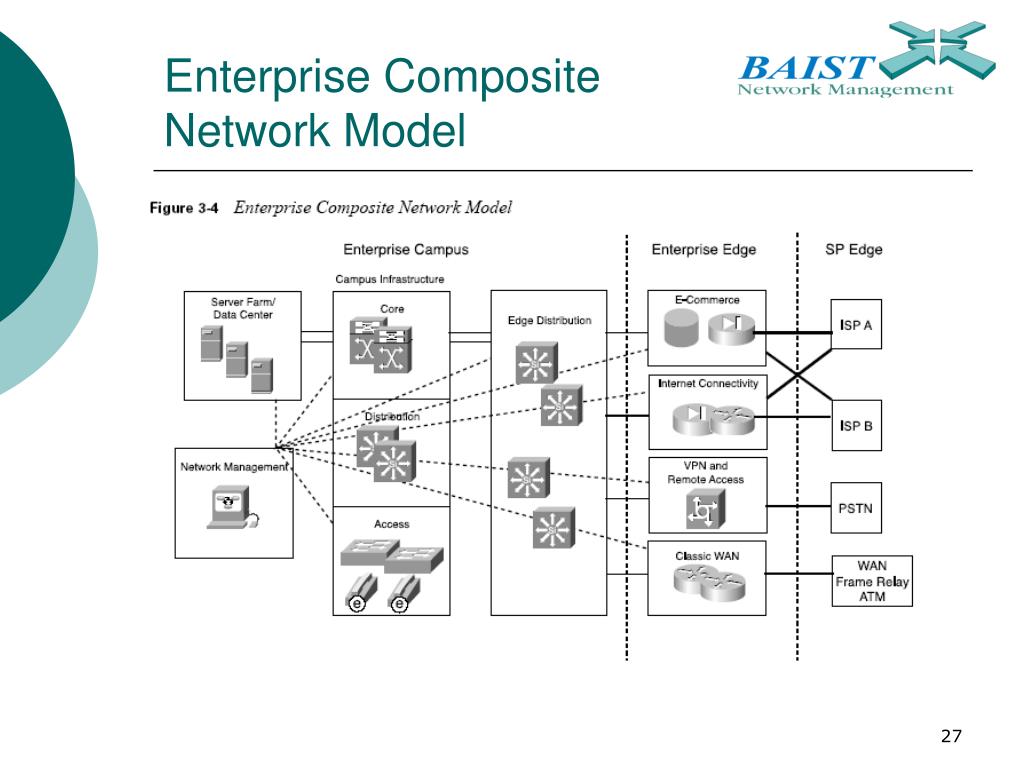

  27. Enterprise CompositeNetwork Model

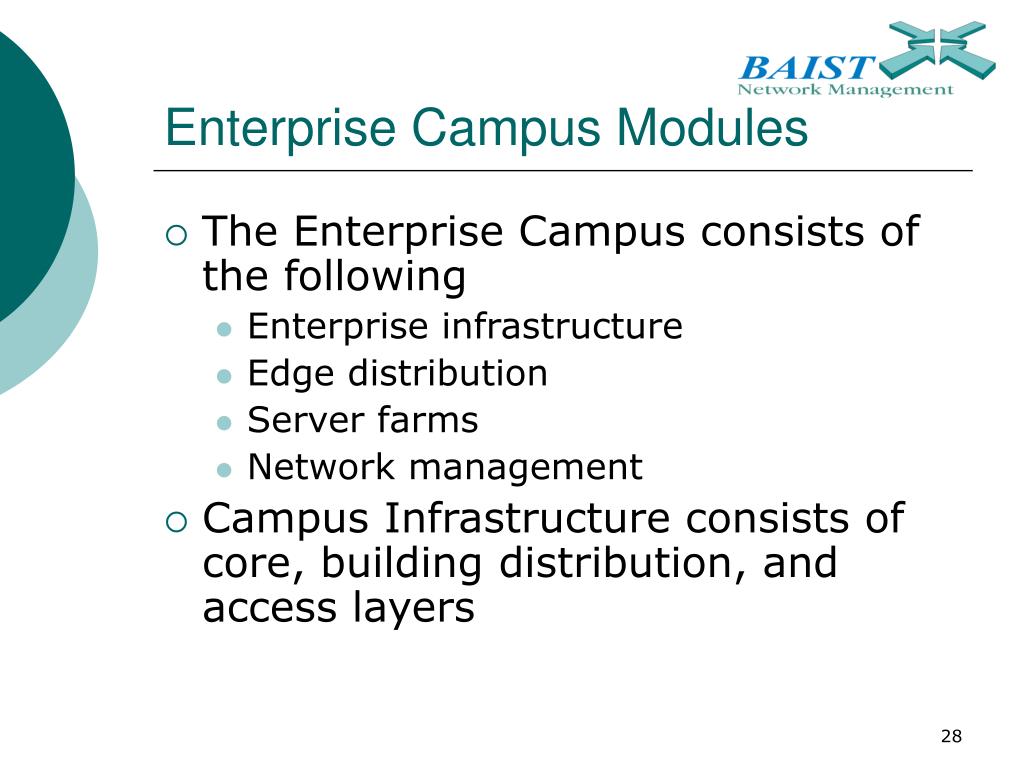

  28. Enterprise Campus Modules • The Enterprise Campus consists of the following • Enterprise infrastructure • Edge distribution • Server farms • Network management • Campus Infrastructure consists of core, building distribution, and access layers

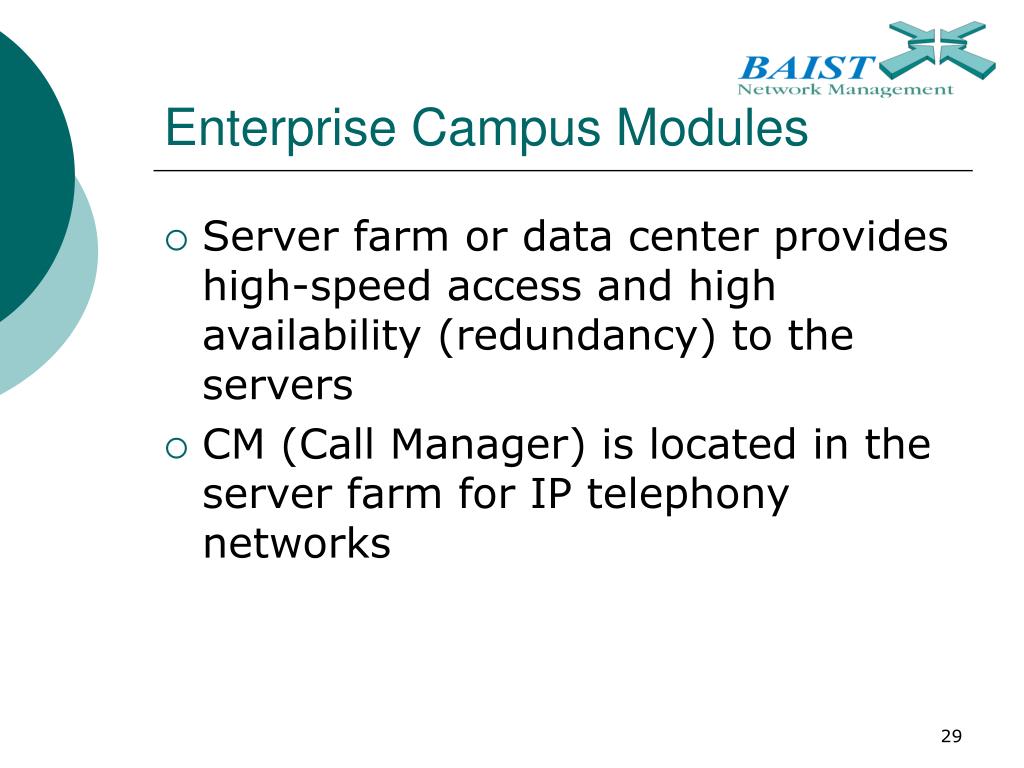

  29. Enterprise Campus Modules • Server farm or data center provides high-speed access and high availability (redundancy) to the servers • CM (Call Manager) is located in the server farm for IP telephony networks

  30. Enterprise-Campus Model

  31. Enterprise-Campus Model • Can apply to small, medium, and large locations • large campus locations have a three-tier design with a wiring-closet component (building access layer), a building-distribution layer, and a campus-core layer • Small campus locations likely have a two-tier design with a wiring-closet component (Ethernet access layer) and a backbone core (collapsed core and distribution layers) • Medium-sized campus network designs sometimes use a three-tier implementation or a two-tier implementation, depending on needs

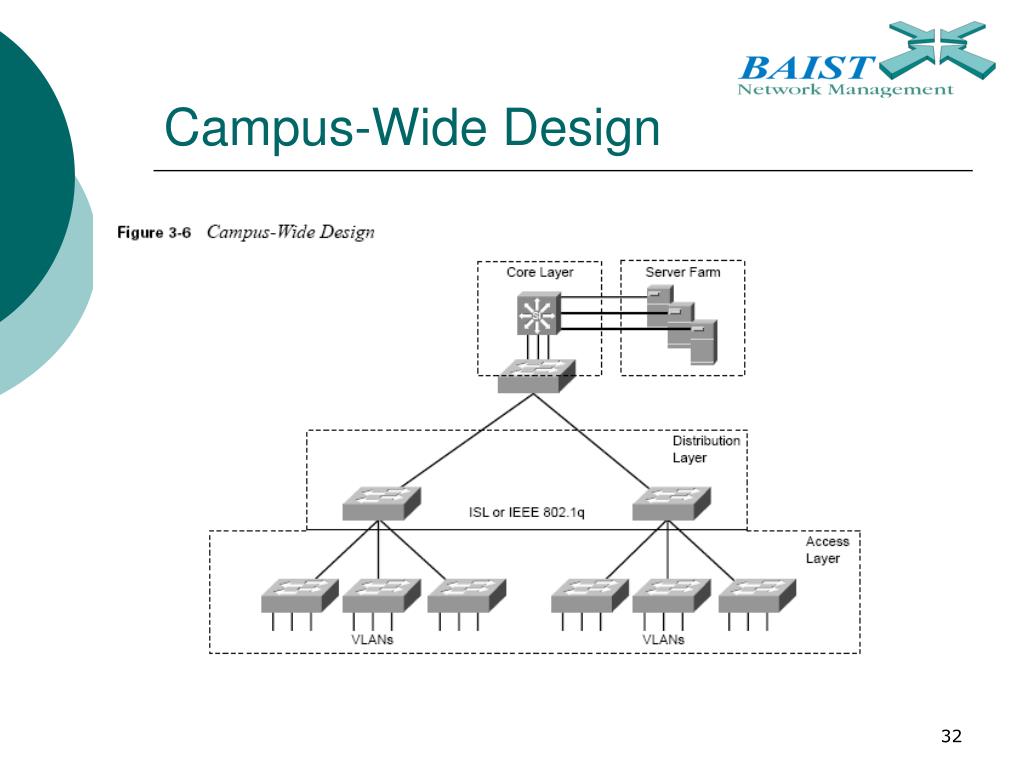

  32. Campus-Wide Design

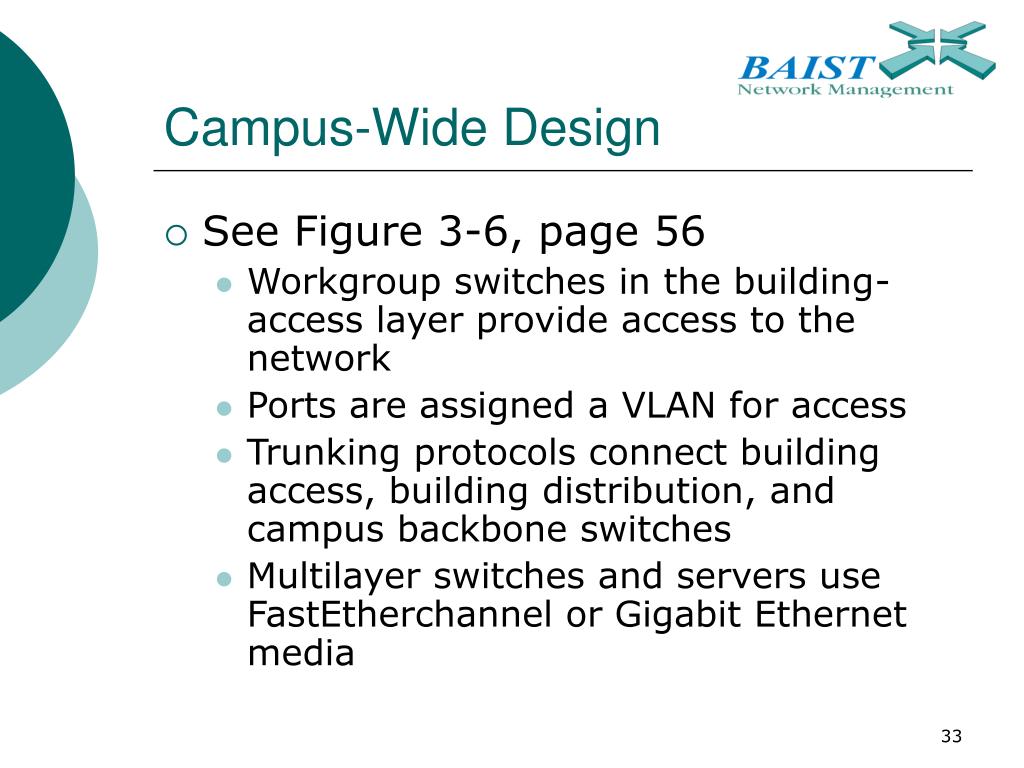

  33. Campus-Wide Design • See Figure 3-6, page 56 • Workgroup switches in the building-access layer provide access to the network • Ports are assigned a VLAN for access • Trunking protocols connect building access, building distribution, and campus backbone switches • Multilayer switches and servers use FastEtherchannel or Gigabit Ethernet media

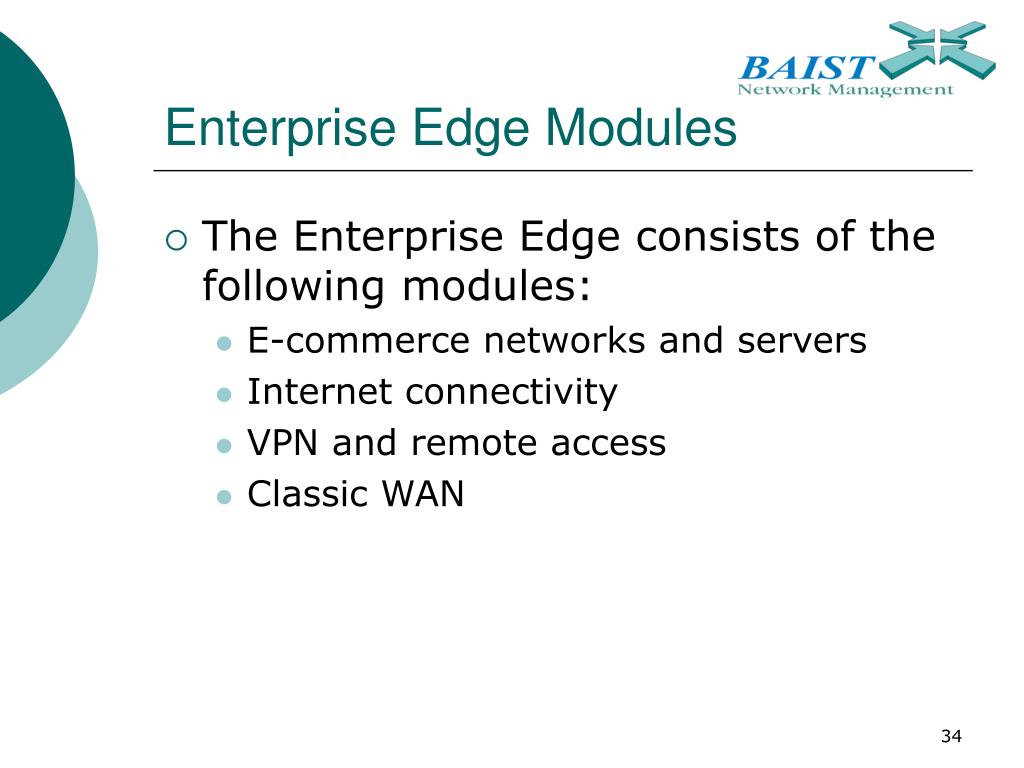

  34. Enterprise Edge Modules • The Enterprise Edge consists of the following modules: • E-commerce networks and servers • Internet connectivity • VPN and remote access • Classic WAN

  35. E-Commerce Module • Provides highly available networks for business services • Uses the high availability designs of the server-farm module with the Internet connectivity of the Internet module • Design techniques are the same as those described for these modules

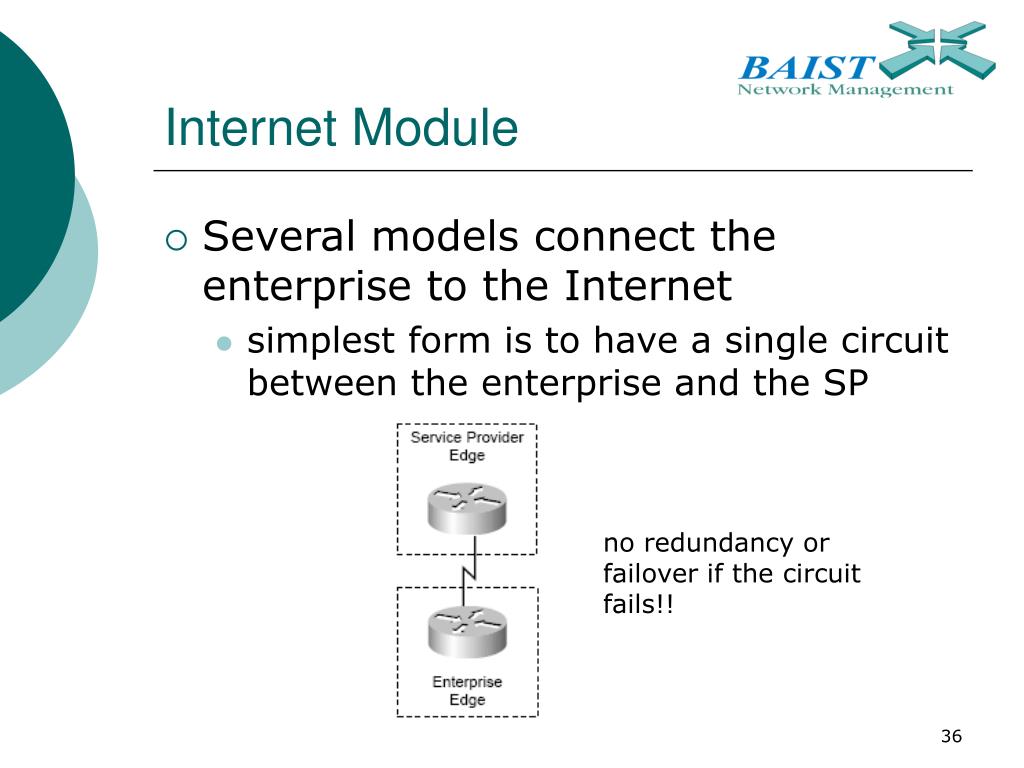

  36. Internet Module • Several models connect the enterprise to the Internet • simplest form is to have a single circuit between the enterprise and the SP no redundancy or failover if the circuit fails!!

  37. Internet Module • You can use multihoming solutions to provide redundancy or failover for Internet service • Option 1: Single router, dual links to one Internet service provider (ISP) • Option 2: Single router, dual links to two ISPs • Option 3: Dual routers, dual links to one ISP • Option 4: Dual router, dual links to two ISPs

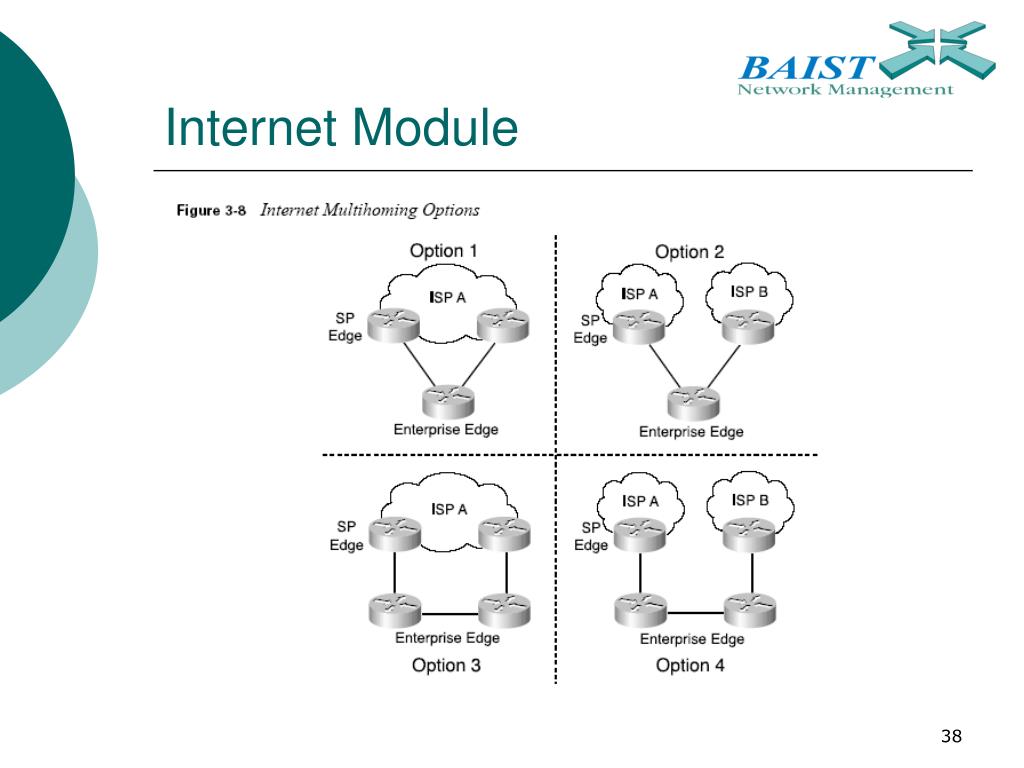

  38. Internet Module

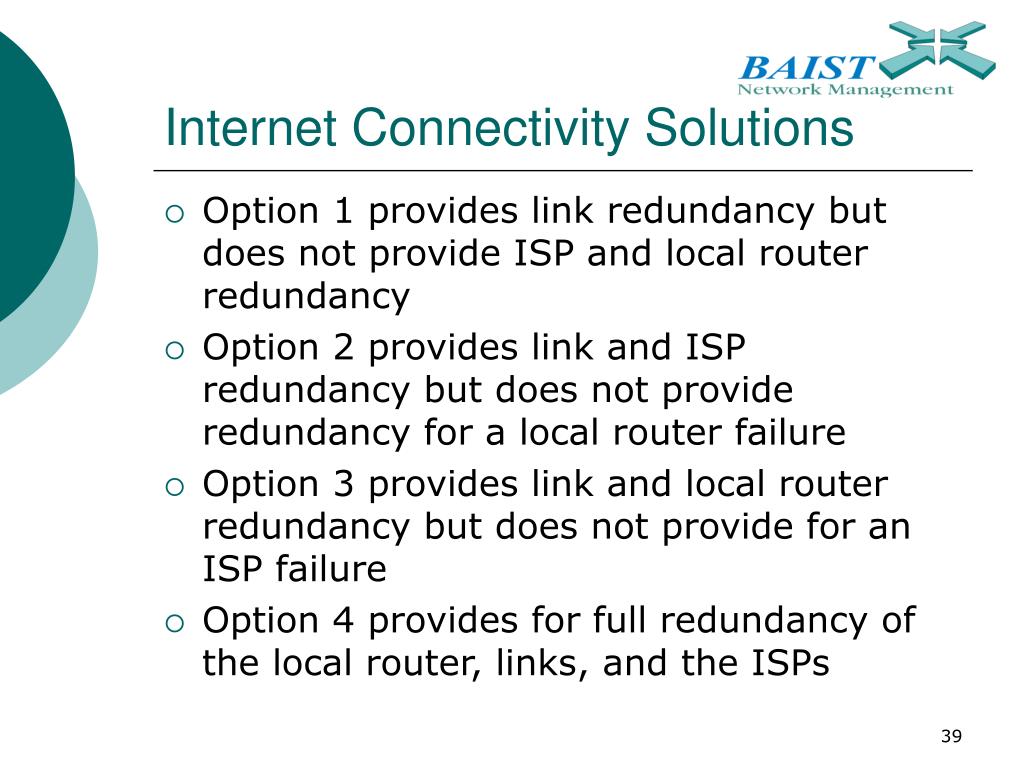

  39. Internet Connectivity Solutions • Option 1 provides link redundancy but does not provide ISP and local router redundancy • Option 2 provides link and ISP redundancy but does not provide redundancy for a local router failure • Option 3 provides link and local router redundancy but does not provide for an ISP failure • Option 4 provides for full redundancy of the local router, links, and the ISPs

  40. VPN/Remote Access Module • Provides remote-access termination services, including authentication for remote users and sites • If you use a remote-access terminal server, this module connects to the PSTN network • Networks often prefer VPNs over remote-access terminal servers and dedicated WAN links • VPNs reduce communication expenses

  41. VPN Architecture

  42. WAN Module • The Enterprise Edge includes access to WANs. WAN technologies include the following: • Wireless • PSTN • Leased lines • Synchronous Optical Network (SONET) and Synchronous Digital Hierarchy (SDH) • PPP • Frame Relay • ATM • Cable • Digital subscriber line (DSL)

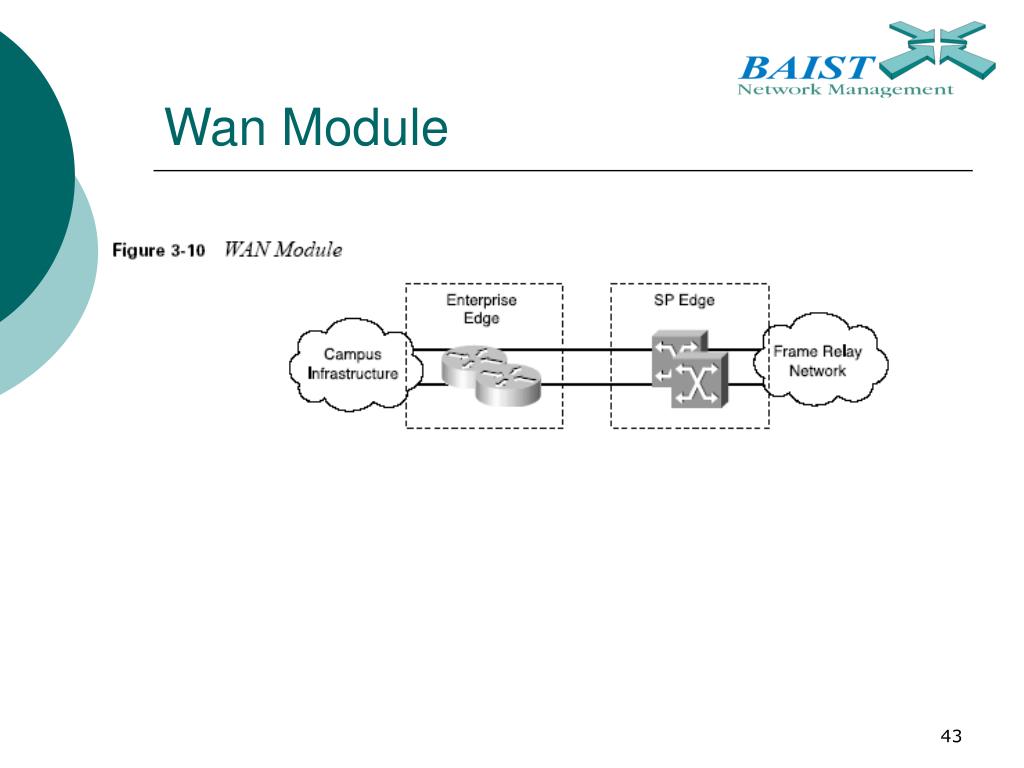

  43. Wan Module

  44. Service Provider (SP) Edge • The SP Edge consists of edge services such as the following: • Internet services • PSTN services • WAN services

  45. Service Provider (SP) Edge • Enterprises use SPs to acquire network services • ISPs offer enterprises access to the Internet • PSTN providers offer access to the global public voice network • WAN SPs offer Frame Relay, ATM, and other WAN services for Enterprise site-to-site connectivity

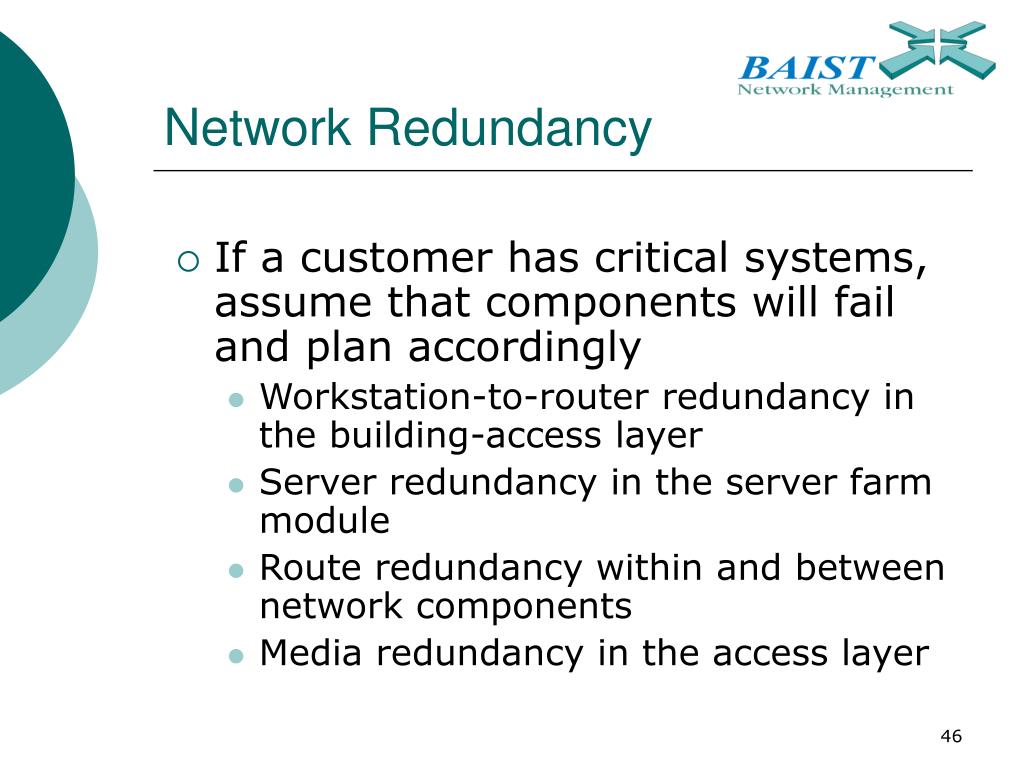

  46. Network Redundancy • If a customer has critical systems, assume that components will fail and plan accordingly • Workstation-to-router redundancy in the building-access layer • Server redundancy in the server farm module • Route redundancy within and between network components • Media redundancy in the access layer

  47. Workstation-to-Router Redundancy • When a workstation has traffic to send to a station that is not local, the workstation has many possible ways to discover the address of a router on its network segment • ARP • Some IP workstations send an ARP frame to find a remote station • A router running proxy ARP can respond with its data link layer address • Cisco routers run proxy ARP by default

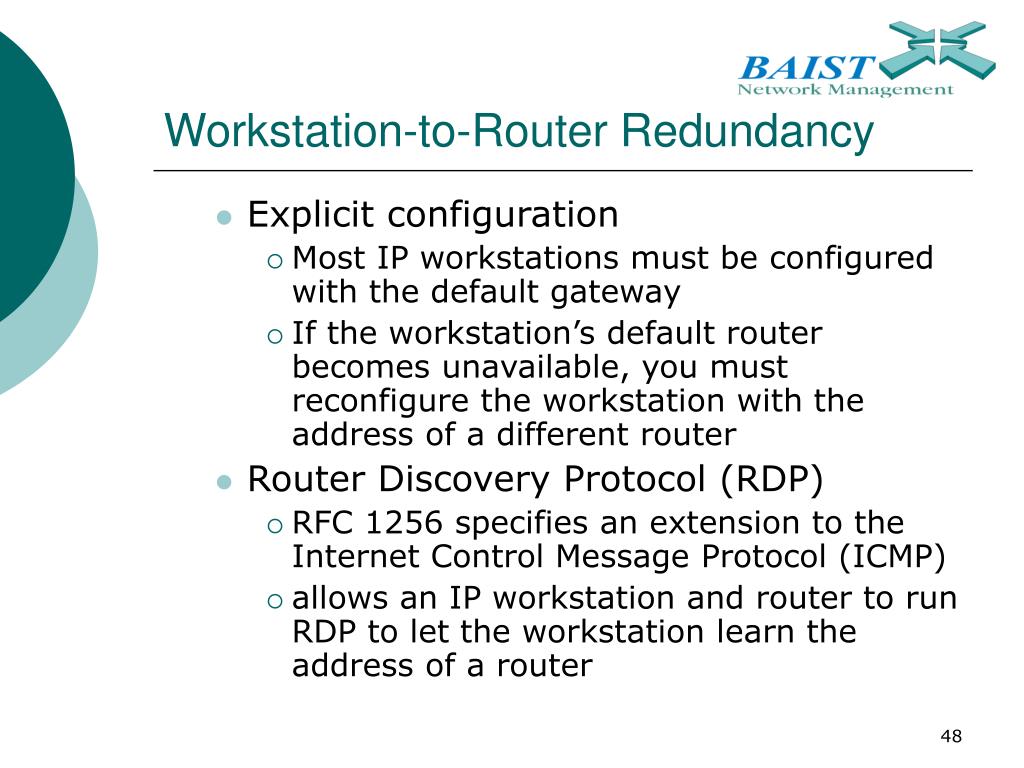

  48. Workstation-to-Router Redundancy • Explicit configuration • Most IP workstations must be configured with the default gateway • If the workstation’s default router becomes unavailable, you must reconfigure the workstation with the address of a different router • Router Discovery Protocol (RDP) • RFC 1256 specifies an extension to the Internet Control Message Protocol (ICMP) • allows an IP workstation and router to run RDP to let the workstation learn the address of a router

  49. Workstation-to-Router Redundancy • RIP • An IP workstation can run RIP to learn about routers • Use RIP in passive mode • Usually in these implementations, the workstation is a UNIX system running the routed UNIX process

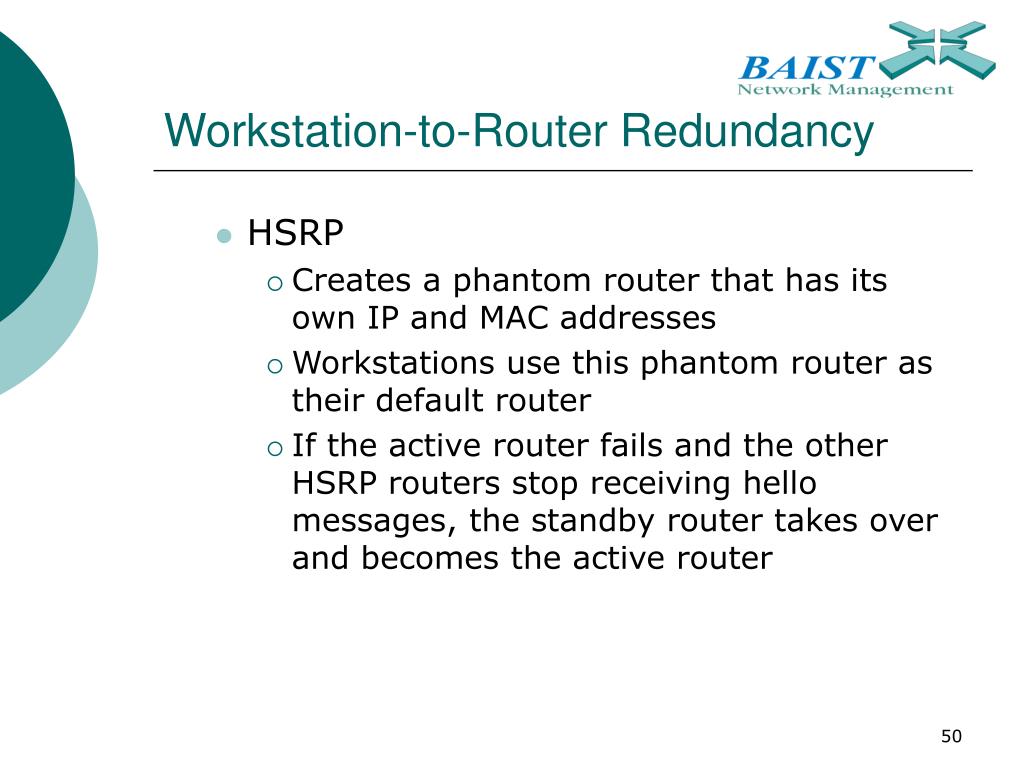

  50. Workstation-to-Router Redundancy • HSRP • Creates a phantom router that has its own IP and MAC addresses • Workstations use this phantom router as their default router • If the active router fails and the other HSRP routers stop receiving hello messages, the standby router takes over and becomes the active router
