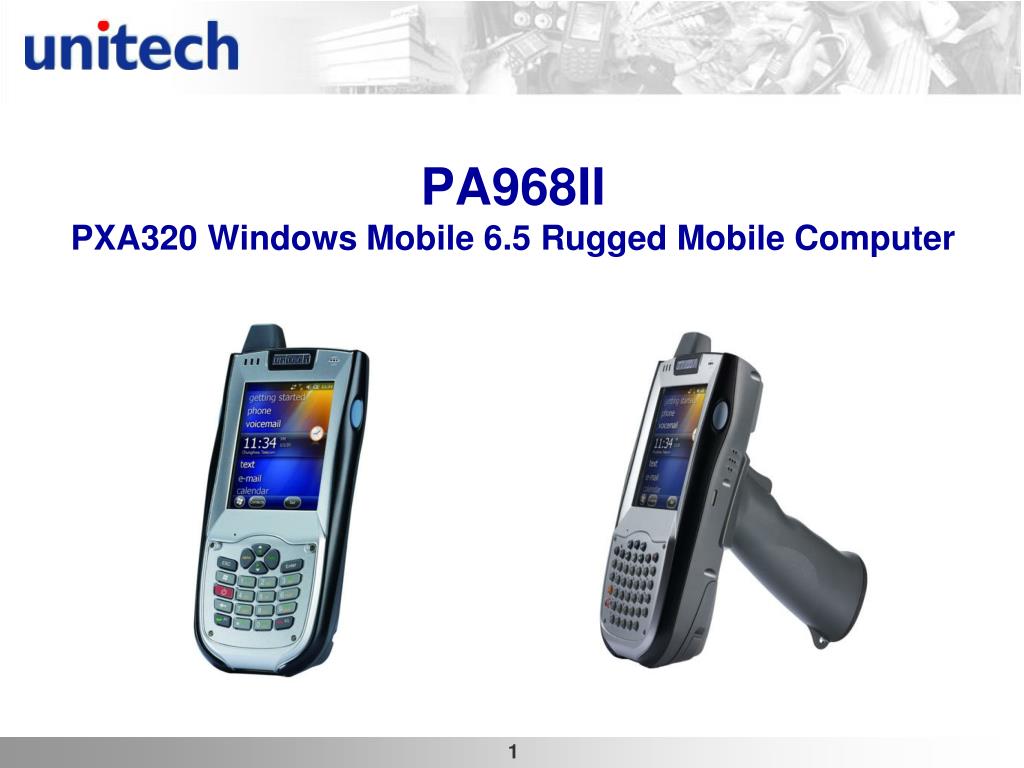

  1. PA968II PXA320 Windows Mobile 6.5 Rugged Mobile Computer

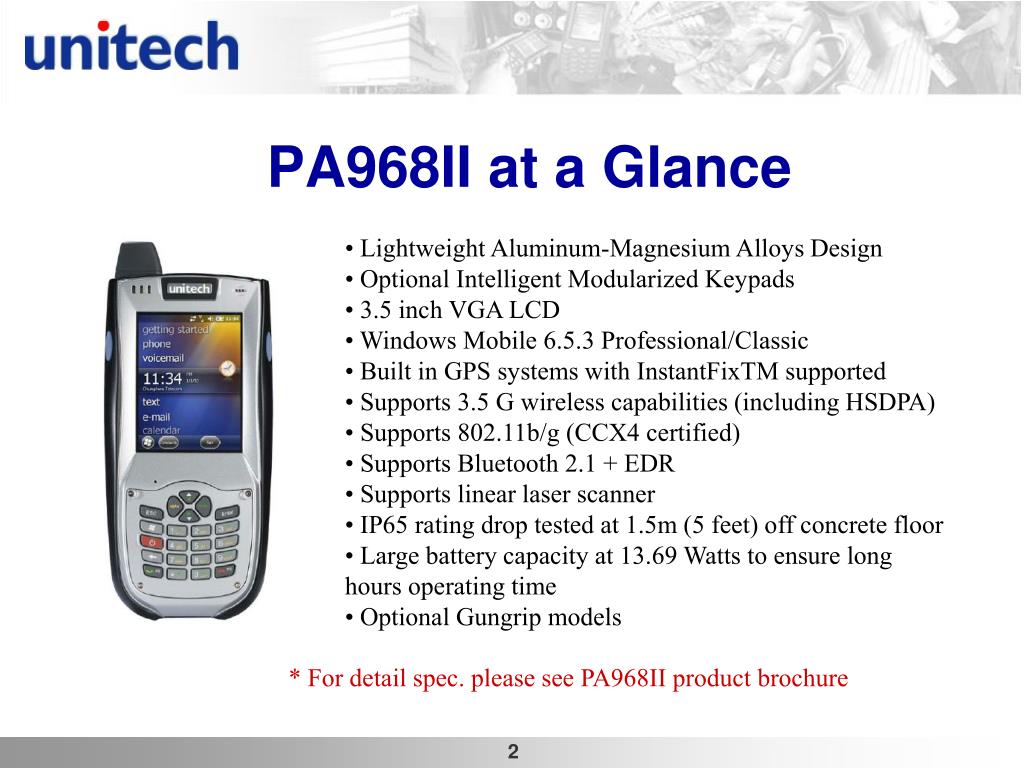

  2. PA968II at a Glance • Lightweight Aluminum-Magnesium Alloys Design • Optional Intelligent Modularized Keypads • 3.5 inch VGA LCD • Windows Mobile 6.5.3 Professional/Classic • Built in GPS systems with InstantFixTM supported • Supports 3.5 G wireless capabilities (including HSDPA) • Supports 802.11b/g (CCX4 certified) • Supports Bluetooth 2.1 + EDR • Supports linear laser scanner • IP65 rating drop tested at 1.5m (5 feet) off concrete floor • Large battery capacity at 13.69 Watts to ensure long hours operating time • Optional Gungrip models * For detail spec. please see PA968II product brochure

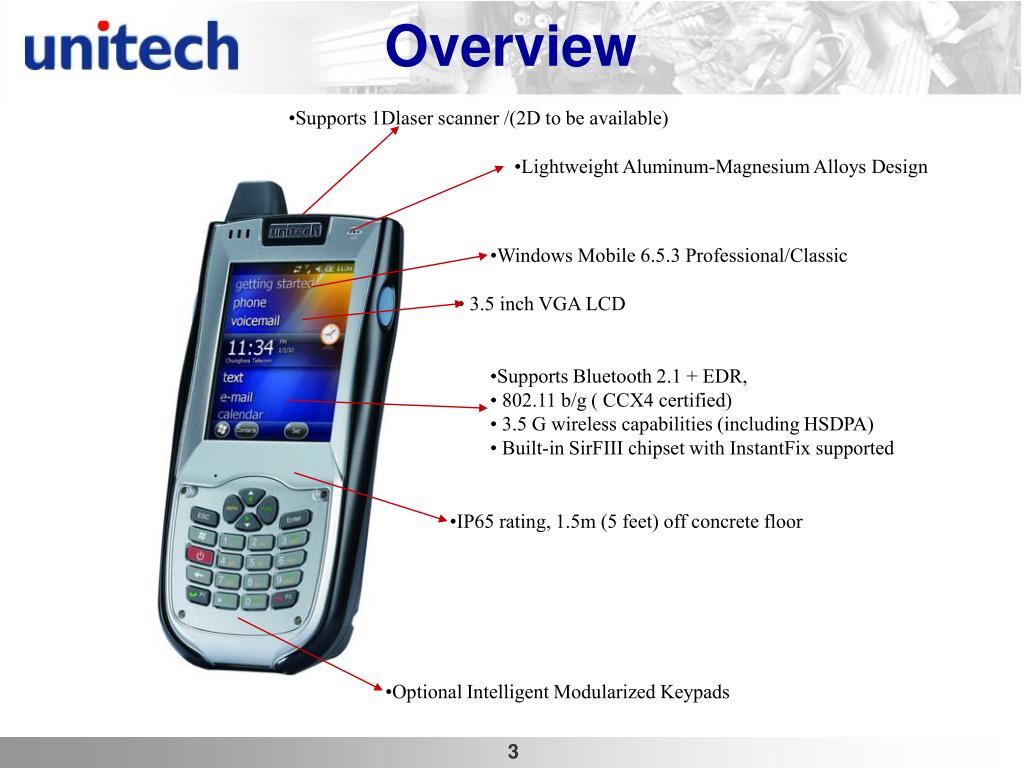

  3. Overview • Supports 1Dlaser scanner /(2D to be available) • Lightweight Aluminum-Magnesium Alloys Design • Windows Mobile 6.5.3 Professional/Classic • 3.5 inch VGA LCD • Supports Bluetooth 2.1 + EDR, • 802.11 b/g ( CCX4 certified) • 3.5 G wireless capabilities (including HSDPA) • Built-in SirFIII chipset with InstantFix supported • IP65 rating, 1.5m (5 feet) off concrete floor • Optional Intelligent Modularized Keypads

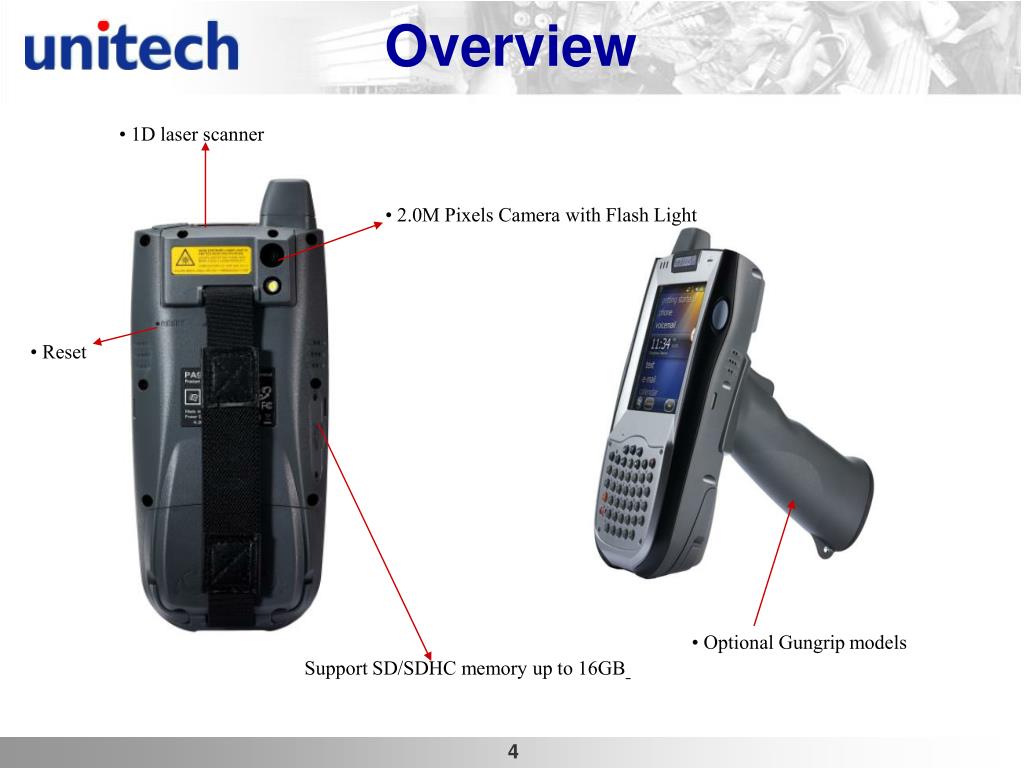

  4. Overview • 1D laser scanner • 2.0M Pixels Camera with Flash Light • Reset • Optional Gungrip models Support SD/SDHC memory up to 16GB

  5. PA968II Upgrade features

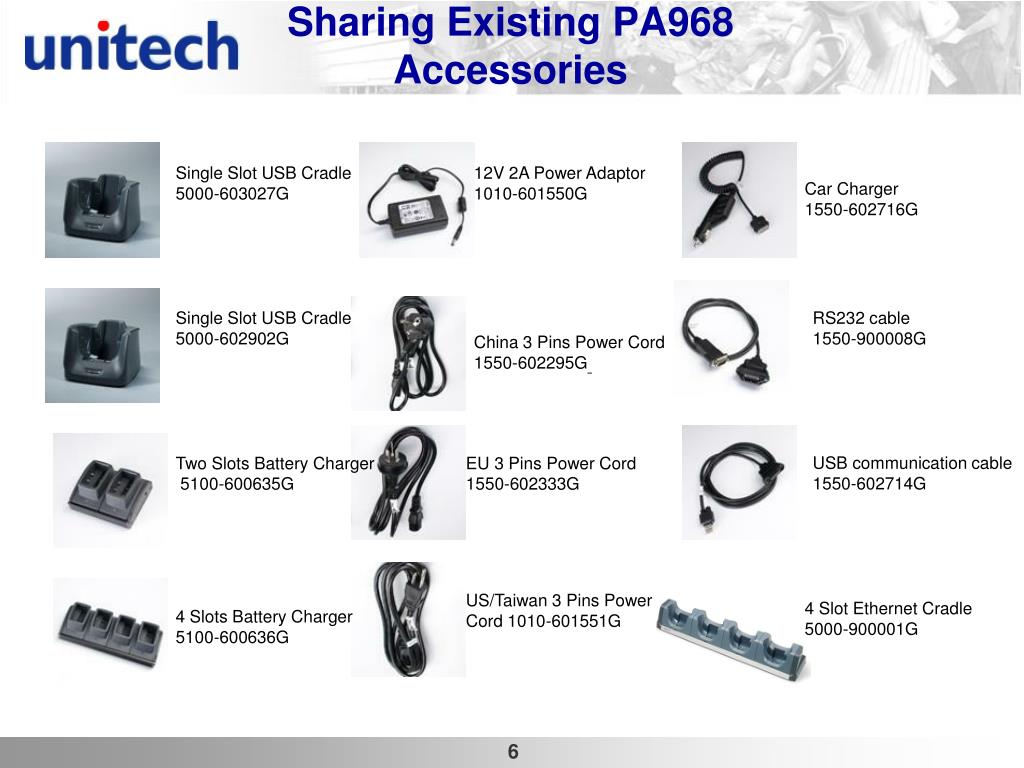

  6. Sharing Existing PA968 Accessories Single Slot USB Cradle 5000-603027G 12V 2A Power Adaptor 1010-601550G Car Charger 1550-602716G Single Slot USB Cradle 5000-602902G RS232 cable 1550-900008G China 3 Pins Power Cord 1550-602295G USB communication cable 1550-602714G Two Slots Battery Charger 5100-600635G EU 3 Pins Power Cord 1550-602333G US/Taiwan 3 Pins Power Cord 1010-601551G 4 Slot Ethernet Cradle 5000-900001G 4 Slots Battery Charger 5100-600636G

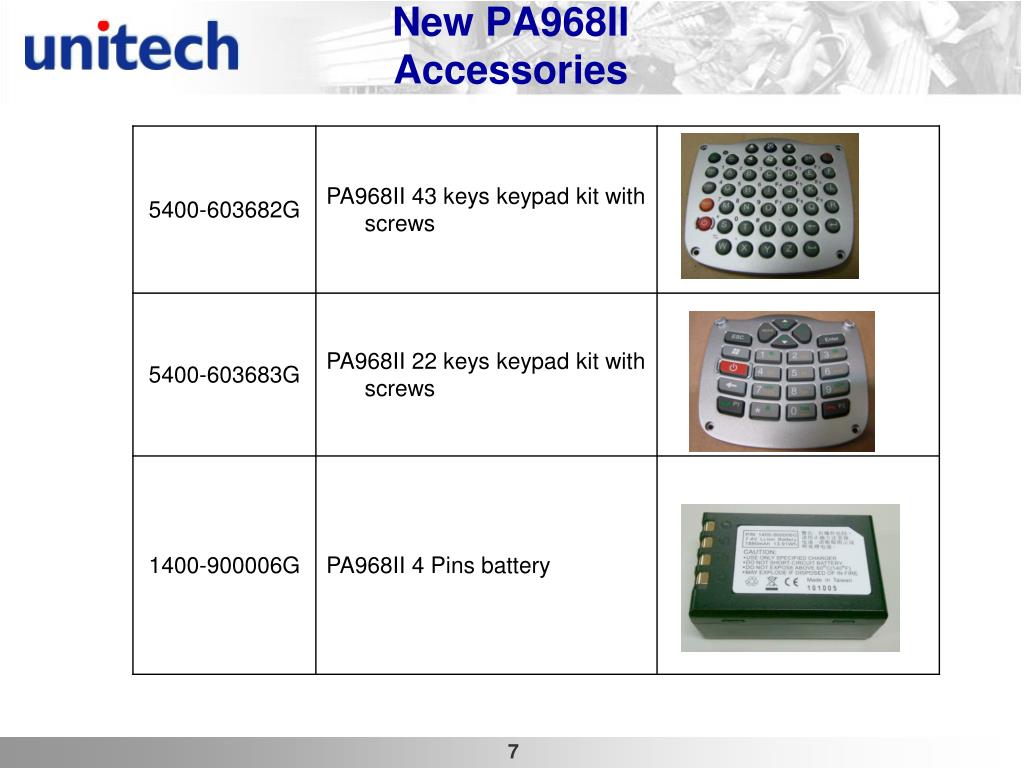

  7. New PA968II Accessories

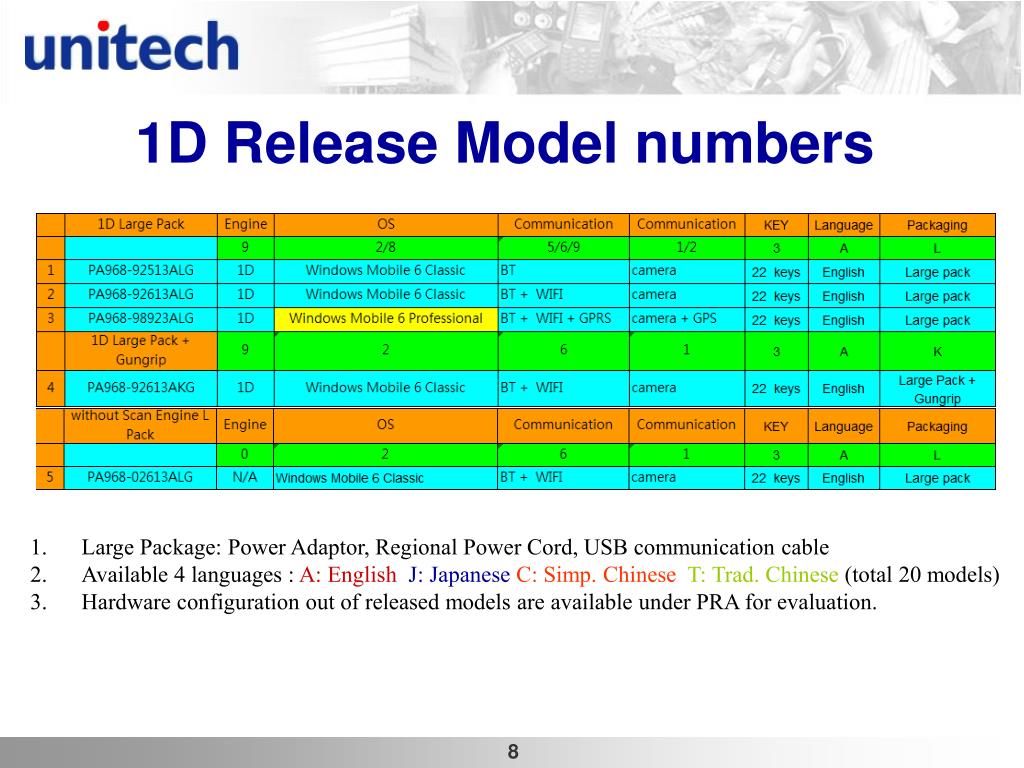

  8. 1D Release Model numbers • Large Package: Power Adaptor, Regional Power Cord, USB communication cable • Available 4 languages : A: EnglishJ: JapaneseC: Simp. ChineseT: Trad. Chinese (total 20 models) • Hardware configuration out of released models are available under PRA for evaluation.

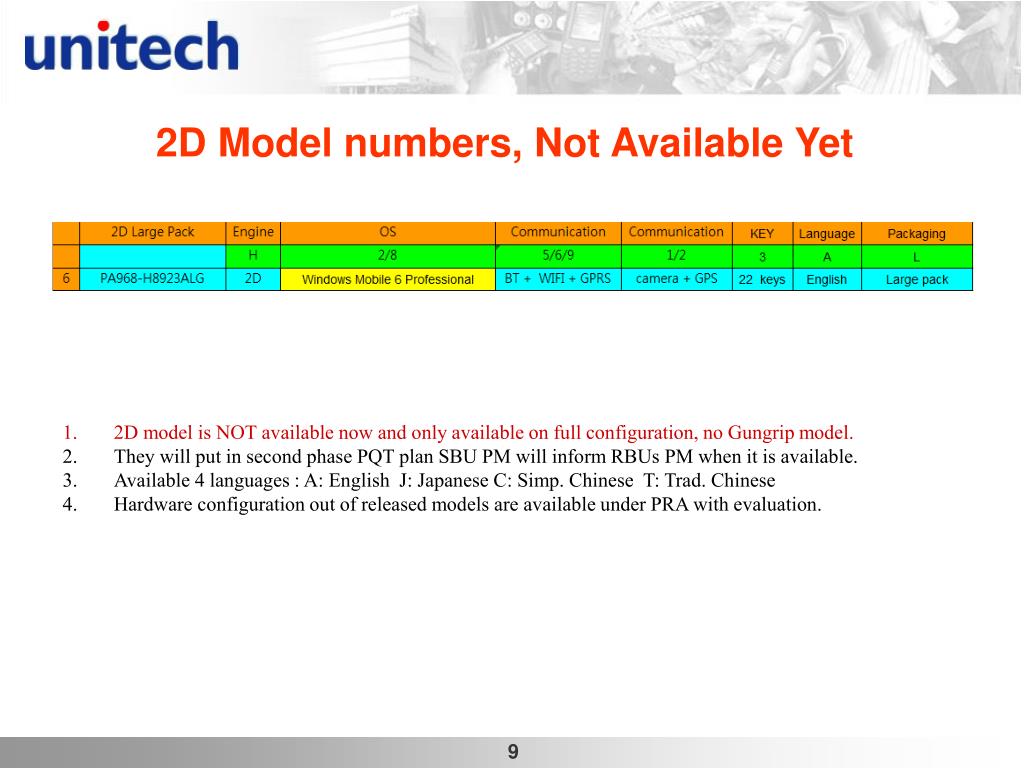

  9. 2D Model numbers, Not Available Yet • 2D model is NOT available now and only available on full configuration, no Gungrip model. • They will put in second phase PQT plan SBU PM will inform RBUs PM when it is available. • Available 4 languages : A: English J: Japanese C: Simp. Chinese T: Trad. Chinese • Hardware configuration out of released models are available under PRA with evaluation.

  10. Unitech MC Line Product Roadmap 2010/H2 2011 2012 High *PA800 New Platform BT.WiFi.3.5G.Camera PA800 WM 6.1 IP68 EOL PA968II WM 6.5 Medium PA968 CE Ella 3.8”WVGA WM6.5 PA550 WM6.5 EOL PA600 WM6.1 Low PA550 WM6.5 EOL PA500 WM5.0 : To be decided PA500II WM6.5

  11. Unitech MC Line Product Roadmap PA968II will have life time at least 2 years without hardware upgrade plan. OS might be upgraded to Windows Embedded Handheld 6.5 in 2011 depending on Microsoft release plan. PA968 ( CE model) is expected to be EOL in 2010 Q2, and there is a new model Ella ( available in Q3,2011) which intends to replace PA968 and PA968II and PA600 in 2 years time.

  12. Thanks!!
