Projectile Motion 1

Projectile Motion 1. Preflight Responses. A flatbed railroad car is moving along a track at constant velocity. A passenger riding at the center of the train throws a ball straight up. Neglecting air resistance, where will the ball land? Forward of the center of the train.

phelan-cortez
Télécharger la présentation

Projectile Motion 1

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Projectile Motion 1

  2. Preflight Responses • A flatbed railroad car is moving along a track at constant velocity. A passenger riding at the center of the train throws a ball straight up. Neglecting air resistance, where will the ball land? • Forward of the center of the train. •      Right at the center of the train. •      Backward of the center of the train. 74% answered correctly!

  3. “x” and “y” components of motion are independent. • A man on a train tosses a ball straight up in the air. • View this from two reference frames: Reference frame on the moving train. Reference frame on the ground.

  4. Frames of Reference

  5. Projectile: An Object Moving Solely Under Influence of Gravity

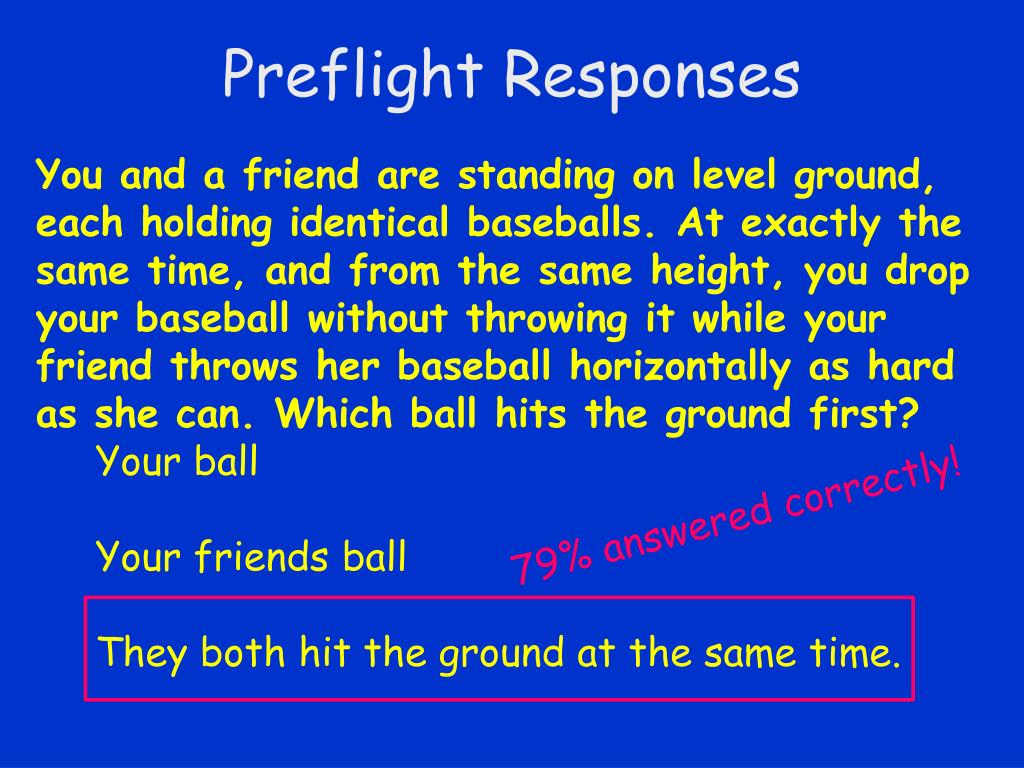

  6. Preflight Responses You and a friend are standing on level ground, each holding identical baseballs. At exactly the same time, and from the same height, you drop your baseball without throwing it while your friend throws her baseball horizontally as hard as she can. Which ball hits the ground first?     Your ball      Your friends ball      They both hit the ground at the same time. 79% answered correctly!

  7. Horizontally Launched Projectile

  8. Projectile Motion Without gravity, the cannonball would follow a straight-line path as shown in the picture. With gravity, the cannonball falls the same distance below the gravity-free path as a cannonball dropped from the same height.

  9. Motion in Freefall

  10. Motion in Freefall

  11. Independence of x & y Motions For Vx= 5 m/s

  12. Independence of x & y Motions For Vx= 5 m/s

  13. Independence of x & y Motions For Vx= 5 m/s

  14. 1000 m Problem: • The pilot of a hovering helicopter drops a lead brick from a height of 1000 m. How long does it take to reach the ground and how fast is it moving when it gets there? (neglect air resistance)

  15. y Problem: • First choose coordinate system. --Origin and y-direction • Next write down position equation: Realize that 1000 m y = 1000 m

  16. y Problem: • Solve for time t when y = 1000 m • To find the velocity: • Evaluate vy: y0= 1000 m y = 1000 m

  17. 1000 m Problem 2: • A helicopter is traveling toward the west at 30 m/s. The pilot of drops a lead brick from a height of 1000 m. How long does it take to reach the ground and what is its velocity when it gets there?How far west of the release point does the brick hit the ground? (neglect air resistance)

  18. 1000 m y Problem 2: Since the time to reach the ground is INDEPENDENT OF HORIZONTAL MOTION x Find the time as before – using the : vertical motion equation: Find the horizontal position (x) using the constant velocity equation for the horizontal motion equation: x

  19. 1000 m y Problem 2: To find the speed when it reaches the ground, we must use vector addition to combine the x and yvelocities. x The y-velocity, from before is: The x-velocity is constant θ The magnitude of the velocity is: vy = 140 m/s v The angle the velocity makes with the horizontal is: x
