  1. Cloud Computinglecture 10 Using AWS Keke Chen

  2. Outline • Using EC2 • Preparation • Run instance from command line tools • Use web console • Use boto • Using S3 • Use boto

  3. Preparation • Sign up for AWS • Coupon codes • worth $100 per code , redeem at “account” • Security credentials • Access Key ID • Security access key • X.509 certificate • “create a certificate” • Download the private key and the certificate (i.e., the public key) and save them to ~/.ec2/

  4. preparation • Methods for accessing EC2 • Command line tools • Web console • boto python library

  5. preparation • Ec2 command line tools have been installed at /usr/local/ec2 at nimbus17 • You should set up env varialbes • JAVA_HOME • EC2_HOME • Add $EC2_HOME/bin to PATH • EC2_PRIVATE_KEY=~/.ec2/pk-XXXXX.pem • EC2_CERT=~/.ec2/cert-XXXXXXX.pem Both pk*.pem and cert*.perm are from the x.509 certificate you downloaded from your account)

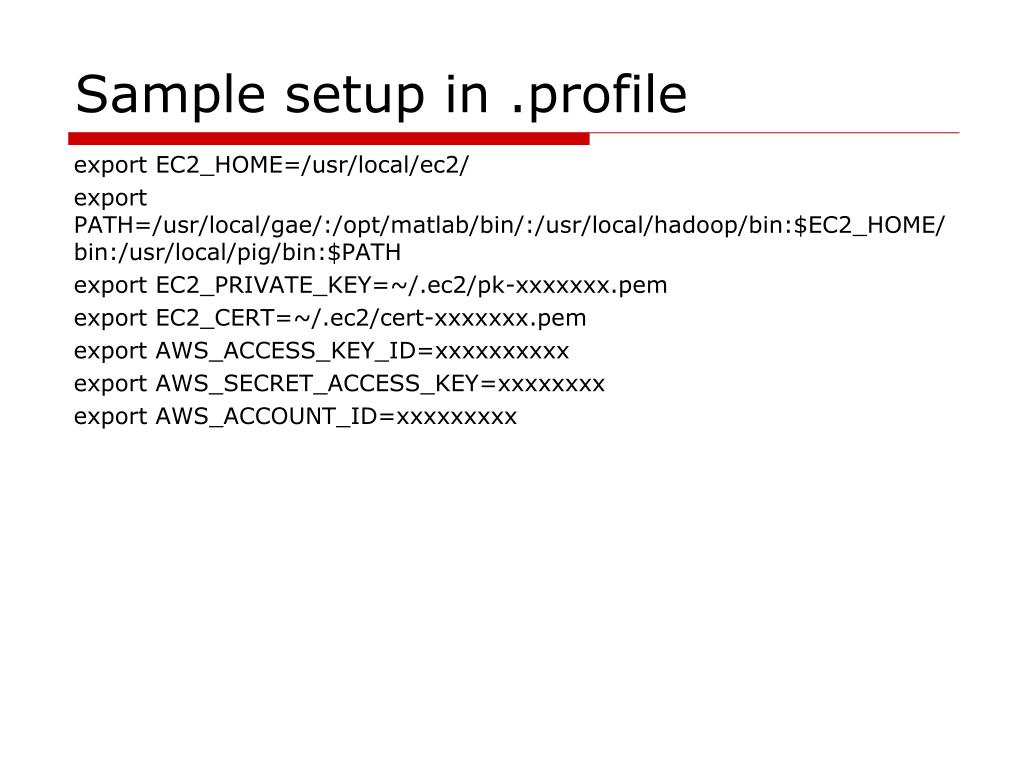

  6. Sample setup in .profile export EC2_HOME=/usr/local/ec2/ export PATH=/usr/local/gae/:/opt/matlab/bin/:/usr/local/hadoop/bin:$EC2_HOME/bin:/usr/local/pig/bin:$PATH export EC2_PRIVATE_KEY=~/.ec2/pk-xxxxxxx.pem export EC2_CERT=~/.ec2/cert-xxxxxxx.pem export AWS_ACCESS_KEY_ID=xxxxxxxxxx export AWS_SECRET_ACCESS_KEY=xxxxxxxx export AWS_ACCOUNT_ID=xxxxxxxxx

  7. Ready to start! • Check AMIs ec2-describe-images –o self –o amazon | grep machine|less Looking for … IMAGE ami-3c47a355 ec2-public-images/getting-started.manifest.xml amazon available public i386

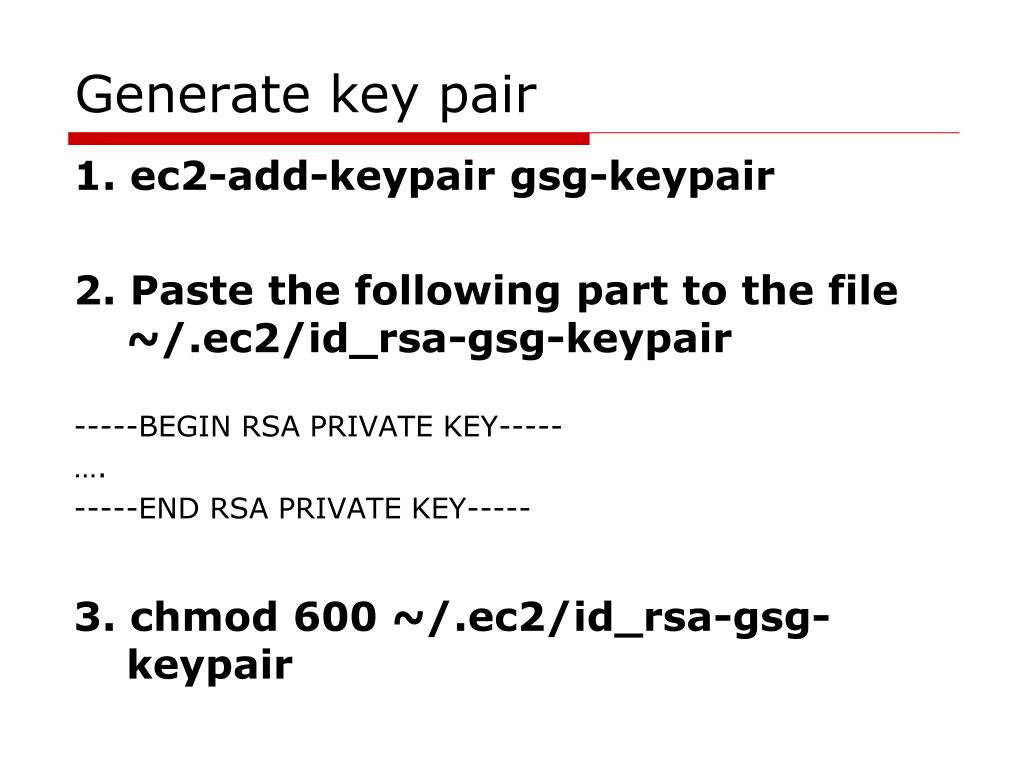

  8. Generate key pair 1. ec2-add-keypair gsg-keypair 2. Paste the following part to the file ~/.ec2/id_rsa-gsg-keypair -----BEGIN RSA PRIVATE KEY----- …. -----END RSA PRIVATE KEY----- 3. chmod 600 ~/.ec2/id_rsa-gsg-keypair

  9. Run an instance • ec2-run-instances ami-3c47a355 -k gsg-keypair • ec2-describe-instances i-395bf151 RESERVATION r-29f61541 425984194090 default INSTANCE i-395bf151 ami-3c47a355 pending gsg-keypair 0 m1.small 2009-10-13T05:16:54+0000 us-east-1b aki-a71cf9ce ari-a51cf9cc monitoring-disabled RESERVATION r-29f61541 425984194090 default INSTANCE i-395bf151 ami-3c47a355 ec2-67-202-28-87.compute-1.amazonaws.com domU-12-31-39-06-AC-33.compute-1.internal running gsg-keypair 0m1.small 2009-10-13T05:16:54+0000 us-east-1b aki-a71cf9ce ari-a51cf9cc monitoring-disabled 67.202.28.87 10.208.179.193

  10. Get connected • Authorize accesses to ports • ec2-authorize default –p 22 • ec2-authorize default –p 80 -- enable ssh and web • Or start with some security group • ec2-run-instances ami-xxxxx -g apache • Connect to your instance • http://ec2-67-202-28-87.compute-1.amazonaws.com • ec2-get-console-output i-395bf151 • ssh -i ~/.ec2/id_rsa-gsg-keypair root@ec2-67-202-28-87.compute-1.amazonaws.com

  11. Clean up • Terminate the instance • ec2-terminate-instances i-395bf151 • Or in the instance, run shutdown –h now

  12. Using AWS console

  13. Use boto to access EC2 • Create connection >>> from boto.ec2.connection import EC2Connection >>> conn = EC2Connection('<aws access key>', '<aws secret key>') Or if you have set the keys in AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY >>> import boto >>> conn = boto.connect_ec2()

  14. Images >>> images = conn.get_all_images() >>> images >>> for i in range(len(images)): ... print i, images[i].location

  15. Run instance >>> image = images[xxx] # some selected image >>> reservation = image.run() # have various parameter settings, such as key, security group, instance type, etc. Or reservation=conn.run_instances('<ami-image-id>') >>> reservation.instances [Instance:i-6761850e] >>> instance = reservation.instances[0] >>> instance.state u'pending‘ >>> instance.update() >>> instance.state u'pending' >>> # wait a few seconds to minutes >>> instance.update() >>> instance.state u'running'

  16. Retrieve information of instance >>> instance.dns_name u'ec2-72-44-40-153.z-2.compute-1.amazonaws.com' >>> instance.public_dns_name u'ec2-72-44-40-153.z-2.compute-1.amazonaws.com' >>> instance.private_dns_name u'domU-12-31-35-00-42-33.z-2.compute-1.internal'

  17. Run multiple instances >>> reservation.image.run(2,2,'gsg-keypair') >>> reservation.instances [Instance:i-5f618536, Instance:i-5e618537] >>> for i in reservation.instances: ... print i.status u'pending' u'pending' >>>

  18. Terminate instances >>> instance.stop() >>> instance.update() >>> instance.state u'shutting-down' >>> # wait a minute >>> instance.update() >>> instance.state u'terminated' For multiple instances >>> reservation.stop_all() >>> instances = conn.get_all_instances() >>># then check each instance

  19. Security • Set launch permission for private AMIs image.get_launch_permission() image.set_launch_permission(list_of_AWS_user_IDs) image.remove_launch_permission(list_of_AWS_user_IDs) Image.reset_launch_permission()

  20. Security • Security groups • For network accesses to service ports • A collection of access rules >>> rs = conn.get_all_security_groups() >>> print rs [SecurityGroup:appserver, SecurityGroup:default, SecurityGroup:vnc, SecurityGroup:webserver] >>>

  21. >>> sg = rs[1] >>> sg.name u'default' >>> sg.rules [IPPermissions:tcp(0-65535), IPPermissions:udp(0-65535), IPPermissions:icmp(-1--1), IPPermissions:tcp(22-22), IPPermissions:tcp(80-80)] >>>

  22. Create a security group >>> web = conn.create_security_group('apache', 'Our Apache Group') >>> web SecurityGroup:apache >>> web.authorize('tcp', 80, 80, '0.0.0.0/0') True >>> web.authorize(ip_protocol='tcp', from_port=22, to_port=22, cidr_ip='192.168.1.130/32') True

  23. Revoke permission >>> web.rules [IPPermissions:tcp(80-80), IPPermissions:tcp(22-22)] >>> web.revoke('tcp', 22, 22, cidr_ip='192.168.1.130/32') True >>> web.rules [IPPermissions:tcp(80-80)] >>>

  24. Regions >>> import boto.ec2 >>> regions = boto.ec2.regions() >>> regions [RegionInfo:eu-west-1, RegionInfo:us-east-1] Bind to specific regions >>> eu = regions[0] >>> conn_eu = eu.connect()

  25. Copy resources to new region • Supporting EC2 objects • User created • SecurityGroups, KeyPairs, Addresses, Volumns, Images, and SnapShots • Local to a particular region • Copy to a new region Example – SecurityGroup: >>eu_group = us_group.copy_to_region(eu)

  26. S3 – quick review • Objects are organized in a two-level directory • Bucket • container of objects • Global unique name • Key • Like file names • Unique in the same bucket • Object • Indexed by (bucket, key) • http://bucket.s3.amazonaws.com/key

  27. S3 • Programming tools

  28. Check out AWS Developer Resource Center, for more programming examples • We will take a look at boto library • It is already installed with python at nimbus17

  29. Create a connection >>> from boto.s3.connection import S3Connection >>> conn = S3Connection('<aws access key>', '<aws secret key>') These two keys can be found in your security credentials

  30. If you have set the keys in AWS_ACCESS_KEY_ID, AWS_SECRET_ACCESS_KEY >>> import boto >>> conn=boto.connect_s3()

  31. Creating a bucket >>> bucket = conn.create_bucket(‘mybucket’) Note that mybucket is globally (in the entire S3 system) uniuqe

  32. Storing data >>> from boto.s3.key import Key >>> k = Key(bucket) >>> k.key = 'foobar' >>> k.set_contents_from_string('This is a test of S3')

  33. Retrieve data >>> import boto >>> c = boto.connect_s3() >>> b = c.create_bucket('mybucket') # substitute your bucket name here >>> from boto.s3.key import Key >>> k = Key(b) >>> k.key = 'foobar' >>> k.get_contents_as_string() 'This is a test of S3'

  34. Work on files >>> k = Key(b) >>> k.key = 'myfile' >>>k.set_contents_from_filename('foo.jpg') >>> k.get_contents_to_filename('bar.jpg')

  35. Check all created buckets >>> rs = conn.get_all_buckets() Rs is a list of buckets >>> len(rs) >>> for b in rs: … print b.name … Listing of all available buckets

  36. Set access control • Set public readable for entire bucket >>> b.set_acl('public-read') • For one object >>> b.set_acl('public-read‘, ‘foobar’) Or if k is a Key >>>k.set_acl(‘public-read’)

  37. Check ACL >>> acp = b.get_acl() >>> acp <boto.acl.Policy instance at 0x2e6940> >>> acp.acl <boto.acl.ACL instance at 0x2e69e0> >>> acp.acl.grants [<boto.acl.Grant instance at 0x2e6a08>] >>> for grant in acp.acl.grants: ... print grant.permission, grant.grantee ... FULL_CONTROL <boto.user.User instance at 0x2e6a30>

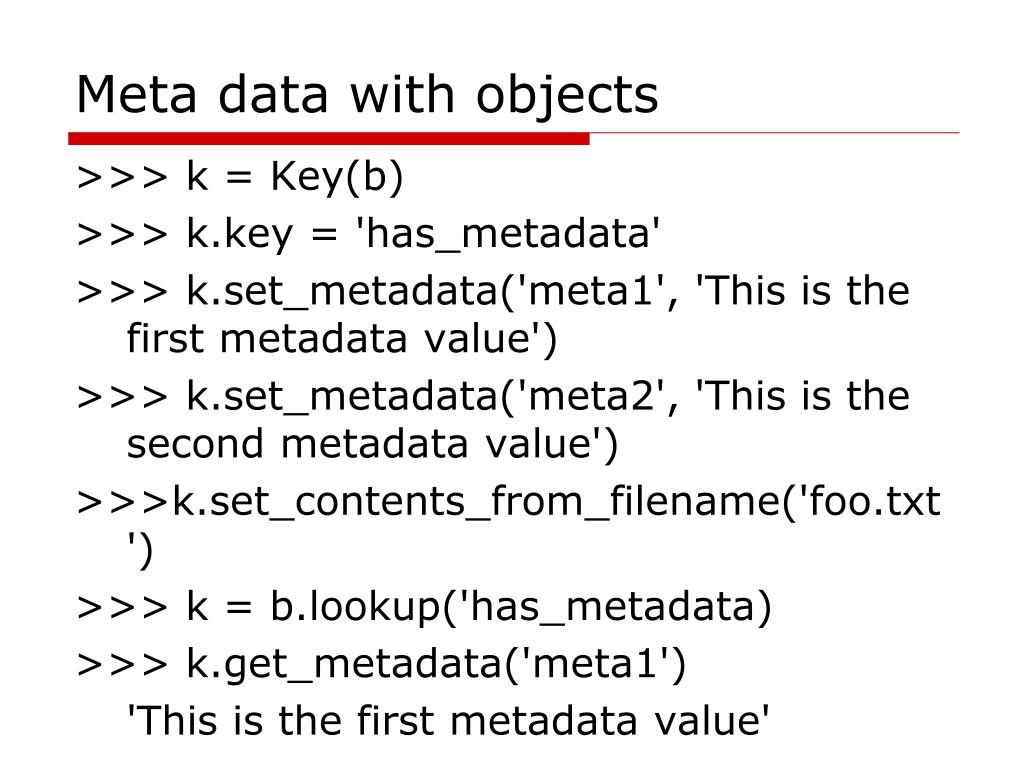

  38. Meta data with objects >>> k = Key(b) >>> k.key = 'has_metadata' >>> k.set_metadata('meta1', 'This is the first metadata value') >>> k.set_metadata('meta2', 'This is the second metadata value') >>>k.set_contents_from_filename('foo.txt') >>> k = b.lookup('has_metadata) >>> k.get_metadata('meta1') 'This is the first metadata value'
