  1. Using the Macro Facility to Create HTML, XML and RTF output Rick Langston, SAS Institute Inc.

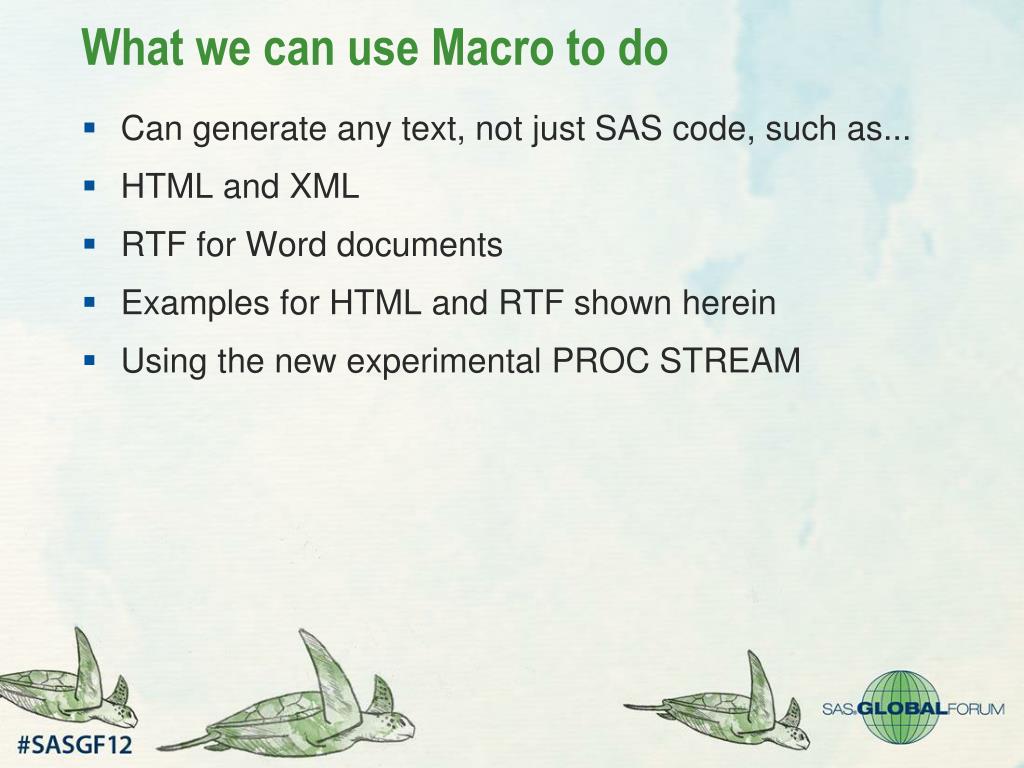

  2. What we can use Macro to do • Can generate any text, not just SAS code, such as... • HTML and XML • RTF for Word documents • Examples for HTML and RTF shown herein • Using the new experimental PROC STREAM

  3. Macro is like the cormorant

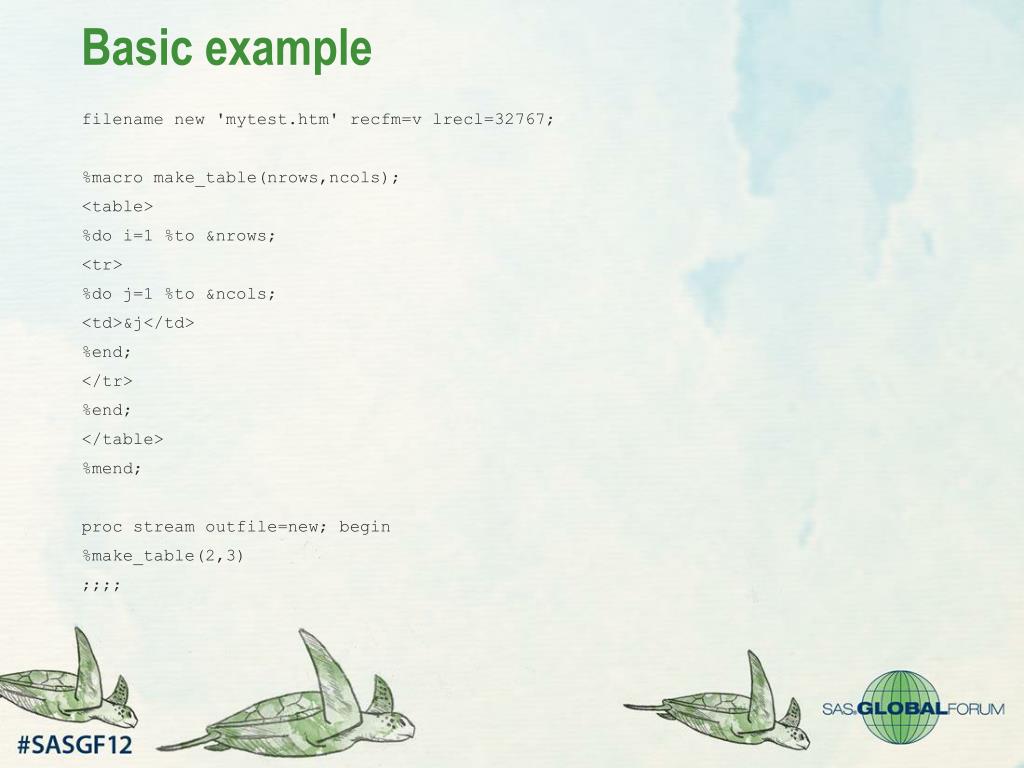

  4. Basic example filename new 'mytest.htm' recfm=v lrecl=32767; %macro make_table(nrows,ncols); <table> %do i=1 %to &nrows; <tr> %do j=1 %to &ncols; <td>&j</td> %end; </tr> %end; </table> %mend; proc stream outfile=new; begin %make_table(2,3) ;;;;

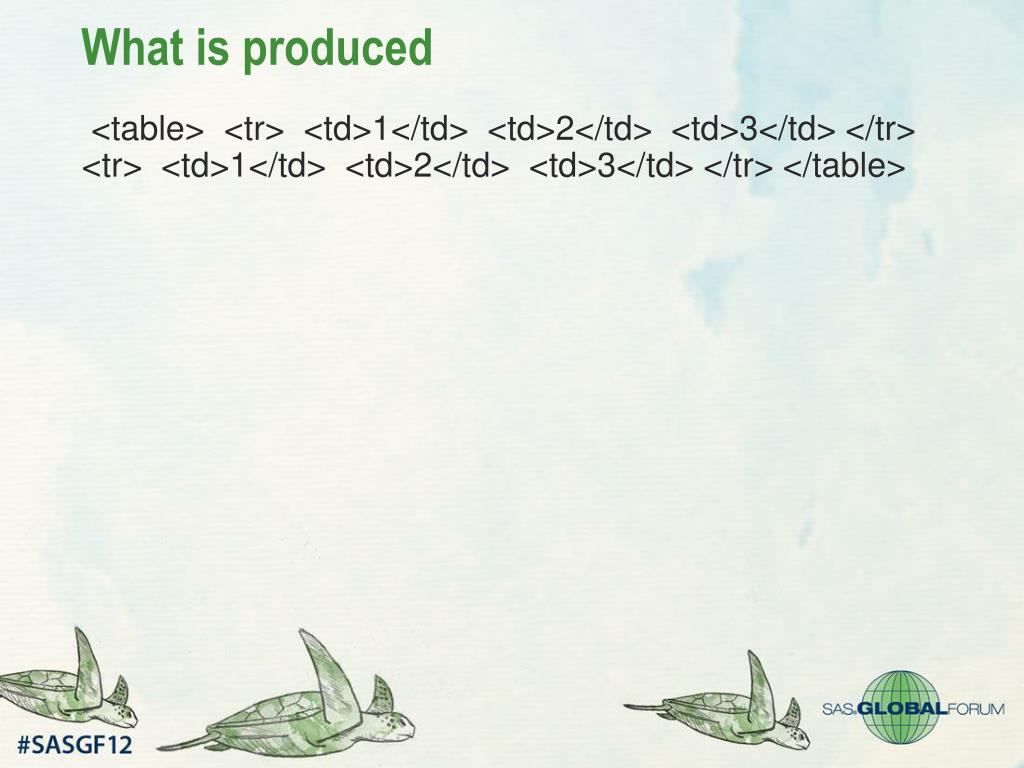

  5. What is produced <table> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> </table>

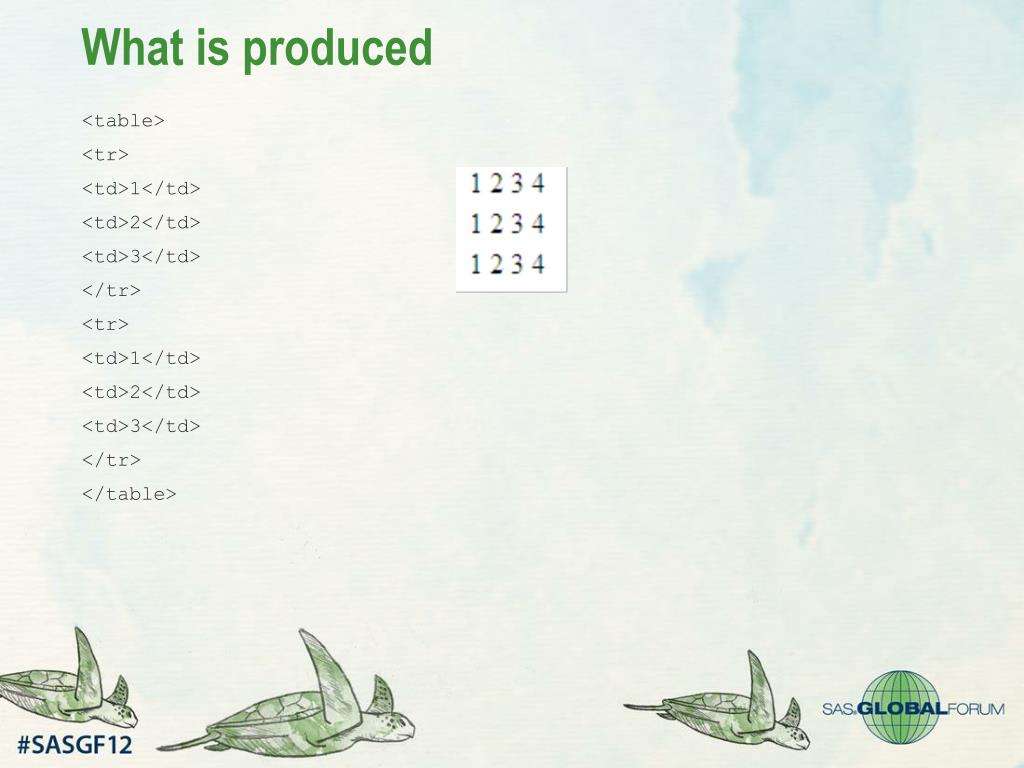

  6. What is produced <table> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> </table>

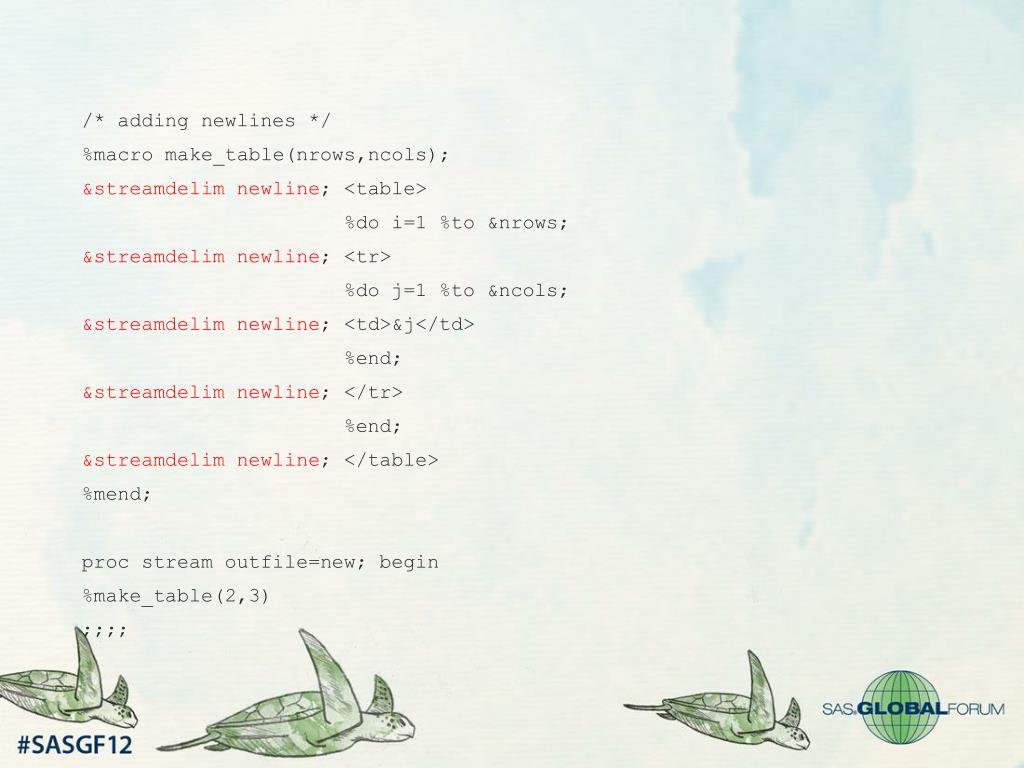

  7. /* adding newlines */ %macro make_table(nrows,ncols); &streamdelim newline; <table> %do i=1 %to &nrows; &streamdelim newline; <tr> %do j=1 %to &ncols; &streamdelim newline; <td>&j</td> %end; &streamdelim newline; </tr> %end; &streamdelim newline; </table> %mend; proc stream outfile=new; begin %make_table(2,3) ;;;;

  8. What is produced <table> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> </table>

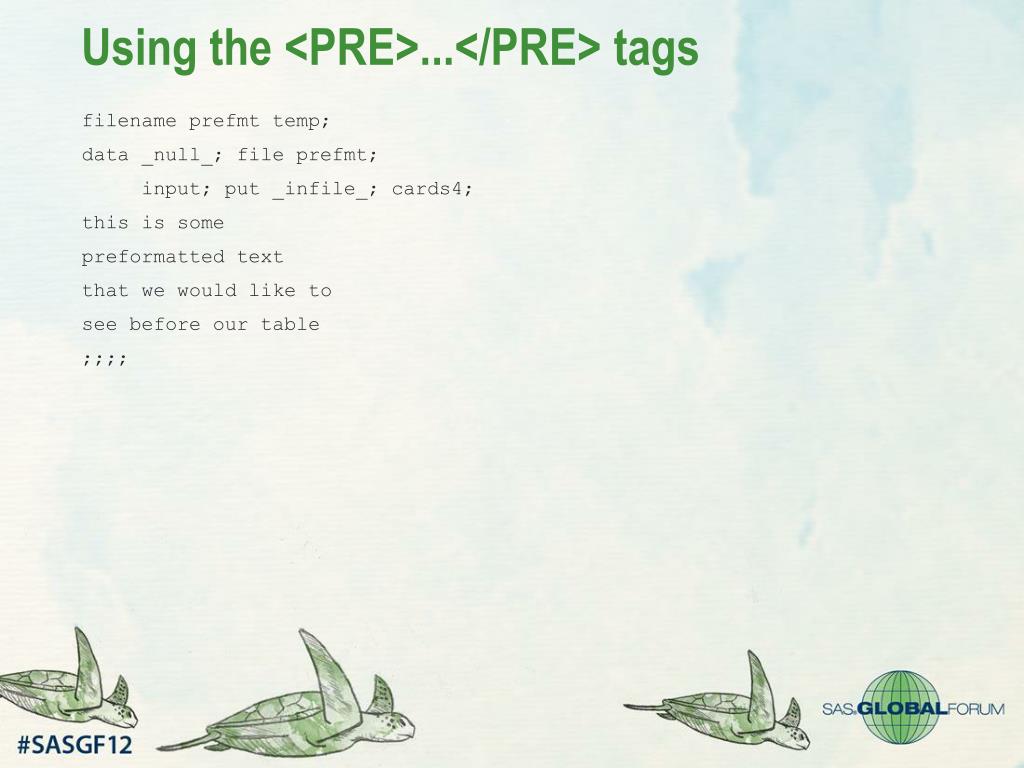

  9. Using the <PRE>...</PRE> tags filename prefmt temp; data _null_; file prefmt; input; put _infile_; cards4; this is some preformatted text that we would like to see before our table ;;;;

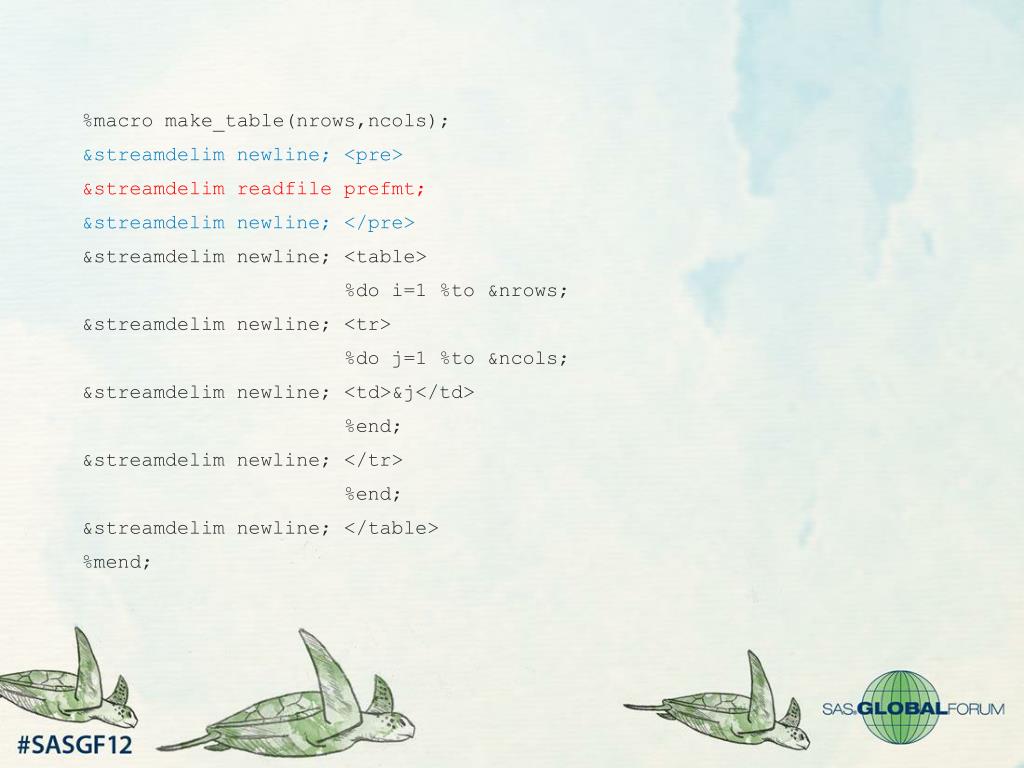

  10. %macro make_table(nrows,ncols); &streamdelim newline; <pre> &streamdelimreadfileprefmt; &streamdelim newline; </pre> &streamdelim newline; <table> %do i=1 %to &nrows; &streamdelim newline; <tr> %do j=1 %to &ncols; &streamdelim newline; <td>&j</td> %end; &streamdelim newline; </tr> %end; &streamdelim newline; </table> %mend;

  11. What is produced <pre> this is some preformatted text that we would like to see before our table </pre> <table> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> <tr> <td>1</td> <td>2</td> <td>3</td> </tr> </table>

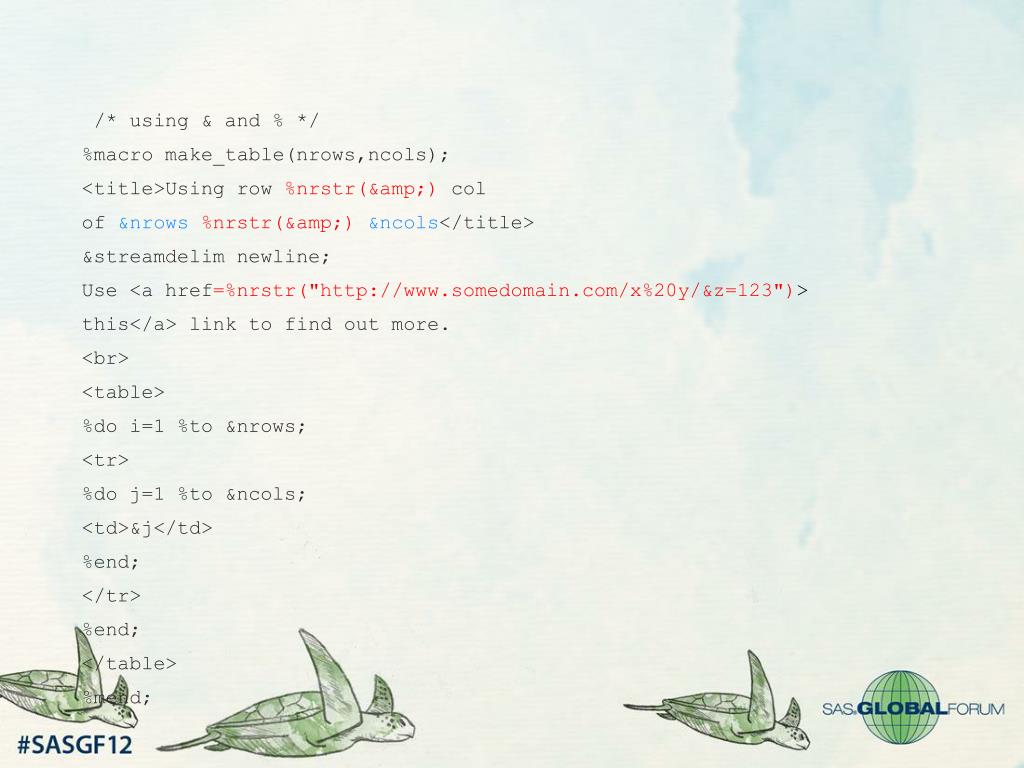

  12. /* using & and % */ %macro make_table(nrows,ncols); <title>Using row %nrstr(&amp;) col of &nrows%nrstr(&amp;) &ncols</title> &streamdelim newline; Use <a href=%nrstr("http://www.somedomain.com/x%20y/&z=123")> this</a> link to find out more. <br> <table> %do i=1 %to &nrows; <tr> %do j=1 %to &ncols; <td>&j</td> %end; </tr> %end; </table> %mend;

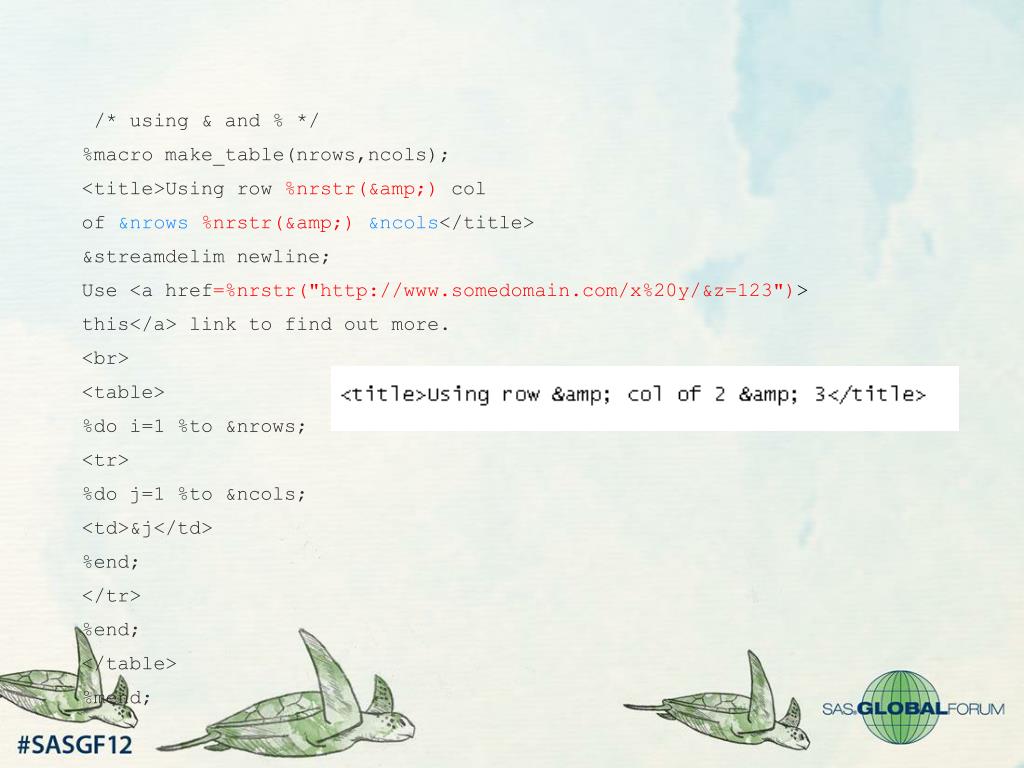

  13. /* using & and % */ %macro make_table(nrows,ncols); <title>Using row %nrstr(&amp;) col of &nrows%nrstr(&amp;) &ncols</title> &streamdelim newline; Use <a href=%nrstr("http://www.somedomain.com/x%20y/&z=123")> this</a> link to find out more. <br> <table> %do i=1 %to &nrows; <tr> %do j=1 %to &ncols; <td>&j</td> %end; </tr> %end; </table> %mend;

  14. /* using & and % */ %macro make_table(nrows,ncols); <title>Using row %nrstr(&amp;) col of &nrows%nrstr(&amp;) &ncols</title> &streamdelim newline; Use <a href=%nrstr("http://www.somedomain.com/x%20y/&z=123")>this</a> link to find out more. <br> <table> %do i=1 %to &nrows; <tr> %do j=1 %to &ncols; <td>&j</td> %end; </tr> %end; </table> %mend;

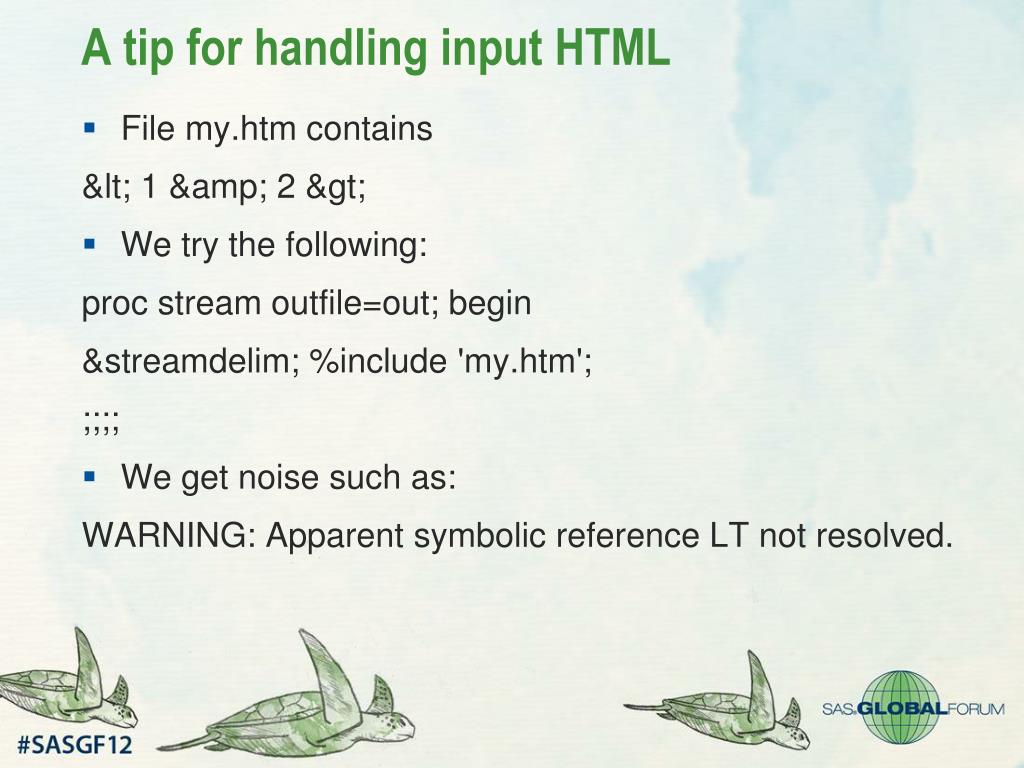

  15. A tip for handling input HTML • File my.htm contains &lt; 1 &amp; 2 &gt; • We try the following: proc stream outfile=out; begin &streamdelim; %include 'my.htm'; ;;;; • We get noise such as: WARNING: Apparent symbolic reference LT not resolved.

  16. A tip for handling input HTML proc stream outfile=out; begin &streamdelim; %let amp=&#80; %let lt=&#76; %let gt=&#110; %include 'my.htm'; ;;;;

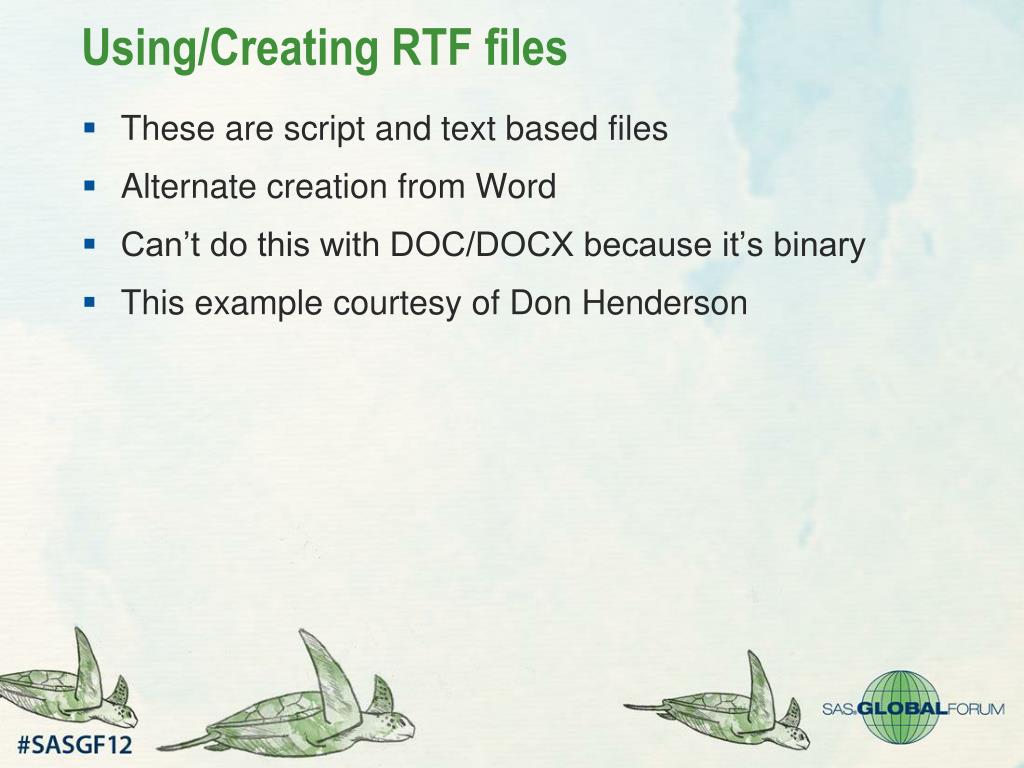

  17. Using/Creating RTF files • These are script and text based files • Alternate creation from Word • Can’t do this with DOC/DOCX because it’s binary • This example courtesy of Don Henderson

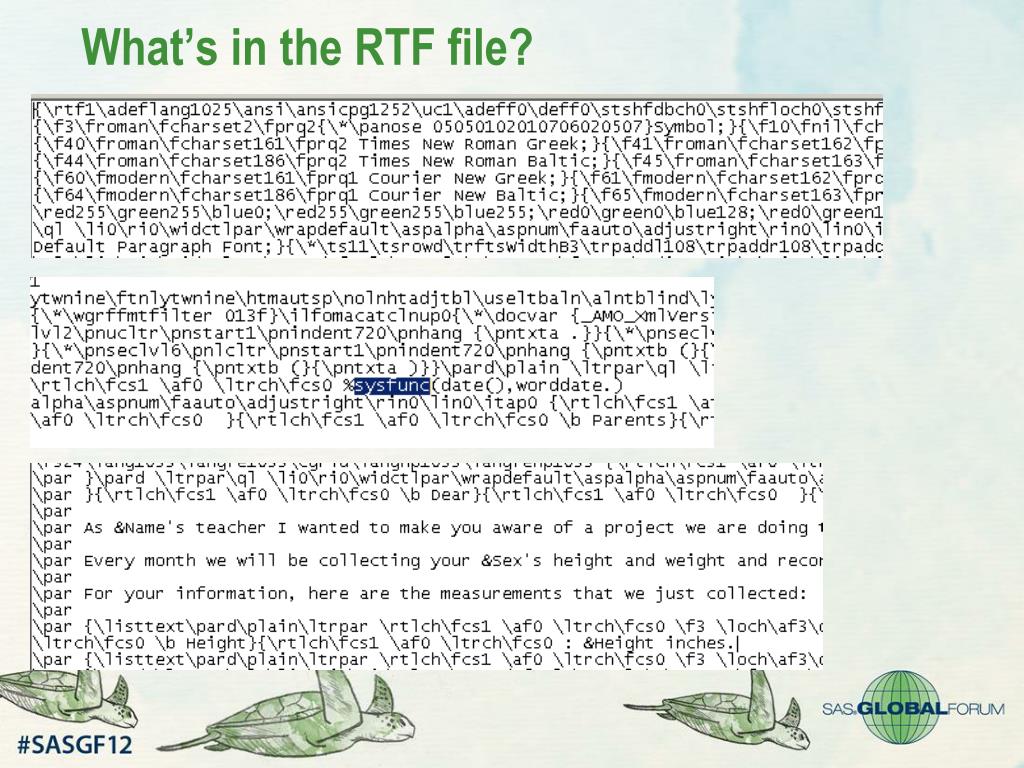

  18. What’s in the RTF file?

  19. One way to make our RTF file filename classrtf 'class.rtf' recfm=v lrecl=32767; filename new 'new.rtf' recfm=v lrecl=32767; procstream outfile=new quoting=both asis; begin %let name=Alfred; %let height=69; %let weight=112.5; %let sex=male; %let age=14; &streamdelim; %include classrtf; ;;;;

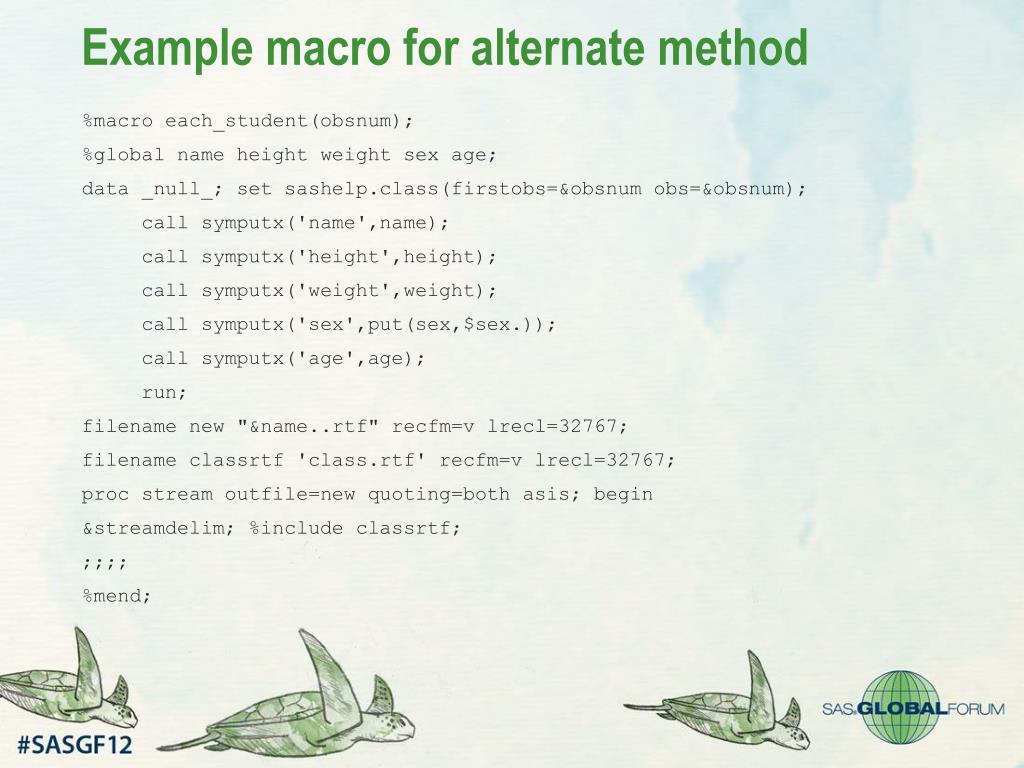

  20. Example macro for alternate method %macro each_student(obsnum); %global name height weight sex age; data _null_; set sashelp.class(firstobs=&obsnumobs=&obsnum); call symputx('name',name); call symputx('height',height); call symputx('weight',weight); call symputx('sex',put(sex,$sex.)); call symputx('age',age); run; filename new "&name..rtf" recfm=v lrecl=32767; filename classrtf 'class.rtf' recfm=v lrecl=32767; proc stream outfile=new quoting=both asis; begin &streamdelim; %include classrtf; ;;;; %mend;

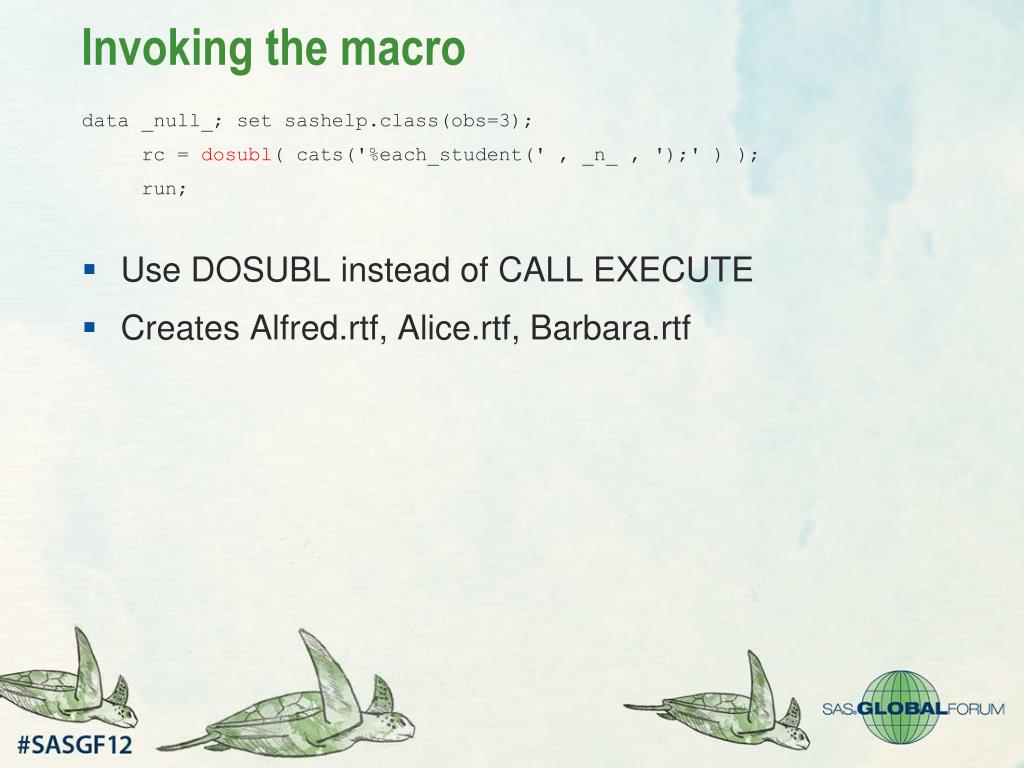

  21. Invoking the macro data _null_; set sashelp.class(obs=3); rc = dosubl( cats('%each_student(' , _n_ , ');' ) ); run; • Use DOSUBL instead of CALL EXECUTE • Creates Alfred.rtf, Alice.rtf, Barbara.rtf

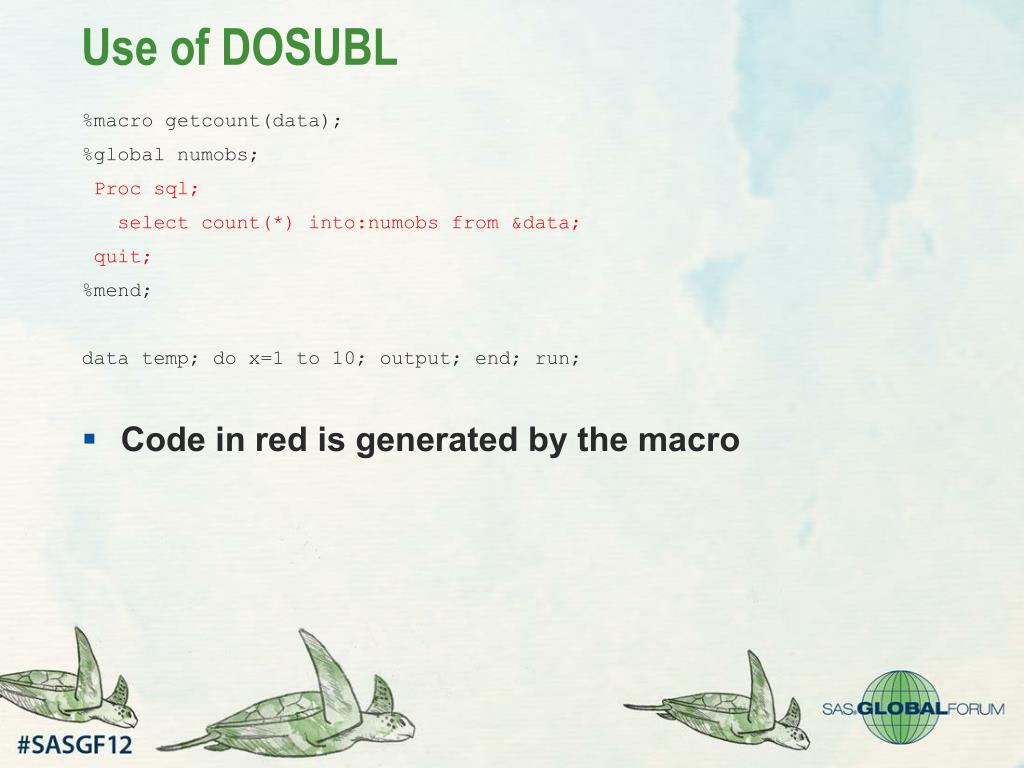

  22. Use of DOSUBL %macro getcount(data); %global numobs; Procsql; select count(*) into:numobs from &data; quit; %mend; data temp; do x=1 to 10; output; end; run; • Code in red is generated by the macro

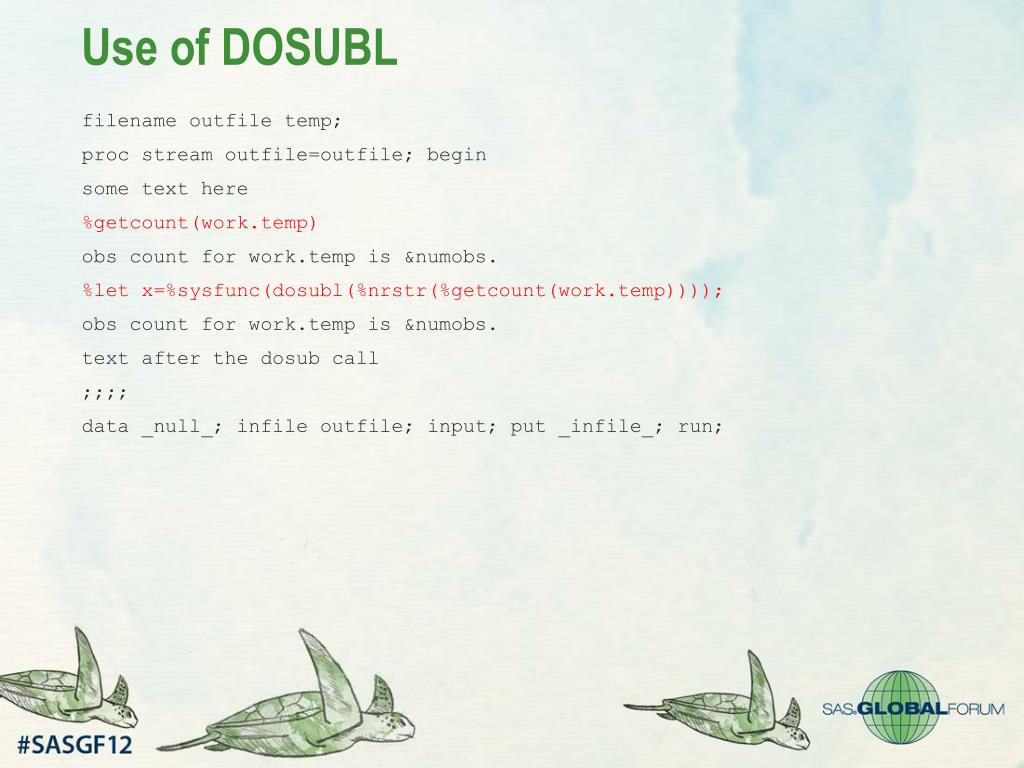

  23. Use of DOSUBL filename outfile temp; proc stream outfile=outfile; begin some text here %getcount(work.temp) obscount for work.temp is &numobs. %let x=%sysfunc(dosubl(%nrstr(%getcount(work.temp)))); obscount for work.temp is &numobs. text after the dosub call ;;;; data _null_; infileoutfile; input; put _infile_; run;

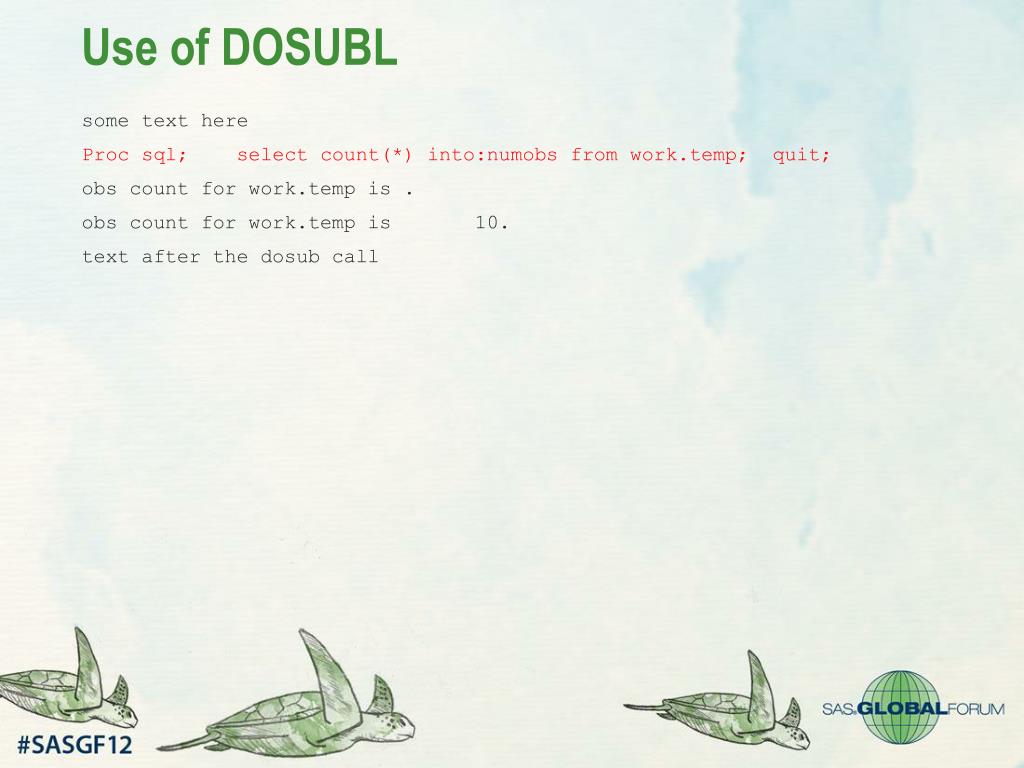

  24. Use of DOSUBL some text here Procsql; select count(*) into:numobs from work.temp; quit; obscount for work.temp is . obscount for work.temp is 10. text after the dosubcall

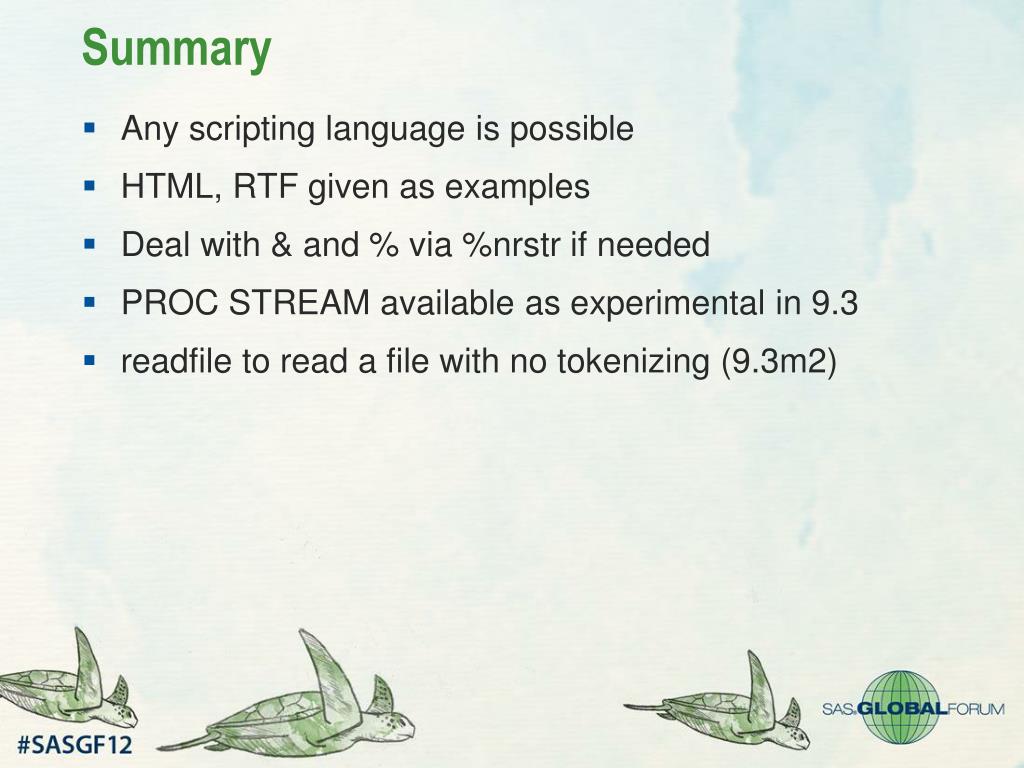

  25. Summary • Any scripting language is possible • HTML, RTF given as examples • Deal with & and % via %nrstr if needed • PROC STREAM available as experimental in 9.3 • readfile to read a file with no tokenizing (9.3m2)

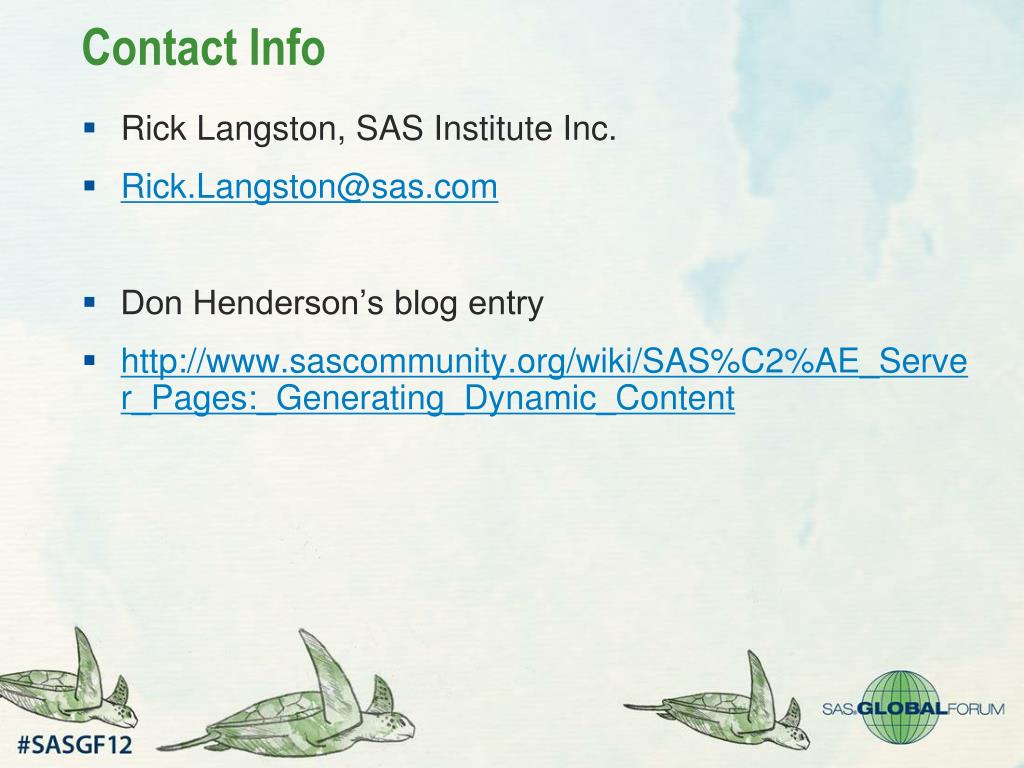

  26. Contact Info • Rick Langston, SAS Institute Inc. • Rick.Langston@sas.com • Don Henderson’s blog entry • http://www.sascommunity.org/wiki/SAS%C2%AE_Server_Pages:_Generating_Dynamic_Content
