  1. Detgårpæntstærkt! Tony Franck Senior Solution Manager

  2. Hitachi Accelerated Flash

  3. Hitachi accelerated flashconfiguration for performance hungry customers • Storage Flash based on Hitachi Accelerated Flash • Good for read AND write • Flash Module Drives with embedded controllers • This solution delivers up to 1.000.000 IOPs • Capacity up to 3,2 TB x 96 = 300 TB

  4. Complements SSD and HDD New flash enclosure contains up to 12 flash modules Shared resource to SAN Like HDD and SSD Unlike server-side cache Flash module drives 1.6TB or 3.2TB per flash module Up to 8 flash enclosures – more than 300TB of flash! FLASH MODULE DRIVE HUGE PERFORMANCE FOR HUGE DATA

  5. Hitachi Accelerated Flash is really fast HDS HUS VM Delivers High Performance of 1.000.000 IOPS – all below 1 ms. 0.84MS SERVICE TIME @512 THREADS http://www.benchware.ch

  6. HITACHI UNIFIED STORAGE VM • Optimized for Flash performance • Unified ready • Enterprise Virtualization capable

  7. Virtualize, unify and manage all data Serving flash performance and enterprise quality • Use for All-Flash and consolidated storage • Virtualization provides centralized storage services • Extend capabilities to your existing storage • Unify to manage both block and file seamlessly Flash Storage #3 Storage Virtualization System File Services Internal Storage #2 External Storage #1

  8. External Storage Virtualization • Creates a virtual storage pool • Centralizes day-to-day administration • Enables new features on older storage systems including tiering • Simple migration UNIX VMWARE LINUX Microsoft® Windows® SAN SAN HUS VM HITACHI VENDOR A VENDOR B

  9. UCP Pro for Vmware

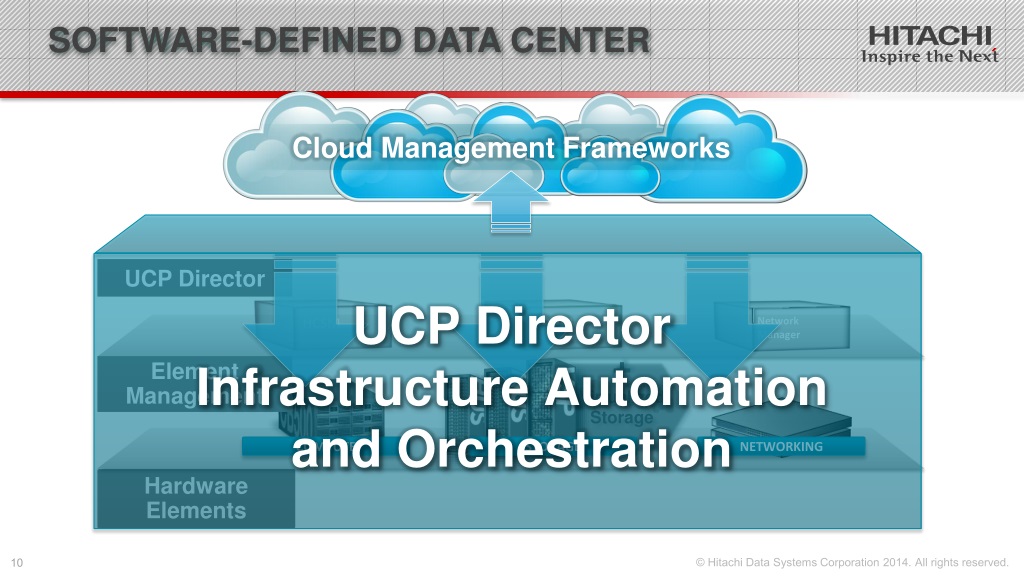

  10. Software-Defined Data Center Cloud Management Frameworks UCP Director UCP Director Infrastructure Automation and Orchestration HCSM HDVM Network Manager Element Management COMPUTE STORAGE NETWORKING Hardware Elements + Virtualized Storage

  11. Hitachi Unified Compute Platform • Fastest time to production Automated end-to-end operations - all in one tool: VmwarevCenter Fast: Deploy in < 5 days Run virtualized or non virtualized (bare metal) applications on one platform Fast: 26 mins - from new blade added into chassis to running application One source for all your support including VMware vSphere

  12. VMware vCenter THE UCP ValueIts about the software experience End to End physical to virtual monitoring, provisioning and overall orchestration on best in class heterogeneous hardware and software 3 click storage provisioning Hardware Topology Hardware / firmware patching Multi-system/ Site monitoring End to End hardware performance monitoring IntegratedDisaster Recovery Proactive and reactive alerting End to endstorage provisioning Virtual or Physical host OS provisioning End to endnetwork provisioning Native Integration to…

  13. UCP for SAP HANA

  14. Why SAP HANA? – SPEED! • SAP HANA is an in-memory database that processes business data in real time • Faster queries • >300x faster database response time • In seconds or minutes not hours or days • Businesses can • React in real-time to events • Make faster decisions • Drive more value from data Query Run-Time Comparison

  15. Hitachi UCP for SAP HANAScalability and fault tolerance for your core applications The Hitachi Compute Blade servers offer features such as the Hitachi Symmetric Multi-Processing Feature EXPANDABLE SERVER ENVIRONMENT Hitachi multi-blade SMP interconnect technology, provides to scale up the resources from 4 blades to achieve a single 8-socket (80/120 core) SMP system with 6 TB of memory per SMP environment. 2-Blade SMP 4-Blade SMP Front view 

  16. UCP for SAP HANA – Runs Faster and Scales Better Why UCP for SAP HANA? • Grow from small to large scale • Robust data protection to ensure business continuity • High performance with flash and FC storage for fast access to data • First OEM vendor to offer SAP HANA software license UCP for SAP HANA, Scale Out Scale out to 16 or 56TB for SAP BW analytics Tier 1 persistent storage, DR and backup • Large Nodes • 1024GB Scale out • Medium Nodes • 512GB UCP for SAP HANA, Scale Up • Large++: 4096GB HANA in a box solutions for both SAP Business Suite and test and dev./QA or BW Fibre Channel HUS storage with 99.999% availability • Large+: 2048GB • Large: 1024GB • Medium: 512GB • Small: 256GB

  17. Thank You

  18. UCP for Oracle

  19. Hitachi UCP for Oracle • Flexible, fast and cost competitive for mission critical, transactional workloads High IOPS and low response time compared to other solutions Symmetric multi processing (SMP) enabled X86 servers scale to increase performance One management software for server and storage Full integration to Oracle OEM, RMAN and OVM for easy management

  20. Hitachi UCP for OracleScalability – grow to handle new business requirements Scale Up | Flash Storage Capacity • Available flash card capacities: 384 GB | 720 GB | 1200 GB | 3000 GB • Up to 192 TB flash storage inside the PCIe bus 384 GB to 24 TB in the server systems 384 GB to 48 TB in the 1st Flash Storage Container 384 GB to 48 TB in the 2nd Flash Storage Container 384 GB to 48 TB in the 3rd Flash Storage Container 384 GB to 48 TB in the 4th Flash Storage Container

  21. Unified Compute Platform for Oracle Taking the example of an Oracle query from a real customer case Existingsystem 26 Hours 47 Minutes 50% fewer cores for similar performance dramatically reduces license costs 42 Minutes Best competitor UCP UCP UCP Numberofusedcores(Relevant aspects of Oracle licenses, power consumption, cooling, etc) 80 Cores Best competitor 160 Cores List price of the used configuration(Total cost included maintenance over 3 years) $ 523.391  Best competitor $ 4.579.200
