Status Update: the Focusing DIRC Prototype at SLAC

Blair Ratcliff. Status Update: the Focusing DIRC Prototype at SLAC. Representing: I. Bedajanek, J Benitez, J. Coleman, C. Field, D.W.G.S. Leith, G. Mazaheri, M. McCulloch, B. Ratcliff, R. Reif, J. Schwiening, K. Suzuki, S Kononov, J. Uher. Focusing DIRC Prototype Goals.

quasim
Télécharger la présentation

Status Update: the Focusing DIRC Prototype at SLAC

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Blair Ratcliff Status Update: the Focusing DIRC Prototype at SLAC Representing: I. Bedajanek, J Benitez, J. Coleman, C. Field, D.W.G.S. Leith, G. Mazaheri, M. McCulloch, B. Ratcliff, R. Reif, J. Schwiening, K. Suzuki, S Kononov, J. Uher.

  2. Focusing DIRC Prototype Goals • Work with manufacturers to develop and characterize one or more fast, pixelated photon detectors including; • basic issues such as cross talk, tube lifetime, and absolute efficiency • operation in 15 KG field • Measure single photon Cherenkov angular resolution in a test beam • use a prototype with a small expansion region and mirror focusing, instrumented with a • a number of candidate pixelated photon detectors and fast (25 ps) timing electronics. • demonstrate performance parameters • demonstrate correction of chromatic production term via precise timing • measure N0 and timing performance of candidate detectors.

  3. Prototype Optics • Radiator • 3.7m-long bar made from three spare high-quality BABAR-DIRC bars • Expansion region • coupled to radiator bar with small fused silica block • filled with mineral oil (KamLand experiment) to match fused silica refractive index • include optical fiber for electronics calibration • would ultimately like to used solid fused silica block • Focusing optics • spherical mirror from SLD-CRID detector (focal length 49.2cm) • Photon detector • placed in fixed slots allowing easy replacement. • typically using 2 Hamamatsu flat panel PMTs and 3 Burle MCP-PMTs in focal plane • readout to CAMAC/VME electronics with 25 ps resolution. • Limited number of channels available.

  4. Typical Scanning System results (Burle 85011-501) • Burle 85011-501 MCP-PMT • bialkali photocathode • 25μm pore MCP • gain ~5×105 • timing resolution ~70ps • 64 pixels (8×8), 6.5mm pitch

  5. Typical Scanning System Results (Hamamatsu H-8500) • Hamamatsu H-8500 Flat Panel Multianode PMT • bialkali photocathode • 12 stage metal channel dynode • gain ~106 • timing resolution ~140ps • 64 pixels (8×8), 6.1mm pitch

  6. Beam Test Setup • 10 GeV/c e- beam in End Station A at SLAC. • Beam enters bar at 90º angle. • 10 Hz pulse rate, approx. 0.1 particle per pulse • Bar contained in aluminum support structure • Beam enters through thin aluminum foil windows • Bar can be moved along long bar axis to measure photon propagation time for various track positions • Trigger signal provided by accelerator • Fiber hodoscope (16+16 channels, 2mm pitch) measures 2D beam position and track multiplicity • Cherenkov counter and scintillator measure event time • Lead glass calorimeter selects single electrons • All beam detectors read out via CAMAC (LeCroy ADCs and TDCs, Philips TDC, 57 channels in total) Prototype Scintillator e– beam Calorimeter Hodoscope Cherenkovcounter Start counters, lead glass Mirror and oil-filled detector box: Movable bar support and hodoscope Radiator bar in support structure

  7. Prototype Readout • For 2005 beam test read out two Hamamatsu Flat Panel PMTs and three Burle MCP-PMTs (total of 320 pads). • Elantec 2075EL amplifier (130x) on detector backplane • SLAC-built constant fraction discriminator • Eight Philips 7186 TDCs (25ps/count) for 128 channels • Four SLAC-built TDC boards: TAC & 12 bit ADC (~31ps/count) for 128 channels • Connect only pads close to expected hit pattern of Cherenkov photons • Calibration with PiLas laser diode (~35ps FWHM) to determine TDCs/ADCs channel delays and PMT uniformity PMT with amplifiers Photodetector backplane Simulated eventsin GEANT 4 Photodetector coverage in focal plane

  8. Beam Test Data Expansion region Mirror • In July, August, and November 2005 we took beam data during five periods, lasting from few hours to several days. • Total of 4.1M triggers recorded, 10 GeV/c e– • Reconstructed 201k good single-track events • Beam entered the radiator bar in 7 different locations. • Recorded between 100k and 700k triggers in each beam location. • Photon path length range: 0.75m–11m. Occupancy for accepted events in single run, 400k triggers, 28k events

  9. Timing versus Beam Position Expansion region Mirror Hit time distribution for single PMT pixel in three positions. Position 1 direct mirror reflection Position 1 Position 4 Position 4 Position 6 Position 6 hit time (ns)

  10. Chromatic Broadening Example: chromatic growth for one selected detector pixel in position 1 • First peak ~75cm photon path length • Second peak ~870cm photon path length • Important: careful calibration of all TDC channels to translate counts into ps • Use accelerator trigger signal as event time • Calculate the time of propagation assuming average <λ>≈410nm • Plot ΔTOP: measured minus expected time of propagation • Fit to double-Gaussian • Observe clear broadening of timing peak for mirror-reflected photons 75cm path σnarrow≈170ps ΔTOP (ns) 870cmpath σnarrow≈420ps calculate from reco ΔTOP (ns) hit time (ns)

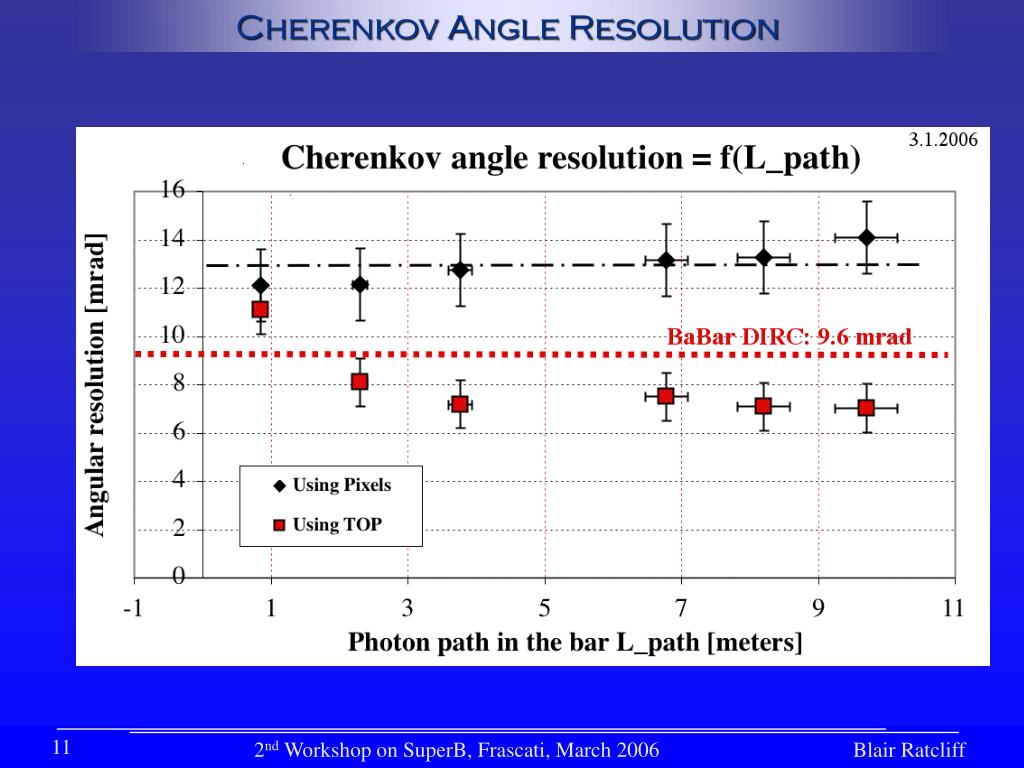

  11. Cherenkov Angle Resolution

  12. Burle MCP-PMT with 10 micron holes: sensitivity to magnetic field angular rotation wrt z axis ( B = 15kG)

  13. Timing in Magnetic Field (B=15 Kg)

  14. Photon detector performance continues to be improved by manufacturers, and is approaching the required level for timing resolution, and single photon efficiency. Burle MCP-PMT detectors with 10 micron holes have acceptable gain and timing resolution in magnetic fields up to 15 KG. Single photon Cherenkov angular resolution performance of DIRC prototype in timing mode looks fine, and meets MC expectations. A fast DIRC is operationally challenging. Calibration is and will be a major issue. We hope that many of the basic performance issues will be addressed during the next year with the prototype. Many photon detector questions remain: Geometry, aging, rate capability, cross talk, sensitivity to magnetic field, quantum efficiency, reliability, electronics, number of channels, and cost. Summary

  15. Additional Slides

  16. Data Set run 1 position 4 5,590 tracks run 2 position 4 4,650 tracks run 3 position 1 9,651 tracks run 5 position 7 4,126 tracks run 4 position 7 8 tracks run 6 position 6 22,911 tracks run 8 position 2 6.232 tracks run 7 position 1 31,561 tracks run 9 position 3 5,058 tracks run 12 position 1 31,914 tracks run 11 position 4 20,414 tracks run 10 position 5 5,107 tracks Photon Pathlength in bar [cm] Most of the data taken in positions 1, 3, 4, 5, 6 run 14 position 5 17,475 tracks run 13 position 3 36,880 tracks

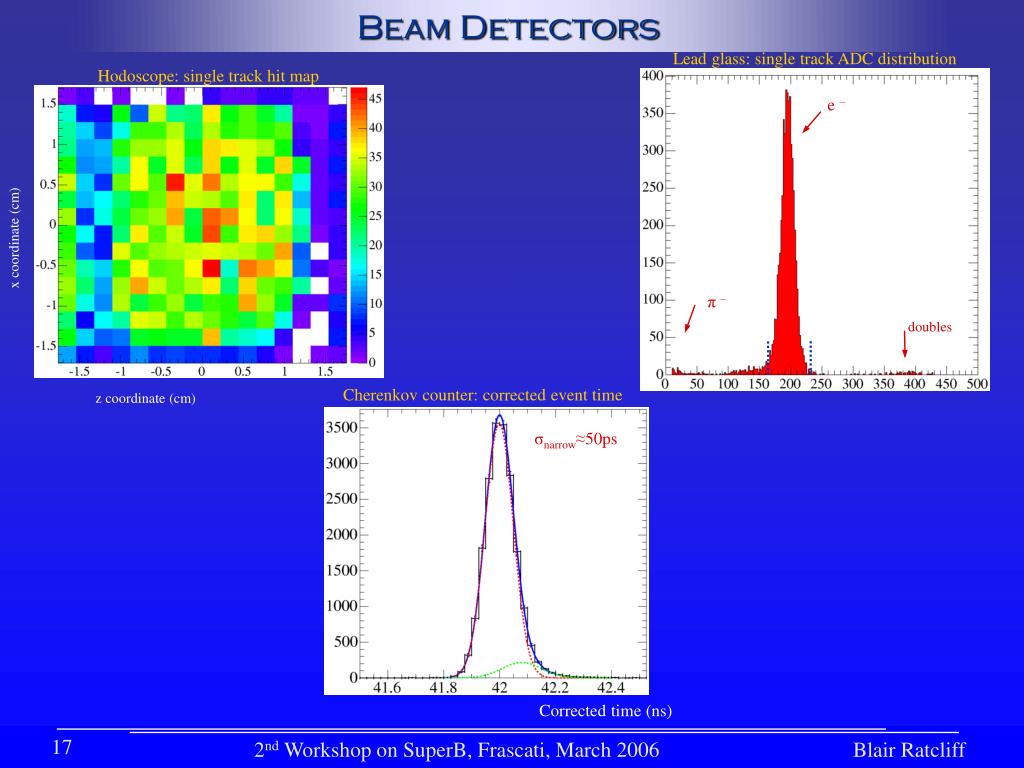

  17. Beam Detectors e – Energy (ADC counts) π– doubles Lead glass: single track ADC distribution Hodoscope: single track hit map x coordinate (cm) Cherenkov counter: corrected event time z coordinate (cm) σnarrow≈50ps Corrected time (ns)

  18. Cherenkov Angle Resolution Position 1, mirror-reflected photons (longest photon path) θc from time of propagation σnarrow≈7.1mrad θc from time of pixels σ≈13mrad

  19. Hamamatsu H-9500 • Hamamatsu H-9500 Flat Panel Multianode PMT • bialkali photocathode • 12 stage metal channel dynode • gain ~106 • typical timing resolution ~220ps • 256 pixels (16×16), 3 mm pitch • custom readout board – read out as 4×16 channels Efficiency relative to Photonis PMT, 440nm, H-9500 at -1000V σnarrow ≈220ps

  20. BABAR-DIRC Resolution Limits Photon yield: 18-60 photoelectrons per track (depending on track polar angle) Typical PMT hit rates: 200kHz/PMT (few-MeV photons from accelerator interacting in water) Timing resolution: 1.7nsper photon (dominated by transit time spread of ETL 9125 PMT)Cherenkov angle resolution:9.6mrad per photon → 2.4mrad per track Focusing DIRC prototype designed to achieve • 4-5mrad qc resolution per photon, • 3σπ/K separation up to ~ 5GeV/c

  21. Chromatic Effects Chromatic effect at Cherenkov photon production cos qc = 1/n(λ) bn(λ) refractive (phase) index of fused silica n=1.49…1.46 for photons observed in BABAR-DIRC (300…650nm)→ qcγ= 835…815mradLargerCherenkov angle at production results in shorter photon path length → 10-20cm path effect for BABAR-DIRC(UV photons shorter path) Chromatic time dispersion during photon propagation in radiator barPhotons propagate in dispersive medium with group index ng for fused silica: n / ng = 0.95…0.99 Chromatic variation of ng results in time-of-propagation (ΔTOP) variation ΔTOP= | –L l dl / c0 · d2n/dl2 |(L: photon path, dl: wavelength bandwidth)→ 1-3ns ΔTOP effect for BABAR-DIRC(net effect: UV photons arrive later)

  22. Reconstruction Precisely measured detector pixel coordinates and beam parameters.→ Pixel with hit (xdet, ydet, thit) defines 3D propagation vector in bar and Cherenkov photon properties (assuming average )x, y, cos cos cos Lpath, nbounces,c, fc , tpropagation
