  1. Test Requirements and Procedures Prepared/Presented by: Mark Briggs Mark Maynard TCB Council

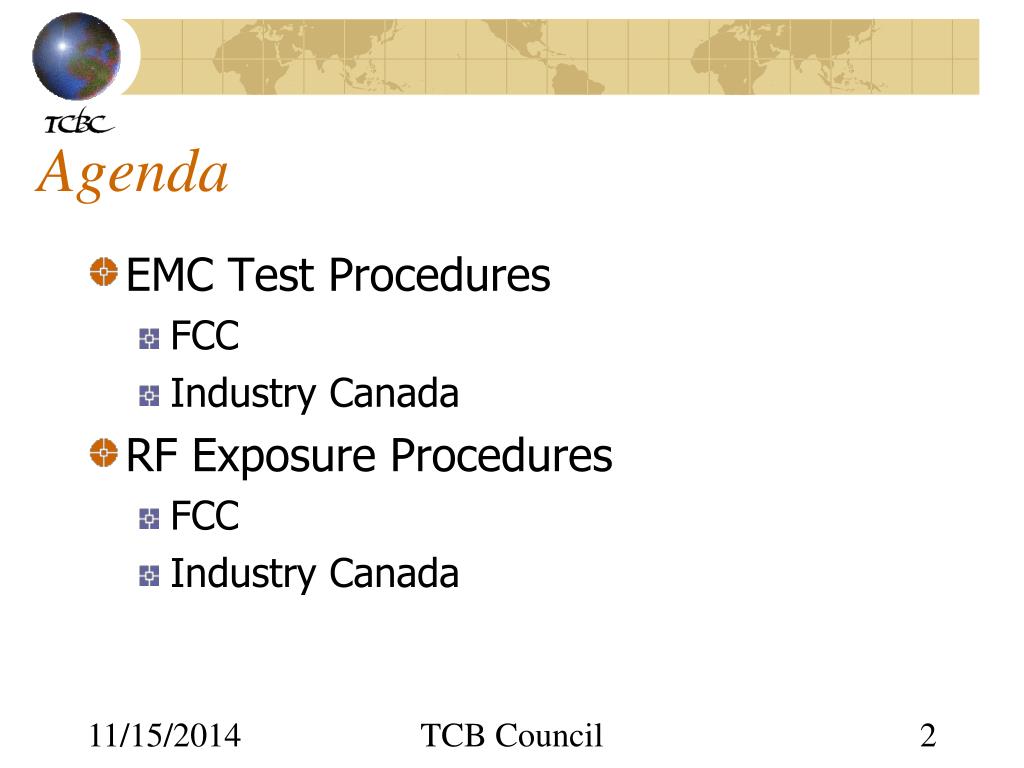

  2. Agenda • EMC Test Procedures • FCC • Industry Canada • RF Exposure Procedures • FCC • Industry Canada TCB Council

  3. EMC Test Procedures - FCC • Referenced by Rules • ANSI C63.4:2003 • KDB xxxx allows use of ANSI C63.4:2009 and ANSI C63.10:2009 • TIA 603C • Etc. TCB Council

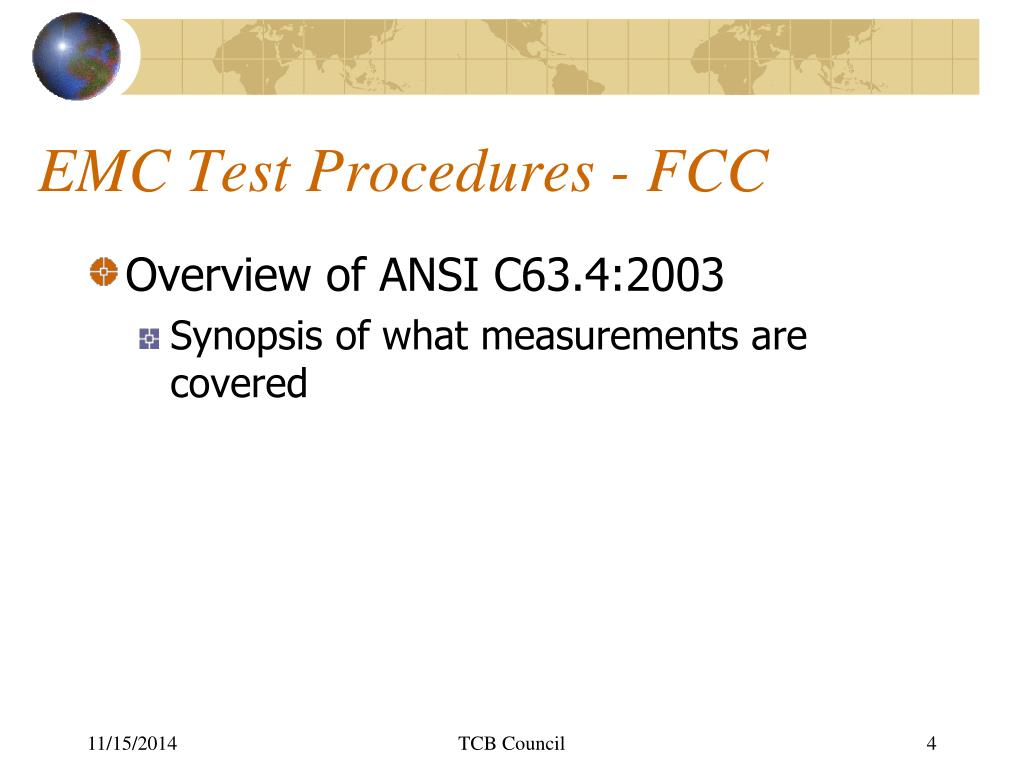

  4. EMC Test Procedures - FCC • Overview of ANSI C63.4:2003 • Synopsis of what measurements are covered TCB Council

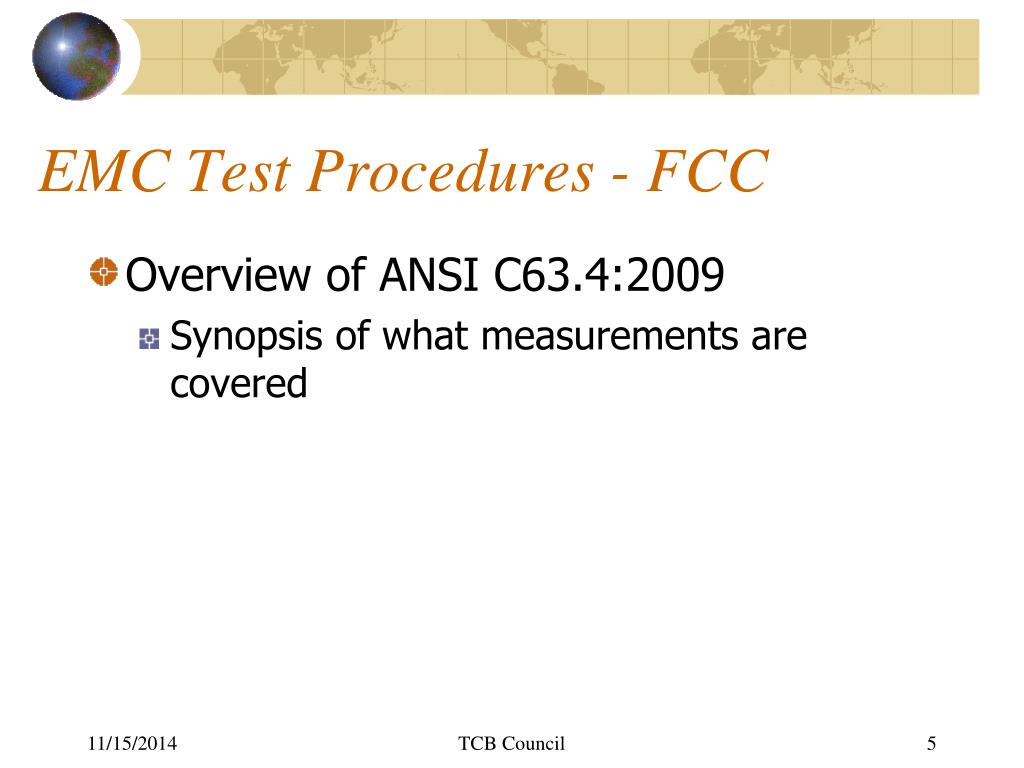

  5. EMC Test Procedures - FCC • Overview of ANSI C63.4:2009 • Synopsis of what measurements are covered TCB Council

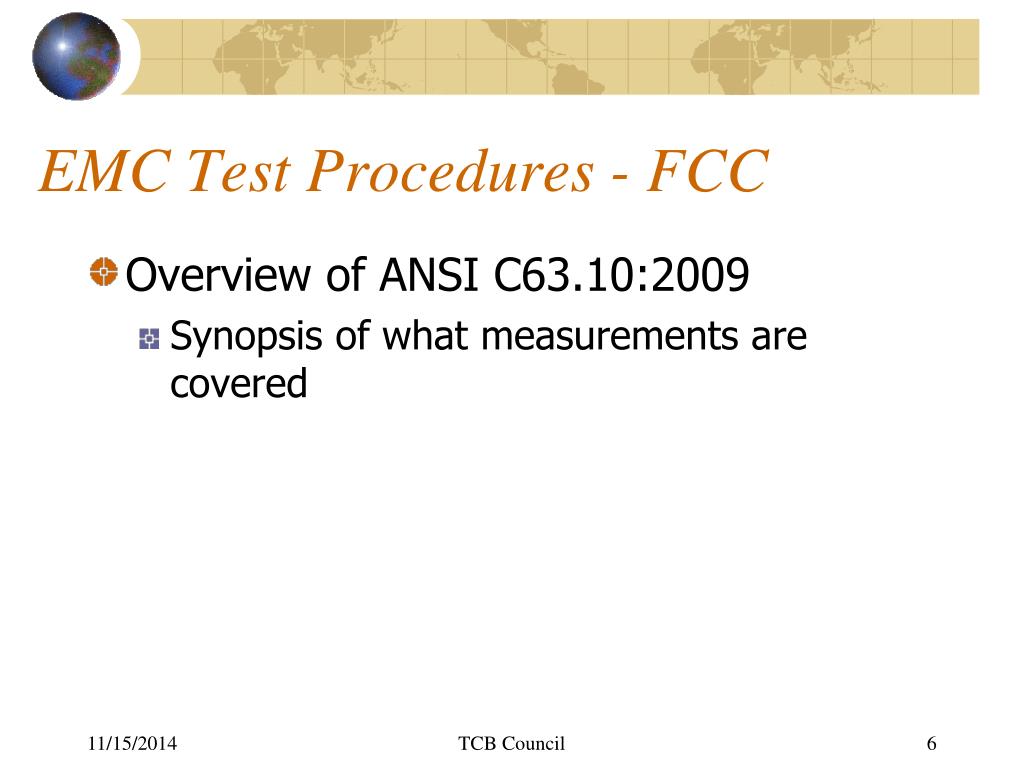

  6. EMC Test Procedures - FCC • Overview of ANSI C63.10:2009 • Synopsis of what measurements are covered TCB Council

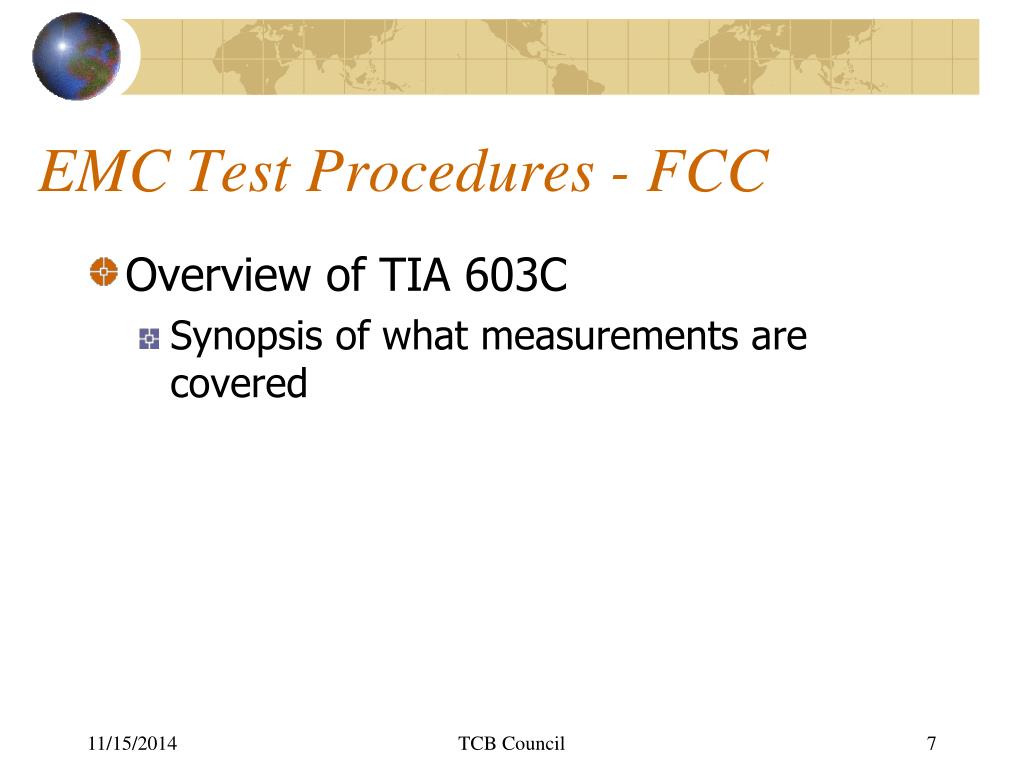

  7. EMC Test Procedures - FCC • Overview of TIA 603C • Synopsis of what measurements are covered TCB Council

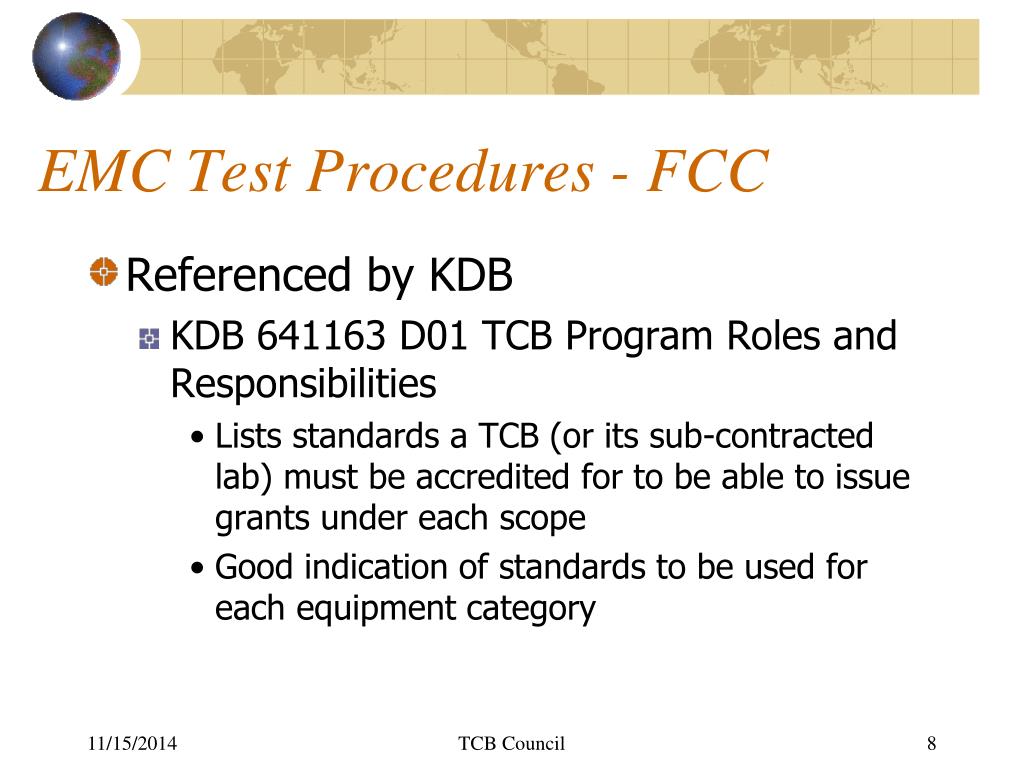

  8. EMC Test Procedures - FCC • Referenced by KDB • KDB 641163 D01 TCB Program Roles and Responsibilities • Lists standards a TCB (or its sub-contracted lab) must be accredited for to be able to issue grants under each scope • Good indication of standards to be used for each equipment category TCB Council

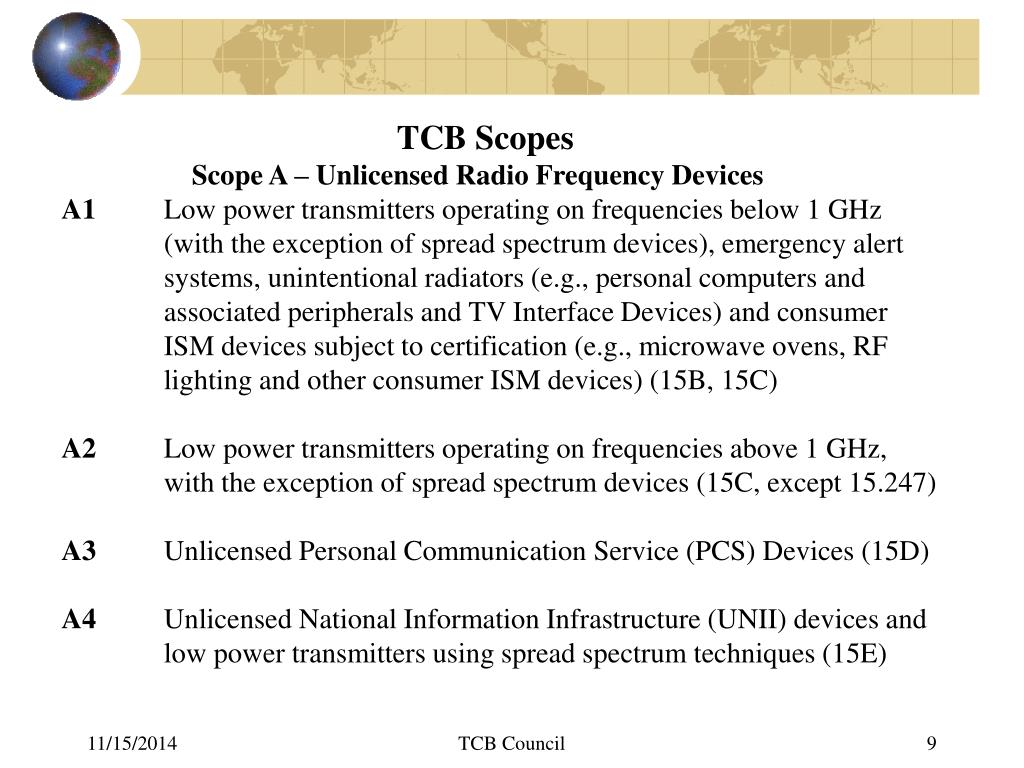

  9. TCB Scopes Scope A – Unlicensed Radio Frequency Devices A1 Low power transmitters operating on frequencies below 1 GHz (with the exception of spread spectrum devices), emergency alert systems, unintentional radiators (e.g., personal computers and associated peripherals and TV Interface Devices) and consumer ISM devices subject to certification (e.g., microwave ovens, RF lighting and other consumer ISM devices) (15B, 15C) A2 Low power transmitters operating on frequencies above 1 GHz, with the exception of spread spectrum devices (15C, except 15.247) A3 Unlicensed Personal Communication Service (PCS) Devices (15D) A4 Unlicensed National Information Infrastructure (UNII) devices and low power transmitters using spread spectrum techniques (15E) TCB Council

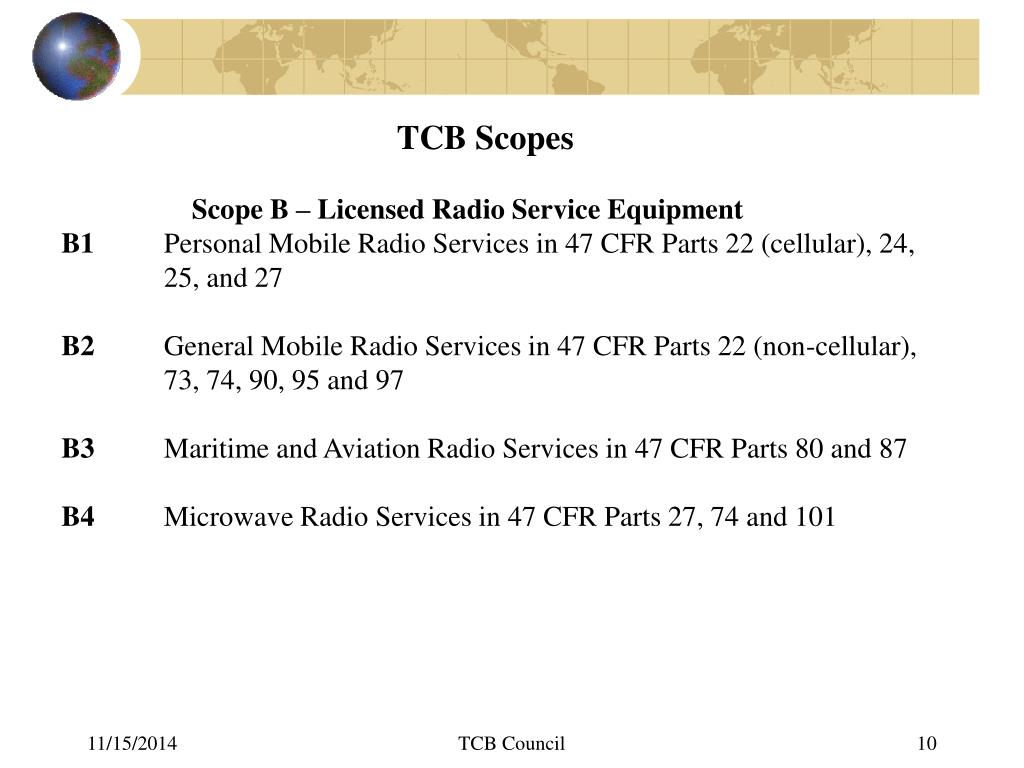

  10. TCB Scopes Scope B – Licensed Radio Service Equipment B1 Personal Mobile Radio Services in 47 CFR Parts 22 (cellular), 24, 25, and 27 B2 General Mobile Radio Services in 47 CFR Parts 22 (non-cellular), 73, 74, 90, 95 and 97 B3 Maritime and Aviation Radio Services in 47 CFR Parts 80 and 87 B4 Microwave Radio Services in 47 CFR Parts 27, 74 and 101 TCB Council

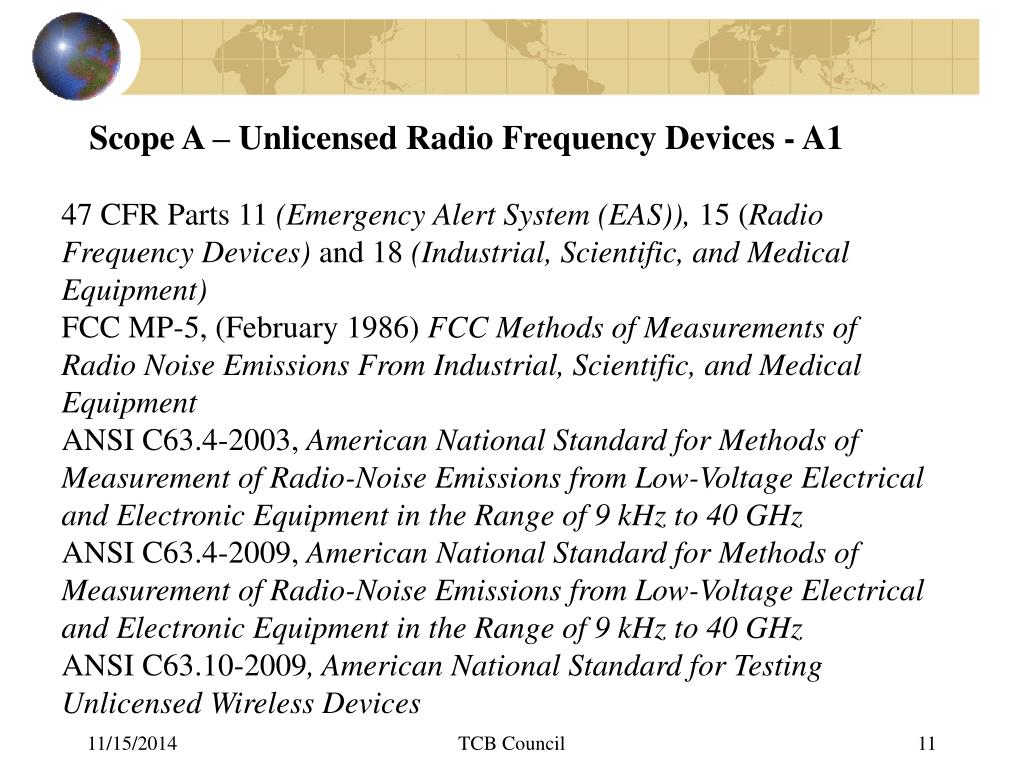

  11. Scope A – Unlicensed Radio Frequency Devices - A1 47 CFR Parts 11 (Emergency Alert System (EAS)), 15 (Radio Frequency Devices) and 18 (Industrial, Scientific, and Medical Equipment) FCC MP-5, (February 1986) FCC Methods of Measurements of Radio Noise Emissions From Industrial, Scientific, and Medical Equipment ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.4-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices TCB Council

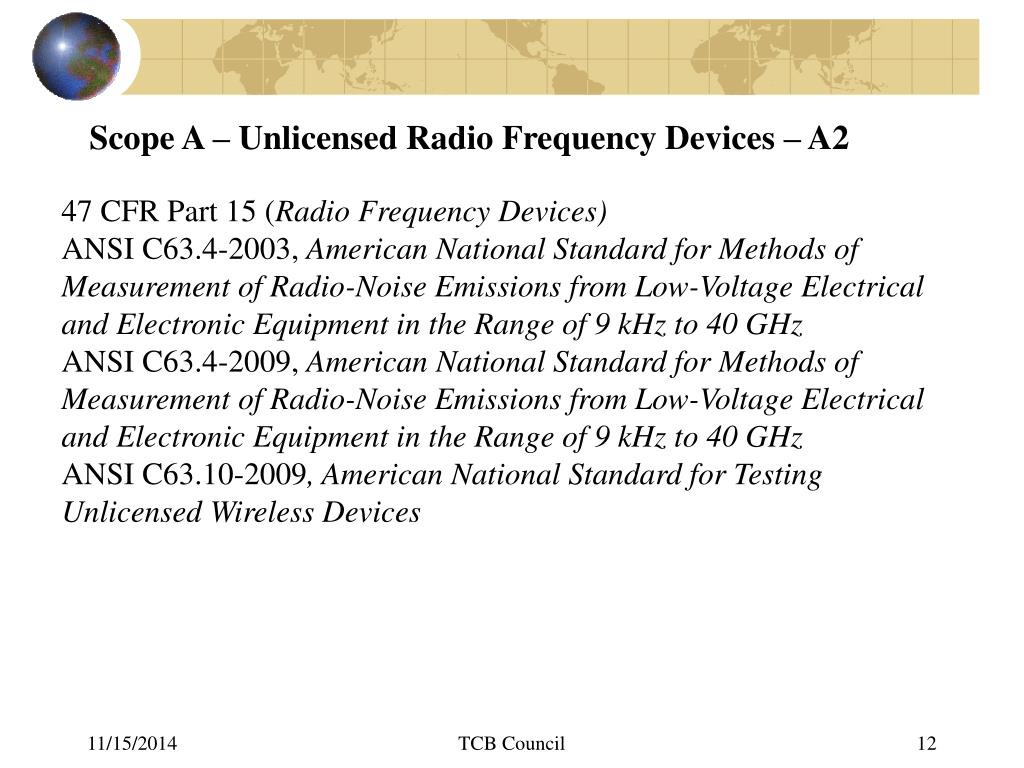

  12. Scope A – Unlicensed Radio Frequency Devices – A2 47 CFR Part 15 (Radio Frequency Devices) ANSI C63.4-2003, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.4-2009, American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices TCB Council

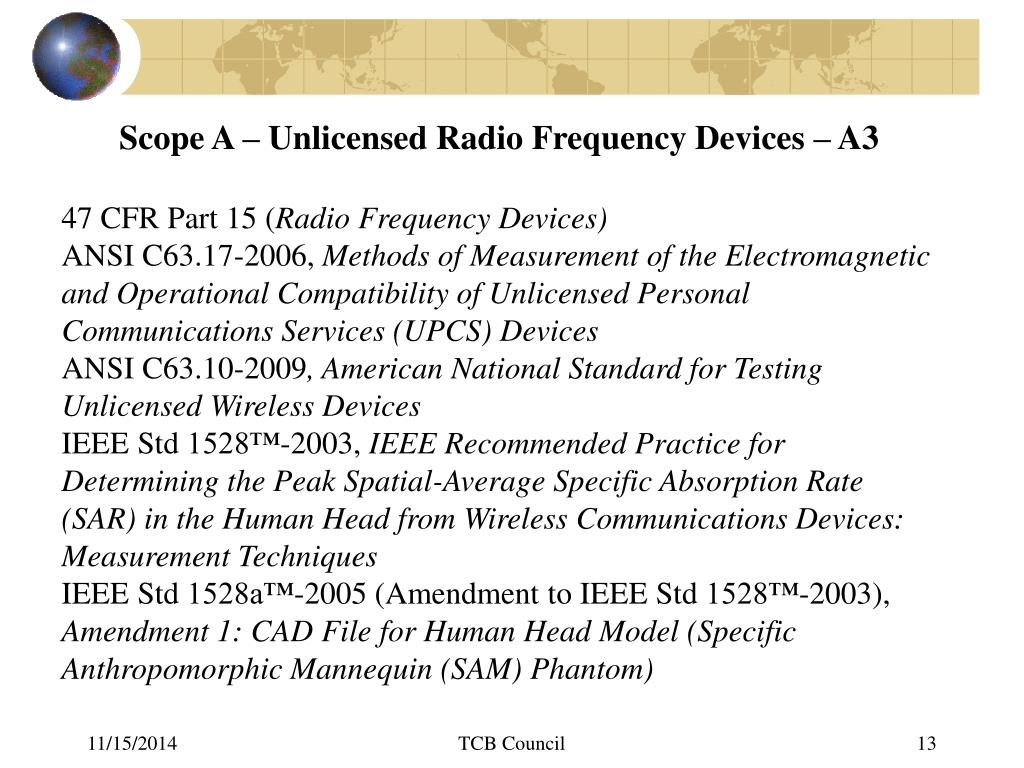

  13. Scope A – Unlicensed Radio Frequency Devices – A3 47 CFR Part 15 (Radio Frequency Devices) ANSI C63.17-2006, Methods of Measurement of the Electromagnetic and Operational Compatibility of Unlicensed Personal Communications Services (UPCS) Devices ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices IEEE Std 1528™-2003, IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEEE Std 1528a™-2005 (Amendment to IEEE Std 1528™-2003),Amendment 1: CAD File for Human Head Model (Specific Anthropomorphic Mannequin (SAM) Phantom) TCB Council

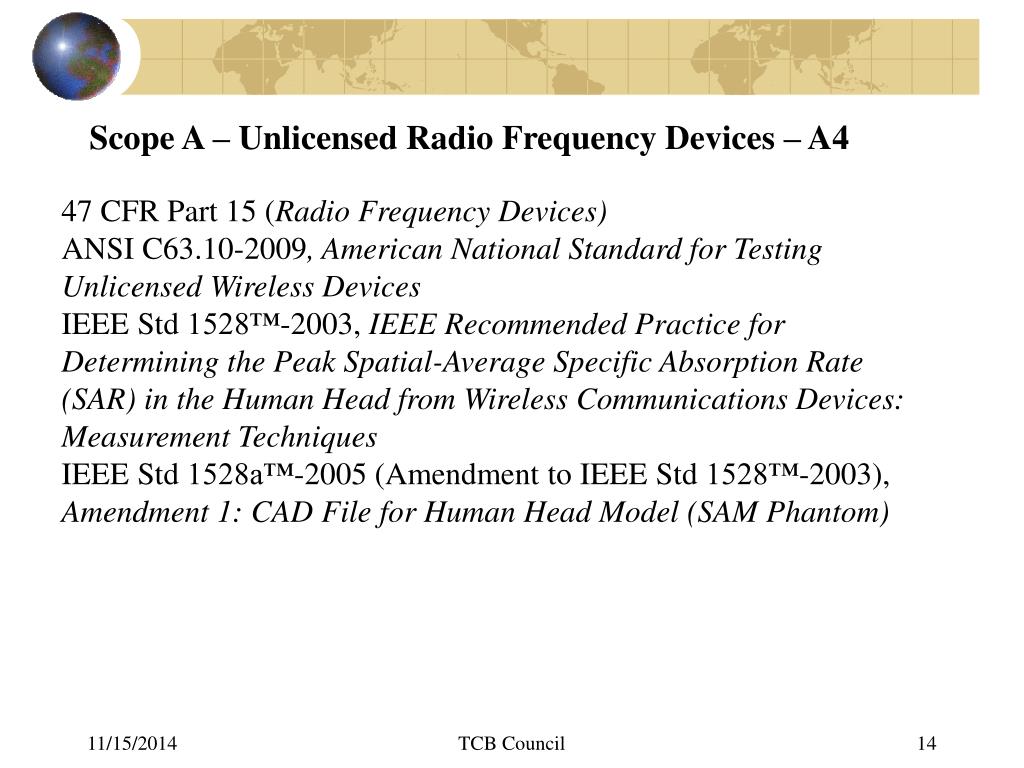

  14. Scope A – Unlicensed Radio Frequency Devices – A4 47 CFR Part 15 (Radio Frequency Devices) ANSI C63.10-2009, American National Standard for Testing Unlicensed Wireless Devices IEEE Std 1528™-2003, IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEEE Std 1528a™-2005 (Amendment to IEEE Std 1528™-2003), Amendment 1: CAD File for Human Head Model (SAM Phantom) TCB Council

  15. Scope B – Unlicensed Radio Frequency Devices – B1 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 22 (Public Mobile Services), 24 (Personal Communications Services), 25 (Satellite Communications), and 27 (Miscellaneous Wireless Communications Services) ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards IEEE Std 1528™-2003, IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques IEEE Std 1528a™-2005 (Amendment to IEEE Std 1528™-2003), Amendment 1: CAD File for Human Head Model (SAM Phantom) TCB Council

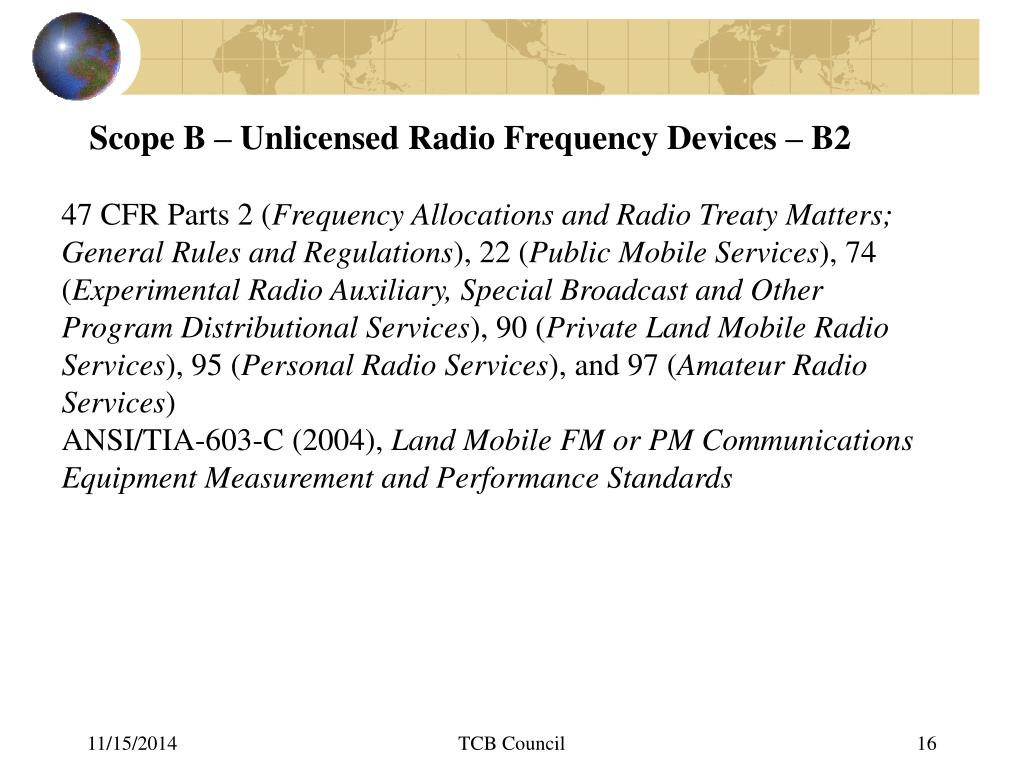

  16. Scope B – Unlicensed Radio Frequency Devices – B2 47 CFR Parts 2 (Frequency Allocations and Radio Treaty Matters; General Rules and Regulations), 22 (Public Mobile Services), 74 (Experimental Radio Auxiliary, Special Broadcast and Other Program Distributional Services), 90 (Private Land Mobile Radio Services), 95 (Personal Radio Services), and 97 (Amateur Radio Services) ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards TCB Council

  17. Scope B – Unlicensed Radio Frequency Devices – B3 47 CFR Parts 2, 80 (Stations in the Maritime Services), 87 (Aviation Services) ANSI/TIA-603-C (2004),Land Mobile FM or PM Communications Equipment Measurement and Performance Standards Scope B – Unlicensed Radio Frequency Devices – B4 47 CFR Parts 2, 27 (Broadband Radio Services (BRS) and Educational Broadband Services (EBS)), 74 (Experimental Radio Auxiliary, Special Broadcast and Other Program Distributional Services), and 101 (Fixed Microwave Services) ANSI/TIA-603-C (2004), Land Mobile FM or PM Communications Equipment Measurement and Performance Standards TCB Council

  18. EMC Test Procedures - FCC • Contained in KDBs – general • average detector requirements • Eirp/erp • Output power for broadband TCB Council

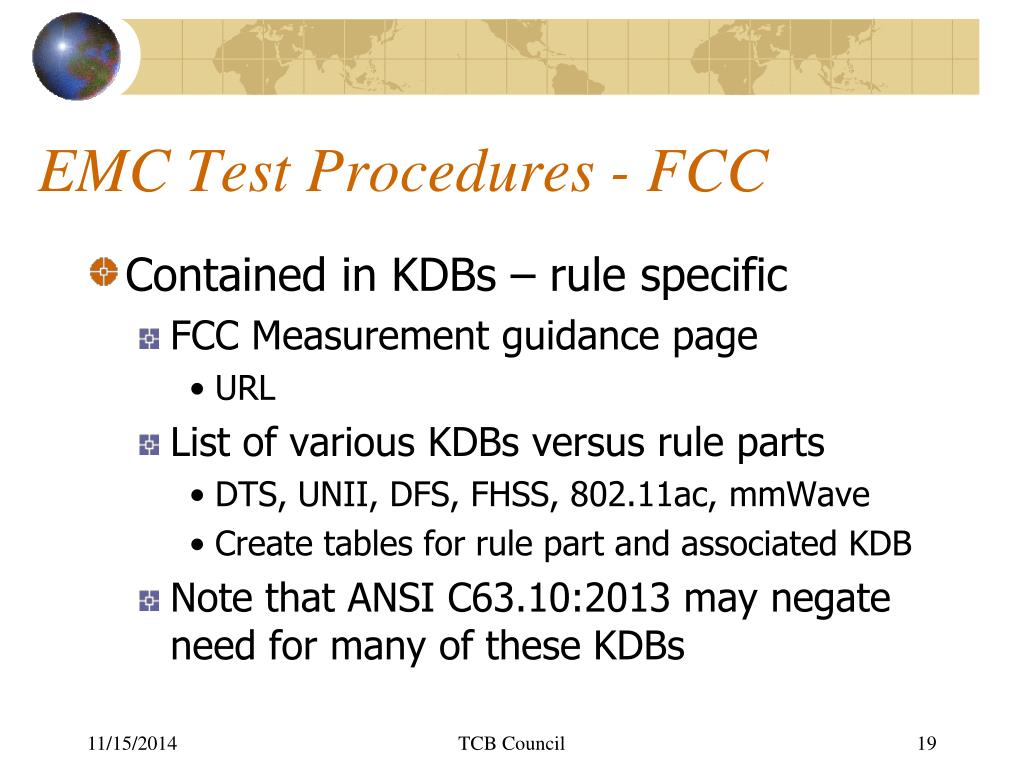

  19. EMC Test Procedures - FCC • Contained in KDBs – rule specific • FCC Measurement guidance page • URL • List of various KDBs versus rule parts • DTS, UNII, DFS, FHSS, 802.11ac, mmWave • Create tables for rule part and associated KDB • Note that ANSI C63.10:2013 may negate need for many of these KDBs TCB Council

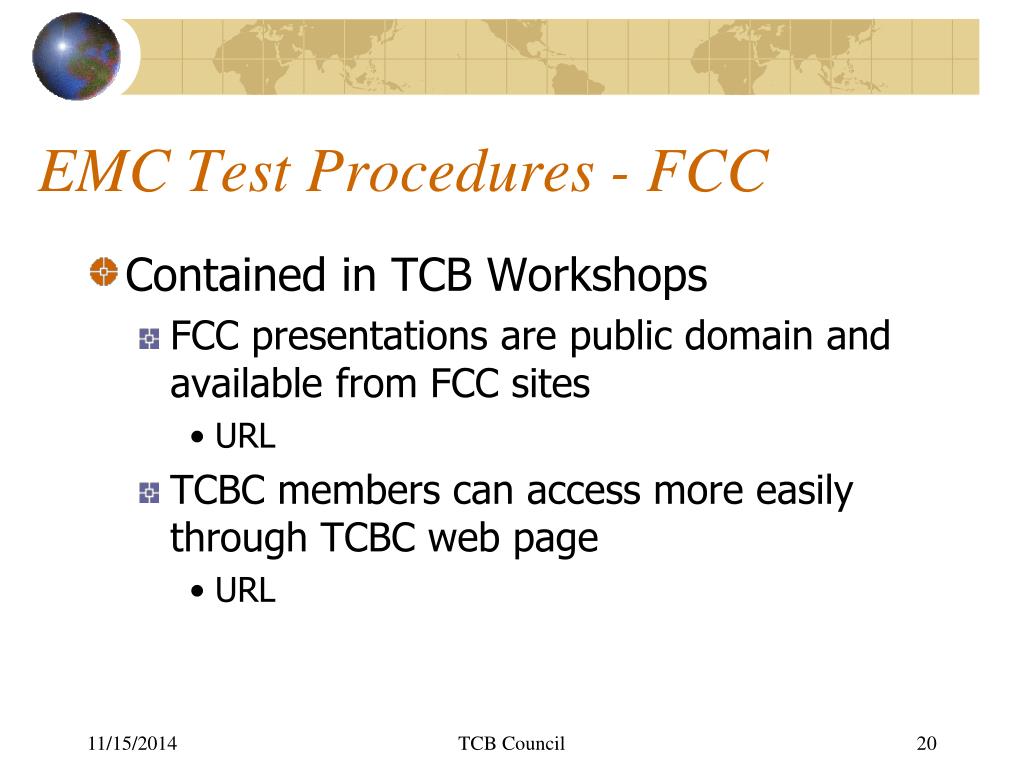

  20. EMC Test Procedures - FCC • Contained in TCB Workshops • FCC presentations are public domain and available from FCC sites • URL • TCBC members can access more easily through TCBC web page • URL TCB Council

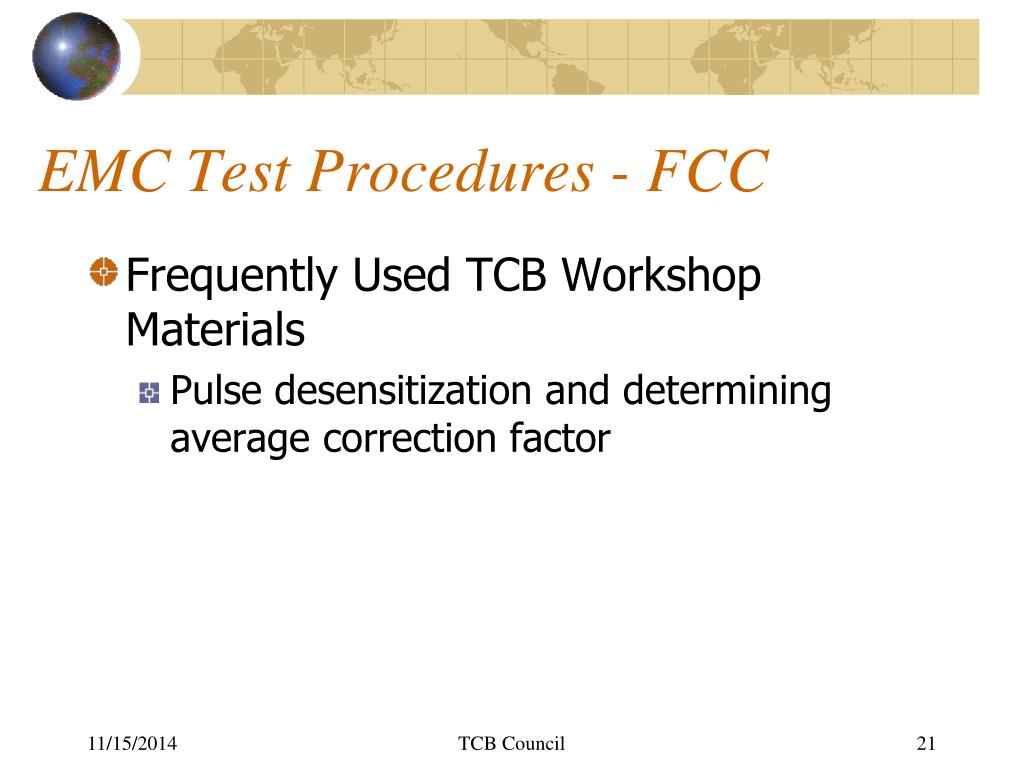

  21. EMC Test Procedures - FCC • Frequently Used TCB Workshop Materials • Pulse desensitization and determining average correction factor TCB Council

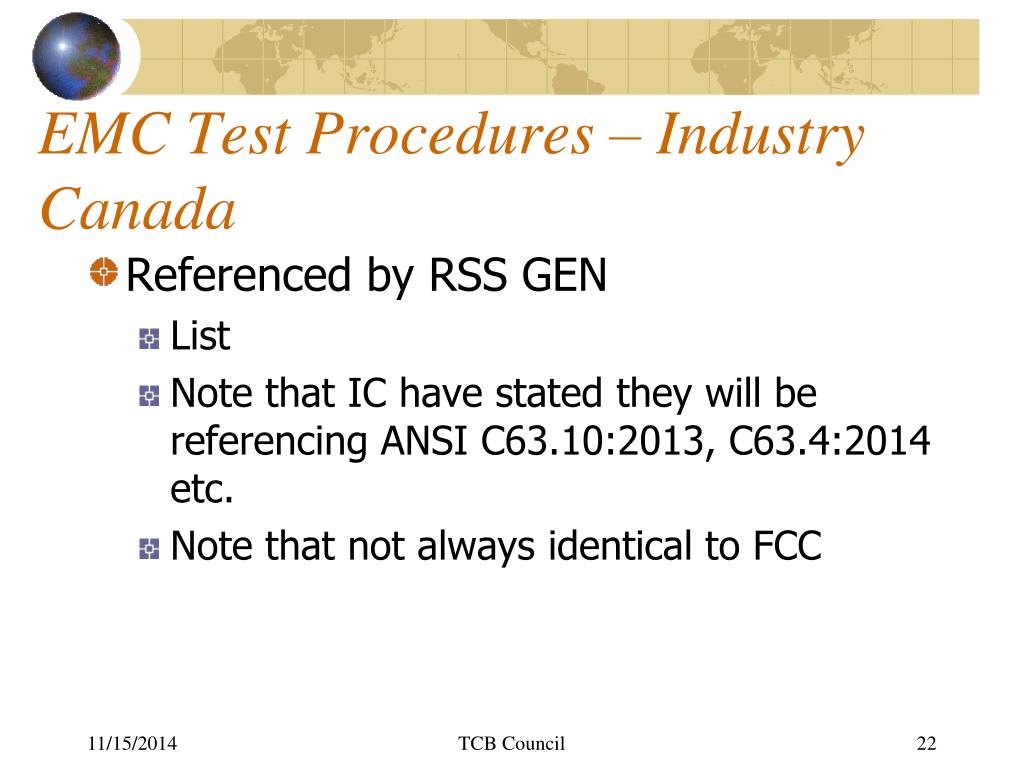

  22. EMC Test Procedures – Industry Canada • Referenced by RSS GEN • List • Note that IC have stated they will be referencing ANSI C63.10:2013, C63.4:2014 etc. • Note that not always identical to FCC TCB Council

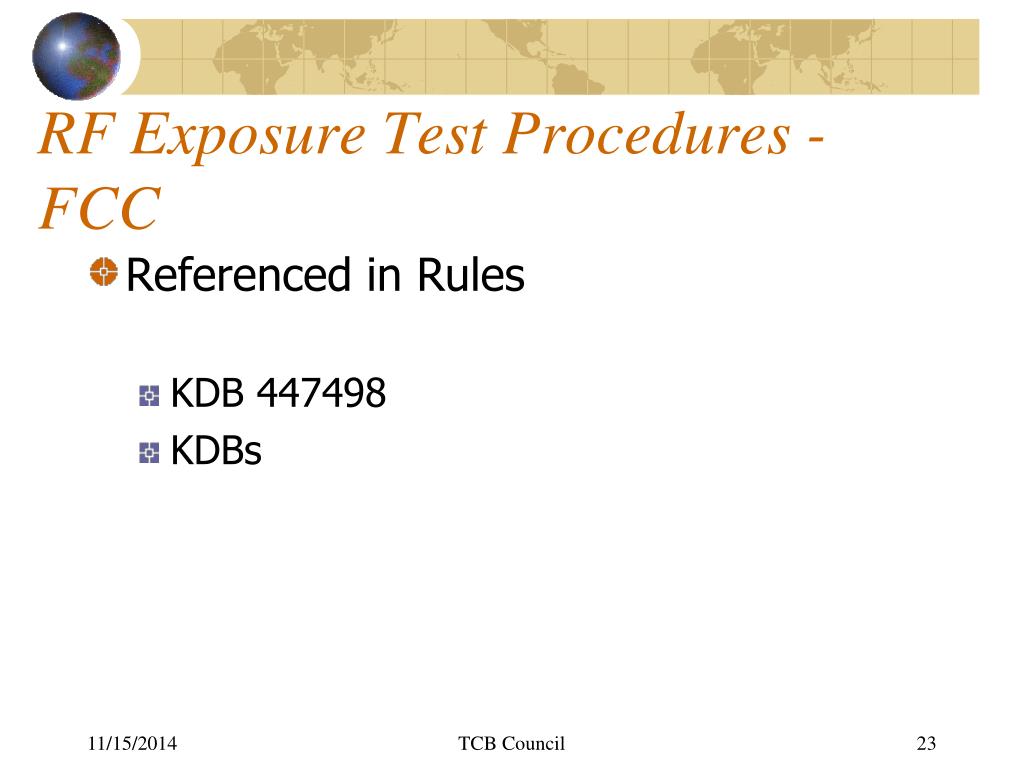

  23. RF Exposure Test Procedures - FCC • Referenced in Rules • KDB 447498 • KDBs TCB Council

  24. RF Exposure Test Procedures - Canada • RSS 102 • IEC 62209-1 • IEC 62209-2 • IEEE 1528:2013 • FCC KDBs TCB Council

  25. Thank You TCB Council
