Detection of FIP Effect on Late-type Giants

Detection of FIP Effect on Late-type Giants. Coronal Abundances and Thermal Structure The late-type giants b Ceti, 31 Com and m Vel Objects and Observations features The DEMs and Coronal Abundances Conclusions. D. Garcia-Alvarez, J.J. Drake, L.Lin, V. Kashyap and B.Ball

questa
Télécharger la présentation

Detection of FIP Effect on Late-type Giants

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Detection of FIP Effect on Late-type Giants • Coronal Abundances and Thermal Structure • The late-type giants b Ceti, 31 Com and mVel • Objects and Observations features • The DEMs and Coronal Abundances • Conclusions D. Garcia-Alvarez, J.J. Drake, L.Lin, V. Kashyap and B.Ball Smithsonian Astrophysical Observatory

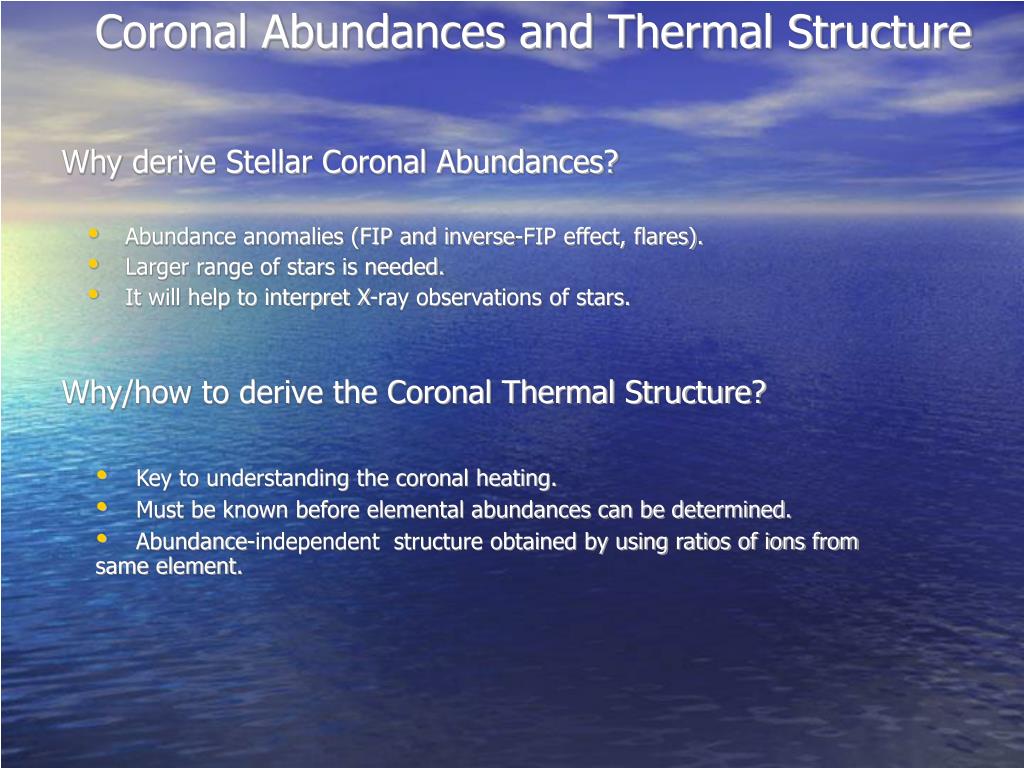

  2. Coronal Abundances and Thermal Structure Why derive Stellar Coronal Abundances? • Abundance anomalies (FIP and inverse-FIP effect, flares). • Larger range of stars is needed. • It will help to interpret X-ray observations of stars. Why/how to derive the Coronal Thermal Structure? • Key to understanding the coronal heating. • Must be known before elemental abundances can be determined. • Abundance-independent structure obtained by using ratios of ions from same element.

  3. Objects and Observations Features Stellar photospheric abundances

  4. The Observed Spectra

  5. The Differential Emission Measurements • Same slope/shape for the low temperature range. • A plateau around log T[K]~6.8±0.2 is observed in  Ceti and  Vel. • Smooth increase and peak at log T[K]~7.1 is observed in 31 Com. • Little evidence for substantial amount of plasma at log T[K]>7.3.

  6. The Synthetic Spectrum

  7. We observe solar-like FIP effect for  vel and  Ceti. No clear effect is seen in 31 Com. • Coronae Na-rich agree with predictions for F-K giants (Drake & Lambert 1994). • O-Na anti-correlation possibly due to very deep mixing (Langer & Hoffman 1998). • No clear dependency on rotational velocity ( Ceti vsini~3 km/s, 31 Com vsini~67 km/s). • Structural changes might produce the observed coronal pattern. Finally … the Coronal Abundances

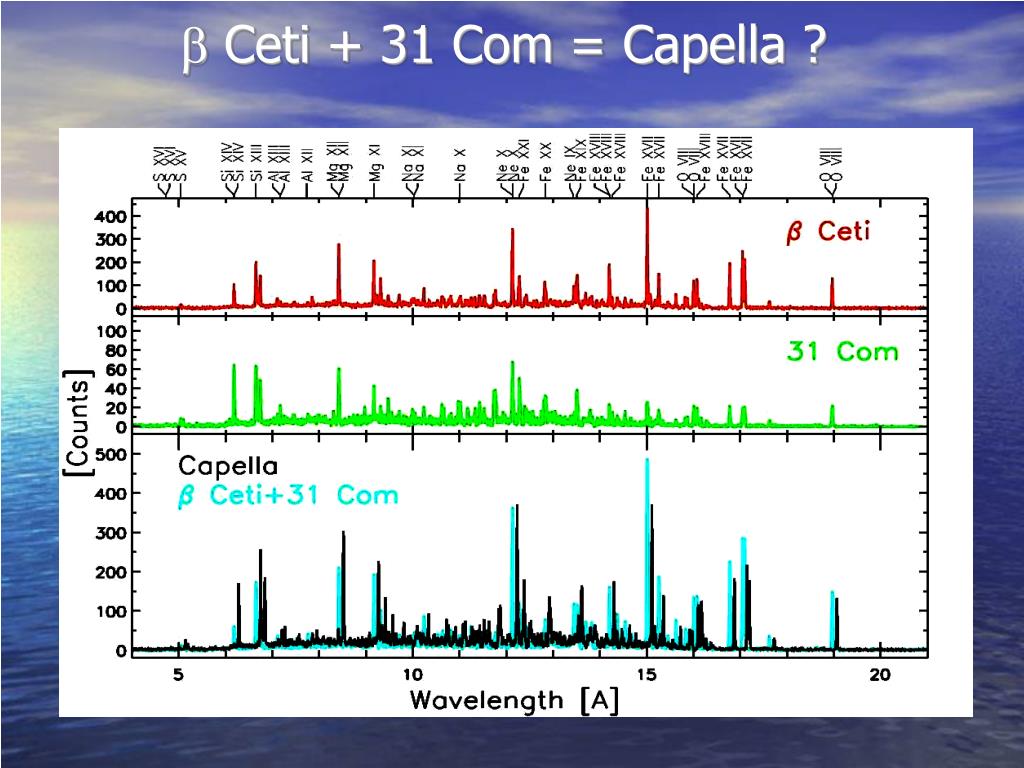

  8.  Ceti + 31 Com = Capella ?

  9. Conclusions • The late-type giants Ceti, 31 Com and  Vel share similarities in coronal composition. • We detected a solar-like FIP effect for  Ceti and  Vel but not for 31 Com. • No clear dependency between rotational velocity and FIP trend. • Structural changes during their evolution might produce the observed coronal pattern in late-type giants.
