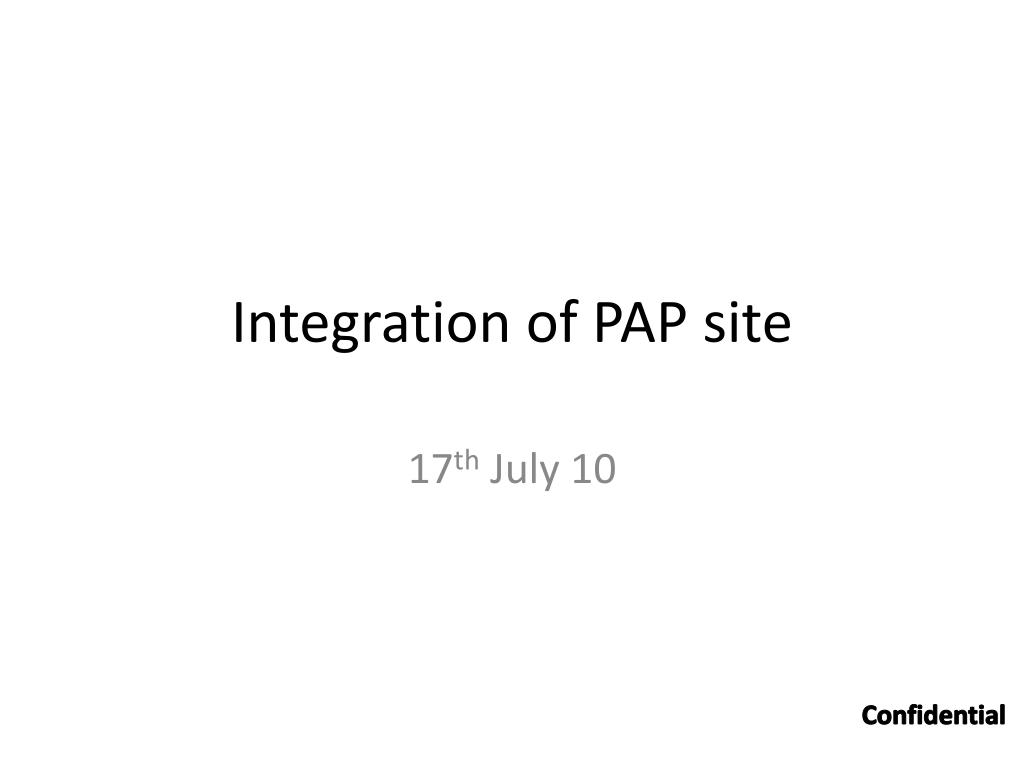

  1. Integration of PAP site 17th July 10 Confidential

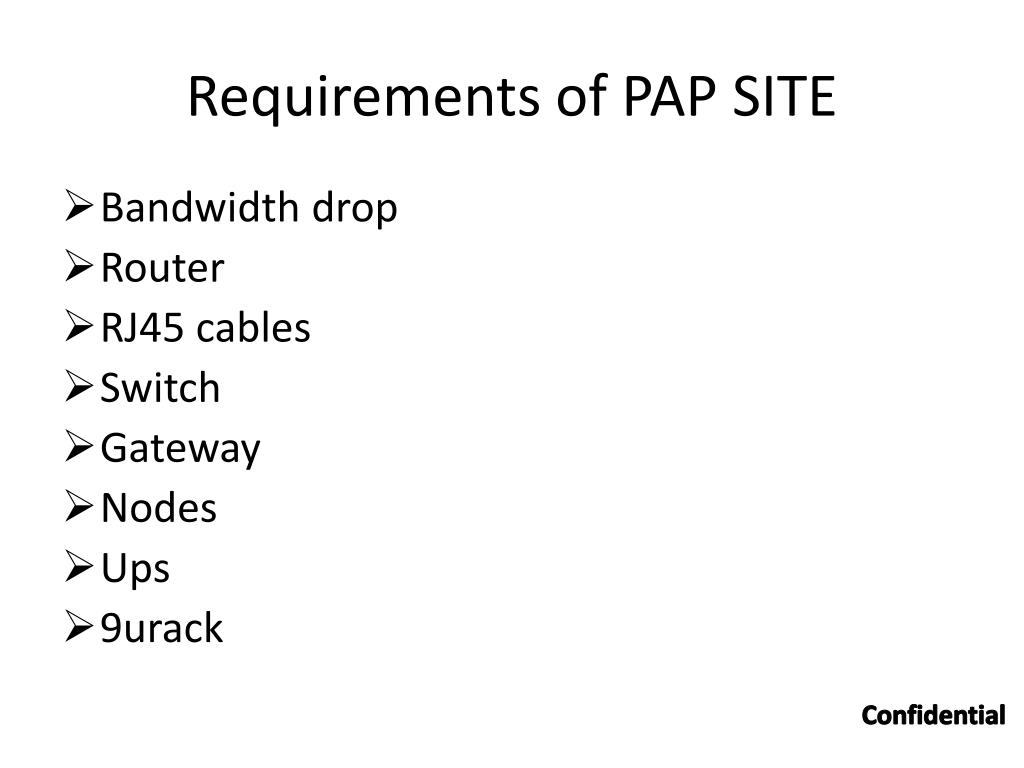

  2. Requirements of PAP SITE • Bandwidth drop • Router • RJ45 cables • Switch • Gateway • Nodes • Ups • 9urack Confidential

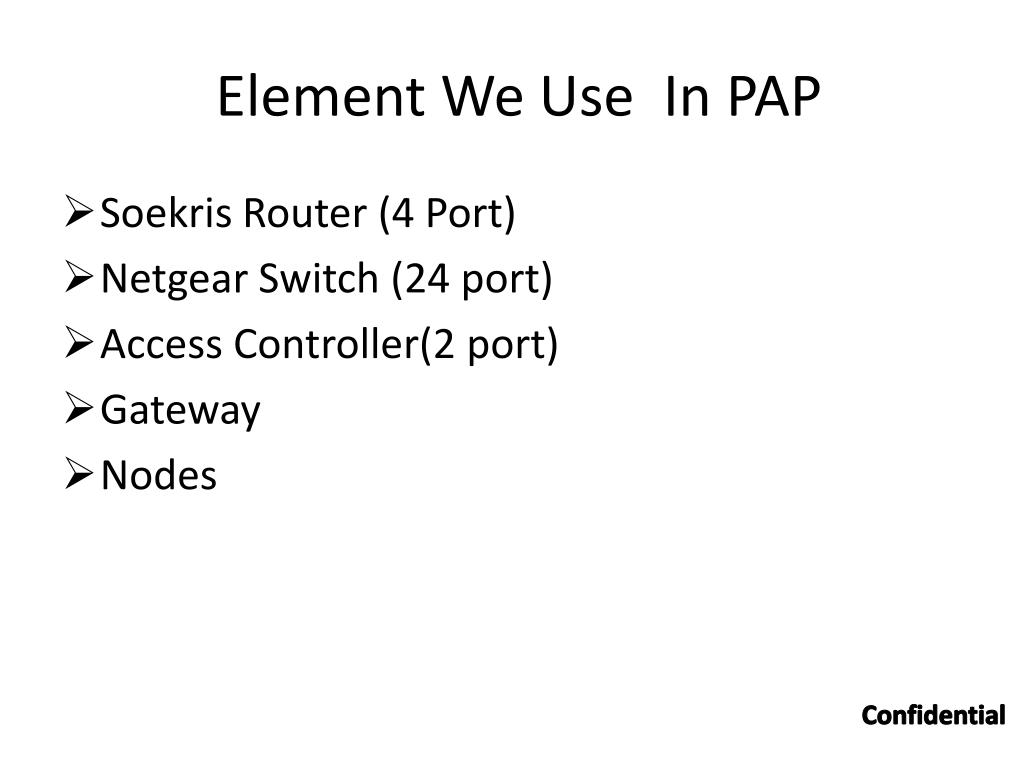

  3. Element We Use In PAP • Soekris Router (4 Port) • Netgear Switch (24 port) • Access Controller(2 port) • Gateway • Nodes Confidential

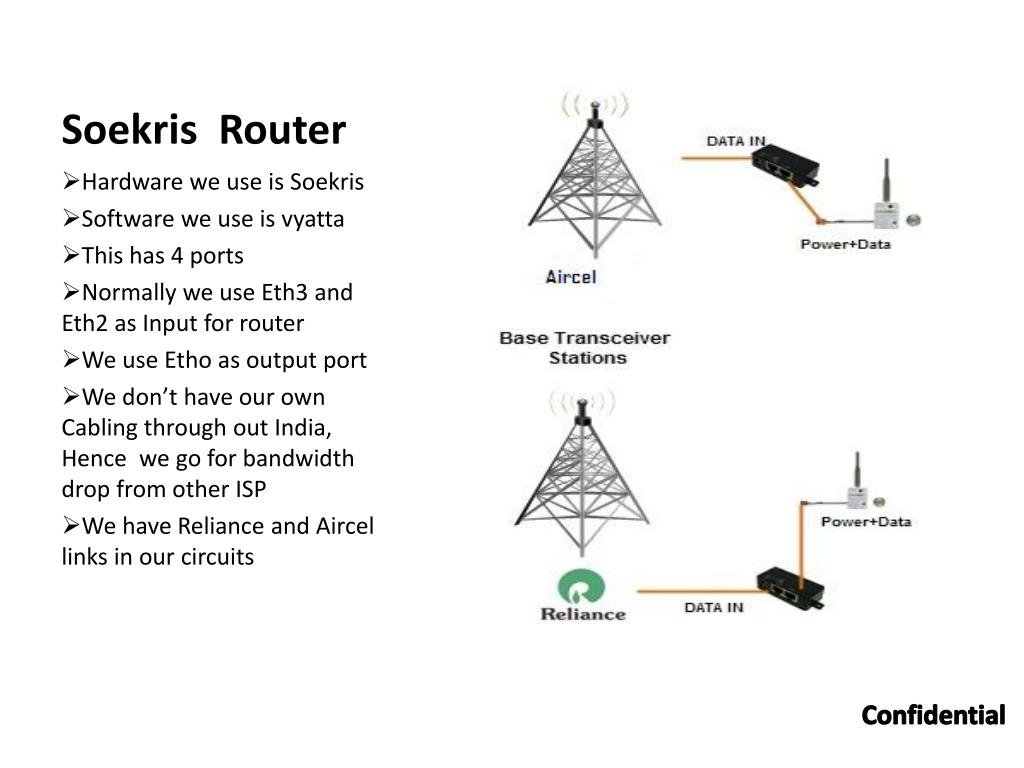

  4. Soekris Router Hardware we use is Soekris Software we use is vyatta This has 4 ports Normally we use Eth3 and Eth2 as Input for router We use Etho as output port We don’t have our own Cabling through out India, Hence we go for bandwidth drop from other ISP We have Reliance and Aircel links in our circuits Confidential

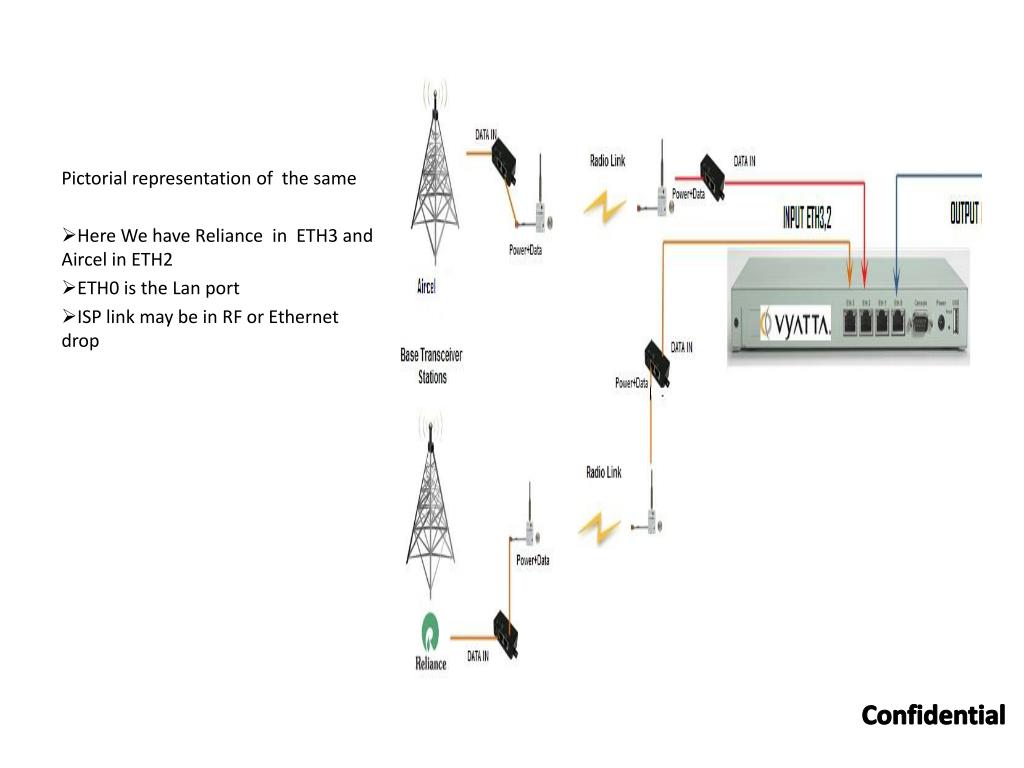

  5. Pictorial representation of the same Here We have Reliance in ETH3 and Aircel in ETH2 ETH0 is the Lan port ISP link may be in RF or Ethernet drop Confidential

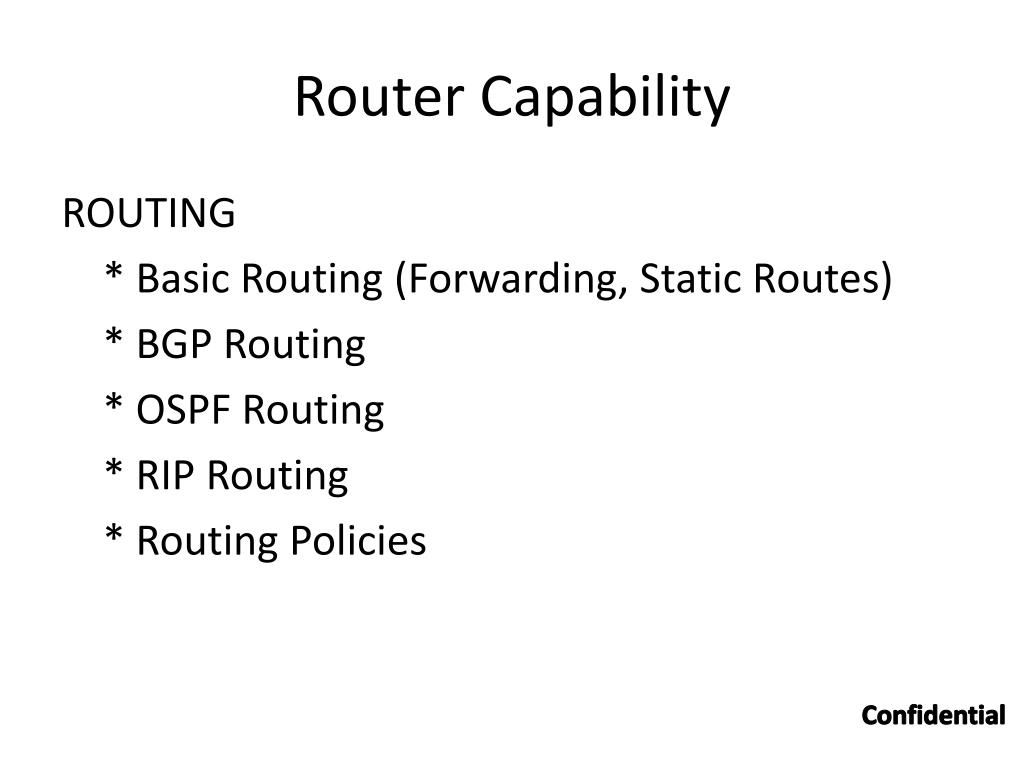

  6. Router Capability ROUTING * Basic Routing (Forwarding, Static Routes) * BGP Routing * OSPF Routing * RIP Routing * Routing Policies Confidential

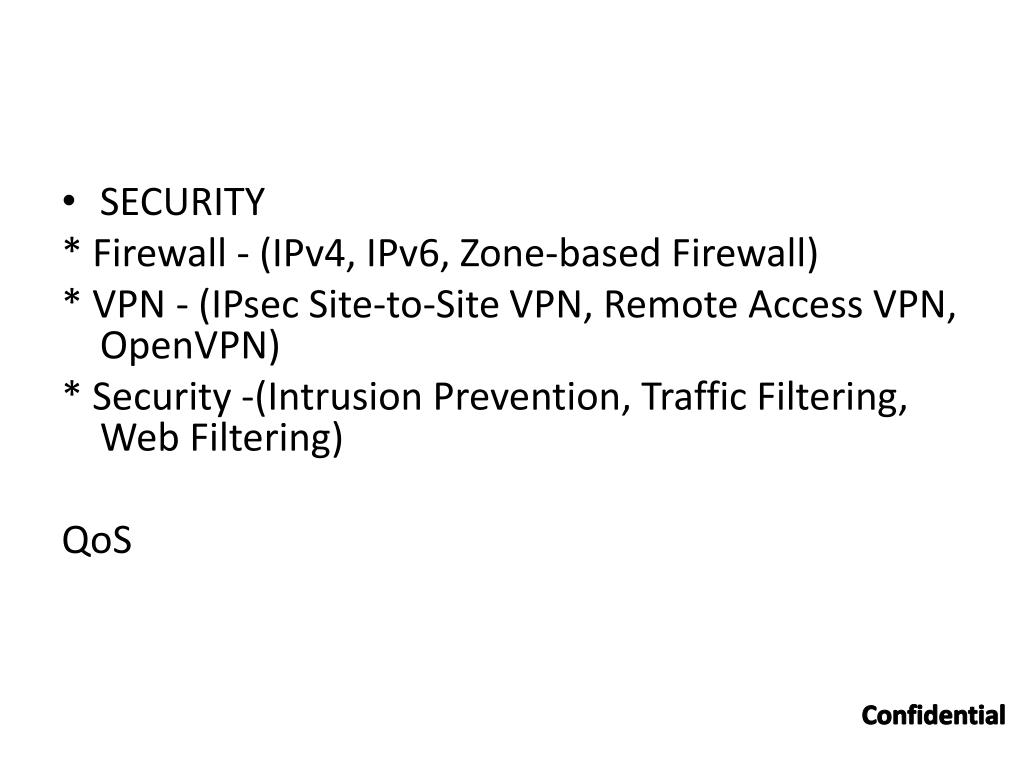

  7. SECURITY * Firewall - (IPv4, IPv6, Zone-based Firewall) * VPN - (IPsec Site-to-Site VPN, Remote Access VPN, OpenVPN) * Security -(Intrusion Prevention, Traffic Filtering, Web Filtering) QoS Confidential

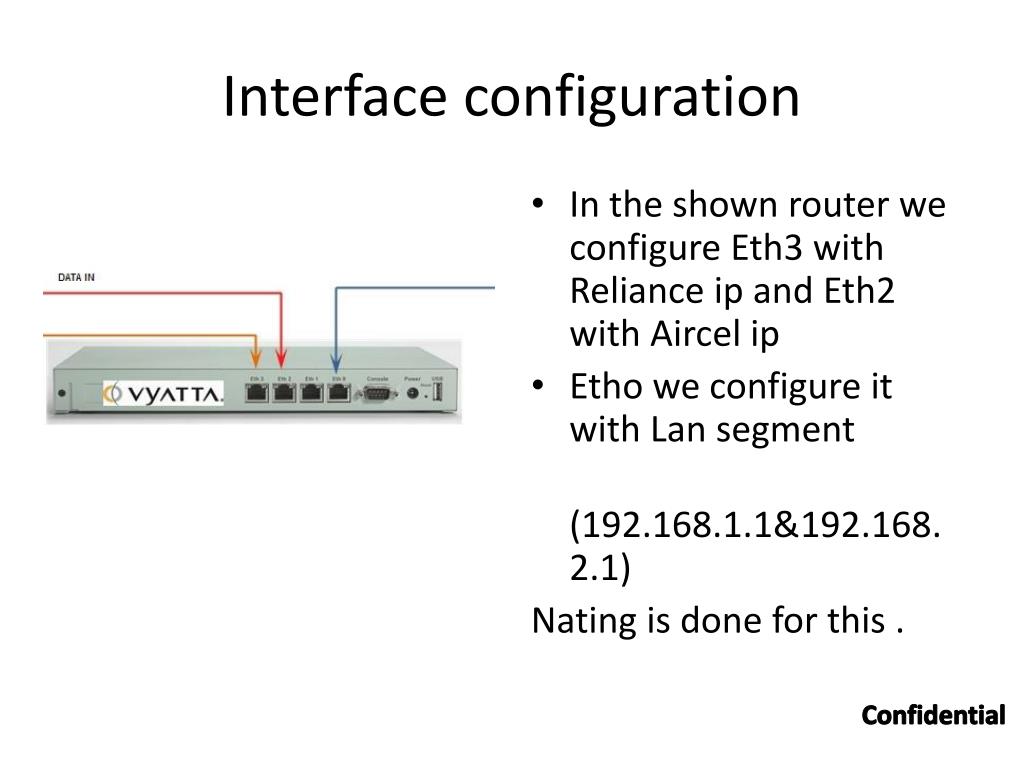

  8. Interface configuration • In the shown router we configure Eth3 with Reliance ip and Eth2 with Aircelip • Etho we configure it with Lan segment (192.168.1.1&192.168.2.1) Nating is done for this . Confidential

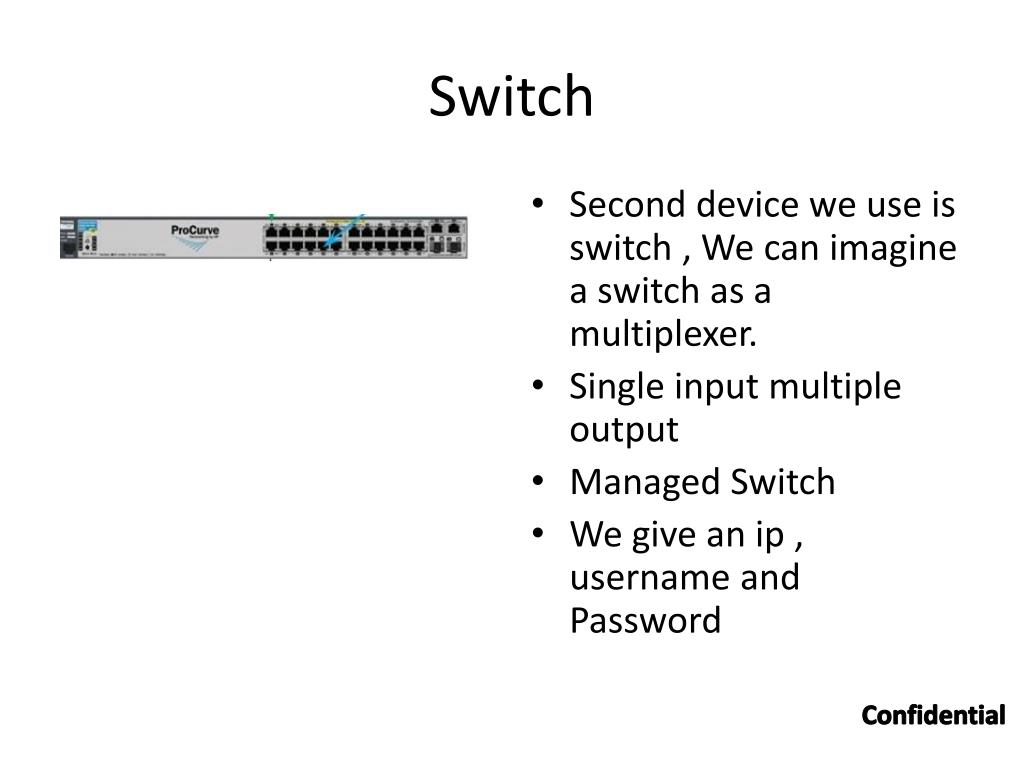

  9. Switch • Second device we use is switch , We can imagine a switch as a multiplexer. • Single input multiple output • Managed Switch • We give an ip , username and Password Confidential

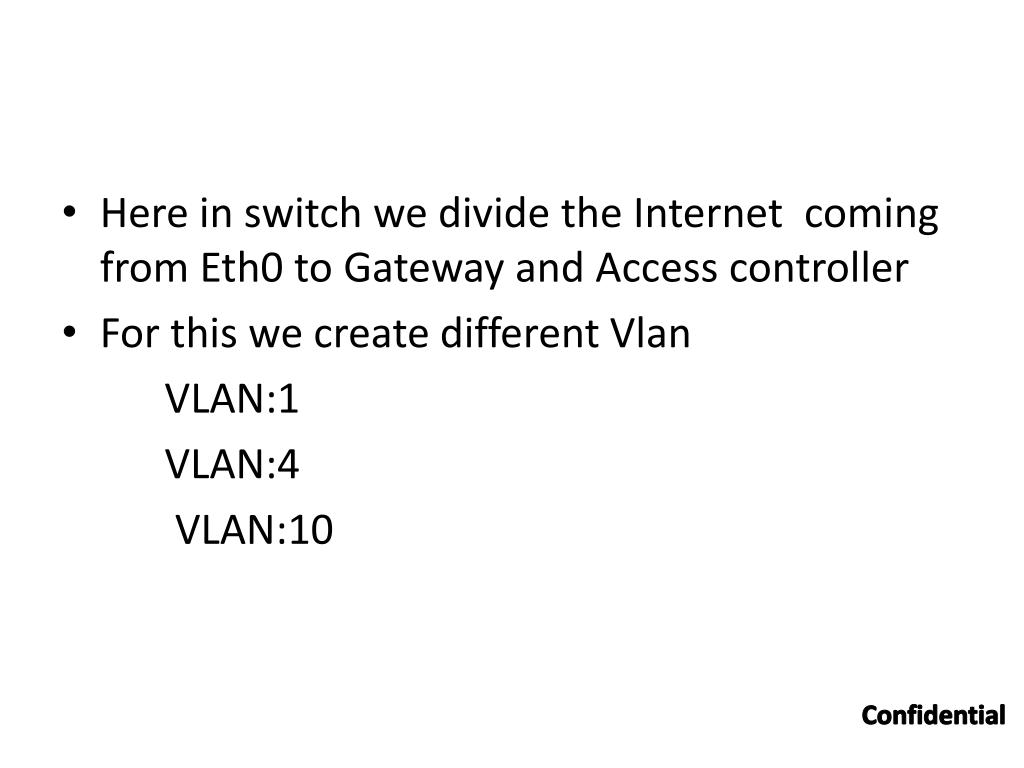

  10. Here in switch we divide the Internet coming from Eth0 to Gateway and Access controller • For this we create different Vlan VLAN:1 VLAN:4 VLAN:10 Confidential

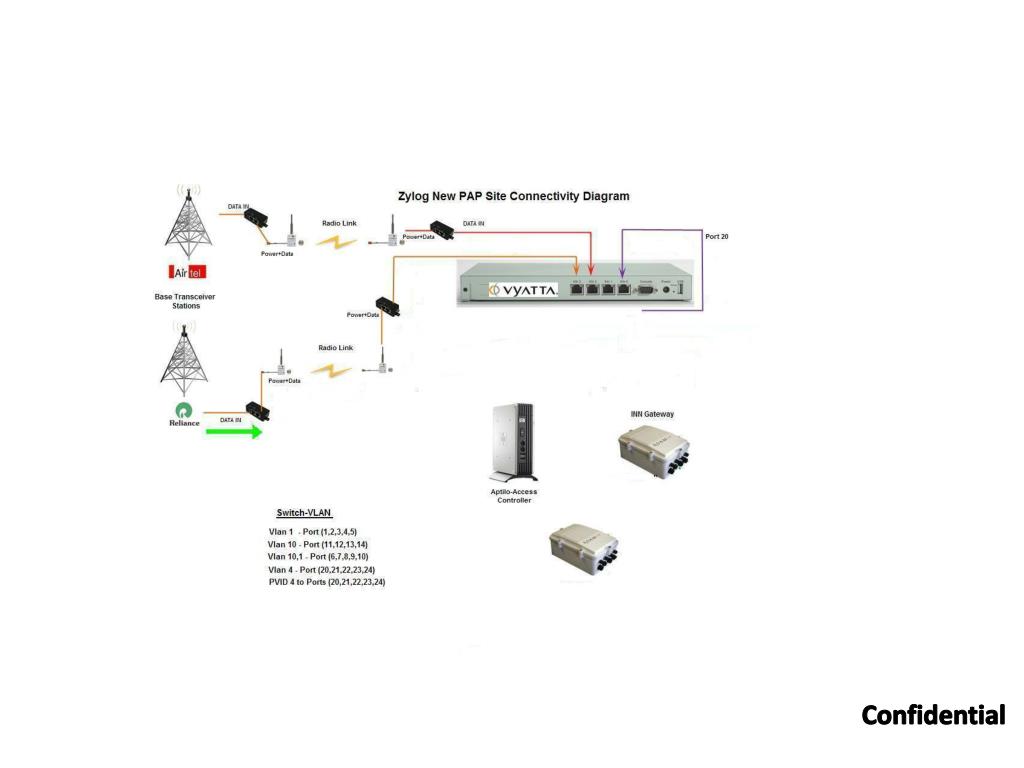

  11. Confidential

  12. Confidential

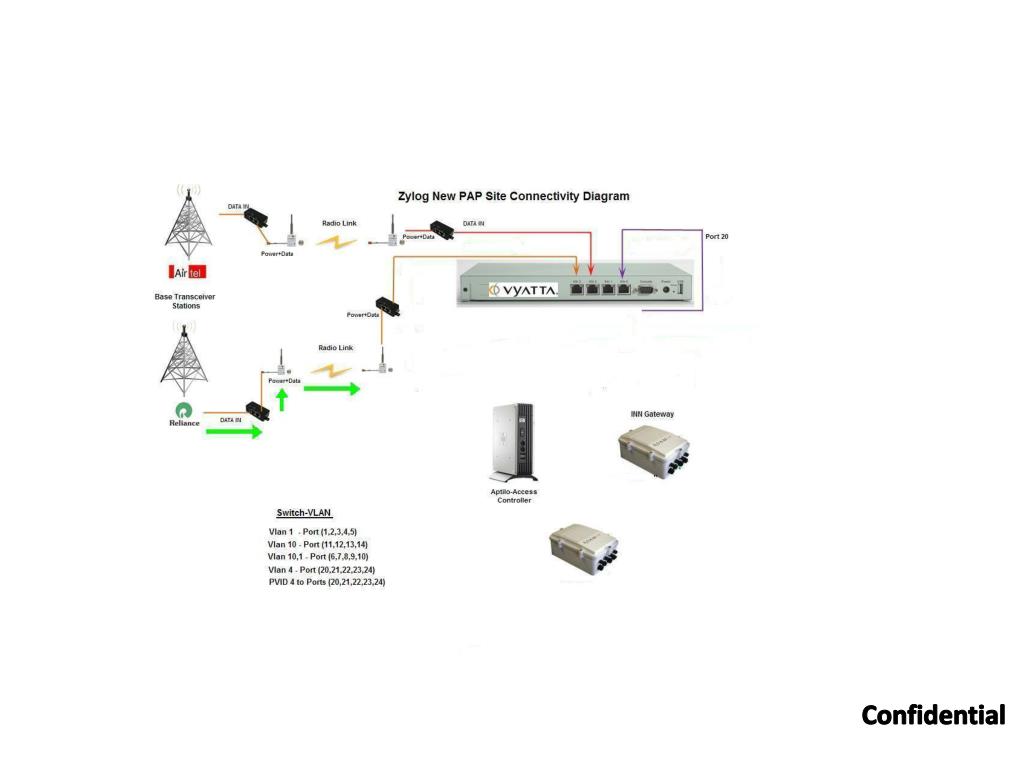

  13. Confidential

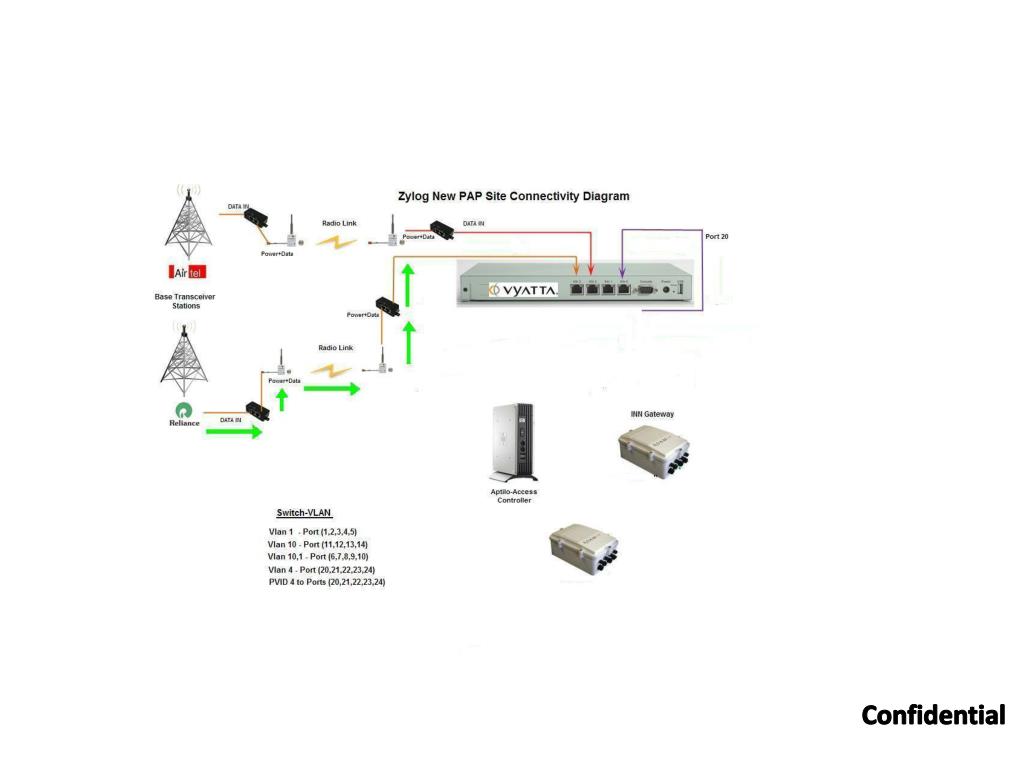

  14. Confidential

  15. Confidential

  16. Confidential

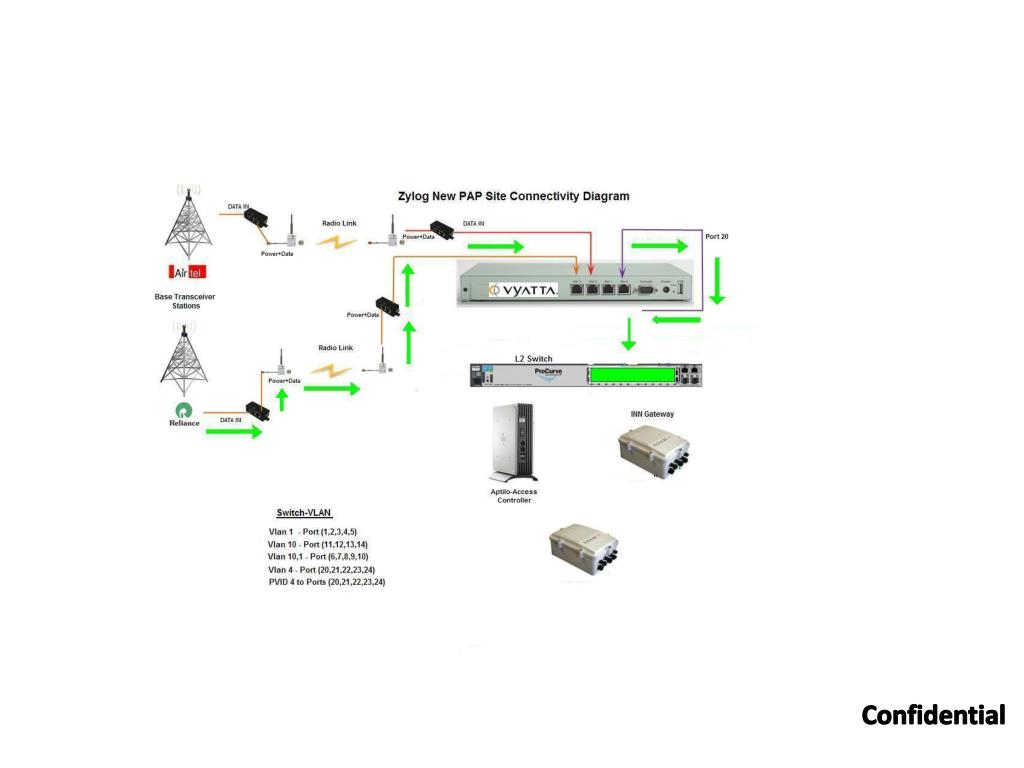

  17. Confidential

  18. Confidential

  19. Confidential

  20. Confidential

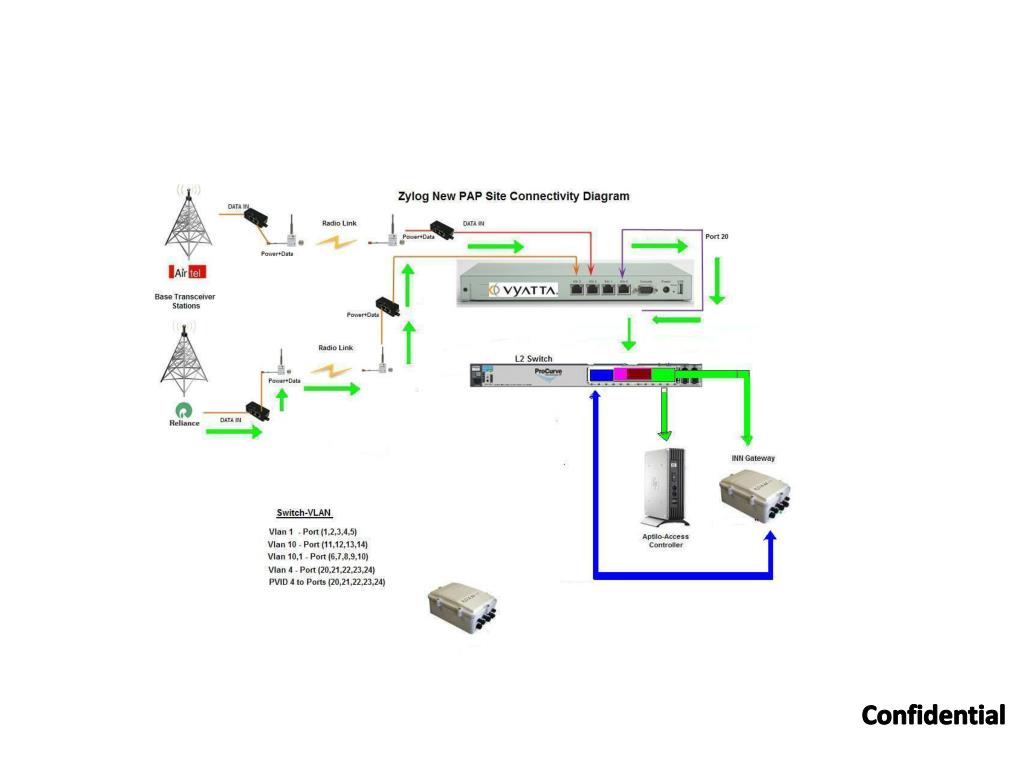

  21. Confidential

  22. Confidential

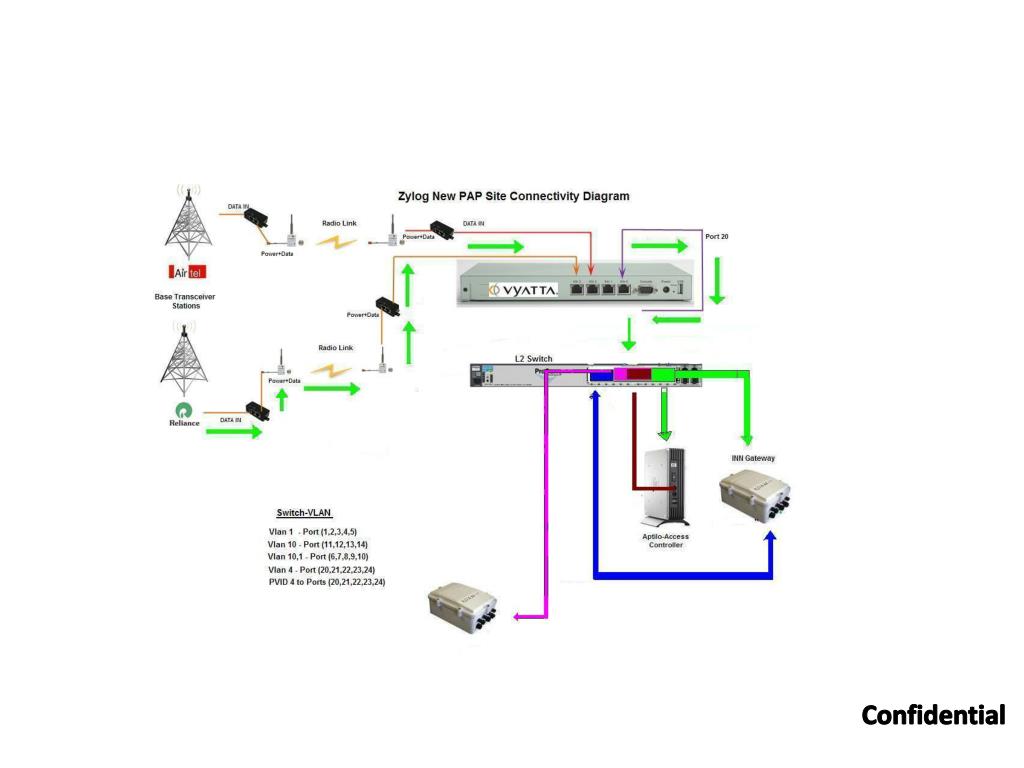

  23. Confidential

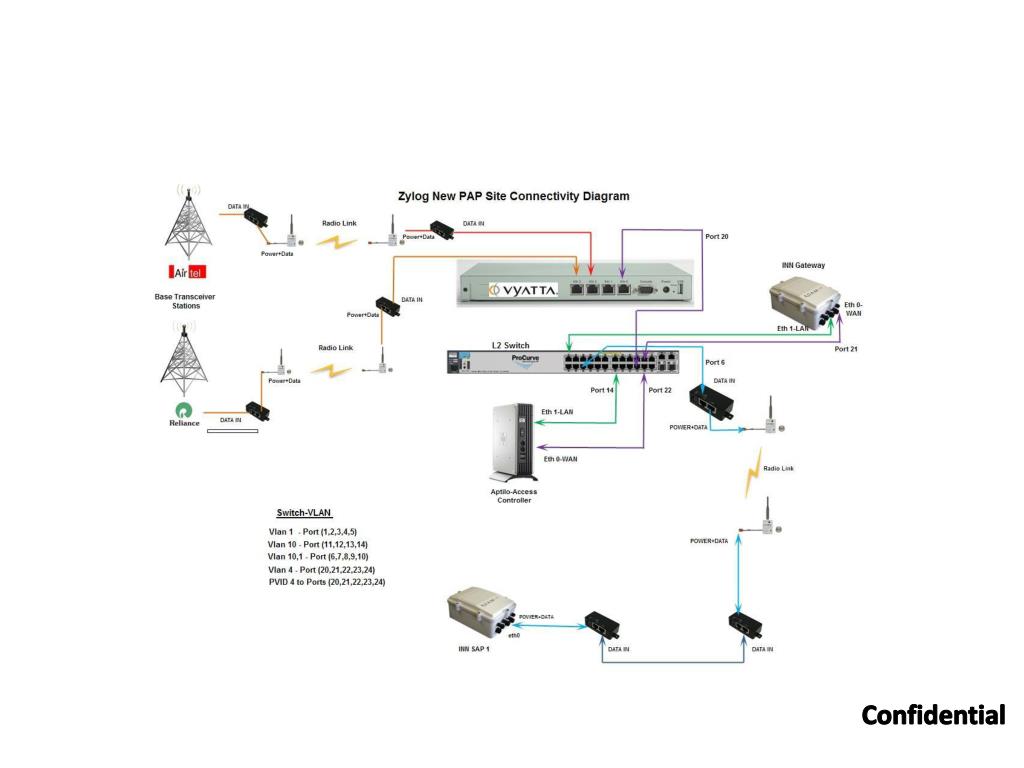

  24. Confidential
