  1. ENGR/ECE 21221 February, 2003 All slides except those with blue backgrounds are taken from John Wakerly’s Stanford EE 121, Digital Design Laboratory

  2. Decoders • General decoder structure • Typically n inputs, 2n outputs • 2-to-4, 3-to-8, 4-to-16, etc. • with a few enable inputs

  3. Note “x” (don’t care) notation. Binary 2-to-4 decoder

  4. MSI 2-to-4 decoder • Input buffering (less load) • NAND gates (faster)

  5. Decoder Symbol

  6. 3-to-8 decoder

  7. 74x138 3-to-8-decoder symbol

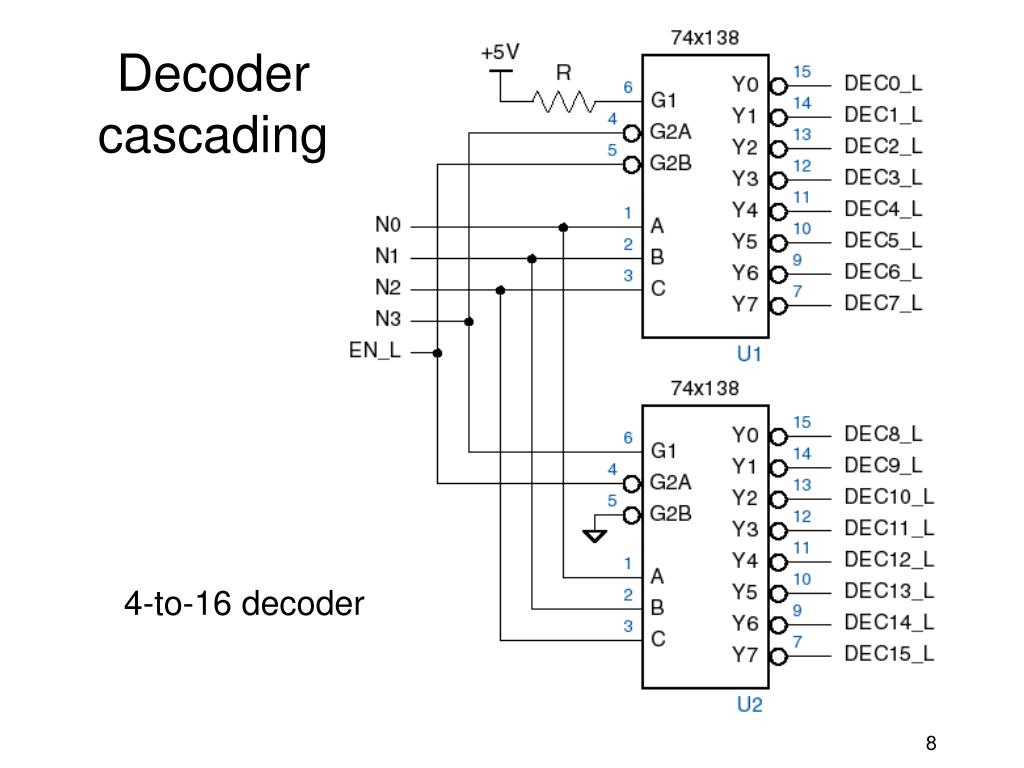

  8. Decoder cascading 4-to-16 decoder

  9. More cascading 5-to-32 decoder

  10. ABEL / PAL Version of 74x138 module Z74X138 title '74x138 Decoder PLD J. Wakerly, Stanford University‘ "Z74X138 device 'P16L8'; " Input pins A, B, C, !G2A, !G2B, G1 pin 1, 2, 3, 4, 5, 6; " Output pins !Y0, !Y1, !Y2, !Y3 pin 19, 18, 17, 16 istype 'com'; !Y4, !Y5, !Y6, !Y7 pin 15, 14, 13, 12 istype 'com'; " Constant expression ENB = G1 & G2A & G2B;

  11. ABEL decoder program (continued equations Y0 = ENB & !C & !B & !A; Y1 = ENB & !C & !B & A; Y2 = ENB & !C & B & !A; Y3 = ENB & !C & B & A; Y4 = ENB & C & !B & !A; Y5 = ENB & C & !B & A; Y6 = ENB & C & B & !A; Y7 = ENB & C & B & A; end Z74X138

  12. Decoder applications • Microprocessor memory systems • selecting different banks of memory • Microprocessor input/output systems • selecting different devices • Microprocessor instruction decoding • enabling different functional units • Memory chips • enabling different rows of memory depending on address • Lots of other applications

  13. Some decoder datasheets • 74x138 • 3-line to 8-line decoders/demultiplexers • 74x139 • Dual 2-line to 4 line decoders/demultiplexers • 74x154 • 4-to-16 line decoders/demultiplexers

  14. Decoder Encoder Encoders vs. Decoders

  15. Binary encoders

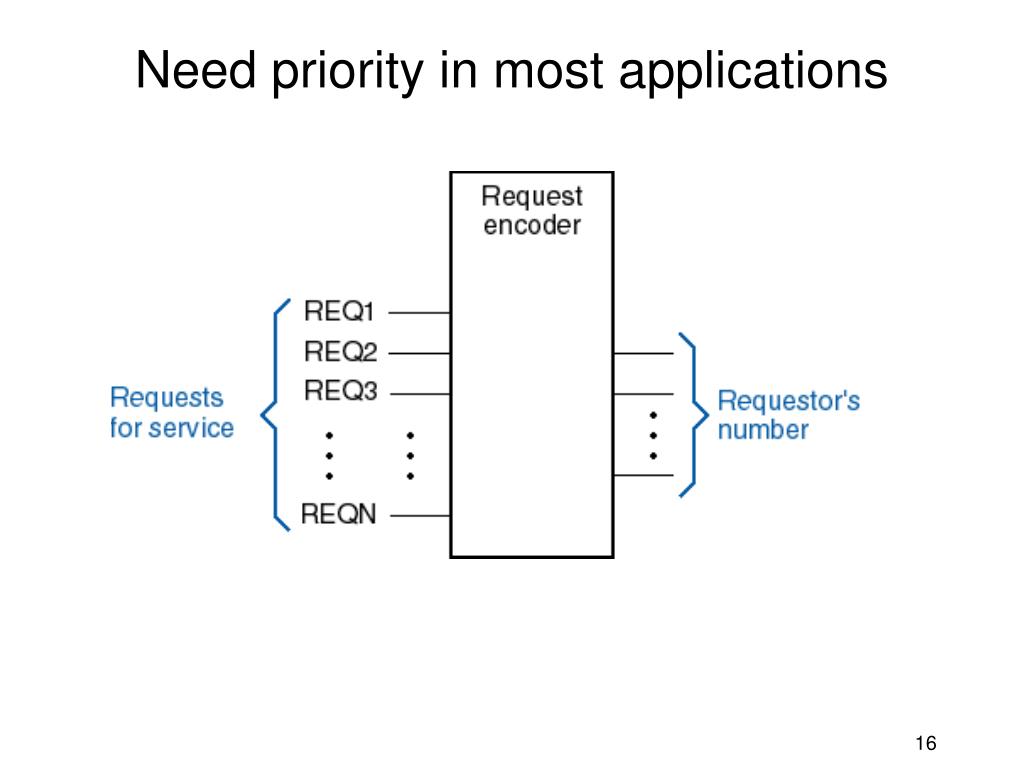

  16. Need priority in most applications

  17. 8-input priority encoder

  18. 74x148 8-input priority encoder • Active-low I/O • Enable Input • “Got Something” • Enable Output

  19. 74x148circuit

  20. Cascading priority encoders • 32-inputpriority encoder

  21. Some encoder datasheets • 74x148 • 8-line to 3-line priority encoders • 74x147 • 10-line to 4-line priority encoders

  22. Multiplexers

  23. 74x1518-input multiplexer

  24. Some multiplexer datasheets • 74x151 • 8-Input Multiplexer • 74x153 • Dual 4-Input Multiplexer • 74x157, 74x158 • Quad 2-Input Multiplexer
