  1. The Next Generation Root File Server Andrew Hanushevsky Stanford Linear Accelerator Center 27-September-2004 http://xrootd.slac.stanford.edu

  2. What is xrootd? • File Server • Provides high performance file-based access • Scalable, extensible, naively usable • Fault tolerant • Server failures handled in a natural way • Servers may be dynamically added and removed • Secure • Framework allows use of almost any protocol • Rootd Compatible 2: xrootd

  3. Goals II • Simplicity • Can run xrootd out of the box • No config file needed for non-complicated/small installations • Generality • Can configure xrootd for ultimate performance • Meant for intermediate to large-scale sites 3: xrootd

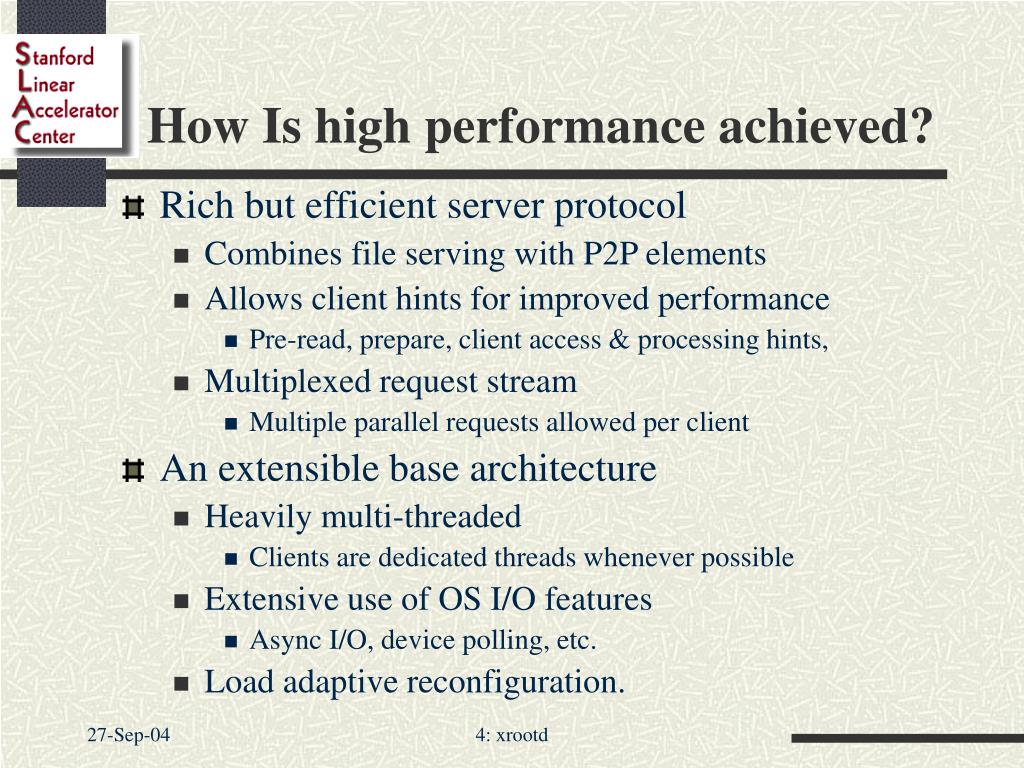

  4. How Is high performance achieved? • Rich but efficient server protocol • Combines file serving with P2P elements • Allows client hints for improved performance • Pre-read, prepare, client access & processing hints, • Multiplexed request stream • Multiple parallel requests allowed per client • An extensible base architecture • Heavily multi-threaded • Clients are dedicated threads whenever possible • Extensive use of OS I/O features • Async I/O, device polling, etc. • Load adaptive reconfiguration. 4: xrootd

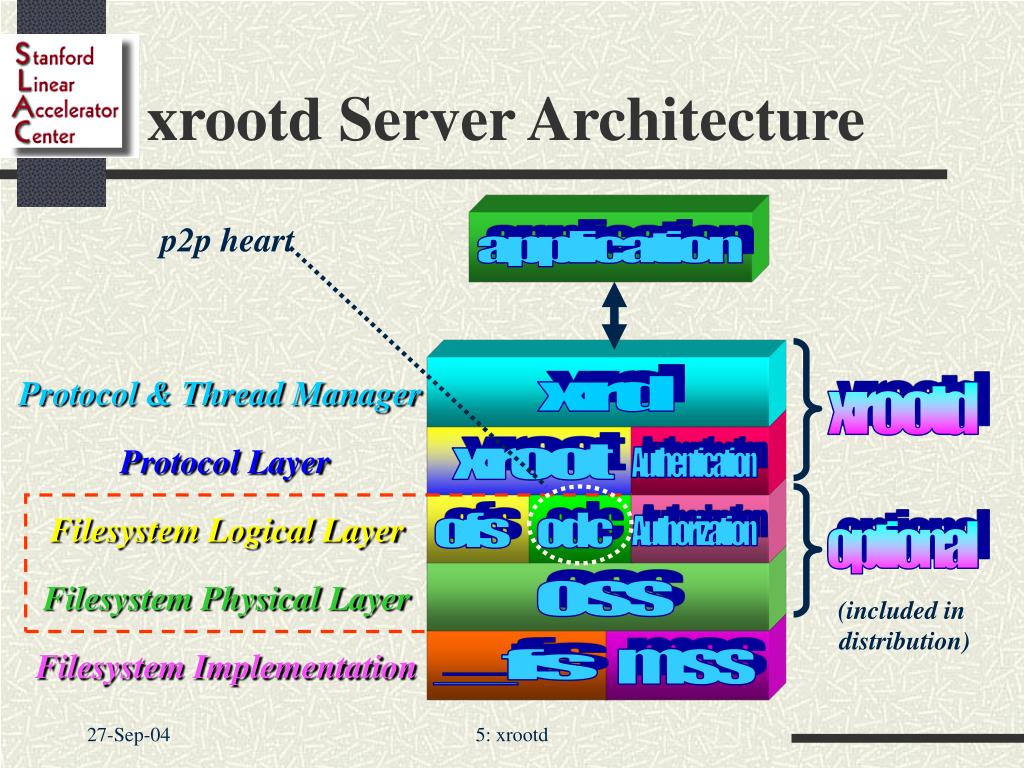

  5. xrootd Server Architecture p2p heart application Protocol & Thread Manager xrd xrootd Protocol Layer xroot Authentication Filesystem Logical Layer ofs odc Authorization optional Filesystem Physical Layer oss (included in distribution) Filesystem Implementation _fs mss 5: xrootd

  6. Rootd Bilateral Compatibility Client-Side Compatibility Application TXNetFile xrootd rootd TNetFile Server-Side Compatibility Application rootd xrootd rootd compability TNetFile client 6: xrootd

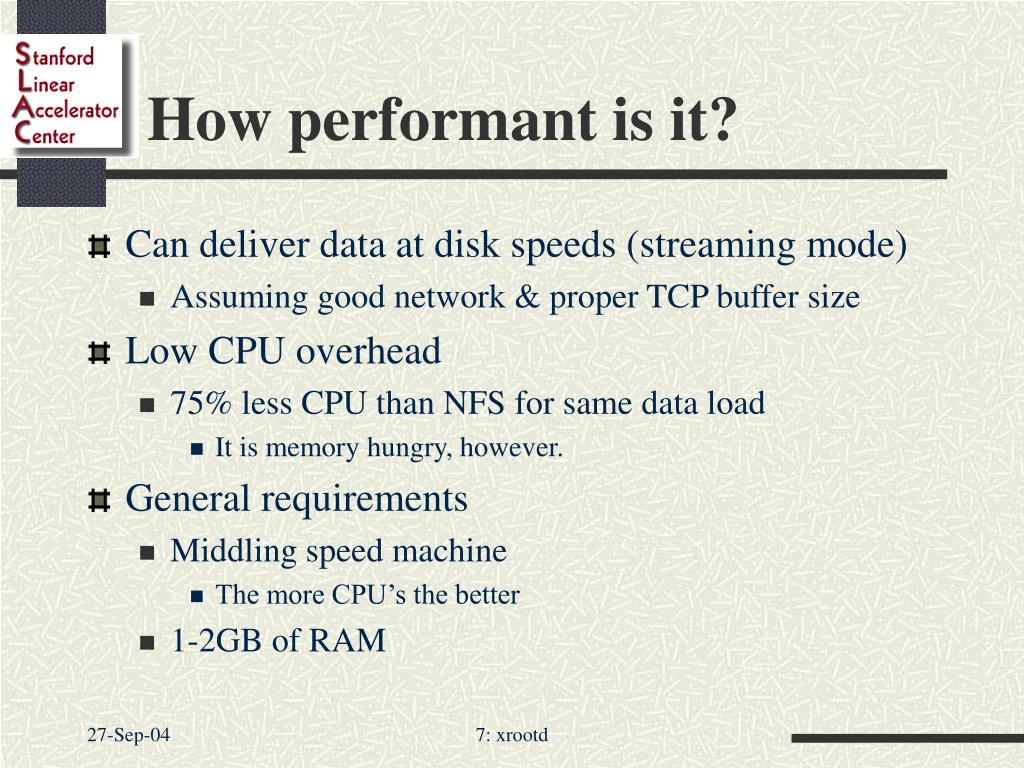

  7. How performant is it? • Can deliver data at disk speeds (streaming mode) • Assuming good network & proper TCP buffer size • Low CPU overhead • 75% less CPU than NFS for same data load • It is memory hungry, however. • General requirements • Middling speed machine • The more CPU’s the better • 1-2GB of RAM 7: xrootd

  8. How is scalability achieved? • Protocol allows server scalability • Server directed I/O segmenting • Request deferral to pace client load • Unsolicited responses for ad hoc client steering • P2P elements for lashing servers together • Request redirection key element • Integrated with a P2P control network • olbd servers provide control information 8: xrootd

  9. How does it scale? • xrootd scales in multiple dimensions • Can run multiple load balanced xrootd’s • Provides single uniform name and data space • Scales from 1 to over 32,000 cooperating data servers • Architected as self-configuring structured peer-to-peer (SP2) data servers • Servers can be added & removed at any time • Client (TXNetFile) understands SP2 configurations • xrootd informs client when running in this mode • Client has more recovery options in the event of failure 9: xrootd

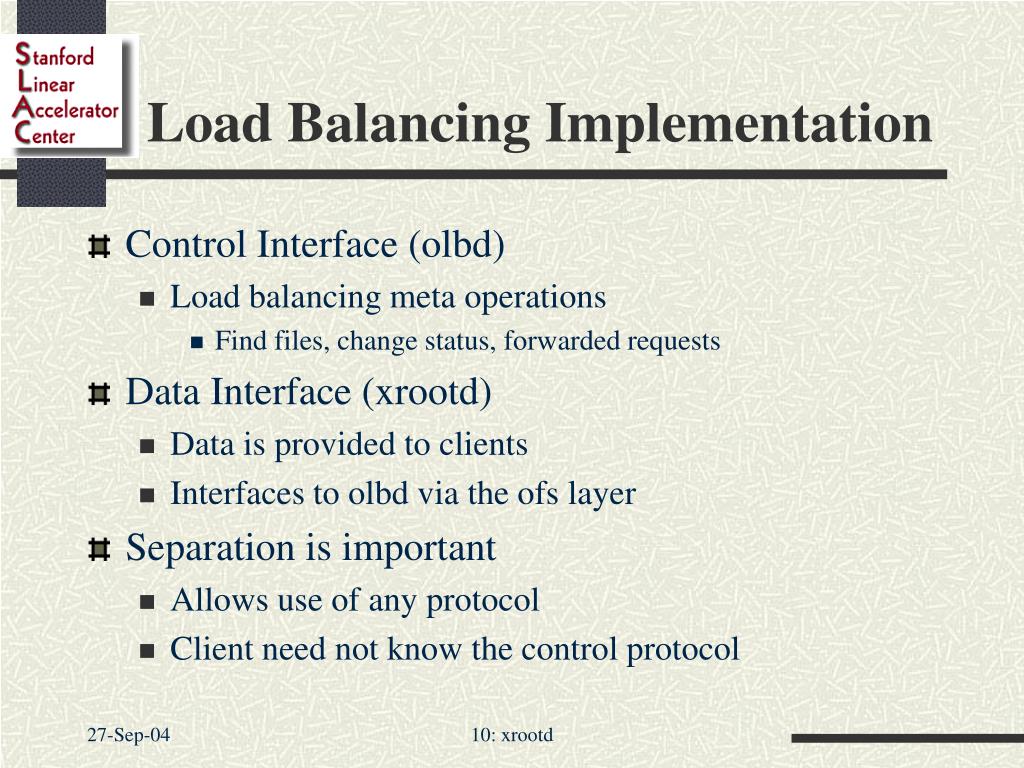

  10. Load Balancing Implementation • Control Interface (olbd) • Load balancing meta operations • Find files, change status, forwarded requests • Data Interface (xrootd) • Data is provided to clients • Interfaces to olbd via the ofs layer • Separation is important • Allows use of any protocol • Client need not know the control protocol 10: xrootd

  11. data Entities & Relationships xrootd Data Network (redirectors steer clients to data Data servers provide data) olbd Control Network Managers & Servers (resource info, file location) Redirectors olbd M ctl xrootd olbd S Data Clients xrootd Data Servers 11: xrootd

  12. ufs ufs Typical SP2 Configuration subscribe olbd xrootd Dynamic Selection olbd xrootd mss client redirector xrootd subscribe olbd 12: xrootd

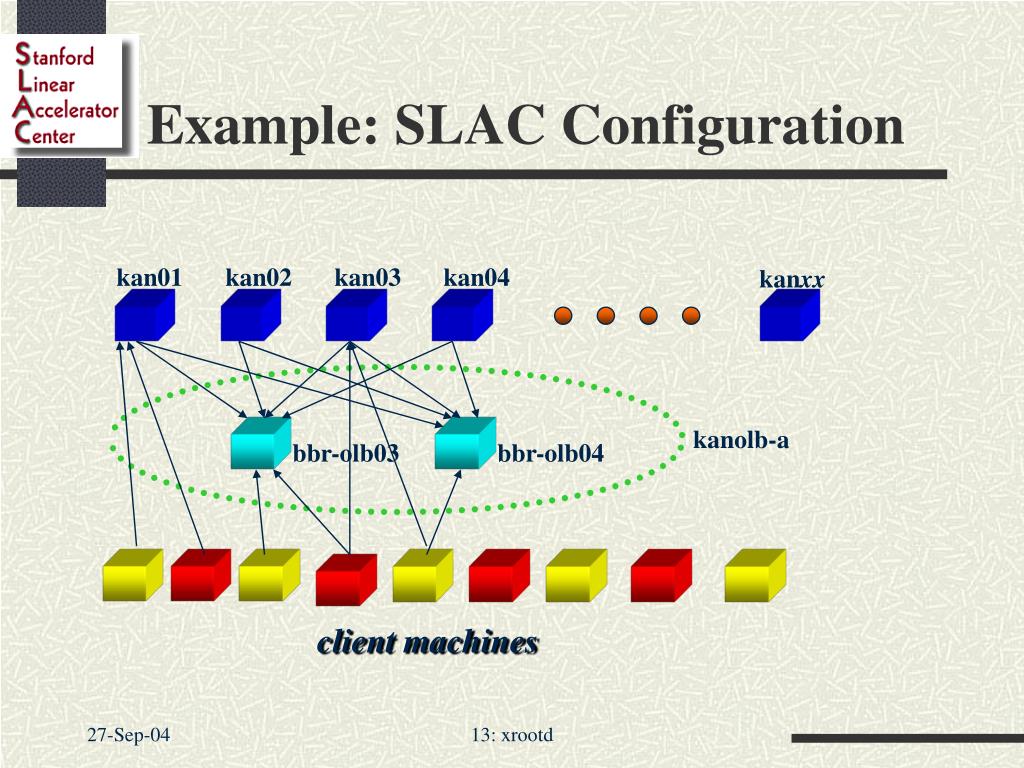

  13. Example: SLAC Configuration kan01 kan02 kan03 kan04 kanxx kanolb-a bbr-olb03 bbr-olb04 client machines 13: xrootd

  14. Why do this? • Can transparently & incrementally scale • Servers can come and go • Load balancing effects recovery • New servers can be added at any time • Servers may be brought down for maintenance • Files can be moved around in real-time • Client simply adjust to the new configuration • TXNetFile object handles recovery protocol 14: xrootd

  15. What we have seen • For a single server: • 1,000 simultaneous clients • 2,200 simultaneous open files • Bottlenecks • Disk I/O (memory next behind) 15: xrootd

  16. What Have We Heard • The system is too stable • Users run extra-long jobs (1-2 weeks) now • Error not discovered until weeks later • The system is too aggressive • New servers are immediately taken over • Easy configuration but startling for administrators 16: xrootd

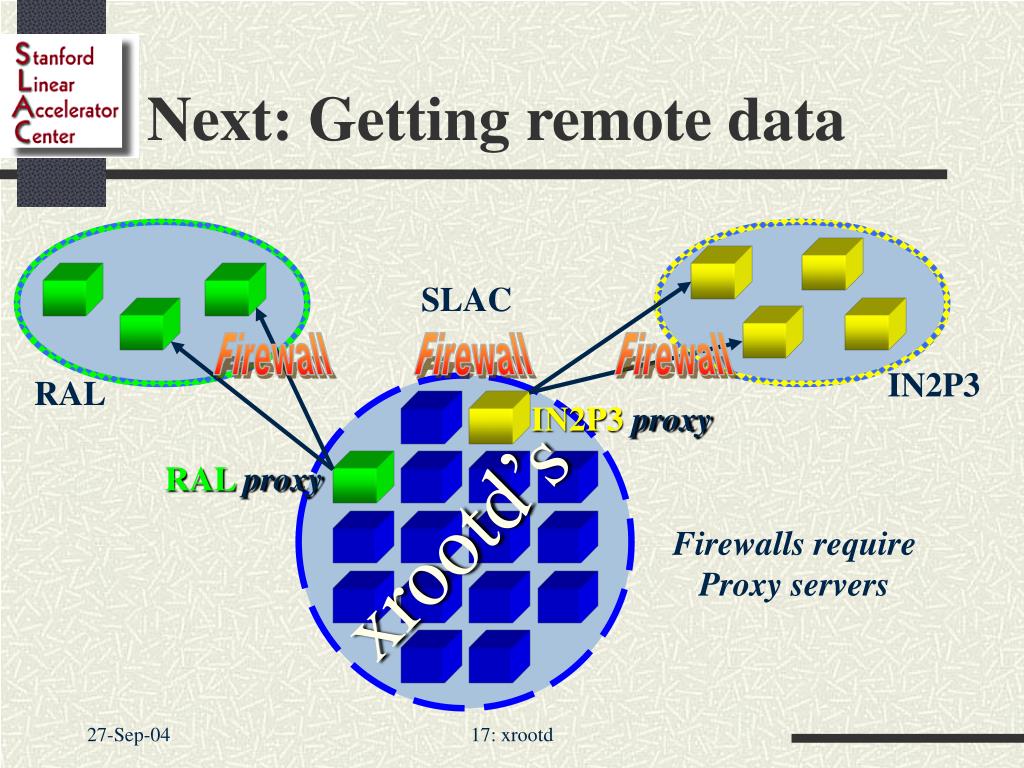

  17. Next: Getting remote data SLAC Firewall Firewall Firewall IN2P3 RAL IN2P3proxy RALproxy xrootd’s Firewalls require Proxy servers 17: xrootd

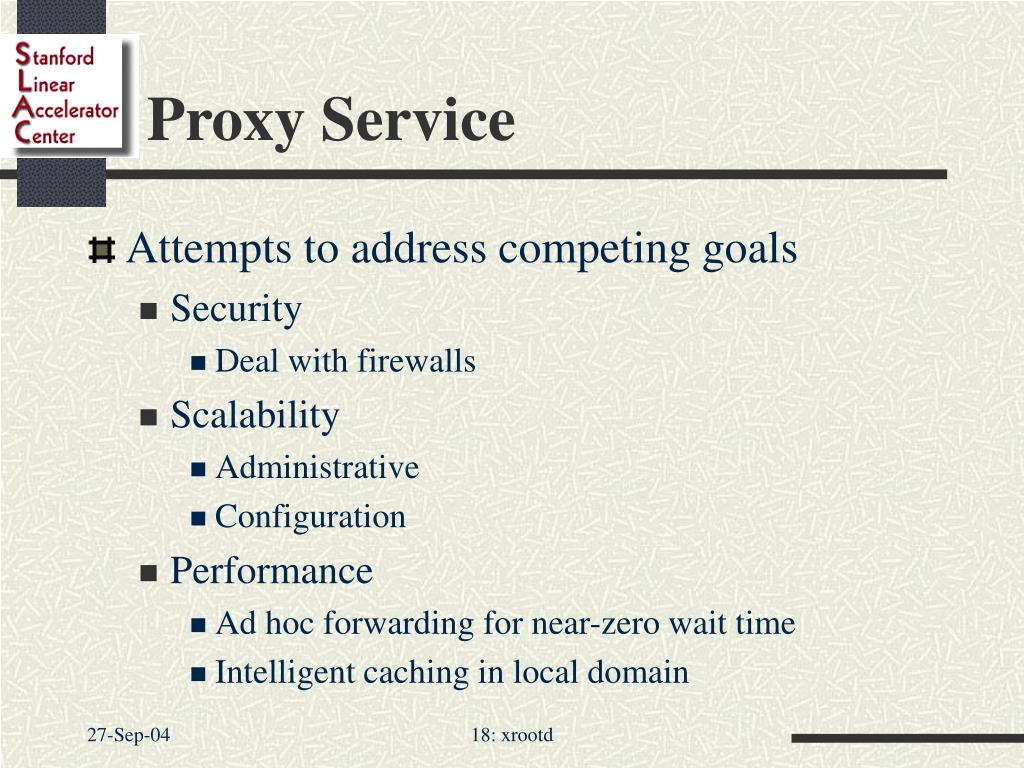

  18. Proxy Service • Attempts to address competing goals • Security • Deal with firewalls • Scalability • Administrative • Configuration • Performance • Ad hoc forwarding for near-zero wait time • Intelligent caching in local domain 18: xrootd

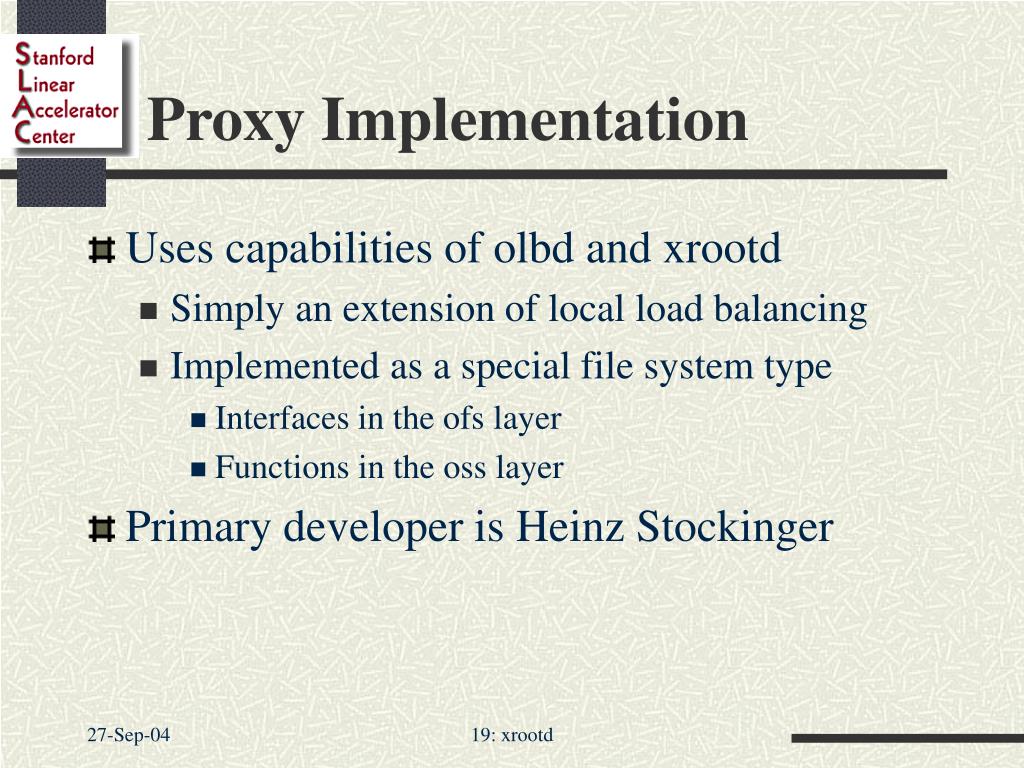

  19. Proxy Implementation • Uses capabilities of olbd and xrootd • Simply an extension of local load balancing • Implemented as a special file system type • Interfaces in the ofs layer • Functions in the oss layer • Primary developer is Heinz Stockinger 19: xrootd

  20. Proxy Interactions data01 data02 data03 data04 RAL local olb proxy olb 4 5 local olb proxy olb SLAC 3 1 red01 data02 data03 proxy01 2 client machines 20: xrootd

  21. Why This Arrangement? • Minimizes cross-domain knowledge • Necessary for scalability in all areas • Security • Configuration • Fault tolerance & recovery 21: xrootd

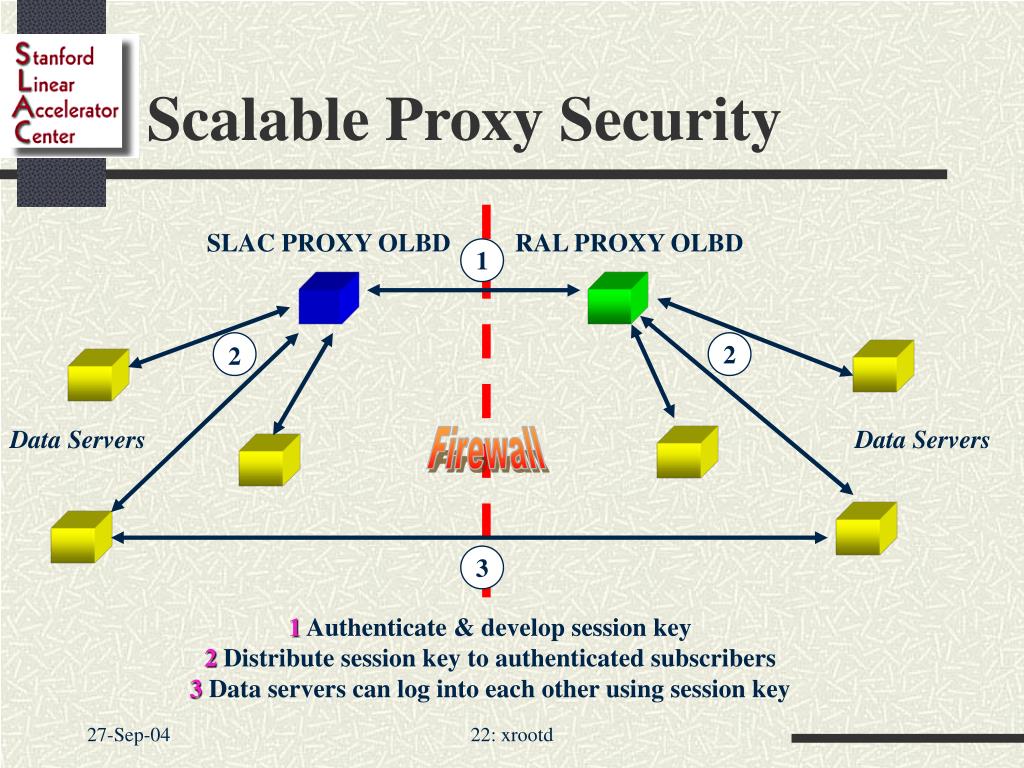

  22. 2 3 2 1 Scalable Proxy Security SLAC PROXY OLBD RAL PROXY OLBD Data Servers Data Servers Firewall 1 Authenticate & develop session key 2 Distribute session key to authenticated subscribers 3 Data servers can log into each other using session key 22: xrootd

  23. Proxy Performance • Introduces minimal latency overhead • Virtually undetectably from US/Europe • Negligible on faster links • 2% slower on fast US/US links • 10% slower on LAN • Can be further improved • Parallel streams • Better window size calculation • Asynchronous I/O 23: xrootd

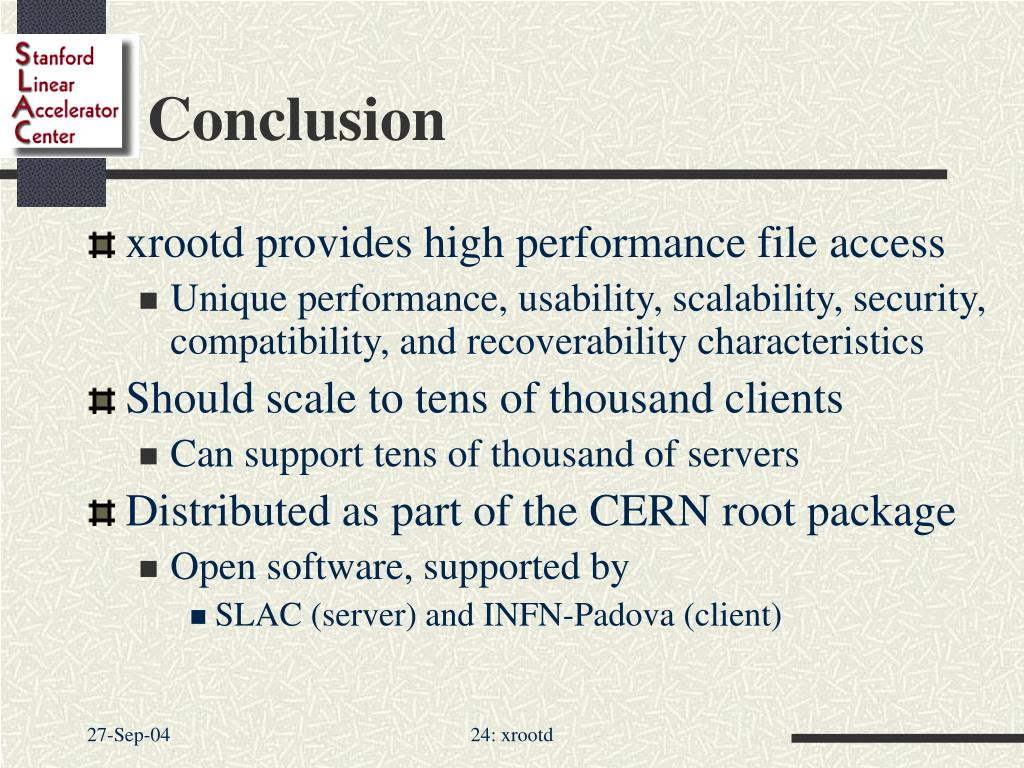

  24. Conclusion • xrootd provides high performance file access • Unique performance, usability, scalability, security, compatibility, and recoverability characteristics • Should scale to tens of thousand clients • Can support tens of thousand of servers • Distributed as part of the CERN root package • Open software, supported by • SLAC (server) and INFN-Padova (client) 24: xrootd
