  1. Linked List TraversalLesson xx

  2. Objectives • Review building a complete linked list • List traversal in main ( ) • List traversal using a function

  3. Complete List Traversal Program struct entry { int value;   entry* next; }; int main() {   entry n1, n2, n3;   entry* head = &n1; n1.next = &n2;   n2.next = &n3;   n3.next = 0; n1.value = 100; n2.value = 200; n3.value = 300;   entry * temp; temp= head;   // traverse the list   while (temp != NULL) {cout << temp << " " << temp->value << " " << temp->next << endl; temp = temp->next; }  return 0; }

  4. Code to Build a Linked List entry n1, n2, n3;   entry* head = &n1; n1.next = &n2;   n2.next = &n3;   n3.next = 0; n1.value = 100; n2.value = 200; n3.value = 300; n2 n3 (7fa) (88b) n1 (56c) 88b 200 300 100 7fa n2.value n3.value n2.next n3.next n1.value n1.next head 56c 0

  5. Pointer for Traversing List   entry * temp; temp= head; n2 n3 (7fa) (88b) n1 (56c) temp 56c 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

  6. Loop for Traversing List   while (temp != NULL) {cout << temp << " " << temp->value << " " << temp->next << endl; temp = temp->next; } n2 n3 (7fa) (88b) n1 (56c) temp 56c 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

  7. Output After 1stcout temp->next temp temp->value  56c 100 7fa n2 n3 (7fa) (88b) n1 (56c) temp 56c 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

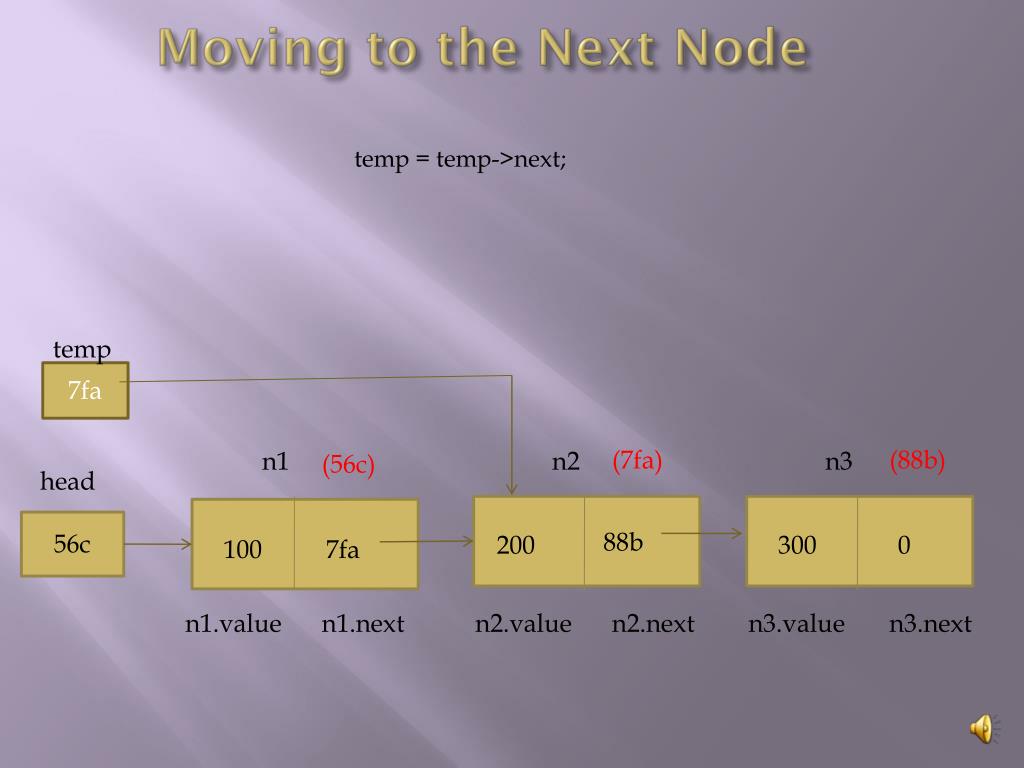

  8. Moving to the Next Node temp = temp->next; n2 n3 (7fa) (88b) n1 (56c) temp 7fa 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

  9. 2nd Pass Through Loop while (temp != NULL) {cout << temp << " " << temp->value << " " << temp->next << endl; temp = temp->next; } n2 n3 (7fa) (88b) n1 (56c) temp 7fa 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

  10. Complete Output 56c 100 7fa 7fa 200 88b 88b 300 0 n2 n3 (7fa) (88b) n1 (56c) temp 0 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

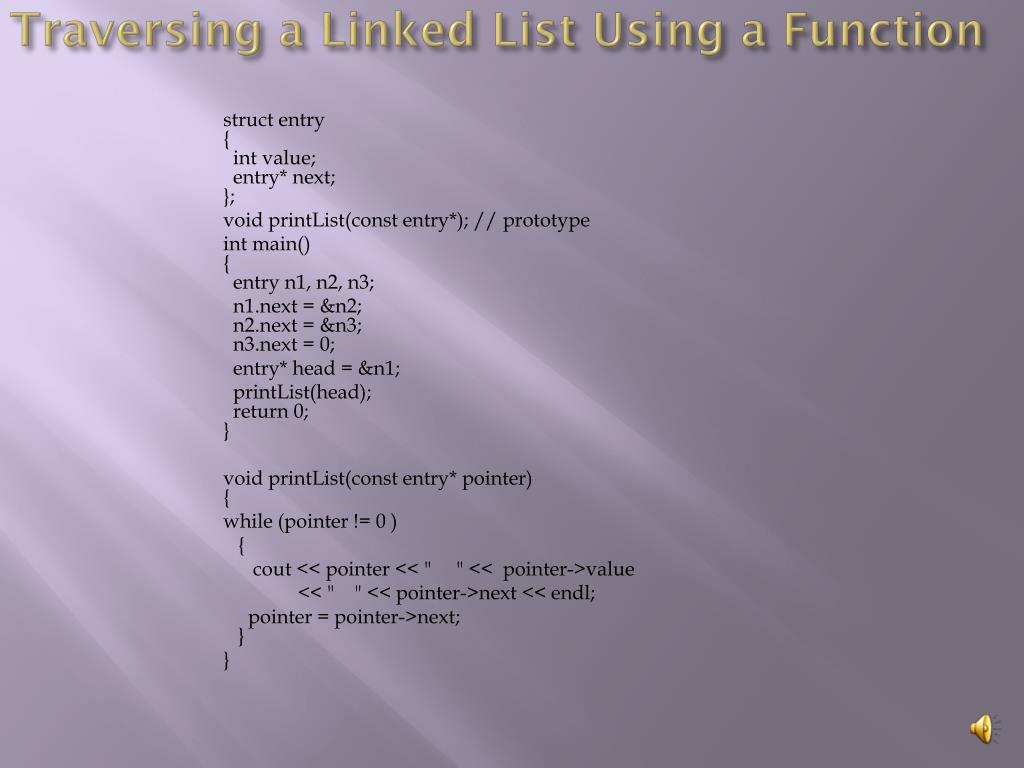

  11. Traversing a Linked List Using a Function struct entry { int value;   entry* next; }; void printList(const entry*); // prototype int main() {   entry n1, n2, n3;   n1.next = &n2;   n2.next = &n3;   n3.next = 0;   entry* head = &n1; printList(head);   return 0; } void printList(const entry* pointer) { while (pointer != 0 ) { cout << pointer << " " << pointer->value << " " << pointer->next << endl; pointer = pointer->next; } }

  12. Traversing a Linked List Using a Function 1 struct entry { int value;   entry* next; }; void printList(const entry*); // prototype int main() {   entry n1, n2, n3;   n1.next = &n2;   n2.next = &n3;   n3.next = 0;   entry* head = &n1; printList(head);   return 0; } void printList(const entry* pointer) { while (pointer != 0 ) { cout << pointer << " " << pointer->value << " " << pointer->next << endl; pointer = pointer->next; } } 2 3

  13. printList ( ) Function void printList(const entry* pointer) { while (pointer != 0 ) { cout << pointer << " " << pointer->value << " " << pointer->next << endl; pointer = pointer->next; } } n2 n3 (7fa) (88b) n1 (56c) pointer 56c 88b 200 300 100 7fa n3.value n2.value n2.next n3.next n1.value n1.next head 56c 0

  14. Summary Building a complete linked list List traversal in main ( ) List traversal using a function
