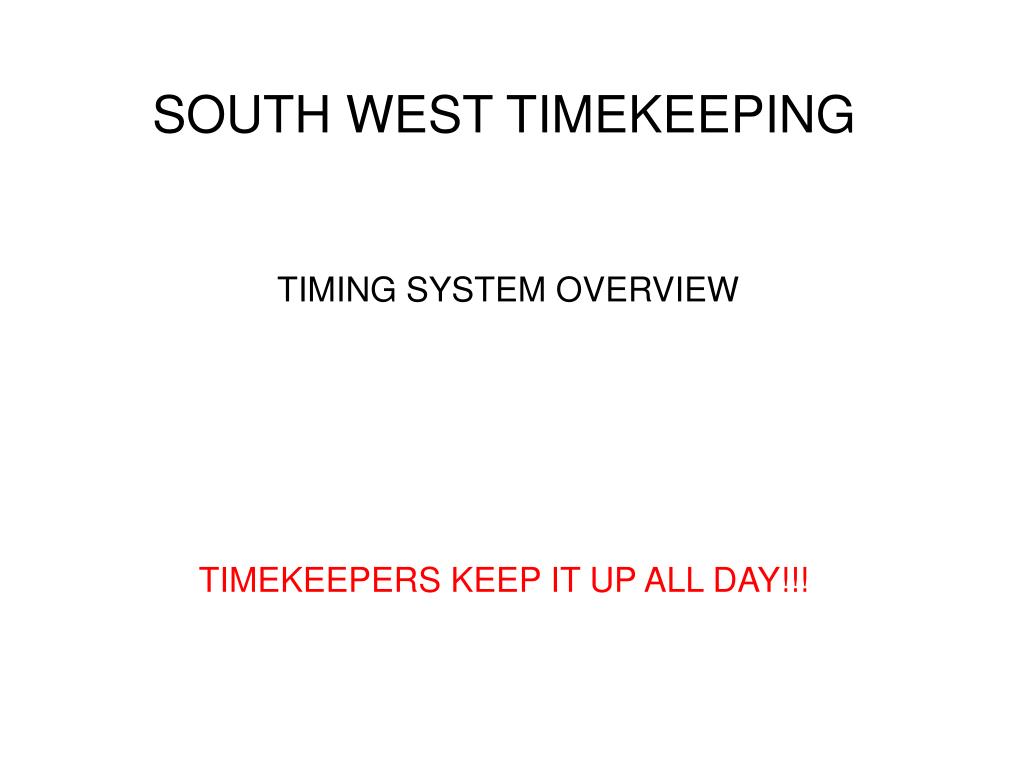

  1. SOUTH WEST TIMEKEEPING TIMING SYSTEM OVERVIEW TIMEKEEPERS KEEP IT UP ALL DAY!!!

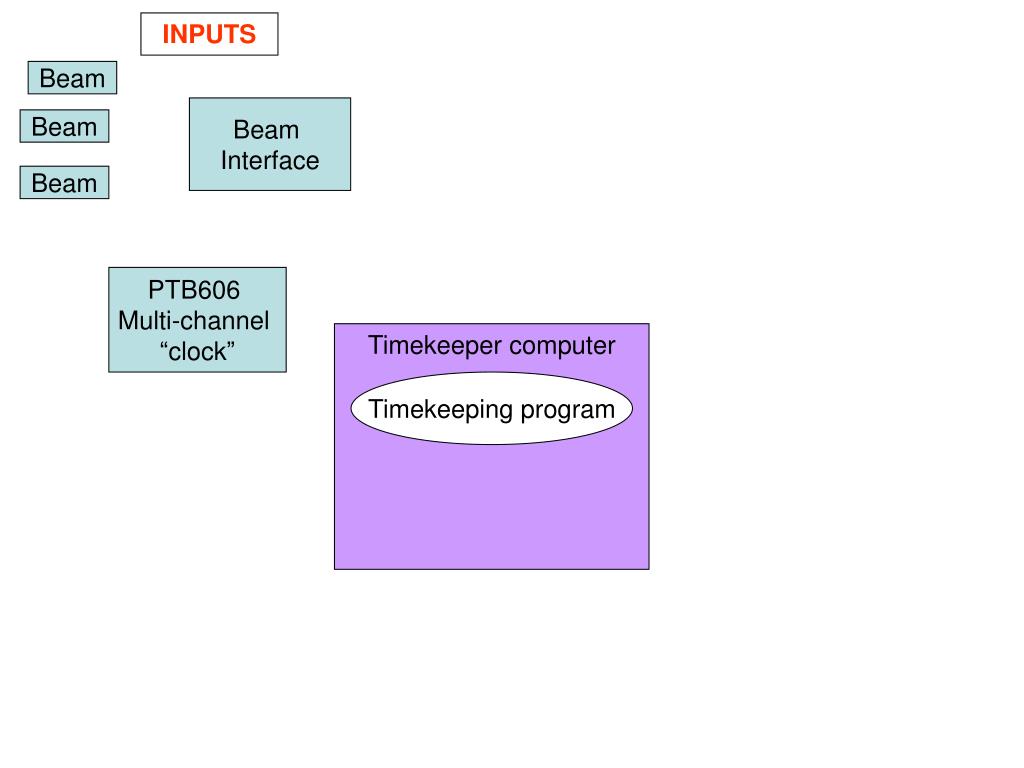

  2. INPUTS Beam Beam Interface Beam Beam PTB606 Multi-channel “clock” Timekeeper computer Timekeeping program

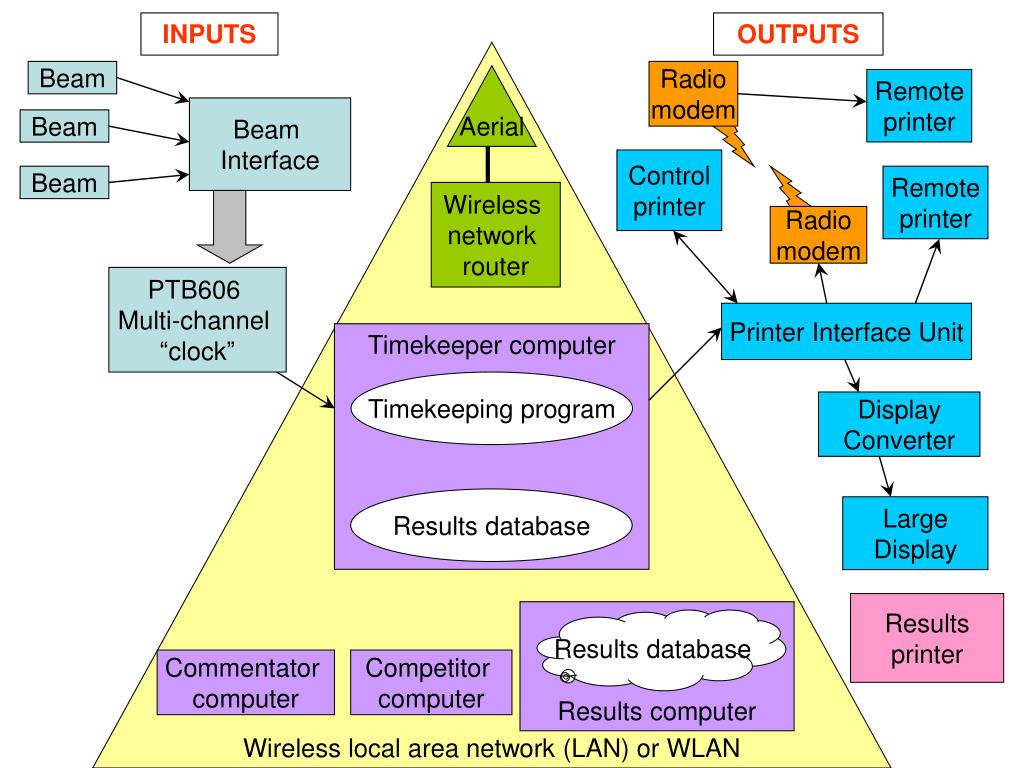

  3. Results computer Results database Wireless local area network (LAN) or WLAN INPUTS Beam Aerial Beam Interface Beam Beam Wireless network router PTB606 Multi-channel “clock” Timekeeper computer Timekeeping program Results database Commentator computer Competitor computer

  4. Results computer Results database INPUTS OUTPUTS Beam Radio modem Aerial Remoteprinter Beam Interface Beam Controlprinter Beam Remoteprinter Wireless network router Radio modem PTB606 Multi-channel “clock” Printer Interface Unit Timekeeper computer Timekeeping program DisplayConverter Results database LargeDisplay Resultsprinter Commentator computer Competitor computer Wireless local area network (LAN) or WLAN

  5. Results computer Results database INPUTS OUTPUTS Beam Radio modem Aerial Remoteprinter Beam Interface Beam Controlprinter Beam Remoteprinter Wireless network router Radio modem PTB606 Multi-channel “clock” Printer Interface Unit Timekeeper computer Timekeeping program DisplayConverter Results database LargeDisplay Resultsprinter Commentator computer Competitor computer Wireless local area network (LAN) or WLAN

  6. Results computer Results database INPUTS OUTPUTS Beam Radio modem Aerial Remoteprinter Beam Interface Beam Controlprinter Beam Remoteprinter Wireless network router Radio modem PTB606 Multi-channel “clock” Printer Interface Unit Timekeeper computer Timekeeping program DisplayConverter Results database LargeDisplay Resultsprinter Commentator computer Competitor computer Wireless local area network (LAN) or WLAN

  7. Results computer Results database INPUTS OUTPUTS Beam Radio modem Aerial Remoteprinter Beam Interface Beam Controlprinter Beam Remoteprinter Wireless network router Radio modem PTB606 Multi-channel “clock” Printer Interface Unit Timekeeper computer Timekeeping program DisplayConverter Results database LargeDisplay Resultsprinter Commentator computer Competitor computer Wireless local area network (LAN) or WLAN

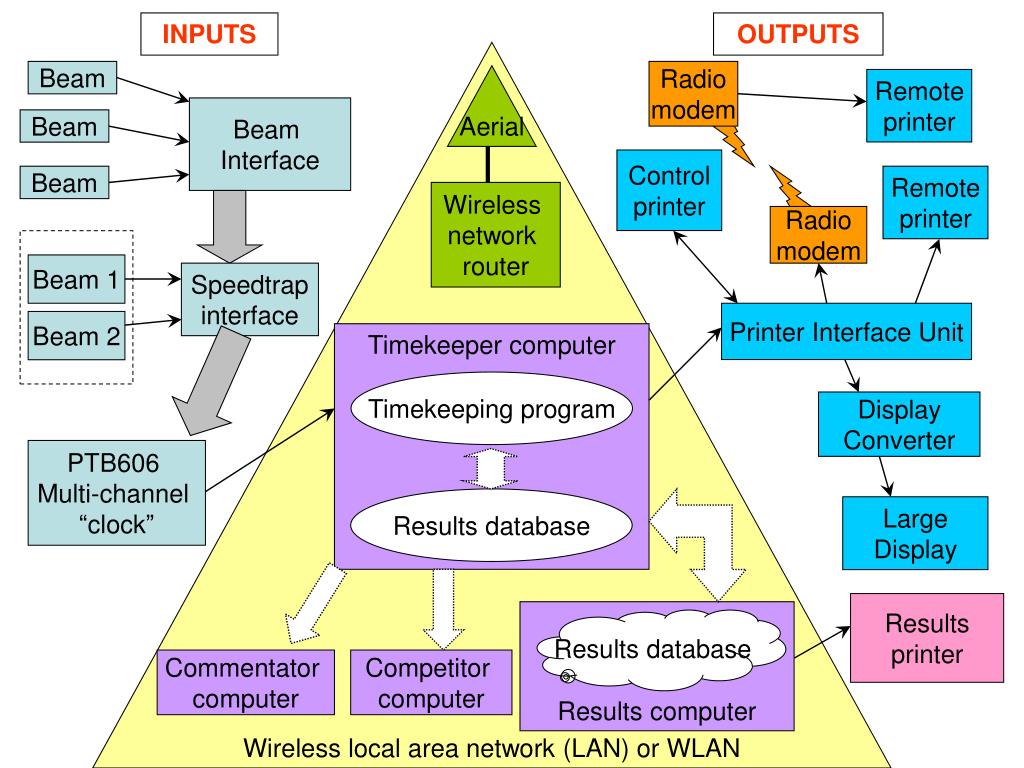

  8. Results computer Results database INPUTS OUTPUTS Beam Radio modem Aerial Remoteprinter Beam Interface Beam Controlprinter Beam Remoteprinter Wireless network router Radio modem Beam 1 Speedtrap interface Printer Interface Unit Beam 2 Timekeeper computer Timekeeping program DisplayConverter PTB606 Multi-channel “clock” Results database LargeDisplay Resultsprinter Commentator computer Competitor computer Wireless local area network (LAN) or WLAN

  9. TIMEKEEPING – IT’S AN ALL DAY THING!!!
