  1. Water Horner APG, LLC June 4, 2008

  2. What is SmartMQn Water? SmartMQn Water is a packaged monitoring solution that uses sophisticated and easy to use preconfigured application software combined with advanced sensor technology. It provides advanced local data logging, an easy to use graphical interface and a variety of communication options. Plus it’s available preassembled in a fiberglass panel.

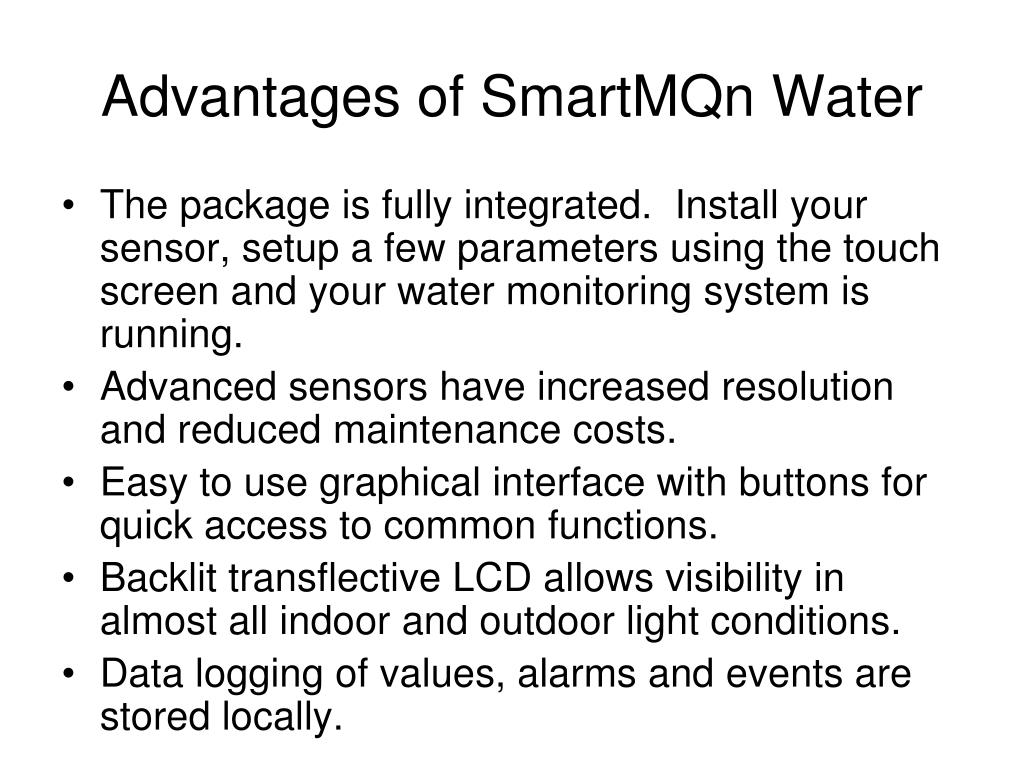

  3. Advantages of SmartMQn Water • The package is fully integrated. Install your sensor, setup a few parameters using the touch screen and your water monitoring system is running. • Advanced sensors have increased resolution and reduced maintenance costs. • Easy to use graphical interface with buttons for quick access to common functions. • Backlit transflective LCD allows visibility in almost all indoor and outdoor light conditions. • Data logging of values, alarms and events are stored locally.

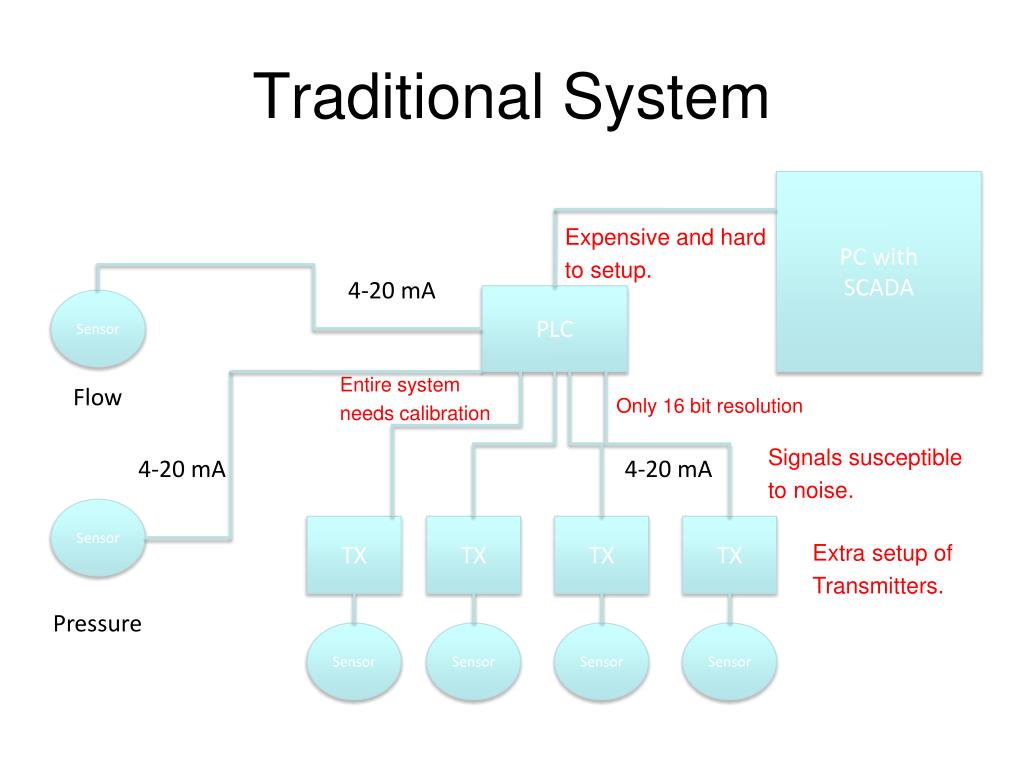

  4. Traditional System PC with SCADA Expensive and hard to setup. 4-20 mA PLC Sensor Entire system needs calibration Flow Only 16 bit resolution Signals susceptible to noise. 4-20 mA 4-20 mA Sensor TX TX TX TX Extra setup of Transmitters. Pressure Sensor Sensor Sensor Sensor

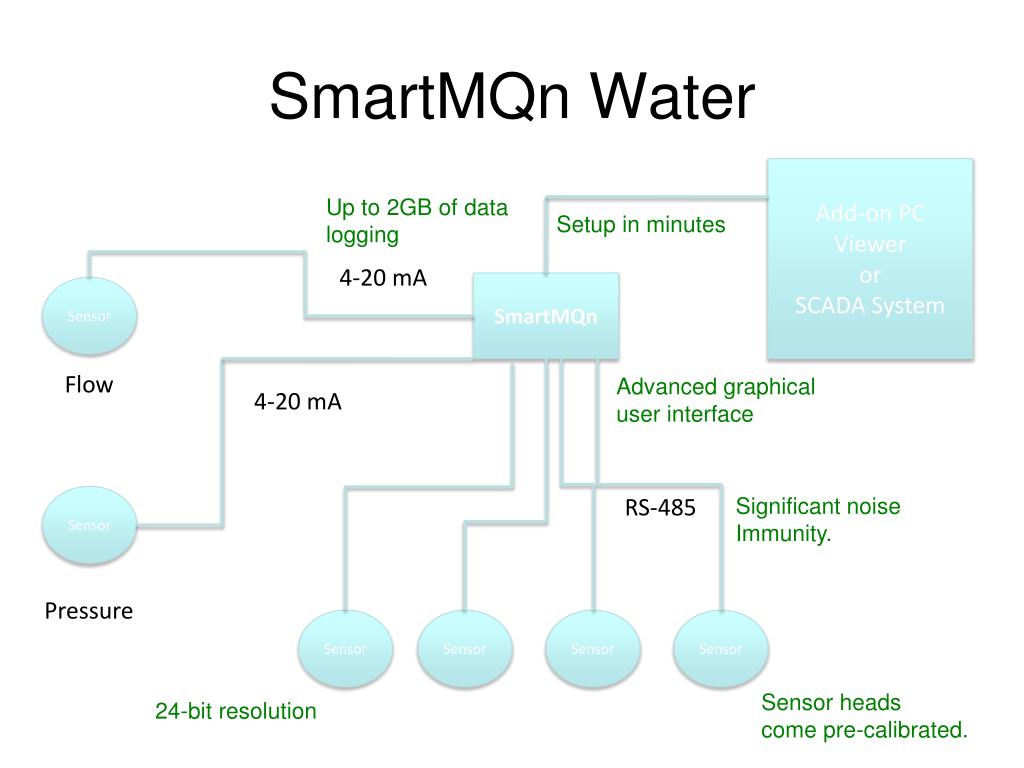

  5. SmartMQn Water Add-on PC Viewer or SCADA System Up to 2GB of data logging Setup in minutes 4-20 mA SmartMQn Sensor Flow Advanced graphical user interface 4-20 mA Sensor RS-485 Significant noise Immunity. Pressure Sensor Sensor Sensor Sensor Sensor heads come pre-calibrated. 24-bit resolution

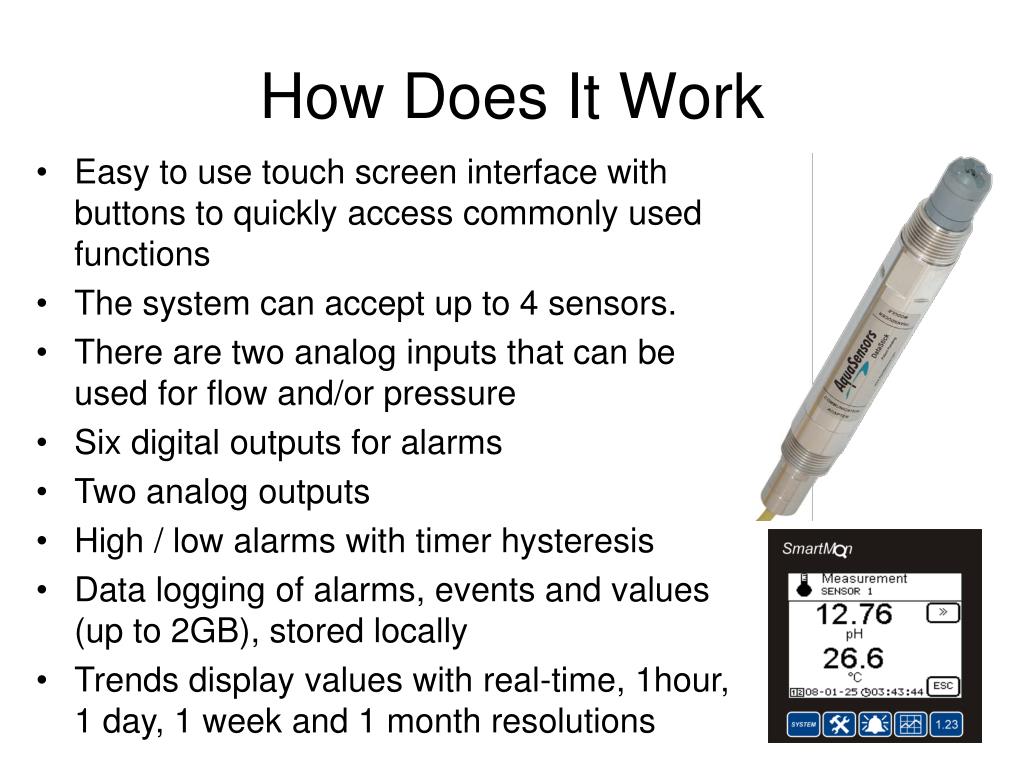

  6. How Does It Work Easy to use touch screen interface with buttons to quickly access commonly used functions The system can accept up to 4 sensors. There are two analog inputs that can be used for flow and/or pressure Six digital outputs for alarms Two analog outputs High / low alarms with timer hysteresis Data logging of alarms, events and values (up to 2GB), stored locally Trends display values with real-time, 1hour, 1 day, 1 week and 1 month resolutions

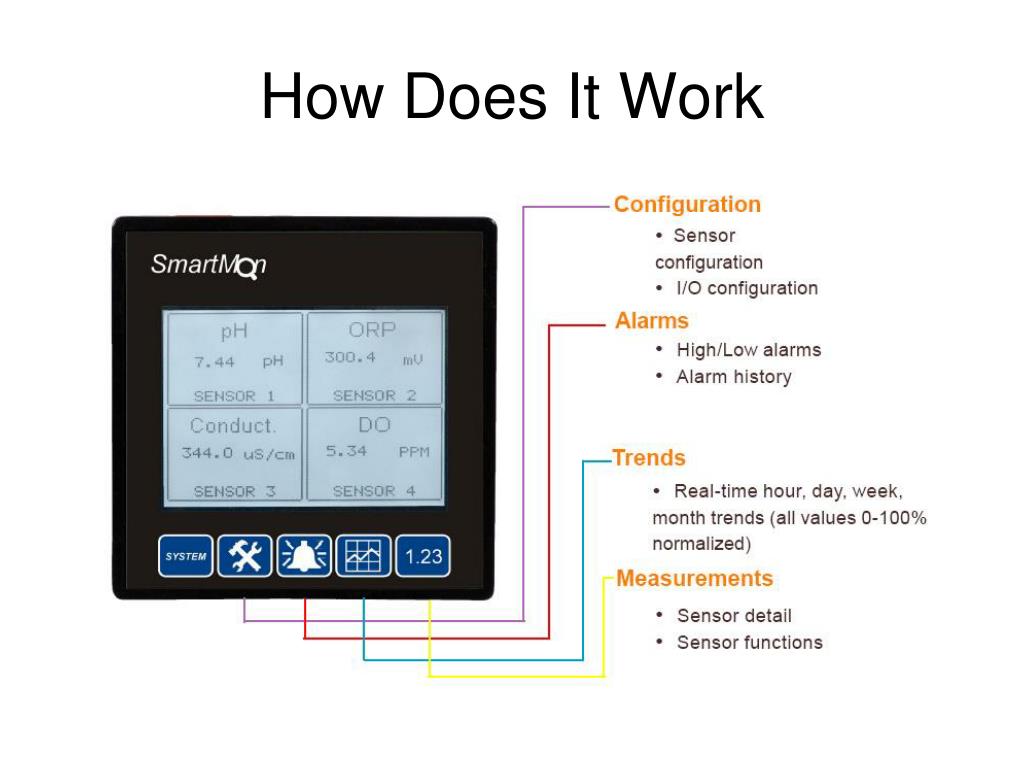

  7. How Does It Work

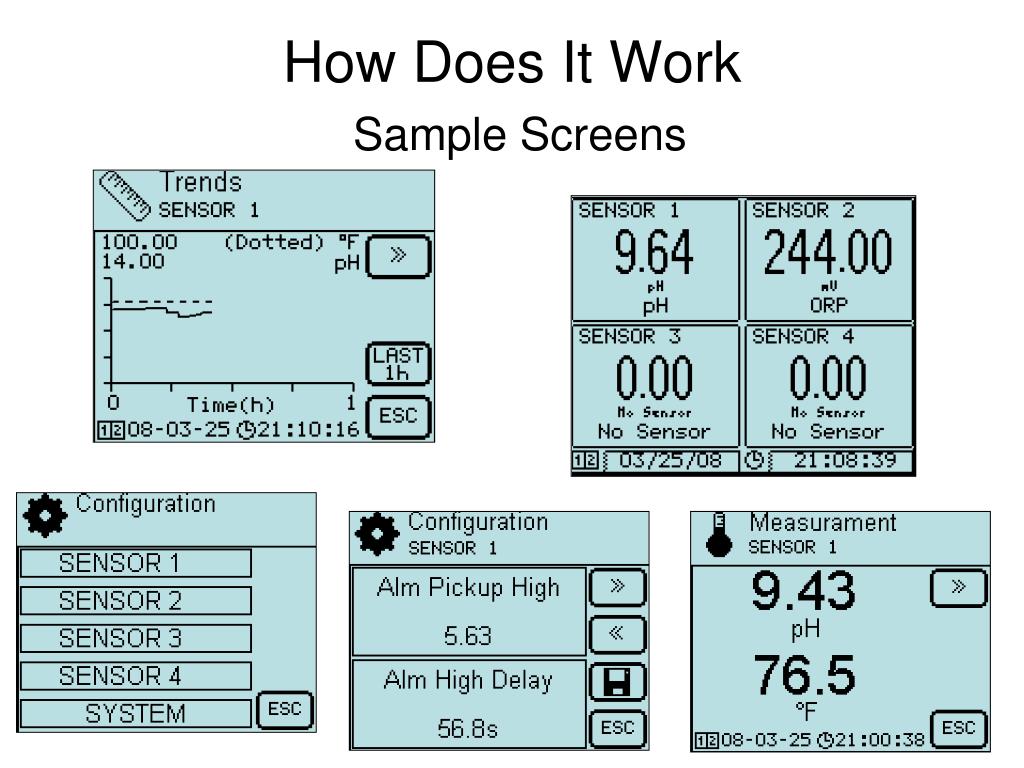

  8. How Does It WorkSample Screens

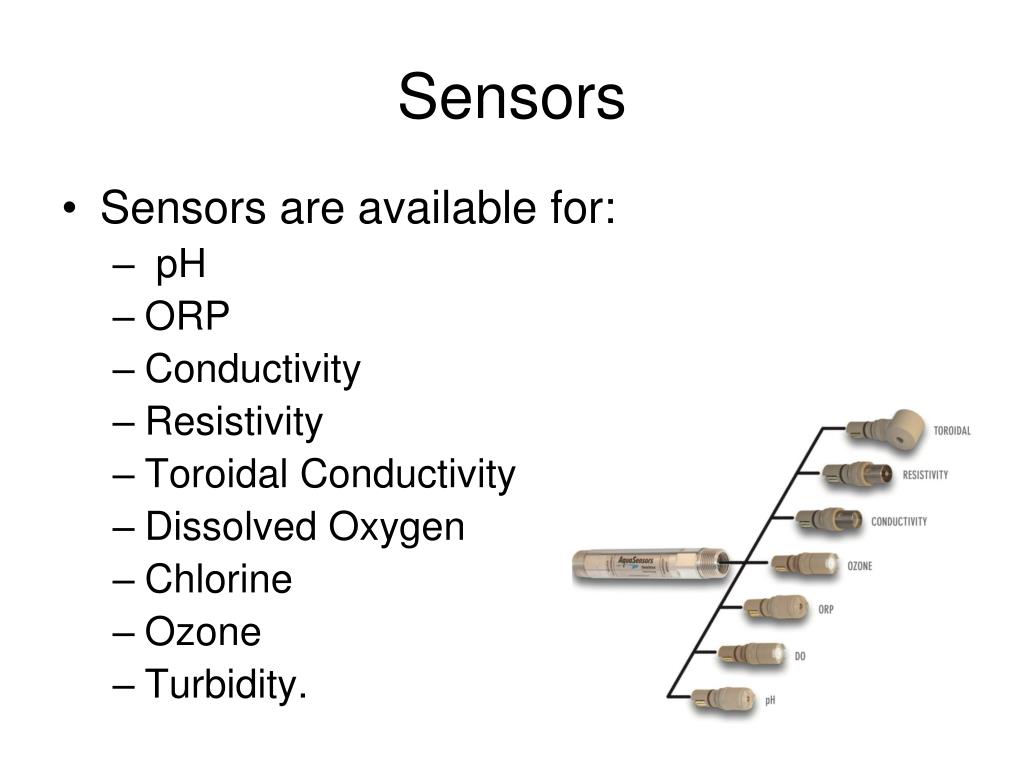

  9. Sensors • Sensors are available for: • pH • ORP • Conductivity • Resistivity • Toroidal Conductivity • Dissolved Oxygen • Chlorine • Ozone • Turbidity.

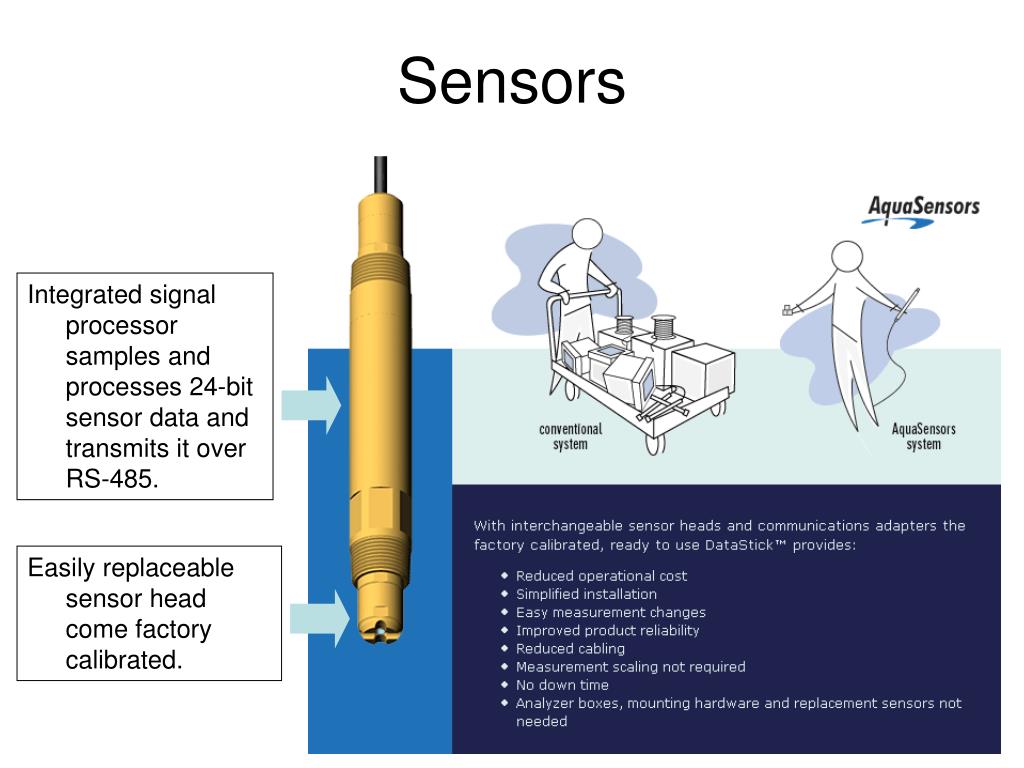

  10. Sensors Integrated signal processor samples and processes 24-bit sensor data and transmits it over RS-485. Easily replaceable sensor head come factory calibrated.

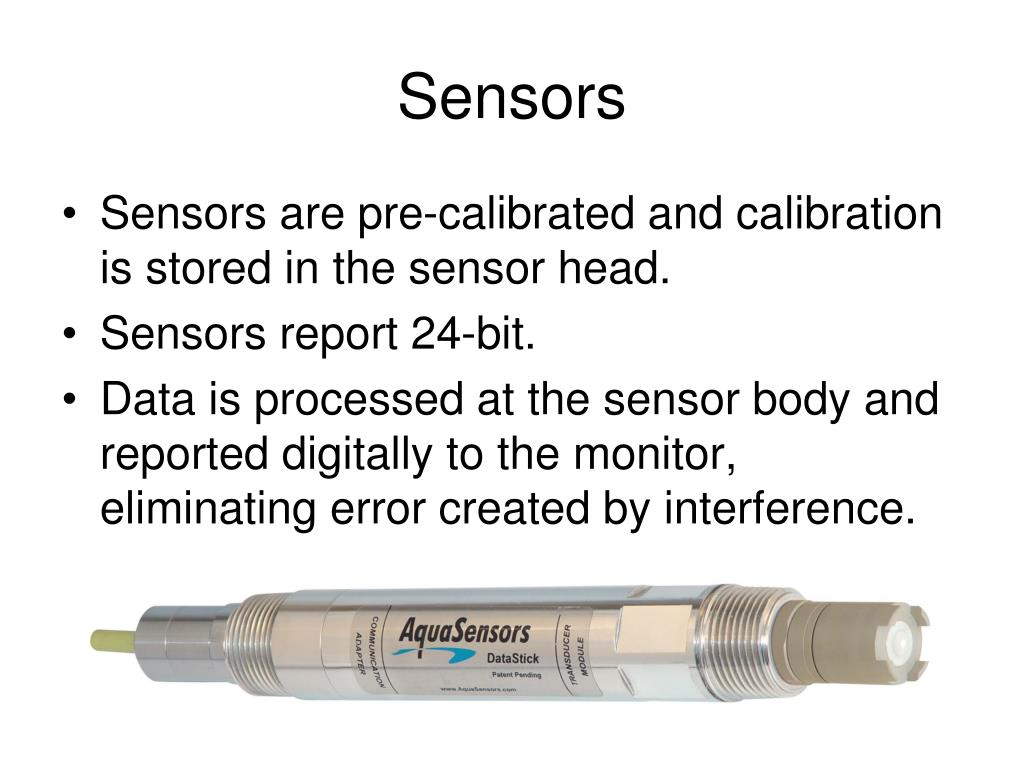

  11. Sensors • Sensors are pre-calibrated and calibration is stored in the sensor head. • Sensors report 24-bit. • Data is processed at the sensor body and reported digitally to the monitor, eliminating error created by interference.

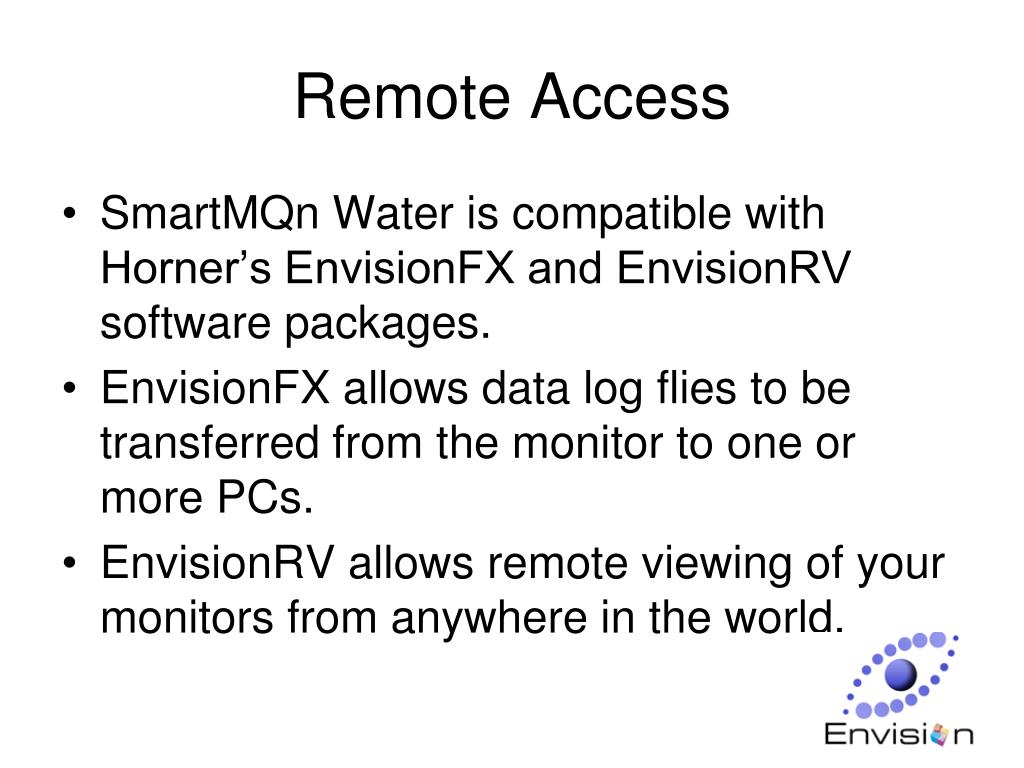

  12. Remote Access • SmartMQn Water is compatible with Horner’s EnvisionFX and EnvisionRV software packages. • EnvisionFX allows data log flies to be transferred from the monitor to one or more PCs. • EnvisionRV allows remote viewing of your monitors from anywhere in the world.

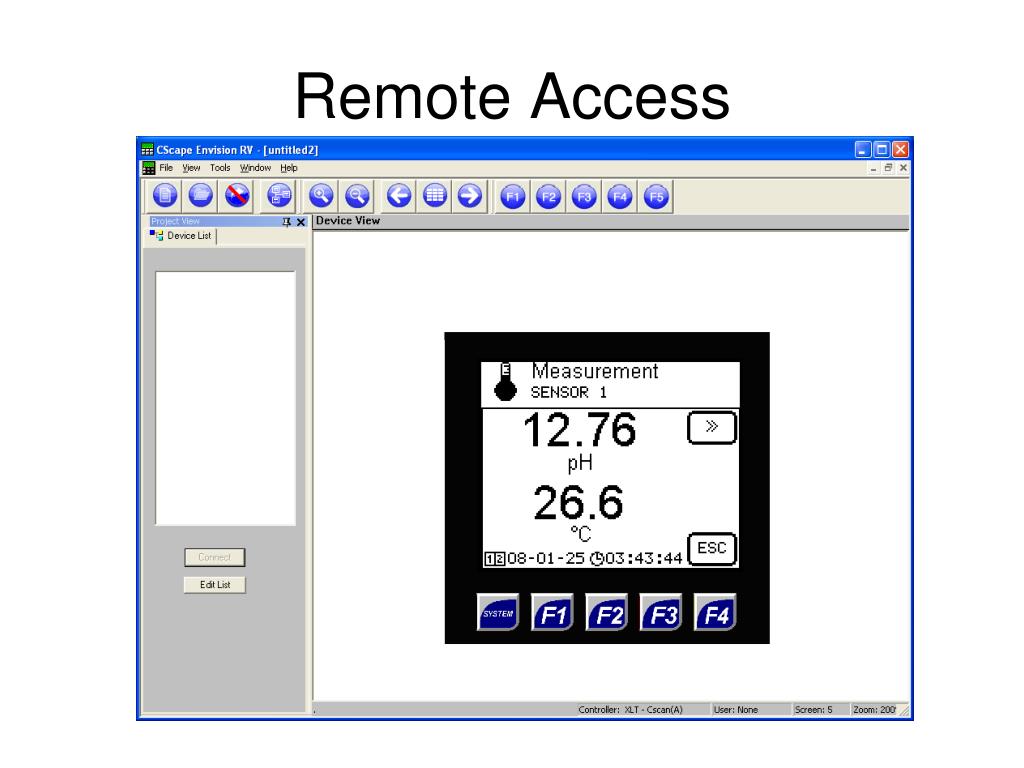

  13. Remote Access

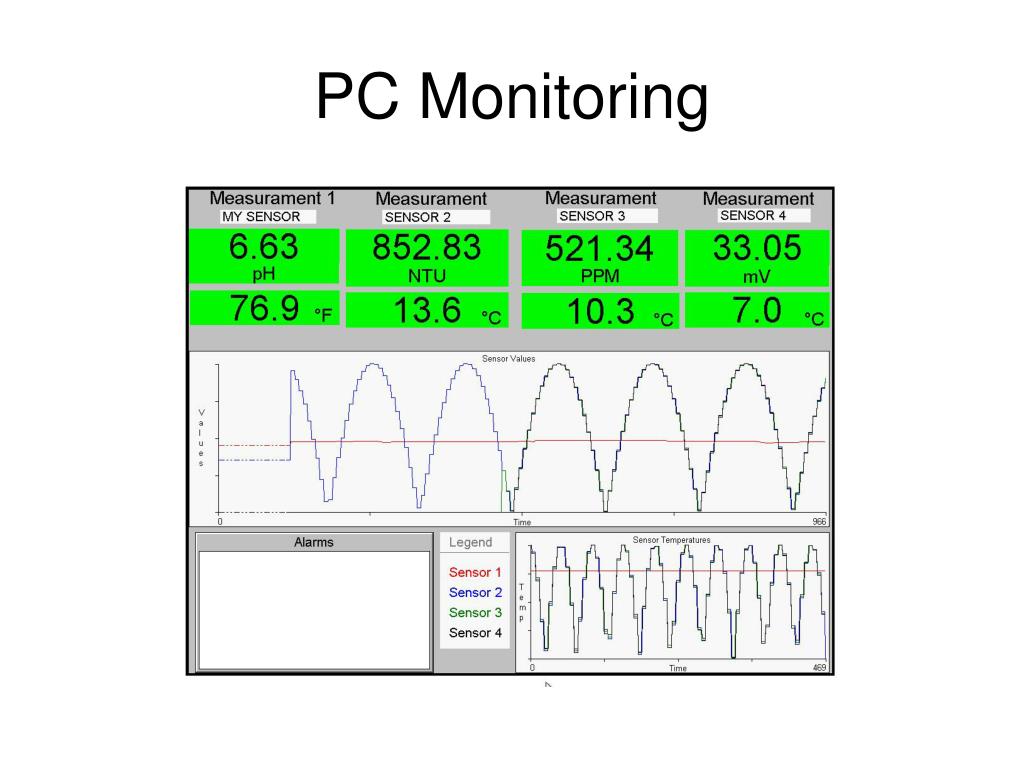

  14. PC Monitoring

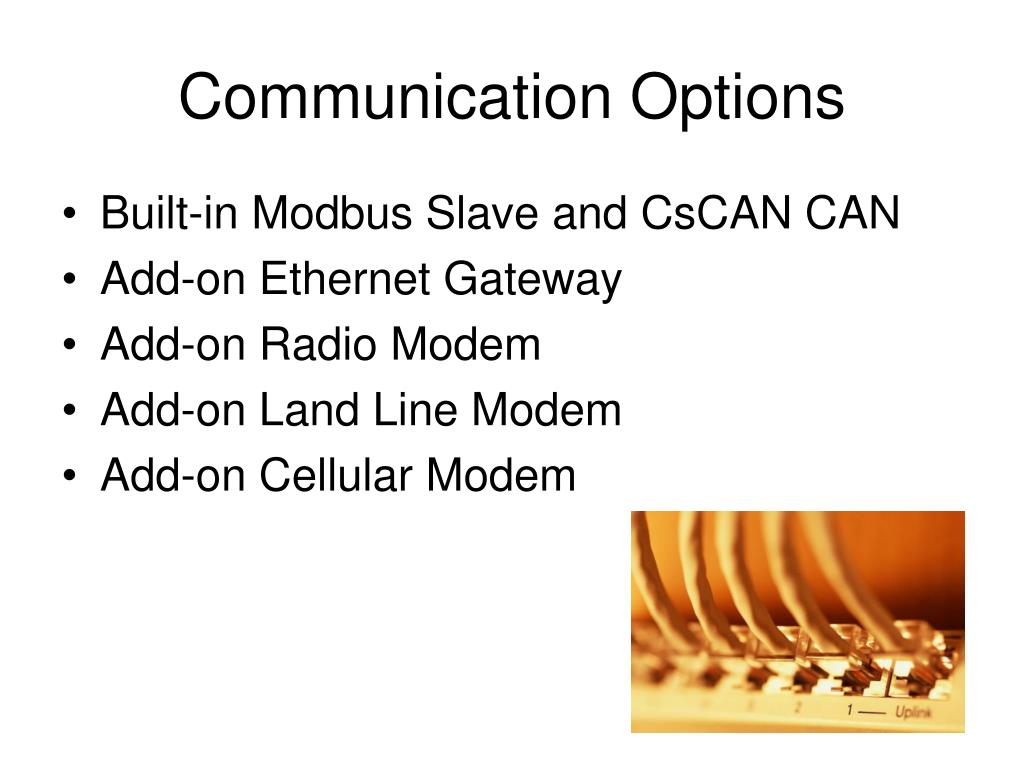

  15. Communication Options • Built-in Modbus Slave and CsCAN CAN • Add-on Ethernet Gateway • Add-on Radio Modem • Add-on Land Line Modem • Add-on Cellular Modem

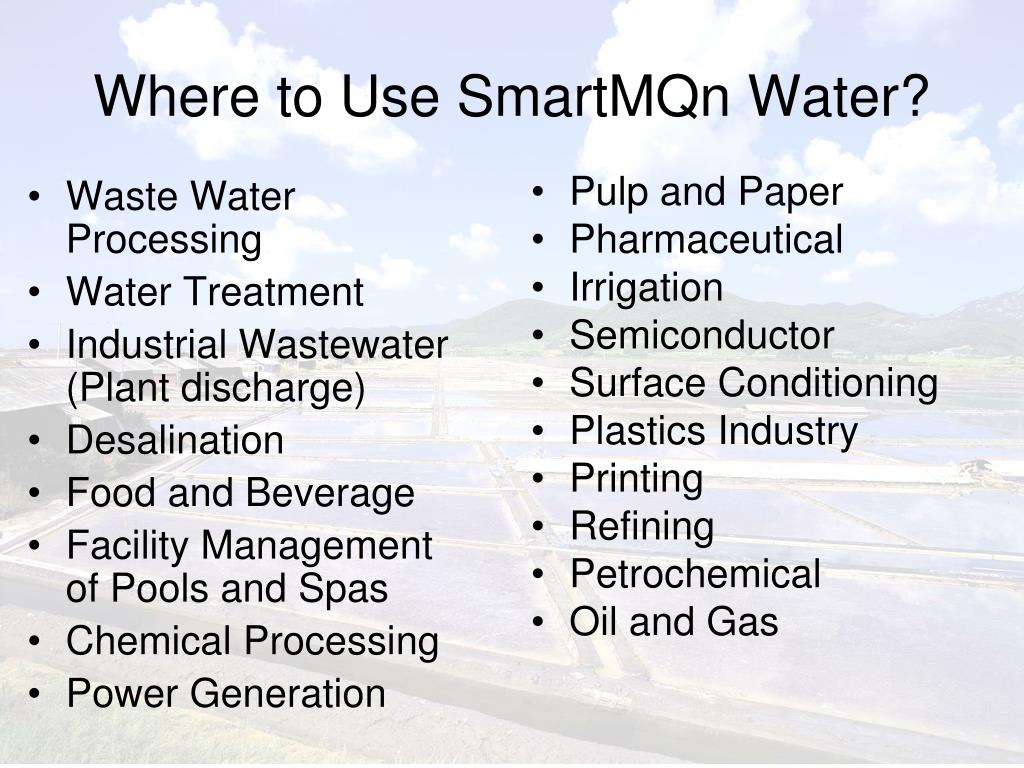

  16. Where to Use SmartMQn Water? Pulp and Paper Pharmaceutical Irrigation Semiconductor Surface Conditioning Plastics Industry Printing Refining Petrochemical Oil and Gas • Waste Water Processing • Water Treatment • Industrial Wastewater (Plant discharge) • Desalination • Food and Beverage • Facility Management of Pools and Spas • Chemical Processing • Power Generation

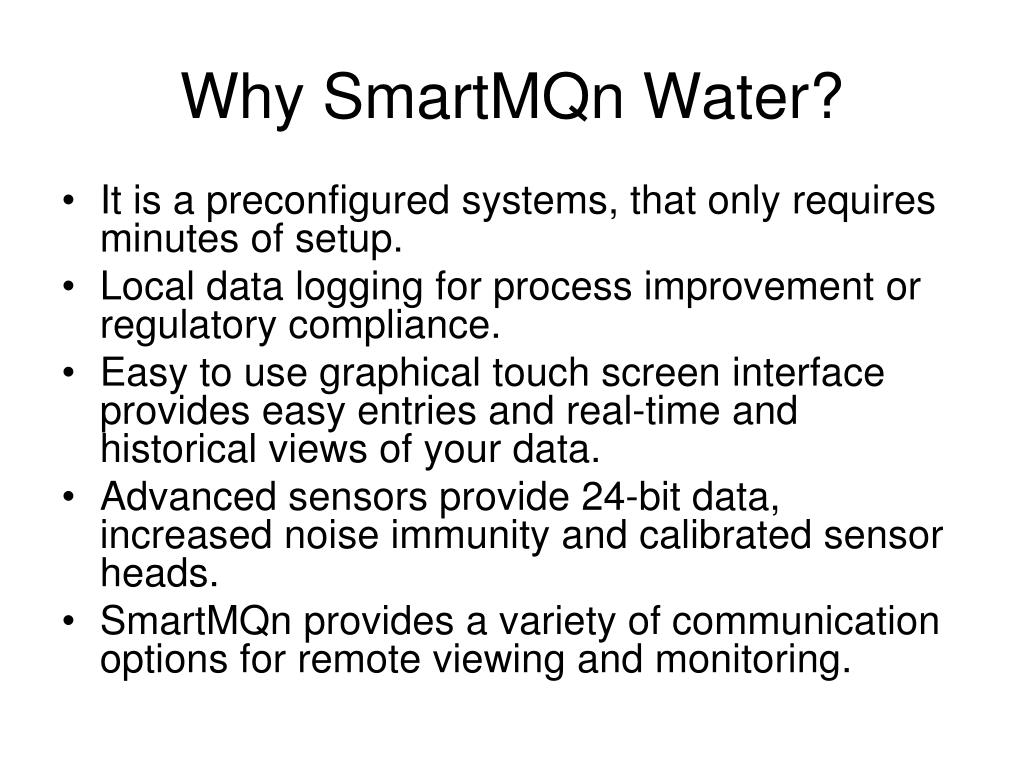

  17. Why SmartMQn Water? • It is a preconfigured systems, that only requires minutes of setup. • Local data logging for process improvement or regulatory compliance. • Easy to use graphical touch screen interface provides easy entries and real-time and historical views of your data. • Advanced sensors provide 24-bit data, increased noise immunity and calibrated sensor heads. • SmartMQn provides a variety of communication options for remote viewing and monitoring.

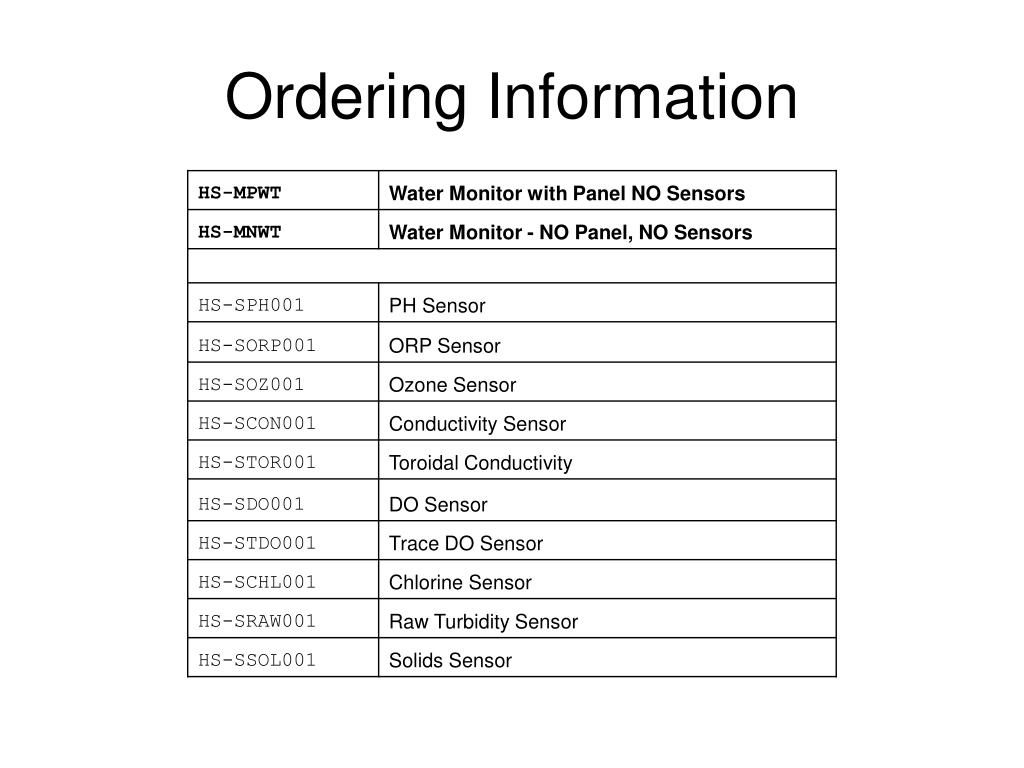

  18. Ordering Information
