  1. visualaerodrome pattern REALEASED BY BACEM KESKES TN-TC

  2. visualmeteorological conditions

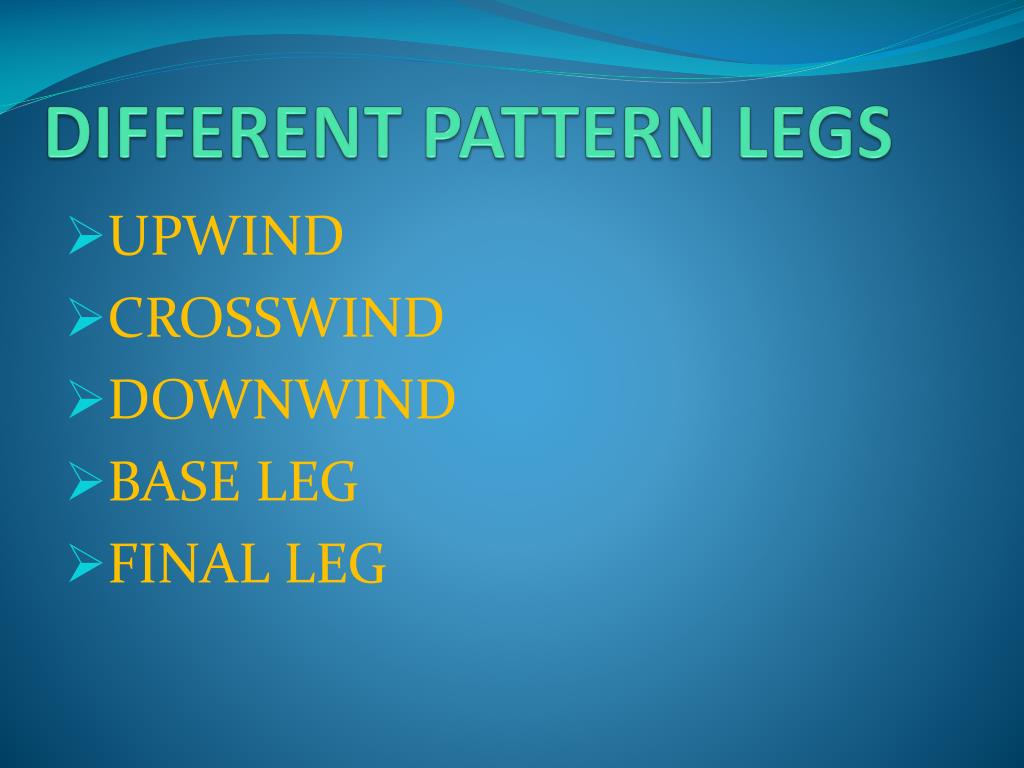

  3. DIFFERENT PATTERN LEGS UPWIND CROSSWIND DOWNWIND BASE LEG FINAL LEG

  4. ROLLING FOR TAKEOFF • ADVANCE THRUST LEVER TO REACHE THE ROTATION AIRSPEED (80kt) • MANTAINE RUNWAY AXIS USING RUDDER PEDAL • ROTATE SMOOTHLY TO TAKEOFF PITCH(BTN 5° AND 10°)

  5. UPWIND LEG • AFTER LIFTOFF TRY TO MAINTAINE AIRSPEED (80kt) AND WINGS LEVEL UNTIL (400ft)

  6. CROSSWIND LEG AT 400 ft SIMULTANEOUSLY CONTINUE CLIMB TO 1000ft AND START LEFT OR RIGHT TURN (AS INSTRUCTED) TO THE TRACK PARALLEL TO THE LANDING RUNWAY WITH 15° BANK ANGLE

  7. DOWNWIND LEG The downwindlegstartedwhenstady 1000 ft and the airplaneestablished to the desiredheading Maintainairspeedaround100 kt When the airplaneflyabeam the threshold of landing runway set flaps one and take a top for 50 sec

  8. Base leg The base legstartedwhen the 50 sec waselapsed Simultaneouslystartturn and descentwith a small vertical speed Set flaptwo reduce speed to 90kt

  9. Final leg keep the runwayinsite and using the visualreferencestartturn to the final leg Maintainfinal axis and appropriateglide pathusing PAPI set full flapsreduce80kt

  10. remark Caution All instructions in this document is applicable withwind calme otherwisemake sure to apply all appropriate corrections and drift angle Whenperforming a visual pattern without a specific instruction to reporte position You must reporte position on down wind and final legs Warning Do never enter runway ,takeoff or land withoutcontrollerclearence
