  1. Final Project N510 (Web-Database Concepts)

  2. Purpose Design and implement web based small clinic search system Project sections Design and creation of a relational database with MySQL Design and creation of several web based forms with HTML/PHP technology to query the available database and show the end results A report (Word document) about phase 1 and 2 which includes the schema of the MySQL database and the HTML/PHP code Deliverables MySQL dump + HTML/PHP code + Report  zip it all into one file and submit it on OnCourse. The final project should go live and be operational on your website before the deadline. Please provide the link in your report. Grade The total value of the final project is 35 points Further Information Please refer to INFO510.com for further information such as deadline

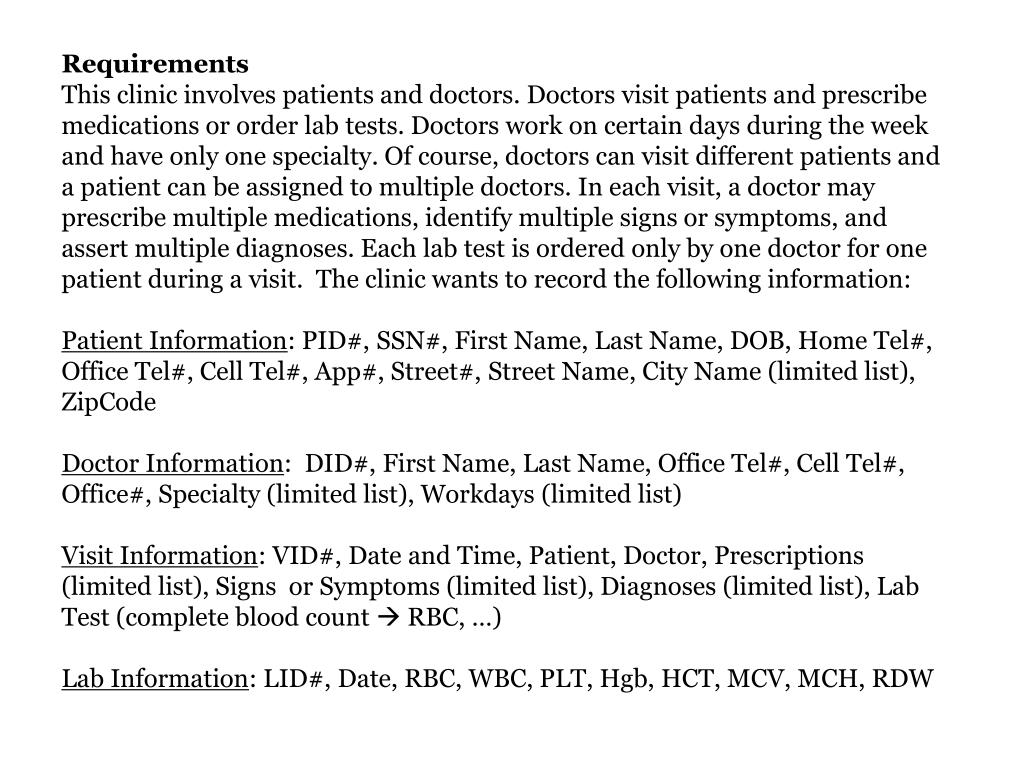

  3. Requirements This clinic involves patients and doctors. Doctors visit patients and prescribe medications or order lab tests. Doctors work on certain days during the week and have only one specialty. Of course, doctors can visit different patients and a patient can be assigned to multiple doctors. In each visit, a doctor may prescribe multiple medications, identify multiple signs or symptoms, and assert multiple diagnoses. Each lab test is ordered only by one doctor for one patient during a visit. The clinic wants to record the following information: Patient Information: PID#, SSN#, First Name, Last Name, DOB, Home Tel#, Office Tel#, Cell Tel#, App#, Street#, Street Name, City Name (limited list), ZipCode Doctor Information: DID#, First Name, Last Name, Office Tel#, Cell Tel#, Office#, Specialty (limited list), Workdays (limited list) Visit Information: VID#, Date and Time, Patient, Doctor, Prescriptions (limited list), Signs or Symptoms (limited list), Diagnoses (limited list), Lab Test (complete blood count  RBC, …) Lab Information: LID#, Date, RBC, WBC, PLT, Hgb, HCT, MCV, MCH, RDW

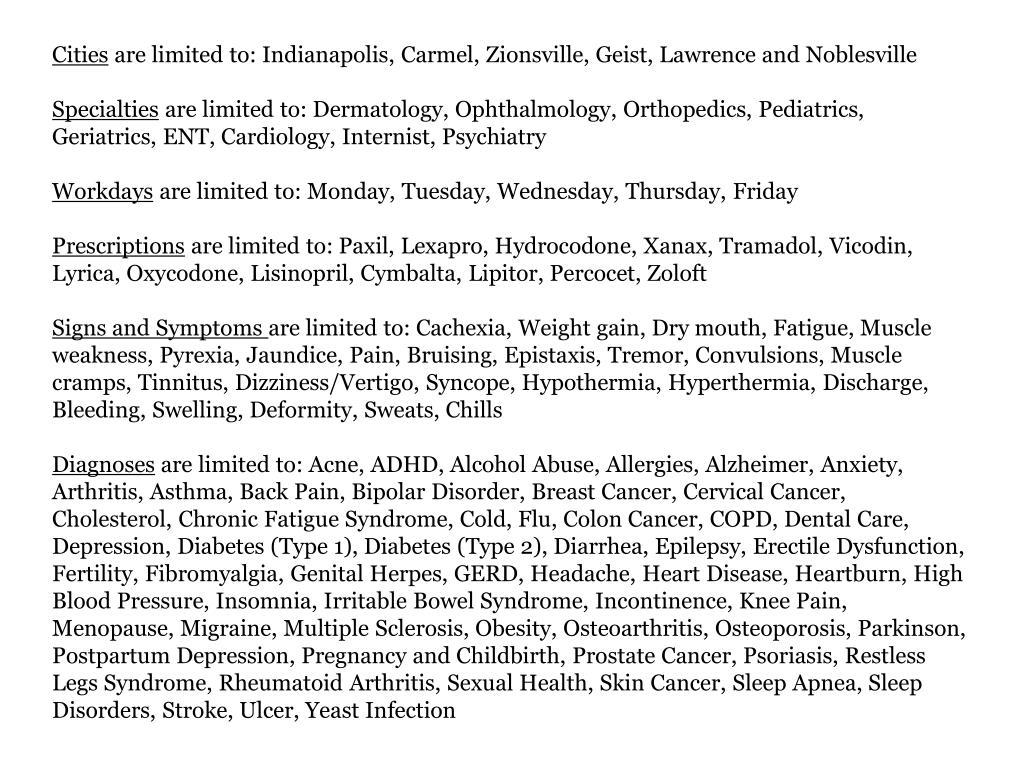

  4. Cities are limited to: Indianapolis, Carmel, Zionsville, Geist, Lawrence and Noblesville Specialties are limited to: Dermatology, Ophthalmology, Orthopedics, Pediatrics, Geriatrics, ENT, Cardiology, Internist, Psychiatry Workdays are limited to: Monday, Tuesday, Wednesday, Thursday, Friday Prescriptions are limited to: Paxil, Lexapro, Hydrocodone, Xanax, Tramadol, Vicodin, Lyrica, Oxycodone, Lisinopril, Cymbalta, Lipitor, Percocet, Zoloft Signs and Symptoms are limited to: Cachexia, Weight gain, Dry mouth, Fatigue, Muscle weakness, Pyrexia, Jaundice, Pain, Bruising, Epistaxis, Tremor, Convulsions, Muscle cramps, Tinnitus, Dizziness/Vertigo, Syncope, Hypothermia, Hyperthermia, Discharge, Bleeding, Swelling, Deformity, Sweats, Chills Diagnoses are limited to: Acne, ADHD, Alcohol Abuse, Allergies, Alzheimer, Anxiety, Arthritis, Asthma, Back Pain, Bipolar Disorder, Breast Cancer, Cervical Cancer, Cholesterol, Chronic Fatigue Syndrome, Cold, Flu, Colon Cancer, COPD, Dental Care, Depression, Diabetes (Type 1), Diabetes (Type 2), Diarrhea, Epilepsy, Erectile Dysfunction, Fertility, Fibromyalgia, Genital Herpes, GERD, Headache, Heart Disease, Heartburn, High Blood Pressure, Insomnia, Irritable Bowel Syndrome, Incontinence, Knee Pain, Menopause, Migraine, Multiple Sclerosis, Obesity, Osteoarthritis, Osteoporosis, Parkinson, Postpartum Depression, Pregnancy and Childbirth, Prostate Cancer, Psoriasis, Restless Legs Syndrome, Rheumatoid Arthritis, Sexual Health, Skin Cancer, Sleep Apnea, Sleep Disorders, Stroke, Ulcer, Yeast Infection

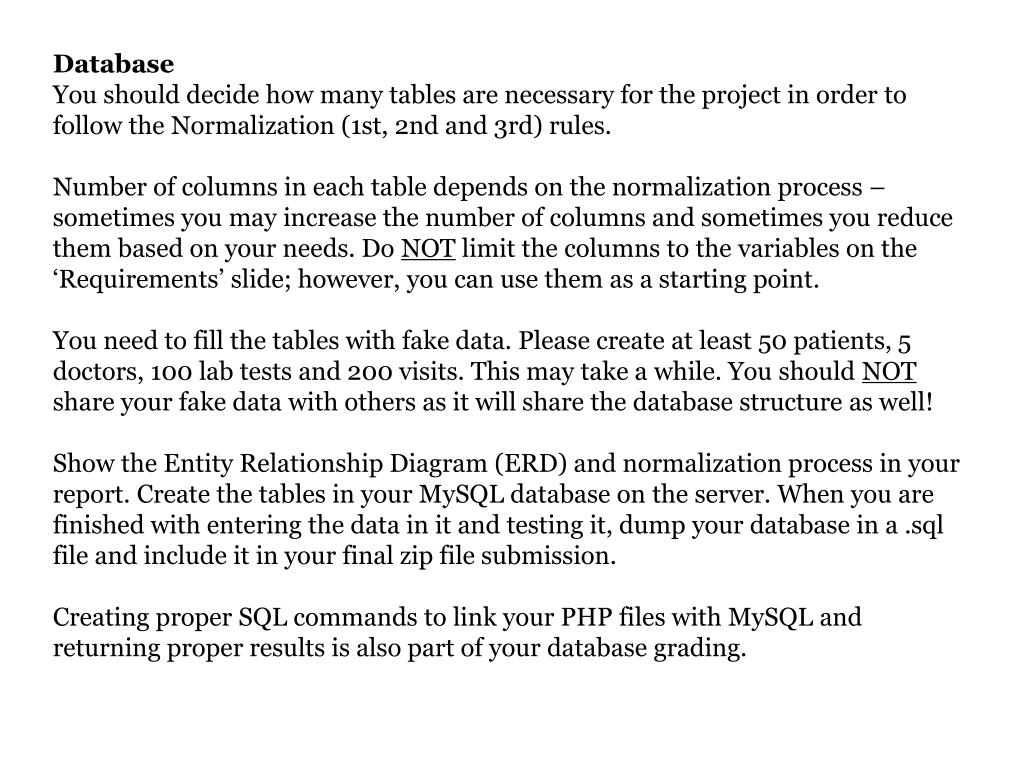

  5. Database You should decide how many tables are necessary for the project in order to follow the Normalization (1st, 2nd and 3rd) rules. Number of columns in each table depends on the normalization process – sometimes you may increase the number of columns and sometimes you reduce them based on your needs. Do NOT limit the columns to the variables on the ‘Requirements’ slide; however, you can use them as a starting point. You need to fill the tables with fake data. Please create at least 50 patients, 5 doctors, 100 lab tests and 200 visits. This may take a while. You should NOT share your fake data with others as it will share the database structure as well! Show the Entity Relationship Diagram (ERD) and normalization process in your report. Create the tables in your MySQL database on the server. When you are finished with entering the data in it and testing it, dump your database in a .sql file and include it in your final zip file submission. Creating proper SQL commands to link your PHP files with MySQL and returning proper results is also part of your database grading.

  6. Web Pages Create a splash page which will link you to four main pages: Patient Query, Doctor Query, Visit Query and Lab Query. As bonus points, you can also create more pages that will let you enter and edit Patient, Doctor, Visit and Lab results. These links will open separate pages (forms) where you can query each of the given categories (Patient, Doctor, Visit and Lab) based on detailed information relevant to them. Each of these forms will open another webpage (PHP) that will show the results to the user. Results are generated dynamically based on the user input. You need to create a connection to the database to retrieve the information. As bonus points, you can generate an XML containing the query results in addition to showing the results in plain HTML on the screen. You can also make the entire interaction in a secure connection protected by a user/pass assigned to each user. Of course, patients will be only capable of browsing their own information including their doctors; and doctors will be able to see all of their patients. Finally, the structure of all of the web pages should be based on Server Side Includes using templates. This means, that you should include the header and footer of your webpage from a consistent HTML or PHP file to have the same look and feel propagated throughout your website.

  7. Grading The following table shows the grades associated with each component of the project:

  8. Homepage Welcome to Sample Clinic Please choose from the following list of actions: Search a: PatientDoctorLabVisit Enter a new: PatientDoctorLabVisit Name the forms: form_patient.php, form_doctor.php, form_lab.php and form_visit.php and the result pages :result_patient.php, result_doctor.php, resutl_lap.php and result_visit.php

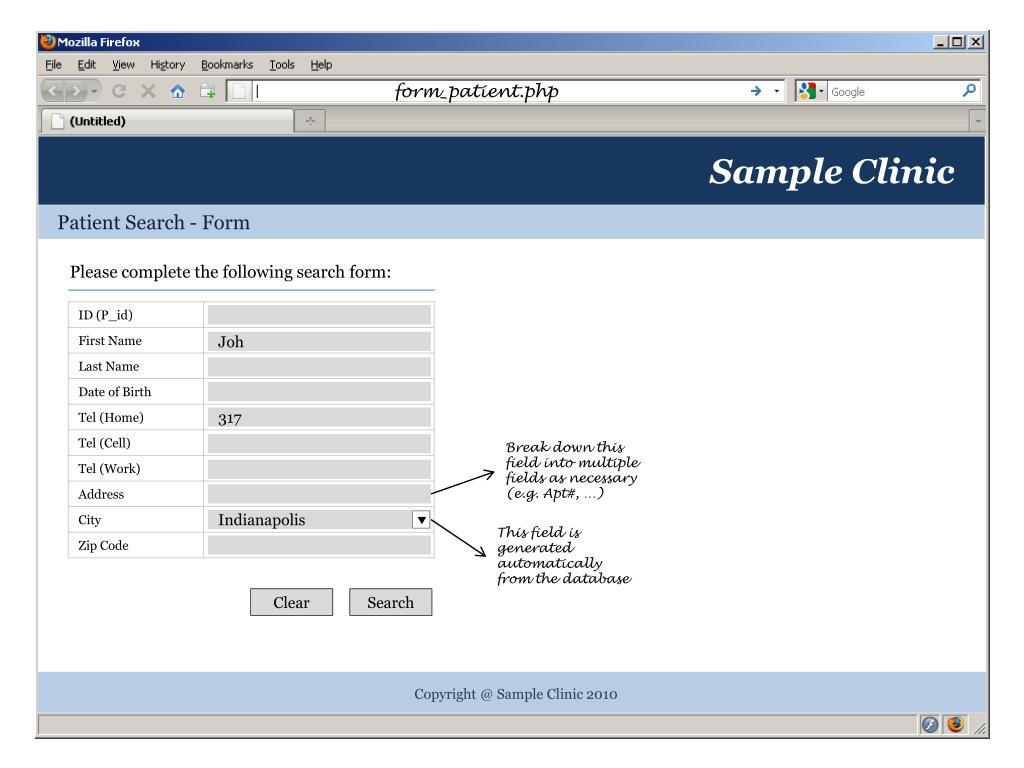

  9. form_patient.php Patient Search - Form Please complete the following search form: Joh 317 Break down this field into multiple fields as necessary (e.g. Apt#, …) Indianapolis This field is generated automatically from the database Clear Search

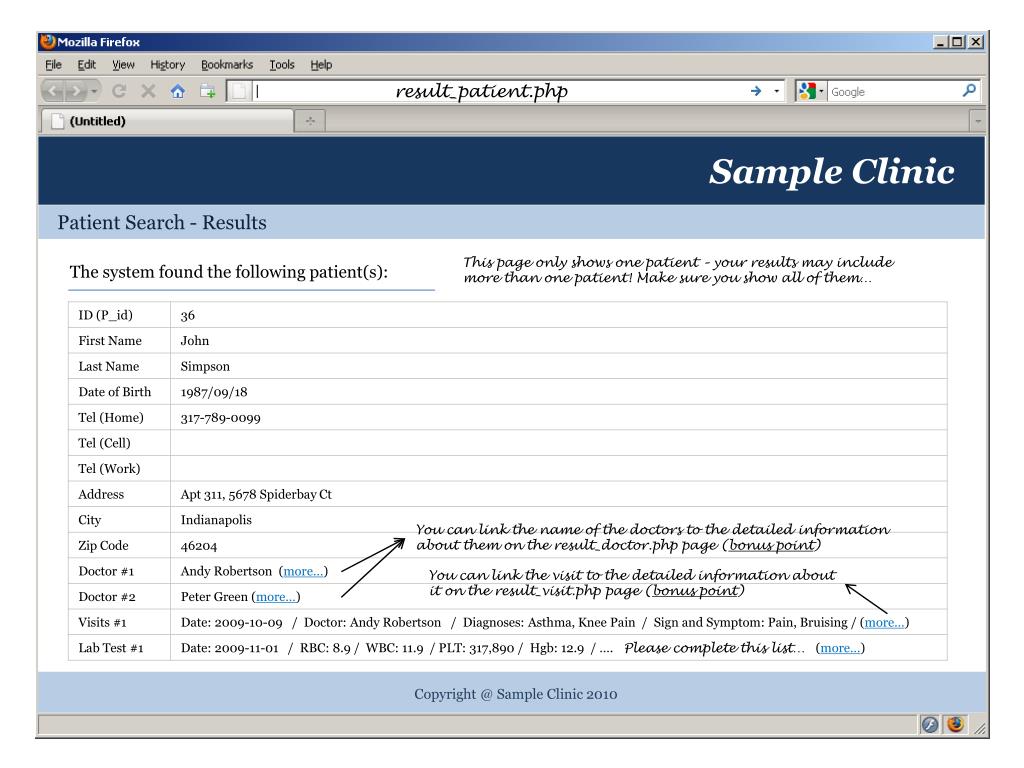

  10. result_patient.php Patient Search - Results This page only shows one patient – your results may include more than one patient! Make sure you show all of them… The system found the following patient(s): You can link the name of the doctors to the detailed information about them on the result_doctor.php page (bonus point) You can link the visit to the detailed information about it on the result_visit.php page (bonus point) Please complete this list…

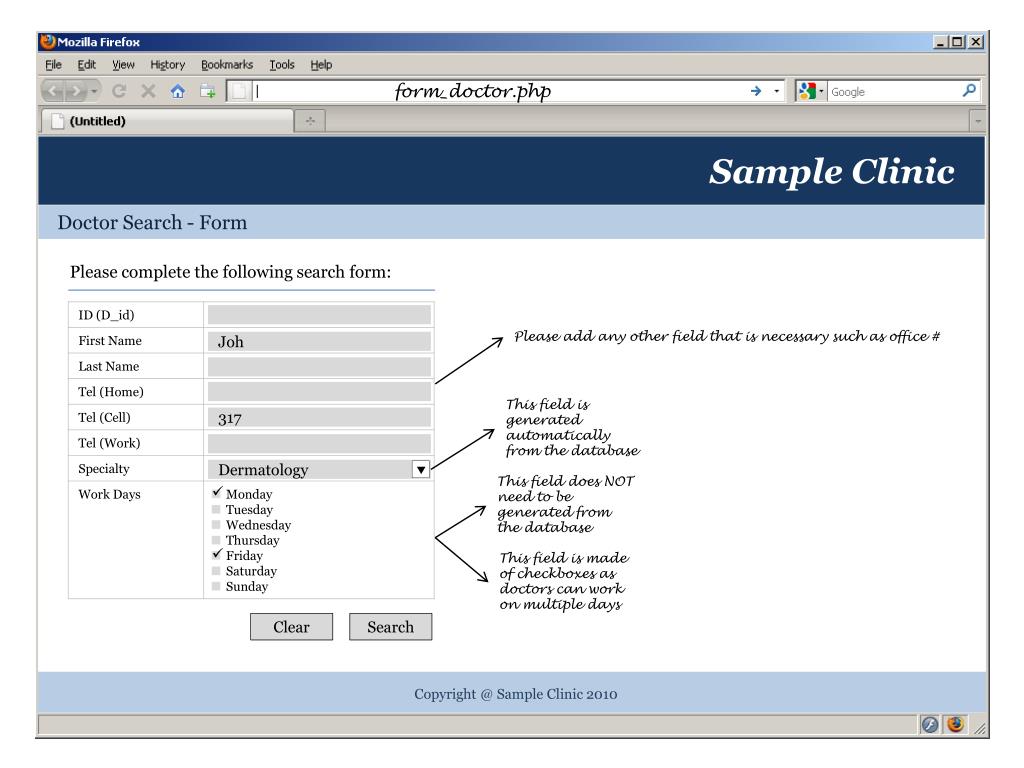

  11. form_doctor.php Doctor Search - Form Please complete the following search form: Please add any other field that is necessary such as office # Joh This field is generated automatically from the database 317 Dermatology This field does NOT need to be generated from the database   This field is made of checkboxes as doctors can work on multiple days Clear Search

  12. result_doctor.php Doctor Search - Results This page only shows one doctor– your results may include more than one doctor! Make sure you show all of them… The system found the following doctor(s): Pay attention that this doctor’s working days include Monday and Friday but it is not limited to this list You can link the name of the patient to the detailed information about them on the result_patient.php page (bonus point)

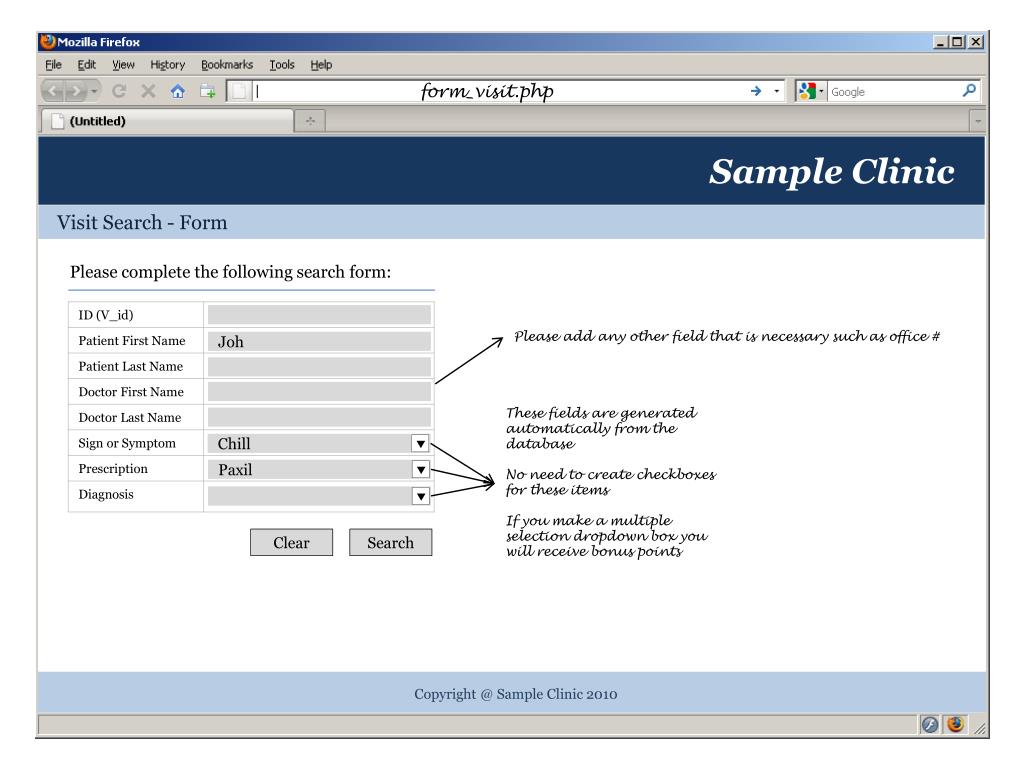

  13. form_visit.php Visit Search - Form Please complete the following search form: Please add any other field that is necessary such as office # Joh These fields are generated automatically from the database No need to create checkboxes for these items If you make a multiple selection dropdown box you will receive bonus points Chill Paxil Clear Search

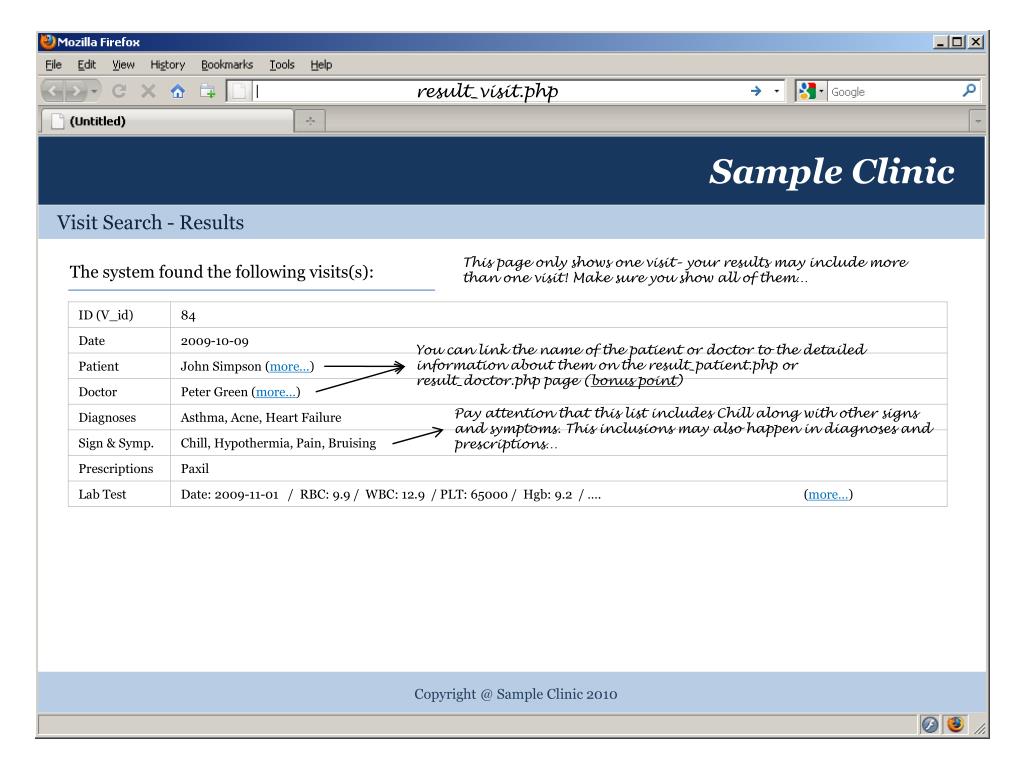

  14. result_visit.php Visit Search - Results This page only shows one visit– your results may include more than one visit! Make sure you show all of them… The system found the following visits(s): You can link the name of the patient or doctor to the detailed information about them on the result_patient.php or result_doctor.php page (bonus point) Pay attention that this list includes Chill along with other signs and symptoms. This inclusions may also happen in diagnoses and prescriptions…

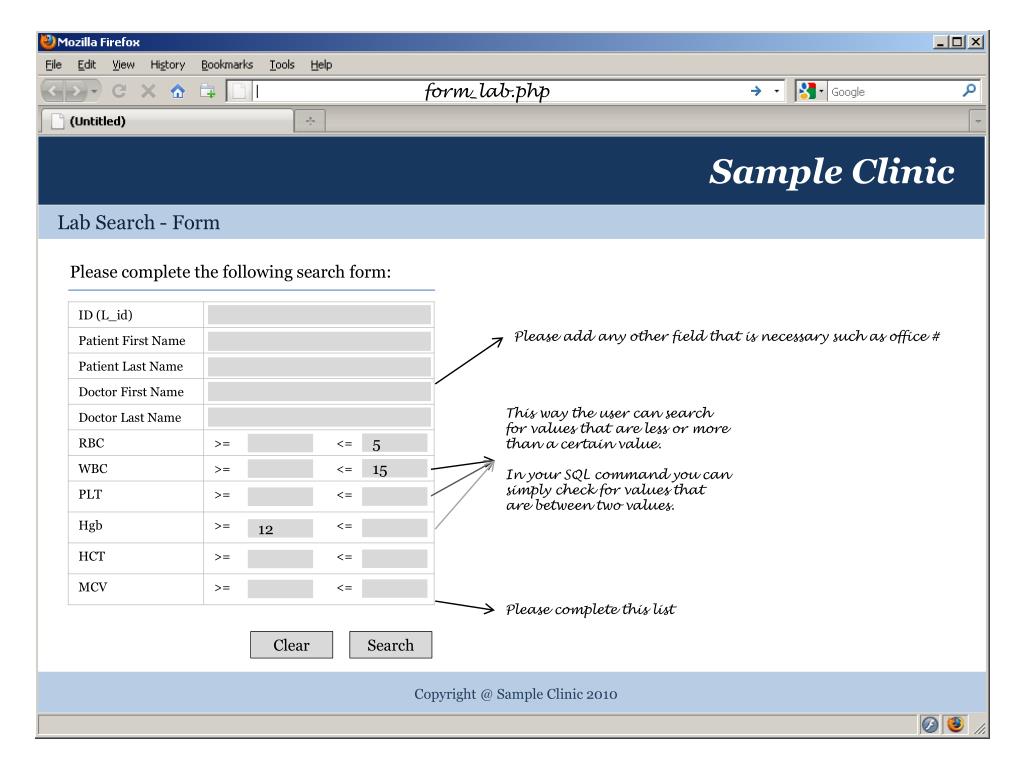

  15. form_lab.php Lab Search - Form Please complete the following search form: Please add any other field that is necessary such as office # This way the user can search for values that are less or more than a certain value. In your SQL command you can simply check for values that are between two values. 5 15 12 Please complete this list Clear Search

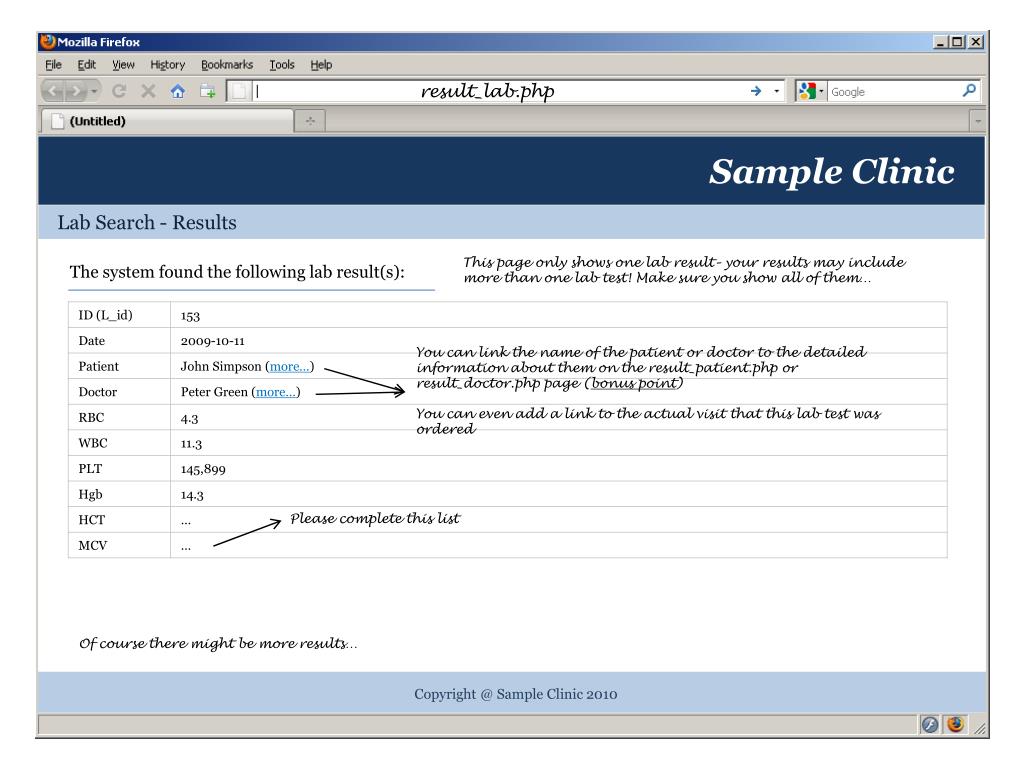

  16. result_lab.php Lab Search - Results This page only shows one lab result– your results may include more than one lab test! Make sure you show all of them… The system found the following lab result(s): You can link the name of the patient or doctor to the detailed information about them on the result_patient.php or result_doctor.php page (bonus point) You can even add a link to the actual visit that this lab test was ordered Please complete this list Of course there might be more results…
