Presentation Transcript

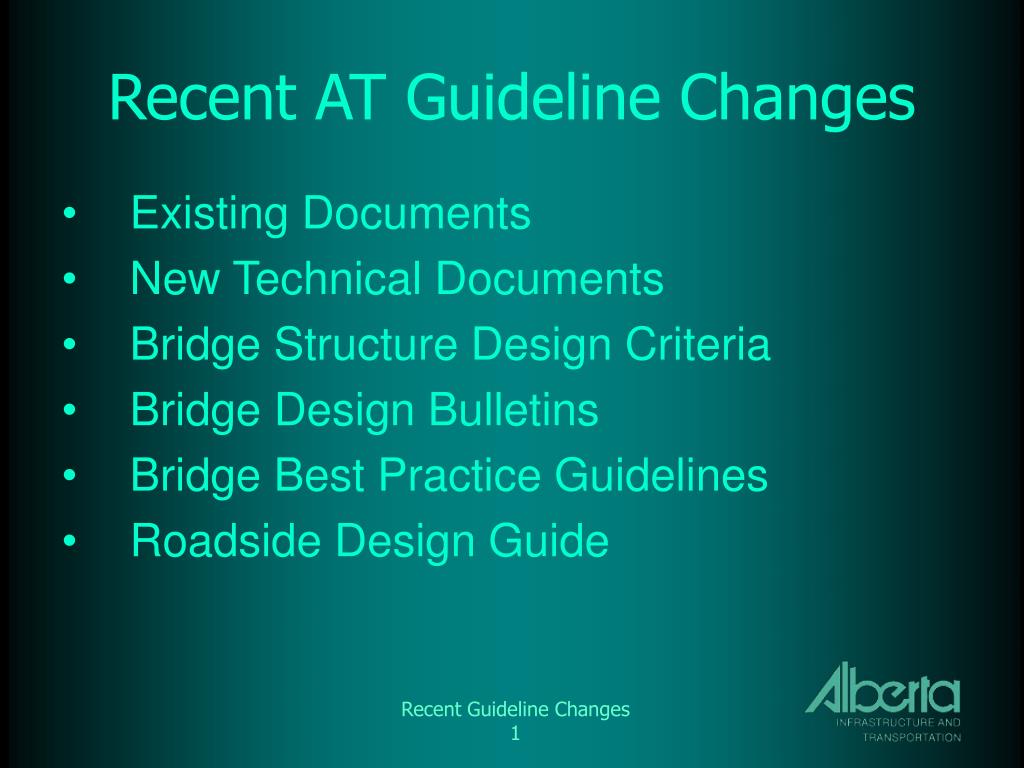

  1. Recent AT Guideline Changes • Existing Documents • New Technical Documents • Bridge Structure Design Criteria • Bridge Design Bulletins • Bridge Best Practice Guidelines • Roadside Design Guide

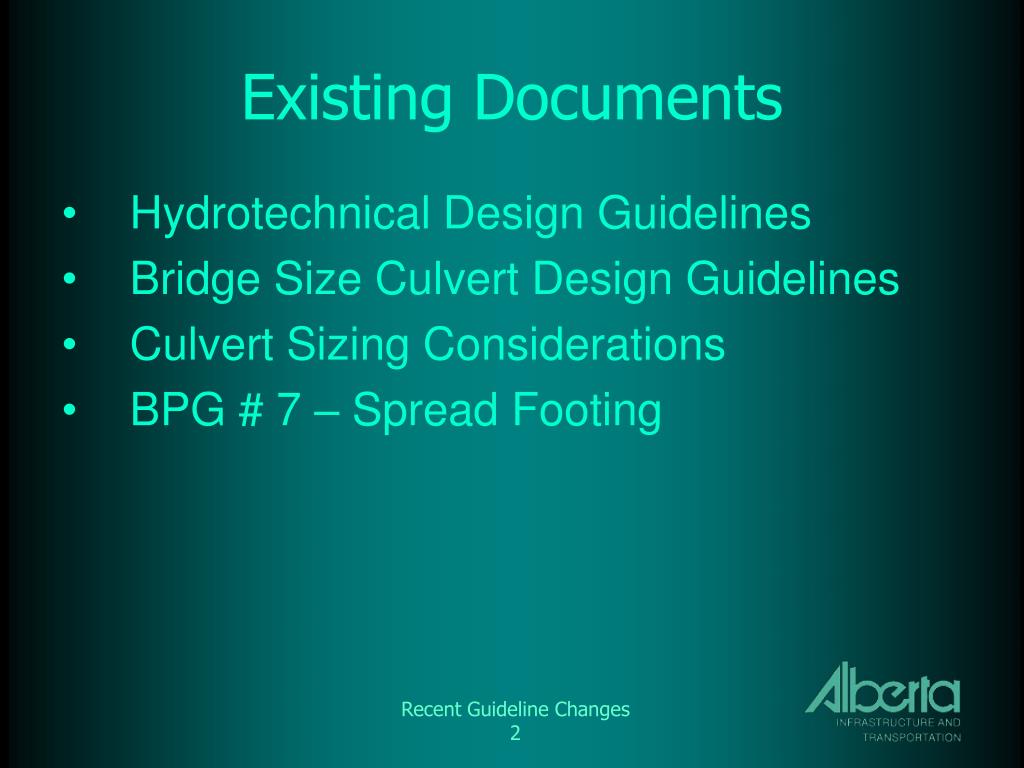

  2. Existing Documents • Hydrotechnical Design Guidelines • Bridge Size Culvert Design Guidelines • Culvert Sizing Considerations • BPG # 7 – Spread Footing

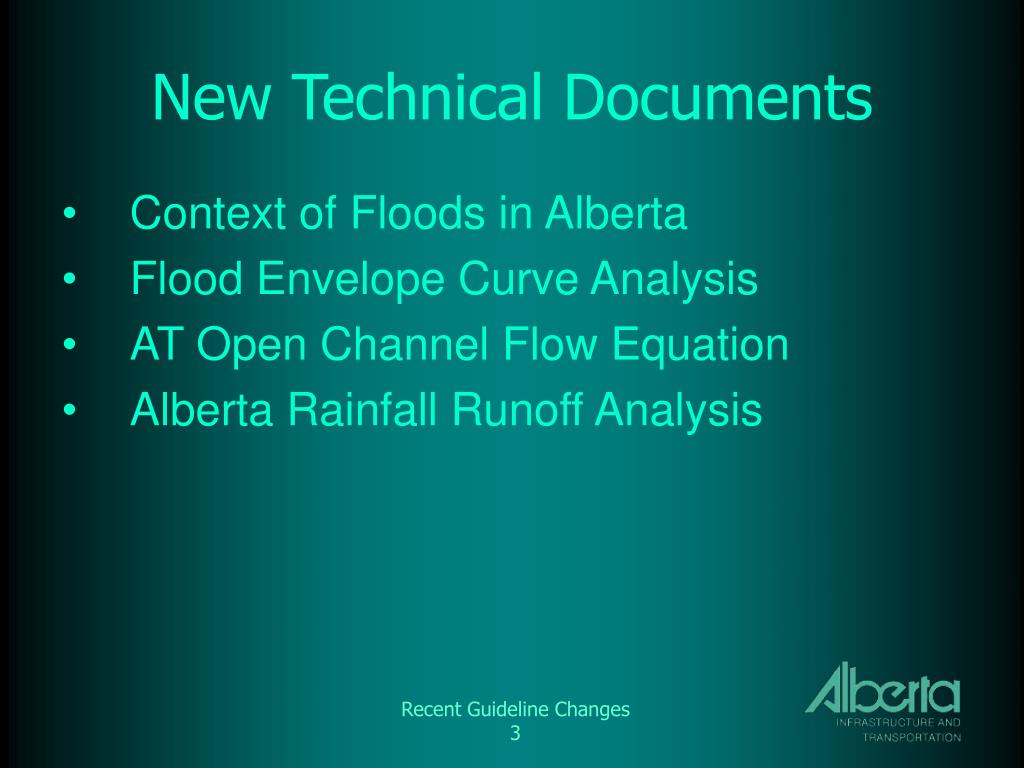

  3. New Technical Documents • Context of Floods in Alberta • Flood Envelope Curve Analysis • AT Open Channel Flow Equation • Alberta Rainfall Runoff Analysis

  4. Bridge Structure Design Criteria • Section 4e – Bridge Fills • No more CB6-2.3M22 • Headslope tool – elliptical fill transition • Bridge Fill Width = Gross Width + 2m • Fill taper rate – max. 30:1 • Section 4b – Min. Bridge Grade • Target minimum = 1% (drainage) • Every effort for 0.5% min. grade

  5. Bridge Design Bulletins • BD # 5 – Retaining Walls near Rivers • Issues : • Erosion - outflank/undermine • Failure – little warning, catastrophic • Repair – extensive, expensive • Inspection – specialized, systematic • Flexibility – accommodate future stages? • Recommendation : • Consider Other Options • Design – RPW, piling, structure mod.

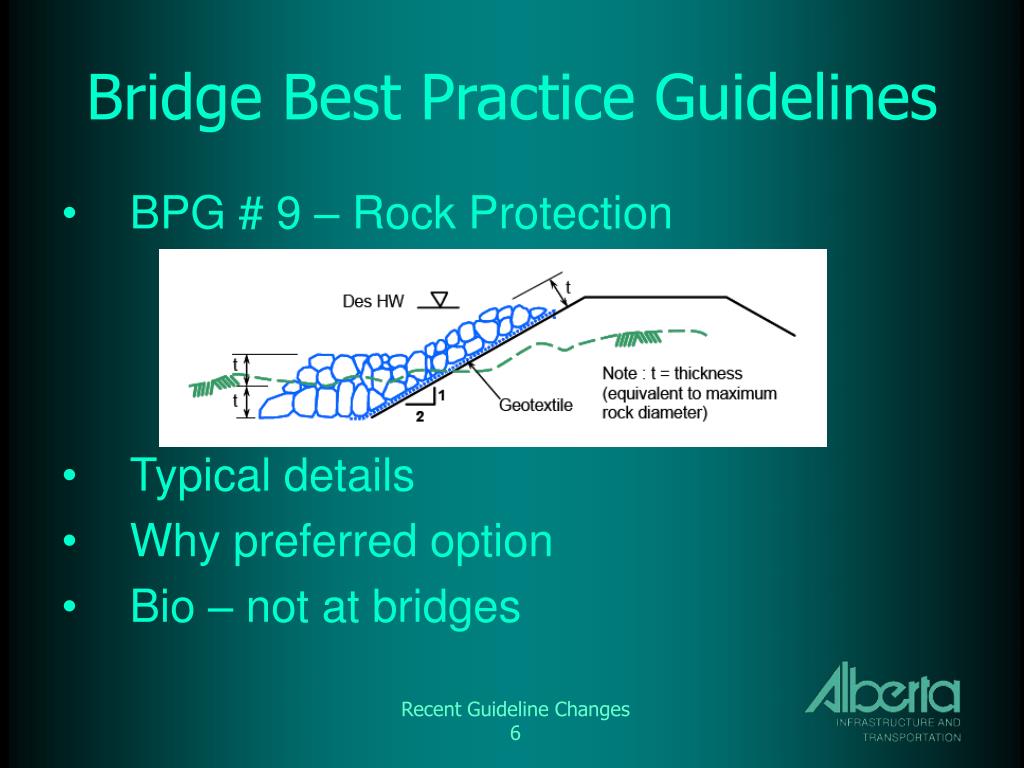

  6. Bridge Best Practice Guidelines • BPG # 9 – Rock Protection • Typical details • Why preferred option • Bio – not at bridges

  7. Roadside Design Guide • Bridge Width (Section H5.4.1) : • Min. Bridge Clear Roadway = 9.0m • Match Road Design Clear Roadway • > 9000 AADT, shoulder = 3.0m • Max. shoulder width = 4.0m** • Urban – TAC shy distance (T3.1.6.4) ** Maximum for ring road structures is 3.5 m based on safety audit for AHD SW

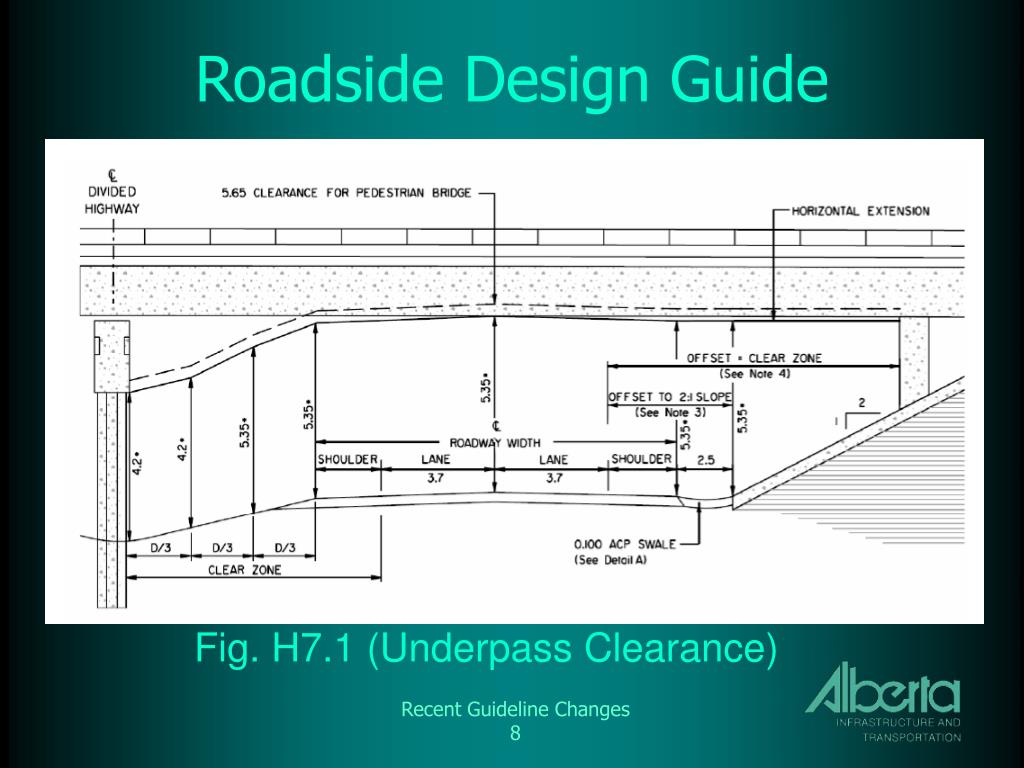

  8. Roadside Design Guide Fig. H7.1 (Underpass Clearance)

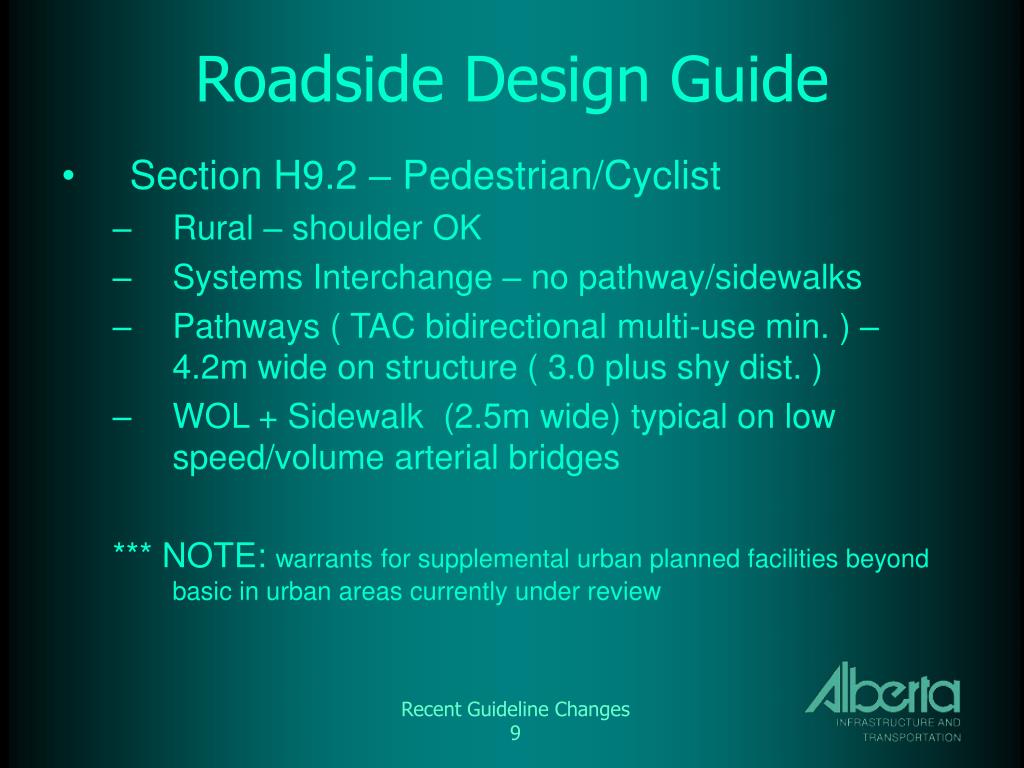

  9. Roadside Design Guide • Section H9.2 – Pedestrian/Cyclist • Rural – shoulder OK • Systems Interchange – no pathway/sidewalks • Pathways ( TAC bidirectional multi-use min. ) – 4.2m wide on structure ( 3.0 plus shy dist. ) • WOL + Sidewalk (2.5m wide) typical on low speed/volume arterial bridges *** NOTE: warrants for supplemental urban planned facilities beyond basic in urban areas currently under review

  10. Future Guidelines/Clarifications • Vertical clearances – Pedestrian Structures • Parallel versus tapers on urban bridges • Use of retaining walls on high speed roadway bridges • Maximum/minimum grades/crossfalls on bridges • Combined effects of horizontal and vertical geometry on ramp bridges
