  1. Trafodion Distributed Transaction Management June 2014

  2. Trafodion Distributed Transaction Management Scalable Architecture Node 1 Node n Node 2 SQL Process SQL Process SQL Process SQL Process SQL Process SQL Process SQL Process SQL Process SQL Process Transaction Manager Library Transaction Manager Library Transaction Manager Library Transaction Manager Library Transaction Manager Library Transaction Manager Library Transaction Manager Library Transaction Manager Library Transaction Manager Library Resource Manager Library Resource Manager Library Resource Manager Library Resource Manager Library Resource Manager Library Resource Manager Library Resource Manager Library Resource Manager Library Resource Manager Library ... Transaction Manager Transaction Manager Transaction Manager HBase trx Region Server HBase trx Region Server HBase trx Region Server HBase trx Region Server HBase trx Region Server HBase trx Region Server HBase trx extends HBase classes

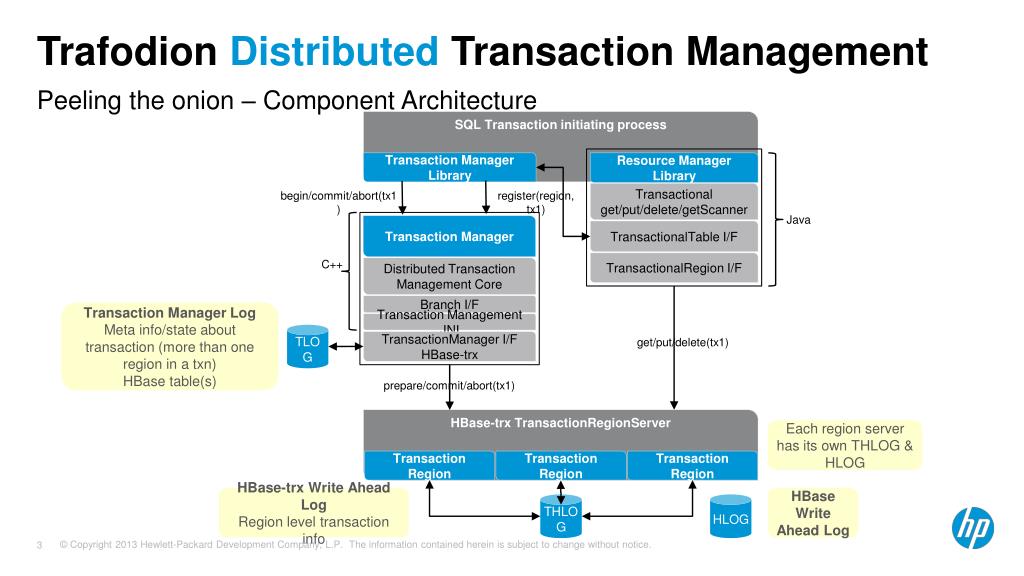

  3. Trafodion Distributed Transaction Management Peeling the onion – Component Architecture SQL Transaction initiating process Transaction Manager Library Resource Manager Library Transactional get/put/delete/getScanner begin/commit/abort(tx1) register(region, tx1) Java Transaction Manager TransactionalTable I/F C++ TransactionalRegion I/F Distributed Transaction Management Core Branch I/F Transaction Manager Log Meta info/state about transaction (more than one region in a txn) HBase table(s) Transaction Management JNI TLOG get/put/delete(tx1) TransactionManager I/F HBase-trx prepare/commit/abort(tx1) HBase-trxTransactionRegionServer Each region server has its own THLOG & HLOG Transaction Region Transaction Region Transaction Region HBase-trx Write Ahead Log Region level transaction info HBase Write Ahead Log THLOG HLOG

  4. Trafodion Distributed Transaction Management BEGIN WORK – BEGINTRANSACTION Normally HBase-trx allocates the transid But here we want the transidallocated by TM to be used by HBase-trx SQL Transaction initiating process BEGINTRANSACTION or BEGINTX 1 Transaction Manager Library Resource Manager Library begintransaction request Transactional get/put/delete/getScanner 2 7 transid Transaction Manager new transaction object allocated Assign new transid 3 TransactionalTable I/F Distributed Transaction Management Core Txn Object TransactionalRegion I/F begin_branches HBaseTxn.beginTransaction(transid) 4 Branch I/F TransactionManager.beginTransaction(transid) Transaction Management JNI 5 TransactionManager I/F HBase-trx 6 Txn State new TransactionState HBase-trxTransactionRegionServer Transaction Region Transaction Region Transaction Region

  5. Trafodion Distributed Transaction Management get / put / delete SQL Transaction initiating process SQL Transaction initiating process Transaction Manager Library Transaction Manager Library Resource Manager Library Resource Manager Library call register (region, transid) Transactional get/put/delete/getScanner Transactional get/put/delete/getScanner 4 1 put(transid, region) TransactionStateObj Adds participant to the participating processes list of the Transaction Object TransactionalTable I/F TransactionalTable I/F 5 Transaction Manager Transaction Manager TransactionalRegion I/F TransactionalRegion I/F Distributed Transaction Management Core Distributed Transaction Management Core Txn Object If region is not registered for this transaction, calls HBaseTxn.registerRegion 6 Look up TransactionState by transid – create object if not there 2 Branch I/F Branch I/F If region not in participatingRegions list of TransactionState add it & initiate registration 7 Transaction Management JNI Transaction Management JNI 3 TransactionManager I/F HBase-trx TransactionManager I/F HBase-trx TransactionManager.registerRegion which adds it to the TransactionState.participatingRegions list Txn State 8 9 TransactionalTable.put(TransactionState, region) TransactionalRegionInterface.put(transid) for region HBase-trxTransactionRegionServer HBase-trxTransactionRegionServer Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region TransactionalRegionInterface.beginTransaction(transid) for region executed if transaction not initiated for the region 10 Update region transaction object context to include puts, deletes 11

  6. Trafodion Distributed Transaction Management COMMIT WORK – ENDTRANSACTION – Phase 1, prepare SQL Transaction initiating process SQL Transaction initiating process 1 ENDTRANSACTION Transaction Manager Library Transaction Manager Library Resource Manager Library Resource Manager Library Transactional get/put/delete/getScanner Transactional get/put/delete/getScanner Abort if conflict encountered 2 9 endtransaction TransactionalTable I/F TransactionalTable I/F Transaction Manager Transaction Manager TransactionalRegion I/F TransactionalRegion I/F Distributed Transaction Management Core Distributed Transaction Management Core Txn Object prepare_branches HBaseTxn.prepareCommit 3 TransactionManager.prepareCommit Branch I/F Branch I/F 4 Transaction Management JNI Transaction Management JNI TransactionManager I/F HBase-trx TransactionManager I/F HBase-trx Txn State TransactionalRegionInterface.commitRequest(transid) against each region in participatingRegions list Votes abort, readh-only, or commit to transaction manager 8 5 HBase-trxTransactionRegionServer HBase-trxTransactionRegionServer 6 Region checks for conflicts/ concurrency issue If conflict it votes abort else checks for writes in region If no writes, votes read-only & is excluded from phase 2 Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region If writes performed, context for transid, including all updates, is forced written to THLOG (rotational log, cleaned up similar to HLOG) THLOG THLOG 7

  7. Trafodion Distributed Transaction Management COMMIT WORK – ENDTRANSACTION – Phase 2, commit If at least one region voted commit & the rest voted commit or read-only SQL Transaction initiating process SQL Transaction initiating process Transaction Manager Library Transaction Manager Library Resource Manager Library Resource Manager Library Transactional get/put/delete/getScanner Transactional get/put/delete/getScanner 10 commit TransactionalTable I/F TransactionalTable I/F 1 Transaction Manager Transaction Manager commit_branches TransactionalRegion I/F TransactionalRegion I/F Distributed Transaction Management Core Distributed Transaction Management Core Txn Object commit_branches HBaseTxn.doCommit 3 9 doCommit forgets transaction & returns control to TM TransactionManager.doCommit Branch I/F Branch I/F 4 Transaction Management JNI Transaction Management JNI 2 TLOG Forces write of committed trans state record TransactionManager I/F HBase-trx TransactionManager I/F HBase-trx Txn State TransactionalRegionInterface.commit(transid) against each region in participatingRegionslist 5 Records hashed key, ASN, txn id & state, and tables in txn HBase-trxTransactionRegionServer HBase-trxTransactionRegionServer Unforced write of forgotten trans state record 8 Used for control point / aging process discussed later Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region All puts and deletes are written to HBase tablesfrom in-memory transaction state THLOG THLOG Context for transid as committed txn is written unforced to THLOG 6 7 Reduces recovery time

  8. Trafodion Distributed Transaction Management ABORT WORK – ABORTTRANSACTION SQL Transaction initiating process SQL Transaction initiating process Transaction Manager Library Transaction Manager Library Resource Manager Library Resource Manager Library Transactional get/put/delete/getScanner Transactional get/put/delete/getScanner 1 Abort TransactionalTable I/F TransactionalTable I/F 2 Transaction Manager Transaction Manager rollback_branches TransactionalRegion I/F TransactionalRegion I/F Distributed Transaction Management Core Distributed Transaction Management Core Txn Object rollback_branches HBaseTxn.abort 4 TM does forget processingNo writes to log 10 TransactionManager.abort Branch I/F Branch I/F 5 Abort forgets transaction & returns control to TM 9 Transaction Management JNI Transaction Management JNI TLOG 3 TransactionManager I/F HBase-trx TransactionManager I/F HBase-trx Txn State TransactionRegion.abort sets status of txn to abort Removes txn from commit list if previously voted commit Remove txn from pending list TransactionalRegionInterface.abortTransaction(transid) against each region in participatingRegions list does not write trans recordIf forgotten records not written, presume abort 6 7 HBase-trxTransactionRegionServer HBase-trxTransactionRegionServer Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region THLOG THLOG If writes associated with txn, unforced write of abort to THLOG 8 Reduces recovery time

  9. Trafodion Distributed Transaction Management Transaction Recovery – timing of failure

  10. Trafodion Distributed Transaction Management Transaction Recovery SQL Transaction initiating process SQL Transaction initiating process Transaction Manager Library Transaction Manager Library Resource Manager Library Resource Manager Library Transactional get/put/delete/getScanner Transactional get/put/delete/getScanner TM builds in-doubt region list and initiates recovery for those regions 4 TransactionalTable I/F TransactionalTable I/F Transaction Manager Transaction Manager Zookeeper Bulletin Board for TM TransactionalRegion I/F TransactionalRegion I/F Distributed Transaction Management Core Distributed Transaction Management Core ... In-doubt transaction No prepare record  abort transaction Commit record  re-drive commit in redo processing Abort record  do nothing Prepare record  needs to know commit or abort? 7 8 Recovery thread re-drives phase 2 Update txn state obj from last state of transid, & participating regions in TLOG Branch I/F Branch I/F Collates list of in-doubt transactions from all regions and creates empty transaction state object for each txn TLOG Transaction Management JNI Transaction Management JNI 6 TransactionManager I/F HBase-trx TransactionManager I/F HBase-trx Txn State Txn State Txn State Gather in-doubt transactions from in-doubt regions Commit / Abort will be done as normal for in-doubt txns Each Transaction Region with in-doubt transactions posts need for recovery to bulletin of TM that originated the transaction if not yet posted Table names mapped to regions Accommodates region splits & moves 5 3 9 1 1 HBase-trxTransactionRegionServer HBase-trxTransactionRegionServer When failed server(s) are reintegrated, Txn Region Server reads THLOG. If its empty, indicating clean shutdown, it resumes txn processing. Otherwise it initiates recovery for regions. Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region Transaction Region THLOG THLOG All Transaction Regions build in-doubt txn list In-doubt regions deregister from bulleting board 10 2 TM disables transactions during recovery

  11. Trafodion Distributed Transaction Management Transaction Recovery – Control Point processing • Used to re-drive transaction recovery • After server or cluster failure to ensure data consistency given in-flight operations at time of failure • Control points written to Control Point table at a configurable 1interval, currently set at 2 minutes • Re-drives of transaction commits (redo) driven by recovery needs of regions • Used for aging • TLOG entries prior to 2 control points can be aged out and only two entries maintained in control point table • Commit records rewritten to log, along with writing txn state of all running transactions, until all commits received and forgotten record written SQL Transaction initiating process Transaction Manager Library Forced write of key & 2ASN for txn state record written to TLOG Transaction Manager Distributed Transaction Management Core Txn Object Txn Object Txn Object CP Branch I/F Transaction Management JNI TLOG TransactionManager I/F HBase-trx Txn State Txn State Txn State Unforced grouped writes of txn record for each running txn 1control point interval is represented by two consecutive control point records where the first record defines the ASN from the start of the interval and the second defines the ASN at the end of the record 2monotonically increasing value indicating the audit write sequence number

  12. Trafodion Distributed Transaction Management Addressing the requirements • Current State • HBase-trxuses some derived classes for RegionServer, Region and HLogSplitter. These use HBase-internal interfaces. • Trafodion has Transaction Manager (TM) processes, written in C++, supporting: • Recovery on client / region server crash • Transactions involving multiple HBase clients (transaction propagation) • Clients can use a new, transactional client derived from regular HBase client • HBase-trx as single jar file, used by region server, TM & clients. Compatible with most HBase 0.94.x versions. • Goals • Optional, no penalty if not used • Very low overhead – tight integration with the region server helps • Avoid additional processes • Avoid non-Java code • Avoid version incompatibilities • How to achieve goals • Implement as coprocessors • Provide Java implementation of TM code for the following functionality, if needed: • Txn propagation • Manageability • Recovery

  13. Trafodion Distributed Transaction Management Future opportunities • Optimizations • For single region transactions • Transaction flow • Combining THLOG with HLOG • Isolation support • Repeatable read • Snapshot isolation • Serialized snapshot isolation • Row Locking paradigm for certain tables • Tables involved in long running transactions • Pessimistic locking for highly concurrent operations • High Availability • Recovery from region server, TM, or node failure Accommodate Region Splitting & Balancing • Manageability • Transaction object info/metrics via REST APIs

  14. Thank you
