  1. GRITS Lab Optimal Timing Control in Mode Transition Systems Henrik Axelsson Georgia Robotics and IntelligentSystems Laboratory (GRITS Lab)July 15, 2004Advisors Dr. Magnus Egerstedt and Dr. Yorai Wardi

  2. Summary • Introduction • Motivation • Gradient Formula • Example • Robotics Application • Conclusions • Future Work Henrik Axelsson - GritsLab, July 2004

  3. Introduction – Problem I Henrik Axelsson - GritsLab, July 2004

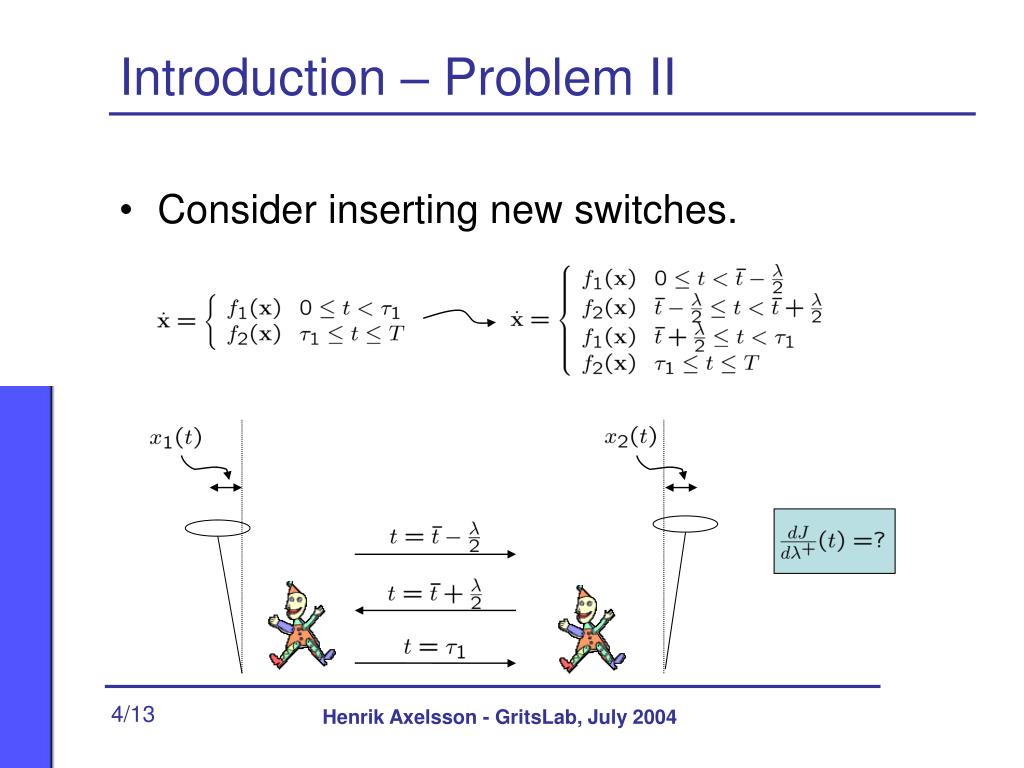

  4. Introduction – Problem II • Consider inserting new switches. Henrik Axelsson - GritsLab, July 2004

  5. Motivation • Control module switching among several processes. • Control module collecting data sequentially from a number of sensors. • Avoid obstacles for mobile robots*. Henrik Axelsson - GritsLab, July 2004

  6. Gradient Formula Henrik Axelsson - GritsLab, July 2004

  7. Half-time • Introduction • Motivation • Gradient Formula • Example • Robotics Application • Conclusions • Future Work Henrik Axelsson - GritsLab, July 2004

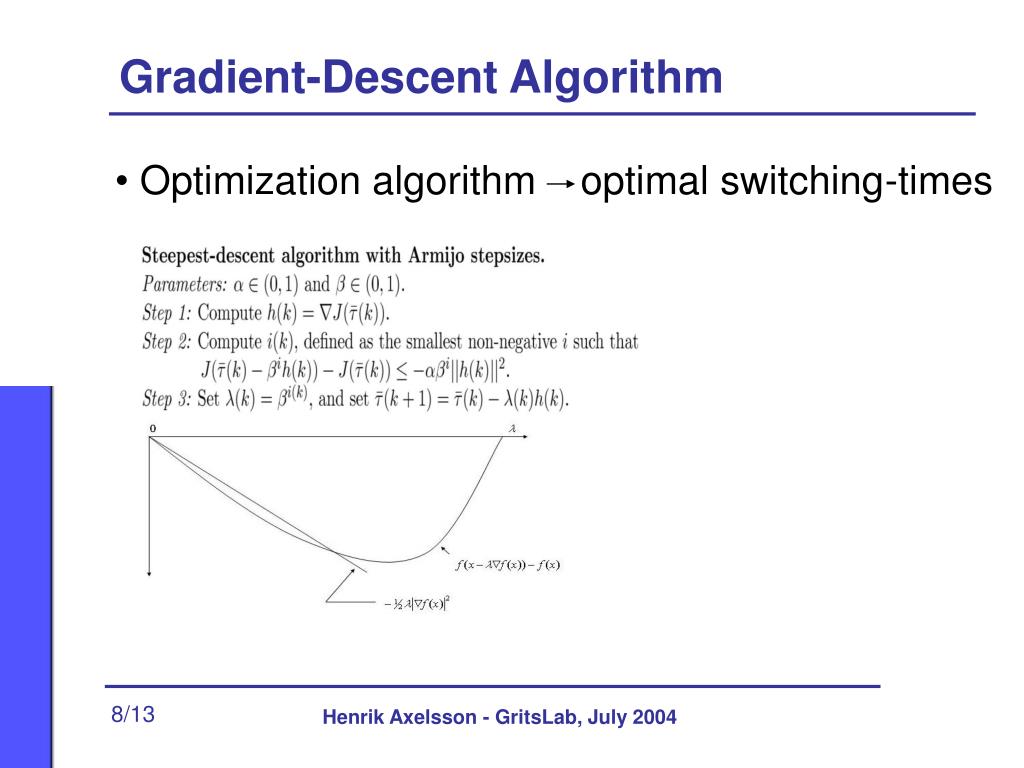

  8. Gradient-Descent Algorithm • Optimization algorithm optimal switching-times Henrik Axelsson - GritsLab, July 2004

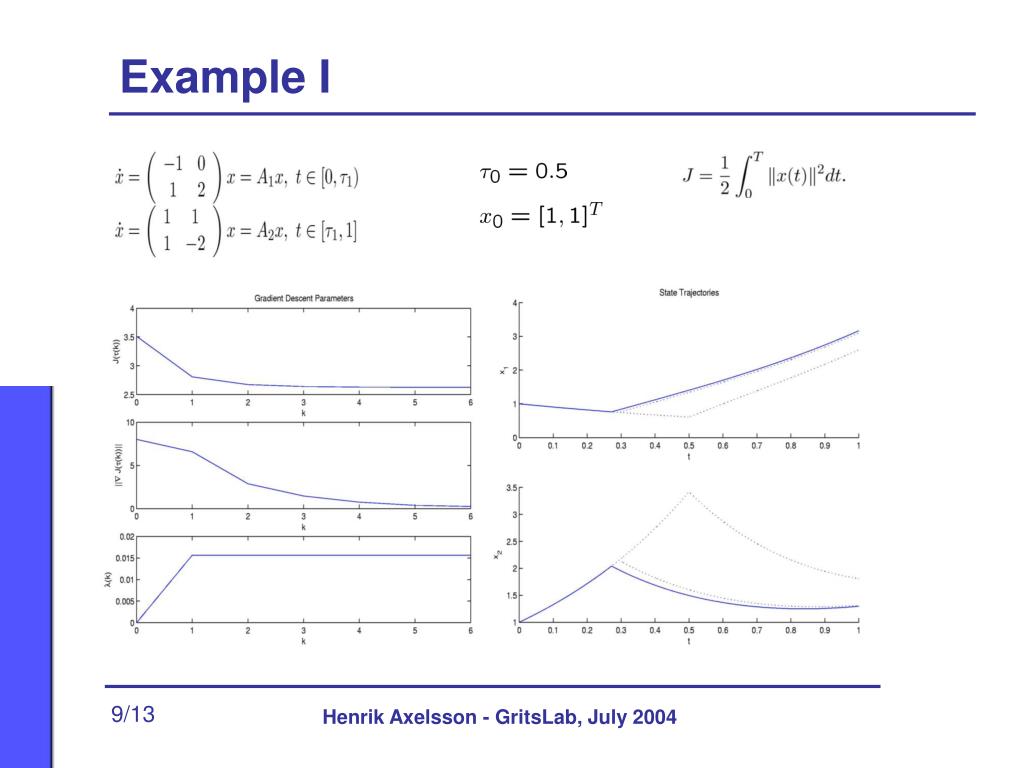

  9. Example I Henrik Axelsson - GritsLab, July 2004

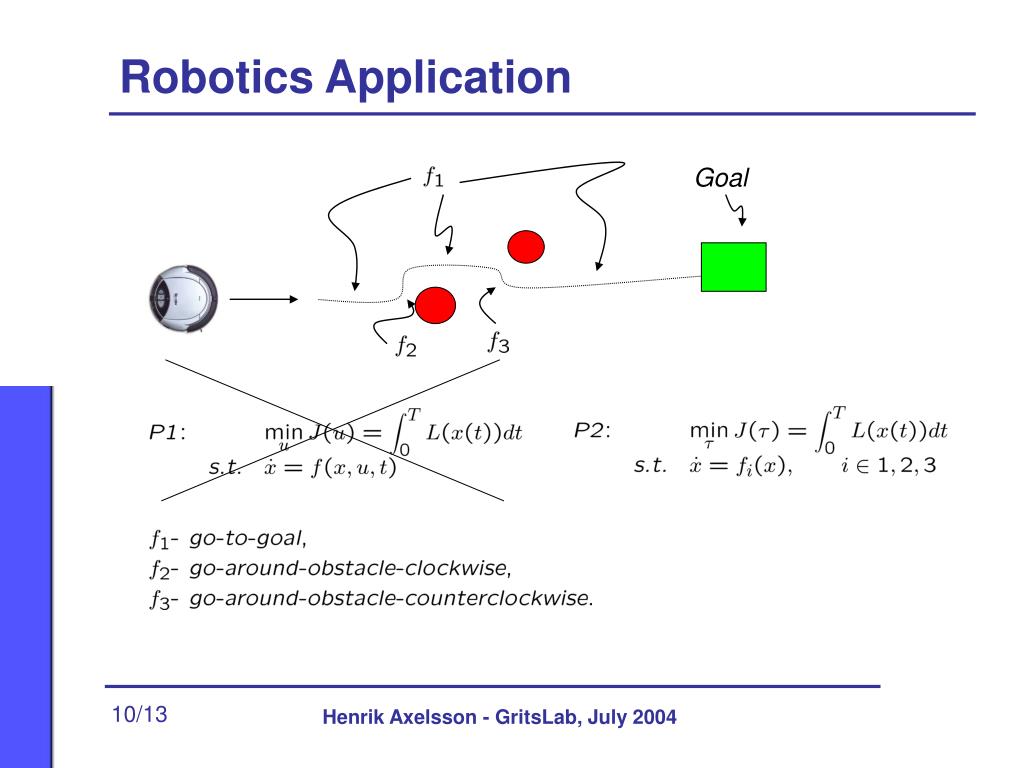

  10. Robotics Application Goal Henrik Axelsson - GritsLab, July 2004

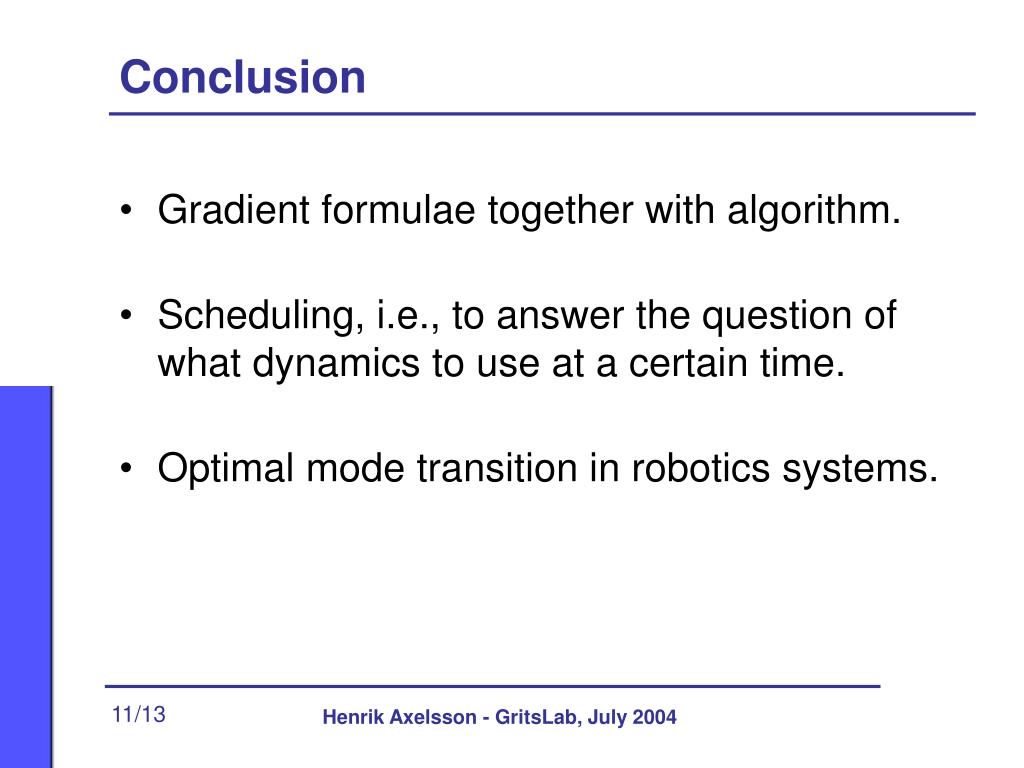

  11. Conclusion • Gradient formulae together with algorithm. • Scheduling, i.e., to answer the question of what dynamics to use at a certain time. • Optimal mode transition in robotics systems. Henrik Axelsson - GritsLab, July 2004

  12. Future Work • Design discrete optimization algorithm. • Prove convergence for the discrete algorithm:- Theory of Consistent Approximations. • Develop optimality criteria for scheduling problem in the ∞ dimensional case. • Apply to real-time robotics applications. Henrik Axelsson - GritsLab, July 2004

  13. Questions? Henrik Axelsson - GritsLab, July 2004
