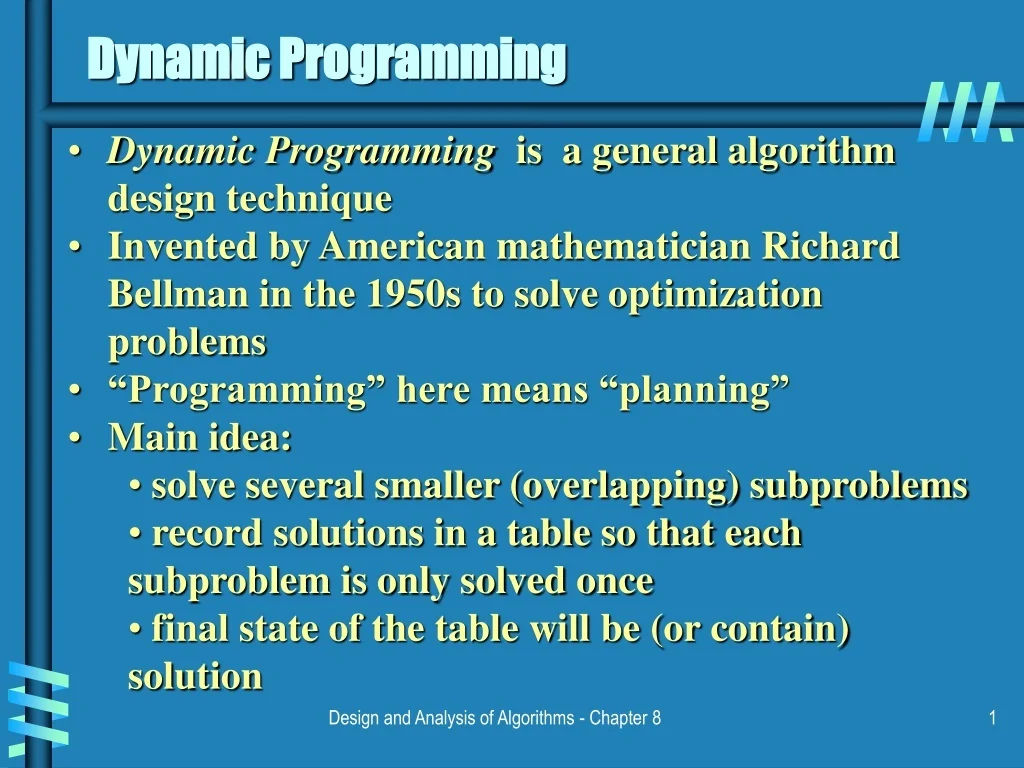

  1. Dynamic Programming • Dynamic Programming is a general algorithm design technique • Invented by American mathematician Richard Bellman in the 1950s to solve optimization problems • “Programming” here means “planning” • Main idea: • solve several smaller (overlapping) subproblems • record solutions in a table so that each subproblem is only solved once • final state of the table will be (or contain) solution Design and Analysis of Algorithms - Chapter 8

  2. Example: Fibonacci numbers • Recall definition of Fibonacci numbers: • f(0) = 0 • f(1) = 1 • f(n) = f(n-1) + f(n-2) • Compute the nth Fibonacci number recursively (top-down) • f(n) • f(n-1) + f(n-2) • f(n-2) + f(n-3) f(n-3) + f(n-4) • ... Design and Analysis of Algorithms - Chapter 8

  3. Example: Fibonacci numbers (2) • Compute the nth Fibonacci number using bottom-up iteration: • f(0) = 0 • f(1) = 1 • f(2) = 0+1 = 1 • f(3) = 1+1 = 2 • f(4) = 1+2 = 3 • f(n-2) = • f(n-1) = • f(n) = f(n-1) + f(n-2) Design and Analysis of Algorithms - Chapter 8

  4. Examples of Dynamic Programming Algorithms • Computing binomial coefficients • Optimal chain matrix multiplication • Constructing an optimal binary search tree • Warshall’s algorithm for transitive closure • Floyd’s algorithms for all-pairs shortest paths • Some instances of difficult discrete optimization problems: • travelling salesman • knapsack Design and Analysis of Algorithms - Chapter 8

  5. Binomial coefficients • Algorithm based on identity • Algorithm Binomial(n,k) • for i  0 to n do • for j 0 to min(j,k) do • if j=0 or j=i then C[i,j]  1 • else C[i,j]C[i-1,j-1]+C[i-1,j] • return C[n,k] • Pascal’s Triangle • Example • Space and Time efficiency Design and Analysis of Algorithms - Chapter 8

  6. 3 3 1 1 4 4 2 2 Warshall’s Algorithm: Transitive Closure • Computes the transitive closure of a relation • Alternatively: all paths in a directed graph • Example of transitive closure: 0 0 1 0 1 1 1 1 0 0 0 0 1 1 1 1 0 0 1 0 1 0 0 1 0 0 0 0 0 1 0 0 Design and Analysis of Algorithms - Chapter 8

  7. 3 3 3 3 3 1 1 1 1 1 4 2 4 4 2 2 4 4 2 2 Warshall’s Algorithm (2) • Main idea: a path exists between two vertices i, j, iff • there is an edge from i to j; or • there is a path from i to j going through vertex 1; or • there is a path from i to j going through vertex 1 and/or 2; or • ... • there is a path from i to j going through any of the other vertices R0 0 0 1 0 1 0 0 1 0 0 0 0 0 1 0 0 R1 0 0 1 0 1 01 1 0 0 0 0 0 1 0 0 R2 0 0 1 0 1 0 1 1 0 0 0 0 1 1 1 1 R3 0 0 1 0 1 0 1 1 0 0 0 0 1 1 1 1 R4 0 0 1 0 1 1 1 1 0 0 0 0 1 1 1 1 Design and Analysis of Algorithms - Chapter 8

  8. Warshall’s Algorithm (3) • In the kth stage find if a path exists between two vertices i, j using just vertices among 1,…,k • R(k-1)[i,j] (path using just 1 ,…,k-1) • R(k)[i,j] = or • (R(k-1)[i,k] & R(k-1)[k,j]) (path from i to k and from • k to i using just 1,…,k-1) { k i kth stage j Design and Analysis of Algorithms - Chapter 8

  9. Warshall’s Algorithm (4) Algorithm Warshall(A[1..n,1..n]) R(0)A for k1 to n do for i1 to n do for j1 to n do R(k)[i,j] R(k-1)[i,j] or R(k-1)[i,k] and R(k-1)[k,j] return R(k) Space and Time efficiency Design and Analysis of Algorithms - Chapter 8

  10. 4 3 1 1 6 1 5 4 2 3 Floyd’s Algorithm: All pairs shortest paths • In a weighted graph, find shortest paths between every pair of vertices • Same idea: construct solution through series of matrices D(0), D(1), … using an initial subset of the vertices as intermediaries. • Example: Design and Analysis of Algorithms - Chapter 8

  11. Floyd’s Algorithm (2) • Algorithm Floyd(W[1..n,1..n]) • DW • for k1 to n do • for i1 to n do • for j1 to n do • D[i,j] min(D[i,j],D[i,k]+D[k,j]) • return D • Space and Time efficiency • When does it not work? • Principle of optimality Design and Analysis of Algorithms - Chapter 8

  12. Optimal Binary Search Trees • Keys are not searched with equal probability • Suppose keys A, B, C, D with probabilities 0.1, 0.2, 0.3, 0.4 • What is the average search cost in each possible structure? • How many different structures can be produced with n nodes ? • Catalan number C(n)=comb(2n,n)/(n+1) Design and Analysis of Algorithms - Chapter 8

  13. Optimal Binary Search Trees (2) • C[i,j] denotes the smallest average search cost in a tree including items i through j • Based on the principle of optimality, the optimal search tree is constructed by using the recurrence • C[i,j] = min{C[i,k-1]+C[k+1,j]} + Σps • for 1≤i ≤ j ≤ n and i ≤ k ≤ j • C[i,i] = pi Design and Analysis of Algorithms - Chapter 8

  14. Optimal Binary Search Trees (3) Algorithm OptimalBST(P[1..n]) for i  1 to n do C[i,i-1]0; C[i,i]P[i], R[i,i]I C[n+1,n]0 for d1 to n-1 do for i1 to n-d do ji+d; minval∞ for ki to j do if C[i,k-1]+C[k+1,j]<minval minval C[I,k-1]+C[k+1,j]; kmink R[i,j]kmin; sumP[i]; for si+1 to j do sumsum+P[s] C[i,j] minval+sum return C[1,n], R Design and Analysis of Algorithms - Chapter 8

  15. The Knapsack problem • Problem: given n items with weight w1,w2, …, wn, values v1, v2, …, vn and capacity W. Find the most valuable subset that fit into the knapsack. • Solution with exhaustive search • Let V[i,j] denote the optimal solution for the first i items and capacity j. Purpose to find V[n,W] • Recurrence • max{V[i-1,j],vi+V[i-1,j-wi]} if j-wi≥0 • V[i,j] = • V[i-1,j] if j-wi<0 { Design and Analysis of Algorithms - Chapter 8

  16. The Knapsack problem (2) Example W=5 Space and Time efficiency Design and Analysis of Algorithms - Chapter 8

  17. Memory functions [1] A disadvantage of the dynamic programming approach is that is solves subproblems not finally needed. An alternative technique is to combine a top-down and a bottom-up approach (recursion plus a table for temporary results) Design and Analysis of Algorithms - Chapter 8

  18. Memory functions [2] Algorithm MFKnapsack(i,j) if V[i,j]<0 if j<Weights[i] value MFKnapack[i-1,j] else valuemax{MFKnapsack(i-1,j), Values[i]+MFKnapsack[i-1,j-Weights[i]]} V[i,j]value return V[i,j] Design and Analysis of Algorithms - Chapter 8

  19. Memory functions (3) Example W=5 Space and Time efficiency Design and Analysis of Algorithms - Chapter 8
