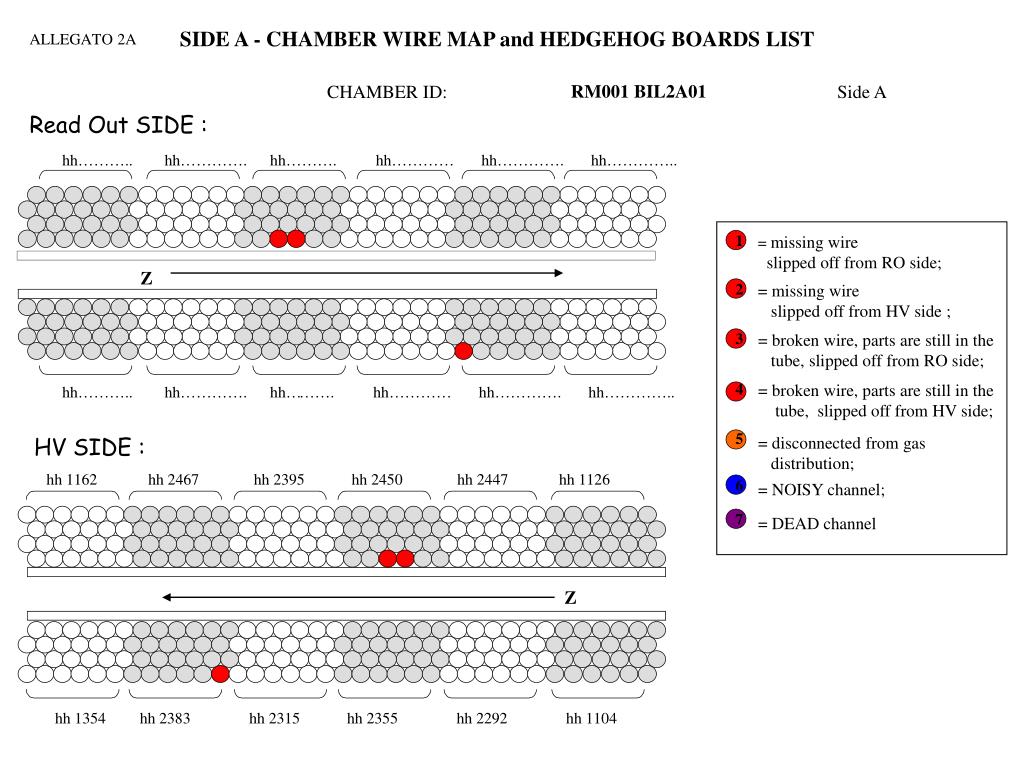

  1. SIDE A - CHAMBER WIRE MAP and HEDGEHOG BOARDS LIST ALLEGATO 2A RM001 BIL2A01 CHAMBER ID: Side A Read Out SIDE : hh……….. hh…………. hh………. hh………… hh…………. hh………….. 1 = missing wire slipped off from RO side; Z 2 = missing wire slipped off from HV side ; 3 = broken wire, parts are still in the tube, slipped off from RO side; 4 = broken wire, parts are still in the tube, slipped off from HV side; hh……….. hh…………. hh… ……. hh………… hh…………. hh………….. 5 = disconnected from gas distribution; HV SIDE : hh 1162 hh 2467 hh 2395 hh 2450 hh 2447 hh 1126 6 = NOISY channel; 7 = DEAD channel Z hh 1354 hh 2383 hh 2315 hh 2355 hh 2292 hh 1104
