Presentation Transcript

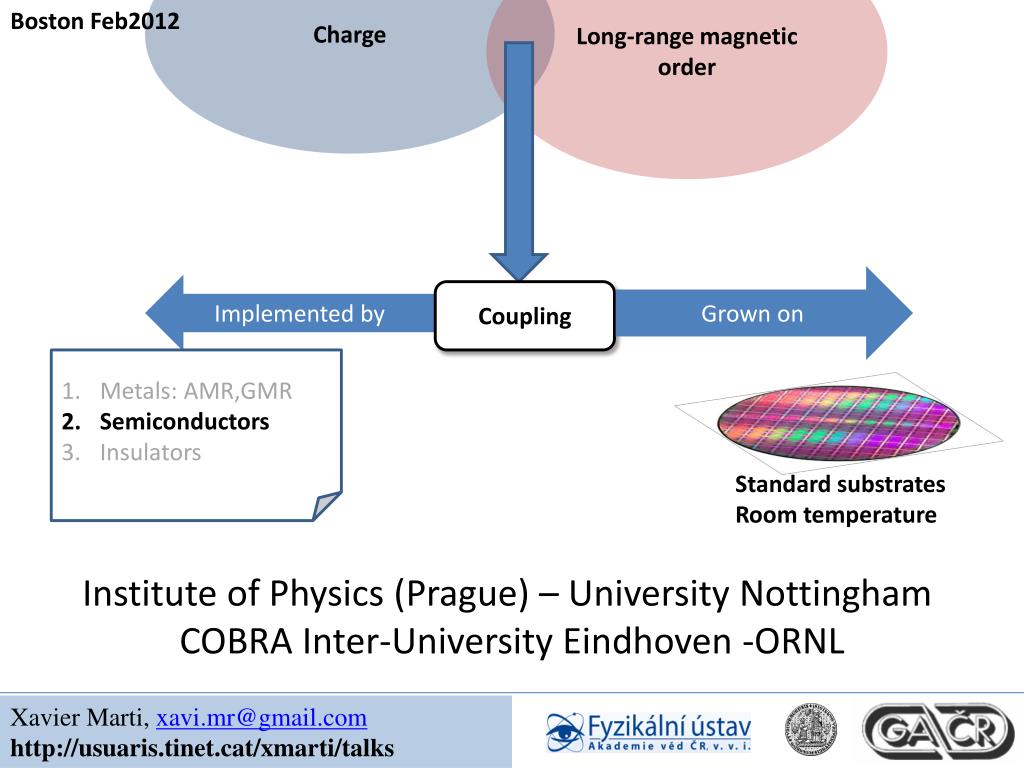

  1. Charge Long-range magnetic order Boston Feb2012 Grown on Implemented by Coupling Metals: AMR,GMR Semiconductors Insulators Standard substrates Room temperature Institute of Physics (Prague) – University Nottingham COBRA Inter-University Eindhoven -ORNL Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  2. GaAs (Ga,Mn)As MnAs Semiconductor Ferromagnetic Doping Temperature Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  3. Intrinsic III-V and II-VI semiconductors Maca et al., JMMM 324, 1606 (2012) Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  4. Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks Large moment Large SOC Large moment Large moment Large SOC Large moment Schick et al., PRB 81, 212409 (2010)

  5. Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks T15 Room 213 Helena Reichlova Large moment Large SOC Large moment Large moment Large SOC Large moment Schick et al., PRB 81, 212409 (2010)

  6. Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks Large moment Large SOC Large moment Large moment Large SOC Large moment Schick et al., PRB 81, 212409 (2010)

  7. Crystal and magnetic structure: Bronger et al, Z. anorg. allg. Chem. 539, 175 (1986) • THEORY • Semiconductor with huge spin-orbit coupling Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  8. THIN FILM EPILAYERS 4.27A 4.28A In As V. Novak, et al., J. Cryst. Growth 323, 348 (2011)

  9. THIN FILM EPILAYERS log(intensity) 4.27A 4.28A In As

  10. Li Mn As LiMnAs has a bandgap dI/dV map 4.27A 4.28A In As I. Wijnheijmer et al, Appl. Phys. Lett. In press

  11. Is LiMnAs the only choice available? Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  12. RT TN V. M. Ryzhkovsky, et al., Inorg. Mater. 32 117 (1995) A.E. Austin, et al., J. Appl. Phys. 33 1356 (1962) Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  13. _ [110] CuMnAs grown on GaAs [110] Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  14. CuMnAs grown on GaAs a = b = 5.407 Å c = 6.313 Å GaAs, a = 5.65 Å c a b Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  15. TEM: JaumeGazquez, Oak Ridge NL Growth: R. Campion, Nottingham Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  16. TEM: JaumeGazquez, Oak Ridge NL Growth: R. Campion, Nottingham CuMnAs GaAs Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  17. Fe 10 nm GaAs 300 K Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  18. Fe CuMnAs 300 K GaAs Fe/CuMnAs exchange bias Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  19. CuMnAs grown on GaAs Fe CuMnAs 300 K GaAs Fe/CuMnAs exchange bias Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks

  20. Thanks for your attention LiMnAs CuMnAs Prague : P. Wadley, H. Reichlova, M. Cukr, F. Maca, A.B. Shick, J. Masek, P. Horodyska, P. Nemec, V. Holy, J. Zemen, P. Kuzel, I. Nemec, K. Olejnik, J. Wunderlich, O. Stelmakhovych, K. Ulrihova, P. Beran, V. Novak, T. Jungwirth Nottingham : R. Campion, K. Edmonds, B. Gallagher, C.T. Foxon Eindhoven : I. Wijnheijmer, P. Koenraad ORNL: J. Gazquez, M. Varela Xavier Marti, xavi.mr@gmail.com http://usuaris.tinet.cat/xmarti/talks
