  1. DHE – Detector Head Electronics Monsoon 80mm Crate Heat Load DES Project -- Vaidas Simaitis, University of Illinois

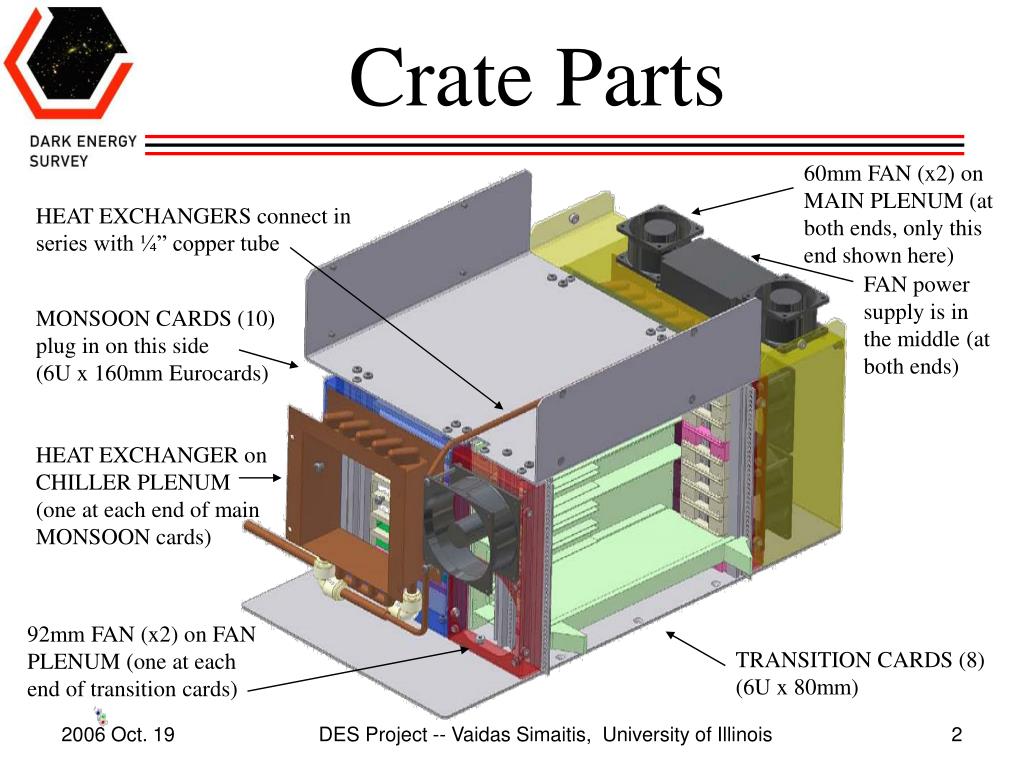

  2. Crate Parts 60mm FAN (x2) on MAIN PLENUM (at both ends, only this end shown here) HEAT EXCHANGERS connect in series with ¼” copper tube FAN power supply is in the middle (at both ends) MONSOON CARDS (10) plug in on this side (6U x 160mm Eurocards) HEAT EXCHANGER on CHILLER PLENUM (one at each end of main MONSOON cards) 92mm FAN (x2) on FAN PLENUM (one at each end of transition cards) TRANSITION CARDS (8) (6U x 80mm) DES Project -- Vaidas Simaitis, University of Illinois

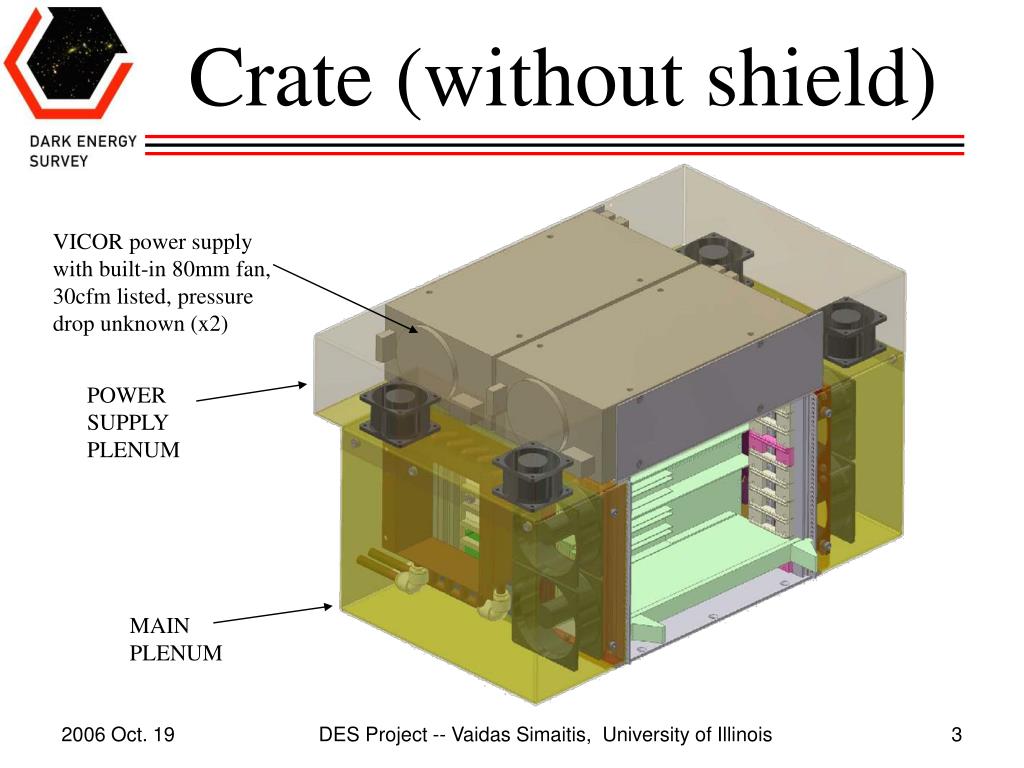

  3. Crate (without shield) VICOR power supply with built-in 80mm fan, 30cfm listed, pressure drop unknown (x2) POWER SUPPLY PLENUM MAIN PLENUM DES Project -- Vaidas Simaitis, University of Illinois

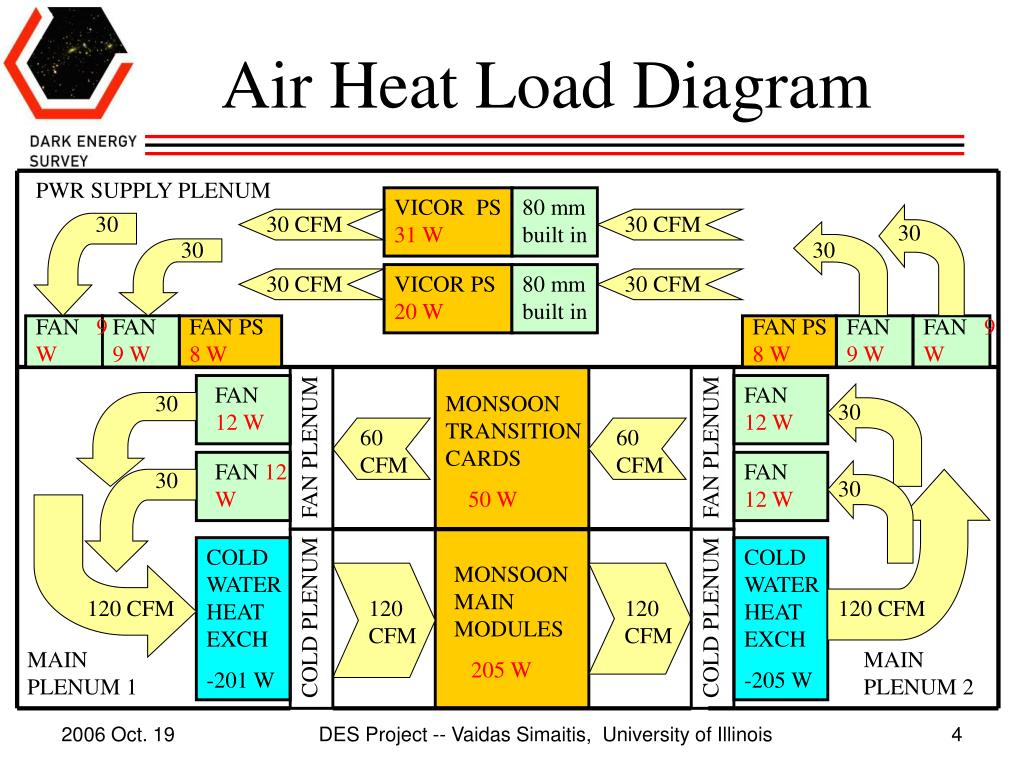

  4. Air Heat Load Diagram PWR SUPPLY PLENUM VICOR PS 31 W 80 mm built in 30 30 CFM 30 CFM 30 30 30 30 CFM VICOR PS 20 W 80 mm built in 30 CFM FAN 9 W FAN 9 W FAN PS 8 W FAN PS 8 W FAN 9 W FAN 9 W FAN 12 W FAN 12 W 30 MONSOON TRANSITION CARDS 50 W 30 60 CFM 60 CFM FAN PLENUM FAN PLENUM FAN 12 W FAN 12 W 30 30 COLD WATER HEAT EXCH -201 W COLD WATER HEAT EXCH -205 W MONSOON MAIN MODULES 205 W 120 CFM 120 CFM 120 CFM 120 CFM COLD PLENUM COLD PLENUM MAIN PLENUM 1 MAIN PLENUM 2 DES Project -- Vaidas Simaitis, University of Illinois

  5. Heat Exchanger Thermal Performance for Water The design uses a Lytron M05-050 heat exchanger For the target of 120 CFM air flow, and ½ gpm water flow, the heat removed is 24W for each °C difference between the water in and the air in To remove 216W of heat, the water must be 9°C colder than the air DES Project -- Vaidas Simaitis, University of Illinois

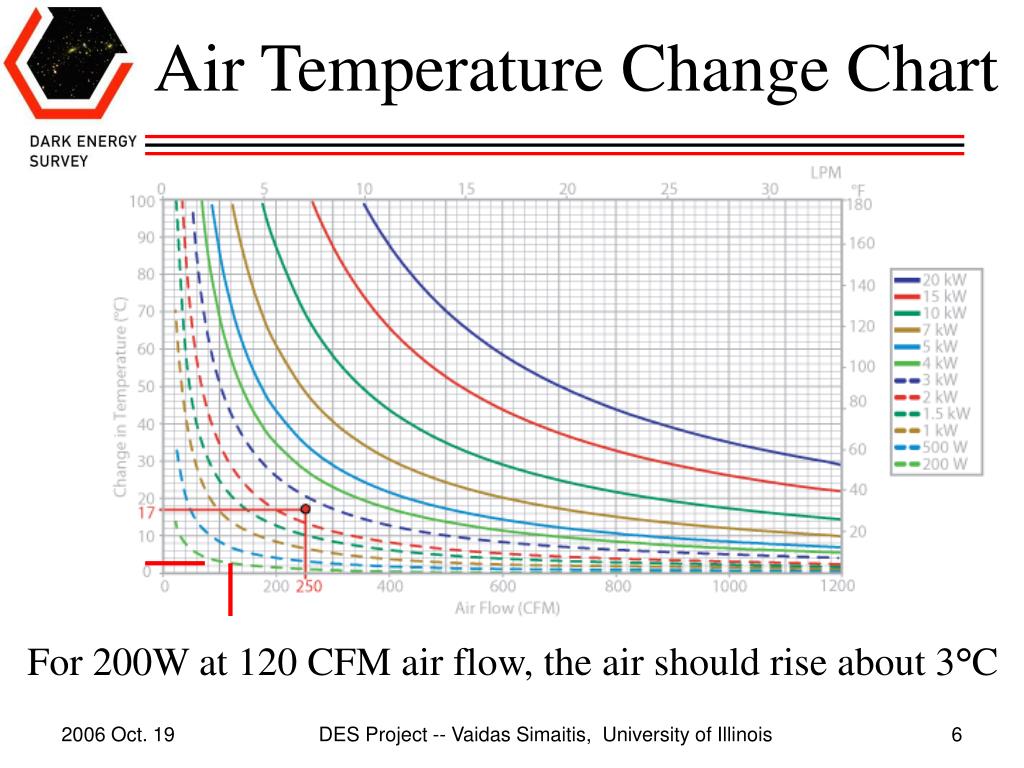

  6. Air Temperature Change Chart For 200W at 120 CFM air flow, the air should rise about 3°C DES Project -- Vaidas Simaitis, University of Illinois

  7. Water Temperature Change Chart For 200W at ½ GPM water flow, the rise is about 1.5°C DES Project -- Vaidas Simaitis, University of Illinois

  8. Heat Exchangers in Series • To minimize the water flow needs, we can pipe the heat exchanger water in series • If we choose 12°C for the inlet water into the 1st heat exchanger, it should be about 13.5°C into the 2nd • If the input air into the 1st heat exchanger is 21°C, then 216 watts of heat is removed, and exit air is 18°C • The input air into the 2nd heat exchanger should be 21°C, 180 watts of heat removed, exit air is 18°C • Equilibrium should be about 20°C for the electronics DES Project -- Vaidas Simaitis, University of Illinois

  9. Air Temperature Diagram PWR SUPPLY PLENUM VICOR PS 31 W 80 mm built in 30 30 CFM 30 CFM 30 30 30 30 CFM VICOR PS 20 W 80 mm built in 30 CFM FAN 9 W FAN 9 W FAN PS 8 W 21°C 18°C FAN PS 8 W FAN 9 W FAN 9 W FAN 12 W FAN 12 W 30 MONSOON TRANSITION CARDS 50 W 30 60 CFM 60 CFM FAN PLENUM FAN PLENUM FAN 12 W FAN 12 W 30 30 21°C 18°C COLD WATER HEAT EXCH -180 W COLD WATER HEAT EXCH -216 W MONSOON MAIN MODULES 205 W 120 CFM 120 CFM 120 CFM 120 CFM COLD PLENUM COLD PLENUM 21°C 18°C 18°C 21°C 12°C 15°C 13.5°C DES Project -- Vaidas Simaitis, University of Illinois

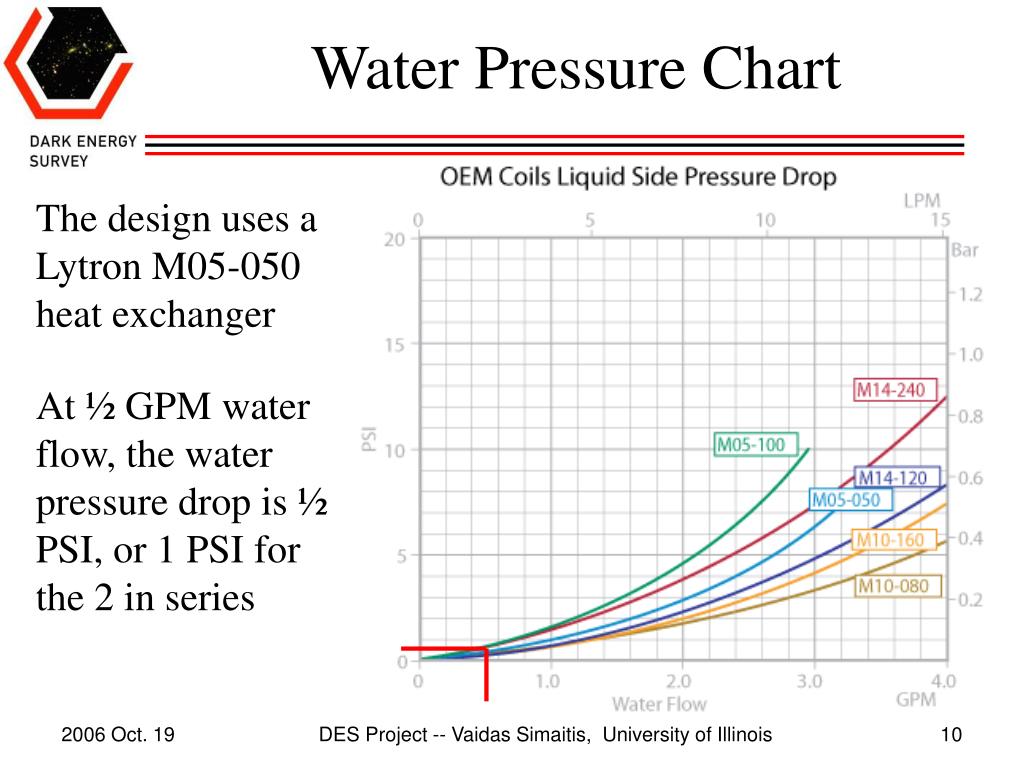

  10. Water Pressure Chart The design uses a Lytron M05-050 heat exchanger At ½ GPM water flow, the water pressure drop is ½ PSI, or 1 PSI for the 2 in series DES Project -- Vaidas Simaitis, University of Illinois

  11. Water Supply According to COPPER.ORG : “In general, the mains that serve fixture branches can be sized as follows: Up to three 3/8-inch branches can be served by a 1/2-inch main. Up to three 1/2-inch branches can be served by a 3/4-inch main. Up to three 3/4-inch branches can be served by a 1-inch main.” The M05-050 uses 3/8-inch copper tubes, so we need a ½-inch main for the supply, with a flow of 2 CFM DES Project -- Vaidas Simaitis, University of Illinois

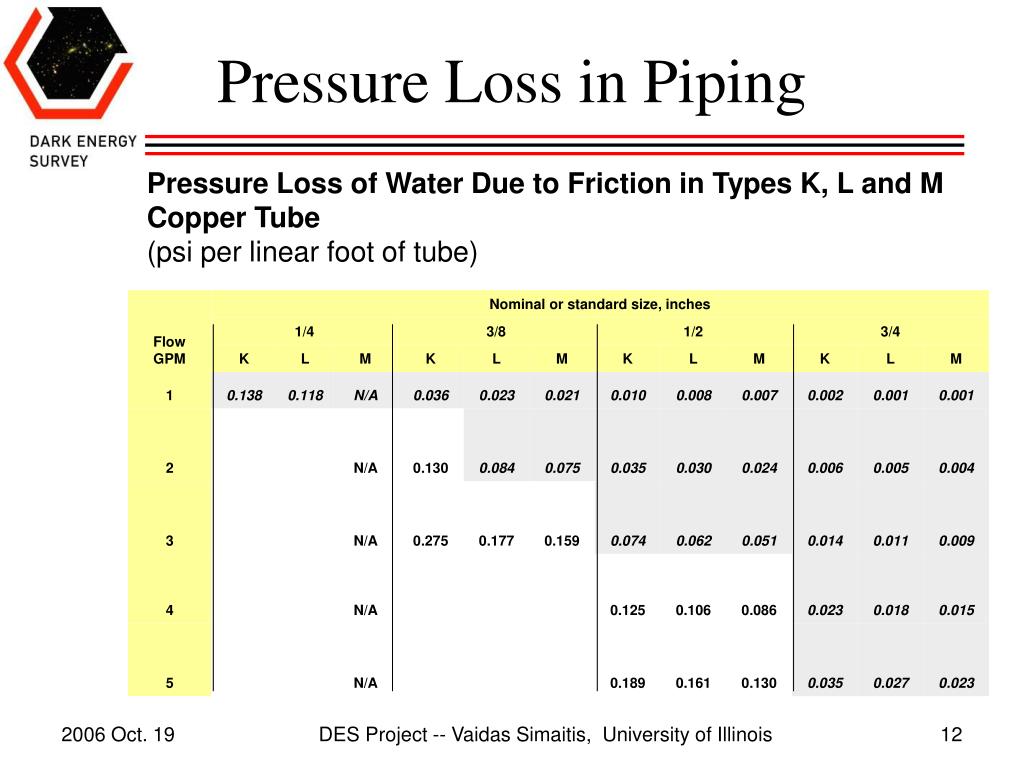

  12. Pressure Loss in Piping Pressure Loss of Water Due to Friction in Types K, L and M Copper Tube(psi per linear foot of tube) DES Project -- Vaidas Simaitis, University of Illinois

  13. Pressure Loss in Fittings Pressure Loss in Fittings and Valves Expressed as Equivalent Length of Tube, feet NOTES: Allowances are for streamlined soldered fittings and recessed threaded fittings. For threaded fittings, double the allowances shown in the table. The equivalent lengths presented above are based upon a C factor of 150 in the Hazen-Williams friction loss formula. The lengths shown are rounded to the nearest half foot. DES Project -- Vaidas Simaitis, University of Illinois

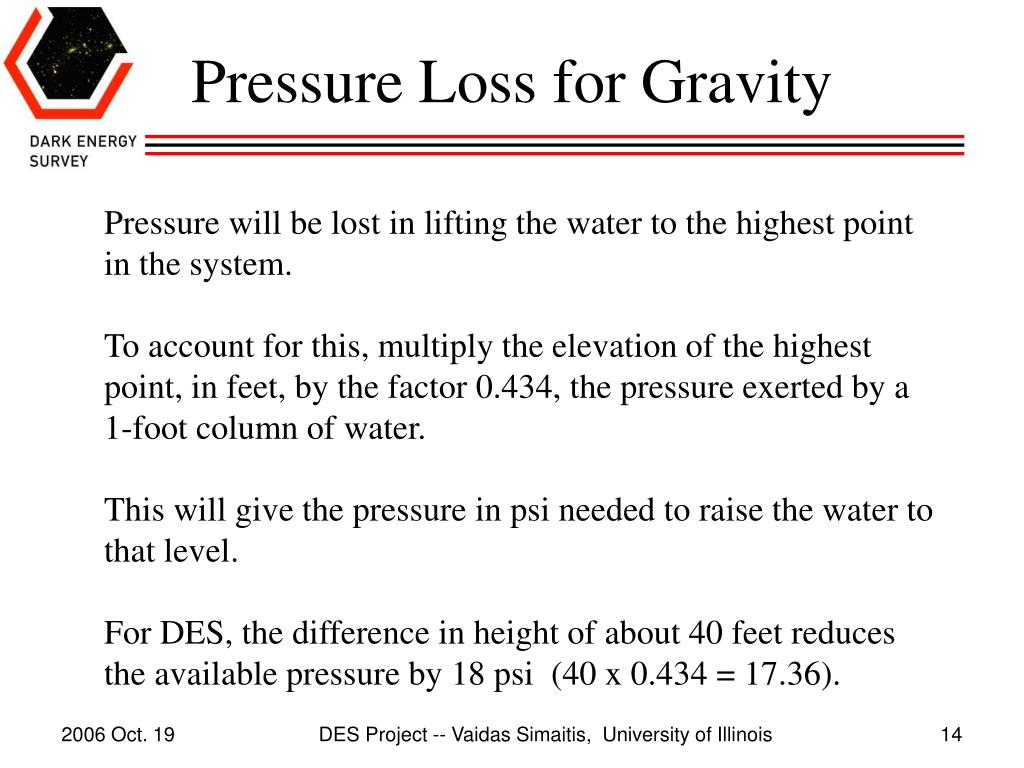

  14. Pressure Loss for Gravity Pressure will be lost in lifting the water to the highest point in the system. To account for this, multiply the elevation of the highest point, in feet, by the factor 0.434, the pressure exerted by a 1-foot column of water. This will give the pressure in psi needed to raise the water to that level. For DES, the difference in height of about 40 feet reduces the available pressure by 18 psi (40 x 0.434 = 17.36). DES Project -- Vaidas Simaitis, University of Illinois

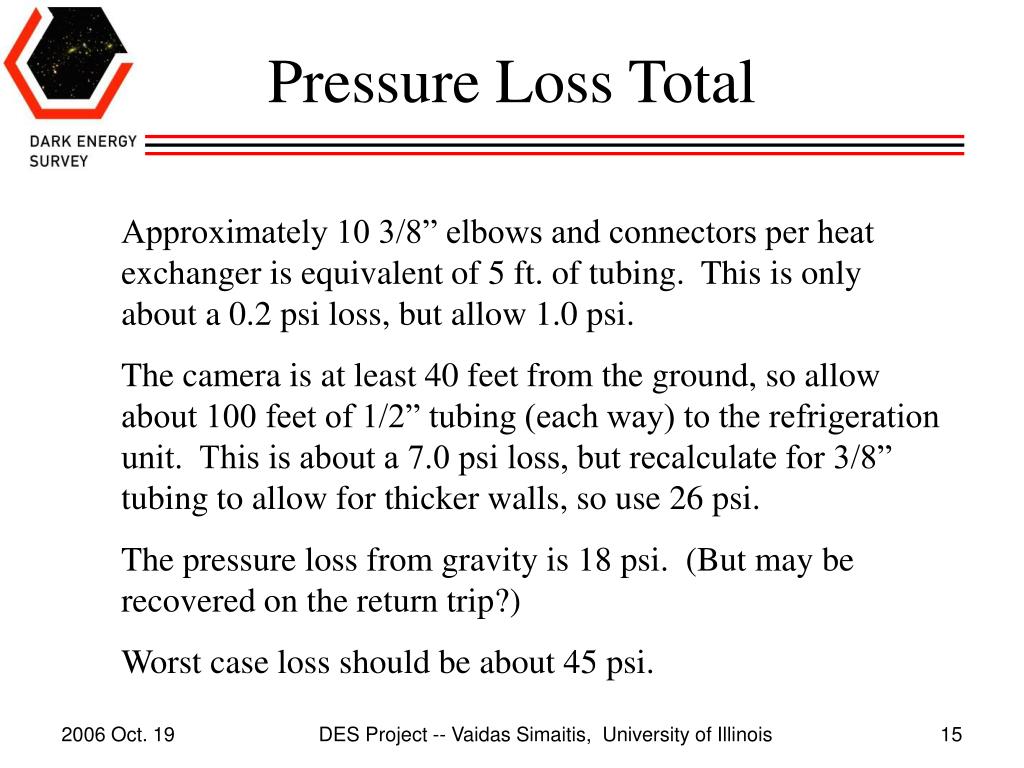

  15. Pressure Loss Total Approximately 10 3/8” elbows and connectors per heat exchanger is equivalent of 5 ft. of tubing. This is only about a 0.2 psi loss, but allow 1.0 psi. The camera is at least 40 feet from the ground, so allow about 100 feet of 1/2” tubing (each way) to the refrigeration unit. This is about a 7.0 psi loss, but recalculate for 3/8” tubing to allow for thicker walls, so use 26 psi. The pressure loss from gravity is 18 psi. (But may be recovered on the return trip?) Worst case loss should be about 45 psi. DES Project -- Vaidas Simaitis, University of Illinois

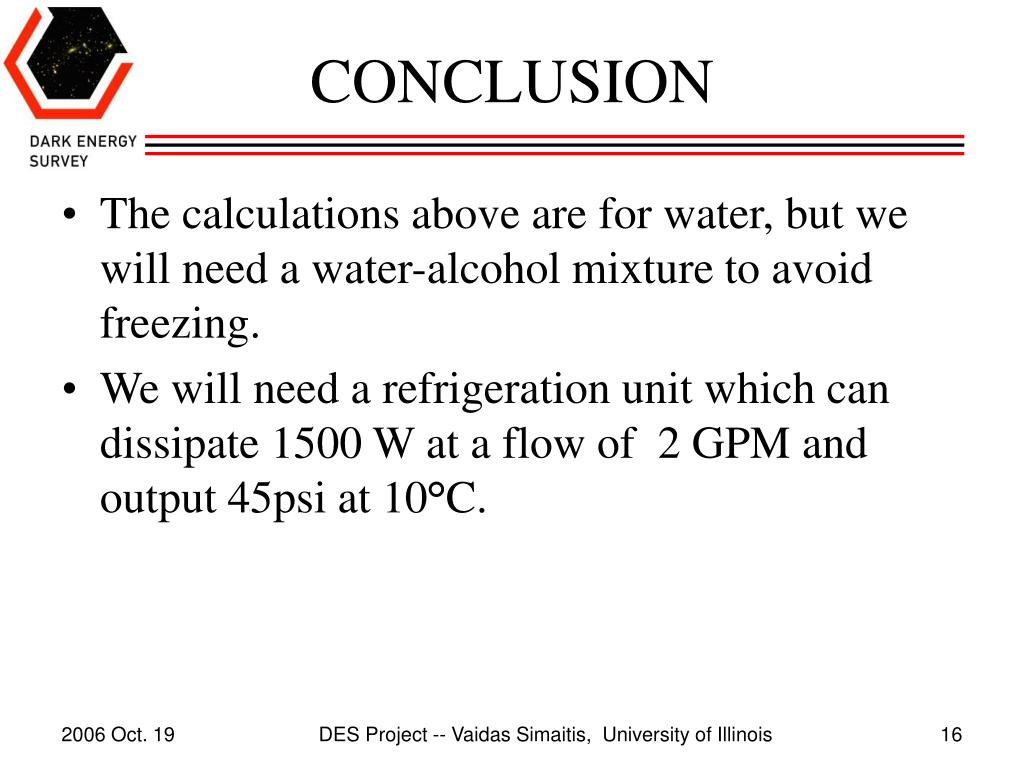

  16. CONCLUSION • The calculations above are for water, but we will need a water-alcohol mixture to avoid freezing. • We will need a refrigeration unit which can dissipate 1500 W at a flow of 2 GPM and output 45psi at 10°C. DES Project -- Vaidas Simaitis, University of Illinois
