Wavelength Converter Application Note

1. Wavelength ConverterApplication Note 2011.03.01

2. CAT5 SM Optical Fiber MM Optical Fiber Wavelength ConverterApplication Note CISCO SW CISCO SW CISCO SW CISCO SW CAT5 , RJ45 CAT5 , RJ45 ( i.e. 1550 nm, 40 Km ~ 120 Km ) Liverage Wavelength Converter Liverage Wavelength Converter (i.e. 1310 nm , 10 Km ~ 40 Km)

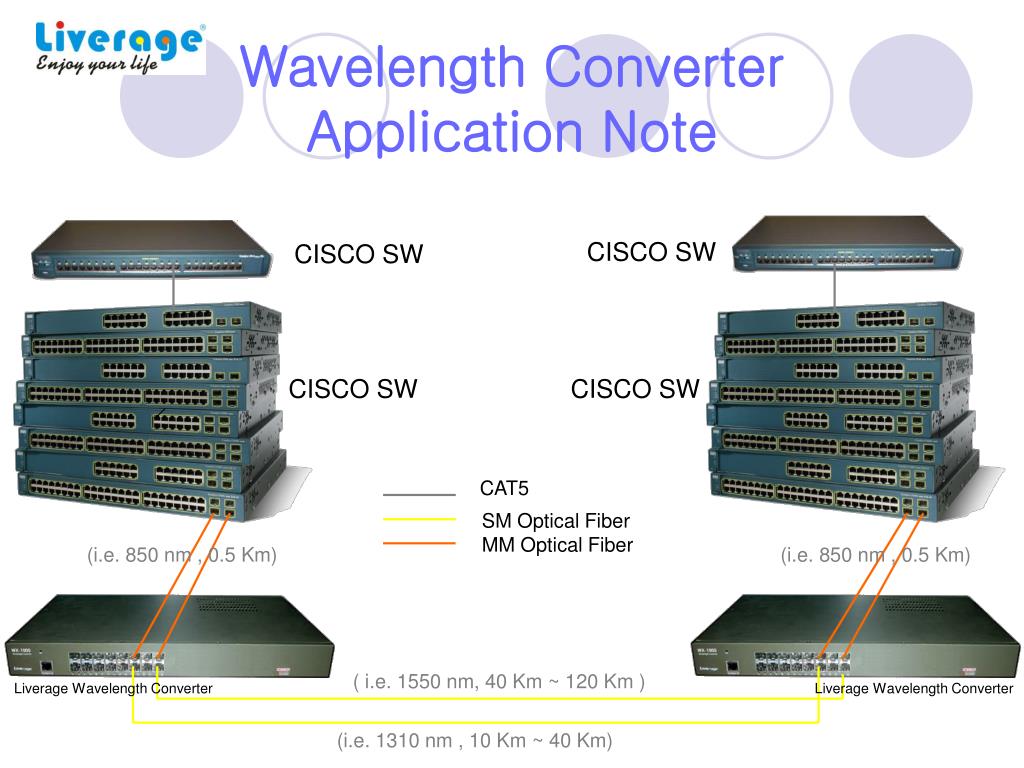

3. CAT5 SM Optical Fiber MM Optical Fiber Wavelength ConverterApplication Note CISCO SW CISCO SW CISCO SW CISCO SW (i.e. 850 nm , 0.5 Km) (i.e. 850 nm , 0.5 Km) ( i.e. 1550 nm, 40 Km ~ 120 Km ) Liverage Wavelength Converter Liverage Wavelength Converter (i.e. 1310 nm , 10 Km ~ 40 Km)

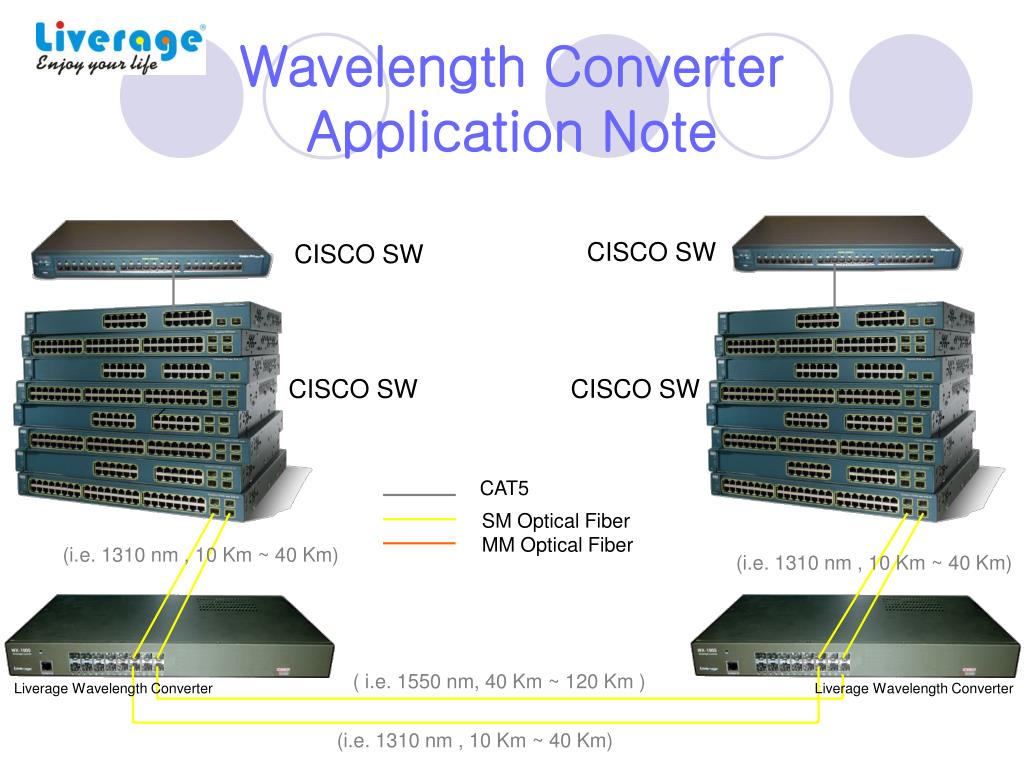

4. CAT5 SM Optical Fiber MM Optical Fiber Wavelength ConverterApplication Note CISCO SW CISCO SW CISCO SW CISCO SW (i.e. 1310 nm , 10 Km ~ 40 Km) (i.e. 1310 nm , 10 Km ~ 40 Km) ( i.e. 1550 nm, 40 Km ~ 120 Km ) Liverage Wavelength Converter Liverage Wavelength Converter (i.e. 1310 nm , 10 Km ~ 40 Km)

5. Benefits of Wavelength Converter • 1. The lower cost solution to overcome the CISCO SFP Module code protection issue. • 2. To overcome the CAT5 transmission limitation and to prolong the transmission distance. • To change media type from the Copper into the SFP. • 3. to change the wavelength from 850 nm 1300 nm to 1310 nm / 1550 nm / CWDM ( 1270 nm ~ 1610 nm ) / 1625 nm.

6. Ordering Information XX 27=1270 nm, 29=1290 nm, 31=1310 nm, 33=1330 nm, 35=1350 nm, 37=1370nm 39=1390 nm, 41=1410 nm, 43=1430 nm 45=1450 nm, 47=1470 nm, 49=1490 nm,51=1510 nm, 53=1530 nm, 55=1550 nm,57=1570 nm, 59=1590 nm, 61=1610 nm

7. If you have any further questions please feel free to let us know directly. • For further information please kindly drop by our web site www.liverage.com.tw • Or e-mail us directly • sales@liverage.com.tw
