Concave/Convex Mirror Image Formation Rules

Concave/Convex Mirror Image Formation Rules. Parallel Rays - Light rays parallel to the principal axis are reflected through the focus of the mirror. 2. Focus Rays - Light rays through the focus of the mirror are reflected parallel to the principal axis.

rhoswen-ledwidge
Télécharger la présentation

Concave/Convex Mirror Image Formation Rules

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

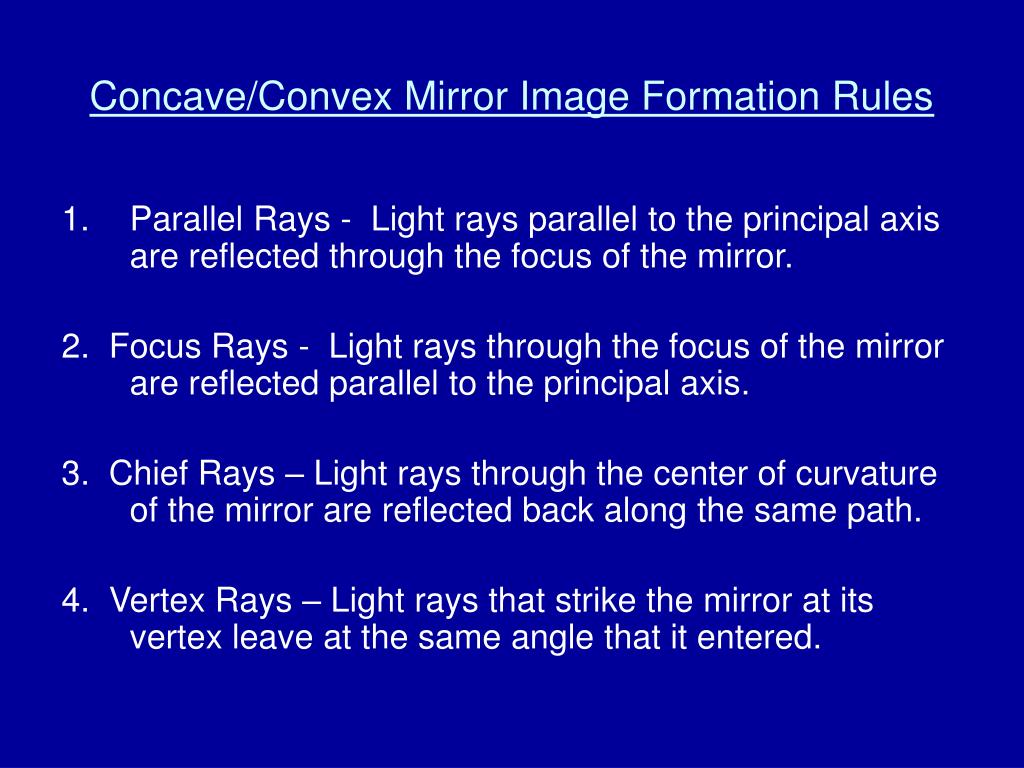

  1. Concave/Convex Mirror Image Formation Rules • Parallel Rays - Light rays parallel to the principal axis are reflected through the focus of the mirror. 2. Focus Rays - Light rays through the focus of the mirror are reflected parallel to the principal axis. 3. Chief Rays – Light rays through the center of curvature of the mirror are reflected back along the same path. 4. Vertex Rays – Light rays that strike the mirror at its vertex leave at the same angle that it entered.

  2. Object Located Beyond f and C. 1 4 object 3 2 C f 2 image 4 3 1

  3. Concave Mirror Image Formation for an Object Less than f 2 object C image f 3 1 4

  4. Convex Mirror Image Formation 1 3 2 image f C object 4

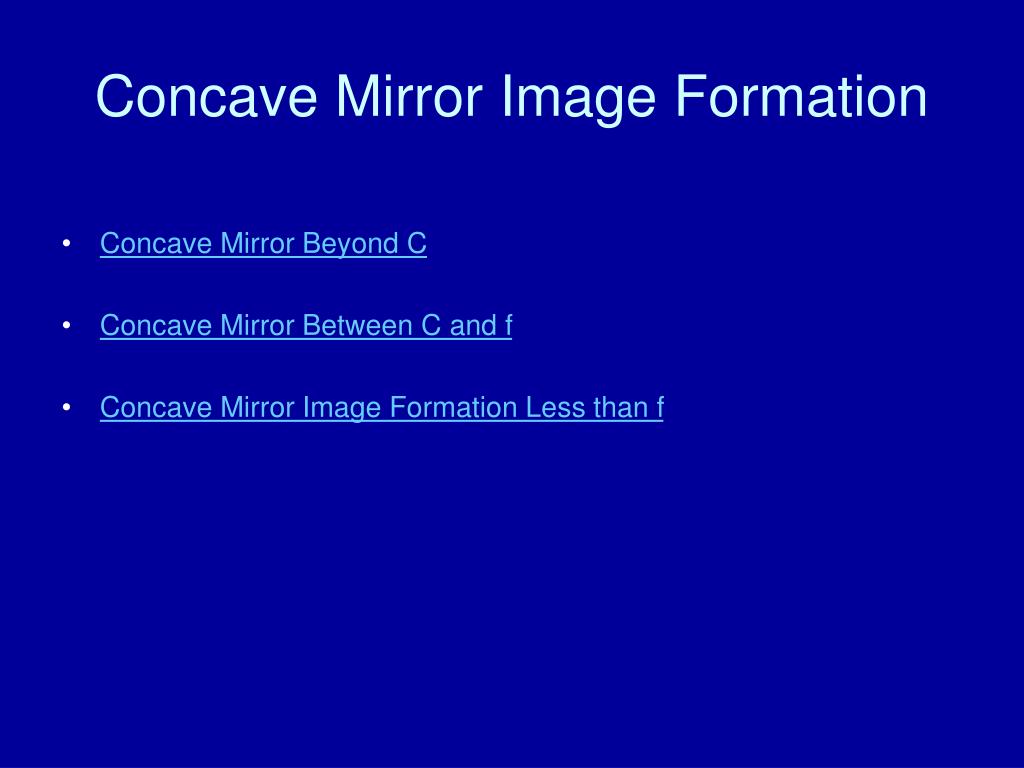

  5. Concave Mirror Image Formation • Concave Mirror Beyond C • Concave Mirror Between C and f • Concave Mirror Image Formation Less than f

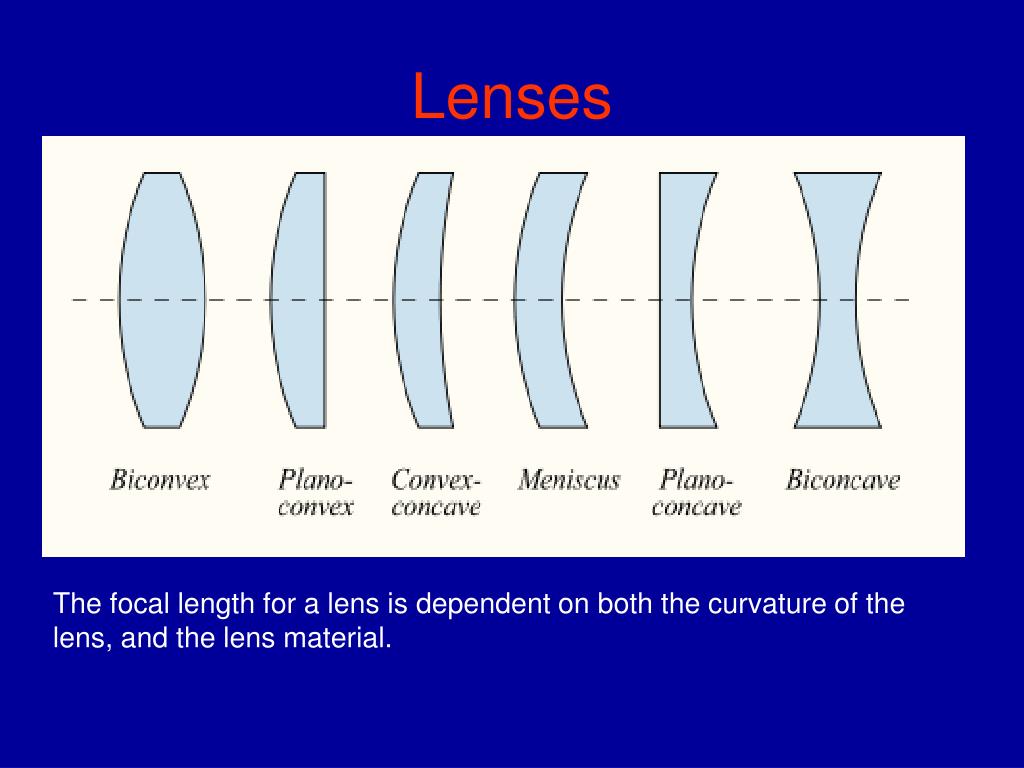

  6. Lenses The focal length for a lens is dependent on both the curvature of the lens, and the lens material.

  7. Convex Lens (Converging Lens) f All light rays parallel to the principal axis converge to the focal point after passing through the convex lens. • Image Properties • Image Type: Real or Virtual • Image Orientation: Inverted or Erect • Image Height (Size): Smaller, Larger, Same • Image Distance: Closer, Farther, Same • The image properties of a convex lens are the same as a concave mirror.

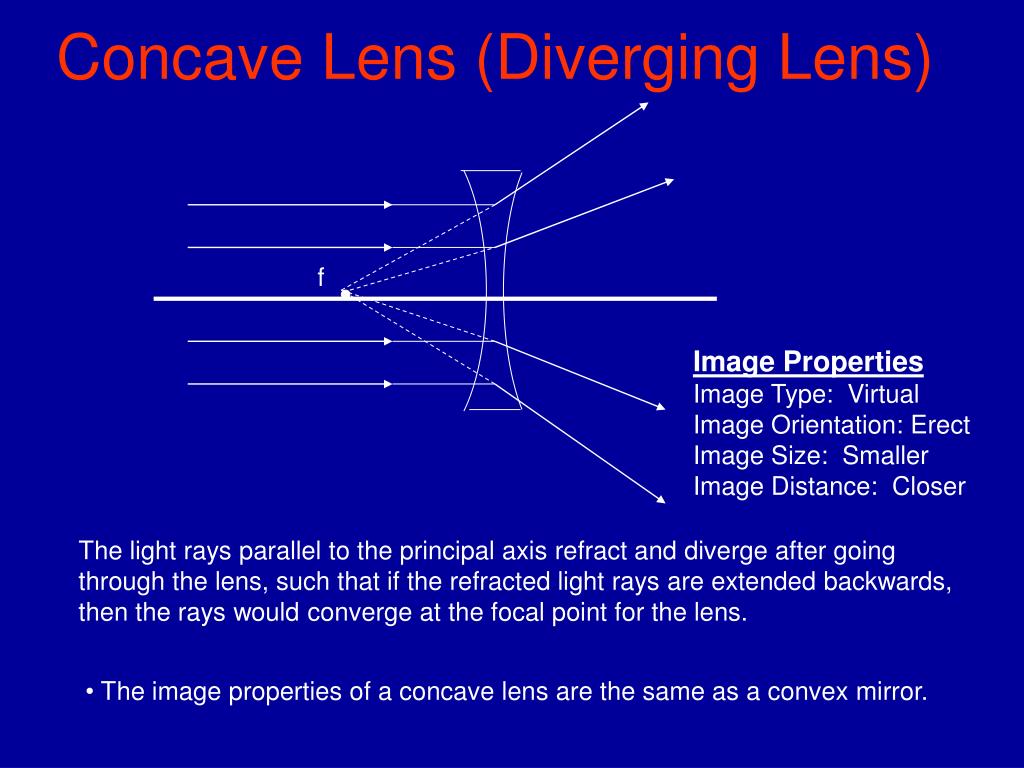

  8. Concave Lens (Diverging Lens) f Image Properties Image Type: Virtual Image Orientation: Erect Image Size: Smaller Image Distance: Closer The light rays parallel to the principal axis refract and diverge after going through the lens, such that if the refracted light rays are extended backwards, then the rays would converge at the focal point for the lens. • The image properties of a concave lens are the same as a convex mirror.

  9. Lens Ray Image Formation Rules • Parallel Ray – A light ray parallel to the principal axis is refracted towards the lens focus. 2. Focal Ray - A light ray passing through the focus refracts parallel to the principal axis. 3. Chief Ray – A light passing through the center of the lens continues traveling along its original path unaffected by the lens.

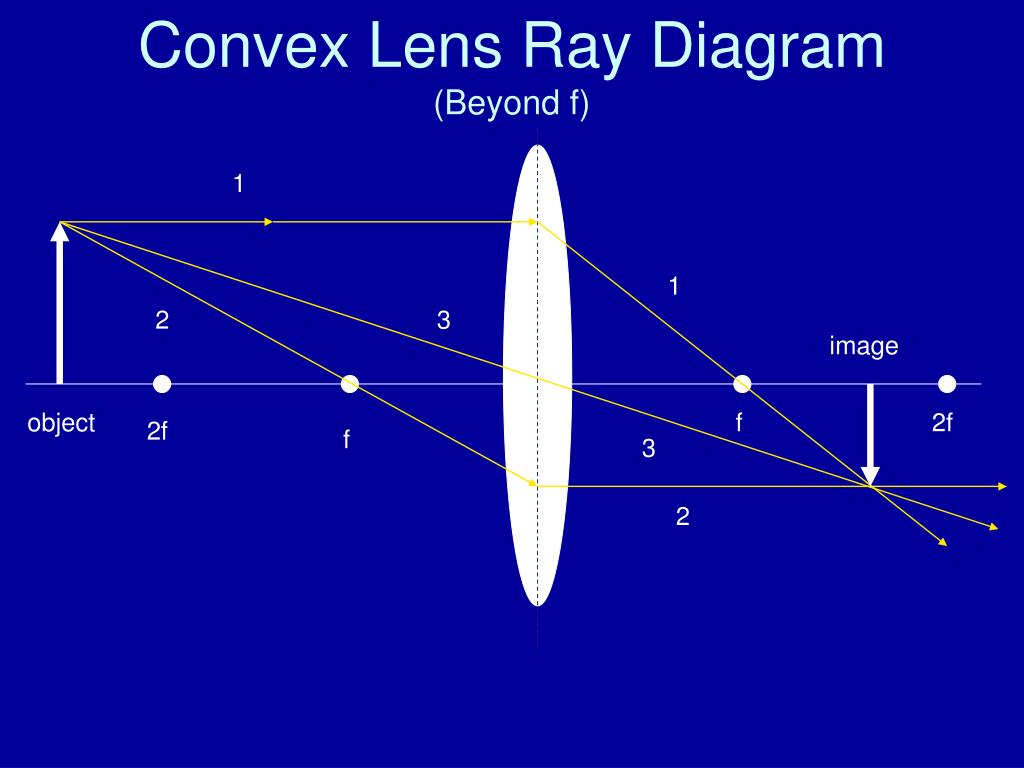

  10. Convex Lens Ray Diagram(Beyond f) 1 1 2 3 image object f 2f 2f f 3 2

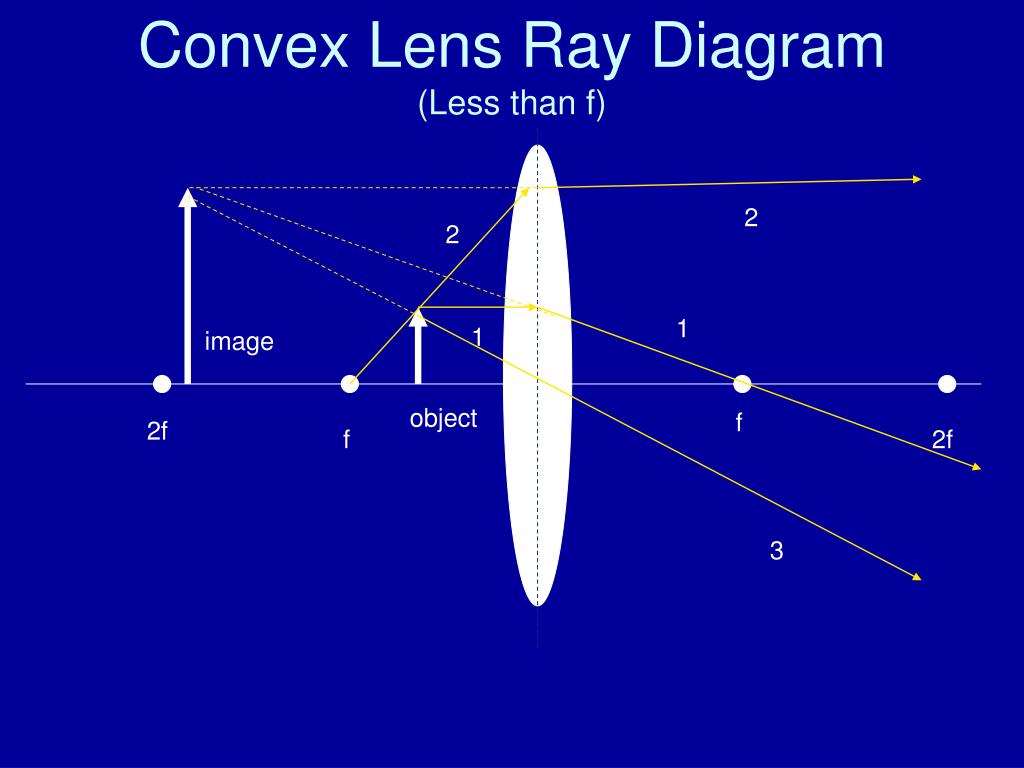

  11. Convex Lens Ray Diagram(Less than f) 2 2 1 1 image object f 2f f 2f 3

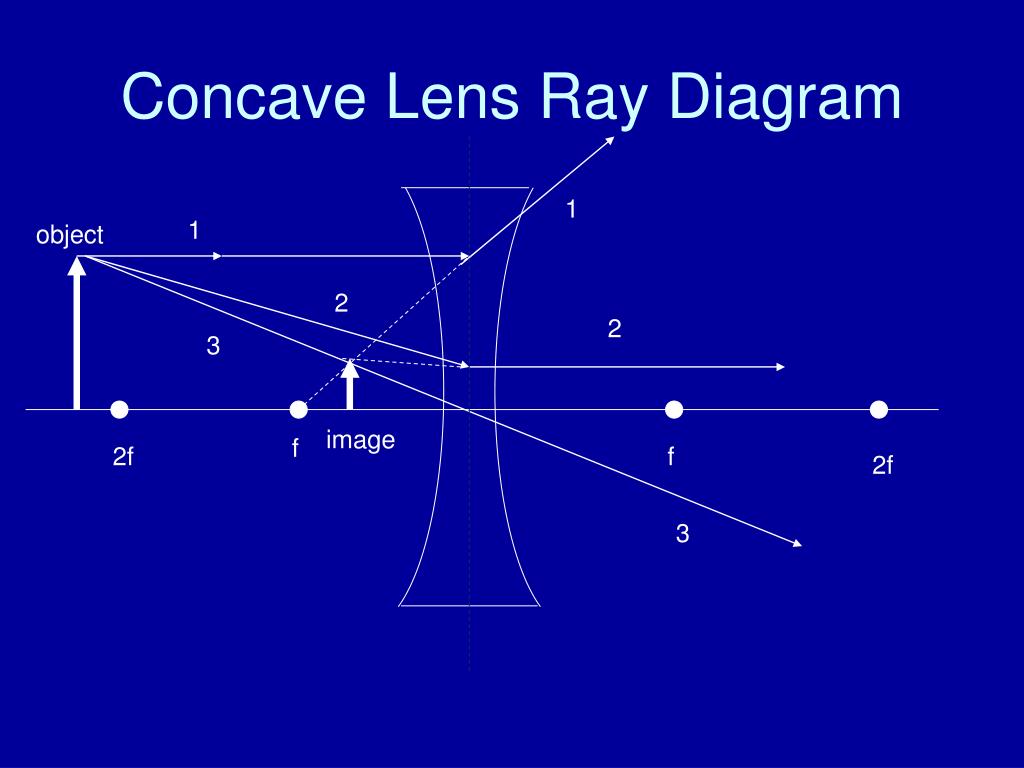

  12. Concave Lens Ray Diagram 1 1 object 2 2 3 image f 2f f 2f 3

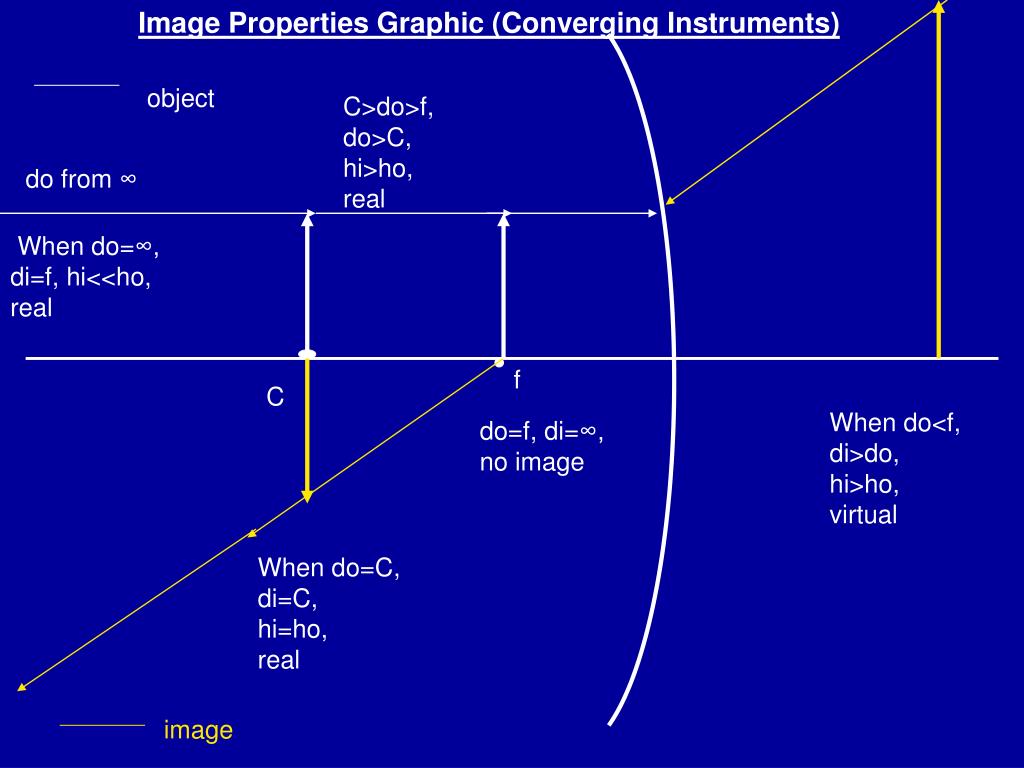

  13. Image Properties Graphic (Converging Instruments) object C>do>f, do>C, hi>ho, real do from ∞ When do=∞, di=f, hi<<ho, real f C When do<f, di>do, hi>ho, virtual do=f, di=∞, no image When do=C, di=C, hi=ho, real image

  14. Convex Mirror Image Formation do<∞, di<f, hi<ho, virtual image f C object do=∞, di=f, hi<<ho, virtual

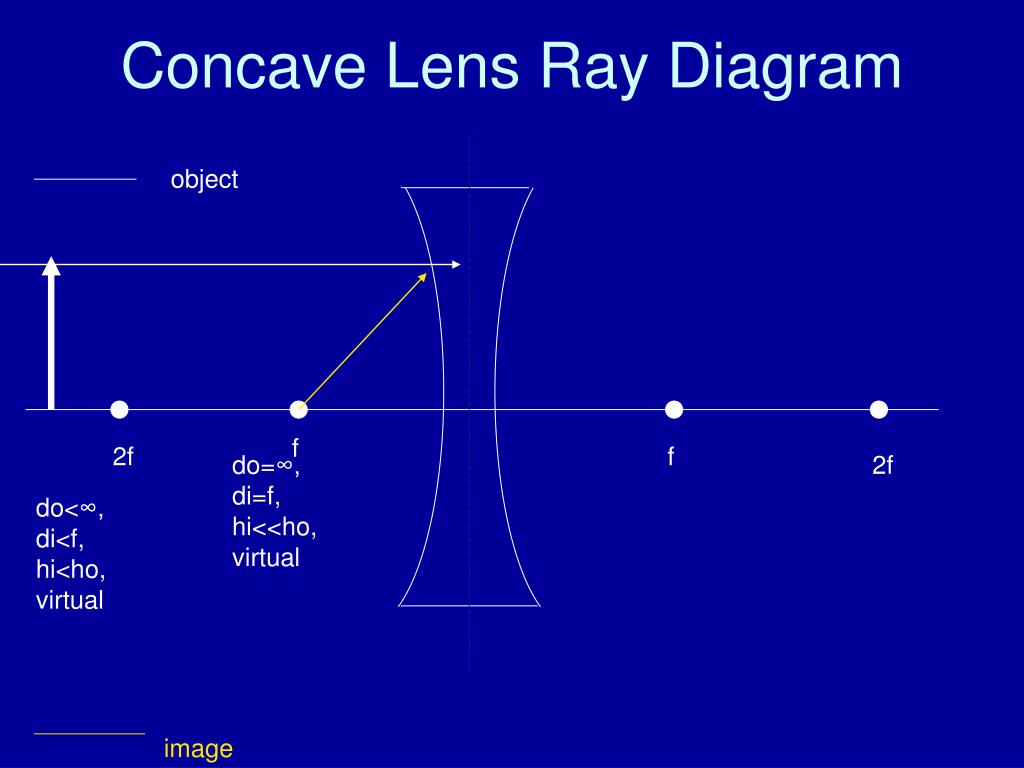

  15. Concave Lens Ray Diagram object f 2f f do=∞, di=f, hi<<ho, virtual 2f do<∞, di<f, hi<ho, virtual image
