  1. Extracting Metadata for Spatially-Aware Information Retrieval on the InternetClough, PaulUniversity of Sheffield, UK Presented By Mayank Singh

  2. Overview : • The importance of the experiment. • Introduction to SPIRIT and GATE. • Techniques employed – Geo Parsing and Geo Coding. • Pros • Cons • What it leads to.

  3. The importance of the experiment: • A novel system. • Geospatial information extraction from the Web documents. • Annotating the retrieved documents with the spatial data. • Using the annotated documents to power a working GIR system.

  4. How does it work (summary) Extracting geospatial references from document involves: • Identifying geographic references • Assigning them spatial co-ordinates • Factors influencing the above: speed, reliability, flexibility and multilingualism.

  5. Introduction to SPIRIT • Spatial Information Retrieval on the Internet • The main aim of the project is to create tools and techniques to help people find information that relates to specified geographical locations.

  6. 1TB crawl of about 9million web documents focused on UK, Germany, France and Switzerland. Support of Ontology of places. Relevance ranking of web documents catering to needs of: • Documents referring some place of interest • Digital geospatial resources

  7. GATE It’s a java suite for tasks related to Natural Language Processing and particularly useful and widely used in the area of Information Extraction. ANNIE (A nearly-new Information Extraction system) is the highlight of this experiment which is employed by SPIRIT.

  8. ANNIE • Tokenizer • Gazetter • Sentence splitter • Part-of-speech tagger • Named-Entity transducer

  9. Spatial Markup Sources of Spatial markup: • OS – Ordnance Survey (UK, point) • TGN – Getty Thesaurus of Geographical names (Global, point) • SABE – Seamless administrative boundaries of Europe (Europe, polygon)

  10. Geo-Parsing • Named-Entity Recognition – lists + rules • List lookup inefficient • First gazetter lookup then use of contextual evidence to realize this. • JAPE (Java Patterns Annotation Engine) – rules defined w.r.t terms of entities identified within GATE. • Rules are language independent (using Systran system)

  11. Hurdles faced • Filtering out commonly used words – specially which are used in a non-geographical sense. • Using person-name list to filter out ambiguity between places and names.

  12. Geo-Coding • Gazetter lookup to assign co-ordinates • Removing ambiguity in place names: by feature hierarchy and feature type provided by OS. • Actual grounding done by SABE and OS. • TGN used to resolve global ambiguity.

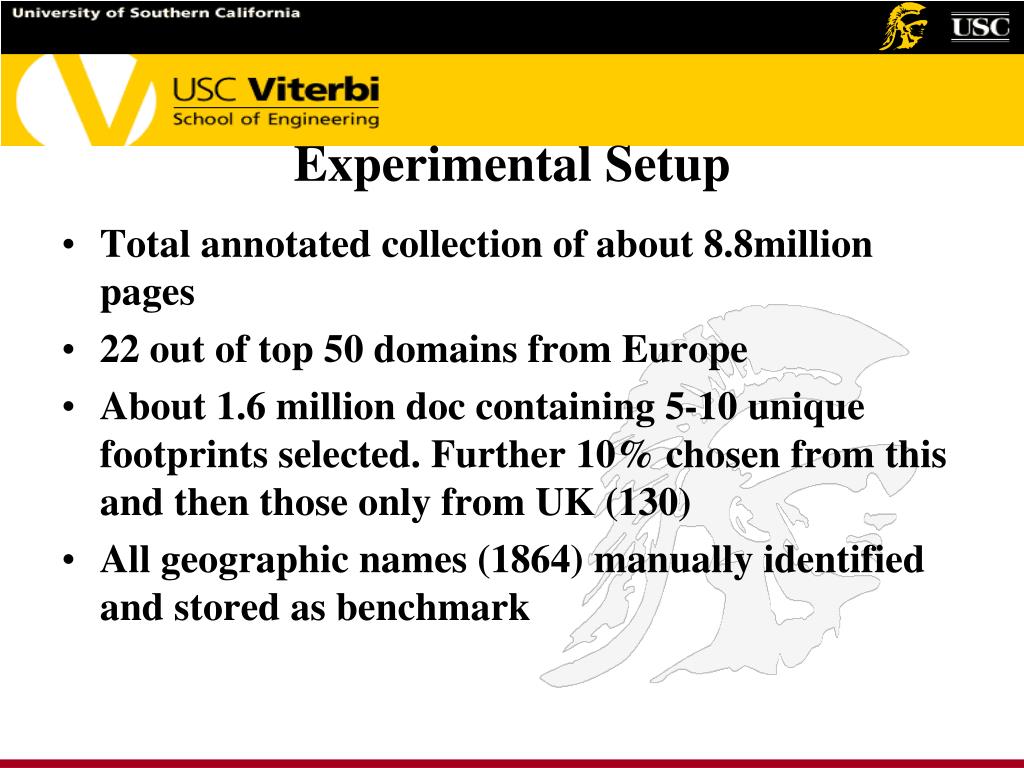

  13. Experimental Setup • Total annotated collection of about 8.8million pages • 22 out of top 50 domains from Europe • About 1.6 million doc containing 5-10 unique footprints selected. Further 10% chosen from this and then those only from UK (130) • All geographic names (1864) manually identified and stored as benchmark

  14. Geo-parsing Results SPIRIT + SABE + OS: • Correct – 1340 • Missing – 479 • False Hits – 596 • Precision – 0.6966 • Recall – 0.7820 • F1 – 0.7184

  15. Geo-Coding Results • TGN ineffective due to global scope – 1021 found, 68% ambiguous. • UK SABE good – 942 found, 11% ambiguous. • 1137 places assigned a UID correctly. That is not only correct geo sense but resource order too.

  16. Conclusions • Promising as success rate of 89% is there. • Geo-parsing can be improved by enhancing gazetter matching methods and filtering of non-geographic entries • Geo-coding can be improved by finding better methods for combining geog. resources.

  17. Pros • Novel system and high success rate. • Towards a geospatial search engine. • Spatial markup resources in abundance.

  18. Cons • Ambiguity (geographical) • Matching correct geographical sense. • Large overhead required to build such systems. • Inherent NLP problems.

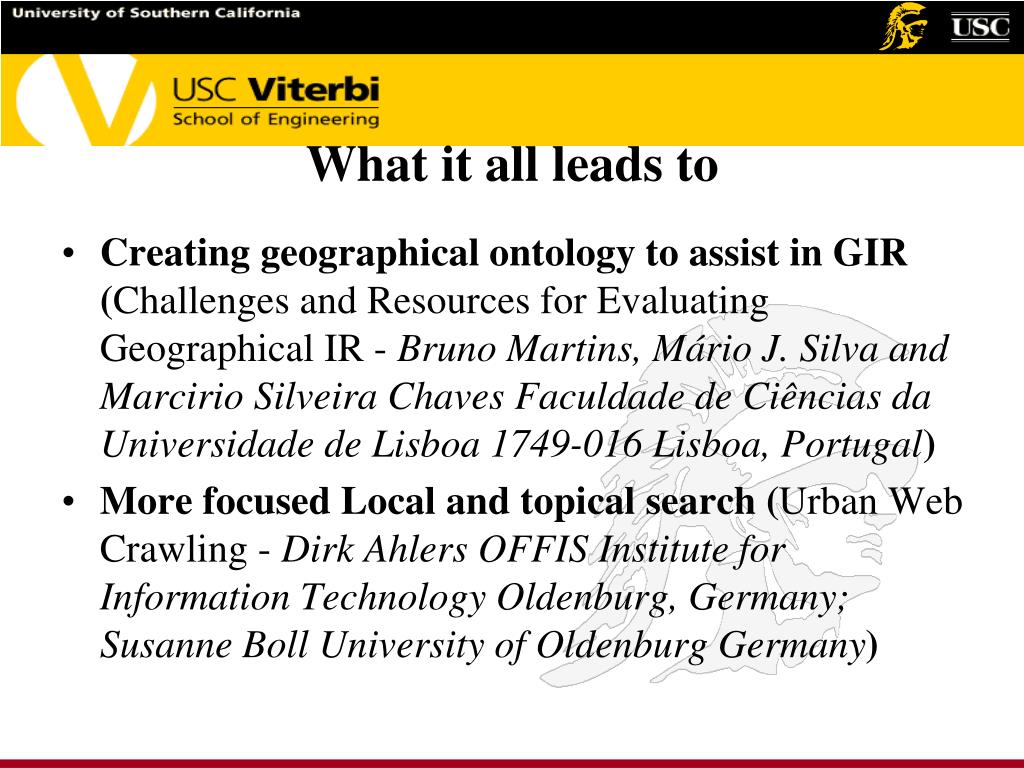

  19. What it all leads to • Creating geographical ontology to assist in GIR (Challenges and Resources for Evaluating Geographical IR - Bruno Martins, Mário J. Silva and Marcirio Silveira Chaves Faculdade de Ciências da Universidade de Lisboa 1749-016 Lisboa, Portugal) • More focused Local and topical search (Urban Web Crawling - Dirk Ahlers OFFIS Institute for Information Technology Oldenburg, Germany; Susanne Boll University of Oldenburg Germany)

  20. References • Extracting Metadata for Spatially-Aware Information Retrieval on the Internet - Clough, Paul • GATE - http://gate.ac.uk/overview.html • SPIRIT - http://www.geo-spirit.org/project_full.html • Challenges and Resources for Evaluating Geographical IR - Bruno Martins, Mário J. Silva and Marcirio Silveira Chaves Faculdade de Ciências da Universidade de Lisboa 1749-016 Lisboa, Portugal • Urban Web Crawling - Dirk Ahlers OFFIS Institute for Information Technology Oldenburg, Germany; Susanne Boll University of Oldenburg Germany
