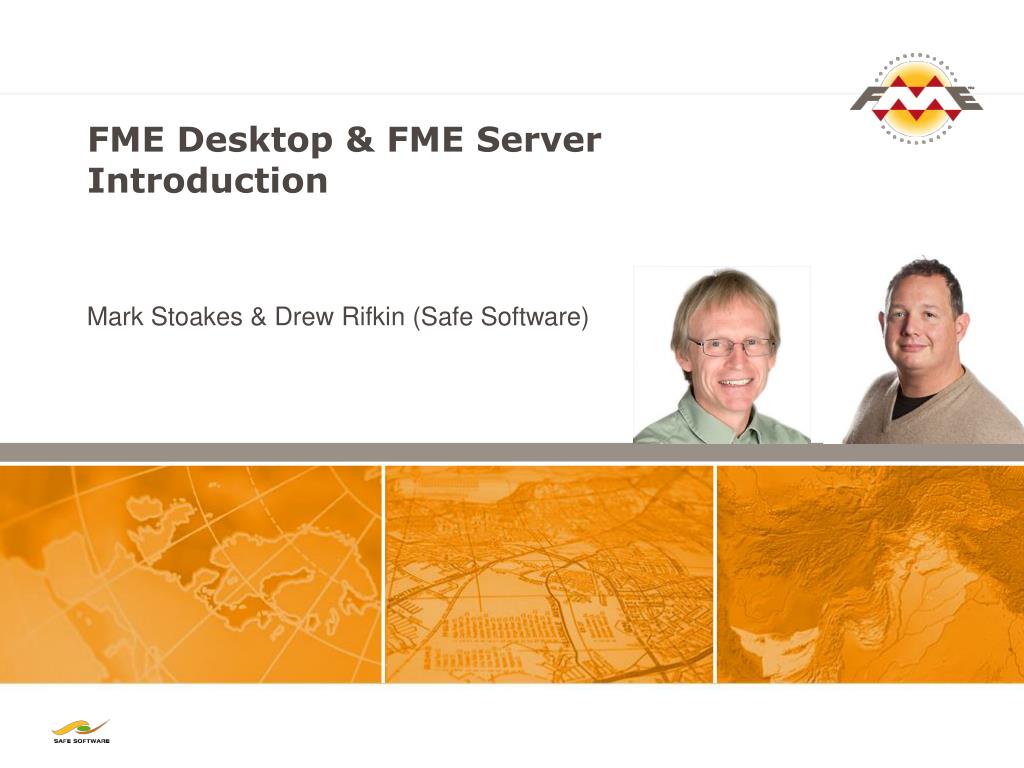

  1. FME Desktop & FME Server Introduction Mark Stoakes & Drew Rifkin (Safe Software)

  2. Agenda Safe Software Overview Overview of FME Desktop Asset Management Demo

  3. Safe Software Inc. HQ: Metro Vancouver 95+ exuberant employees Thousands of happy customers, certified professionals, trainers, system integrators, and value added resellers; all around the globe!

  4. Why Use FME • We want to help improve your productivity: • Simple GUI to build workflows • Workflows are easy to maintain over time • Many transformation tools to work with • Sharing workflows with others Productivity

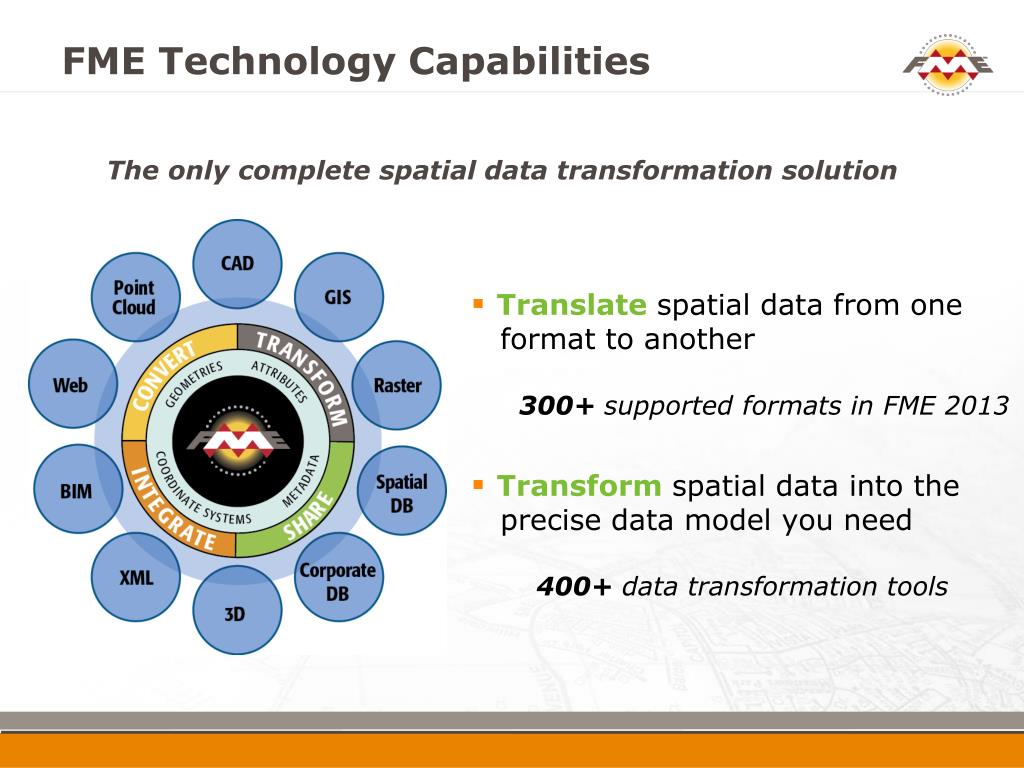

  5. FME Technology Capabilities • The only complete spatial data transformation solution • Translatespatial data from one format to another • 300+ supported formats in FME 2013 • Transformspatial data into the precise data model you need • 400+ data transformation tools

  6. Who we work with…

  7. FME Product Line

  8. Expanded Data Support Use and share data in more than +300 spatial and non-spatial formats

  9. FME Workbench A simple graphical authoring environment • Create repeatable workflows – FME Workspaces

  10. Types of Transformations Example: StringConcatenator Example: AttributeValueMapper Mapping domains or enumerated lists Commercial 10 Single Family 20 Multi Family 30 Industrial 40 Rural 50 Public Lands 60 Unzoned 99 Attribute Transformations

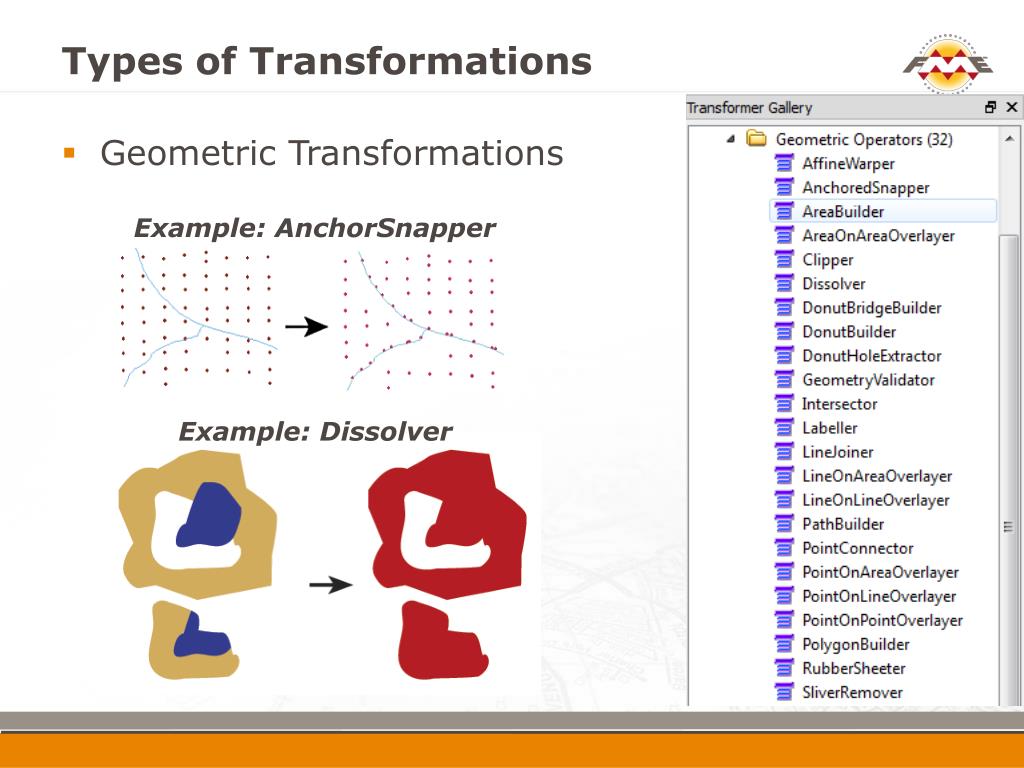

  11. Types of Transformations Example: AnchorSnapper Example: Dissolver Geometric Transformations

  12. CAD to GIS Data Translation Types of Transformations GIS to CAD Map to CAD Layers / Levels Preserve symbology Place text accurately CAD to GIS Map Layers to GIS Feature Classes Preserve attributes

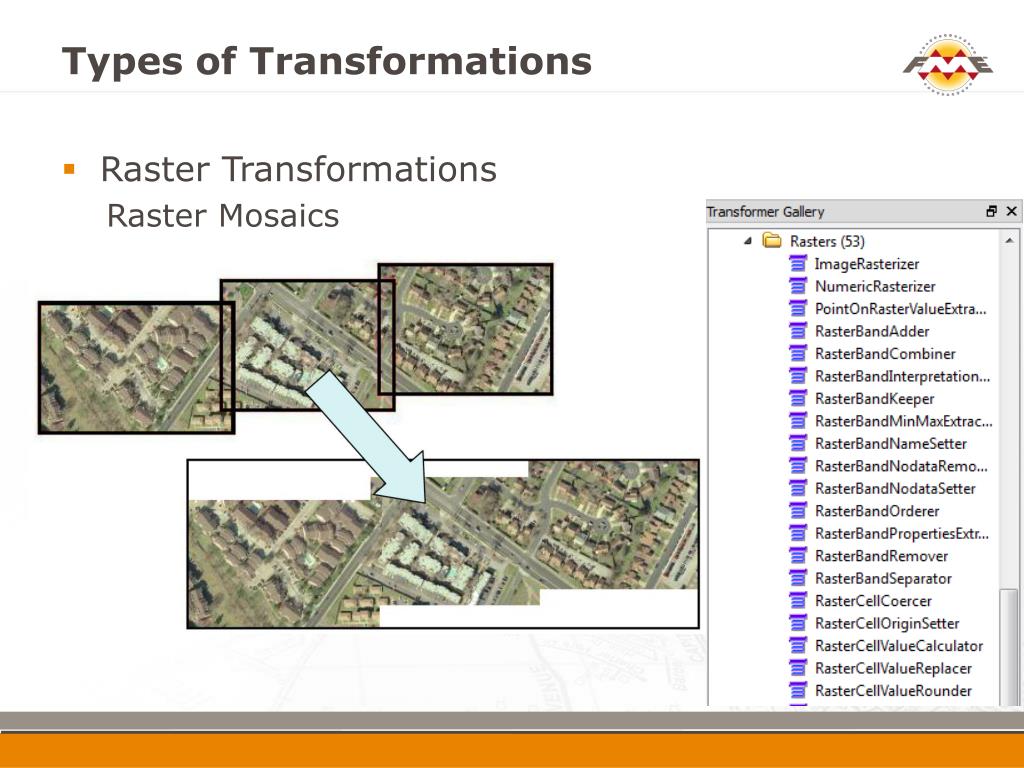

  13. Types of Transformations • Raster Transformations Raster Mosaics

  14. Types of Transformations Raster & Point Cloud (LiDAR) Merging

  15. Types of Transformations Example: ShortestPathFinder Other Transformations

  16. Types of Transformations • Data model transformation is the cornerstone to data interoperability • Restructure: • Feature Types • Attribute Names • Attribute Values • Domains or Enumerated lists • Geometry

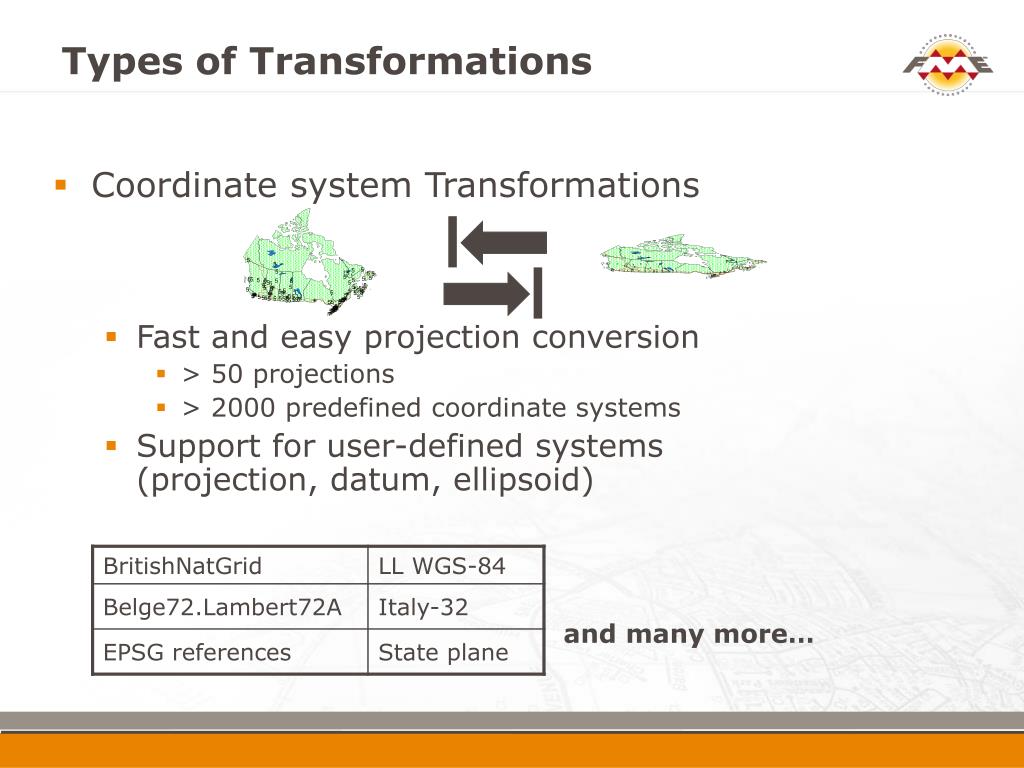

  17. Types of Transformations Coordinate system Transformations Fast and easy projection conversion > 50 projections > 2000 predefined coordinate systems Support for user-defined systems(projection, datum, ellipsoid) and many more…

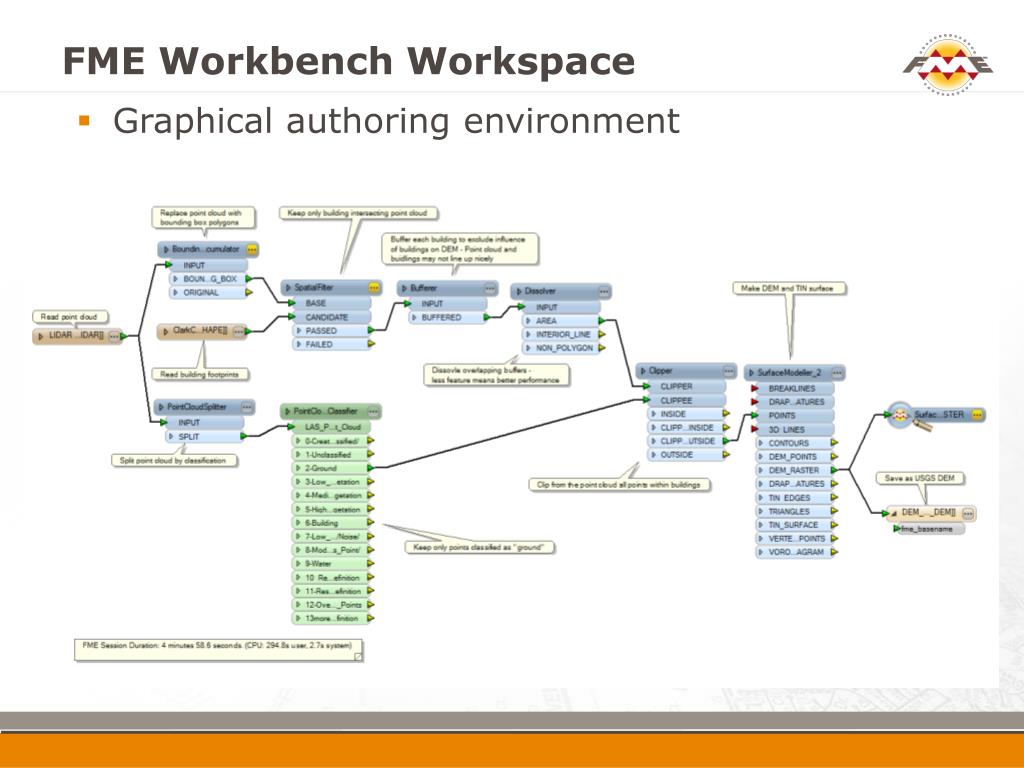

  18. FME Workbench Workspace • Graphical authoring environment

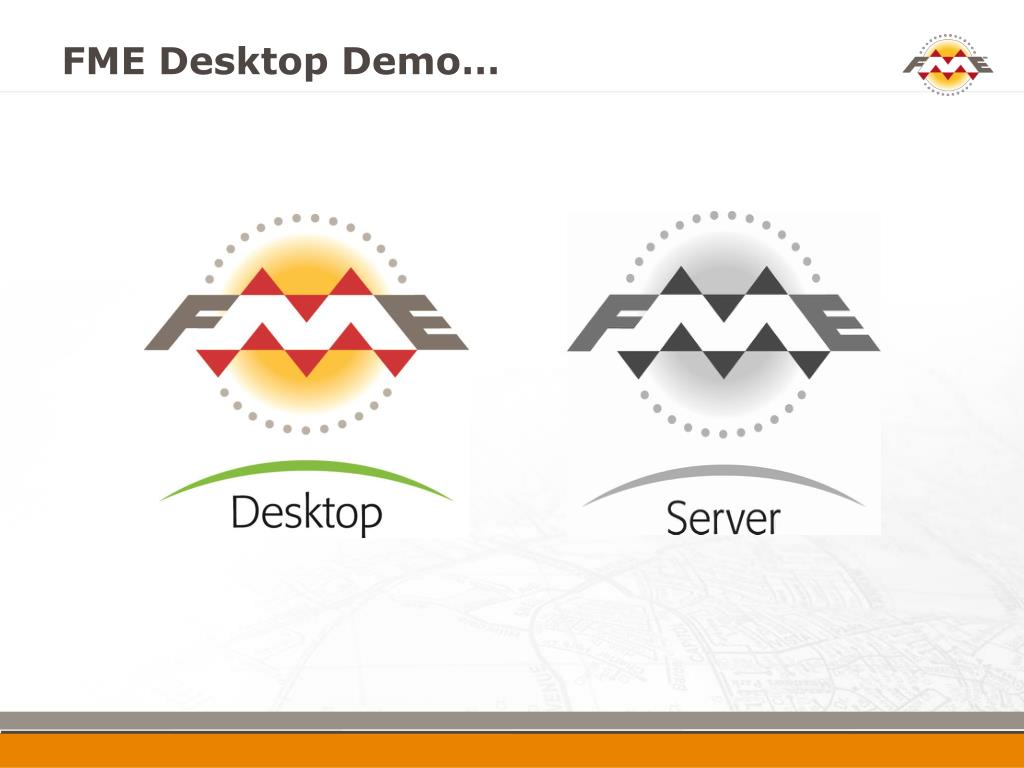

  19. FME Desktop Demo…

  20. Assigning Asset Mile Markers Workspace • Lighting Asset Survey • Load Excel contractor data into SQL Server Spatial • Convert DMS Lat/Long to point geometry (Decimal Degree) 82 59 26.098235061 -  82.9905828430725 41 30 43.068175401 +  41.5119633820558

  21. Assigning Asset Mile Markers Workspace • Source Data: • Road Network (LRS) • Asset Data (Points) • Output Data: • File Geodatabase • Asset Feature Classes • Unmatched Assets

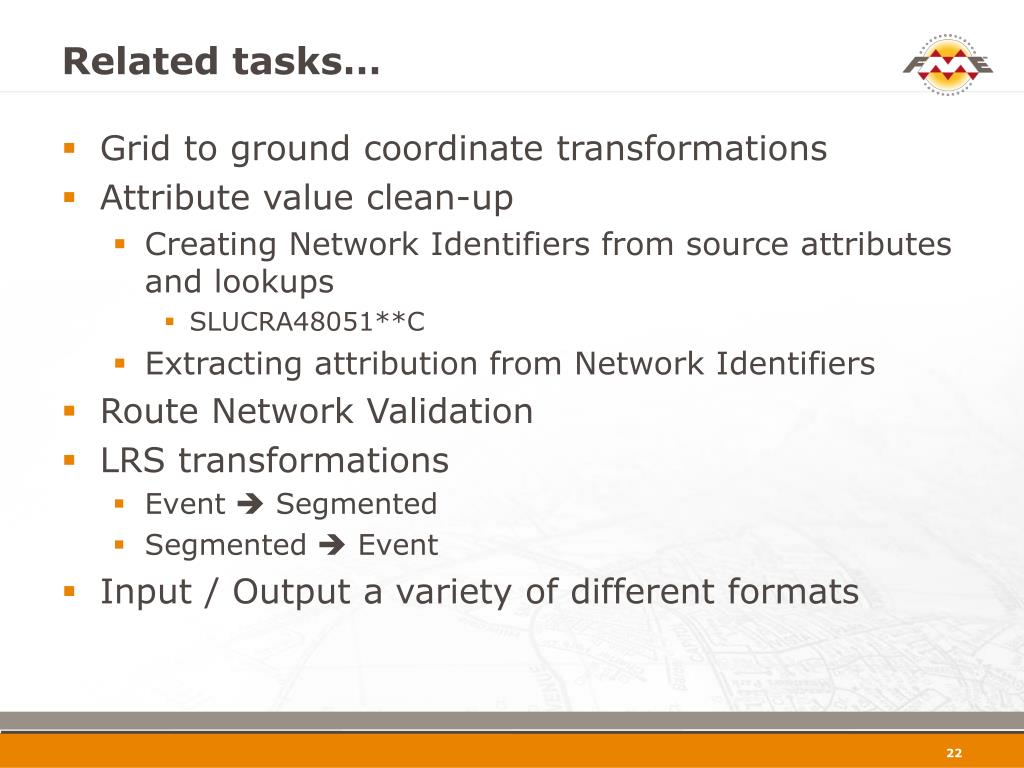

  22. Related tasks… • Grid to ground coordinate transformations • Attribute value clean-up • Creating Network Identifiers from source attributes and lookups • SLUCRA48051**C • Extracting attribution from Network Identifiers • Route Network Validation • LRS transformations • Event  Segmented • Segmented  Event • Input / Output a variety of different formats

  23. Giveaway: FME Training Course FREE • FME on-line Tutorials • http://www.safe.com/learning/training/on-demand/tutorials/ • FREE training seats up for grabs • FME Desktop Online Training for FMEhttp://www.safe.com/learning/training/ Promotion code: GSAM

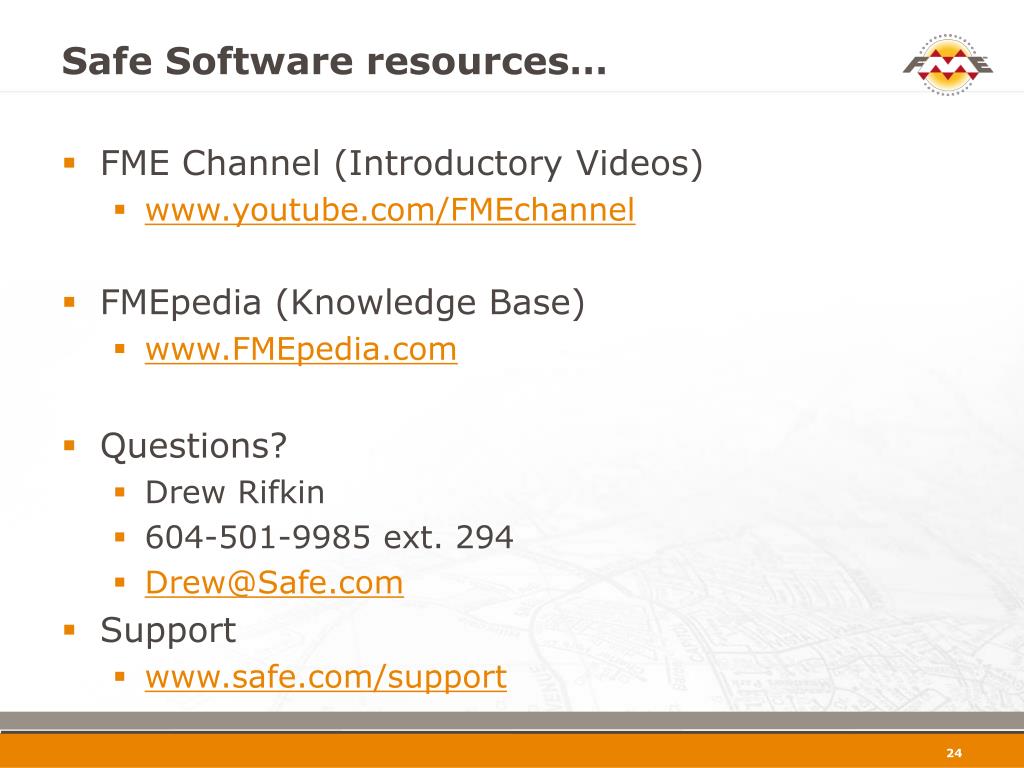

  24. Safe Software resources… • FME Channel (Introductory Videos) • www.youtube.com/FMEchannel • FMEpedia (Knowledge Base) • www.FMEpedia.com • Questions? • Drew Rifkin • 604-501-9985 ext. 294 • Drew@Safe.com • Support • www.safe.com/support
