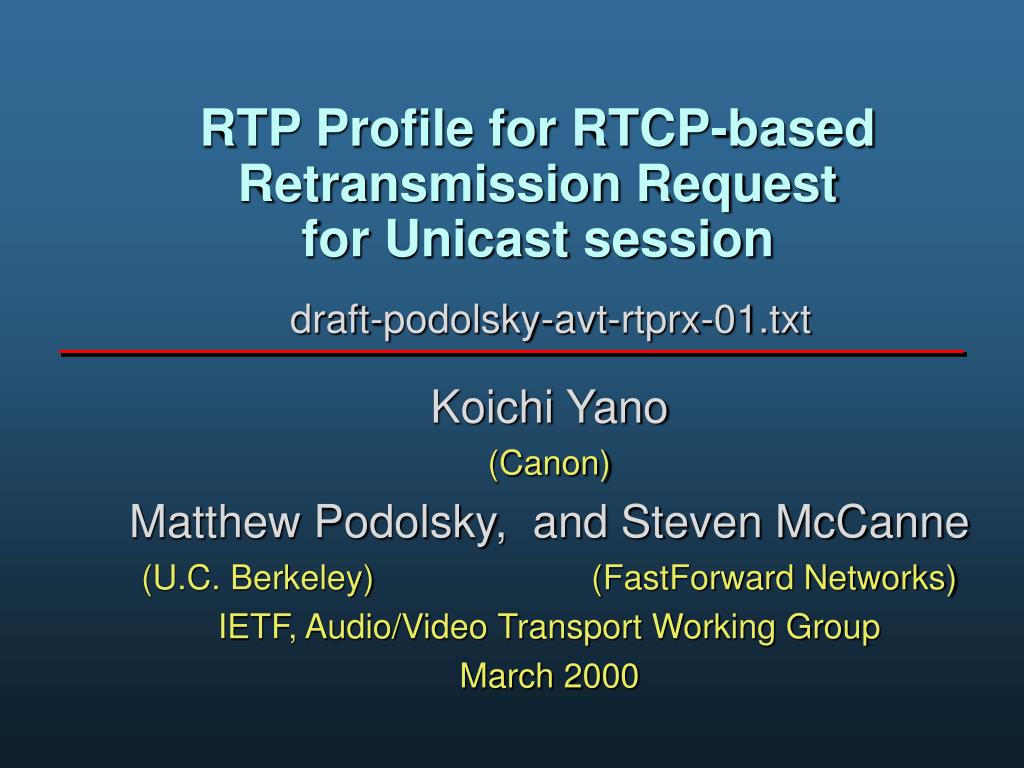

  1. RTP Profile for RTCP-based Retransmission Request for Unicast session draft-podolsky-avt-rtprx-01.txt Koichi Yano (Canon) Matthew Podolsky, and Steven McCanne (U.C. Berkeley) (FastForward Networks) IETF, Audio/Video Transport Working Group March 2000

  2. Outline • Changes from the former draft • A new profile • RTCP interval • NACK packet format • Issues for discussion

  3. Motivation • People are already doing retransmissions of unicast real-time streams (e.g. RealNetworks, MS) • No existing standard • Incompatible implementations • Standardizing retransmission format would allow: • Code re-use (open source) • Interoperability between clients and servers • Restricted for unicast streams • Simplicity & practical deployment • Incremental deployment • No change of RTP (payload) packet format

  4. Changes from the first draft • Pose as a new profile • Include SSRC in NACK • Simplified: only for NACK • The former draft defined Multi-purpose ACK • NACK is enough for most purposes • Exclude RX-proto type or a flag field • Simplicity • Ease of implementation

  5. A New Profile • Define a new profile, RTP/RX, which inherits all of AVP profile, except • RTCP interval • Allows for immediate NACK • New RTCP type for NACK • First sequence number and 16-bit bitmask • Include SSRC

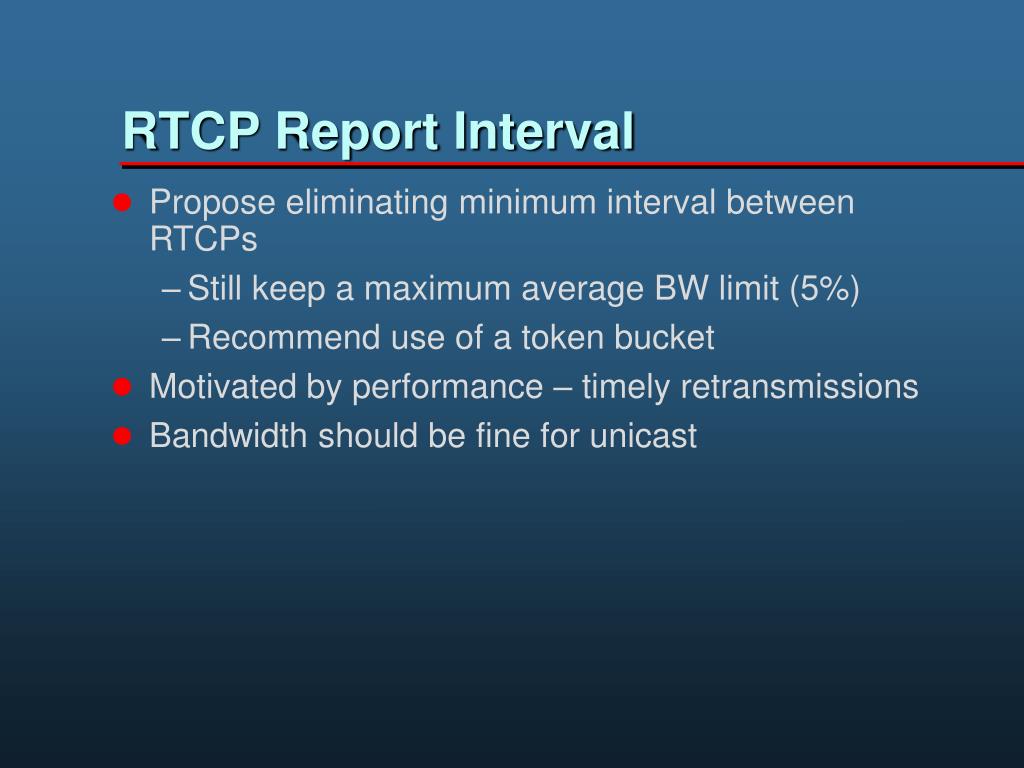

  6. RTCP Report Interval • Propose eliminating minimum interval between RTCPs • Still keep a maximum average BW limit (5%) • Recommend use of a token bucket • Motivated by performance – timely retransmissions • Bandwidth should be fine for unicast

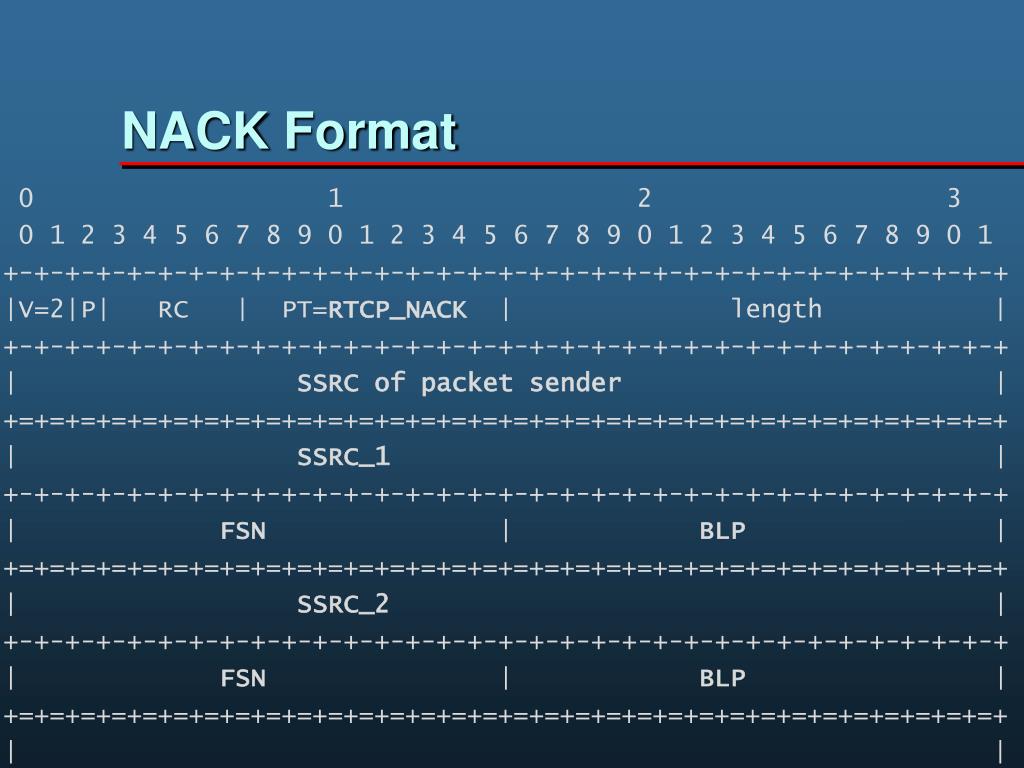

  7. NACK Format 0 1 2 3 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ |V=2|P| RC | PT=RTCP_NACK | length | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | SSRC of packet sender | +=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+ | SSRC_1 | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | FSN | BLP | +=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+ | SSRC_2 | +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+ | FSN | BLP | +=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+=+ | |

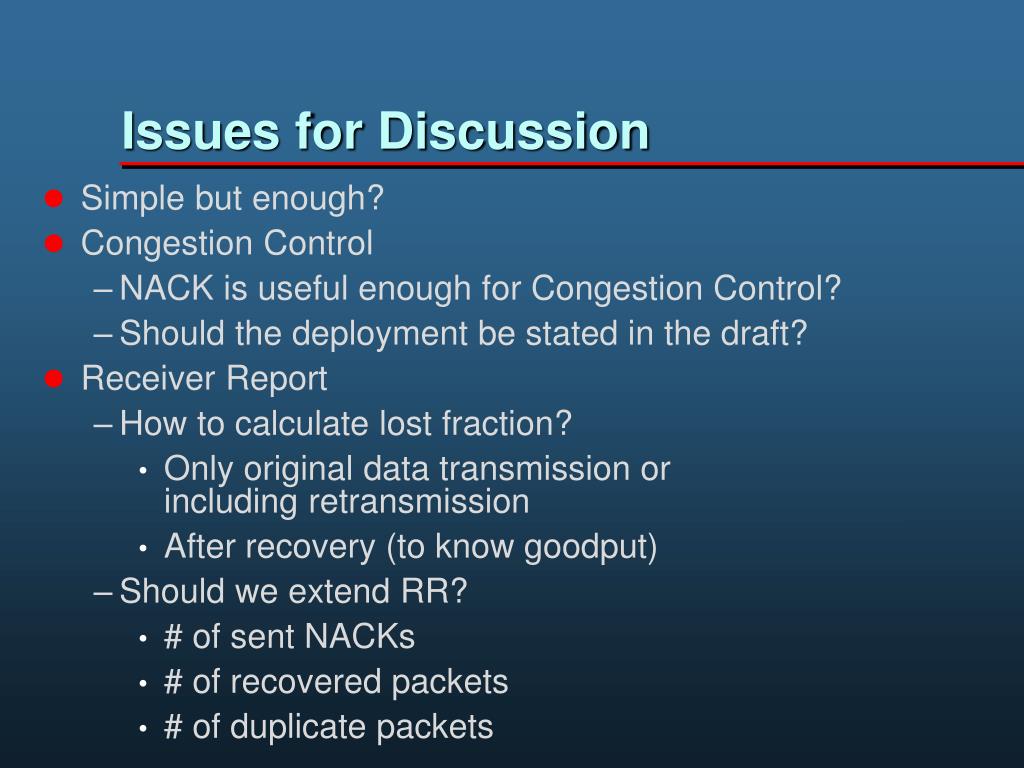

  8. Issues for Discussion • Simple but enough? • Congestion Control • NACK is useful enough for Congestion Control? • Should the deployment be stated in the draft? • Receiver Report • How to calculate lost fraction? • Only original data transmission or including retransmission • After recovery (to know goodput) • Should we extend RR? • # of sent NACKs • # of recovered packets • # of duplicate packets

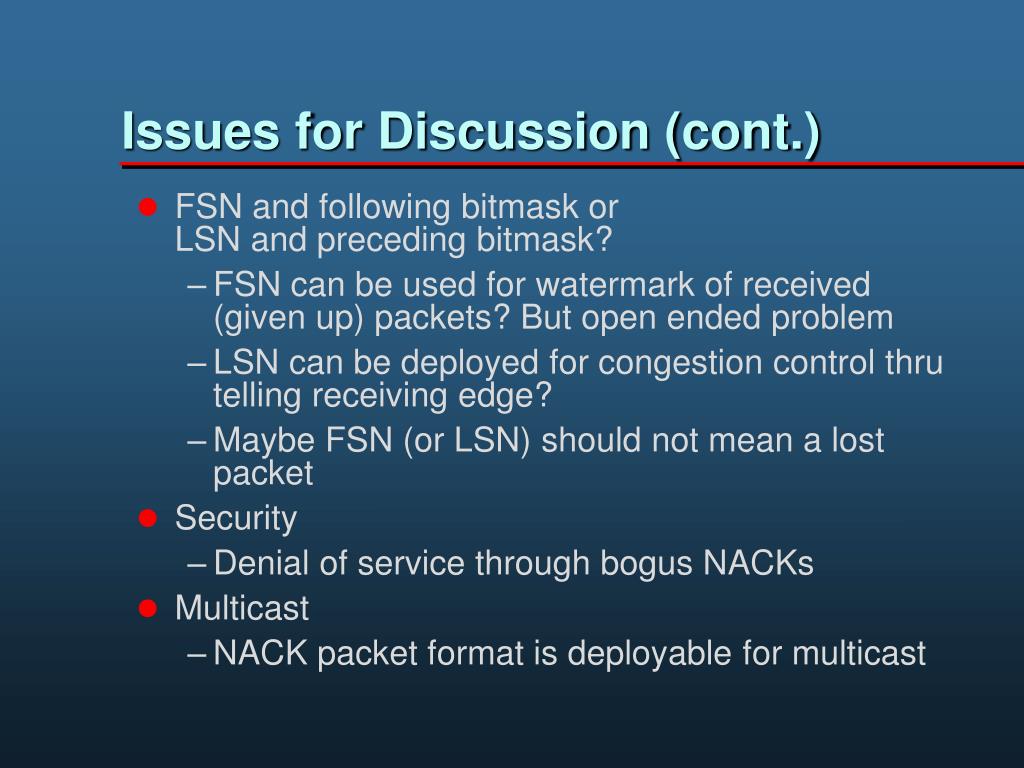

  9. Issues for Discussion (cont.) • FSN and following bitmask or LSN and preceding bitmask? • FSN can be used for watermark of received (given up) packets? But open ended problem • LSN can be deployed for congestion control thru telling receiving edge? • Maybe FSN (or LSN) should not mean a lost packet • Security • Denial of service through bogus NACKs • Multicast • NACK packet format is deployable for multicast

  10. Next Step • Is there consensus to adopt this as a task item? • More description relating to SDP, RSTP • More description of sender and receiver’s recommended behavior • Sender should send retransmission immediately after NACK reception • Receiver should measure average response time • Set timer after NACK • Resend NACK • Implementation
