DNA sequencing methods

1. DNA sequencing methods

2. Introduction Developing new methods and instruments that permit fast polynucleotide sequencing has attracted considerable attention recently. A device for rapid DNA decryption will allow quick identification of pathogens to save many lives during an epidemic or a bioterrorist attack. Moreover, doctors would be able to diagnose a disease, judge possible risks, and design a special treatment plan based on knowledge about which disease-related genes a patient carries. Although DNA sequencing has important medical applications, present methods in sequencing polynucleotides are slow, costly, and inaccurate. The prior sequencing method proposed by Fredrick Sanger is performed by replicating DNA under control to obtain fragments with various lengths such that the complete DNA sequence can be derived from these fragments using gel electrophoresis. However long fragments (> 500 nucleotides) cannot be sequenced at one go since the mobility of long fragments are independent of their length. An analogy of using the Sanger method to sequence human DNA is to cut a 1 meter long noodle into 10 million fragments and then put them back in the right order, which is a difficult task. Thus the human genome project cost 3 billion US dollars and took 13 years to complete the draft of human DNA.

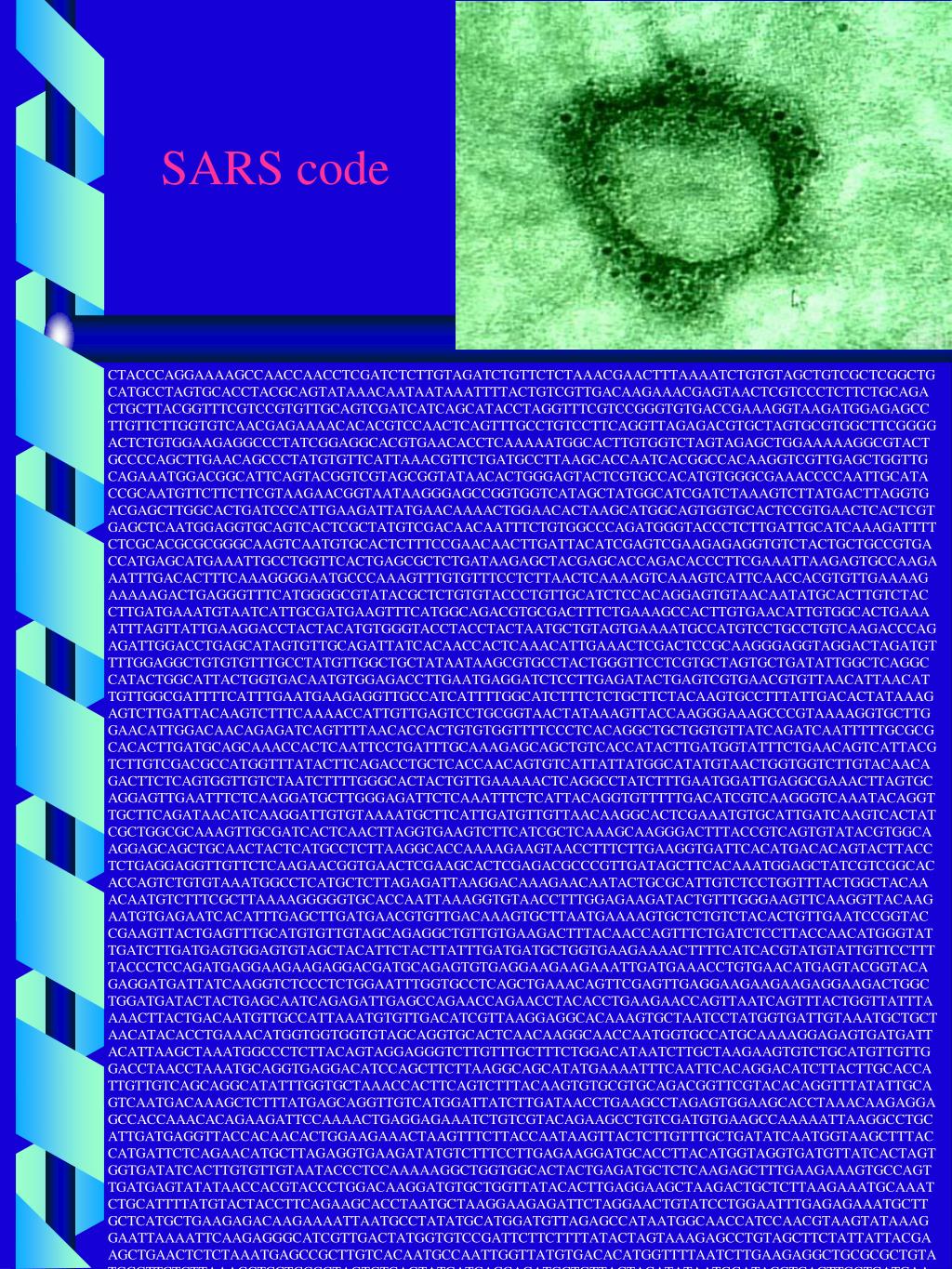

3. SARS code CTACCCAGGAAAAGCCAACCAACCTCGATCTCTTGTAGATCTGTTCTCTAAACGAACTTTAAAATCTGTGTAGCTGTCGCTCGGCTGCATGCCTAGTGCACCTACGCAGTATAAACAATAATAAATTTTACTGTCGTTGACAAGAAACGAGTAACTCGTCCCTCTTCTGCAGACTGCTTACGGTTTCGTCCGTGTTGCAGTCGATCATCAGCATACCTAGGTTTCGTCCGGGTGTGACCGAAAGGTAAGATGGAGAGCCTTGTTCTTGGTGTCAACGAGAAAACACACGTCCAACTCAGTTTGCCTGTCCTTCAGGTTAGAGACGTGCTAGTGCGTGGCTTCGGGGACTCTGTGGAAGAGGCCCTATCGGAGGCACGTGAACACCTCAAAAATGGCACTTGTGGTCTAGTAGAGCTGGAAAAAGGCGTACTGCCCCAGCTTGAACAGCCCTATGTGTTCATTAAACGTTCTGATGCCTTAAGCACCAATCACGGCCACAAGGTCGTTGAGCTGGTTGCAGAAATGGACGGCATTCAGTACGGTCGTAGCGGTATAACACTGGGAGTACTCGTGCCACATGTGGGCGAAACCCCAATTGCATACCGCAATGTTCTTCTTCGTAAGAACGGTAATAAGGGAGCCGGTGGTCATAGCTATGGCATCGATCTAAAGTCTTATGACTTAGGTGACGAGCTTGGCACTGATCCCATTGAAGATTATGAACAAAACTGGAACACTAAGCATGGCAGTGGTGCACTCCGTGAACTCACTCGTGAGCTCAATGGAGGTGCAGTCACTCGCTATGTCGACAACAATTTCTGTGGCCCAGATGGGTACCCTCTTGATTGCATCAAAGATTTTCTCGCACGCGCGGGCAAGTCAATGTGCACTCTTTCCGAACAACTTGATTACATCGAGTCGAAGAGAGGTGTCTACTGCTGCCGTGACCATGAGCATGAAATTGCCTGGTTCACTGAGCGCTCTGATAAGAGCTACGAGCACCAGACACCCTTCGAAATTAAGAGTGCCAAGAAATTTGACACTTTCAAAGGGGAATGCCCAAAGTTTGTGTTTCCTCTTAACTCAAAAGTCAAAGTCATTCAACCACGTGTTGAAAAGAAAAAGACTGAGGGTTTCATGGGGCGTATACGCTCTGTGTACCCTGTTGCATCTCCACAGGAGTGTAACAATATGCACTTGTCTACCTTGATGAAATGTAATCATTGCGATGAAGTTTCATGGCAGACGTGCGACTTTCTGAAAGCCACTTGTGAACATTGTGGCACTGAAAATTTAGTTATTGAAGGACCTACTACATGTGGGTACCTACCTACTAATGCTGTAGTGAAAATGCCATGTCCTGCCTGTCAAGACCCAGAGATTGGACCTGAGCATAGTGTTGCAGATTATCACAACCACTCAAACATTGAAACTCGACTCCGCAAGGGAGGTAGGACTAGATGTTTTGGAGGCTGTGTGTTTGCCTATGTTGGCTGCTATAATAAGCGTGCCTACTGGGTTCCTCGTGCTAGTGCTGATATTGGCTCAGGCCATACTGGCATTACTGGTGACAATGTGGAGACCTTGAATGAGGATCTCCTTGAGATACTGAGTCGTGAACGTGTTAACATTAACATTGTTGGCGATTTTCATTTGAATGAAGAGGTTGCCATCATTTTGGCATCTTTCTCTGCTTCTACAAGTGCCTTTATTGACACTATAAAGAGTCTTGATTACAAGTCTTTCAAAACCATTGTTGAGTCCTGCGGTAACTATAAAGTTACCAAGGGAAAGCCCGTAAAAGGTGCTTGGAACATTGGACAACAGAGATCAGTTTTAACACCACTGTGTGGTTTTCCCTCACAGGCTGCTGGTGTTATCAGATCAATTTTTGCGCGCACACTTGATGCAGCAAACCACTCAATTCCTGATTTGCAAAGAGCAGCTGTCACCATACTTGATGGTATTTCTGAACAGTCATTACGTCTTGTCGACGCCATGGTTTATACTTCAGACCTGCTCACCAACAGTGTCATTATTATGGCATATGTAACTGGTGGTCTTGTACAACAGACTTCTCAGTGGTTGTCTAATCTTTTGGGCACTACTGTTGAAAAACTCAGGCCTATCTTTGAATGGATTGAGGCGAAACTTAGTGCAGGAGTTGAATTTCTCAAGGATGCTTGGGAGATTCTCAAATTTCTCATTACAGGTGTTTTTGACATCGTCAAGGGTCAAATACAGGTTGCTTCAGATAACATCAAGGATTGTGTAAAATGCTTCATTGATGTTGTTAACAAGGCACTCGAAATGTGCATTGATCAAGTCACTATCGCTGGCGCAAAGTTGCGATCACTCAACTTAGGTGAAGTCTTCATCGCTCAAAGCAAGGGACTTTACCGTCAGTGTATACGTGGCAAGGAGCAGCTGCAACTACTCATGCCTCTTAAGGCACCAAAAGAAGTAACCTTTCTTGAAGGTGATTCACATGACACAGTACTTACCTCTGAGGAGGTTGTTCTCAAGAACGGTGAACTCGAAGCACTCGAGACGCCCGTTGATAGCTTCACAAATGGAGCTATCGTCGGCACACCAGTCTGTGTAAATGGCCTCATGCTCTTAGAGATTAAGGACAAAGAACAATACTGCGCATTGTCTCCTGGTTTACTGGCTACAAACAATGTCTTTCGCTTAAAAGGGGGTGCACCAATTAAAGGTGTAACCTTTGGAGAAGATACTGTTTGGGAAGTTCAAGGTTACAAGAATGTGAGAATCACATTTGAGCTTGATGAACGTGTTGACAAAGTGCTTAATGAAAAGTGCTCTGTCTACACTGTTGAATCCGGTACCGAAGTTACTGAGTTTGCATGTGTTGTAGCAGAGGCTGTTGTGAAGACTTTACAACCAGTTTCTGATCTCCTTACCAACATGGGTATTGATCTTGATGAGTGGAGTGTAGCTACATTCTACTTATTTGATGATGCTGGTGAAGAAAACTTTTCATCACGTATGTATTGTTCCTTTTACCCTCCAGATGAGGAAGAAGAGGACGATGCAGAGTGTGAGGAAGAAGAAATTGATGAAACCTGTGAACATGAGTACGGTACAGAGGATGATTATCAAGGTCTCCCTCTGGAATTTGGTGCCTCAGCTGAAACAGTTCGAGTTGAGGAAGAAGAAGAGGAAGACTGGCTGGATGATACTACTGAGCAATCAGAGATTGAGCCAGAACCAGAACCTACACCTGAAGAACCAGTTAATCAGTTTACTGGTTATTTAAAACTTACTGACAATGTTGCCATTAAATGTGTTGACATCGTTAAGGAGGCACAAAGTGCTAATCCTATGGTGATTGTAAATGCTGCTAACATACACCTGAAACATGGTGGTGGTGTAGCAGGTGCACTCAACAAGGCAACCAATGGTGCCATGCAAAAGGAGAGTGATGATTACATTAAGCTAAATGGCCCTCTTACAGTAGGAGGGTCTTGTTTGCTTTCTGGACATAATCTTGCTAAGAAGTGTCTGCATGTTGTTGGACCTAACCTAAATGCAGGTGAGGACATCCAGCTTCTTAAGGCAGCATATGAAAATTTCAATTCACAGGACATCTTACTTGCACCATTGTTGTCAGCAGGCATATTTGGTGCTAAACCACTTCAGTCTTTACAAGTGTGCGTGCAGACGGTTCGTACACAGGTTTATATTGCAGTCAATGACAAAGCTCTTTATGAGCAGGTTGTCATGGATTATCTTGATAACCTGAAGCCTAGAGTGGAAGCACCTAAACAAGAGGAGCCACCAAACACAGAAGATTCCAAAACTGAGGAGAAATCTGTCGTACAGAAGCCTGTCGATGTGAAGCCAAAAATTAAGGCCTGCATTGATGAGGTTACCACAACACTGGAAGAAACTAAGTTTCTTACCAATAAGTTACTCTTGTTTGCTGATATCAATGGTAAGCTTTACCATGATTCTCAGAACATGCTTAGAGGTGAAGATATGTCTTTCCTTGAGAAGGATGCACCTTACATGGTAGGTGATGTTATCACTAGTGGTGATATCACTTGTGTTGTAATACCCTCCAAAAAGGCTGGTGGCACTACTGAGATGCTCTCAAGAGCTTTGAAGAAAGTGCCAGTTGATGAGTATATAACCACGTACCCTGGACAAGGATGTGCTGGTTATACACTTGAGGAAGCTAAGACTGCTCTTAAGAAATGCAAATCTGCATTTTATGTACTACCTTCAGAAGCACCTAATGCTAAGGAAGAGATTCTAGGAACTGTATCCTGGAATTTGAGAGAAATGCTTGCTCATGCTGAAGAGACAAGAAAATTAATGCCTATATGCATGGATGTTAGAGCCATAATGGCAACCATCCAACGTAAGTATAAAGGAATTAAAATTCAAGAGGGCATCGTTGACTATGGTGTCCGATTCTTCTTTTATACTAGTAAAGAGCCTGTAGCTTCTATTATTACGAAGCTGAACTCTCTAAATGAGCCGCTTGTCACAATGCCAATTGGTTATGTGACACATGGTTTTAATCTTGAAGAGGCTGCGCGCTGTATGCGTTCTCTTAAAGCTCCTGCCGTAGTGTCAGTATCATCACCAGATGCTGTTACTACATATAATGGATACCTCACTTCGTCATCAAAGACATCTGAGGAGCACTTTGTAGAAACAGTTTCTTTGGCTGGCTCTTACAGAGATTGGTCCTATTCAGGACAGCGTACAGAGTTAGGTGTTGAATTTCTTAAGCGTGGTGACAAAATTGTGTACCACACTCTGGAGAGCCCCGTCGAGTTTCATCTTGACGGTGAGGTTCTTTCACTTGACAAACTAAAGAGTCTCTTATCCCTGCGGGAGGTTAAGACTATAAAAGTGTTCACAACTGTGGACAACACTAATCTCCACACACAGCTTGTGGATATGTCTATGACATATGGACAGCAGTTTGGTCCAACATACTTGGATGGTGCTGATGTTACAAAAATTAAACCTCATGTAAATCATGAGGGTAAGACTTTCTTTGTACTACCTAGTGATGACACACTACGTAGTGAAGCTTTCGAGTACTACCATACTCTTGATGAGAGTTTTCTTGGTAGGTACATGTCTGCTTTAAACCACACAAAGAAATGGAAATTTCCTCAAGTTGGTGGTTTAACTTCAATTAAATGGGCTGATAACAATTGTTATTTGTCTAGTGTTTTATTAGCACTTCAACAGCTTGAAGTCAAATTCAATGCACCAGCACTTCAAGAGGCTTATTATAGAGCCCGTGCTGGTGATGCTGCTAACTTTTGTGCACTCATACTCGCTTACAGTAATAAAACTGTTGGCGAGCTTGGTGATGTCAGAGAAACTATGACCCATCTTCTACAGCATGCTAATTTGGAATCTGCAAAGCGAGTTCTTAATGTGGTGTGTAAACATTGTGGTCAGAAAACTACTACCTTAACGGGTGTAGAAGCTGTGATGTATATGGGTACTCTATCTTATGATAATCTTAAGACAGGTGTTTCCATTCCATGTGTGTGTGGTCGTGATGCTACACAATATCTAGTACAACAAGAGTCTTCTTTTGTTATGATGTCTGCACCACCTGCTGAGTATAAATTACAGCAAGGTACATTCTTATGTGCGAATGAGTACACTGGTAACTATCAGTGTGGTCATTACACTCATATAACTGCTAAGGAGACCCTCTATCGTATTGACGGAGCTCACCTTACAAAGATGTCAGAGTACAAAGGACCAGTGACTGATGTTTTCTACAAGGAAACATCTTACACTACAACCATCAAGCCTGTGTCGTATAAACTCGATGGAGTTACTTACACAGAGATTGAACCAAAATTGGATGGGTATTATAAAAAGGATAATGCTTACTATACAGAGCAGCCTATAGACCTTGTACCAACTCAACCATTACCAAATGCGAGTTTTGATAATTTCAAACTCACATGTTCTAACACAAAATTTGCTGATGATTTAAATCAAATGACAGGCTTCACAAAGCCAGCTTCACGAGAGCTATCTGTCACATTCTTCCCAGACTTGAATGGCGATGTAGTGGCTATTGACTATAGACACTATTCAGCGAGTTTCAAGAAAGGTGCTAAATTACTGCATAAGCCAATTGTTTGGCACATTAACCAGGCTACAACCAAGACAACGTTCAAACCAAACACTTGGTGTTTACGTTGTCTTTGGAGTACAAAGCCAGTAGATACTTCAAATTCATTTGAAGTTCTGGCAGTAGAAGACACACAAGGAATGGACAATCTTGCTTGTGAAAGTCAACAACCCACCTCTGAAGAAGTAGTGGAAAATCCTACCATACAGAAGGAAGTCATAGAGTGTGACGTGAAAACTACCGAAGTTGTAGGCAATGTCATACTTAAACCATCAGATGAAGGTGTTAAAGTAACACAAGAGTTAGGTCATGAGGATCTTATGGCTGCTTATGTGGAAAACACAAGCATTACCATTAAGAAACCTAATGAGCTTTCACTAGCCTTAGGTTTAAAAACAATTGCCACTCATGGTATTGCTGCAATTAATAGTGTTCCTTGGAGTAAAATTTTGGCTTATGTCAAACCATTCTTAGGACAAGCAGCAATTACAACATCAAATTGCGCTAAGAGATTAGCACAACGTGTGTTTAACAATTATATGCCTTATGTGTTTACATTATTGTTCCAATTGTGTACTTTTACTAAAAGTACCAATTCTAGAATTAGAGCTTCACTACCTACAACTATTGCTAAAAATAGTGTTAAGAGTGTTGCTAAATTATGTTTGGATGCCGGCATTAATTATGTGAAGTCACCCAAATTTTCTAAATTGTTCACAATCGCTATGTGGCTATTGTTGTTAAGTATTTGCTTAGGTTCTCTAATCTGTGTAACTGCTGCTTTTGGTGTACTCTTATCTAATTTTGGTGCTCCTTCTTATTGTAATGGCGTTAGAGAATTGTATCTTAATTCGTCTAACGTTACTACTATGGATTTCTGTGAAGGTTCTTTTCCTTGCAGCATTTGTTTAAGTGGATTAGACTCCCTTGATTCTTATCCAGCTCTTGAAACCATTCAGGTGACGATTTCATCGTACAAGCTAGACTTGACAATTTTAGGTCTGGCCGCTGAGTGGGTTTTGGCATATATGTTGTTCACAAAATTCTTTTATTTATTAGGTCTTTCAGCTATAATGCAGGTGTTCTTTGGCTATTTTGCTAGTCATTTCATCAGCAATTCTTGGCTCATGTGGTTTATCATTAGTATTGTACAAATGGCACCCGTTTCTGCAATGGTTAGGATGTACATCTTCTTTGCTTCTTTCTACTACATATGGAAGAGCTATGTTCATATCATGGATGGTTGCACCTCTTCGACTTGCATGATGTGCTATAAGCGCAATCGTGCCACACGCGTTGAGTGTACAACTATTGTTAATGGCATGAAGAGATCTTTCTATGTCTATGCAAATGGAGGCCGTGGCTTCTGCAAGACTCACAATTGGAATTGTCTCAATTGTGACACATTTTGCACTGGTAGTACATTCATTAGTGATGAAGTTGCTCGTGATTTGTCACTCCAGTTTAAAAGACCAATCAACCCTACTGACCAGTCATCGTATATTGTTGATAGTGTTGCTGTGAAAAATGGCGCGCTTCACCTCTACTTTGACAAGGCTGGTCAAAAGACCTATGAGAGACATCCGCTCTCCCATTTTGTCAATTTAGACAATTTGAGAGCTAACAACACTAAAGGTTCACTGCCTATTAATGTCATAGTTTTTGATGGCAAGTCCAAATGCGACGAGTCTGCTTCTAAGTCTGCTTCTGTGTACTACAGTCAGCTGATGTGCCAACCTATTCTGTTGCTTGACCAAGCTCTTGTATCAGACGTTGGAGATAGTACTGAAGTTTCCGTTAAGATGTTTGATGCTTATGTCGACACCTTTTCAGCAACTTTTAGTGTTCCTATGGAAAAACTTAAGGCACTTGTTGCTACAGCTCACAGCGAGTTAGCAAAGGGTGTAGCTTTAGATGGTGTCCTTTCTACATTCGTGTCAGCTGCCCGACAAGGTGTTGTTGATACCGATGTTGACACAAAGGATGTTATTGAATGTCTCAAACTTTCACATCACTCTGACTTAGAAGTGACAGGTGACAGTTGTAACAATTTCATGCTCACCTATAATAAGGTTGAAAACATGACGCCCAGAGATCTTGGCGCATGTATTGACTGTAATGCAAGGCATATCAATGCCCAAGTAGCAAAAAGTCACAATGTTTCACTCATCTGGAATGTAAAAGACTACATGTCTTTATCTGAACAGCTGCGTAAACAAATTCGTAGTGCTGCCAAGAAGAACAACATACCTTTTAGACTAACTTGTGCTACAACTAGACAGGTTGTCAATGTCATAACTACTAAAATCTCACTCAAGGGTGGTAAGATTGTTAGTACTTGTTTTAAACTTATGCTTAAGGCCACATTATTGTGCGTTCTTGCTGCATTGGTTTGTTATATCGTTATGCCAGTACATACATTGTCAATCCATGATGGTTACACAAATGAAATCATTGGTTACAAAGCCATTCAGGATGGTGTCACTCGTGACATCATTTCTACTGATGATTGTTTTGCAAATAAACATGCTGGTTTTGACGCATGGTTTAGCCAGCGTGGTGGTTCATACAAAAATGACAAAAGCTGCCCTGTAGTAGCTGCTATCATTACAAGAGAGATTGGTTTCATAGTGCCTGGCTTACCGGGTACTGTGCTGAGAGCAATCAATGGTGACTTCTTGCATTTTCTACCTCGTGTTTTTAGTGCTGTTGGCAACATTTGCTACACACCTTCCAAACTCATTGAGTATAGTGATTTTGCTACCTCTGCTTGCGTTCTTGCTGCTGAGTGTACAATTTTTAAGGATGCTATGGGCAAACCTGTGCCATATTGTTATGACACTAATTTGCTAGAGGGTTCTATTTCTTATAGTGAGCTTCGTCCAGACACTCGTTATGTGCTTATGGATGGTTCCATCATACAGTTTCCTAACACTTACCTGGAGGGTTCTGTTAGAGTAGTAACAACTTTTGATGCTGAGTACTGTAGACATGGTACATGCGAAAGGTCAGAAGTAGGTATTTGCCTATCTACCAGTGGTAGATGGGTTCTTAATAATGAGCATTACAGAGCTCTATCAGGAGTTTTCTGTGGTGTTGATGCGATGAATCTCATAGCTAACATCTTTACTCCTCTTGTGCAACCTGTGGGTGCTTTAGATGTGTCTGCTTCAGTAGTGGCTGGTGGTATTATTGCCATATTGGTGACTTGTGCTGCCTACTACTTTATGAAATTCAGACGTGTTTTTGGTGAGTACAACCATGTTGTTGCTGCTAATGCACTTTTGTTTTTGATGTCTTTCACTATACTCTGTCTGGTACCAGCTTACAGCTTTCTGCCGGGAGTCTACTCAGTCTTTTACTTGTACTTGACATTCTATTTCACCAATGATGTTTCATTCTTGGCTCACCTTCAATGGTTTGCCATGTTTTCTCCTATTGTGCCTTTTTGGATAACAGCAATCTATGTATTCTGTATTTCTCTGAAGCACTGCCATTGGTTCTTTAACAACTATCTTAGGAAAAGAGTCATGTTTAATGGAGTTACATTTAGTACCTTCGAGGAGGCTGCTTTGTGTACCTTTTTGCTCAACAAGGAAATGTACCTAAAATTGCGTAGCGAGACACTGTTGCCACTTACACAGTATAACAGGTATCTTGCTCTATATAACAAGTACAAGTATTTCAGTGGAGCCTTAGATACTACCAGCTATCGTGAAGCAGCTTGCTGCCACTTAGCAAAGGCTCTAAATGACTTTAGCAACTCAGGTGCTGATGTTCTCTACCAACCACCACAGACATCAATCACTTCTGCTGTTCTGCAGAGTGGTTTTAGGAAAATGGCATTCCCGTCAGGCAAAGTTGAAGGGTGCATGGTACAAGTAACCTGTGGAACTACAACTCTTAATGGATTGTGGTTGGATGACACAGTATACTGTCCAAGACATGTCATTTGCACAGCAGAAGACATGCTTAATCCTAACTATGAAGATCTGCTCATTCGCAAATCCAACCATAGCTTTCTTGTTCAGGCTGGCAATGTTCAACTTCGTGTTATTGGCCATTCTATGCAAAATTGTCTGCTTAGGCTTAAAGTTGATACTTCTAACCCTAAGACACCCAAGTATAAATTTGTCCGTATCCAACCTGGTCAAACATTTTCAGTTCTAGCATGCTACAATGGTTCACCATCTGGTGTTTATCAGTGTGCCATGAGACCTAATCATACCATTAAAGGTTCTTTCCTTAATGGATCATGTGGTAGTGTTGGTTTTAACATTGATTATGATTGCGTGTCTTTCTGCTATATGCATCATATGGAGCTTCCAACAGGAGTACACGCTGGTACTGACTTAGAAGGTAAATTCTATGGTCCATTTGTTGACAGACAAACTGCACAGGCTGCAGGTACAGACACAACCATAACATTAAATGTTTTGGCATGGCTGTATGCTGCTGTTATCAATGGTGATAGGTGGTTTCTTAATAGATTCACCACTACTTTGAATGACTTTAACCTTGTGGCAATGAAGTACAACTATGAACCTTTGACACAAGATCATGTTGACATATTGGGACCTCTTTCTGCTCAAACAGGAATTGCCGTCTTAGATATGTGTGCTGCTTTGAAAGAGCTGCTGCAGAATGGTATGAATGGTCGTACTATCCTTGGTAGCACTATTTTAGAAGATGAGTTTACACCATTTGATGTTGTTAGACAATGCTCTGGTGTTACCTTCCAAGGTAAGTTCAAGAAAATTGTTAAGGGCACTCATCATTGGATGCTTTTAACTTTCTTGACATCACTATTGATTCTTGTTCAAAGTACACAGTGGTCACTGTTTTTCTTTGTTTACGAGAATGCTTTCTTGCCATTTACTCTTGGTATTATGGCAATTGCTGCATGTGCTATGCTGCTTGTTAAGCATAAGCACGCATTCTTGTGCTTGTTTCTGTTACCTTCTCTTGCAACAGTTGCTTACTTTAATATGGTCTACATGCCTGCTAGCTGGGTGATGCGTATCATGACATGGCTTGAATTGGCTGACACTAGCTTGTCTGGTTATAGGCTTAAGGATTGTGTTATGTATGCTTCAGCTTTAGTTTTGCTTATTCTCATGACAGCTCGCACTGTTTATGATGATGCTGCTAGACGTGTTTGGACACTGATGAATGTCATTACACTTGTTTACAAAGTCTACTATGGTAATGCTTTAGATCAAGCTATTTCCATGTGGGCCTTAGTTATTTCTGTAACCTCTAACTATTCTGGTGTCGTTACGACTATCATGTTTTTAGCTAGAGCTATAGTGTTTGTGTGTGTTGAGTATTACCCATTGTTATTTATTACTGGCAACACCTTACAGTGTATCATGCTTGTTTATTGTTTCTTAGGCTATTGTTGCTGCTGCTACTTTGGCCTTTTCTGTTTACTCAACCGTTACTTCAGGCTTACTCTTGGTGTTTATGACTACTTGGTCTCTACACAAGAATTTAGGTATATGAACTCCCAGGGGCTTTTGCCTCCTAAGAGTAGTATTGATGCTTTCAAGCTTAACATTAAGTTGTTGGGTATTGGAGGTAAACCATGTATCAAGGTTGCTACTGTACAGTCTAAAATGTCTGACGTAAAGTGCACATCTGTGGTACTGCTCTCGGTTCTTCAACAACTTAGAGTAGAGTCATCTTCTAAATTGTGGGCACAATGTGTACAACTCCACAATGATATTCTTCTTGCAAAAGACACAACTGAAGCTTTCGAGAAGATGGTTTCTCTTTTGTCTGTTTTGCTATCCATGCAGGGTGCTGTAGACATTAATAGGTTGTGCGAGGAAATGCTCGATAACCGTGCTACTCTTCAGGCTATTGCTTCAGAATTTAGTTCTTTACCATCATATGCCGCTTATGCCACTGCCCAGGAGGCCTATGAGCAGGCTGTAGCTAATGGTGATTCTGAAGTCGTTCTCAAAAAGTTAAAGAAATCTTTGAATGTGGCTAAATCTGAGTTTGACCGTGATGCTGCCATGCAACGCAAGTTGGAAAAGATGGCAGATCAGGCTATGACCCAAATGTACAAACAGGCAAGATCTGAGGACAAGAGGGCAAAAGTAACTAGTGCTATGCAAACAATGCTCTTCACTATGCTTAGGAAGCTTGATAATGATGCACTTAACAACATTATCAACAATGCGCGTGATGGTTGTGTTCCACTCAACATCATACCATTGACTACAGCAGCCAAACTCATGGTTGTTGTCCCTGATTATGGTACCTACAAGAACACTTGTGATGGTAACACCTTTACATATGCATCTGCACTCTGGGAAATCCAGCAAGTTGTTGATGCGGATAGCAAGATTGTTCAACTTAGTGAAATTAACATGGACAATTCACCAAATTTGGCTTGGCCTCTTATTGTTACAGCTCTAAGAGCCAACTCAGCTGTTAAACTACAGAATAATGAACTGAGTCCAGTAGCACTACGACAGATGTCCTGTGCGGCTGGTACCACACAAACAGCTTGTACTGATGACAATGCACTTGCCTACTATAACAATTCGAAGGGAGGTAGGTTTGTGCTGGCATTACTATCAGACCACCAAGATCTCAAATGGGCTAGATTCCCTAAGAGTGATGGTACAGGTACAATTTACACAGAACTGGAACCACCTTGTAGGTTTGTTACAGACACACCAAAAGGGCCTAAAGTGAAATACTTGTACTTCATCAAAGGCTTAAACAACCTAAATAGAGGTATGGTGCTGGGCAGTTTAGCTGCTACAGTACGTCTTCAGGCTGGAAATGCTACAGAAGTACCTGCCAATTCAACTGTGCTTTCCTTCTGTGCTTTTGCAGTAGACCCTGCTAAAGCATATAAGGATTACCTAGCAAGTGGAGGACAACCAATCACCAACTGTGTGAAGATGTTGTGTACACACACTGGTACAGGACAGGCAATTACTGTAACACCAGAAGCTAACATGGACCAAGAGTCCTTTGGTGGTGCTTCATGTTGTCTGTATTGTAGATGCCACATTGACCATCCAAATCCTAAAGGATTCTGTGACTTGAAAGGTAAGTACGTCCAAATACCTACCACTTGTGCTAATGACCCAGTGGGTTTTACACTTAGAAACACAGTCTGTACCGTCTGCGGAATGTGGAAAGGTTATGGCTGTAGTTGTGACCAACTCCGCGAACCCTTGATGCAGTCTGCGGATGCATCAACGTTTTTAAACGGGTTTGCGGTGTAAGTGCAGCCCGTCTTACACCGTGCGGCACAGGCACTAGTACTGATGTCGTCTACAGGGCTTTTGATATTTACAACGAAAAAGTTGCTGGTTTTGCAAAGTTCCTAAAAACTAATTGCTGTCGCTTCCAGGAGAAGGATGAGGAAGGCAATTTATTAGACTCTTACTTTGTAGTTAAGAGGCATACTATGTCTAACTACCAACATGAAGAGACTATTTATAACTTGGTTAAAGATTGTCCAGCGGTTGCTGTCCATGACTTTTTCAAGTTTAGAGTAGATGGTGACATGGTACCACATATATCACGTCAGCGTCTAACTAAATACACAATGGCTGATTTAGTCTATGCTCTACGTCATTTTGATGAGGGTAATTGTGATACATTAAAAGAAATACTCGTCACATACAATTGCTGTGATGATGATTATTTCAATAAGAAGGATTGGTATGACTTCGTAGAGAATCCTGACATCTTACGCGTATATGCTAACTTAGGTGAGCGTGTACGCCAATCATTATTAAAGACTGTACAATTCTGCGATGCTATGCGTGATGCAGGCATTGTAGGCGTACTGACATTAGATAATCAGGATCTTAATGGGAACTGGTACGATTTCGGTGATTTCGTACAAGTAGCACCAGGCTGCGGAGTTCCTATTGTGGATTCATATTACTCATTGCTGATGCCCATCCTCACTTTGACTAGGGCATTGGCTGCTGAGTCCCATATGGATGCTGATCTCGCAAAACCACTTATTAAGTGGGATTTGCTGAAATATGATTTTACGGAAGAGAGACTTTGTCTCTTCGACCGTTATTTTAAATATTGGGACCAGACATACCATCCCAATTGTATTAACTGTTTGGATGATAGGTGTATCCTTCATTGTGCAAACTTTAATGTGTTATTTTCTACTGTGTTTCCACCTACAAGTTTTGGACCACTAGTAAGAAAAATATTTGTAGATGGTGTTCCTTTTGTTGTTTCAACTGGATACCATTTTCGTGAGTTAGGAGTCGTACATAATCAGGATGTAAACTTACATAGCTCGCGTCTCAGTTTCAAGGAACTTTTAGTGTATGCTGCTGATCCAGCTATGCATGCAGCTTCTGGCAATTTATTGCTAGATAAACGCACTACATGCTTTTCAGTAGCTGCACTAACAAACAATGTTGCTTTTCAAACTGTCAAACCCGGTAATTTTAATAAAGACTTTTATGACTTTGCTGTGTCTAAAGGTTTCTTTAAGGAAGGAAGTTCTGTTGAACTAAAACACTTCTTCTTTGCTCAGGATGGCAACGCTGCTATCAGTGATTATGACTATTATCGTTATAATCTGCCAACAATGTGTGATATCAGACAACTCCTATTCGTAGTTGAAGTTGTTGATAAATACTTTGATTGTTACGATGGTGGCTGTATTAATGCCAACCAAGTAATCGTTAACAATCTGGATAAATCAGCTGGTTTCCCATTTAATAAATGGGGTAAGGCTAGACTTTATTATGACTCAATGAGTTATGAGGATCAAGATGCACTTTTCGCGTATACTAAGCGTAATGTCATCCCTACTATAACTCAAATGAATCTTAAGTATGCCATTAGTGCAAAGAATAGAGCTCGCACCGTAGCTGGTGTCTCTATCTGTAGTACTATGACAAATAGACAGTTTCATCAGAAATTATTGAAGTCAATAGCCGCCACTAGAGGAGCTACTGTGGTAATTGGAACAAGCAAGTTTTACGGTGGCTGGCATAATATGTTAAAAACTGTTTACAGTGATGTAGAAACTCCACACCTTATGGGTTGGGATTATCCAAAATGTGACAGAGCCATGCCTAACATGCTTAGGATAATGGCCTCTCTTGTTCTTGCTCGCAAACATAACACTTGCTGTAACTTATCACACCGTTTCTACAGGTTAGCTAACGAGTGTGCGCAAGTATTAAGTGAGATGGTCATGTGTGGCGGCTCACTATATGTTAAACCAGGTGGAACATCATCCGGTGATGCTACAACTGCTTATGCTAATAGTGTCTTTAACATTTGTCAAGCTGTTACAGCCAATGTAAATGCACTTCTTTCAACTGATGGTAATAAGATAGCTGACAAGTATGTCCGCAATCTACAACACAGGCTCTATGAGTGTCTCTATAGAAATAGGGATGTTGATCATGAATTCGTGGATGAGTTTTACGCTTACCTGCGTAAACATTTCTCCATGATGATTCTTTCTGATGATGCCGTTGTGTGCTATAACAGTAACTATGCGGCTCAAGGTTTAGTAGCTAGCATTAAGAACTTTAAGGCAGTTCTTTATTATCAAAATAATGTGTTCATGTCTGAGGCAAAATGTTGGACTGAGACTGACCTTACTAAAGGACCTCACGAATTTTGCTCACAGCATACAATGCTAGTTAAACAAGGAGATGATTACGTGTACCTGCCTTACCCAGATCCATCAAGAATATTAGGCGCAGGCTGTTTTGTCGATGATATTGTCAAAACAGATGGTACACTTATGATTGAAAGGTTCGTGTCACTGGCTATTGATGCTTACCCACTTACAAAACATCCTAATCAGGAGTATGCTGATGTCTTTCACTTGTATTTACAATACATTAGAAAGTTACATGATGAGCTTACTGGCCACATGTTGGACATGTATTCCGTAATGCTAACTAATGATAACACCTCACGGTACTGGGAACCTGAGTTTTATGAGGCTATGTACACACCACATACAGTCTTGCAGGCTGTAGGTGCTTGTGTATTGTGCAATTCACAGACTTCACTTCGTTGCGGTGCCTGTATTAGGAGACCATTCCTATGTTGCAAGTGCTGCTATGACCATGTCATTTCAACATCACACAAATTAGTGTTGTCTGTTAATCCCTATGTTTGCAATGCCCCAGGTTGTGATGTCACTGATGTGACACAACTGTATCTAGGAGGTATGAGCTATTATTGCAAGTCACATAAGCCTCCCATTAGTTTTCCATTATGTGCTAATGGTCAGGTTTTTGGTTTATACAAAAACACATGTGTAGGCAGTGACAATGTCACTGACTTCAATGCGATAGCAACATGTGATTGGACTAATGCTGGCGATTACATACTTGCCAACACTTGTACTGAGAGACTCAAGCTTTTCGCAGCAGAAACGCTCAAAGCCACTGAGGAAACATTTAAGCTGTCATATGGTATTGCCACTGTACGCGAAGTACTCTCTGACAGAGAATTGCATCTTTCATGGGAGGTTGGAAAACCTAGACCACCATTGAACAGAAACTATGTCTTTACTGGTTACCGTGTAACTAAAAATAGTAAAGTACAGATTGGAGAGTACACCTTTGAAAAAGGTGACTATGGTGATGCTGTTGTGTACAGAGGTACTACGACATACAAGTTGAATGTTGGTGATTACTTTGTGTTGACATCTCACACTGTAATGCCACTTAGTGCACCTACTCTAGTGCCACAAGAGCACTATGTGAGAATTACTGGCTTGTACCCAACACTCAACATCTCAGATGAGTTTTCTAGCAATGTTGCAAATTATCAAAAGGTCGGCATGCAAAAGTACTCTACACTCCAAGGACCACCTGGTACTGGTAAGAGTCATTTTGCCATCGGACTTGCTCTCTATTACCCATCTGCTCGCATAGTGTATACGGCATGCTCTCATGCAGCTGTTGATGCCCTATGTGAAAAGGCATTAAAATATTTGCCCATAGATAAATGTAGTAGAATCATACCTGCGCGTGCGCGCGTAGAGTGTTTTGATAAATTCAAAGTGAATTCAACACTAGAACAGTATGTTTTCTGCACTGTAAATGCATTGCCAGAAACAACTGCTGACATTGTAGTCTTTGATGAAATCTCTATGGCTACTAATTATGACTTGAGTGTTGTCAATGCTAGACTTCGTGCAAAACACTACGTCTATATTGGCGATCCTGCTCAATTACCAGCCCCCCGCACATTGCTGACTAAAGGCACACTAGAACCAGAATATTTTAATTCAGTGTGCAGACTTATGAAAACAATAGGTCCAGACATGTTCCTTGGAACTTGTCGCCGTTGTCCTGCTGAAATTGTTGACACTGTGAGTGCTTTAGTTTATGACAATAAGCTAAAAGCACACAAGGATAAGTCAGCTCAATGCTTCAAAATGTTCTACAAAGGTGTTATTACACATGATGTTTCATCTGCAATCAACAGACCTCAAATAGGCGTTGTAAGAGAATTTCTTACACGCAATCCTGCTTGGAGAAAAGCTGTTTTTATCTCACCTTATAATTCACAGAACGCTGTAGCTTCAAAAATCTTAGGATTGCCTACGCAGACTGTTGATTCATCACAGGGTTCTGAATATGACTATGTCATATTCACACAAACTACTGAAACAGCACACTCTTGTAATGTCAACCGCTTCAATGTGGCTATCACAAGGGCAAAAATTGGCATTTTGTGCATAATGTCTGATAGAGATCTTTATGACAAACTGCAATTTACAAGTCTAGAAATACCACGTCGCAATGTGGCTACATTACAAGCAGAAAATGTAACTGGACTTTTTAAGGACTGTAGTAAGATCATTACTGGTCTTCATCCTACACAGGCACCTACACACCTCAGCGTTGATATAAAGTTCAAGACTGAAGGATTATGTGTTGACATACCAGGCATACCAAAGGACATGACCTACCGTAGACTCATCTCTATGATGGGTTTCAAAATGAATTACCAAGTCAATGGTTACCCTAATATGTTTATCACCCGCGAAGAAGCTATTCGTCACGTTCGTGCGTGGATTGGCTTTGATGTAGAGGGCTGTCATGCAACTAGAGATGCTGTGGGTACTAACCTACCTCTCCAGCTAGGATTTTCTACAGGTGTTAACTTAGTAGCTGTACCGACTGGTTATGTTGACACTGAAAATAACACAGAATTCACCAGAGTTAATGCAAAACCTCCACCAGGTGACCAGTTTAAACATCTTATACCACTCATGTATAAAGGCTTGCCCTGGAATGTAGTGCGTATTAAGATAGTACAAATGCTCAGTGATACACTGAAAGGATTGTCAGACAGAGTCGTGTTCGTCCTTTGGGCGCATGGCTTTGAGCTTACATCAATGAAGTACTTTGTCAAGATTGGACCTGAAAGAACGTGTTGTCTGTGTGACAAACGTGCAACTTGCTTTTCTACTTCATCAGATACTTATGCCTGCTGGAATCATTCTGTGGGTTTTGACTATGTCTATAACCCATTTATGATTGATGTTCAGCAGTGGGGCTTTACGGGTAACCTTCAGAGTAACCATGACCAACATTGCCAGGTACATGGAAATGCACATGTGGCTAGTTGTGATGCTATCATGACTAGATGTTTAGCAGTCCATGAGTGCTTTGTTAAGCGCGTTGATTGGTCTGTTGAATACCCTATTATAGGAGATGAACTGAGGGTTAATTCTGCTTGCAGAAAAGTACAACACATGGTTGTGAAGTCTGCATTGCTTGCTGATAAGTTTCCAGTTCTTCATGACATTGGAAATCCAAAGGCTATCAAGTGTGTGCCTCAGGCTGAAGTAGAATGGAAGTTCTACGATGCTCAGCCATGTAGTGACAAAGCTTACAAAATAGAGGAACTCTTCTATTCTTATGCTACACATCACGATAAATTCACTGATGGTGTTTGTTTGTTTTGGAATTGTAACGTTGATCGTTACCCAGCCAATGCAATTGTGTGTAGGTTTGACACAAGAGTCTTGTCAAACTTGAACTTACCAGGCTGTGATGGTGGTAGTTTGTATGTGAATAAGCATGCATTCCACACTCCAGCTTTCGATAAAAGTGCATTTACTAATTTAAAGCAATTGCCTTTCTTTTACTATTCTGATAGTCCTTGTGAGTCTCATGGCAAACAAGTAGTGTCGGATATTGATTATGTTCCACTCAAATCTGCTACGTGTATTACACGATGCAATTTAGGTGGTGCTGTTTGCAGACACCATGCAAATGAGTACCGACAGTACTTGGATGCATATAATATGATGATTTCTGCTGGATTTAGCCTATGGATTTACAAACAATTTGATACTTATAACCTGTGGAATACATTTACCAGGTTACAGAGTTTAGAAAATGTGGCTTATAATGTTGTTAATAAAGGACACTTTGATGGACACGCCGGCGAAGCACCTGTTTCCATCATTAATAATGCTGTTTACACAAAGGTAGATGGTATTGATGTGGAGATCTTTGAAAATAAGACAACACTTCCTGTTAATGTTGCATTTGAGCTTTGGGCTAAGCGTAACATTAAACCAGTGCCAGAGATTAAGATACTCAATAATTTGGGTGTTGATATCGCTGCTAATACTGTAATCTGGGACTACAAAAGAGAAGCCCCAGCACATGTATCTACAATAGGTGTCTGCACAATGACTGACATTGCCAAGAAACCTACTGAGAGTGCTTGTTCTTCACTTACTGTCTTGTTTGATGGTAGAGTGGAAGGACAGGTAGACCTTTTTAGAAACGCCCGTAATGGTGTTTTAATAACAGAAGGTTCAGTCAAAGGTCTAACACCTTCAAAGGGACCAGCACAAGCTAGCGTCAATGGAGTCACATTAATTGGAGAATCAGTAAAAACACAGTTTAACTACTTTAAGAAAGTAGACGGCATTATTCAACAGTTGCCTGAAACCTACTTTACTCAGAGCAGAGACTTAGAGGATTTTAAGCCCAGATCACAAATGGAAACTGACTTTCTCGAGCTCGCTATGGATGAATTCATACAGCGATATAAGCTCGAGGGCTATGCCTTCGAACACATCGTTTATGGAGATTTCAGTCATGGACAACTTGGCGGTCTTCATTTAATGATAGGCTTAGCCAAGCGCTCACAAGATTCACCACTTAAATTAGAGGATTTTATCCCTATGGACAGCACAGTGAAAAATTACTTCATAACAGATGCGCAAACAGGTTCATCAAAATGTGTGTGTTCTGTGATTGATCTTTTACTTGATGACTTTGTCGAGATAATAAAGTCACAAGATTTGTCAGTGATTTCAAAAGTGGTCAAGGTTACAATTGACTATGCTGAAATTTCATTCATGCTTTGGTGTAAGGATGGACATGTTGAAACCTTCTACCCAAAACTACAAGCAAGTCGAGCGTGGCAACCAGGTGTTGCGATGCCTAACTTGTACAAGATGCAAAGAATGCTTCTTGAAAAGTGTGACCTTCAGAATTATGGTGAAAATGCTGTTATACCAAAAGGAATAATGATGAATGTCGCAAAGTATACTCAACTGTGTCAATACTTAAATACACTTACTTTAGCTGTACCCTACAACATGAGAGTTATTCACTTTGGTGCTGGCTCTGATAAAGGAGTTGCACCAGGTACAGCTGTGCTCAGACAATGGTTGCCAACTGGCACACTACTTGTCGATTCAGATCTTAATGACTTCGTCTCCGACGCATATTCTACTTTAATTGGAGACTGTGCAACAGTACATACGGCTAATAAATGGGACCTTATTATTAGCGATATGTATGACCCTAGGACCAAACATGTGACAAAAGAGAATGACTCTAAAGAAGGGTTTTTCACTTATCTGTGTGGATTTATAAAGCAAAAACTAGCCCTGGGTGGTTCTATAGCTGTAAAGATAACAGAGCATTCTTGGAATGCTGACCTTTACAAGCTTATGGGCCATTTCTCATGGTGGACAGCTTTTGTTACAAATGTAAATGCATCATCATCGGAAGCATTTTTAATTGGGGCTAACTATCTTGGCAAGCCGAAGGAACAAATTGATGGCTATACCATGCATGCTAACTACATTTTCTGGAGGAACACAAATCCTATCCAGTTGTCTTCCTATTCACTCTTTGACATGAGCAAATTTCCTCTTAAATTAAGAGGAACTGCTGTAATGTCTCTTAAGGAGAATCAAATCAATGATATGATTTATTCTCTTCTGGAAAAAGGTAGGCTTATCATTAGAGAAAACAACAGAGTTGTGGTTTCAAGTGATATTCTTGTTAACAACTAAACGAACATGTTTATTTTCTTATTATTTCTTACTCTCACTAGTGGTAGTGACCTTGACCGGTGCACCACTTTTGATGATGTTCAAGCTCCTAATTACACTCAACATACTTCATCTATGAGGGGGGTTTACTATCCTGATGAAATTTTTAGATCAGACACTCTTTATTTAACTCAGGATTTATTTCTTCCATTTTATTCTAATGTTACAGGGTTTCATACTATTAATCATACGTTTGGCAACCCTGTCATACCTTTTAAGGATGGTATTTATTTTGCTGCCACAGAGAAATCAAATGTTGTCCGTGGTTGGGTTTTTGGTTCTACCATGAACAACAAGTCACAGTCGGTGATTATTATTAACAATTCTACTAATGTTGTTATACGAGCATGTAACTTTGAATTGTGTGACAACCCTTTCTTTGCTGTTTCTAAACCCATGGGTACACAGACACATACTATGATATTCGATAATGCATTTAATTGCACTTTCGAGTACATATCTGATGCCTTTTCGCTTGATGTTTCAGAAAAGTCAGGTAATTTTAAACACTTACGAGAGTTTGTGTTTAAAAATAAAGATGGGTTTCTCTATGTTTATAAGGGCTATCAACCTATAGATGTAGTTCGTGATCTACCTTCTGGTTTTAACACTTTGAAACCTATTTTTAAGTTGCCTCTTGGTATTAACATTACAAATTTTAGAGCCATTCTTACAGCCTTTTCACCTGCTCAAGACATTTGGGGCACGTCAGCTGCAGCCTATTTTGTTGGCTATTTAAAGCCAACTACATTTATGCTCAAGTATGATGAAAATGGTACAATCACAGATGCTGTTGATTGTTCTCAAAATCCACTTGCTGAACTCAAATGCTCTGTTAAGAGCTTTGAGATTGACAAAGGAATTTACCAGACCTCTAATTTCAGGGTTGTTCCCTCAGGAGATGTTGTGAGATTCCCTAATATTACAAACTTGTGTCCTTTTGGAGAGGTTTTTAATGCTACTAAATTCCCTTCTGTCTATGCATGGGAGAGAAAAAAAATTTCTAATTGTGTTGCTGATTACTCTGTGCTCTACAACTCAACATTTTTTTCAACCTTTAAGTGCTATGGCGTTTCTGCCACTAAGTTGAATGATCTTTGCTTCTCCAATGTCTATGCAGATTCTTTTGTAGTCAAGGGAGATGATGTAAGACAAATAGCGCCAGGACAAACTGGTGTTATTGCTGATTATAATTATAAATTGCCAGATGATTTCATGGGTTGTGTCCTTGCTTGGAATACTAGGAACATTGATGCTACTTCAACTGGTAATTATAATTATAAATATAGGTATCTTAGACATGGCAAGCTTAGGCCCTTTGAGAGAGACATATCTAATGTGCCTTTCTCCCCTGATGGCAAACCTTGCACCCCACCTGCTCTTAATTGTTATTGGCCATTAAATGATTATGGTTTTTACACCACTACTGGCATTGGCTACCAACCTTACAGAGTTGTAGTACTTTCTTTTGAACTTTTAAATGCACCGGCCACGGTTTGTGGACCAAAATTATCCACTGACCTTATTAAGAACCAGTGTGTCAATTTTAATTTTAATGGACTCACTGGTACTGGTGTGTTAACTCCTTCTTCAAAGAGATTTCAACCATTTCAACAATTTGGCCGTGATGTTTCTGATTTCACTGATTCCGTTCGAGATCCTAAAACATCTGAAATATTAGACATTTCACCTTGCGCTTTTGGGGGTGTAAGTGTAATTACACCTGGAACAAATGCTTCATCTGAAGTTGCTGTTCTATATCAAGATGTTAACTGCACTGATGTTTCTACAGCAATTCATGCAGATCAACTCACACCAGCTTGGCGCATATATTCTACTGGAAACAATGTATTCCAGACTCAAGCAGGCTGTCTTATAGGAGCTGAGCATGTCGACACTTCTTATGAGTGCGACATTCCTATTGGAGCTGGCATTTGTGCTAGTTACCATACAGTTTCTTTATTACGTAGTACTAGCCAAAAATCTATTGTGGCTTATACTATGTCTTTAGGTGCTGATAGTTCAATTGCTTACTCTAATAACACCATTGCTATACCTACTAACTTTTCAATTAGCATTACTACAGAAGTAATGCCTGTTTCTATGGCTAAAACCTCCGTAGATTGTAATATGTACATCTGCGGAGATTCTACTGAATGTGCTAATTTGCTTCTCCAATATGGTAGCTTTTGCACACAACTAAATCGTGCACTCTCAGGTATTGCTGCTGAACAGGATCGCAACACACGTGAAGTGTTCGCTCAAGTCAAACAAATGTACAAAACCCCAACTTTGAAATATTTTGGTGGTTTTAATTTTTCACAAATATTACCTGACCCTCTAAAGCCAACTAAGAGGTCTTTTATTGAGGACTTGCTCTTTAATAAGGTGACACTCGCTGATGCTGGCTTCATGAAGCAATATGGCGAATGCCTAGGTGATATTAATGCTAGAGATCTCATTTGTGCGCAGAAGTTCAATGGACTTACAGTGTTGCCACCTCTGCTCACTGATGATATGATTGCTGCCTACACTGCTGCTCTAGTTAGTGGTACTGCCACTGCTGGATGGACATTTGGTGCTGGCGCTGCTCTTCAAATACCTTTTGCTATGCAAATGGCATATAGGTTCAATGGCATTGGAGTTACCCAAAATGTTCTCTATGAGAACCAAAAACAAATCGCCAACCAATTTAACAAGGCGATTAGTCAAATTCAAGAATCACTTACAACAACATCAACTGCATTGGGCAAGCTGCAAGACGTTGTTAACCAGAATGCTCAAGCATTAAACACACTTGTTAAACAACTTAGCTCTAATTTTGGTGCAATTTCAAGTGTGCTAAATGATATCCTTTCGCGACTTGATAAAGTCGAGGCGGAGGTACAAATTGACAGGTTAATTACAGGCAGACTTCAAAGCCTTCAAACCTATGTAACACAACAACTAATCAGGGCTGCTGAAATCAGGGCTTCTGCTAATCTTGCTGCTACTAAAATGTCTGAGTGTGTTCTTGGACAATCAAAAAGAGTTGACTTTTGTGGAAAGGGCTACCACCTTATGTCCTTCCCACAAGCAGCCCCGCATGGTGTTGTCTTCCTACATGTCACGTATGTGCCATCCCAGGAGAGGAACTTCACCACAGCGCCAGCAATTTGTCATGAAGGCAAAGCATACTTCCCTCGTGAAGGTGTTTTTGTGTTTAATGGCACTTCTTGGTTTATTACACAGAGGAACTTCTTTTCTCCACAAATAATTACTACAGACAATACATTTGTCTCAGGAAATTGTGATGTCGTTATTGGCATCATTAACAACACAGTTTATGATCCTCTGCAACCTGAGCTTGACTCATTCAAAGAAGAGCTGGACAAGTACTTCAAAAATCATACATCACCAGATGTTGATCTTGGCGACATTTCAGGCATTAACGCTTCTGTCGTCAACATTCAAAAAGAAATTGACCGCCTCAATGAGGTCGCTAAAAATTTAAATGAATCACTCATTGACCTTCAAGAATTGGGAAAATATGAGCAATATATTAAATGGCCTTGGTATGTTTGGCTCGGCTTCATTGCTGGACTAATTGCCATCGTCATGGTTACAATCTTGCTTTGTTGCATGACTAGTTGTTGCAGTTGCCTCAAGGGTGCATGCTCTTGTGGTTCTTGCTGCAAGTTTGATGAGGATGACTCTGAGCCAGTTCTCAAGGGTGTCAAATTACATTACACATAAACGAACTTATGGATTTGTTTATGAGATTTTTTACTCTTGGATCAATTACTGCACAGCCAGTAAAAATTGACAATGCTTCTCCTGCAAGTACTGTTCATGCTACAGCAACGATACCGCTACAAGCCTCACTCCCTTTCGGATGGCTTGTTATTGGCGTTGCATTTCTTGCTGTTTTTCAGAGCGCTACCAAAATAATTGCGCTCAATAAAAGATGGCAGCTAGCCCTTTATAAGGGCTTCCAGTTCATTTGCAATTTACTGCTGCTATTTGTTACCATCTATTCACATCTTTTGCTTGTCGCTGCAGGTATGGAGGCGCAATTTTTGTACCTCTATGCCTTGATATATTTTCTACAATGCATCAACGCATGTAGAATTATTATGAGATGTTGGCTTTGTTGGAAGTGCAAATCCAAGAACCCATTACTTTATGATGCCAACTACTTTGTTTGCTGGCACACACATAACTATGACTACTGTATACCATATAACAGTGTCACAGATACAATTGTCGTTACTGAAGGTGACGGCATTTCAACACCAAAACTCAAAGAAGACTACCAAATTGGTGGTTATTCTGAGGATAGGCACTCAGGTGTTAAAGACTATGTCGTTGTACATGGCTATTTCACCGAAGTTTACTACCAGCTTGAGTCTACACAAATTACTACAGACACTGGTATTGAAAATGCTACATTCTTCATCTTTAACAAGCTTGTTAAAGACCCACCGAATGTGCAAATACACACAATCGACGGCTCTTCAGGAGTTGCTAATCCAGCAATGGATCCAATTTATGATGAGCCGACGACGACTACTAGCGTGCCTTTGTAAGCACAAGAAAGTGAGTACGAACTTATGTACTCATTCGTTTCGGAAGAAACAGGTACGTTAATAGTTAATAGCGTACTTCTTTTTCTTGCTTTCGTGGTATTCTTGCTAGTCACACTAGCCATCCTTACTGCGCTTCGATTGTGTGCGTACTGCTGCAATATTGTTAACGTGAGTTTAGTAAAACCAACGGTTTACGTCTACTCGCGTGTTAAAAATCTGAACTCTTCTGAAGGAGTTCCTGATCTTCTGGTCTAAACGAACTAACTATTATTATTATTCTGTTTGGAACTTTAACATTGCTTATCATGGCAGACAACGGTACTATTACCGTTGAGGAGCTTAAACAACTCCTGGAACAATGGAACCTAGTAATAGGTTTCCTATTCCTAGCCTGGATTATGTTACTACAATTTGCCTATTCTAATCGGAACAGGTTTTTGTACATAATAAAGCTTGTTTTCCTCTGGCTCTTGTGGCCAGTAACACTTGCTTGTTTTGTGCTTGCTGCTGTCTACAGAATTAATTGGGTGACTGGCGGGATTGCGATTGCAATGGCTTGTATTGTAGGCTTGATGTGGCTTAGCTACTTCGTTGCTTCCTTCAGGCTGTTTGCTCGTACCCGCTCAATGTGGTCATTCAACCCAGAAACAAACATTCTTCTCAATGTGCCTCTCCGGGGGACAATTGTGACCAGACCGCTCATGGAAAGTGAACTTGTCATTGGTGCTGTGATCATTCGTGGTCACTTGCGAATGGCCGGACACTCCCTAGGGCGCTGTGACATTAAGGACCTGCCAAAAGAGATCACTGTGGCTACATCACGAACGCTTTCTTATTACAAATTAGGAGCGTCGCAGCGTGTAGGCACTGATTCAGGTTTTGCTGCATACAACCGCTACCGTATTGGAAACTATAAATTAAATACAGACCACGCCGGTAGCAACGACAATATTGCTTTGCTAGTACAGTAAGTGACAACAGATGTTTCATCTTGTTGACTTCCAGGTTACAATAGCAGAGATATTGATTATCATTATGAGGACTTTCAGGATTGCTATTTGGAATCTTGACGTTATAATAAGTTCAATAGTGAGACAATTATTTAAGCCTCTAACTAAGAAGAATTATTCGGAGTTAGATGATGAAGAACCTATGGAGTTAGATTATCCATAAAACGAACATGAAAATTATTCTCTTCCTGACATTGATTGTATTTACATCTTGCGAGCTATATCACTATCAGGAGTGTGTTAGAGGTACGACTGTACTACTAAAAGAACCTTGCCCATCAGGAACATACGAGGGCAATTCACCATTTCACCCTCTTGCTGACAATAAATTTGCACTAACTTGCACTAGCACACACTTTGCTTTTGCTTGTGCTGACGGTACTCGACATACCTATCAGCTGCGTGCAAGATCAGTTTCACCAAAACTTTTCATCAGACAAGAGGAGGTTCAACAAGAGCTCTACTCGCCACTTTTTCTCATTGTTGCTGCTCTAGTATTTTTAATACTTTGCTTCACCATTAAGAGAAAGACAGAATGAATGAGCTCACTTTAATTGACTTCTATTTGTGCTTTTTAGCCTTTCTGCTATTCCTTGTTTTAATAATGCTTATTATATTTTGGTTTTCACTCGAAATCCAGGATCTAGAAGAACCTTGTACCAAAGTCTAAACGAACATGAAACTTCTCATTGTTTTGACTTGTATTTCTCTATGCAGTTGCATATGCACTGTAGTACAGCGCTGTGCATCTAATAAACCTCATGTGCTTGAAGATCCTTGTAAGGTACAACACTAGGGGTAATACTTATAGCACTGCTTGGCTTTGTGCTCTAGGAAAGGTTTTACCTTTTCATAGATGGCACACTATGGTTCAAACATGCACACCTAATGTTACTATCAACTGTCAAGATCCAGCTGGTGGTGCGCTTATAGCTAGGTGTTGGTACCTTCATGAAGGTCACCAAACTGCTGCATTTAGAGACGTACTTGTTGTTTTAAATAAACGAACAAATTAAAATGTCTGATAATGGACCCCAATCAAACCAACGTAGTGCCCCCCGCATTACATTTGGTGGACCCACAGATTCAACTGACAATAACCAGAATGGAGGACGCAATGGGGCAAGGCCAAAACAGCGCCGACCCCAAGGTTTACCCAATAATACTGCGTCTTGGTTCACAGCTCTCACTCAGCATGGCAAGGAGGAACTTAGATTCCCTCGAGGCCAGGGCGTTCCAATCAACACCAATAGTGGTCCAGATGACCAAATTGGCTACTACCGAAGAGCTACCCGACGAGTTCGTGGTGGTGACGGCAAAATGAAAGAGCTCAGCCCCAGATGGTACTTCTATTACCTAGGAACTGGCCCAGAAGCTTCACTTCCCTACGGCGCTAACAAAGAAGGCATCGTATGGGTTGCAACTGAGGGAGCCTTGAATACACCCAAAGACCACATTGGCACCCGCAATCCTAATAACAATGCTGCCACCGTGCTACAACTTCCTCAAGGAACAACATTGCCAAAAGGCTTCTACGCAGAGGGAAGCAGAGGCGGCAGTCAAGCCTCTTCTCGCTCCTCATCACGTAGTCGCGGTAATTCAAGAAATTCAACTCCTGGCAGCAGTAGGGGAAATTCTCCTGCTCGAATGGCTAGCGGAGGTGGTGAAACTGCCCTCGCGCTATTGCTGCTAGACAGATTGAACCAGCTTGAGAGCAAAGTTTCTGGTAAAGGCCAACAACAACAAGGCCAAACTGTCACTAAGAAATCTGCTGCTGAGGCATCTAAAAAGCCTCGCCAAAAACGTACTGCCACAAAACAGTACAACGTCACTCAAGCATTTGGGAGACGTGGTCCAGAACAAACCCAAGGAAATTTCGGGGACCAAGACCTAATCAGACAAGGAACTGATTACAAACATTGGCCGCAAATTGCACAATTTGCTCCAAGTGCCTCTGCATTCTTTGGAATGTCACGCATTGGCATGGAAGTCACACCTTCGGGAACATGGCTGACTTATCATGGAGCCATTAAATTGGATGACAAAGATCCACAATTCAAAGACAACGTCATACTGCTGAACAAGCACATTGACGCATACAAAACATTCCCACCAACAGAGCCTAAAAAGGACAAAAAGAAAAAGACTGATGAAGCTCAGCCTTTGCCGCAGAGACAAAAGAAGCAGCCCACTGTGACTCTTCTTCCTGCGGCTGACATGGATGATTTCTCCAGACAACTTCAAAATTCCATGAGTGGAGCTTCTGCTGATTCAACTCAGGCATAAACACTCATGATGACCACACAAGGCAGATGGGCTATGTAAACGTTTTCGCAATTCCGTTTACGATACATAGTCTACTCTTGTGCAGAATGAATTCTCGTAACTAAACAGCACAAGTAGGTTTAGTTAACTTTAATCTCACATAGCAATCTTTAATCAATGTGTAACATTAGGGAGGACTTGAAAGAGCCACCACATTTTCATCGAGGCCACGCGGAGTACGATCGAGGGTACAGTGAATAATGCTAGGGAGAGCTGCCTATATGGAAGAGCCCTAATGTGTAAAATTAATTTTAGTAGTGCTATCCCCATGTGATTTTAATAGCTTCTTAGGAGAATGACAAAAAAAAAAAAAAAAAAAAAAAA

4. 23 Nov., 1999 Billion Base 2 Dec., 1999 Chromosome 22 9 May, 2000 Chromosome 21 Human Genome Project

6. A Comparison of Genome Sets Ensembl(29691) Celera (39114) 6552 15231 9315 9300 747 604 364 Refseq (11015)

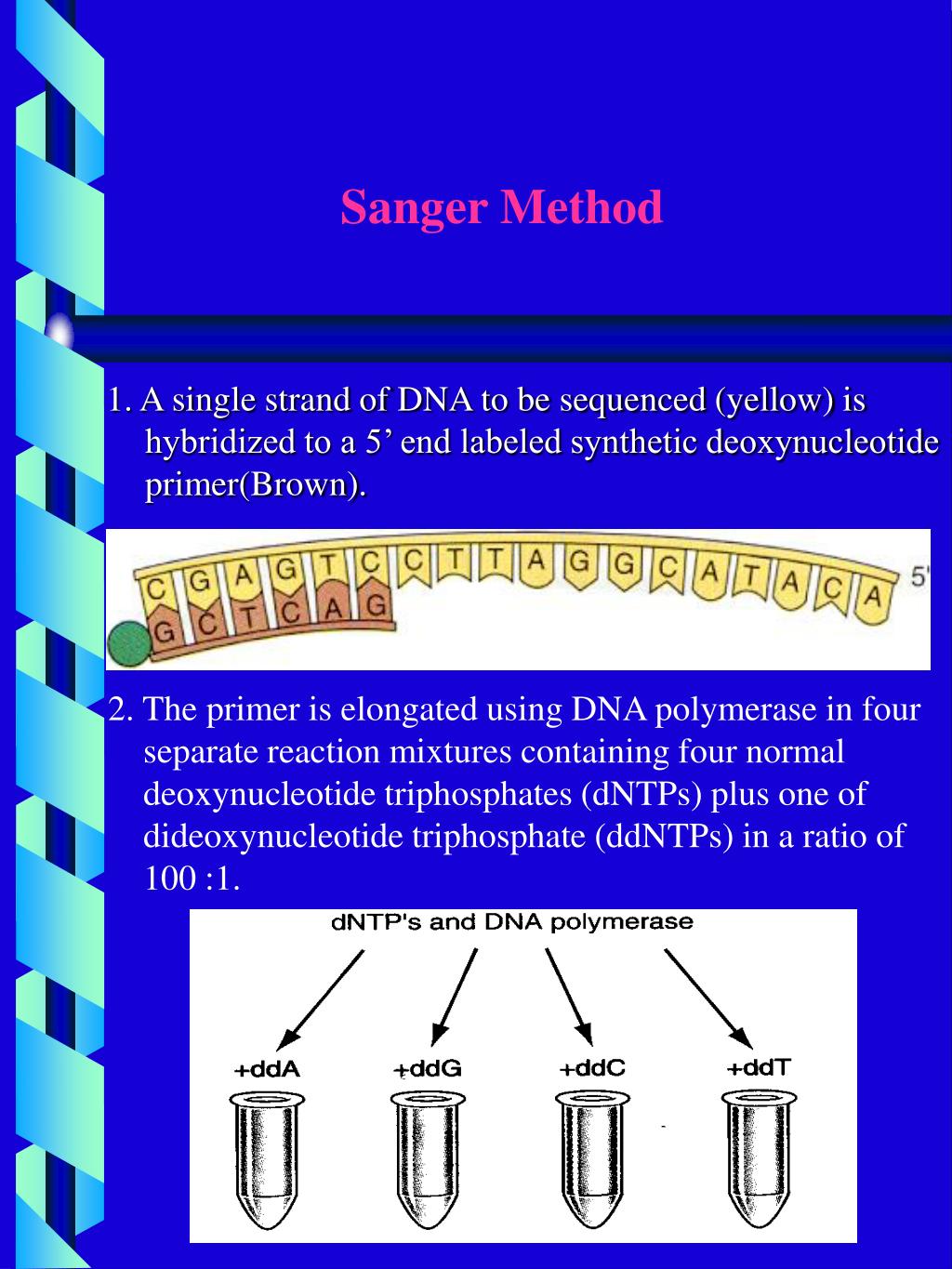

7. Sanger Method 1. A single strand of DNA to be sequenced (yellow) is hybridized to a 5’ end labeled synthetic deoxynucleotide primer(Brown). • 2. The primer is elongated using DNA polymerase in four • separate reaction mixtures containing four normal • deoxynucleotide triphosphates (dNTPs) plus one of • dideoxynucleotide triphosphate (ddNTPs) in a ratio of • 100 :1.

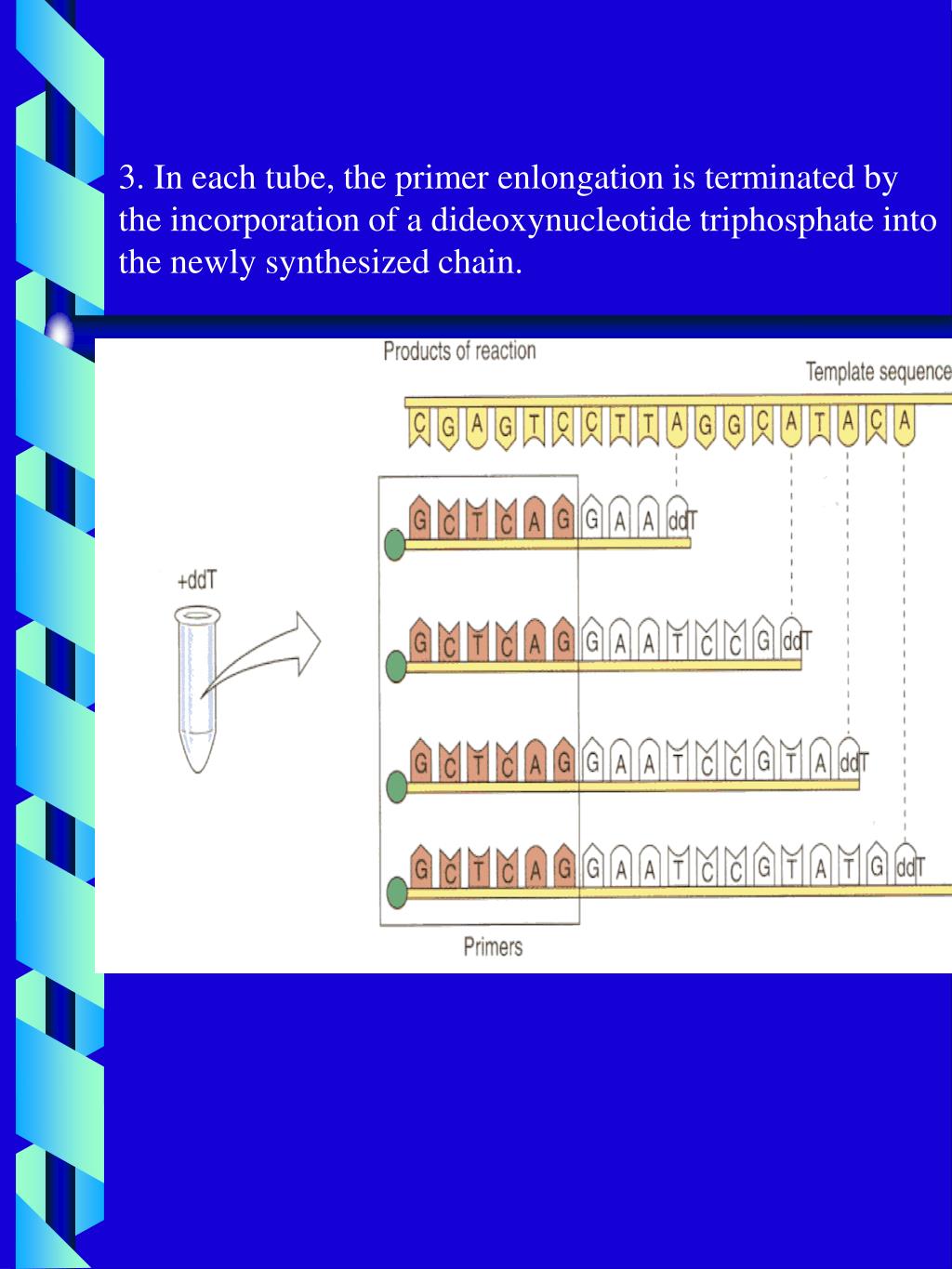

9. 3. In each tube, the primer enlongation is terminated by the incorporation of a dideoxynucleotide triphosphate into the newly synthesized chain.

10. For short chain length, For long chain length, 4. The synthesized DNA chains can then be separated by gel electrophoresis. Using this gel analysis of fragments, the sequence of the template DNA chain be determined.

11. New Sequencing Methods 1.Sequencing by MALDI-TOF Mass Spectrometry 2.Sequencing by Hybridization 3. Pyrosequencing 4.Atomic-Force Microscopy 5.Single-Molecule Fluorescence Microscopy 6.Nanopore Sequencing

12. Sequencing by MALDI-TOF Mass Spectrometry MALDI was first coupled to time-of-flight mass spectrometry in 1988 by Karas & Hillenkamp. Their remarkable innovation was that virtually any macromolecule could be desorbed as an intact gas-phase ion by embedding it in the crystal of a low-molecular-weight molecule that strongly absorbs energy from a pulse of laser light. Prior to this landmark paper, laser desorption mass spectrometry was limited to peptides with specific volatility or photo-absorption properties Although originally applied to analysis of protein samples, MALDI-TOF-MS is now widely used for oligonucleotides and DNAas well. The essential features of MALDI-TOF-MS DNA analysis are summarized as follows. The DNA sample is typically dried at room temperature on a flat surface in a matrix of 3-hydroxypicolic acid. The 3-hydroxypicolic acid matrix serves the critical purpose of absorbing UV light while interacting very little with DNA. The sample is then treated with a short pulse of UV laser light that is absorbed by the 3-hydroxypicolic acid, causing ablation of DNA ions into the gas phase. The DNA ions are generally monovalent and intact. After a specified time delay, the charged gas-phase DNA molecules are extracted by a high-voltage pulse and accelerated in an electric field so that they attain a common kinetic energy. They are subsequently passed into a flight tube approximately 1 m long. Under vacuum at a common kinetic energy, the relative time required for a given molecule to travel the flight path is dependent on its mass. At the end of the flight tube, the molecules collide with an ion-to-electron conversion detector, thus registering the TOF from the original laser pulse (t). The mass of a given analyte can then be calculated from the relationship m = 2qVt2 /2l2. In practice, internal standards are often relied on to confirm peak identities.

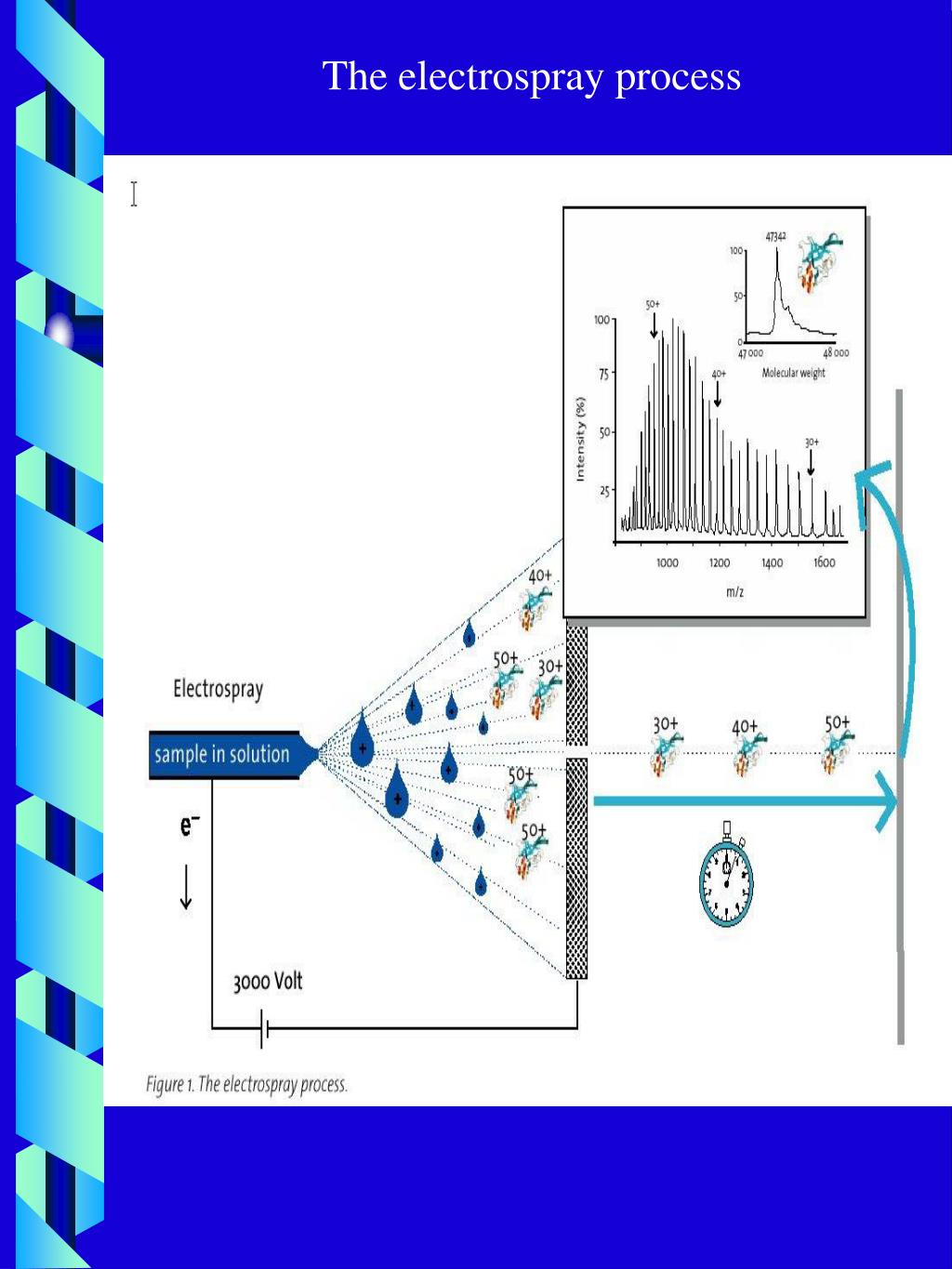

13. The electrospray process

14. The soft laser desorption process

15. Sequencing by MALDI-TOF Mass Spectrometry MW spectrum of 33-mer 5’-ACT AAT GGC AGT TCA TTG CAT GAA TTT TAA AAG-3’

16. DNA Sequencing by Hybridization One early rationale for developing hybridization arrays was de novo sequencing. As originally conceived, this strategy [sequencing by hybridization (SBH)] involved annealing a labeled unknown DNA fragment to a complete array of short oligonucleotides (e.g. all 65,336 combinations of 8-mers) and deciphering the unknown sequence from the annealing pattern. Over the past decade, SBH has largely been eclipsed by the use of DNA arrays for single nucleotide polymorphisms (SNP) and expression analysis. This is partly due to the amount of diagnostic or biological information to be gained per feature on the array. For example, expression monitoring of the entire human genome could be performed using a microarray composed of 100,000 gene-specific sequences (or possibly many fewer), whereas the same number of features would allow resequencing of only 25,000 bases. Another stumbling block for sequencing applications is the use of short oligonucleotide probes. These present such problems as ambiguous reads as-sociated with repeat regions within the unknown target sequence, formation of secondary structures in some oligonucleotide probes that result in little or no detectable signal, and hybridization of oligonucleotides with single mismatches (false positives), which can be especially common at the terminal base pair.

17. DNA Sequencing by Hybridization This strategy involved annealing a labeled unknown DNA fragment to a complete array of short oligonucleotides (e.g. all 65,336 combinations of 8-mers) and deciphering the unknown sequence from the annealing pattern.

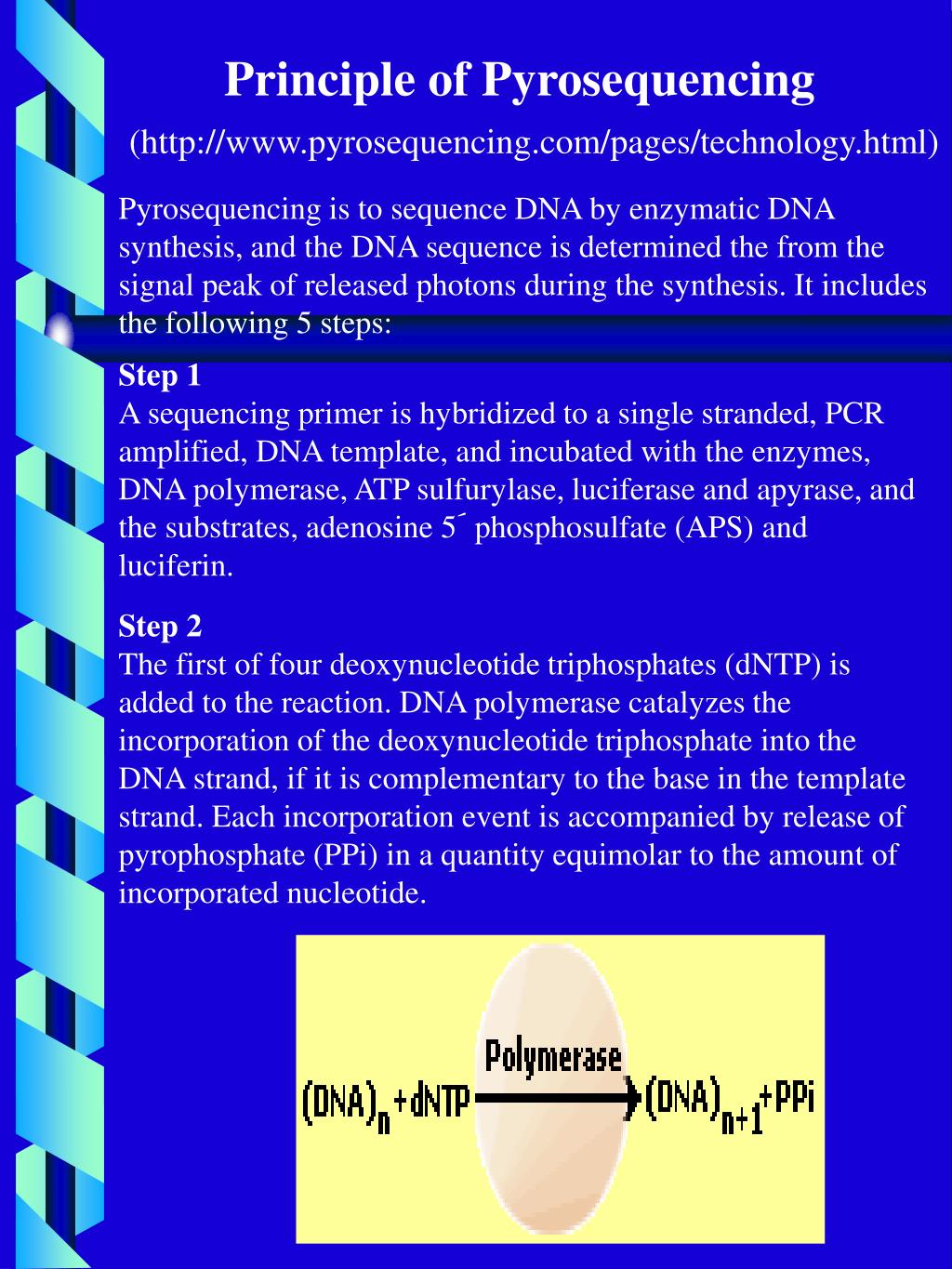

18. Principle of Pyrosequencing (http://www.pyrosequencing.com/pages/technology.html) Pyrosequencing is to sequence DNA by enzymatic DNA synthesis, and the DNA sequence is determined the from the signal peak of released photons during the synthesis. It includes the following 5 steps: Step 1A sequencing primer is hybridized to a single stranded, PCR amplified, DNA template, and incubated with the enzymes, DNA polymerase, ATP sulfurylase, luciferase and apyrase, and the substrates, adenosine 5´ phosphosulfate (APS) and luciferin. Step 2The first of four deoxynucleotide triphosphates (dNTP) is added to the reaction. DNA polymerase catalyzes the incorporation of the deoxynucleotide triphosphate into the DNA strand, if it is complementary to the base in the template strand. Each incorporation event is accompanied by release of pyrophosphate (PPi) in a quantity equimolar to the amount of incorporated nucleotide.

19. Step 3ATP sulfurylase quantitatively converts PPi to ATP in the presence of adenosine 5´ phosphosulfate. This ATP drives the luciferase-mediated conversion of luciferin to oxyluciferin that generates visible light in amounts that are proportional to the amount of ATP. The light produced in the luciferase-catalyzed reaction is detected by a charge coupled device (CCD) camera and seen as a peak in a pyrogram. Each light signal is proportional to the number of nucleotides incorporated.

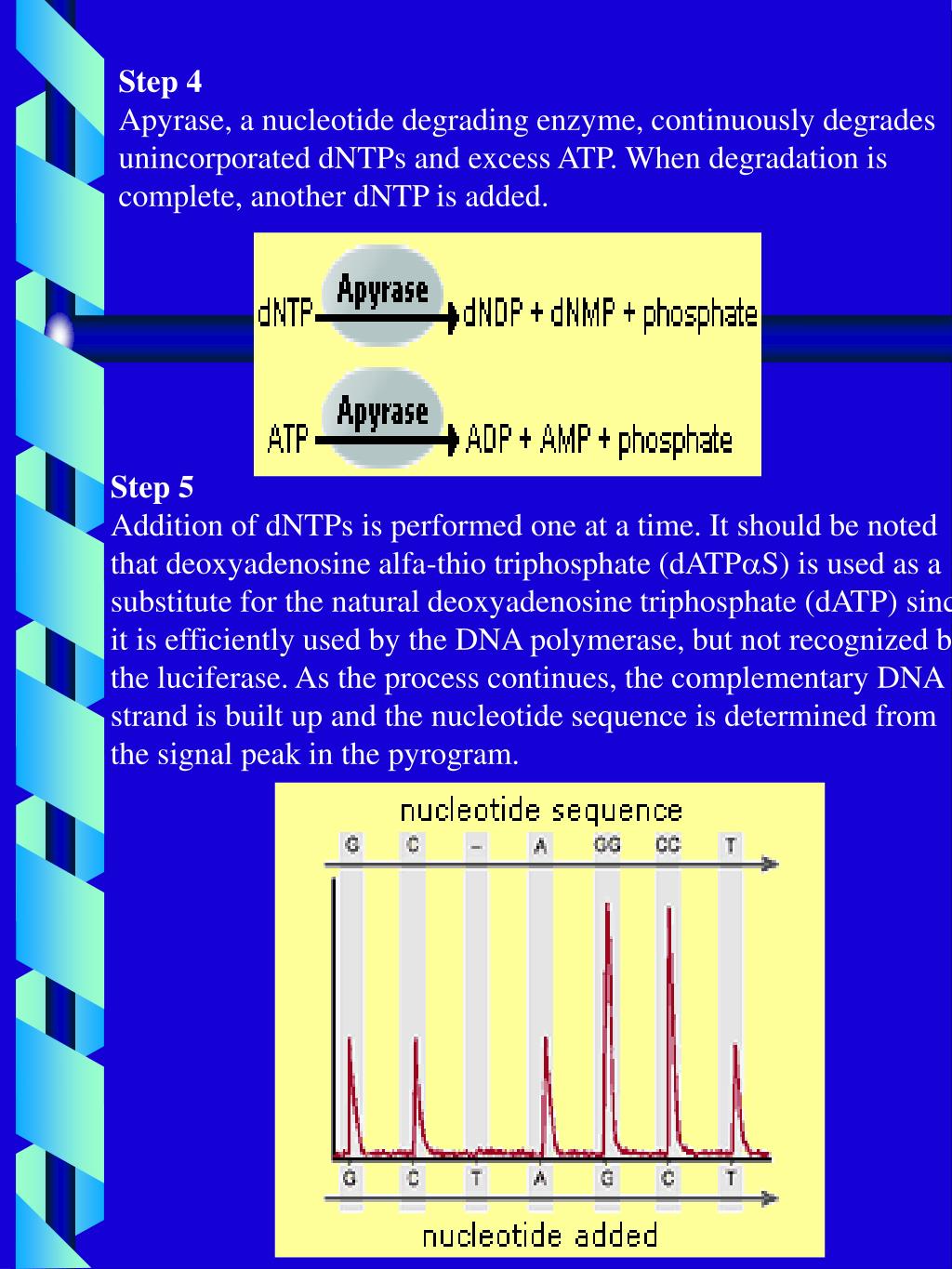

20. Step 4Apyrase, a nucleotide degrading enzyme, continuously degrades unincorporated dNTPs and excess ATP. When degradation is complete, another dNTP is added. Step 5Addition of dNTPs is performed one at a time. It should be noted that deoxyadenosine alfa-thio triphosphate (dATPaS) is used as a substitute for the natural deoxyadenosine triphosphate (dATP) since it is efficiently used by the DNA polymerase, but not recognized by the luciferase. As the process continues, the complementary DNA strand is built up and the nucleotide sequence is determined from the signal peak in the pyrogram.

21. Summary of Pyrosequencing Pyrosequencing is to sequence DNA by enzymatic DNA synthesis, and the DNA sequence is determined the from the signal peak of released photons during the synthesis.

22. Zipper-sequencing of DNA A DNA construct was engineered such that one of its extremities had one strand anchored to a surface via a long DNA fragment, and the other strand was bound to a small bead, itself stuck to a flexible glass fiber used as a force sensor. As the surface is displaced, the molecule is unzipped and the force to unpair two bases measured by the force sensor.

23. Nanopore Sequencing of Polynucleotides An interesting idea in sequencing DNA proposed by D. Branton is to monitor the variation of ionic current due to an applied electric field which drives single-stranded polynucleotides through a nanopore in a thin film. Preliminary results of this method have shown its capability to distinguish long stretches of the same nucleotides, such as 30 adenines followed by 70 cytosines. Although this single molecule sequencing method provides a great advantage to sequence a long DNA, detection of monovalent ion current through the a-hemolysin pore is not likely to yield DNA sequence at single-nucleotide resolution.. First, the translocation time through the pore for each nucleotide is 1 microsecond, which is too short to resolve. Second, the thermal fluctuation of translocation time will forbid the possibility to determine the number of repeat nucleotides for each blockade current segment. Finally, the narrowest portion of the channel pore is 50 Ålong, meaning that approximately seven nucleotides occupy that space at a given instant. Each of those seven nucleotides would contribute to resistance against ionic current, thus obscuring the influence of any single nucleotide.

24. Nanopore Sequencing of Polynucleotides

25. DNA 2nm Sequencing DNA with a Rotating Field

26. The bond fluctuation model Moving probability of each nucleic acid w = min[1, exp(-DU/kT)]

27. Translocation of DNA with Time

28. Translocation Time versus Frequency

29. Quantization of Translocation Time

30. Off-lattice simulations

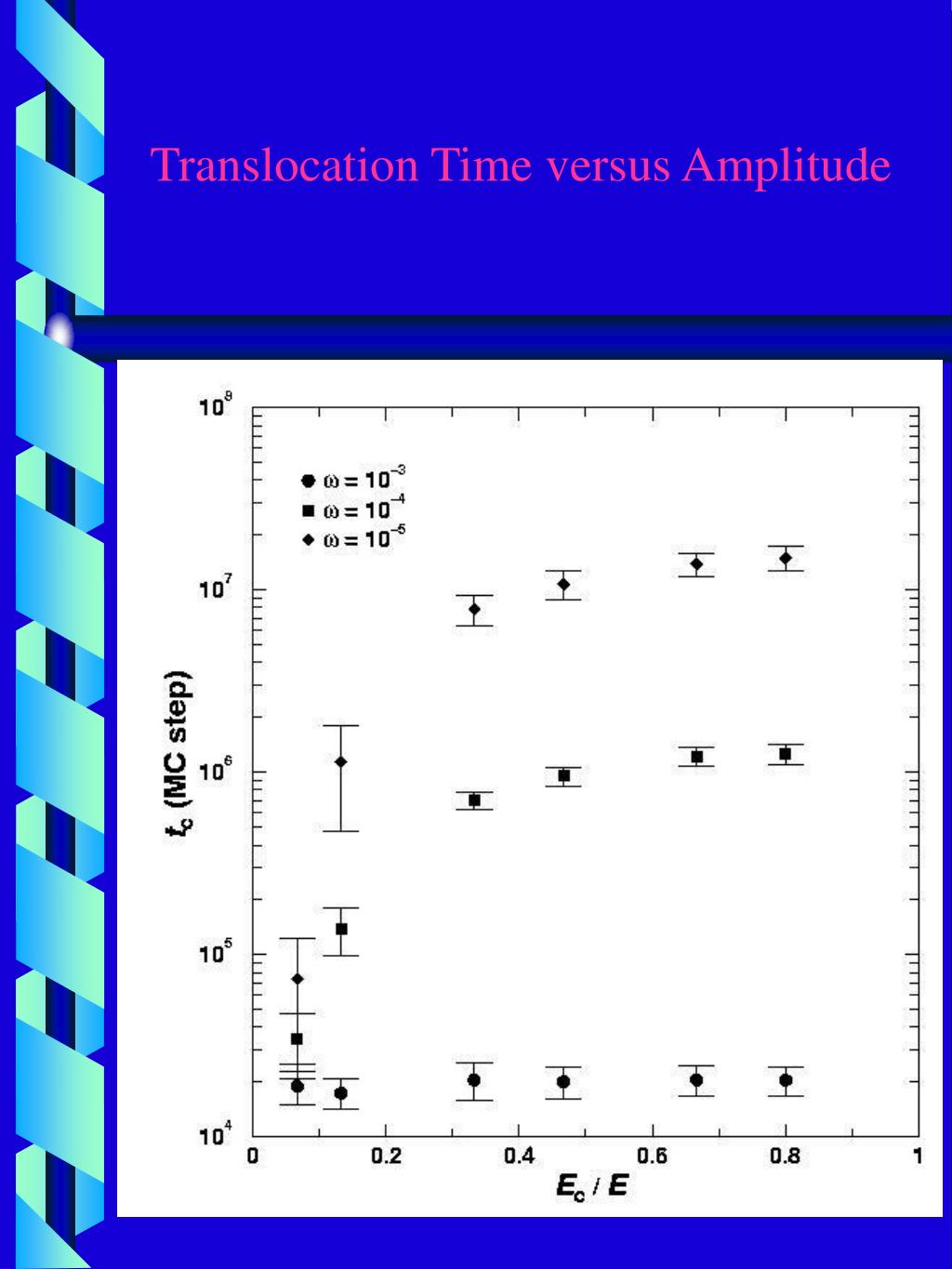

31. Translocation Time versus Amplitude

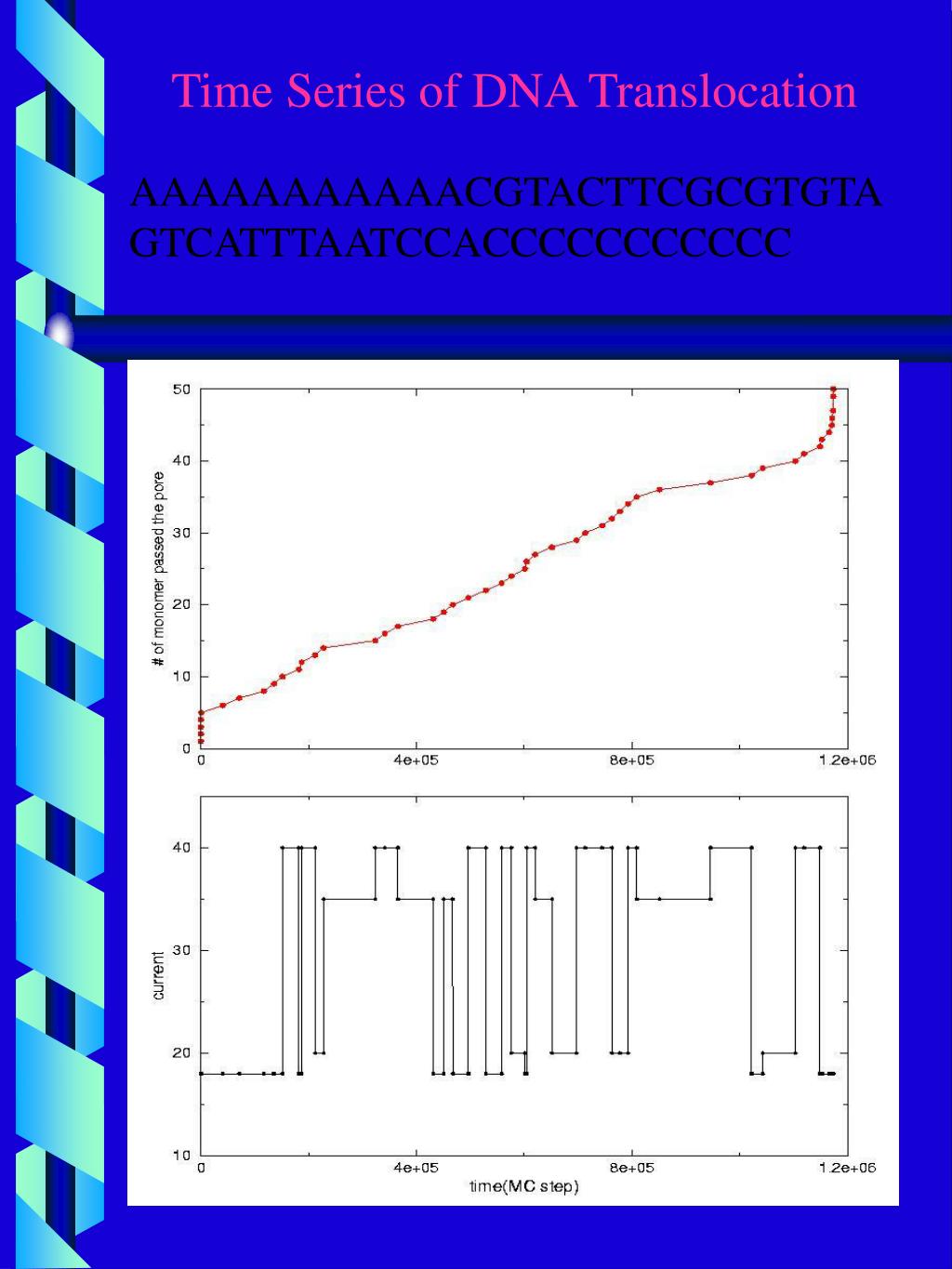

32. Time Series of DNA Translocation AAAAAAAAAAACGTACTTCGCGTGTAGTCATTTAATCCACCCCCCCCCCC

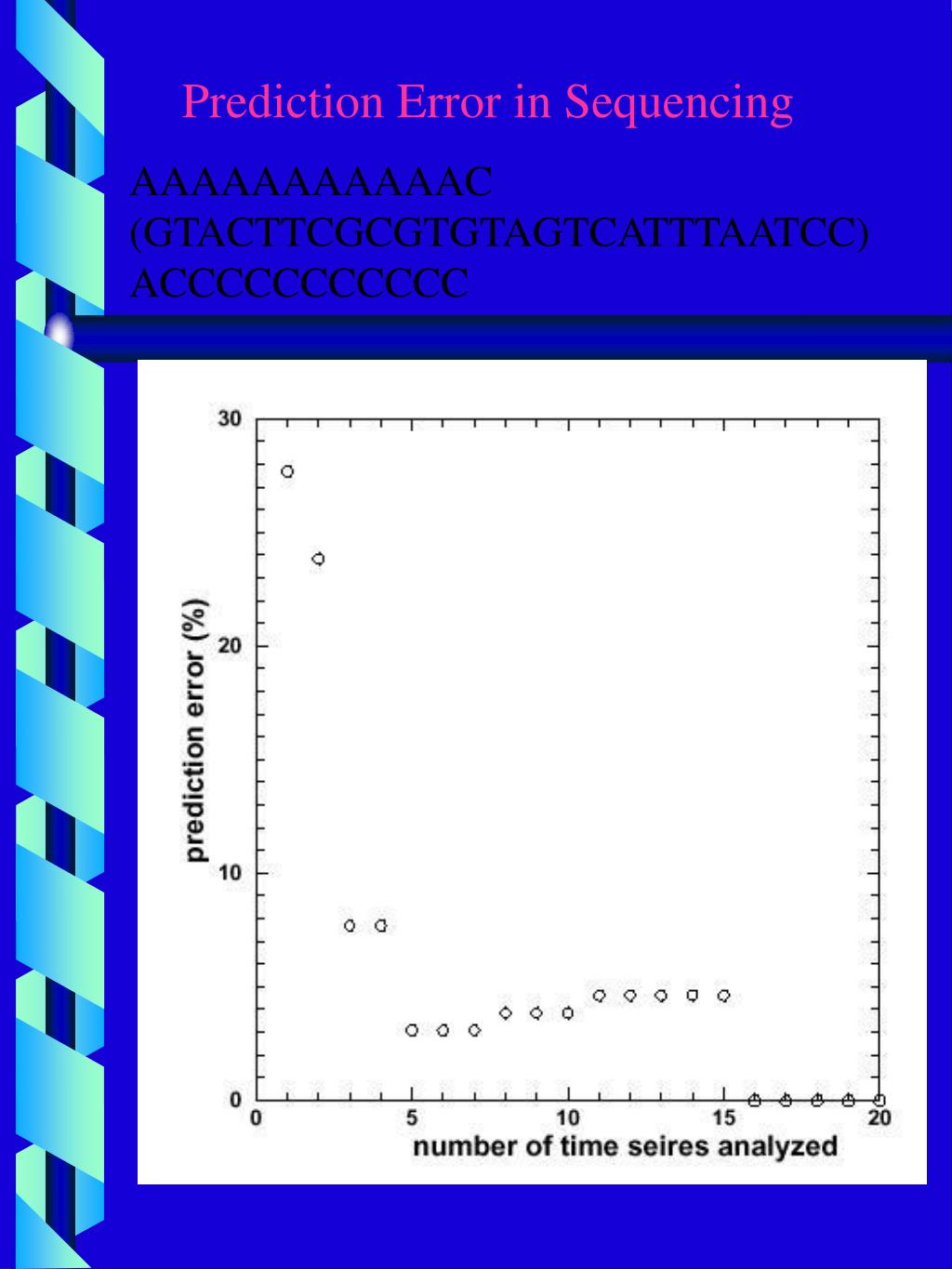

33. Prediction Error in Sequencing AAAAAAAAAAAC (GTACTTCGCGTGTAGTCATTTAATCC) ACCCCCCCCCCC

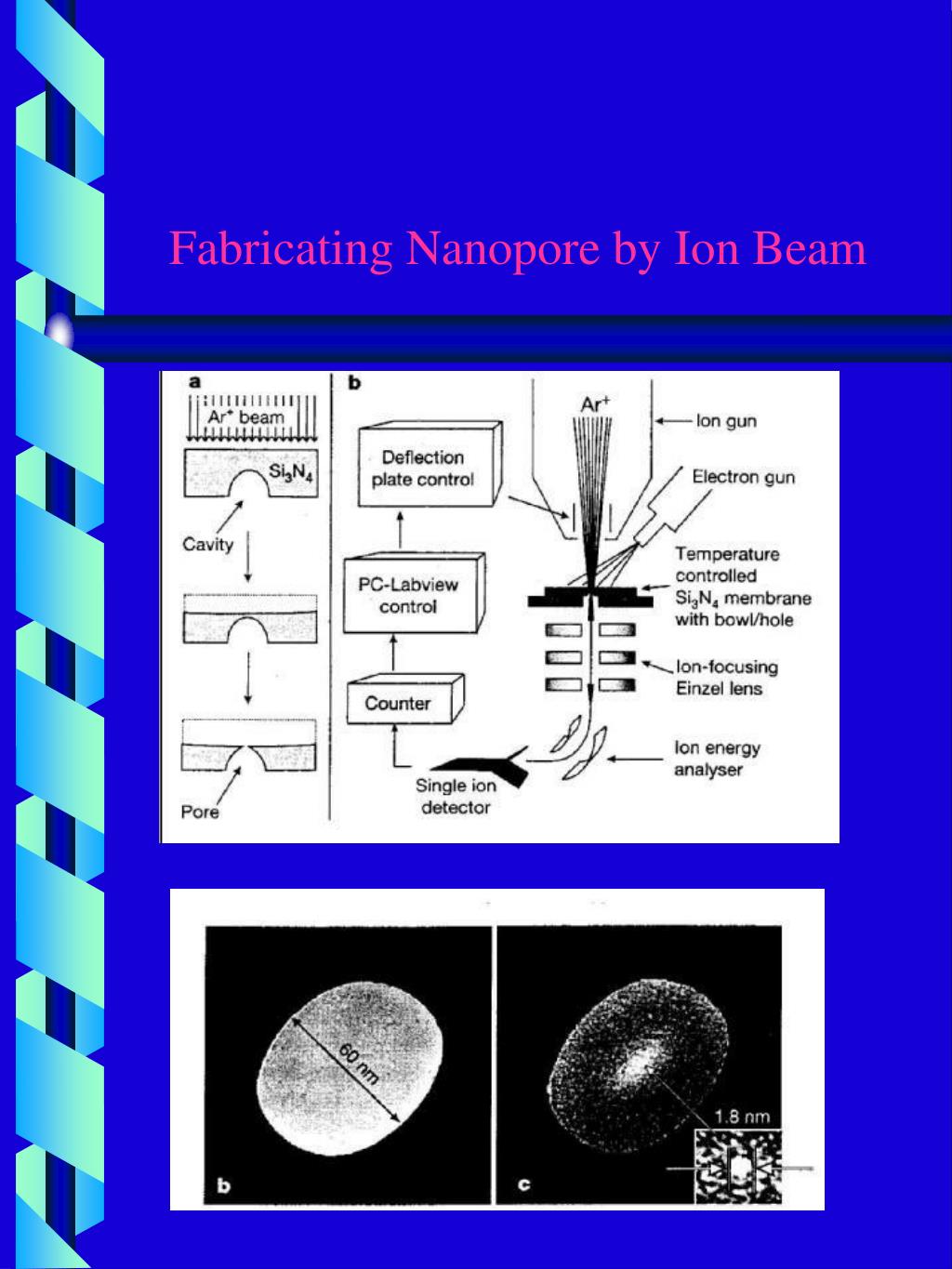

34. Fabricating Nanopore by Ion Beam

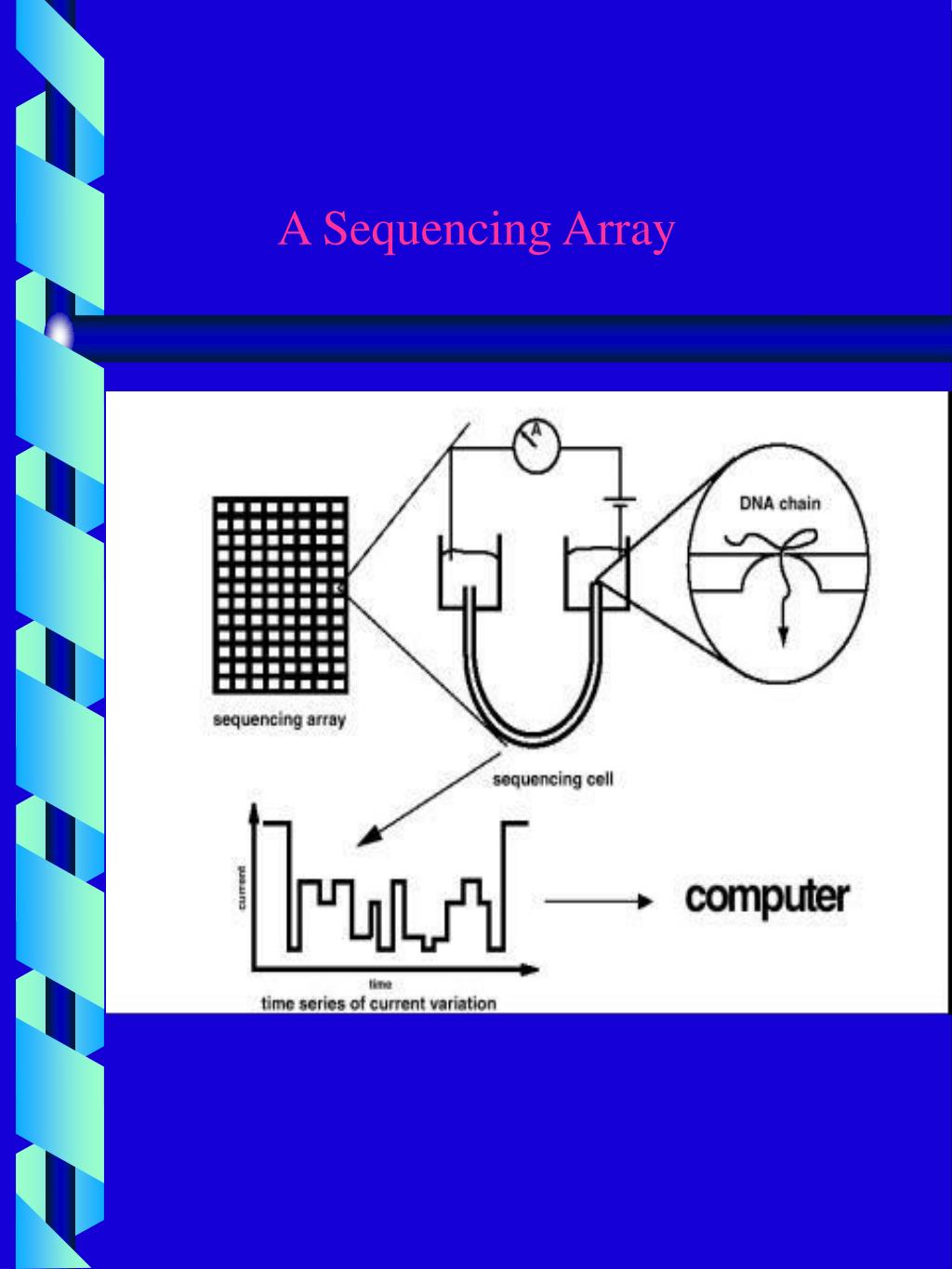

35. A Sequencing Array

36. Conclusions 1. The traditional Sanger method of sequencing DNA is slow, costly, and inaccurate. It takes about 15 years to sequence human DNA and costs about 3 billion US dollars. The overlap of predicted novel gene sets between Celera and Ensembled is about 20%. 2. The new method by nanopore sequencing can be fast, inexpensive, and accurate. It takes about 1 day to sequence 100 million bases by using a sequencing array and high accuracy can be achieved by analyzing several time series. 3. The translocation time of polynucleotide chains is well controlled by the frequency of the rotating electric field. Specifically, it increases linearly with the rotating period for frequency less than 10 KHz. 4. The translocation time of each nucleotide is quantized in unit of a quarter of rotating period, which can be used to predict the sequence accurately.
