  1. The Evolution of Protoplanetary Disks and the Diversity of Giant Planets Extreme Solar Systems II September 2011 Ben Bromley Physics & Astronomy, University of Utah Scott Kenyon Smithsonian Astrophysical Observatory

  2. Diversity of planets the Solar System: Is it extreme?

  3. Planet formationtheory and practice • Young stars: gas/dust disk • Coagulation and dynamics; collisional accretion (many, small  few, large) • Debris disks are signpostsof planet formation • Massive cores accrete gas (entrained debris helps, tGas ~ Myr)

  4. Planet formation: difficulties • Dust-to-planetesimals How do planetesimals grow from micron-sized dust? • Migration How do planetary cores survive (fast, <Myr) migration? • Gas giant formation How do gas giants grow as gas disks vanish? Evolution of the gas disk is critical!

  5. Modeling disk evolution • Initial conditions (Mdisk = 0.003—0.1 MStar; solid:gas ~ 0.01; S~ 1/a0.6—1.5) • Input physics (alpha disk: a = 10-5—0.01; tDisk ~ 1/a~ 1—10 Myr) • evolving the disk (solve diffusion equation)  HSolid ~ √α  Timing is everything.

  6. Simulating planet formation PLANETESIMALS: pebbles—plutos FORMATION TIME: 0.1—1 Myr (cores) 1—10 Myr (J,N,SE) 10—100 Myr (Earths) a-viscosity… Coagulation code mergers, fragmentation photoionization growing planetesimals collisional cascade N-BODY CODEscattering, collisions gas accretion atmospheres (L,R) migration evolve gas, planetesimals, planets in concert

  7. Growth of a planetary system 150 15 15 300 1000 10 m / MEarth semimajor axis (AU) log time (yr)

  8. Growth of planetary systems: Jupiters++ (> 1 MJupiter) cumulative fraction log semimajor axis (AU)

  9. Growth of planetary systems: Saturns (15 MEarth— 1 MJupiter ) cumulative fraction log semimajor axis (AU)

  10. Growth of planetary systems: Earths++ (1—15 MEarth) cumulative fraction log semimajor axis (AU)

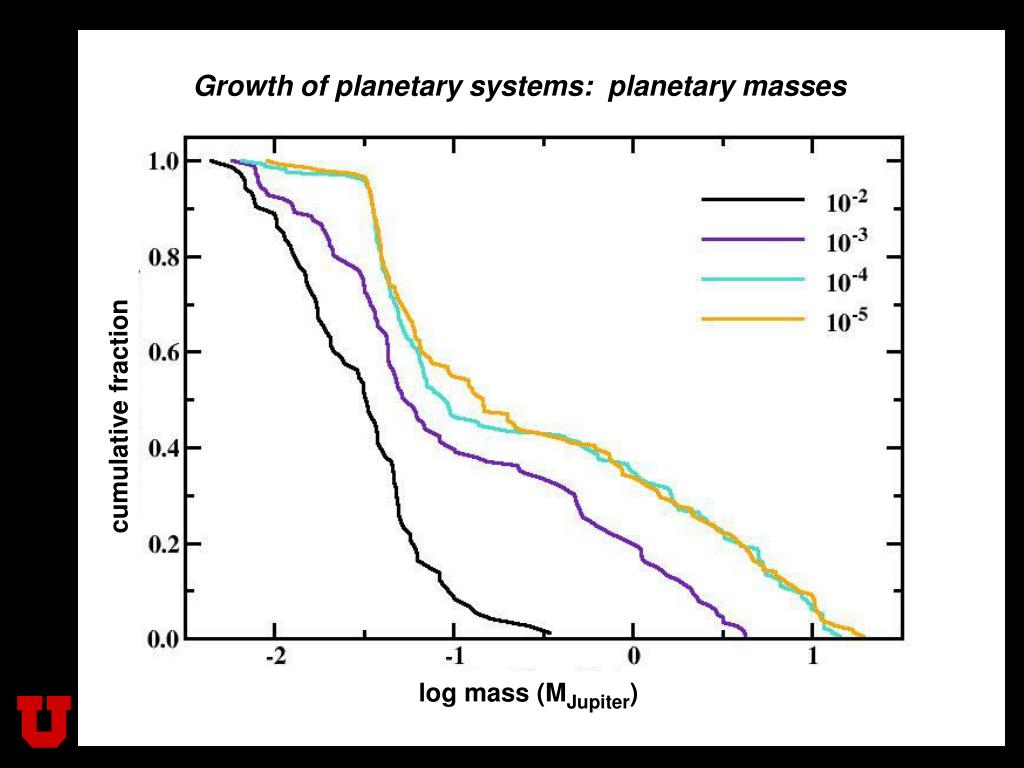

  11. Growth of planetary systems: planetary masses cumulative fraction log mass (MJupiter)

  12. Growth of planetary systems: Earths+ (1—15 MEarth) Diversity of planets: disk properties Jupiters (0—3) (2—4) (1—4) Saturns Super-Earths initial disk mass (M) (0—3) cumulative fraction (5—10) Earths (no gas giants) log disk viscosity parameter (α)

  13. Results • Diverse systems of gas giants in alpha-disk model • Predictions: Multiplanet systems, ~MEarth—10’s of Mjupiter High mass, low viscosity disks: Jupiters Low mass, high viscosity disks: Neptunes, super-Earths • Next step: Include photoionization, migration….

  14. Simulation summary photoionization

  15. Simulation summary migration photoionization

  16. Diversity of planets Dynamics (Architecture) Planetary structure (Radius – Mass, …) Goal: consistent evolution of full system
