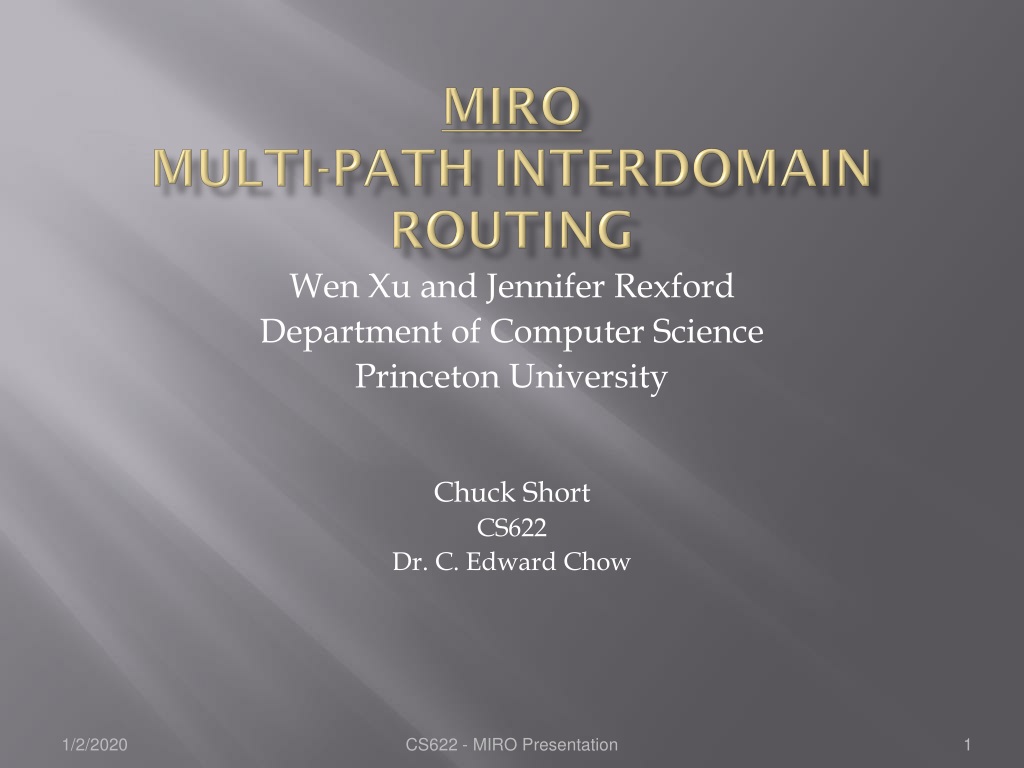

  1. MIROMulti-path Interdomain ROuting Wen Xu and Jennifer Rexford Department of Computer Science Princeton University Chuck Short CS622 Dr. C. Edward Chow CS622 - MIRO Presentation

  2. Definitions • Autonomous System (AS) • Border Gateway Protocol (BGP) • Internet Service Provider (ISP) CS622 - MIRO Presentation

  3. Observations • Single route advertisement is not flexible enough • BGP is sufficient for most traffic • Control over path properties rather than complete path is desirable • Intermediate router may be willing direct traffic along another path • Current methods for influencing path choices are limited CS622 - MIRO Presentation

  4. Current Routing Architectures • BGP • Single best path selection • Source Routing • End to end path selection • Overlay Networks • Virtual network topology CS622 - MIRO Presentation

  5. BGP Routing CS622 - MIRO Presentation

  6. Source Routing CS622 - MIRO Presentation

  7. Overlay Routing CS622 - MIRO Presentation

  8. MIRO Protocol Design • Extension of BGP • AS-Level path selection • Negotiation for alternate routes • Policy driven export of alternate routes • Tunnels to direct traffic on alternate routes CS622 - MIRO Presentation

  9. MIRO Route Negotiation CS622 - MIRO Presentation

  10. MIRO Tunnel Establishment CS622 - MIRO Presentation

  11. MIRO Implementation Considerations • Intra-AS Architecture • AS may consist of many internal routers and paths • Data Plane Packet Encapsulation • IP over IP encapsulation • Control Plane Tunnel Management • Creation and destruction of tunnels based upon negotiation CS622 - MIRO Presentation

  12. MIRO Evaluation Methodology • Simulated operating environment • Infer AS relationships • Assume each AS selects and exports routes based on business relationships • Each AS treated as one node • GAO Algorithm • L. Gao, “On inferring Autonomous System relationships in the Internet,” IEEE/ACM Trans. Networking, vol. 9, no. 6, pp. 733–745, 2001. • Data (October 2000, 2003, 2005) • www.routeviews.org CS622 - MIRO Presentation

  13. Node DistributionSmall percentage have many neighbors (Tier 1 AS) CS622 - MIRO Presentation

  14. MIRO AS Response Variations • Strict Policy • Responding AS announces routes with same local preference as the original default route • Respect Export Policy • Responding AS announces alternate routes using an export policy • Most Flexible Policy • Responding AS announces all possible routes CS622 - MIRO Presentation

  15. Two Evaluation Scenarios • 1-hop set • AS negotiates with each immediate neighbor • Path set • AS negotiates with any AS along BGP path • 300 million (source,destination) pairs evaluated CS622 - MIRO Presentation

  16. Internet Path Diversity Comparison CS622 - MIRO Presentation

  17. Using MIRO to Avoid an Intermediate AS • Avoid for security or performance reasons • Calculate triple for every • (Source, Destination, AS to avoid) • Don’t avoid immediate neighbors CS622 - MIRO Presentation

  18. Successful Avoidance of an Intermediate AS CS622 - MIRO Presentation

  19. Incremental Deployment CS622 - MIRO Presentation

  20. Using MIRO to Control Incoming Traffic • Assumptions • Each source generates equal traffic • Total traffic estimated by number of sources using link • All traffic sent through an intermediate AS always transits through that AS • Total traffic a single AS can move if switched to a different route • Power node concept • Node lies on destination path for many sources CS622 - MIRO Presentation

  21. Evaluation of Power Node Path Switch CS622 - MIRO Presentation

  22. Analysis • 10,383 multi-homed AS studied • Around 90% can move 10% of traffic • 50% can move • 40% of traffic under flexible policy • 25% of traffic under strict policy CS622 - MIRO Presentation

  23. Further Analysis of Power Nodes • 90% of Power Nodes had 200+ neighbors • Most likely Tier 1 AS • Immediate neighbors only constitute 9% of Power Nodes • 68% of Power Nodes are 2 hops away CS622 - MIRO Presentation

  24. MIRO Routing Policies • Need negotiation rules • Establish and manages negotiation process • Need route selection rules • Filter and rank available alternatives CS622 - MIRO Presentation

  25. Route Convergence • Potential for oscillation • Solution: • If upstream AS does not advertise the tunnel MIRO is guaranteed to converge whenever BGP converges CS622 - MIRO Presentation

  26. Conclusion • MIRO is backward compatible with BGP • MIRO can provide the flexibility to negotiate alternate routes as needed • MIRO can provide transit AS more control over traffic across their network • MIRO is comparable to Source Routing at avoiding an intermediate AS • Most alternate route possibilities are provided by the most connected nodes (ISP’s) CS622 - MIRO Presentation

  27. Future Research • Build prototype • Explore security via AS trust relationships • Devise centralized load balancing scheme to prevent oscillation • Explore the incorporation of price, performance and load information into the route selection process CS622 - MIRO Presentation

  28. Questions? CS622 - MIRO Presentation

  29. Other References • Border Gateway Protocol (BGP) • http://www.rfc-editor.org/rfc/rfc4271.txt CS622 - MIRO Presentation
