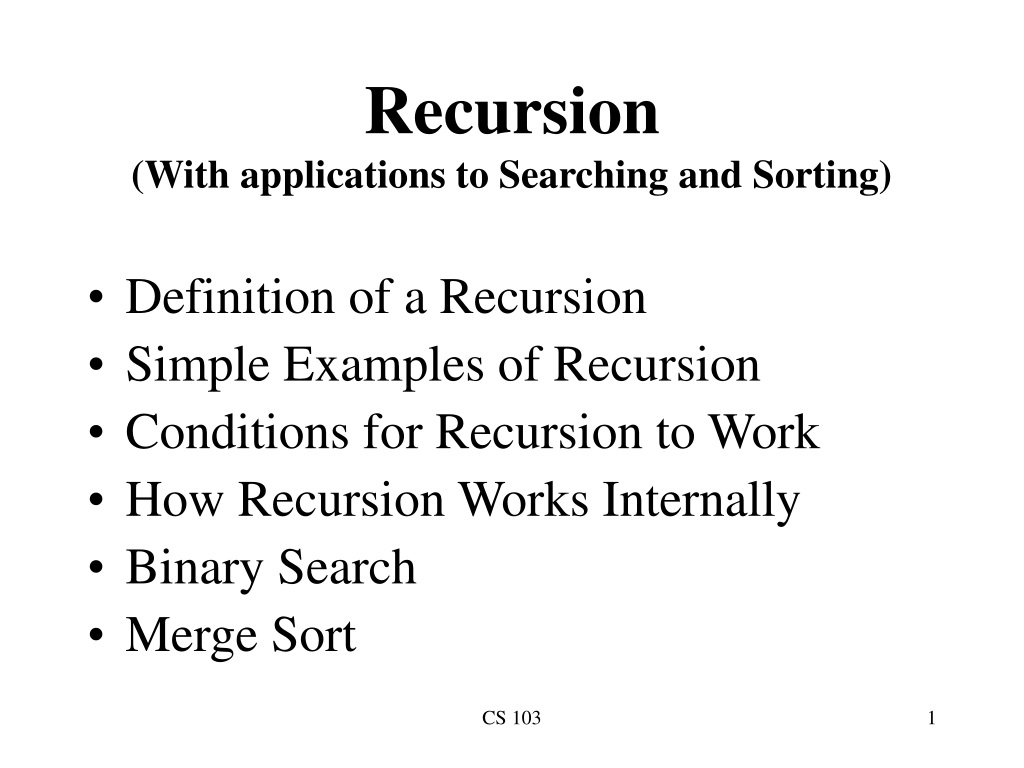

  1. Recursion(With applications to Searching and Sorting) • Definition of a Recursion • Simple Examples of Recursion • Conditions for Recursion to Work • How Recursion Works Internally • Binary Search • Merge Sort CS 103

  2. Definition of Recursion • A function is said to be recursive if it calls itself //Precondition: n is a non-negative integer //Postcondition: returns n!, which is 1*2*3*…*n; 0!=1 // Principle for recursion: n!=(n-1)! * n. long factorial(int n){ if (n==0) return 1; long m=factorial(n-1); // recursion m *=n; return m; } CS 103

  3. One Example of Recursion: Investment Accounts • Suppose you invest in an account $x every year, and that the account grows at an interest rate of 8%. • Write a function that computes how much money you have in your account at the end of year n. • Call S(n) the amount of money in the account at the end of year n. CS 103

  4. Investment Example (contd.) The math: S(n) = S(n-1) + interest of past year + new deposit $x S(n)=S(n-1)+0.08*S(n-1)+x S(n)=1.08*S(n-1) + x Note that S(0)=x (the first deposit when opening the acct) //The recursive code: //Precondition: n is a non-negative integer //Postcondition: returns S(n) = 1.08*S(n-1) + x; S(0)=x double S(int n, double x){ if (n==0) return x; double lastYearS = S(n-1,x); // recursion return (1.08*lastYearS+x); } CS 103

  5. Another Recursion Example: Finding the Minimum in an Array // Precondition: the input is a a double array x[ ] of at least end // elements. start and end are nonnegative integer indexes // marking the portion of x[ ] over which to find the minimum. // end >= start; // Postcondition: returns the smallest value in x[ ]. // Recursion principle: if you we have the minimum of the 1st // half of x and the minimum of the 2nd half of x, then the // global minimum is the smaller of those two minimums double min(double x[ ], intstart, intend){ // …. On the next slide } CS 103

  6. The Minimum Example (Contd.) double min(double x[ ], intstart, intend){ assert(end >= start && start >=0); if (end == start) // one number to minimize over return x[start]; int mid=(start+end)/2; // mid-point index double min1=min(x, start, mid); // 1st recursive call double min2=min(x, mid+1, end); // 2nd recursive call if (min1 <= min2) return min1; else return min2; } CS 103

  7. Conditions for Valid Recursion • For recursive functions to work, the following two conditions must be met: • The input (parameters) of every recursive call must be smaller in value or size than the input of the original function • There must be a basis step where the input value or size is • the smallest possible, and • in which case the processing is non-recursive. CS 103

  8. Illustration of the Conditions long factorial(int n){ if (n==0) return 1; // basis step. Input value n is minimum (0). long m=factorial(n-1); // recursion. Input value of recursive call is n-1<n m *=n; return m; } double S(int n, double x){ if (n==0) return x; // basis step. Input value n is minimum (0). double lastYearS = S(n-1,x); // recursion. First-input value of recursive call is n-1<n return (1.08*lastYearS+x); } CS 103

  9. Illustration of the Conditions (Contd.) double min(double x[ ], intstart, intend){ assert(end >= start && start >=0); if (end == start) // Basis step. Input size is minimum = 1. return x[start]; // No recursion int mid=(start+end)/2; // mid-point index double min1=min(x, start, mid); // 1st recursive call double min2=min(x, mid+1, end); // 2nd recursive call // In both recursive calls, the input size is half the original, and so less. if (min1 <= min2) return min1; else return min2; } CS 103

  10. How Recursion Works Internally • It is illustrated in class on the factorial function and the min function CS 103

  11. How to Think Recursively • When coding, do not concern yourself how recursion is unfolding during execution • Rather, think of yourself as a boss, and treat each recursive call as an order to one of your trusted subordinates to do something. • As a boss, you need not worry how the subordinate does their work. Instead, take the outcome of their work • Finally, take the outcome of the subordinate’s work, and use it to compute by yourself the final result. CS 103

  12. Illustration of Recursive Thinking double min(double x[ ], intstart, intend){ assert(end >= start && start >=0); if (end == start) // Basis step. return x[start]; // The boss does the basis step int mid=(start+end)/2; // mid-point index double min1=min(x, start, mid); // subordinate produces min1 double min2=min(x, mid+1, end); // subordinate produces min2 // The two recursive calls are the work of “subordinates”. Don’t // worry how the subordinates do their work. if (min1 <= min2) return min1; else return min2; } // You, the boss, take the // outcome min1 and min2 // from subordinates, and use // them to get the final result. CS 103

  13. Binary Search • Input: • A sorted array X[ ] of size n • A value b to be searched for in X[ ] • Output: • If b is found, the index k where X[k]=b • If b is not found, return -1 • Definition: An X[ ] is said to be sorted if: X[0] ≤ X[1] ≤ X[2] ≤ … ≤ X[n-1] CS 103

  14. Binary Search: Method • The method is recursive: • Compare b with the middle value X[mid] • If b = X[mid], return mid • If b < X[mid], then b can only be in the left half of X[ ], because X[ ] is sorted. So call the function recursively on the left half. • If b > X[mid], then b can only be in the right half of X[ ], because X[ ] is sorted. So call the function recursively on the right half. CS 103

  15. 1 1 1 5 5 5 7 7 7 12 12 12 15 15 15 20 20 20 25 25 25 27 27 27 35 35 35 40 40 40 47 47 47 60 60 60 0 0 0 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 10 10 10 11 11 11 Illustration of Binary search • X[12]: • Search for b=12 • mid = (0+11)/2 = 5. Compare b with X[5]: 12<20. • So search in left half X[0..4] • mid = (0+4)/2 = 2. Compare b with X[2]: 12 > 7. • So search right half X[3..4] • mid = (3+4)/2 = 3.Compare b with X[3]: b=X[3]=12. • Return 3. CS 103

  16. The Recursive Code of Binary Search int binarySearch(double b, double X[], intleft, intright){ if (left == right) if (b==X[left]) returnleft; elsereturn -1; intmid = (left+right)/2; if (b==X[mid]) returnmid; if (b < X[mid]) returnbinarySearch (b, X, left, mid-1); if (b > X[mid]) returnbinarySearch(b, X, mid+1, right); } CS 103

  17. Time Complexity of binarySearch • Call T(n) the time of binarySearch when the array size is n. • T(n) = T(n/2) + c, where c is some constant representing the time of the basis step and the last if-statement to choose between min1 and min2 • Assume for simplicity that n= 2k. (so k=log2 n) • T(2k)=T(2k-1)+c=T(2k-2)+c+c=T(2k-3)+c+c+c = … = T(20)+c+c+…c=T(1)+kc=O(k)=O(log n) • Therefore, T(n)=O(log n). CS 103

  18. MergeSort • The general problem of sorting is to take as input an unordered array X[ ], and give as output the same set of data but sorted in increasing order • Example: • Input: 3 5 2 7 10 8 20 15 14 3 -1 2 -5 • Output: -5 -1 2 2 3 3 5 7 8 10 14 15 20 • We are interested in developing an algorithm that does the sorting CS 103

  19. MergeSort: Recursive Sorting A recursive sorting function works as follows: • Make a recursive call to the sorting function to sort the first half of the input array • Make another recursive call to sort the 2nd half of the input array • Finally, merge the two sorted halves into a single fully sorted array CS 103

  20. How to Merge Two Sorted Arrays • Say Y[ ] and Z[ ] are two sorted arrays to be merged into a single sorted array • Call the first element of an array the head • While both arrays Y and Z are non-empty, repeat the following steps: • Compare the two heads of Y and Z • Remove the smaller head and put it next in the output • Now either Y or Z is empty. Move the non-empty array to the end of output, and stop. • The output is now fully sorted. CS 103

  21. Illustration of Merging • (In class) CS 103

  22. Code for Merge void merge(double X1[ ], int left1, int right1, //merge X1[left1..right1] doubleX2[ ], int left2, int right2, // and X2[left2..right2] doubleX, int left) { // to X[left…] int i1 = left1; int i2=left2; int i= left; // heads of X1, X2, X. while (i1 <= right1 && i2 <= right2) if (X1[i1] <= X2[i2]) {X[i]=X1[i1]; i1++; i++;} else {X[i]=X2[i2]; i2++; i++;} if (i1<right1) // copy leftovers of X1 to the end of X while (i1<= right1) {X[i]=X1[i1]; i1++; i++;} if (i2<right2) // copy leftovers of X2 to the end of X while (i2<= right2) {X[i]=X2[i2]; i2++; i++;} } Time: Since each element of X1 and X2 and X are touched once, the time is proportional to the sum of the sizes of X1 and X2. CS 103

  23. Code for MergeSort void mergeSort(double X[ ], doubleY[ ], int left, int right){ if (left==right) {Y[left] = X[left]; return;} int mid = (left+right)/2; double Z[right+1]; // next, sort left half of X and put the result in left half of Z mergeSort(X,Z,left,mid); // next, sort right half of X and put the result in right half of Z mergeSort(X,Z,mid+1,right); // next, merge the two halves of Z and put result in Y merge(Z,left,mid, Z,mid+1,right, Y,left); } • Time T(n) = 2T(n/2) + cn, where cn is time for merge, and n is size of X. • This implies: T(n) = O(n log n). CS 103

  24. Illustration of mergeSort • (In class) CS 103

  25. Additional Things for YOU to Do • Modify binarySearch so that even if the item b is not found, the function returns the index k where X[k] < b<X[k+1]. • Write a function that inserts a new element b into an already sorted array, assuming the array has additional room for a new element. Hint: use binarySearch as modified above to find where b should be inserted, then shift the right portion of the array by one position to the right, and then insert the element. CS 103

  26. More Things You can Do • Write a function (called partition) that takes as input an unsorted array X to do the following: • Let b=the first element of X • Move the data around inside X so that at the end b lands in some position k where X[i] ≤ b for all i < k, and X[i] > b for all i > k. • Hint: Have an empty array Y of same size as X. Scan the array X; for each element X[i], if X[i] ≤ b, insert X[i] in the left end of Y, but if X[i]>b, insert X[i] in the right end of Y. At the end, you can copy Y onto X. • Use partition to develop another recursive sorting algorithm: 1. call partition; 2. call recursively on X[0..k-1]; 3. call recursively on X[k+1..n-1]. CS 103
