Appendicular Skeleton

Appendicular Skeleton. Pectoral Girdle Pelvic Girdle Appendages. APPENDICULAR SKELETON. MADE UP OF: appendages/limbs pectoral girdle pelvic girdle Remember… 126 Bones!. PECTORAL GIRDLE. Consists of scapula and clavicle. SCAPULA (2) = shoulder blade. - g lenoid cavity

rodd
Télécharger la présentation

Appendicular Skeleton

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

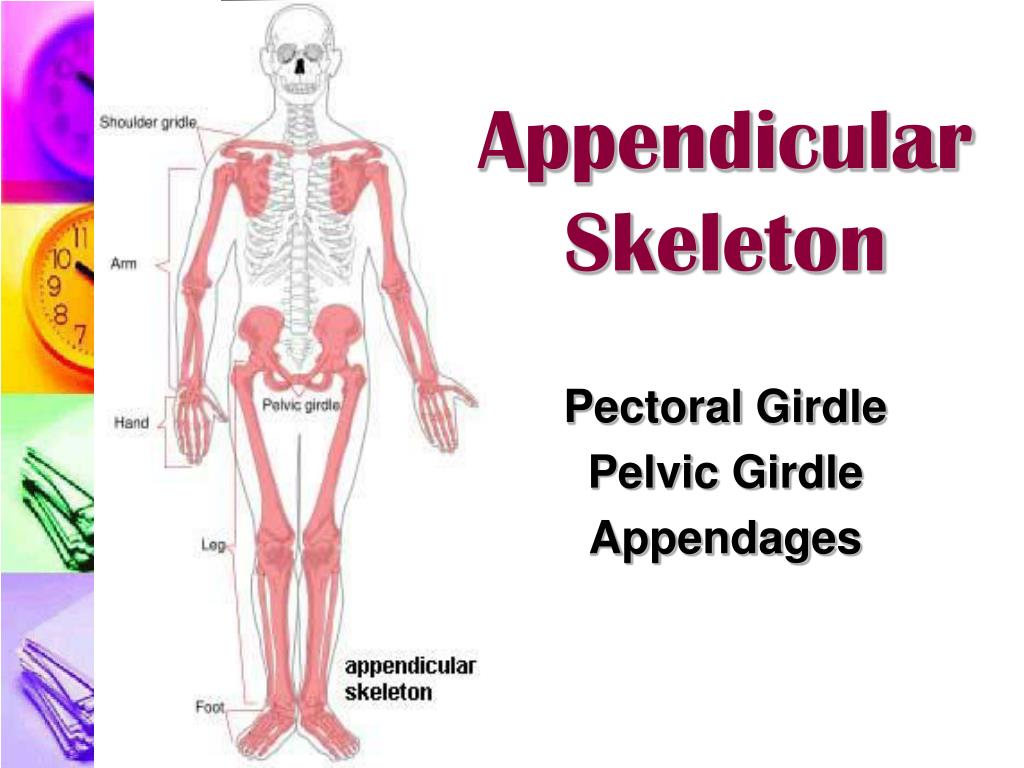

  1. Appendicular Skeleton Pectoral Girdle Pelvic Girdle Appendages

  2. APPENDICULAR SKELETON MADE UP OF: • appendages/limbs • pectoral girdle • pelvic girdle Remember… 126 Bones!

  3. PECTORAL GIRDLE • Consists of scapula and clavicle

  4. SCAPULA (2) = shoulder blade - glenoid cavity articulates with humerus

  5. Posterior view Medial view Anterior view

  6. SCAPULA continued… • coracoid process(like a crow’s beak)  point of attachment for muscles

  7. CLAVICLE (2) = collarbone • articulates with sternum and the scapula

  8. Pause! Please… remember to refer to your Bone Markings Table if you need to; for example: • Glenoid = pit/socket/articular depression • Trochlea = structure resembling or acting like a pulley • Tuberosity = large, rounded projection

  9. UPPER LIMBS • HUMERUS (2) • Humerus articulates with glenoid cavity of scapula • Distal trochlea articulates with the ulna

  10. RADIUS (2)= Lateral bone (thumb side) • The head of the radius articulates with the humerus • The radius forms most of joint with wrist bones • radial tuberosity= projection where the tendon of the biceps muscle attaches

  11. ULNA (2) • trochlear notchof ulna articulates with trochlea of humerus

  12. HAND Made up of 27 Bones Total CARPALS (16) = wrist  8 bones each hand (2 rows of 4) • METACARPALS (10) = palm 5 bones each hand • PHALANGES (28) total = fingers 14 bones each hand

  13. Some important features of the…PELVIC GIRDLE! • Helps protect/support the abdominopelvic organs • PELVIS includes coxal bones (hip bones) of appendicular skeleton & sacrum and coccyx of axial skeleton

  14. HIP/PELVIC/COXAL BONE (2) • Each coxal bone is formed by the fusion of 3 bones • The coxal bones join anteriorly at the pubic symphysis which is cartilage

  15. COXAL bone cont. • acetabulum= deep depression that articulates with the head of the femur

  16. Side note: Is it a…Male or Female Skeleton? FEMALE PELVIS • Female pubic arch is more rounded • Angle of the pubic arch is greater (wider pelvic inlet than male) • Female pelvis lighter

  17. FEMUR (2) = thighbone longest & heaviest bone in the body • headof femur articulates with the acetabulum of coxal bone • greater trochanterof femur is a site for muscle attachment

  18. FIBULA (2) = Thinner lateral lower leg bone • Head of fibula articulates with the tibia but fibula does NOT articulate with the femur

  19. TIBIA (2) = Large medial lower leg bone • Inferior surface of tibia articulates with proximal bone of the ankle • tibialtuberosity= roughened projection on the anterior surface where the patellar ligament attaches

  20. PATELLA (2) = sesamoid kneecap bone • Posterior surface articulates with the rounded projections of the femur

  21. TARSALS (14) • 7 bones each ankle talus:most superior tarsal bone (articulates with tibia and fibula) calcaneus:largest/ strongest tarsal = heel bone

  22. METATARSALS (10) • 5 bones long bones each foot • form the distal portion of the foot where foot arch is normally located

  23. PHALANGES (28) = toe bones • 14 bones each foot • The hallux(big toe) has 2 phalanges • Other 4 toes have 3 phalanges
