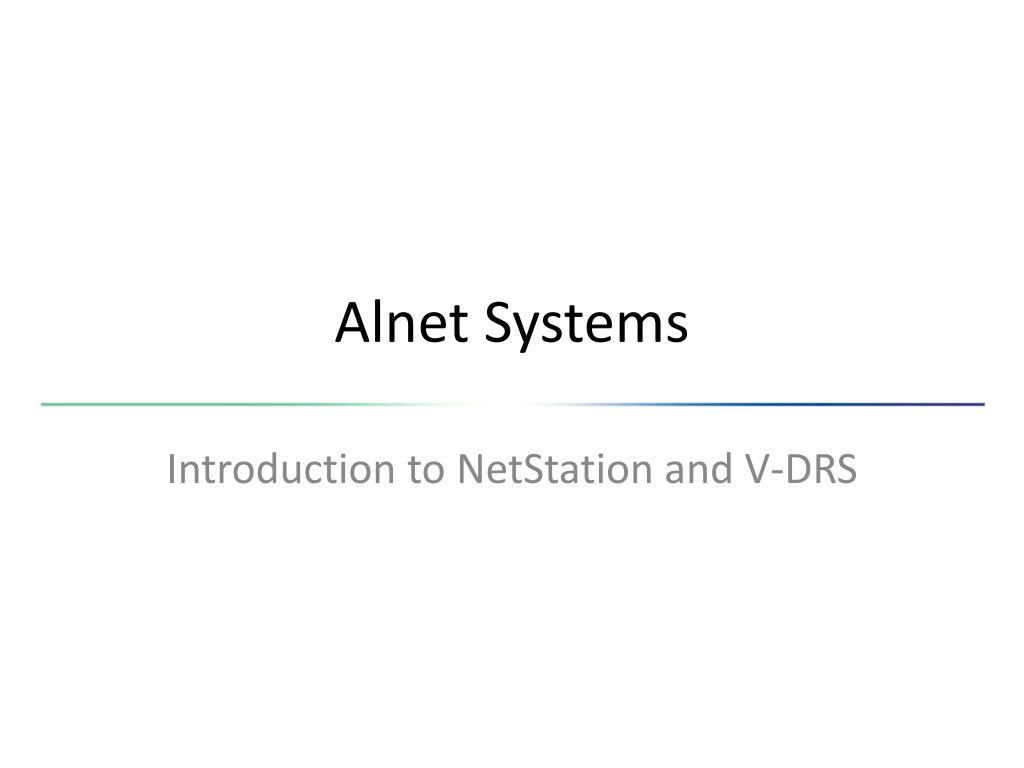

  1. Alnet Systems Introduction to NetStation and V-DRS

  2. Alnet Servers • Alnet NetStation • Open Platform Video Management Solution • NetStation is an Advanced System for video and sound recording from IP and Analog Cameras • The System is based on the highly reliable VDR-S application by Alnet Systems • The Alnet servers are Windows based • The system are fully supported supported locally (South Africa) and remotely via ADSL Alnet.Systems.Netstation.IP

  3. Alnet Servers • Alnet System Features • VDR-S is the software application installed on each of the Alnet Servers • H.264 Compression is used. This is the replacement for MPEG4. H.264 is a standard for video compression, and is equivalent to MPEG-4 Part 10, or MPEG-4 AVC • User Friendly GUI • Camera configuration menu allows precise parameters settings for each of the cameras. Each camera can be set up individually. • Archives are available instantly and supply a user friendly time line to find incidents. These archives are available to anybody on the network that has been granted access to the material. • Advanced motion detection • Interactive electronic map (e-map) is an optional feature which shows floor plan and corresponding camera locations. • Email system alerts to managers: signal loss, camera disconnected, user login and logout, start-up and shutdown of system etc. • Alnet Client software for remote viewing via the LAN or ADSL (both Server and Client must be connected to same LAN or ADSL) Alnet.Systems.Netstation.IP

  4. Alnet Servers Alnet.Systems.Netstation.IP

  5. Server Recommendations • Provision should be made for an industrial UPS to run the entire server system. Power for the system should be provided through a dedicated "RED CIRCUIT" (NOT THROUGH EARTH LEAKAGE) with UPSs at each Power supply point. • Maximum distance from PoE switch to furthest camera: 100m. Power must be provided for the PoE Switches [220VAC]. • All Alnet servers should be housed in a lockable server cabinet with the following recommendations: • Depth 800mm • Equip with a fan • Rear Extension Closet for cable management • The cabinets should be in an air-conditioned environment to prevent the server equipment from overheating. • In order to comply with the required installation standards the cabinet must be positioned in an air conditioned room and on a raised platform. • The cabinet will need a clearance area of 1m around the perimeter to allow technicians unobstructed access. Alnet.Systems.Netstation.IP

  6. Remote Viewing • Client Application (CMS) • CMS Professional is an advanced client application that works in conjunction with NetStation servers. The software provides the capability to view multiple sites remotely via an ADSL connection. • Client software is also able to record footage offering further redundancy. • Recorded footage can be accessed through the Archive module which has all of the same functionality as the Server • User limitations can be set on Client applications by the system administrator • Client software is distributed free of charge. • Mobile Client • Video client software for mobile devices • CMS mobile is supported by iPhone, android, blackberry and windows phone Alnet.Systems.Netstation.IP

  7. VDR-S Introduction • Camera Configuration • Viewing Archives • PTZ Control • Exporting Video Footage • E-map Alnet.Systems.Netstation.IP

  8. Camera Configuration VDR-S software enables the user to setup and define individual camera characteristics. The process is very simple as illustrated below. Alnet.Systems.Netstation.IP

  9. Camera Configuration After selecting configuration >> Cameras from the drop down menu the following ‘Camera settings’ window will appear . Select Camera Select Configuration tab Name Camera Appropriately Click Apply when done Alnet.Systems.Netstation.IP

  10. Viewing Archives Archives can be accessed instantly by clicking on the archives tab (top left corner of screen) as shown below. Alnet.Systems.Netstation.IP

  11. Viewing Archives The Archives window will open displaying a time line at the top of the screen. Dragging the mouse along the time line will display a date, time as well as the corresponding video images. Time Line Select Date Alnet.Systems.Netstation.IP

  12. PTZ Control • Select the PTZ icon to the left of the screen to bring up the PTZ control interface Alnet.Systems.Netstation.IP

  13. Exporting to AVI Enter the Archives and click on the export icon as shown below Alnet.Systems.Netstation.IP

  14. Exporting to AVI Fill in the required parameters before exporting the video footage to an AVI file Alnet.Systems.Netstation.IP

  15. E-map • Interactive electronic map (e-map) is an optional feature which shows floor plan and corresponding camera locations. • Clicking on a camera icon will open full screen view of camera on adjacent screen (dual screen) • A red ring around the camera indicates motion detection • An alarm icon can be placed at any point where an alarm input is in use and will flash when activated. For example a door being opened. Alnet.Systems.Netstation.IP

  16. E-map Alnet.Systems.Netstation.IP

  17. Contact Alnet Africa Raicom Tel: +27 21 789 0788 Fax: 086 555 222 8 Email: info@alnetafrica.co.za Alnet.Systems.Netstation.IP
