  1. Performance of a diagnostic test Steen Ethelberg 17th EPIET Introductory Course Lazareto, Menorca, Spain September 2011 • Thierry Ancelle • Marta Valenciano

  2. Outline • Performance characteristics of a test • Sensitivity • Specificity • Choice of a threshold. • Performance of a test in a population • Positive predictive value of a test (PPV) • Negative predictive value of a test (NPV) • Impact of disease prevalence, sensitivity and specificity on predictive values.

  3. 1. Performance of a test in an experimental setting

  4. Population with ill and non-ill individuals

  5. Test should identify the ill only

  6. In reality, tests are not perfect

  7. Sensitivity & specificity Identified patients All patients Se = = 90% 18 78 Identified non-patients 20 80 All non-patients Sp = = 97.5% Se = Sp =

  8. Sensitivity of a test • Ability of a test to correctly identify affected individuals • Proportion of people testing positive among affected individuals Patients + － True positive (TP) Test False negative (FN) Sensitivity (Se) = TP / ( TP + FN )

  9. Sensitivity of a PCR for congenital toxoplasmosis Patients with toxoplasmosis Sensitivity = 54 / 58 = 0.931= 93.1 %

  10. Specificity of a test • Ability of test to identify correctly non-affected individuals • Proportion of people testing negative among non-affected individuals Non-affected people + － False positive (FP) Test True negative (TN) Specificity (Sp) = TN / ( TN + FP )

  11. Specificity of a PCR for congenital toxoplasmosis Individuals without toxoplasmosis Specificity = 114 / 125 =0.912 = 91.2 %

  12. Performance of a test Disease Yes No + TP FP Test ­ FN TN TP Se = TP + FN TN Sp = TN + FP

  13. Distribution of quantitative test results among affected and non-affected people Threshold for positive result Ideal situation Non affected: Affected: Number of people tested TN TP 0 5 10 15 20 Quantitative result of the test

  14. Distribution of quantitative results among affected and non-affected people Threshold for positive result More realistic situation Non-affected: Affected: TN TP Number of people tested FN FP 0 5 10 15 20 Quantitative result of the test

  15. Effect of Decreasing the Threshold Non affected: Threshold for positive result Affected: FP Number of people tested TP TN FN 0 5 10 15 20 Quantitative result of the test

  16. Effect of Decreasing the Threshold Disease Yes No + TP FP Test ­ FN TN TP Se = TP + FN TN Sp = TN + FP

  17. Effect of Increasing the Threshold Non-affected: Threshold for positive result Affected: TN Number of people tested TP FN FP 0 5 10 15 20 Quantitative result of the test

  18. Effect of Increasing the Threshold Disease Yes No + TP FP Test ­ FN TN TP Se = TP + FN TN Sp = TN + FP

  19. Performance of a test and threshold • Sensitivity and specificity vary in opposite directions when changing the threshold (e.g. the cut-off in an ELISA) • The choice of a threshold is a compromise to best reach the objectives of the test • consequences of having false positives? • consequences of having false negatives?

  20. When false diagnosis is worse than missed diagnosis • Example: Screening for congenital toxoplasmosis • One should minimise false positives • Prioritise SPECIFICITY

  21. When missed diagnosis is worse than false diagnosis • Example: Testing for Helicobacter pylori infection • One should minimise the false negatives • Prioritise SENSITIVITY

  22. Using several tests • One way out of the dilemma is to use several tests that complement each other • First use test with a high sensitivity • Second use test with a high specificity

  23. ROC curves • Representation of relationship between sensitivity and specificity for a test • Receiver Operating Characteristics curve • Simple tool to: • Help define best cut-off value of a test • Compare performance of two tests.

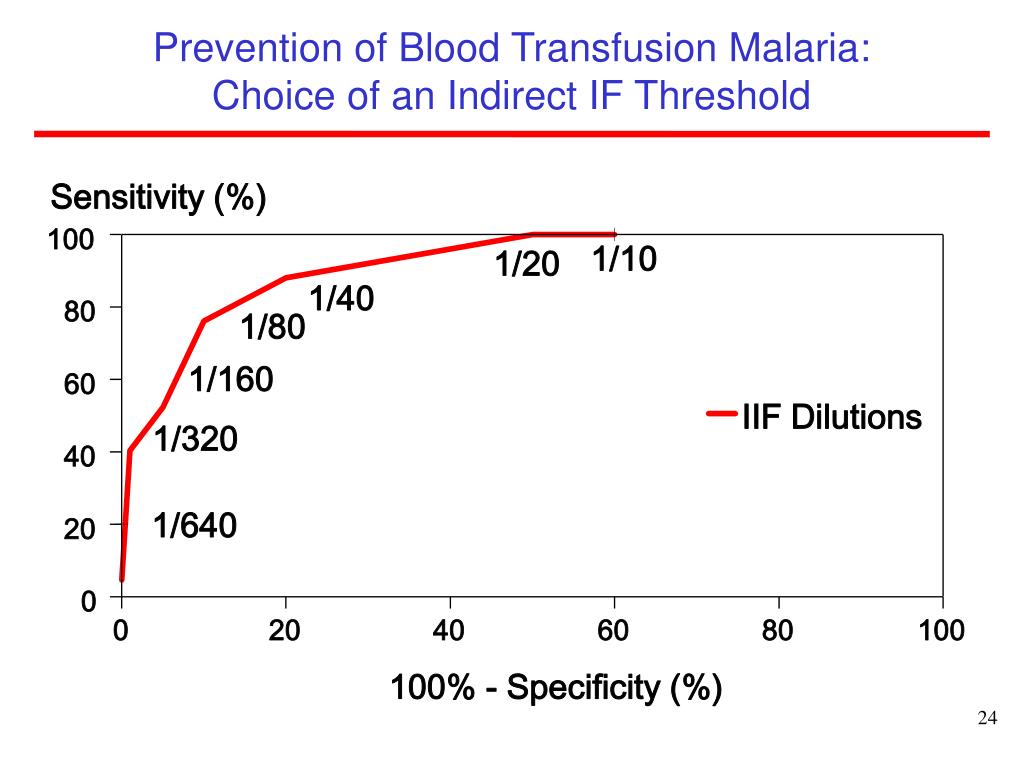

  24. Prevention of Blood Transfusion Malaria:Choice of an Indirect IF Threshold Sensitivity (%) 100 1/10 1/20 1/40 80 1/80 1/160 60 IIF Dilutions 1/320 40 1/640 20 0 0 20 40 60 80 100 100% - Specificity (%)

  25. Comparison of Performance of ELISA and CATT Test for Screening of Human Trypanosomiasis Sensitivity (%) 100 80 ELISA CATT 60 40 20 0 0 25 50 75 100 100 - Specificity (%)

  26. Comparison of Performance of ELISA and CATT Test for Screening of Human Trypanosomiasis Sensitivity (%) 100 80 ELISA CATT 60 Area under the ROC curve (AUC) 40 20 0 0 25 50 75 100 100 - Specificity (%)

  27. Performance of a test • Validity • Sensitivity • Specificity • Reproducibility • Concepts may also used more broadly • Exposure status • Case definitions

  28. 2. Performance of a test in a population

  29. Would also like to know… • As a clinician • probability that a individual with a positive test is really sick? • probability that a individual with a negative test is really healthy? • As an epidemiologist • proportion of positive tests corresponding to true patients? • proportion of negative tests corresponding to healthy subjects?

  30. Predictive values Real patients Positive patients PPV= = 86% 15 Real non-patients 22 Negative patients 75 NPV= = 94% 80 PPV= NPV=

  31. Positive Predictive Value • Probability that an individual testing positive is truly affected • proportion of affected people among those testing positive Disease Yes No + Test TP FP PPV = TP/(TP+FP)

  32. Negative Predictive Value • Probability that an individual testing negative is truly non-affected • proportion of non affected among those testing negative Disease Yes No ­ Test FN TN NPV = TN/(TN+FN)

  33. TP FP Predictive value of a positive and a negative test Disease Yes No + PPV = TP/(TP+FP) Test ­ NPV = TN/(TN+FN) FN TN PPV = VPP = PV+ NPV = VPN = PV-

  34. Predicted values are not constants • The predicted values depend on the sensitivity and on the specificity of the test as well as on the prevalence of the disease • Will be different in different populations.

  35. TP FP Relation between predictive values and sensitivity/ specificity Disease Yes No + PPV = TP/(TP+FP) Test ­ NPV = TN/(TN+FN) FN TN

  36. Step 1: Specify the prevalence (Pr) of disease Disease Yes No + Test ­ Pr 1-Pr

  37. Step 2: Use sensitivity (Se) to distribute test results among the diseased Disease Yes No + Se Pr Test ­ (1-Se)Pr Pr 1-Pr

  38. Step 3: Use specificity (Sp) to distribute test results among the non-diseased Disease Yes No + (1-Sp)(1-Pr) Se Pr Test ­ (1-Se)Pr Sp(1-Pr) Pr 1-Pr

  39. Step 4: Determine the proportion testing positive and the proportion testing negative Disease Yes No + (1-Sp)(1-Pr) Se Pr + (1-Sp)(1-Pr) Se Pr Test ­ (1-Se)Pr Sp(1-Pr) (1-Se)Pr+ Sp(1-Pr) Pr 1-Pr

  40. Se Pr = PPV + - - Se Pr (1 Sp)(1 Pr) Sp(1 - Pr) = NPV + - Sp(1 - Pr) (1 Se) Pr Step 5: Calculate PPV and NPV with appropriate expressions from Step 4

  41. Relation between predictive values and sensitivity/ specificity Se Pr = PPV + - - Se Pr (1 Sp)(1 Pr) Sp(1 - Pr) = NPV + - Sp(1 - Pr) (1 Se) Pr Increasing specificity increasing PPV Increasing sensitivity increasing NPV

  42. Relation between predictive values and prevalence Se Pr = PPV + - - Se Pr (1 Sp)(1 Pr) Sp(1 - Pr) = NPV + - Sp(1 - Pr) (1 Se) Pr Increasing prevalence  increasing PPV Decreasingprevalence increasingNPV

  43. PPV and NPV of a test according to the prevalence (80% sensitivity and specificity) 100 80 NPV 60 Predictive value (%) 40 20 PPV 0 0 25 50 75 100 Prevalence (%)

  44. Example: Two different populations, Se=Sp=90% Prevalence: 50%  PPV = 90% Ill Not ill TP FP + Test FN TN ­ Prevalence: 10%  PPV = 50%

  45. Example: Screening for human trypanosomiasis in two settings • CATT test • Sensitivity = 95% • Specificity = 75% • Endemic area • Prevalence = 20% • Low endemic area • Prevalence = 0.5% • 100,000 tests performed in each area

  46. Example: Screening for human trypanosomiasis in two settings CATT test sensitivity = 95% CATT test specificity = 75% Prevalence = 20% PPV = 48.7% NPV = 98.4%

  47. Example: Screening for human trypanosomiasis in two settings CATT test sensitivity = 95% CATT test specificity = 75% Prevalence = 0.5% PPV = 1.90% NPV = 98.97%

  48. To sum up… • Sensitivity and specificity • intrinsic characteristics of a test • capacity to identify the affected • capacity to identify the non-affected • independent from the disease prevalence • Predictive values • performance of a test in real life • how to interpret a positive test • how to interpret a negative test • dependent on the disease prevalence

  49. Thank you!QUESTIONS?
