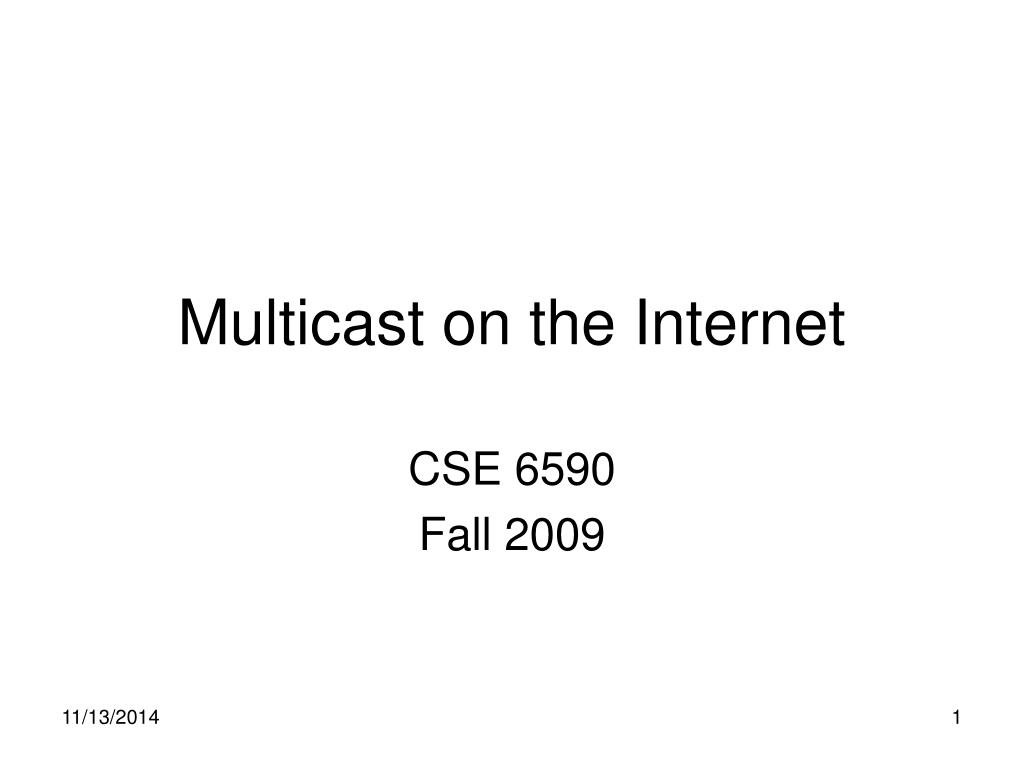

  1. Multicast on the Internet CSE 6590 Fall 2009

  2. Addressing • Class D address • Ethernet broadcast address (all 1’s) • IP multicast using • Link-layer (Ethernet) broadcast • Link-layer (Ethernet) multicast Both cases need filtering at IP layer. • Source: unicast IP address S Receivers: multicast group ID G • Each group is identified by (S, G)

  3. IPv4 Address Formats

  4. Mapping from Class D IP adress to Ethernet multicast adress

  5. Reverse Path Forwarding if (multicast datagram received on incoming link on shortest path back to center) then flood datagram onto all outgoing links else ignore datagram • rely on router’s knowledge of unicast shortest path from it to sender • each router has simple forwarding behavior:

  6. Reverse Path Forwarding (2) • Building a loop-free broadcast tree • No knowledge of group membership

  7. A D G B E F c Reverse Path Forwarding

  8. A A D D G G B E E B F F c c (b) Broadcast initiated at D (a) Broadcast initiated at A Spanning-Tree Broadcast

  9. Internet Multicast Service Model 128.59.16.12 Multicast group concept: use of indirection • a host “sends” IP datagrams to multicast group • routers forward multicast datagrams to hosts that have “joined” that multicast group 128.119.40.186 multicast group 226.17.30.197 128.34.108.63 128.34.108.60

  10. Multicast groups • Class D Internet addresses reserved for multicast: • Host group semantics: • anyone can “join” (receive from) multicast group • anyone can send to multicast group • no network-layer identification to hosts of members • Needed: infrastructure to deliver multicast-addressed datagrams to all hosts that have joined that multicast group

  11. Multicast Protocols Transport layer • UDP • Real-time Transport Protocol (RTP): for multimedia content • ReSerVation Protocol (RSVP): for bandwidth reservation in a multicast distribution

  12. Multicast Protocols (2) Routing, delivery • On a local network: • Internet Group Management Protocol (IGMP) • Multicast Listener Discovery (MLD): similar to IGMP but for IPv6 • Intra-domain: • MOSPF, PIM, DVMRP • Inter-domain: • Multicast Border Gateway Protocol (MBGP)

  13. Joining a multicast group: 2-step process • Local: host informs local multicast router of desire to join group: IGMP (Internet Group Management Protocol) • Wide area: local router interacts with other routers to receive multicast datagram flow • many protocols (e.g., DVMRP, MOSPF, PIM) IGMP IGMP wide-area multicast routing IGMP

  14. IGMP: Internet Group Management Protocol • Host: sends IGMP report when application joins multicast group • IP_ADD_MEMBERSHIP socket option • hosts need not explicitly “unjoin” group when leaving • Router:sends IGMP query at regular intervals • hosts belonging to a multicast group must reply to query report query

  15. Router: Host Membership Query message broadcast on LAN to all hosts. Host: Host Membership Report message to indicate group membership randomized delay before responding implicit leave via no reply to Query Group-specific Query Leave Group message Last host replying to Query can send explicit Leave Group message Router performs group-specific query to see if any hosts left in group Introduced in RFC 2236 IGMP v3: current version IGMP

  16. IGMP: Summary • For membership management. • Between a host on a subnet (Ethernet) and the router for the subnet. • The router periodically broadcast an IGMP host-membership query message on its subnet. • A host subscribes to a group replies by multicasting a host-membership report message. • Note: feedback implosion  uses a random timer. • The report is sent 3 times (for reliability). • IGMP-1: hosts send no report  leaving the group IGMP-2: hosts send explicit host-membership leave messages to reduce leave latency.

  17. Truncated Broadcasting • Extension of Reverse Path Forwarding • No members of a group on a subnet  leaf router will not forward packets of this group to the subnet (pruning). • But does not reduce traffic in the core network • More efficient multicast routing is needed!!!

  18. Multicast Routing Approaches • Minimum cost trees • Minimum Steiner trees • Shortest path trees • Source-based trees • Core-based trees …we first look at basic approaches, then specific protocols adopting these approaches

  19. Minimum Steiner Trees • Steiner Tree: minimum cost tree connecting all routers with attached group members. • Problem is NP-complete. • Excellent heuristics exist. • Not used in practice: • computational complexity. • information about entire network needed. • monolithic: rerun whenever a router needs to join/leave.

  20. 1 i 5 4 3 6 2 Shortest Path Tree • Multicast cast forwarding tree: tree of shortest path routes from source to all receivers. • Dijkstra’s algorithm. S: source LEGEND R1 R4 router with attached group member R2 router with no attached group member R5 link used for forwarding, i indicates order link added by algorithm R3 R7 R6

  21. Internet Multicasting Routing: DVMRP • DVMRP: distance vector multicast routing protocol, RFC1075. • Flood and prune:reverse path forwarding, source-based tree. • initial datagram to multicast group flooded everywhere via RPF • routers not wanting the multicast data: send prune messages to upstream neighbors

  22. 1 i 5 4 3 6 2 DVMRP Example S: source LEGEND R1 R4 router with attached group member R2 router with no attached group member R5 link used for forwarding, i indicates order link added by algorithm R3 R7 R6

  23. DVMRP (2) • Soft state: DVMRP router periodically (1 min.) “forgets” that branches are pruned: • mcast data again flows down unpruned branches • downstream routers: reprune or else continue to receive data • Routers can quickly regraft to tree • following IGMP join at leaf • Odds and ends • commonly implemented in commercial routers • Mbone routing done using DVMRP • Works well in small autonomous domains

  24. DVMRP: Summary • Distance Vector Multicast Routing Protocol • Leaf router sends a prune message to neighbouring routers when there is no group member on the subnet. • Intermediate routers perform pruning whenever possible. • Flooding and pruning are repeated periodically, when the current state times out. • Between flooding rounds, a host can re-join a group by sending a graft message. • Intermediate routers propagates the graft message upstream until the path is re-connected.

  25. MOSPF • Extends OSPF for multicasting. • Every router has the complete topology of its autonomous system. • A receiver joins a multicast group by exchanging IGMP messages with its end-router. • The end-router broadcasts the presence of this destination (group membership) to the whole network. • Each router maintains a group membership table [S,G, <d1, d2, …>] • A sender simply sends data packets as they are available. • Each router uses the network topology, the group membership table, and the multicast group ID in the data packets to compute the route(s) to the destination(s).

  26. Core-Based Trees • For many-to-many multicast • CBT, PIM-SM, PIM-DM • Purpose: to reduce the amount of routing info stored at routers when a multicast group has a large number of members and multiple senders. • A multicast group requires a core (rendez-vous point). • Receivers “join” the (shortest-path) tree rooted at the core  only one tree per multicast group (used for multiple senders). • Sources send multicast data to the core, which then multicasts the data to the tree.

  27. MBone • Multicast backbone of the Internet • Was a long-running experimental approach to enabling multicast between sites through the use of tunnels • No longer operational • Not all routers support multicast routing protocols and IGMP. • Connecting multicast-capable routers using (virtual) IP tunnels

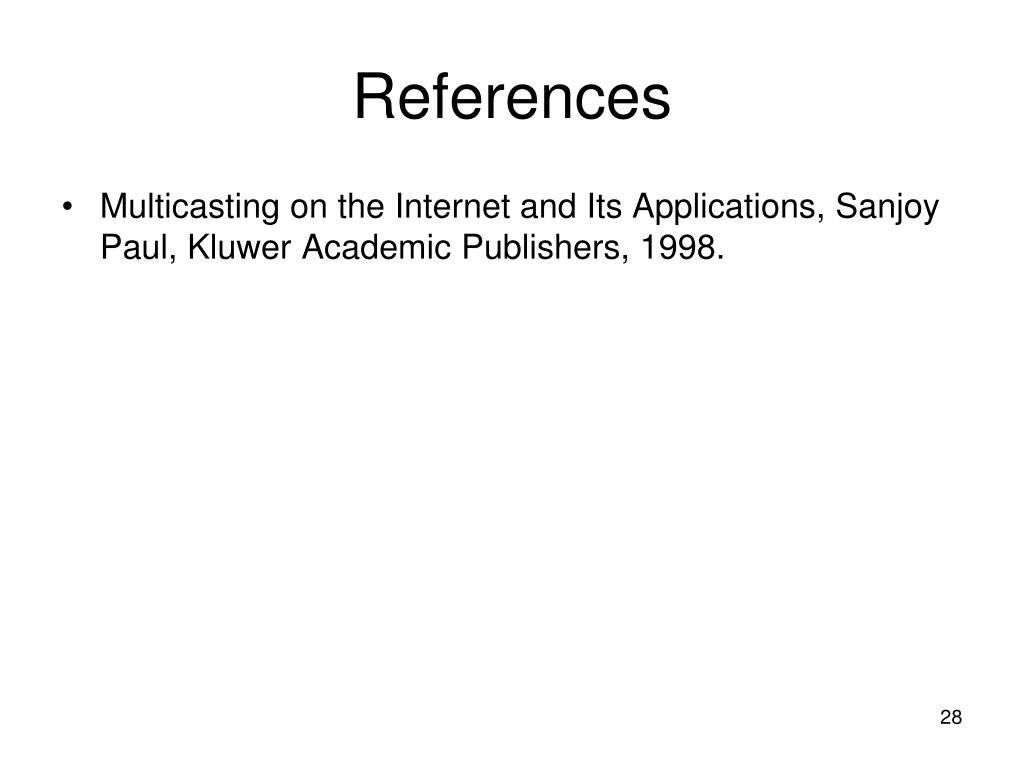

  28. References • Multicasting on the Internet and Its Applications, Sanjoy Paul, Kluwer Academic Publishers, 1998.
