State-Space Representation

State-Space Representation. General Problem Solving via simplification Read Chapter 3. What you should know. Create a state-space model Estimate number of states Identify goal or objective function Identify operators Next Lecture: how to search/use model. Everyday Problem Solving.

ronda
Télécharger la présentation

State-Space Representation

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. State-Space Representation General Problem Solving via simplification Read Chapter 3

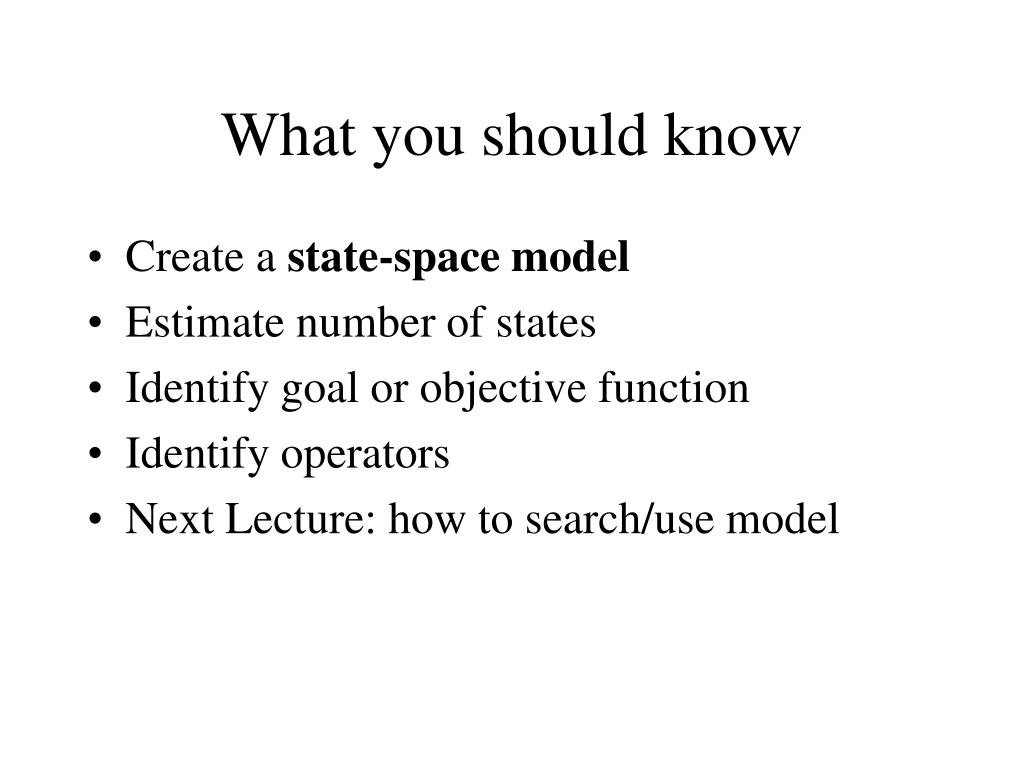

  2. What you should know • Create a state-space model • Estimate number of states • Identify goal or objective function • Identify operators • Next Lecture: how to search/use model

  3. Everyday Problem Solving • Route Planning • Finding and navigating to a classroom seat • Replanning if someone cuts in front • Driving to school • Constant updating due to traffic • Putting the dishes away • Spatial reasoning

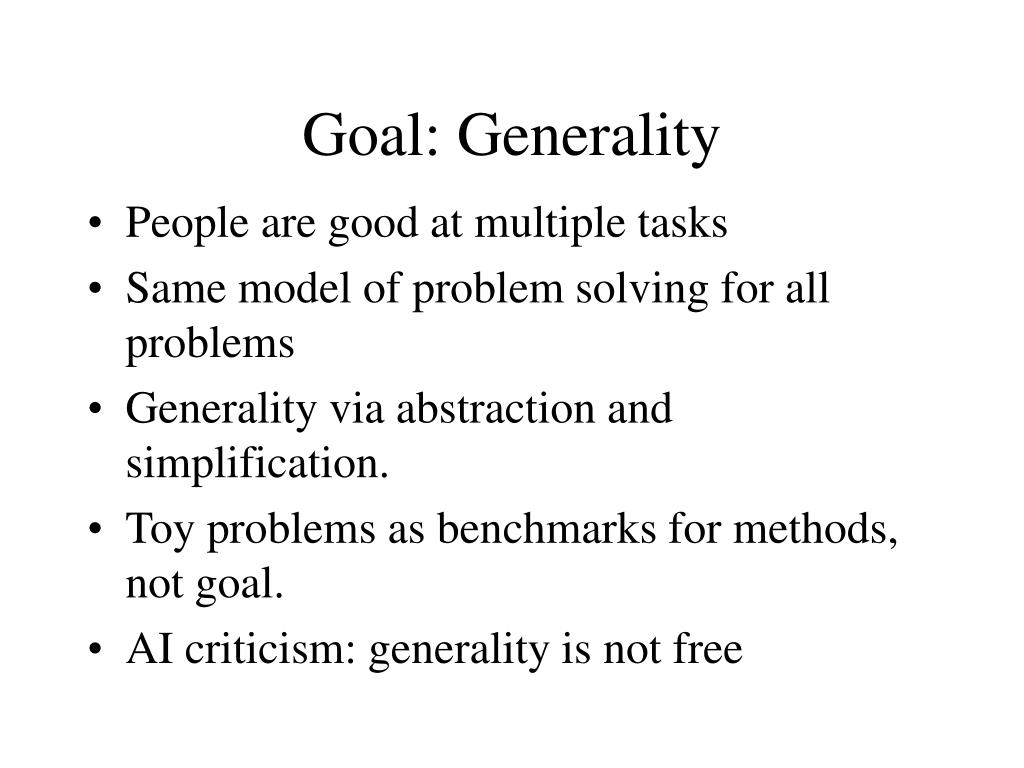

  4. Goal: Generality • People are good at multiple tasks • Same model of problem solving for all problems • Generality via abstraction and simplification. • Toy problems as benchmarks for methods, not goal. • AI criticism: generality is not free

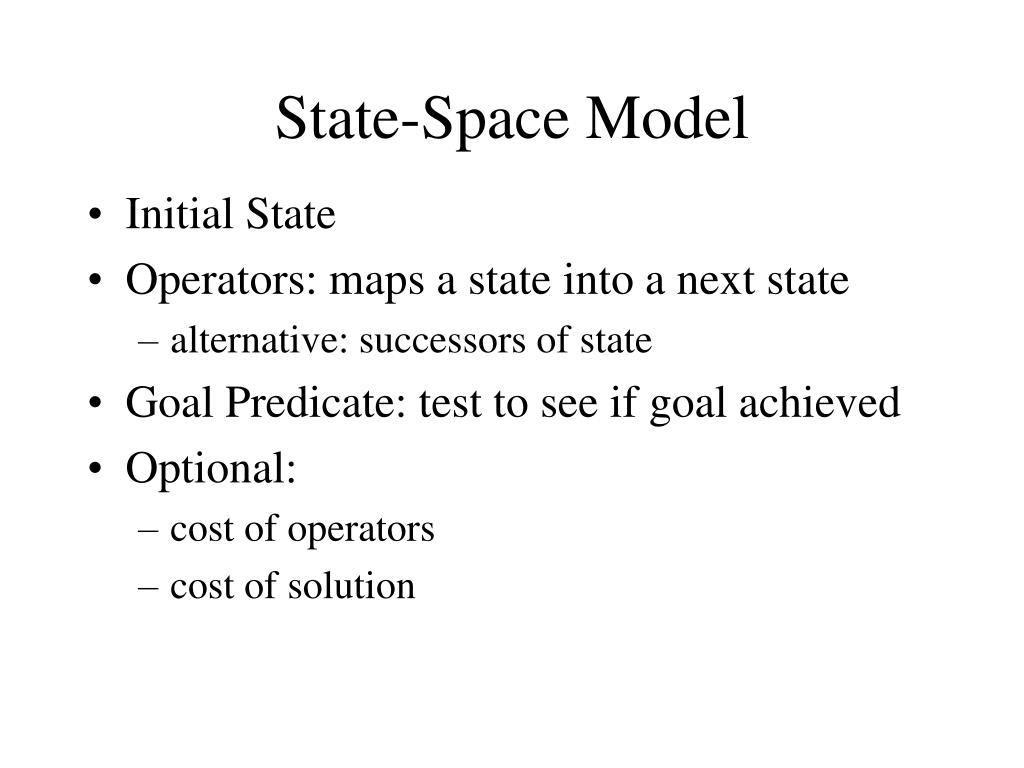

  5. State-Space Model • Initial State • Operators: maps a state into a next state • alternative: successors of state • Goal Predicate: test to see if goal achieved • Optional: • cost of operators • cost of solution

  6. Major Simplifications • You know the world perfectly • No one tells you how to represent the world • Sensors always make mistakes • You know what operators do • Operators don’t always work • You know the set of legal operators • No one tells you the operators

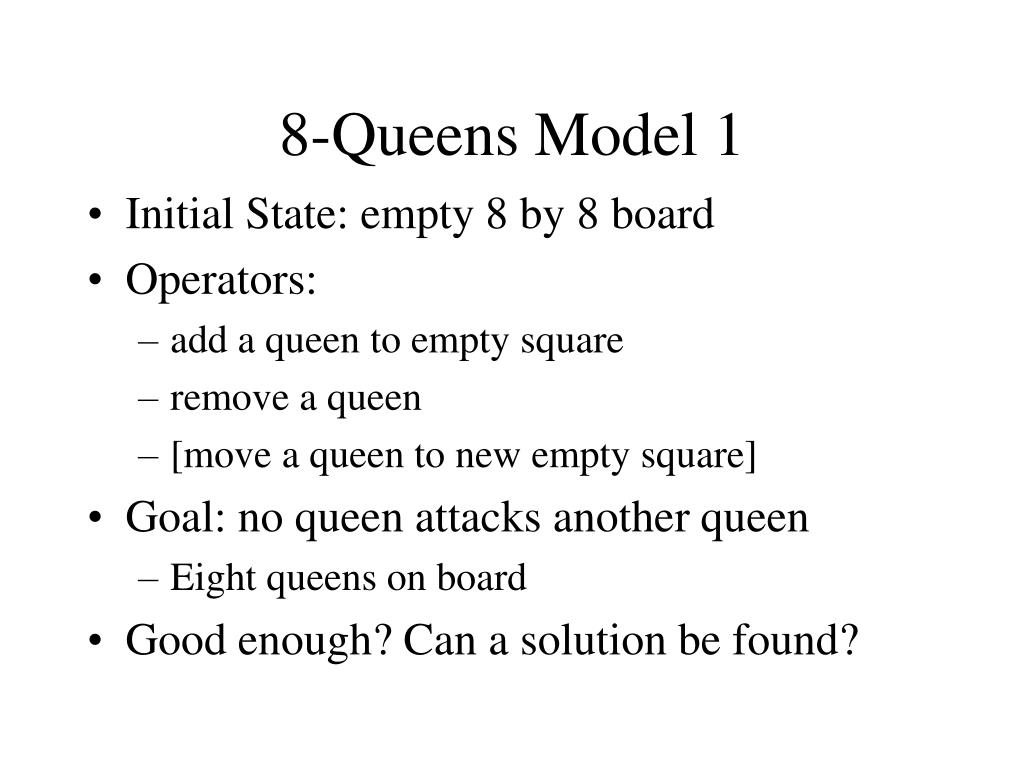

  7. 8-Queens Model 1 • Initial State: empty 8 by 8 board • Operators: • add a queen to empty square • remove a queen • [move a queen to new empty square] • Goal: no queen attacks another queen • Eight queens on board • Good enough? Can a solution be found?

  8. 8-Queens Model 2 • Initial State: empty 8 by 8 board • Operators: • add ith queen to some column (i = 1..8) • Ith queen is in row i • Goal: no queen attacks another queen • 8 queens on board • Good enough?

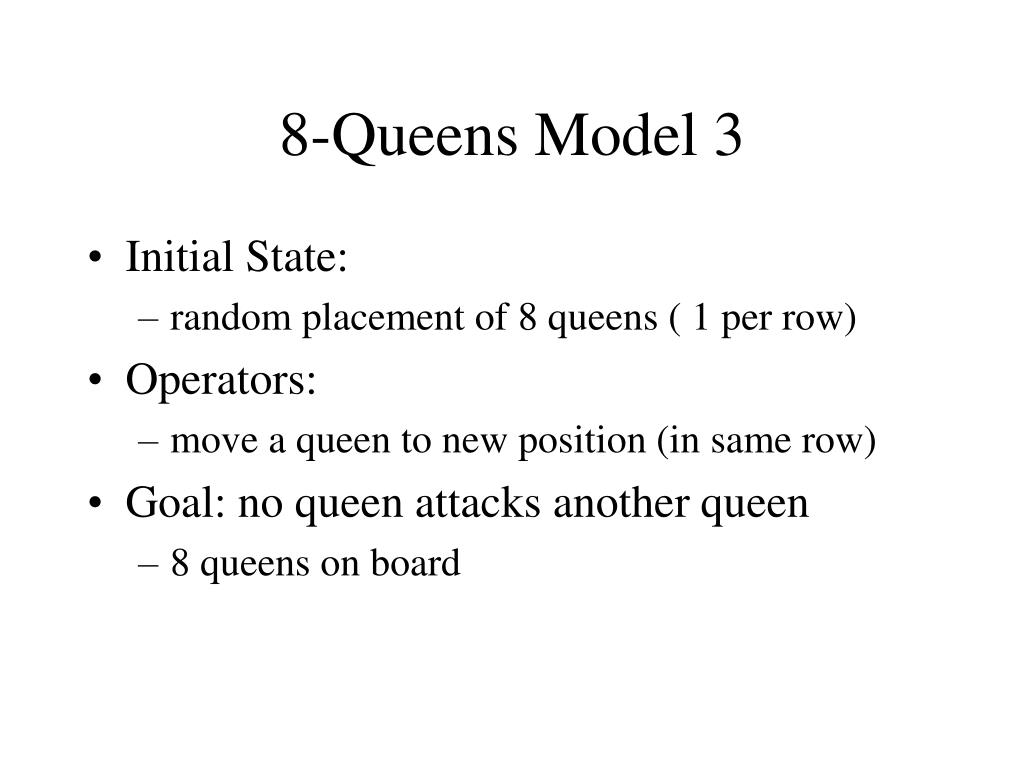

  9. 8-Queens Model 3 • Initial State: • random placement of 8 queens ( 1 per row) • Operators: • move a queen to new position (in same row) • Goal: no queen attacks another queen • 8 queens on board

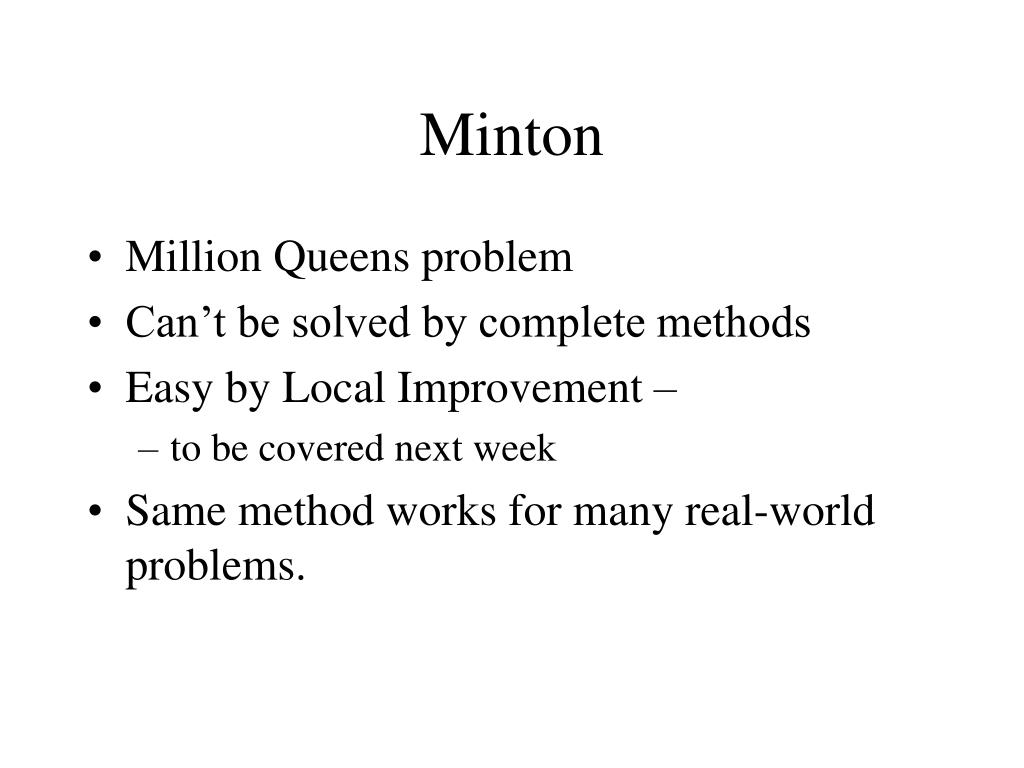

  10. Minton • Million Queens problem • Can’t be solved by complete methods • Easy by Local Improvement – • to be covered next week • Same method works for many real-world problems.

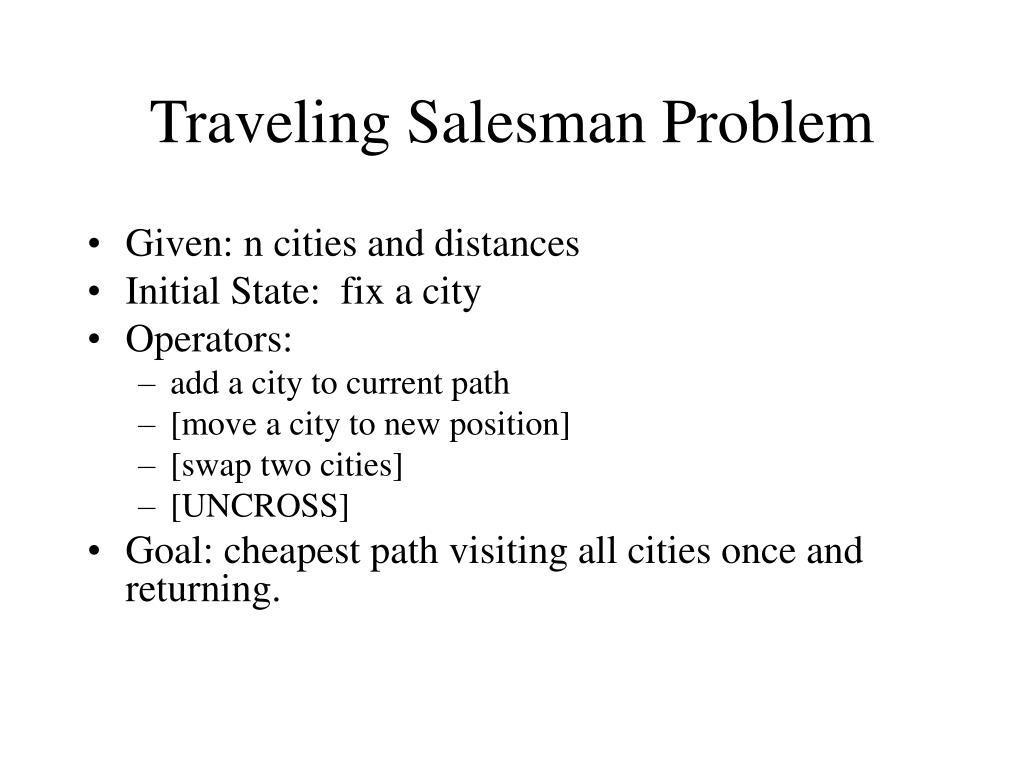

  11. Traveling Salesman Problem • Given: n cities and distances • Initial State: fix a city • Operators: • add a city to current path • [move a city to new position] • [swap two cities] • [UNCROSS] • Goal: cheapest path visiting all cities once and returning.

  12. TSP • Clay prize: $1,000,000 if prove can be done in polynomial time or not. • Number of paths is N! • Similar to many real-world problems. • Often content with best achievable: bounded rationality

  13. Sliding Tile Puzzle • 8 by 8 or 15 by 15 board • Initial State: • Operators: • Goal:

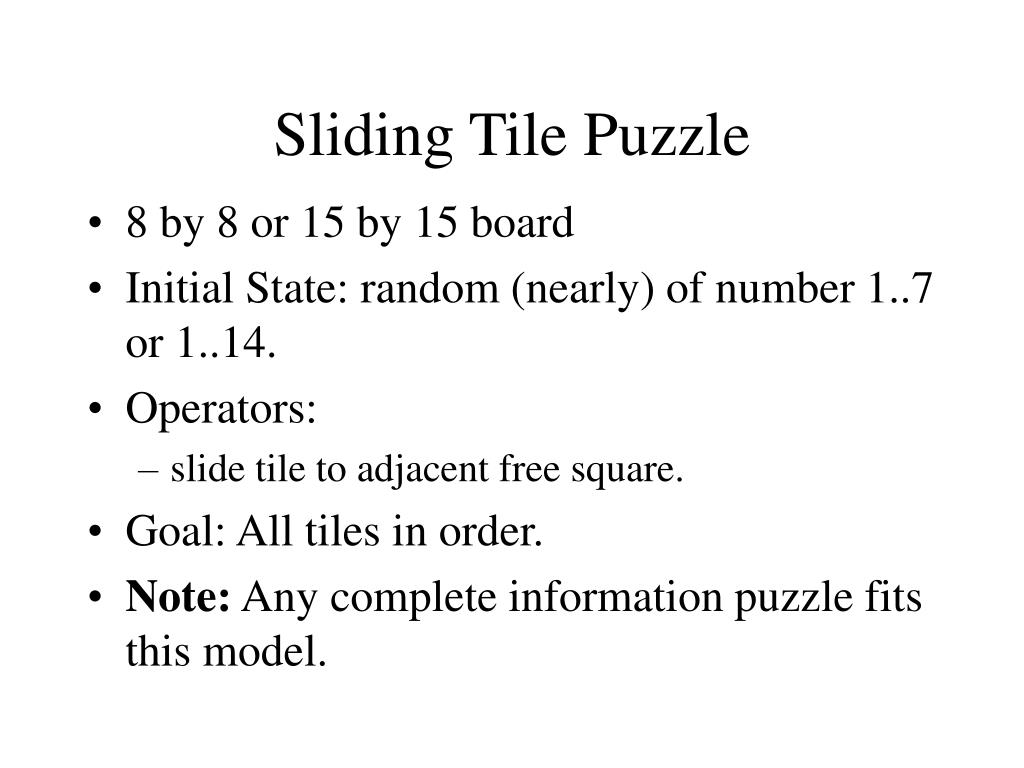

  14. Sliding Tile Puzzle • 8 by 8 or 15 by 15 board • Initial State: random (nearly) of number 1..7 or 1..14. • Operators: • slide tile to adjacent free square. • Goal: All tiles in order. • Note: Any complete information puzzle fits this model.

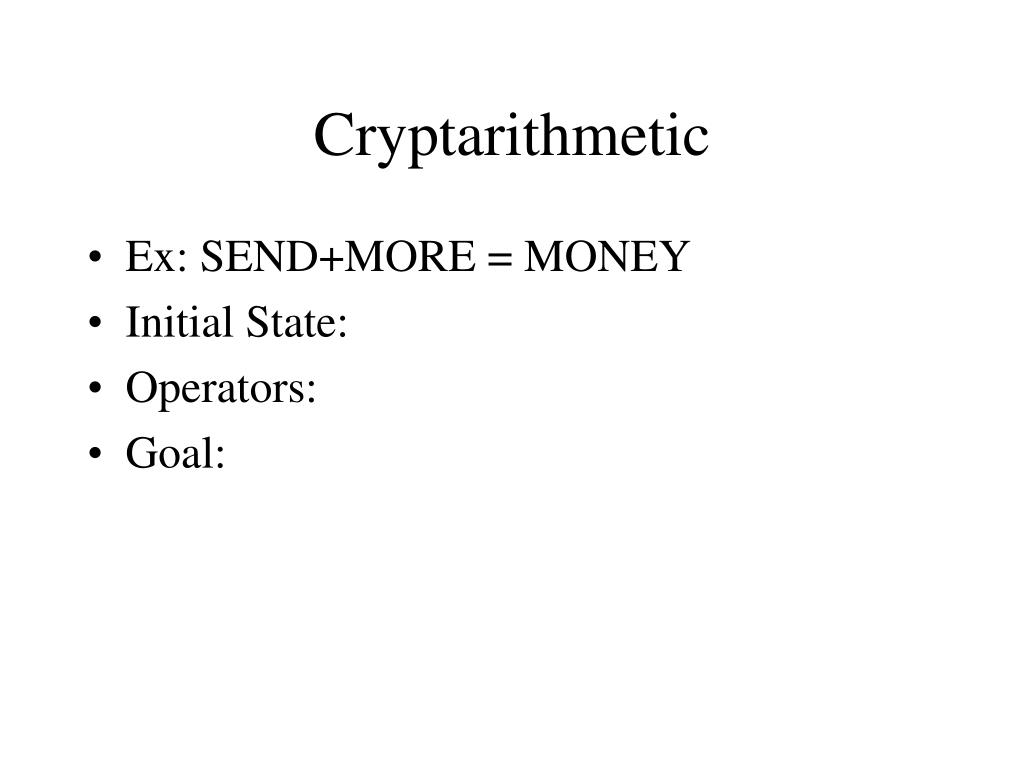

  15. Cryptarithmetic • Ex: SEND+MORE = MONEY • Initial State: • Operators: • Goal:

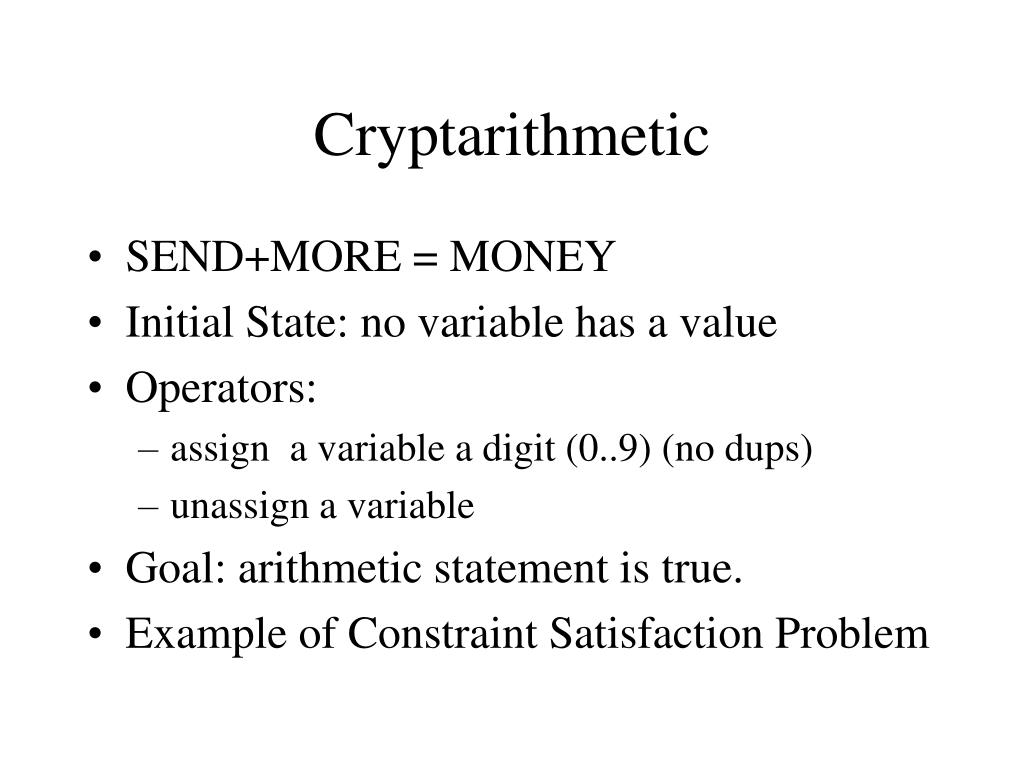

  16. Cryptarithmetic • SEND+MORE = MONEY • Initial State: no variable has a value • Operators: • assign a variable a digit (0..9) (no dups) • unassign a variable • Goal: arithmetic statement is true. • Example of Constraint Satisfaction Problem

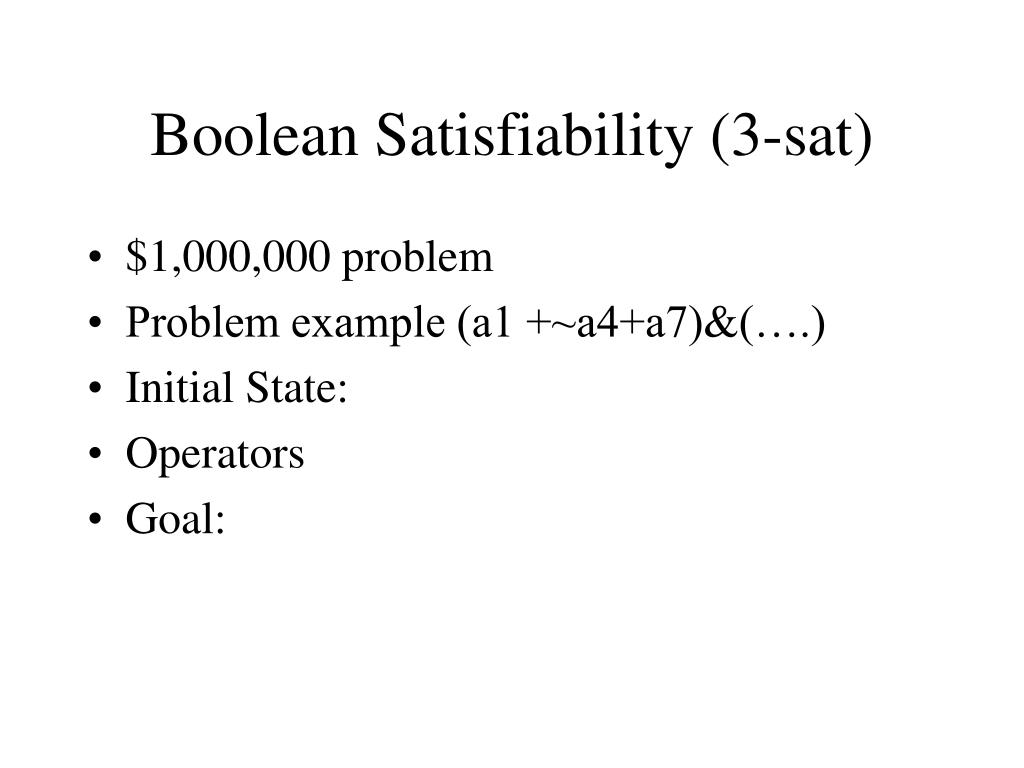

  17. Boolean Satisfiability (3-sat) • $1,000,000 problem • Problem example (a1 +~a4+a7)&(….) • Initial State: • Operators • Goal:

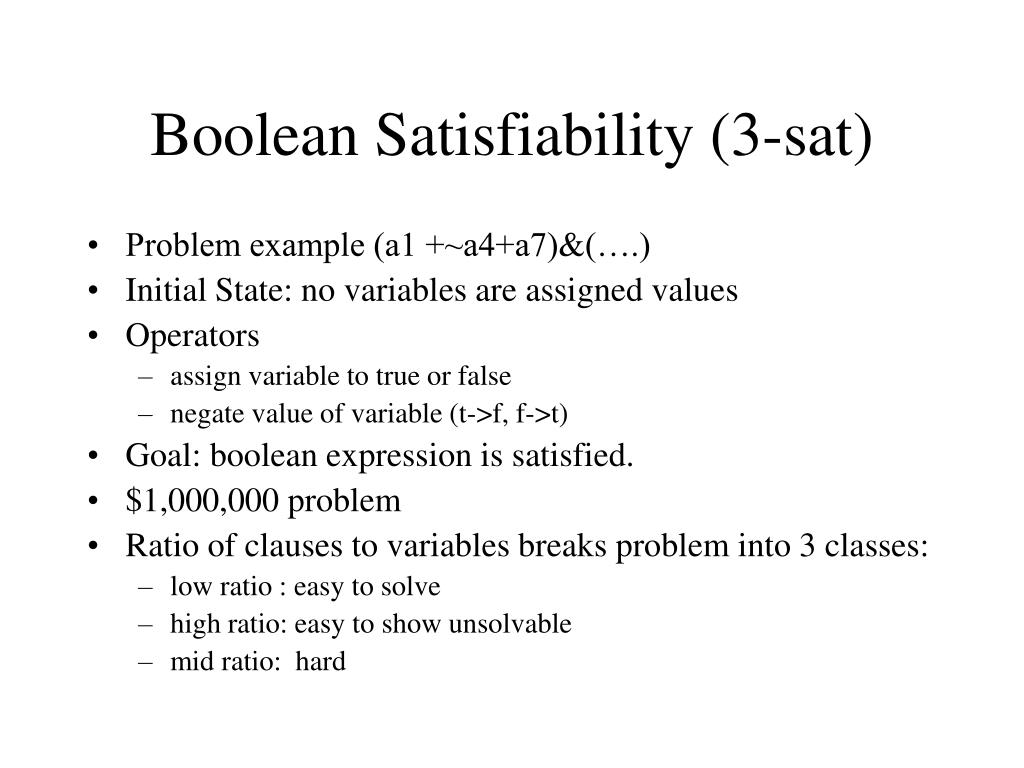

  18. Boolean Satisfiability (3-sat) • Problem example (a1 +~a4+a7)&(….) • Initial State: no variables are assigned values • Operators • assign variable to true or false • negate value of variable (t->f, f->t) • Goal: boolean expression is satisfied. • $1,000,000 problem • Ratio of clauses to variables breaks problem into 3 classes: • low ratio : easy to solve • high ratio: easy to show unsolvable • mid ratio: hard

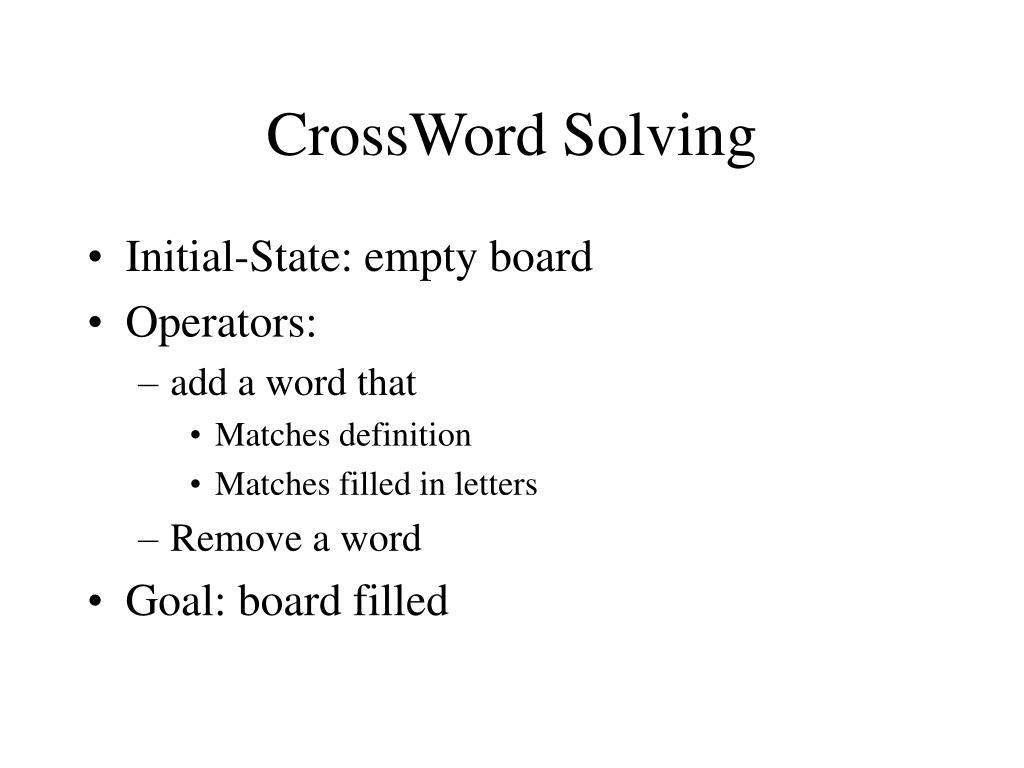

  19. CrossWord Solving • Initial-State: empty board • Operators: • add a word that • Matches definition • Matches filled in letters • Remove a word • Goal: board filled

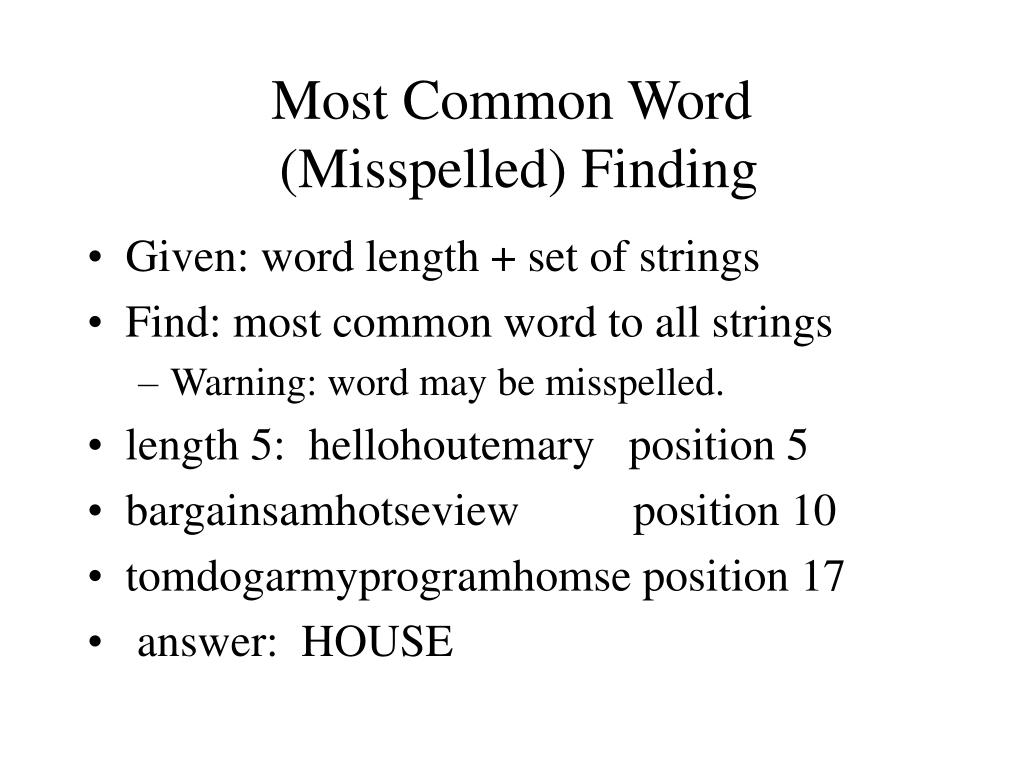

  20. Most Common Word (Misspelled) Finding • Given: word length + set of strings • Find: most common word to all strings • Warning: word may be misspelled. • length 5: hellohoutemary position 5 • bargainsamhotseview position 10 • tomdogarmyprogramhomse position 17 • answer: HOUSE

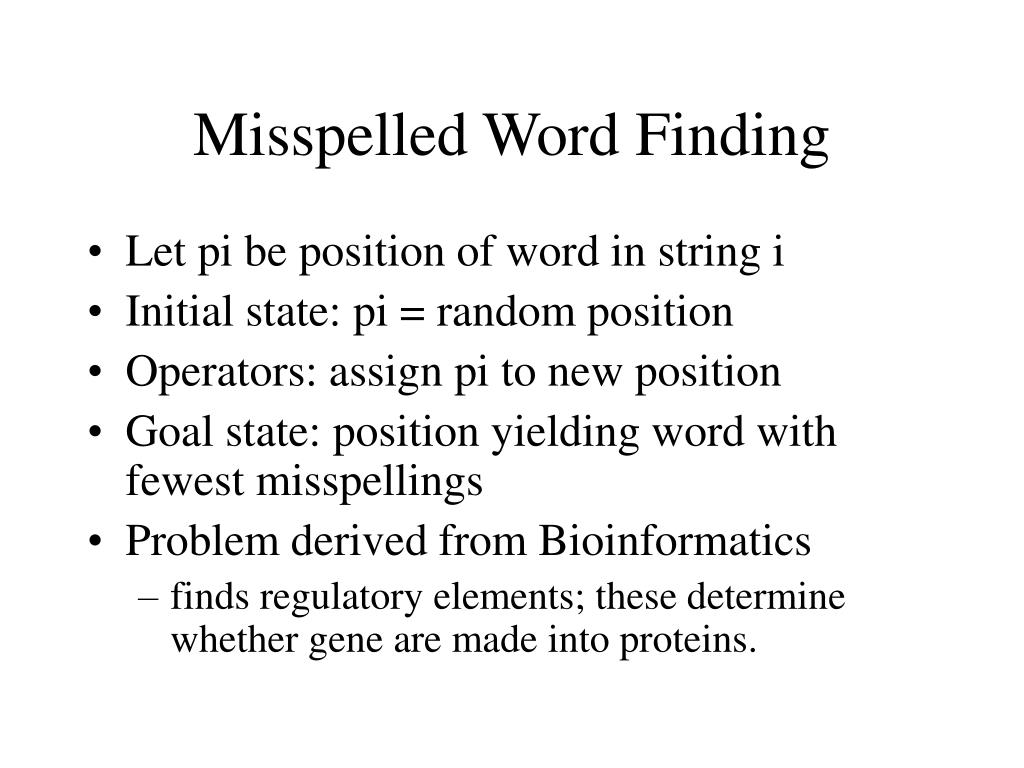

  21. Misspelled Word Finding • Let pi be position of word in string i • Initial state: pi = random position • Operators: assign pi to new position • Goal state: position yielding word with fewest misspellings • Problem derived from Bioinformatics • finds regulatory elements; these determine whether gene are made into proteins.
