  1. Laser Heater ControlsDesign OverviewEPICS IOC Team MeetingMatt Boyes

  2. Personnel Customers: • LCLS Laser Group • Physicists and Operators Laser Team: • Sheng Peng and Matt Boyes – Software • Vergne Brown – Cables and OTRs • John O’Neal – Vacuum

  3. Motivation

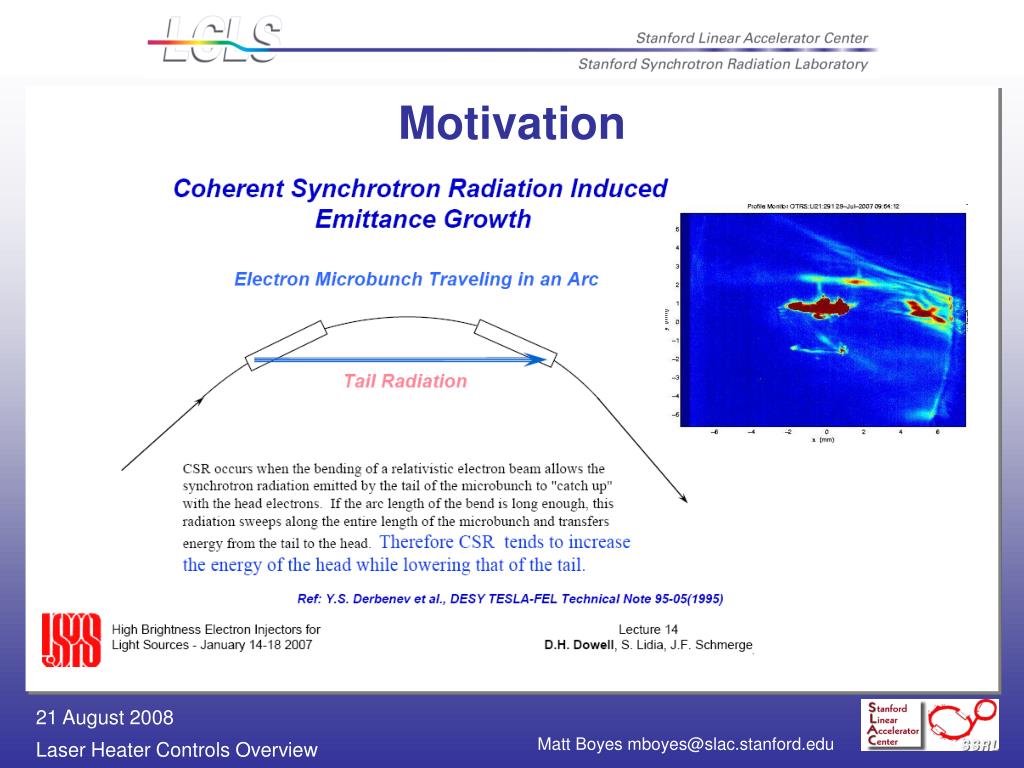

  4. Motivation (cont.) The LCLS injector system will incorporate a laser-electron-beam heater system (an inverse free electron laser) in order to generate an uncorrelated energy spread in the electron beam [1]. This produces Laudau damping in the bunch compressor chicanes in order to suppress potential micro-bunching instabilities that may be driven by Coherent Synchrotron Radiation (CSR) in the bunch compressors, and Longitudinal Space Charge (LSC) forces in the linac.The laser-heater system is shown in Fig. 1. The heater system is located just downbeam of the L0b accelerator section at 135 MeV in the off-axis LCLS injector housing. _________________________________________________________ PRD 1.2-004-r2

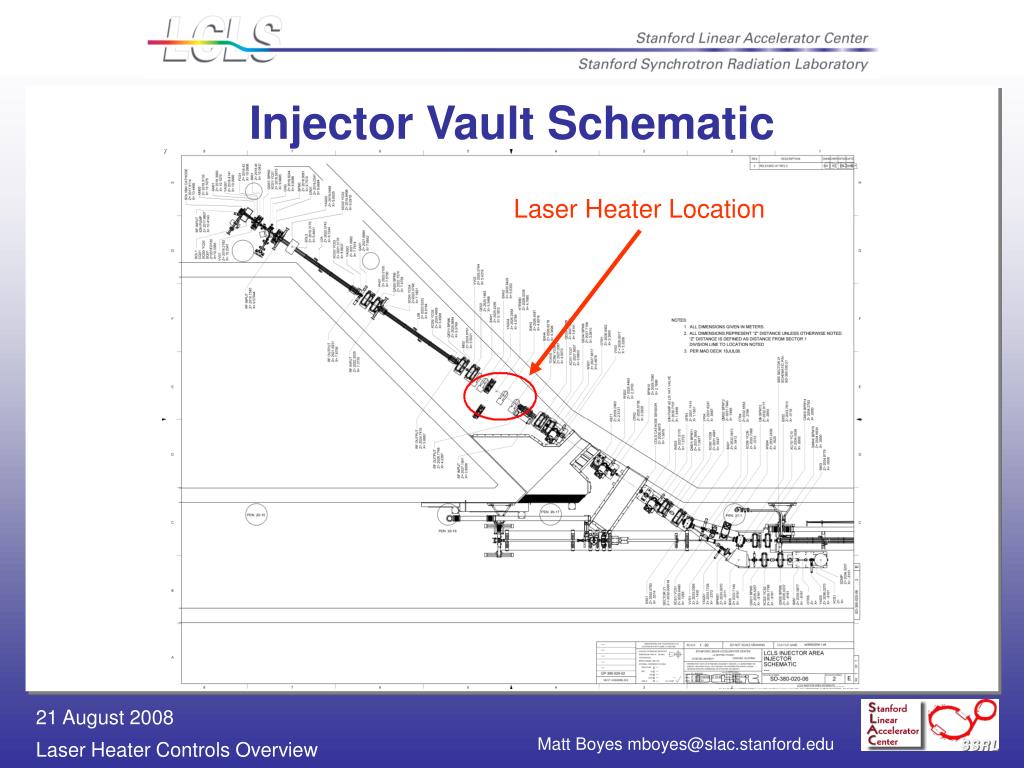

  5. Injector Vault Schematic Laser Heater Location

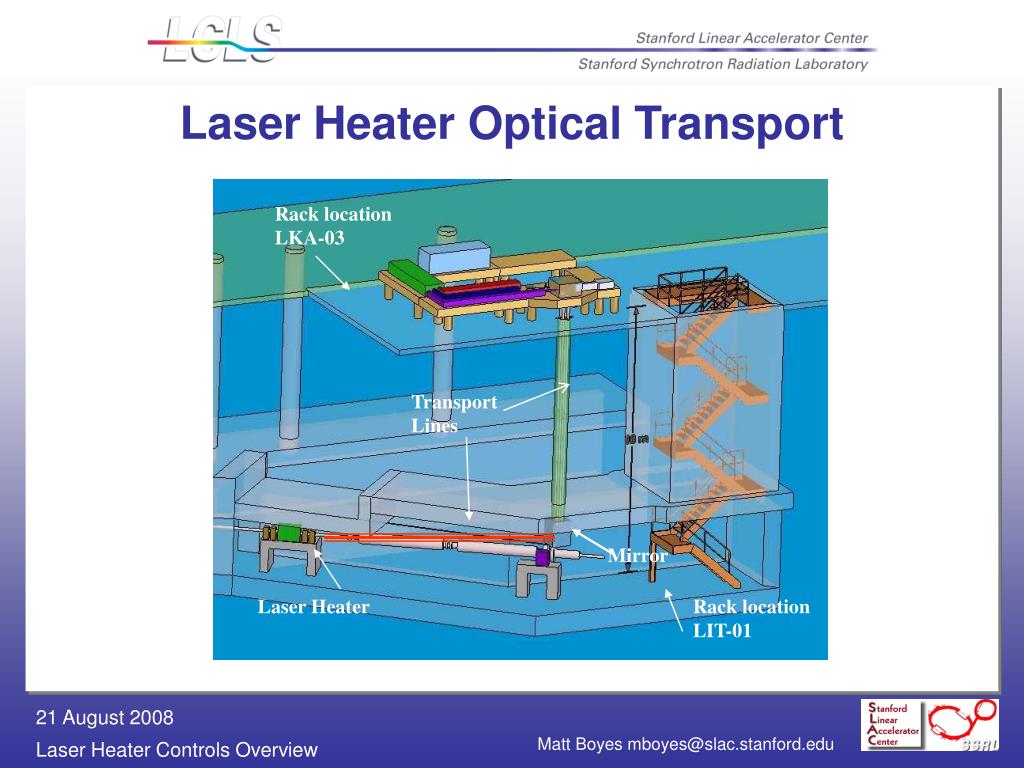

  6. Laser Heater Optical Transport Rack location LKA-03 Transport Lines Mirror Laser Heater Rack location LIT-01

  7. Laser Heater Required Control Items • Laser Room • Energy Control: Waveplate • Energy Measurement: Coherent EPM 2000 Power meter • 2 Sensors with Rotation Stages • Injector Vault • Laser Steering Feedback • 4 Actuators • 2 Cameras (CH1 and VHC) • 2 Waveplates for Camera Intensity Control • Energy and Time Measurements: • 2 Photodiodes • Coherent LabMax-TOP Power meters (verified as BSA compatible) • Virtual Heater Camera (VHC) adjustment • 2 Actuators • 2 OTRs

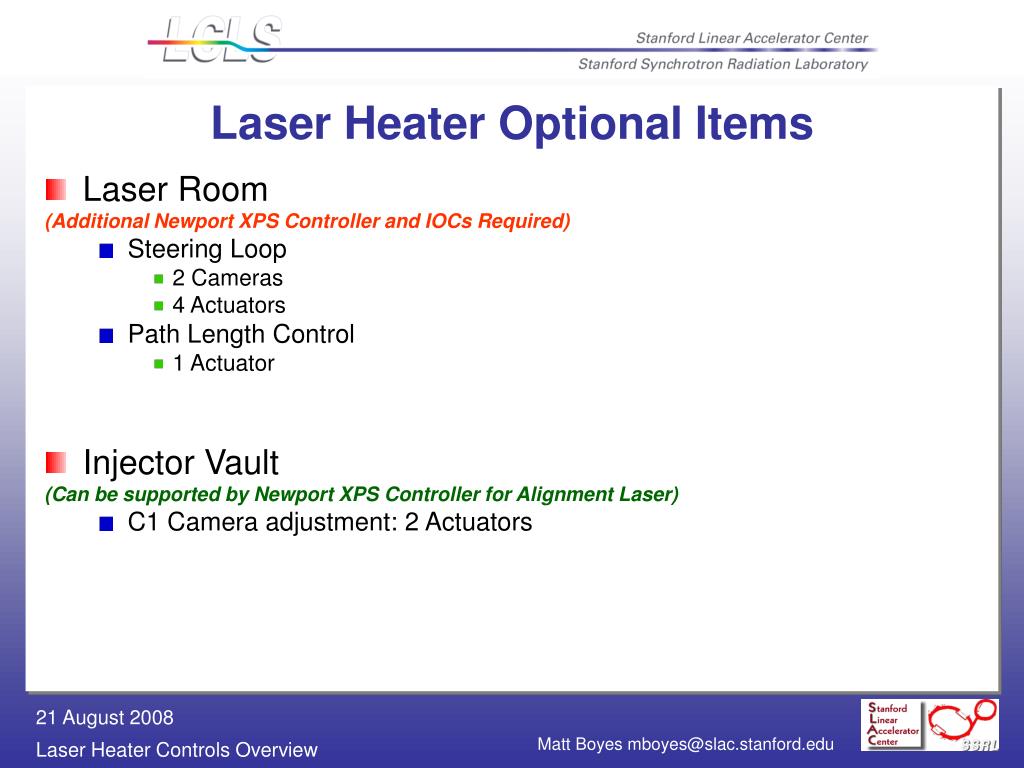

  8. Laser Heater Optional Items • Laser Room (Additional Newport XPS Controller and IOCs Required) • Steering Loop • 2 Cameras • 4 Actuators • Path Length Control • 1 Actuator • Injector Vault (Can be supported by Newport XPS Controller for Alignment Laser) • C1 Camera adjustment: 2 Actuators

  9. Laser Heater System Device Block Diagram

  10. Software • Extension of existing Drive Laser System • Use existing IOCs • Many of the same types of devices • LabMax-Top Power Meter is the only new device • Verified to be BSA compatibility • Will use StreamDevice for slow RS-232 communication

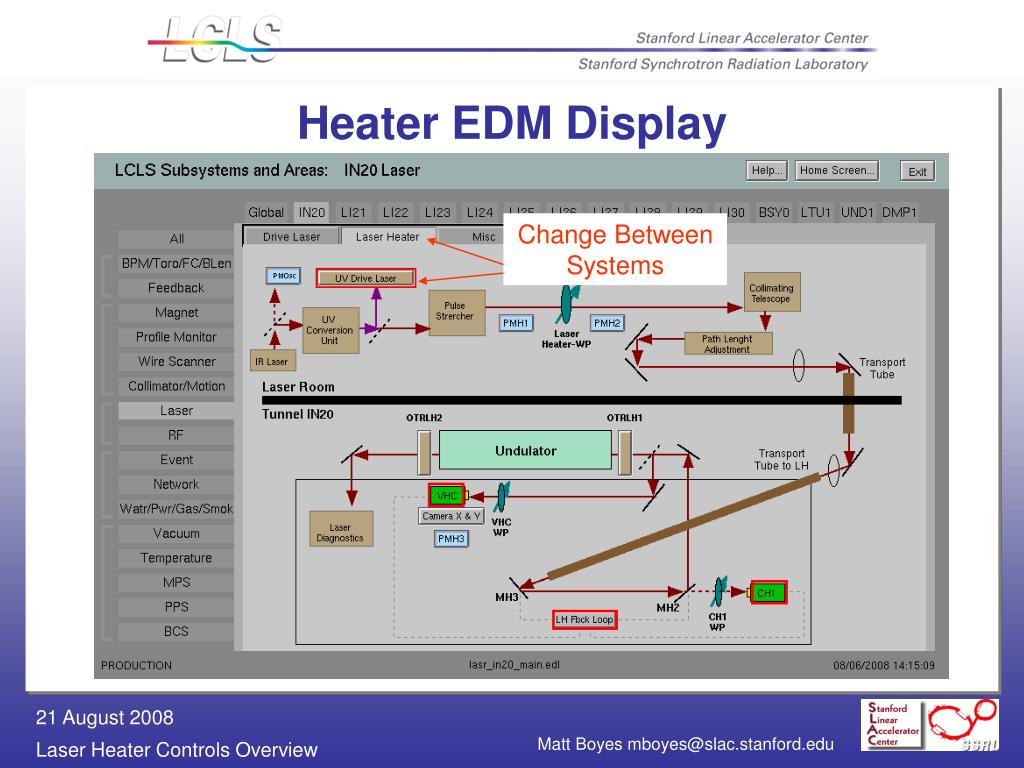

  11. Change Between Systems Heater EDM Display

  12. Drive Laser EDM Display Change Between Systems

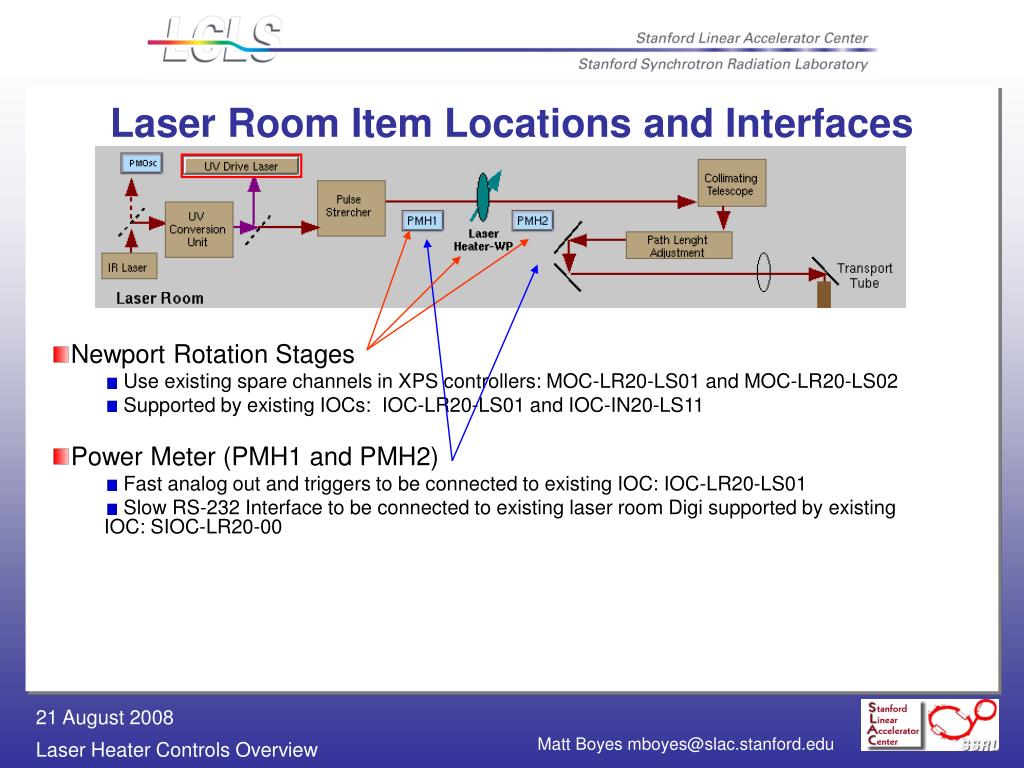

  13. Laser Room Item Locations and Interfaces • Newport Rotation Stages • Use existing spare channels in XPS controllers: MOC-LR20-LS01 and MOC-LR20-LS02 • Supported by existing IOCs: IOC-LR20-LS01 and IOC-IN20-LS11 • Power Meter (PMH1 and PMH2) • Fast analog out and triggers to be connected to existing IOC: IOC-LR20-LS01 • Slow RS-232 Interface to be connected to existing laser room Digi supported by existing IOC: SIOC-LR20-00

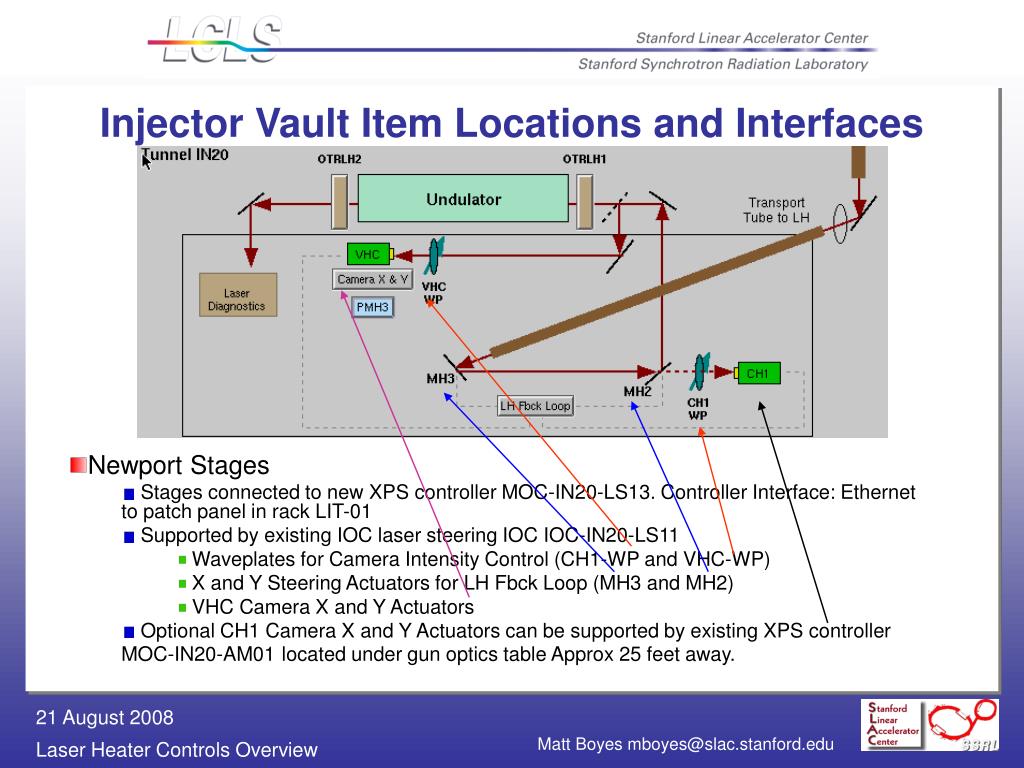

  14. Injector Vault Item Locations and Interfaces • Newport Stages • Stages connected to new XPS controller MOC-IN20-LS13.Controller Interface: Ethernet to patch panel in rack LIT-01 • Supported by existing IOC laser steering IOC IOC-IN20-LS11 • Waveplates for Camera Intensity Control (CH1-WP and VHC-WP) • X and Y Steering Actuators for LH Fbck Loop (MH3 and MH2) • VHC Camera X and Y Actuators • Optional CH1 Camera X and Y Actuators can be supported by existing XPS controller MOC-IN20-AM01located under gun optics table Approx 25 feet away.

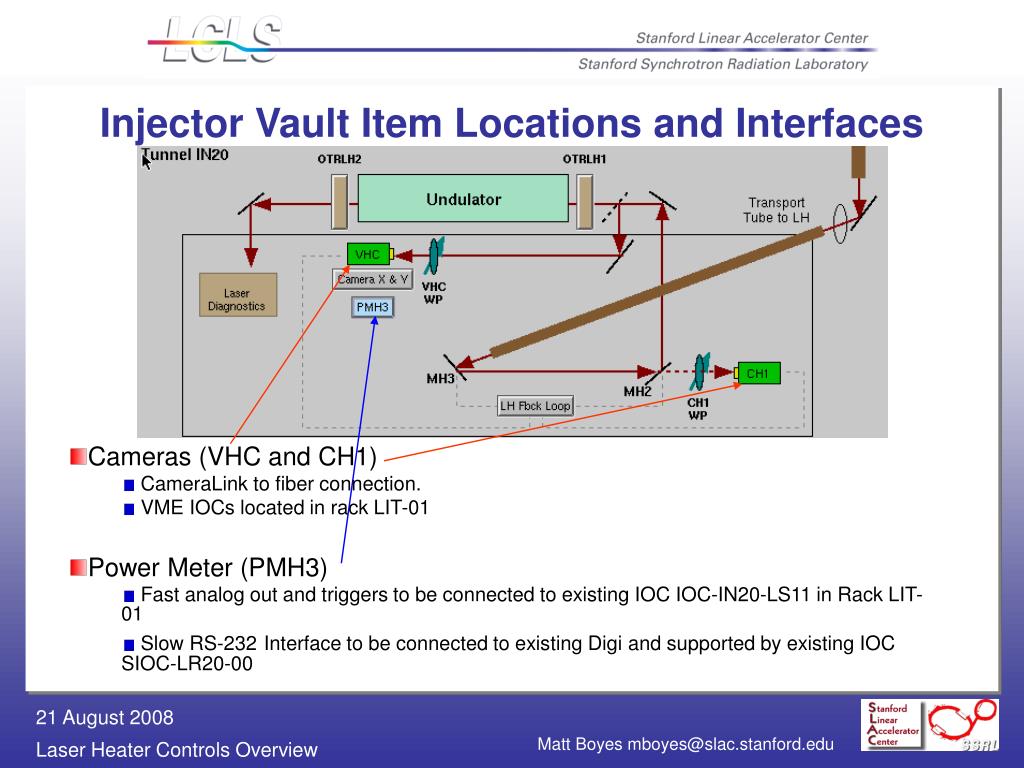

  15. Injector Vault Item Locations and Interfaces • Cameras (VHC and CH1) • CameraLink to fiber connection. • VME IOCs located in rack LIT-01 • Power Meter (PMH3) • Fast analog out and triggers to be connected to existing IOC IOC-IN20-LS11 in Rack LIT-01 • Slow RS-232Interface to be connected to existing Digiand supported by existing IOC SIOC-LR20-00

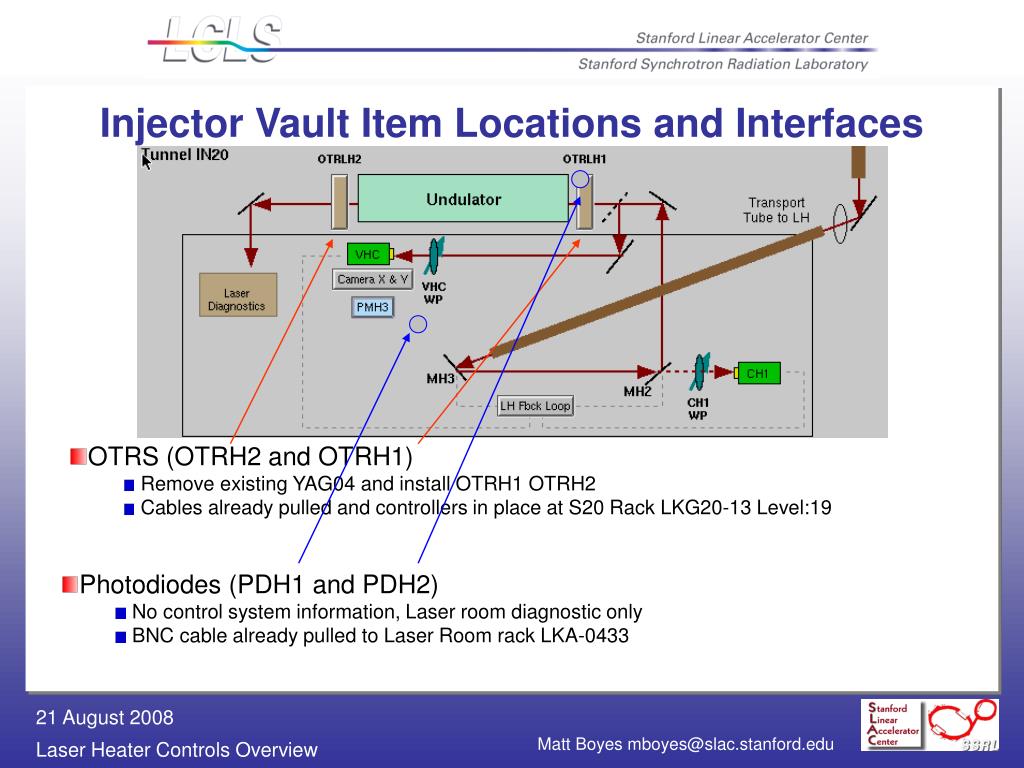

  16. Injector Vault Item Locations and Interfaces • OTRS (OTRH2 and OTRH1) • Remove existing YAG04 and install OTRH1 OTRH2 • Cables already pulled and controllers in place at S20 Rack LKG20-13 Level:19 • Photodiodes (PDH1 and PDH2) • No control system information, Laser room diagnostic only • BNC cable already pulled to Laser Room rack LKA-0433

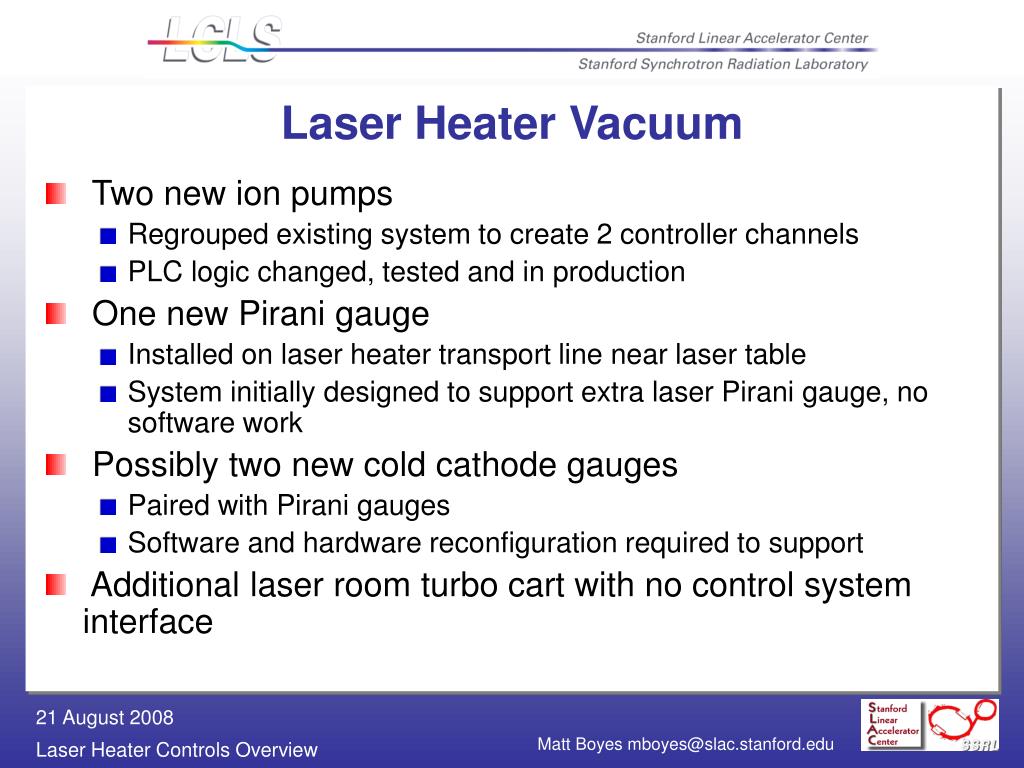

  17. Laser Heater Vacuum • Two new ion pumps • Regrouped existing system to create 2 controller channels • PLC logic changed, tested and in production • One new Pirani gauge • Installed on laser heater transport line near laser table • System initially designed to support extra laser Pirani gauge, no software work • Possibly two new cold cathode gauges • Paired with Pirani gauges • Software and hardware reconfiguration required to support • Additional laser room turbo cart with no control system interface

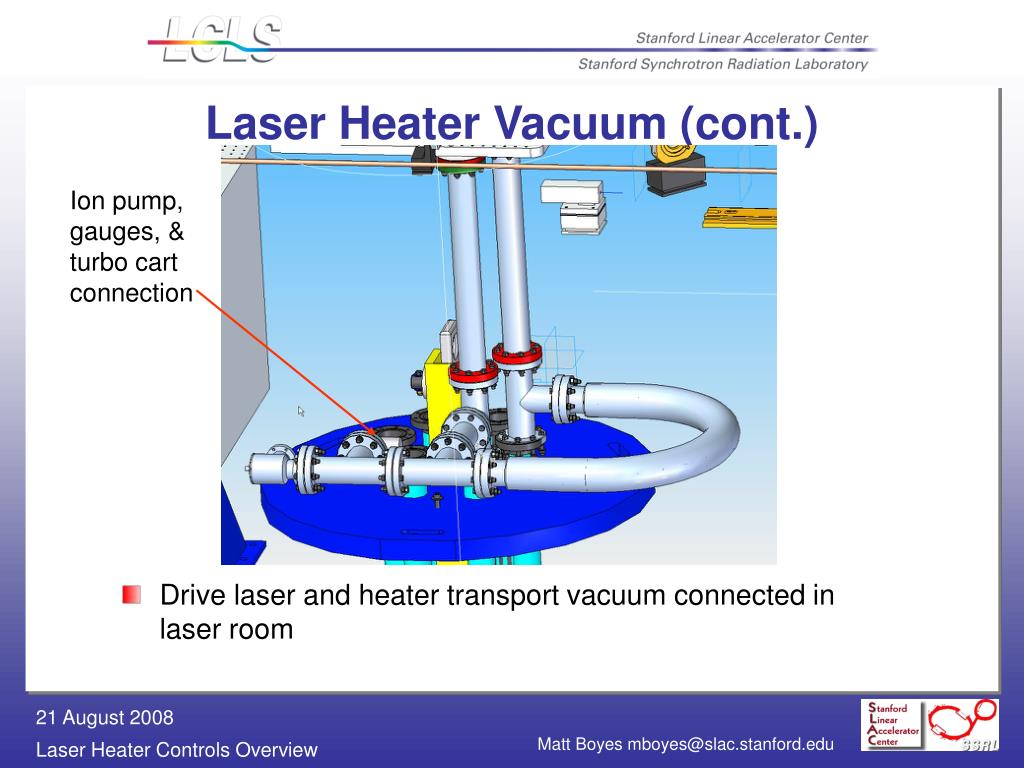

  18. Laser Heater Vacuum (cont.) • Drive laser and heater transport vacuum connected in laser room Ion pump, gauges, & turbo cart connection

  19. Laser Heater Vacuum (cont.) Location of injector vault heater transport ion pump and gauges

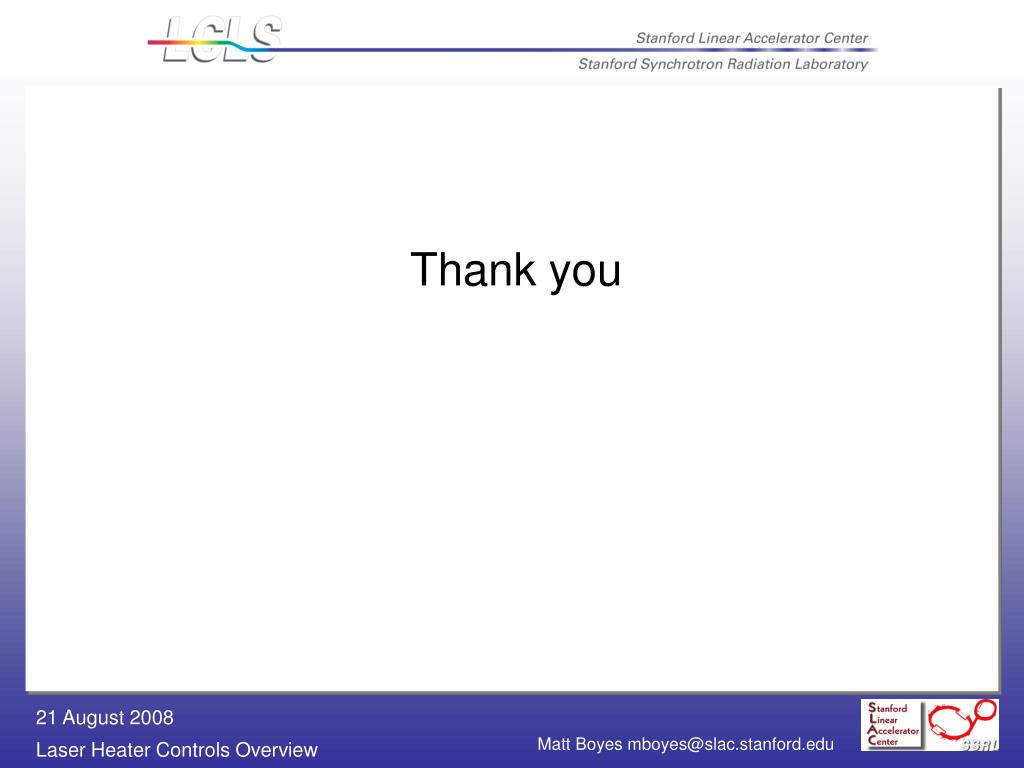

  20. Thank you

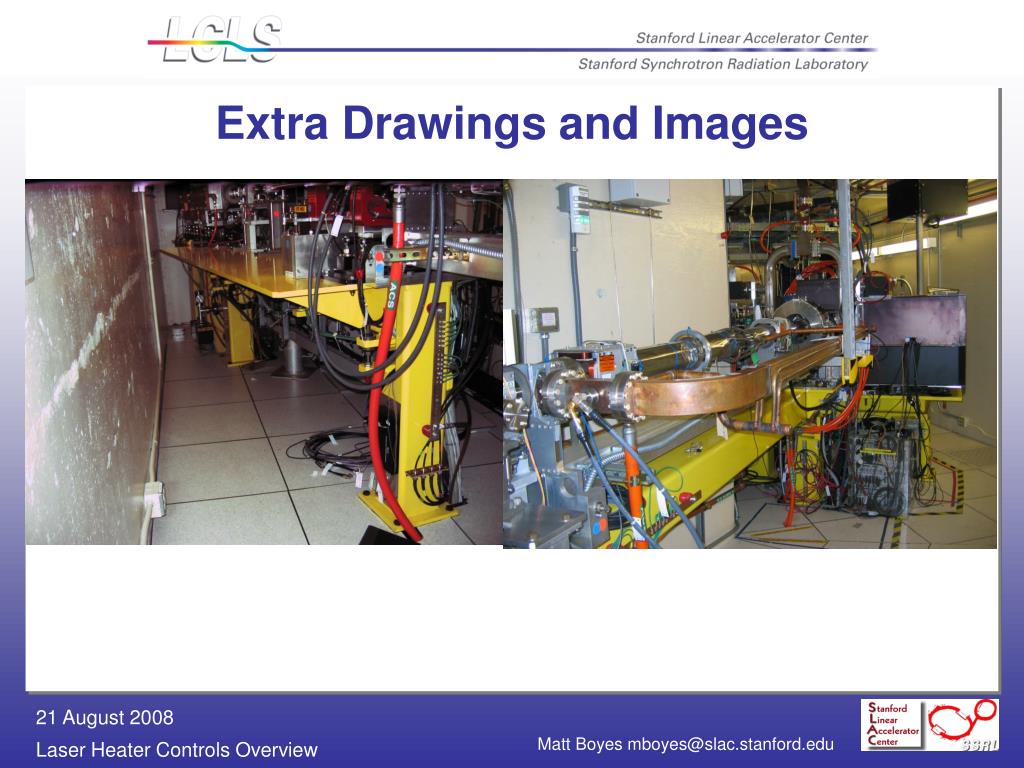

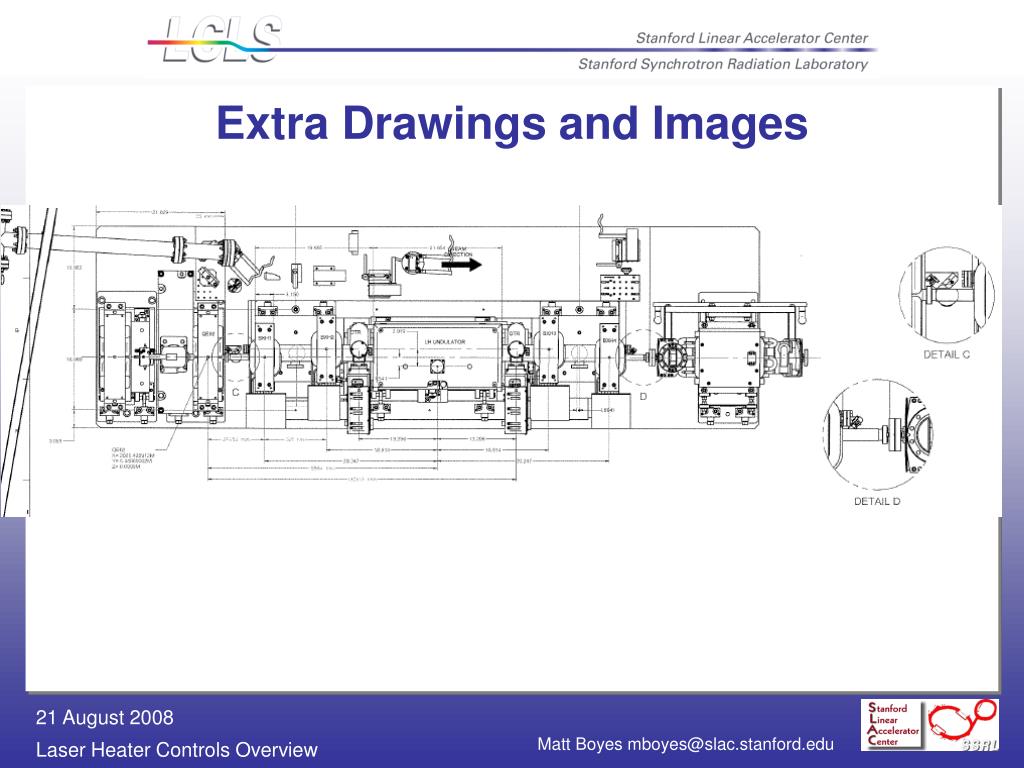

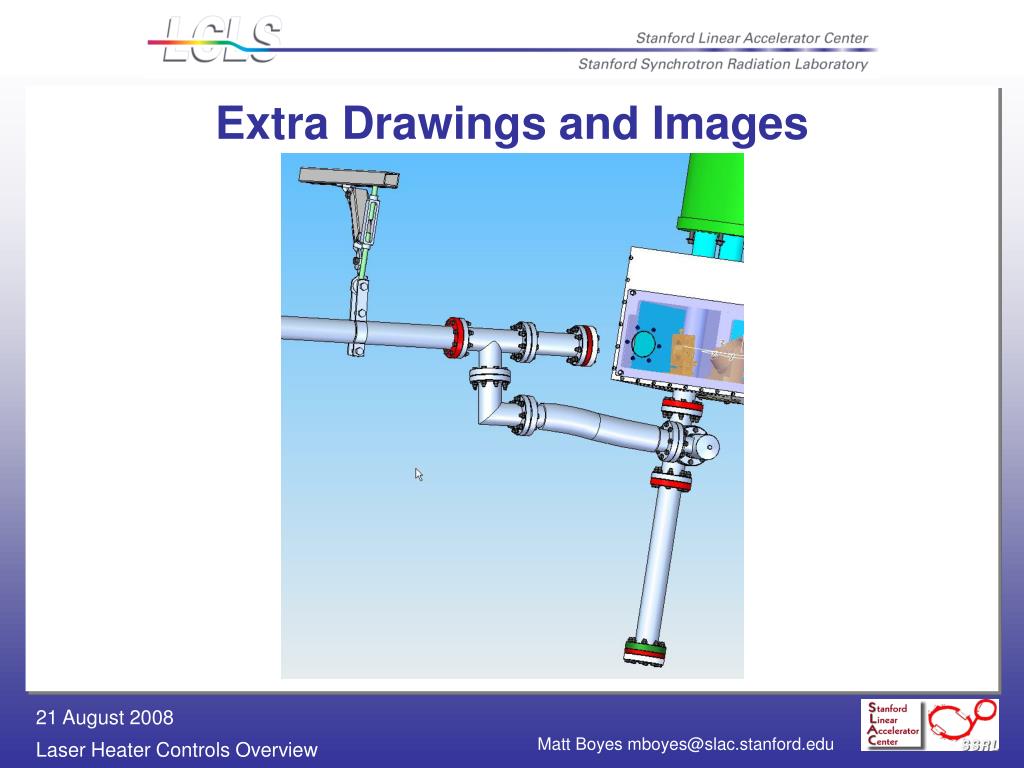

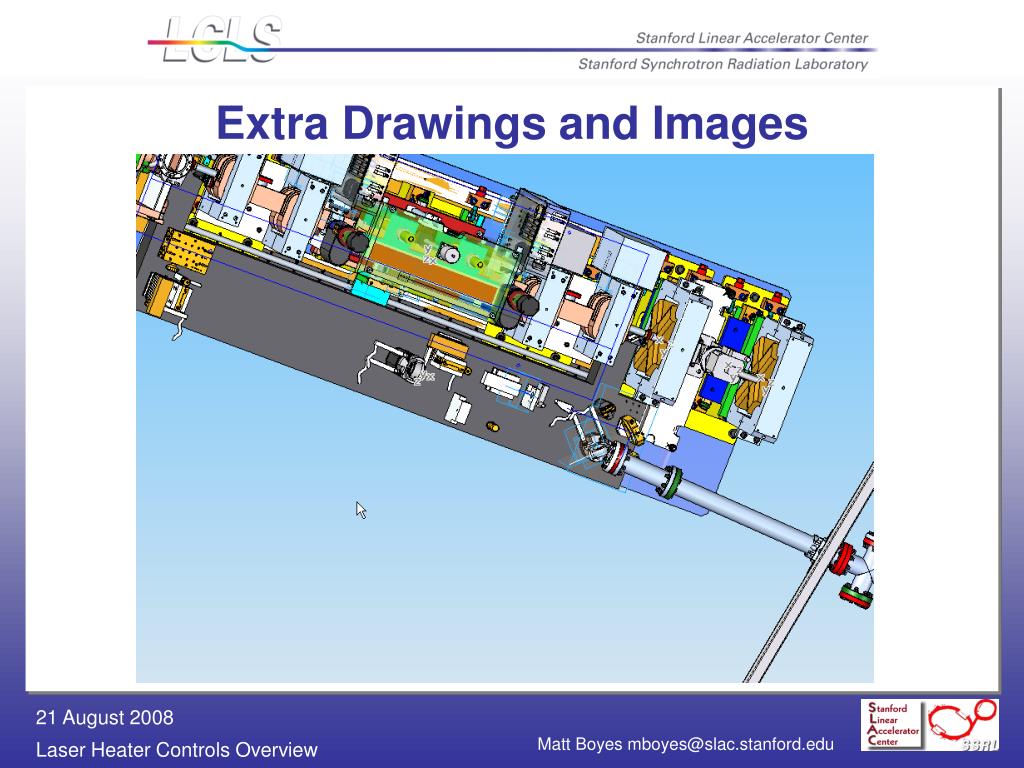

  21. Extra Drawings and Images

  22. Extra Drawings and Images

  23. Extra Drawings and Images

  24. Extra Drawings and Images
