LDAP and Java Naming Services

1. LDAP and Java Naming Services Murali. M .Nagendranath

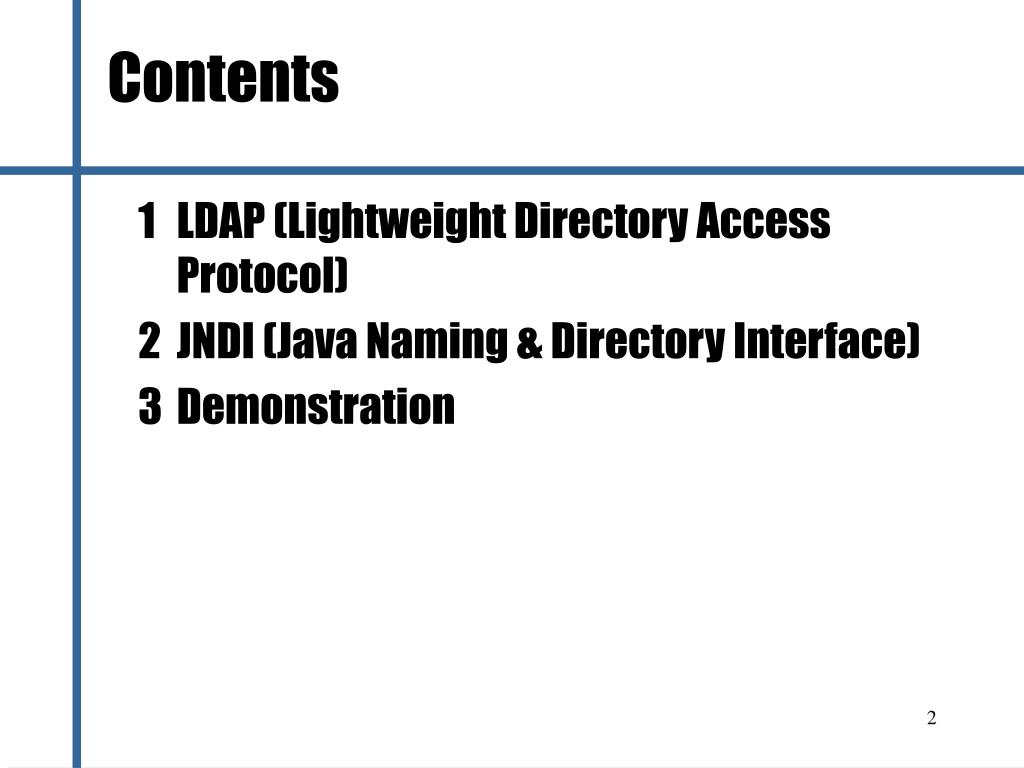

2. Contents • LDAP (Lightweight Directory Access Protocol) • JNDI (Java Naming & Directory Interface) • Demonstration

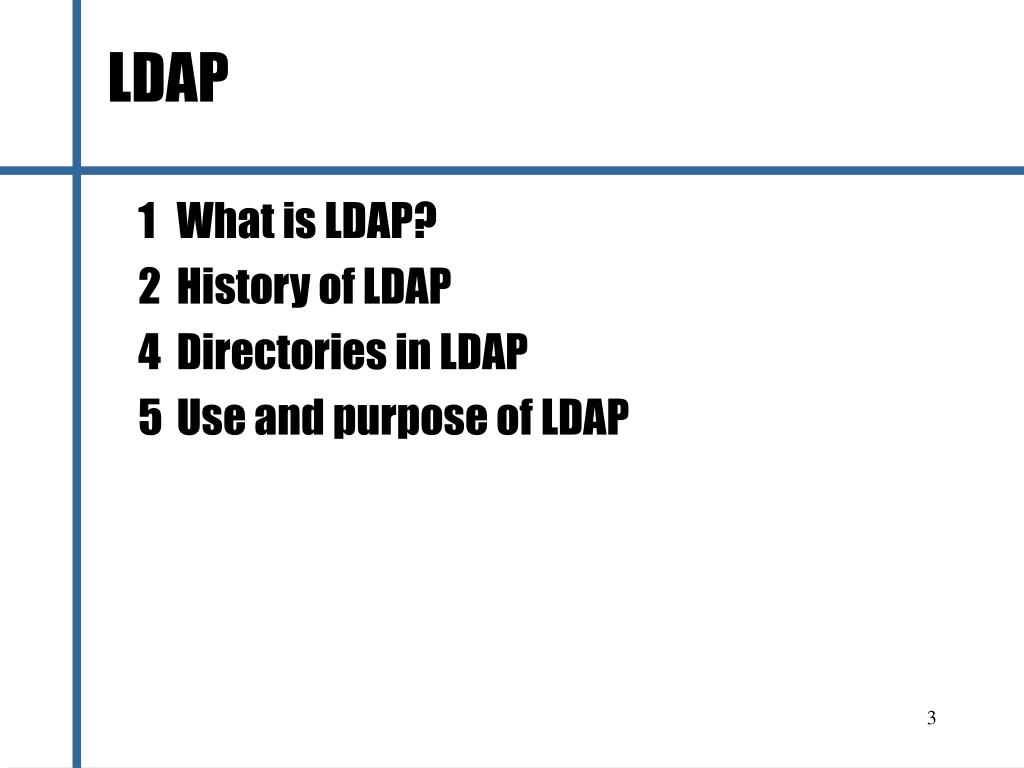

3. LDAP • What is LDAP? • History of LDAP • Directories in LDAP • Use and purpose of LDAP

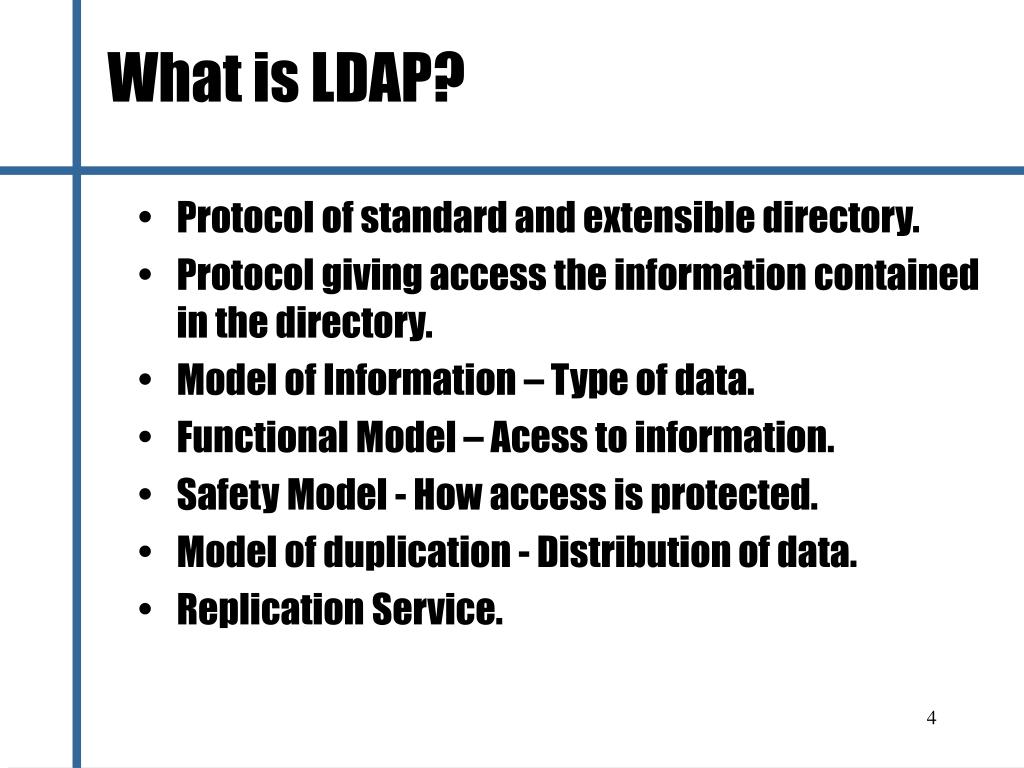

4. What is LDAP? • Protocol of standard and extensible directory. • Protocol giving access the information contained in the directory. • Model of Information – Type of data. • Functional Model – Acess to information. • Safety Model - How access is protected. • Model of duplication - Distribution of data. • Replication Service.

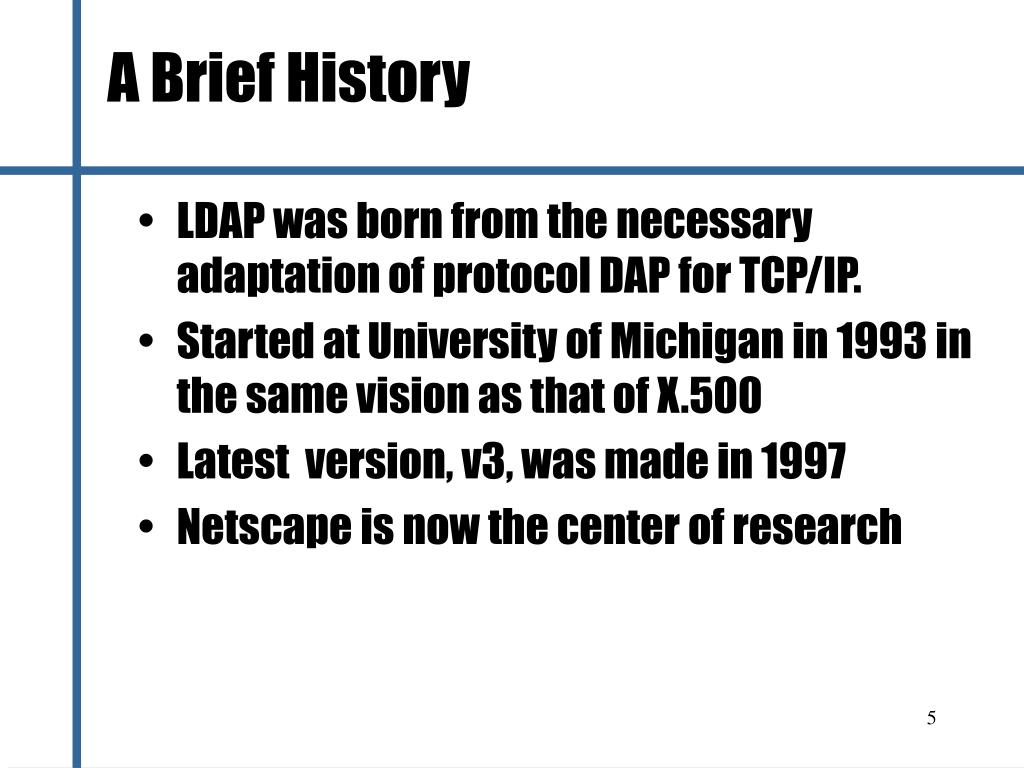

5. A Brief History • LDAP was born from the necessary adaptation of protocol DAP for TCP/IP. • Started at University of Michigan in 1993 in the same vision as that of X.500 • Latest version, v3, was made in 1997 • Netscape is now the center of research

6. X.500 & LDAP • LDAP is less secure • Still a large amount of compatibility between them • LDAP’s ability to search across servers is the most important advantage of LDAP.

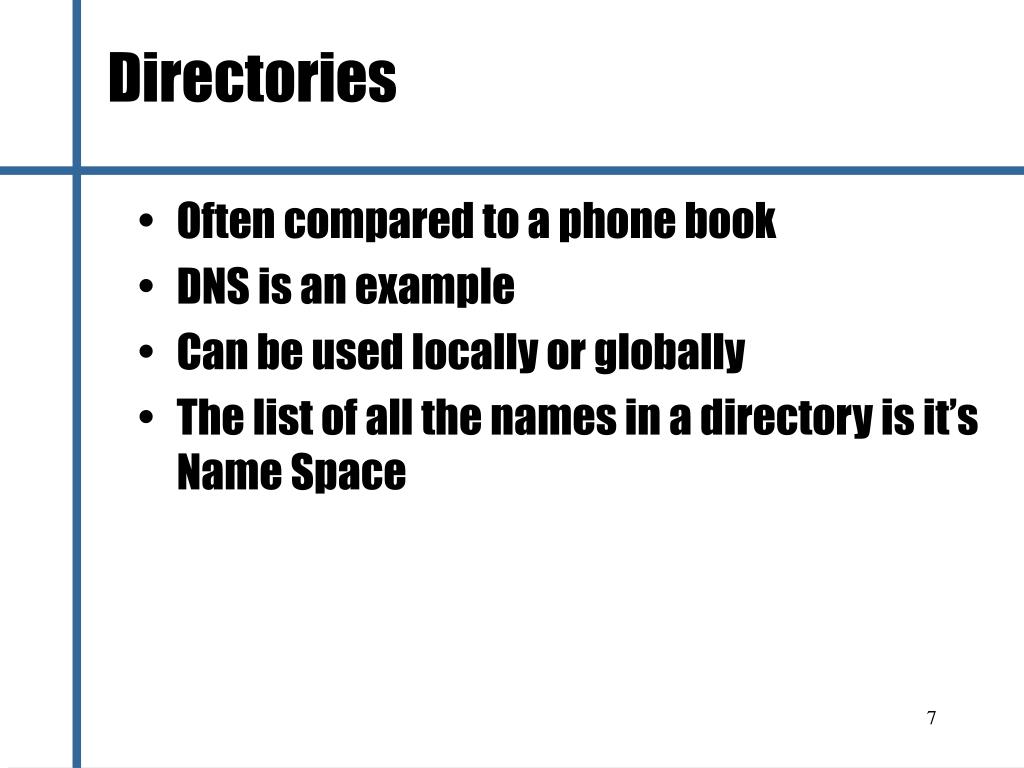

7. Directories • Often compared to a phone book • DNS is an example • Can be used locally or globally • The list of all the names in a directory is it’s Name Space

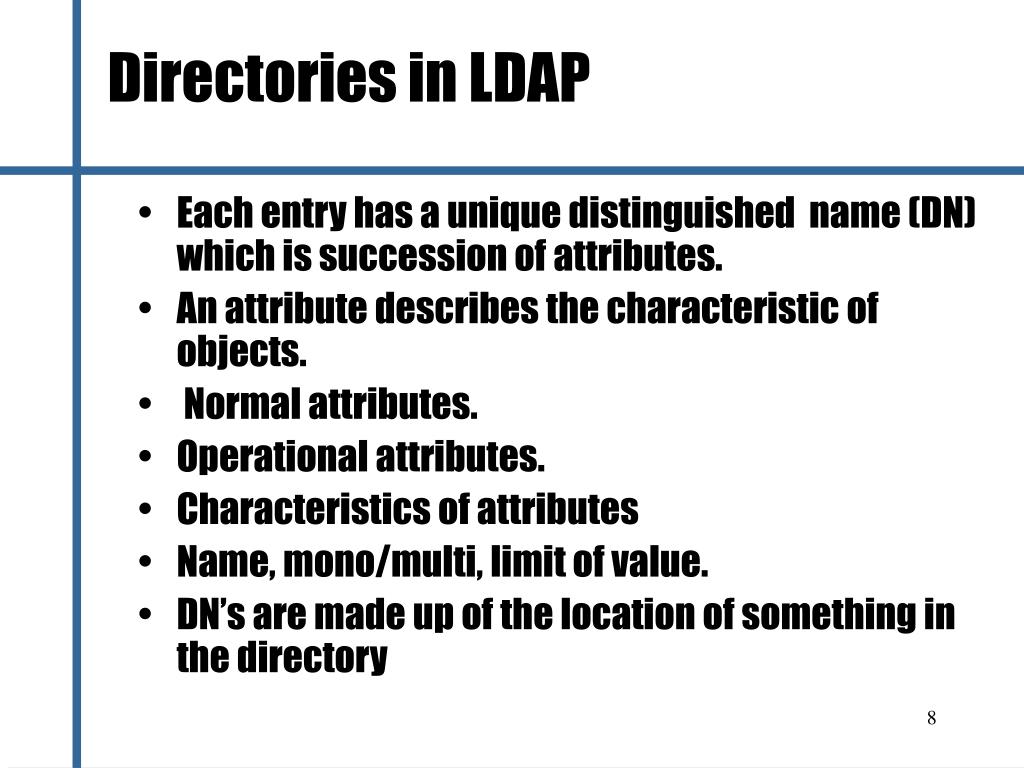

8. Directories in LDAP • Each entry has a unique distinguished name (DN) which is succession of attributes. • An attribute describes the characteristic of objects. • Normal attributes. • Operational attributes. • Characteristics of attributes • Name, mono/multi, limit of value. • DN’s are made up of the location of something in the directory

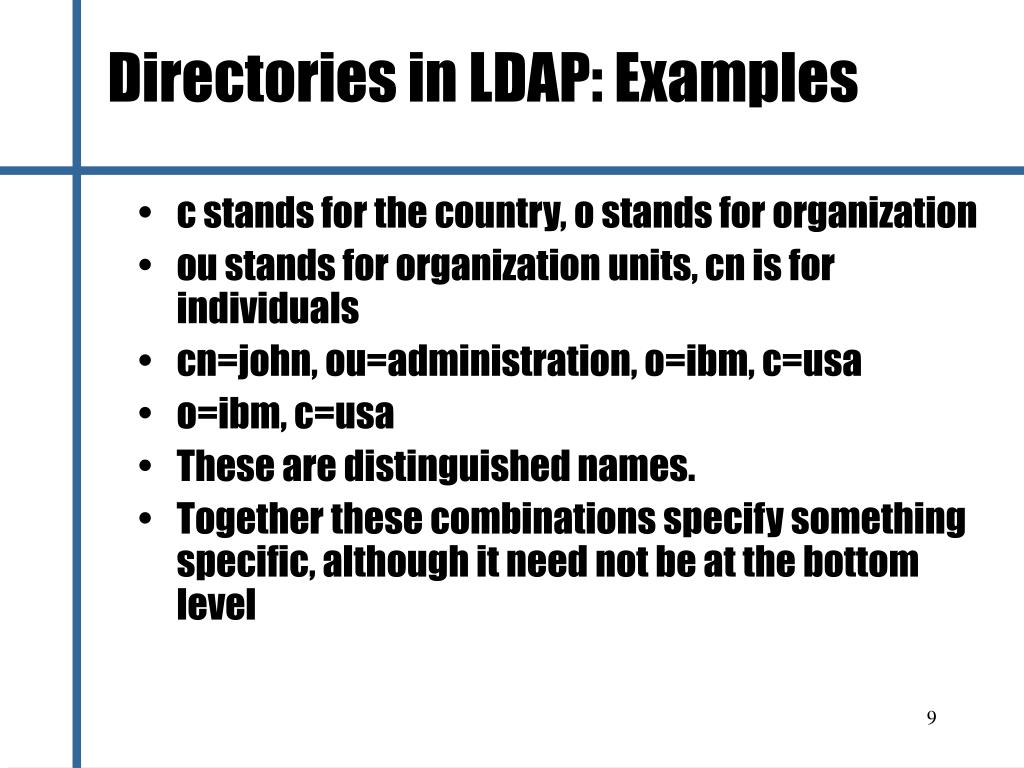

9. Directories in LDAP: Examples • c stands for the country, o stands for organization • ou stands for organization units, cn is for individuals • cn=john, ou=administration, o=ibm, c=usa • o=ibm, c=usa • These are distinguished names. • Together these combinations specify something specific, although it need not be at the bottom level

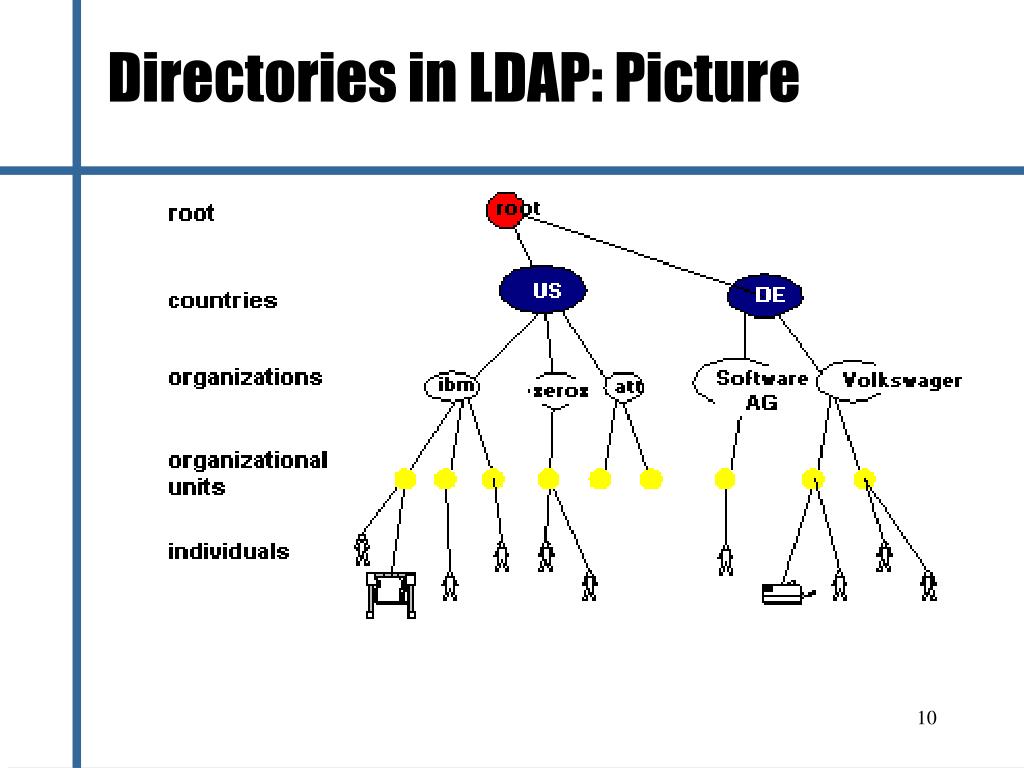

10. Directories in LDAP: Picture

11. Directories in LDAP • Although that is the most common structure in LDAP, it is possible to define your own directory structure like the flat tree structure. • This can cause compatibility problems

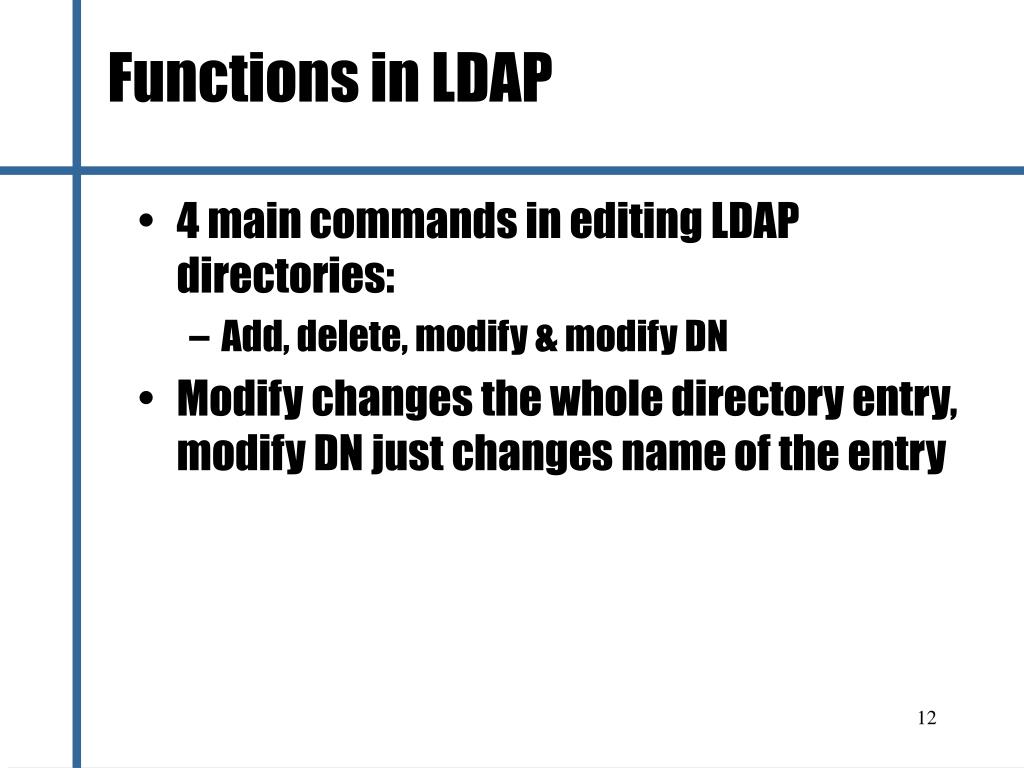

12. Functions in LDAP • 4 main commands in editing LDAP directories: • Add, delete, modify & modify DN • Modify changes the whole directory entry, modify DN just changes name of the entry

13. Functions in LDAP: Modify DN example • cn=Modify Me, o=University of Florida, c=US cn=The New Me The command: ldapmodify -r -f /tmp/entrymods will change the RDN of the "Modify Me" entry from "Modify Me" to "The New Me" and the old cn, "Modify Me" will be removed

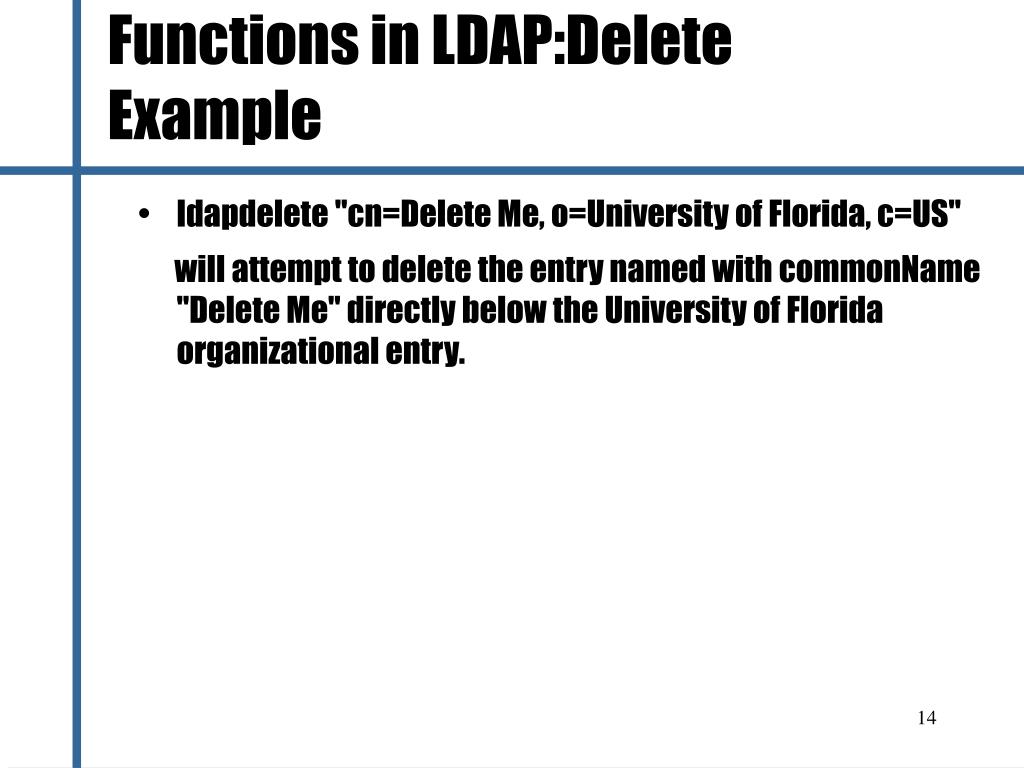

14. Functions in LDAP:Delete Example • ldapdelete "cn=Delete Me, o=University of Florida, c=US" will attempt to delete the entry named with commonName "Delete Me" directly below the University of Florida organizational entry.

15. Functions in LDAP:Modify Example • dn: cn=Modify Me, o=University of Florida, c=US changetype: modifyreplace: mailmail: Dr Frank@cise.ufl.eduadd: titletitle: Grand OCEANdelete: description

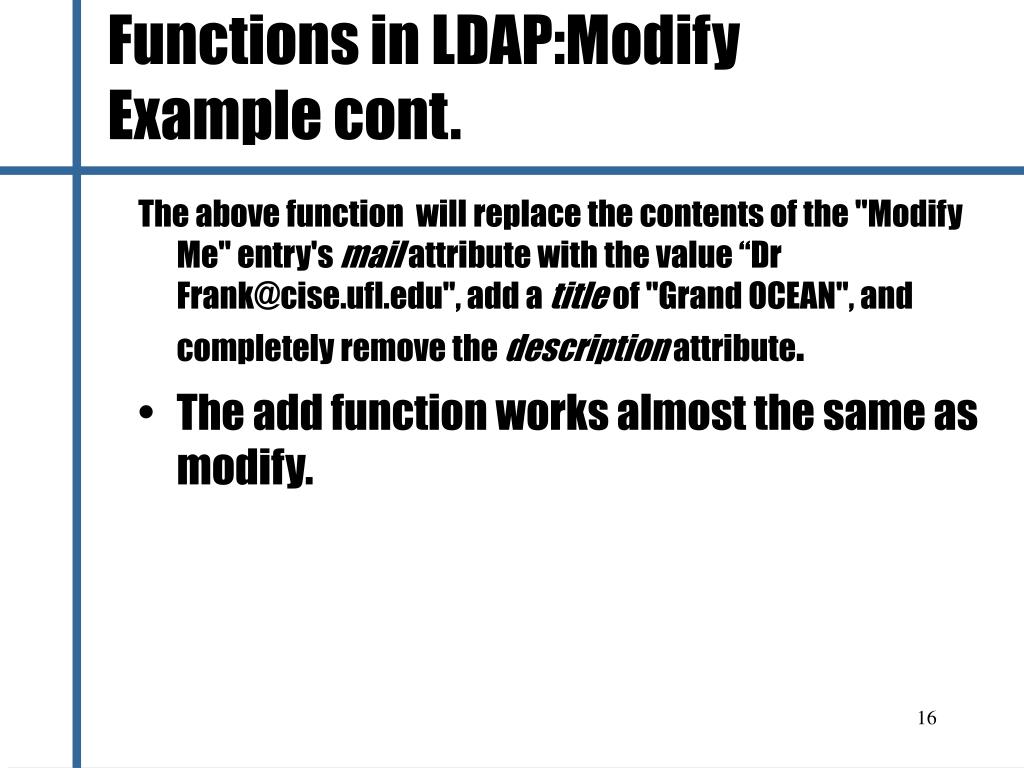

16. Functions in LDAP:Modify Example cont. The above function will replace the contents of the "Modify Me" entry's mail attribute with the value “Dr Frank@cise.ufl.edu", add a title of "Grand OCEAN", and completely remove the description attribute. • The add function works almost the same as modify.

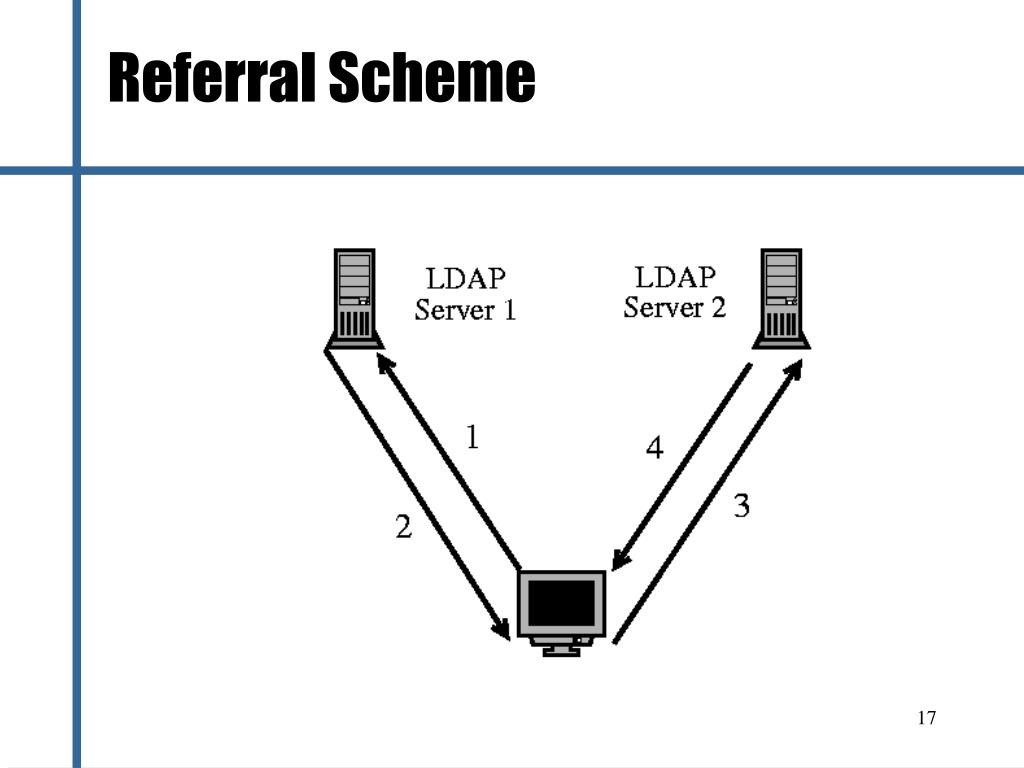

17. Referral Scheme

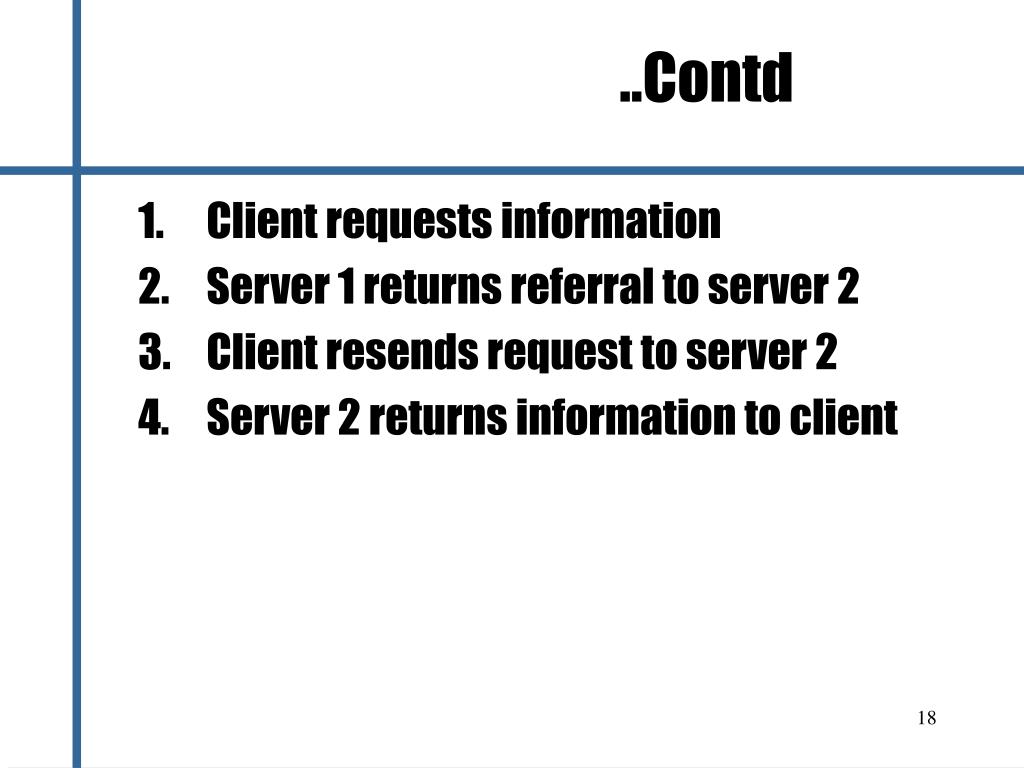

18. ..Contd • Client requests information • Server 1 returns referral to server 2 • Client resends request to server 2 • Server 2 returns information to client

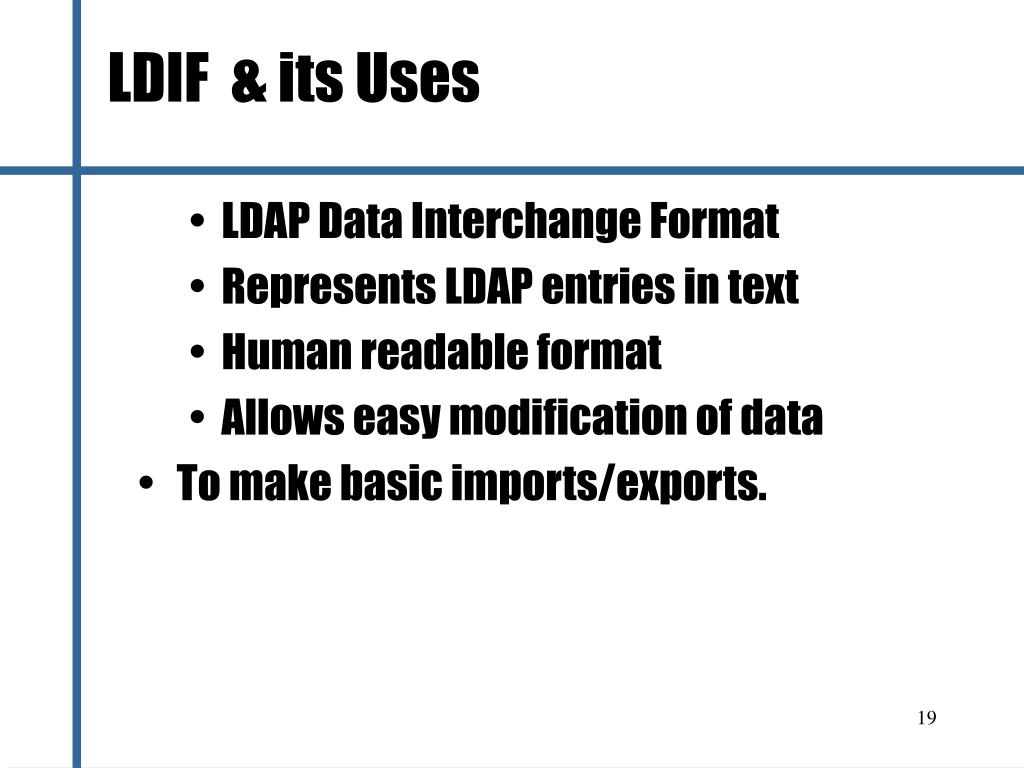

19. LDIF & its Uses • LDAP Data Interchange Format • Represents LDAP entries in text • Human readable format • Allows easy modification of data • To make basic imports/exports.

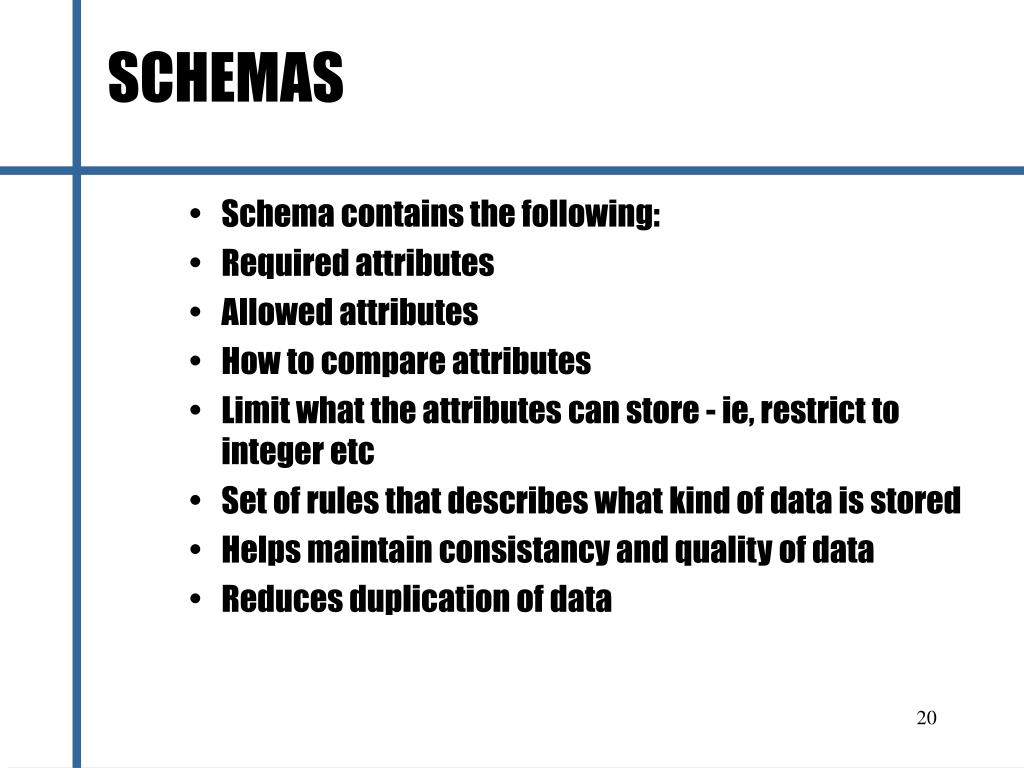

20. SCHEMAS • Schema contains the following: • Required attributes • Allowed attributes • How to compare attributes • Limit what the attributes can store - ie, restrict to integer etc • Set of rules that describes what kind of data is stored • Helps maintain consistancy and quality of data • Reduces duplication of data

21. Why is LDAP Important? • Provides a standard for finding people or resources • Much different then web searches, which are simply pattern matching • Quickly becoming popular with major companies ie: Netscape, Novell • Vendor independent open protocol

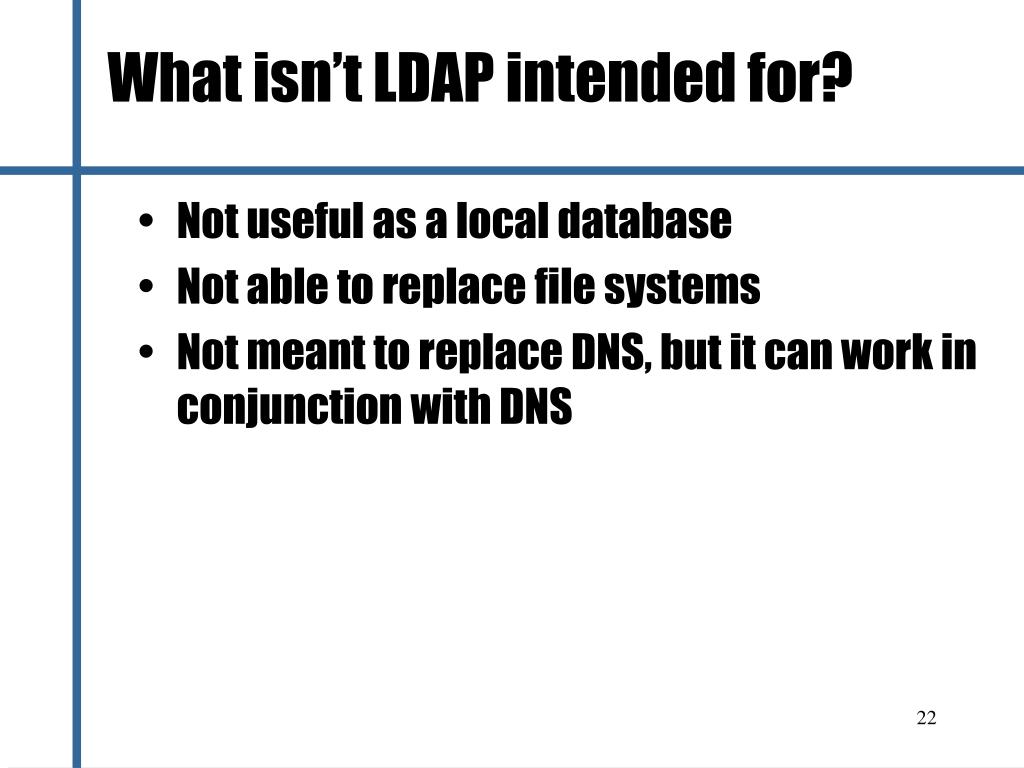

22. What isn’t LDAP intended for? • Not useful as a local database • Not able to replace file systems • Not meant to replace DNS, but it can work in conjunction with DNS

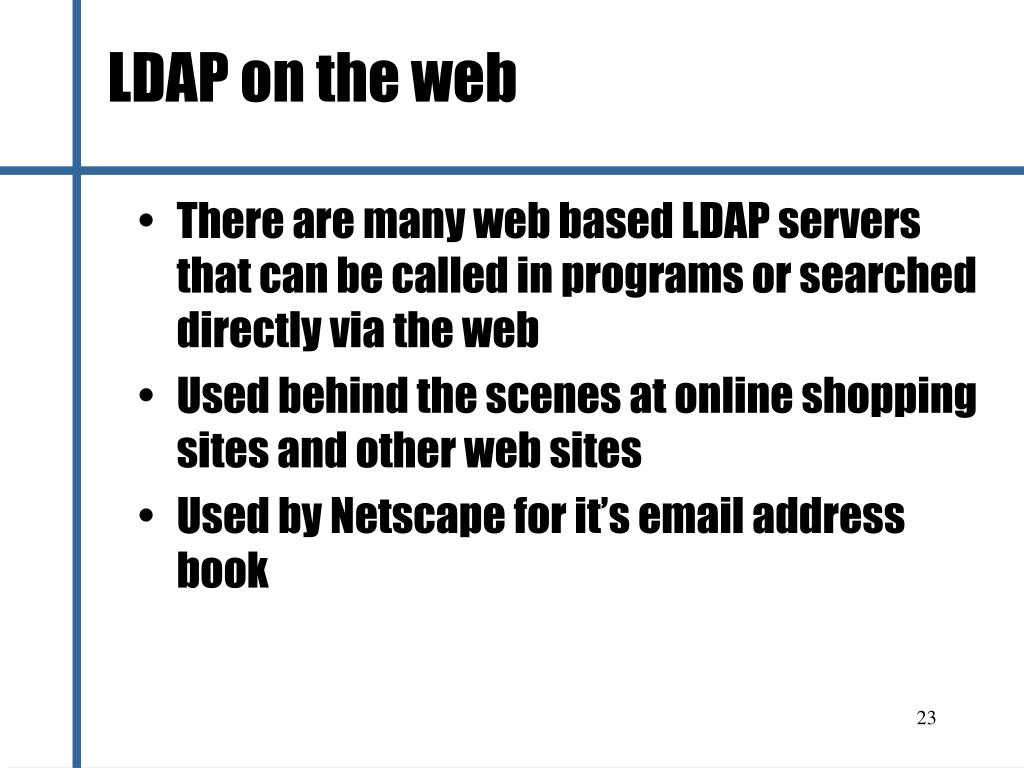

23. LDAP on the web • There are many web based LDAP servers that can be called in programs or searched directly via the web • Used behind the scenes at online shopping sites and other web sites • Used by Netscape for it’s email address book

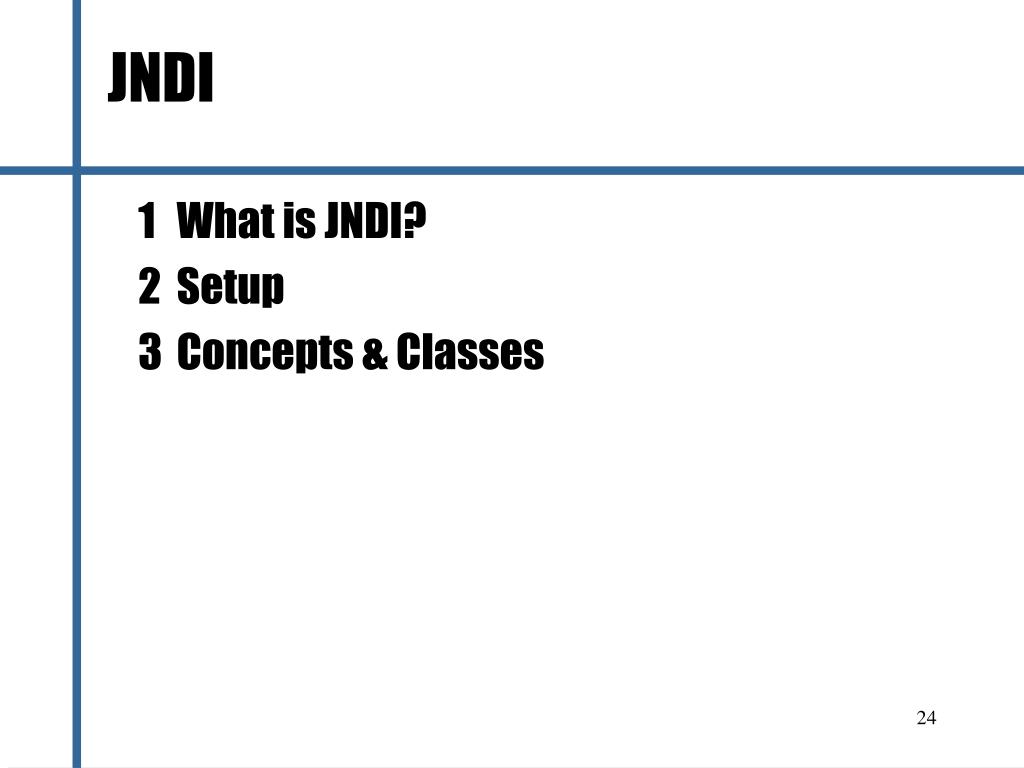

24. JNDI • What is JNDI? • Setup • Concepts & Classes

25. What is JNDI? • Java Naming and Directory Interface API • Introduced in March, 1997 by Sun Microsystems • Purpose: to provide a common access to different types of directories

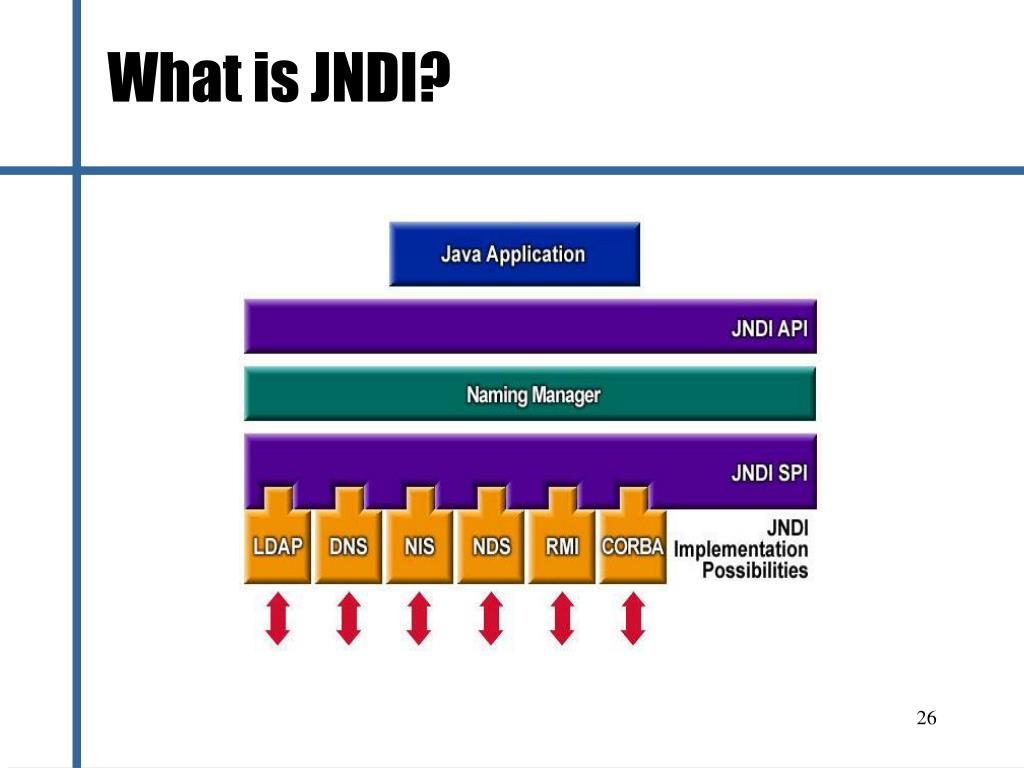

26. What is JNDI?

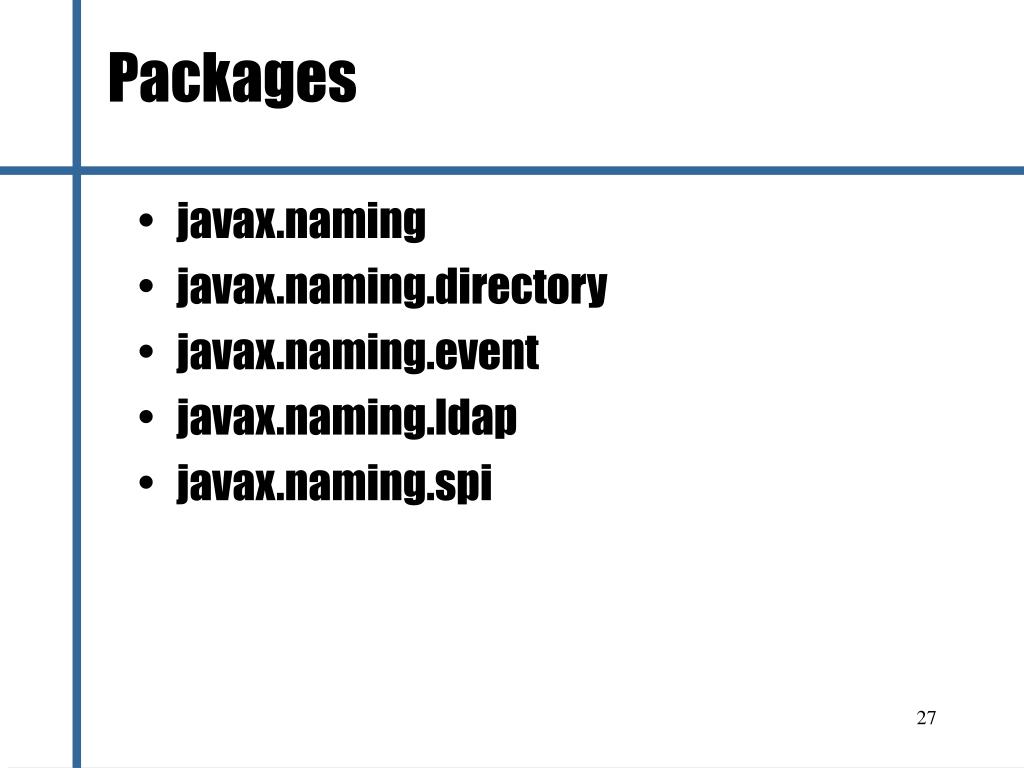

27. Packages • javax.naming • javax.naming.directory • javax.naming.event • javax.naming.ldap • javax.naming.spi

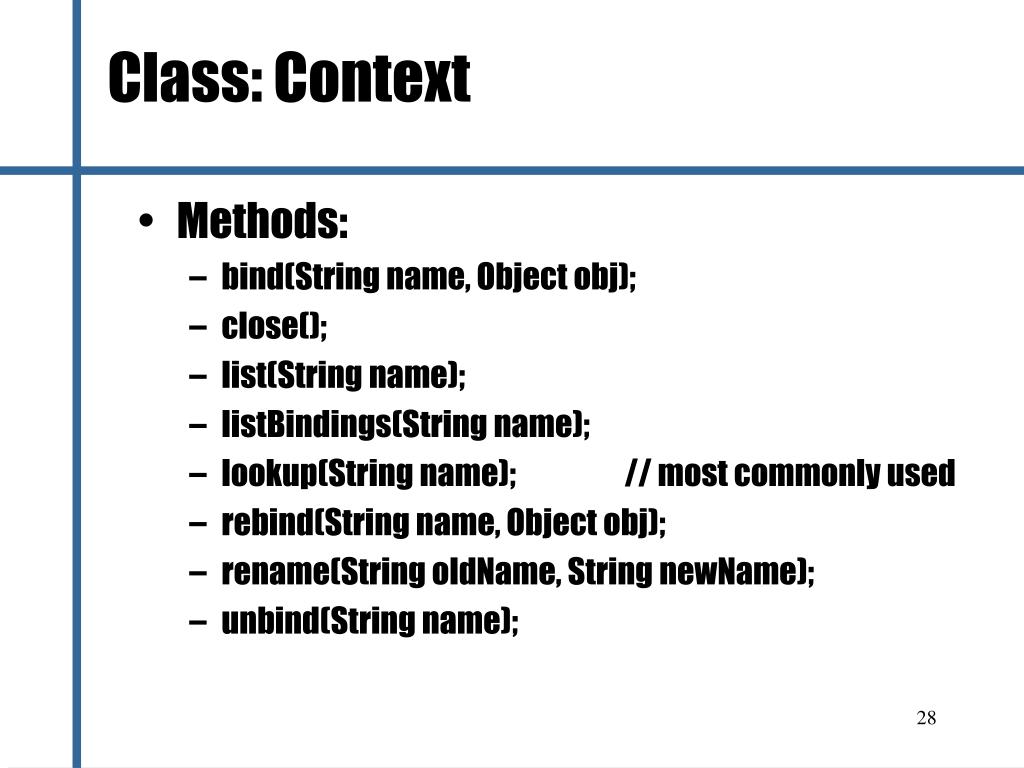

28. Class: Context • Methods: • bind(String name, Object obj); • close(); • list(String name); • listBindings(String name); • lookup(String name); // most commonly used • rebind(String name, Object obj); • rename(String oldName, String newName); • unbind(String name);

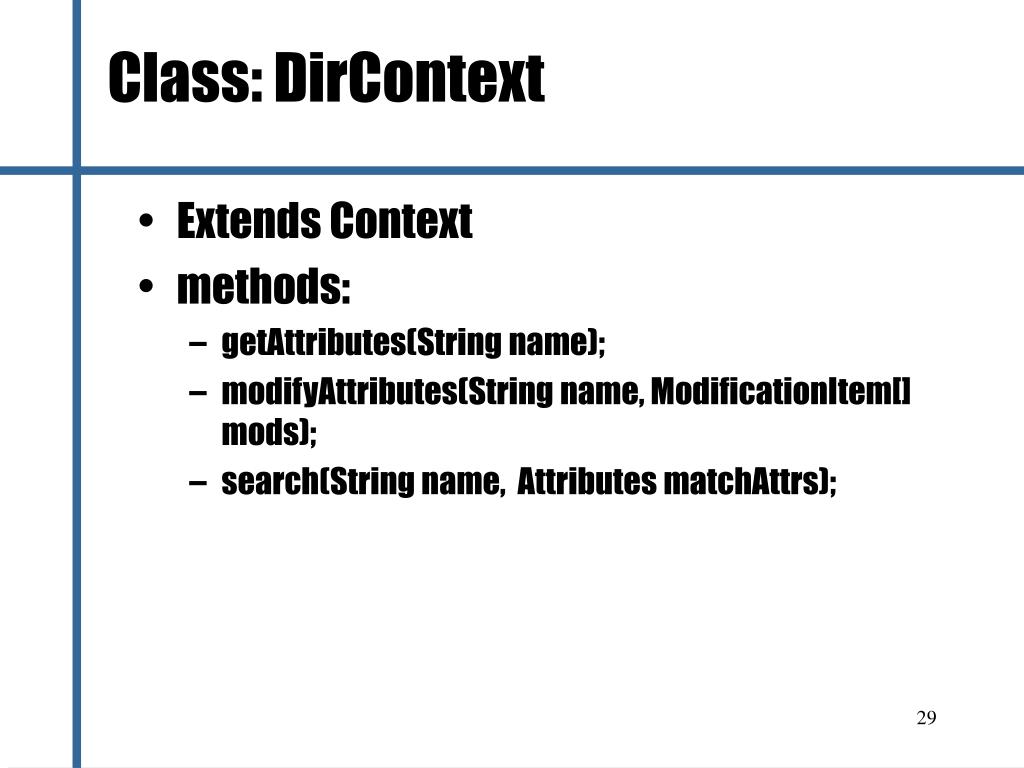

29. Class: DirContext • Extends Context • methods: • getAttributes(String name); • modifyAttributes(String name, ModificationItem[] mods); • search(String name, Attributes matchAttrs);

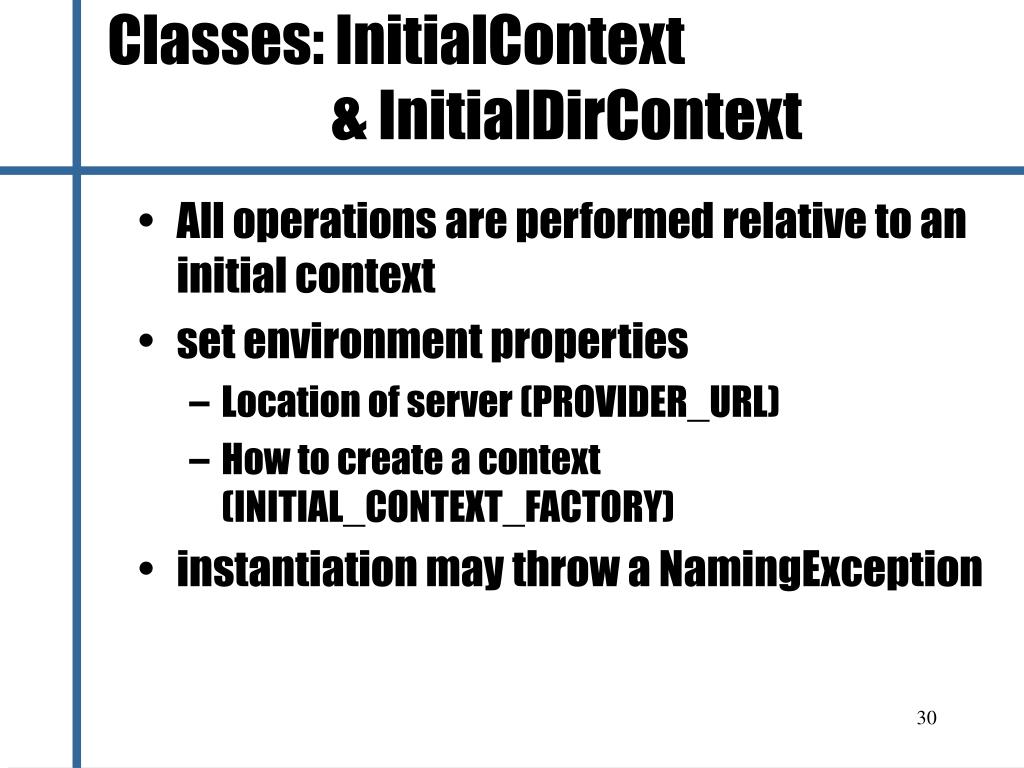

30. Classes: InitialContext & InitialDirContext • All operations are performed relative to an initial context • set environment properties • Location of server (PROVIDER_URL) • How to create a context (INITIAL_CONTEXT_FACTORY) • instantiation may throw a NamingException

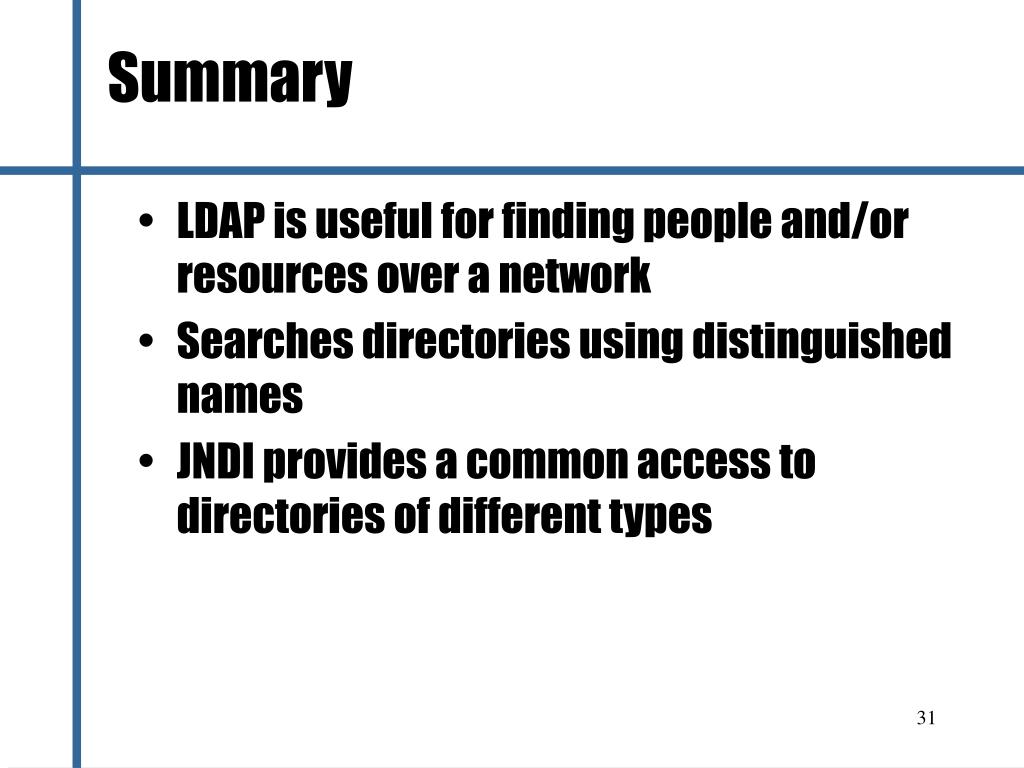

31. Summary • LDAP is useful for finding people and/or resources over a network • Searches directories using distinguished names • JNDI provides a common access to directories of different types

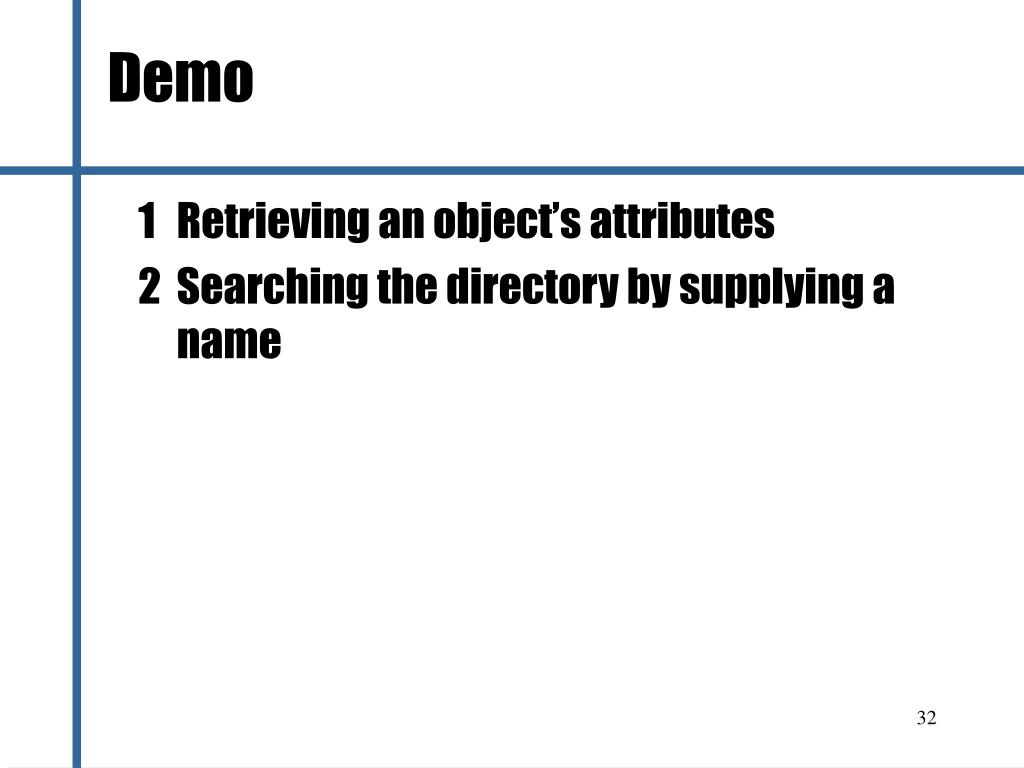

32. Demo • Retrieving an object’s attributes • Searching the directory by supplying a name

33. 1. Retrieving an object’s attributes Hashtable env = new Hashtable(); env.put(Context.INITIAL_CONTEXT_FACTORY, "com.sun.jndi.ldap.LdapCtxFactory"); env.put(Context.PROVIDER_URL, "ldap://directory.ufl.edu:389/o=ufl,c=us"); try { DirContext ctx = new InitialDirContext(env); // Get the attributes associated with the object bound to the name "ou=students" Attributes answer = ctx.getAttributes("ou=students");

34. 1. Retrieving an object’s attributes (cont…) // Print out the attributes printIdAndValue(answer); System.out.println("-------------------------------------------"); ctx.close(); } catch (NamingException e) { System.err.println("Exception caught:" + e); }

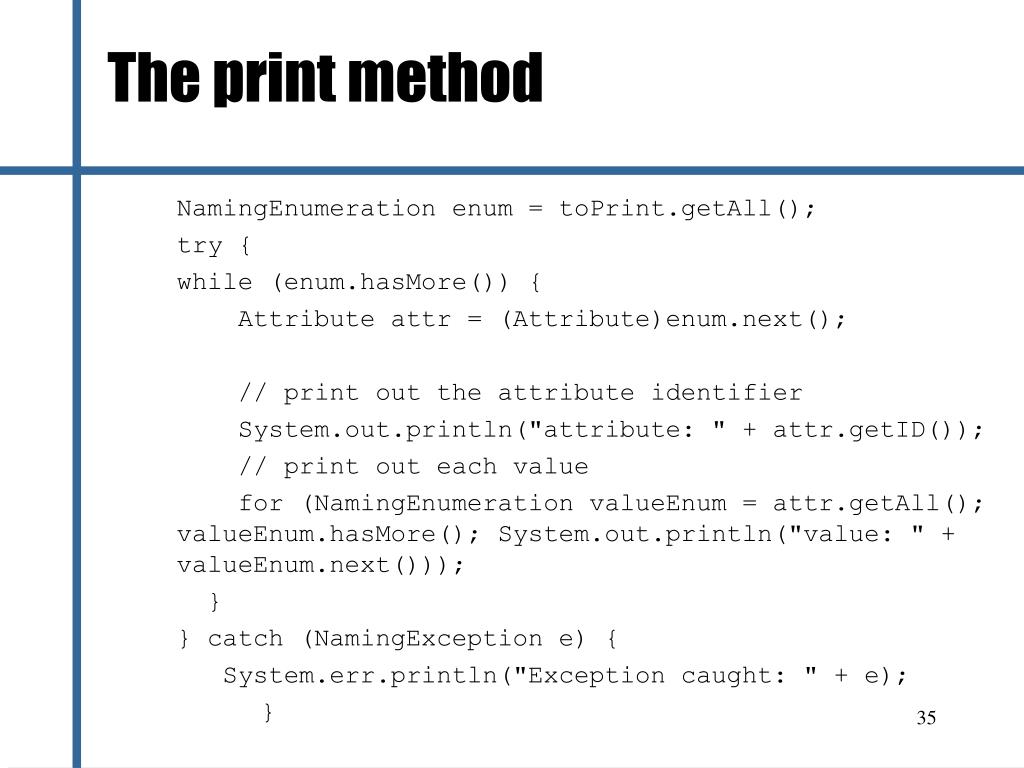

35. The print method NamingEnumeration enum = toPrint.getAll(); try { while (enum.hasMore()) { Attribute attr = (Attribute)enum.next(); // print out the attribute identifier System.out.println("attribute: " + attr.getID()); // print out each value for (NamingEnumeration valueEnum = attr.getAll(); valueEnum.hasMore(); System.out.println("value: " + valueEnum.next())); } } catch (NamingException e) { System.err.println("Exception caught: " + e); }

36. 2. Name search DirContext ctx = new InitialDirContext(env); Attributes matchAttrs = new BasicAttributes(true); matchAttrs.put(new BasicAttribute("sn", "King")); /* The above code adds an attribute to the set; could also have done Attributes matchAttrs = new BasicAttributes("sn","King",true); Note: true = case insensitive; false = case sensitive */ // Note: a search returns an enumeration of SearchResult objects NamingEnumeration enum = ctx.search("ou=students", matchAttrs);

37. 2. Name search (cont…) while (enum.hasMore()) { // Get the next SearchResult object & print out it's name SearchResult result = (SearchResult)enum.next(); System.out.println(">>>" + result.getName()); Attributes attrSet = result.getAttributes(); // attrSet is a set of attributes // print the attribute identifiers and values printIdAndValue(attrSet); }

38. THANK YOU.
