  1. Dynamic Test Set Selection Using Implication-BasedOn-Chip Diagnosis Nicholas Imbriglia, Nuno Alves, Elif Alpaslan, Jennifer Dworak Brown University NATW 2010

  2. Motivation • As electronic devices become smaller, they become more and more susceptible to wearout and latent defects: • Time Dependent Dielectric Breakdown (TDDB) • Negative Bias Temperature Instability (NBTI) • Electromigration

  3. Motivation • This susceptibility is application and workload dependent • Large ramifications for the online testing of homogeneous, multi-core architectures • If a core fails, similar cores should be tested

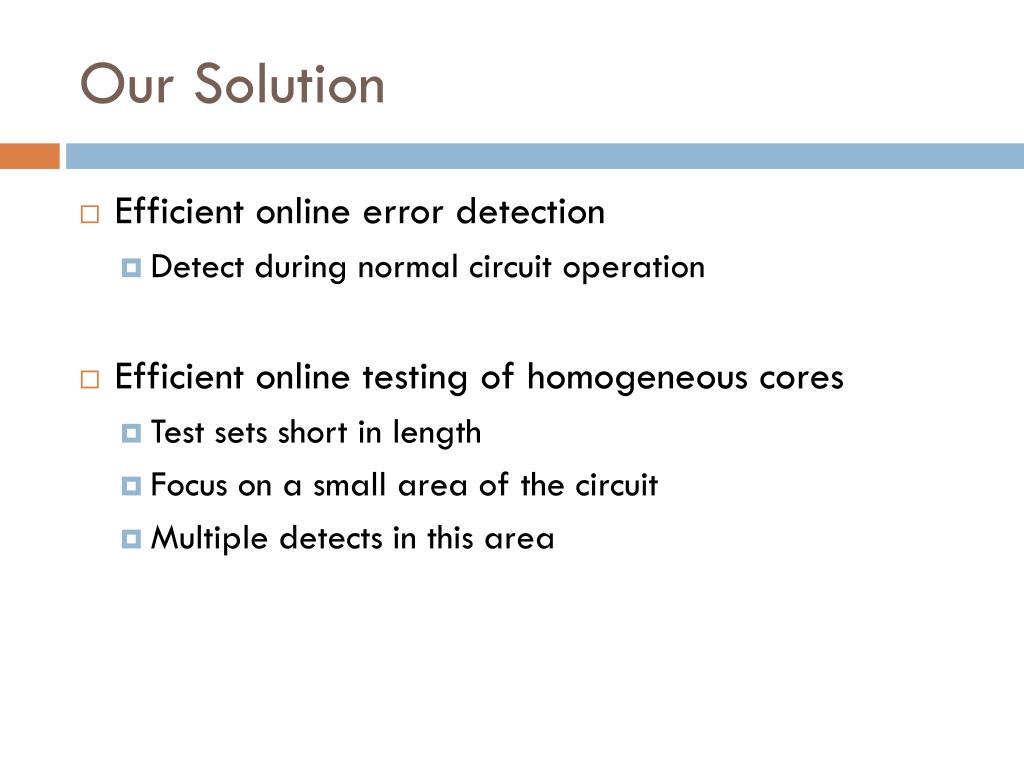

  4. Our Solution • Efficient online error detection • Detect during normal circuit operation • Efficient online testing of homogeneous cores • Test sets short in length • Focus on a small area of the circuit • Multiple detects in this area

  5. Our Solution • We wish to use the diagnostic information inherent to logic implications to target specific sections of a device • We can then develop test sets specially suited for testing these sections online • These test sets, since they focus only on a portion of the device, can be very short and can be run with minimal interruption of the device’s normal operation

  6. Related Work • Online Error Detection • Triple Modular Redundancy • Berger and Bose Lin Coding • Logic Implications • Online Test • Concurrent Autonomous Chip Self-Test Using Stored Test Patterns (CASP)

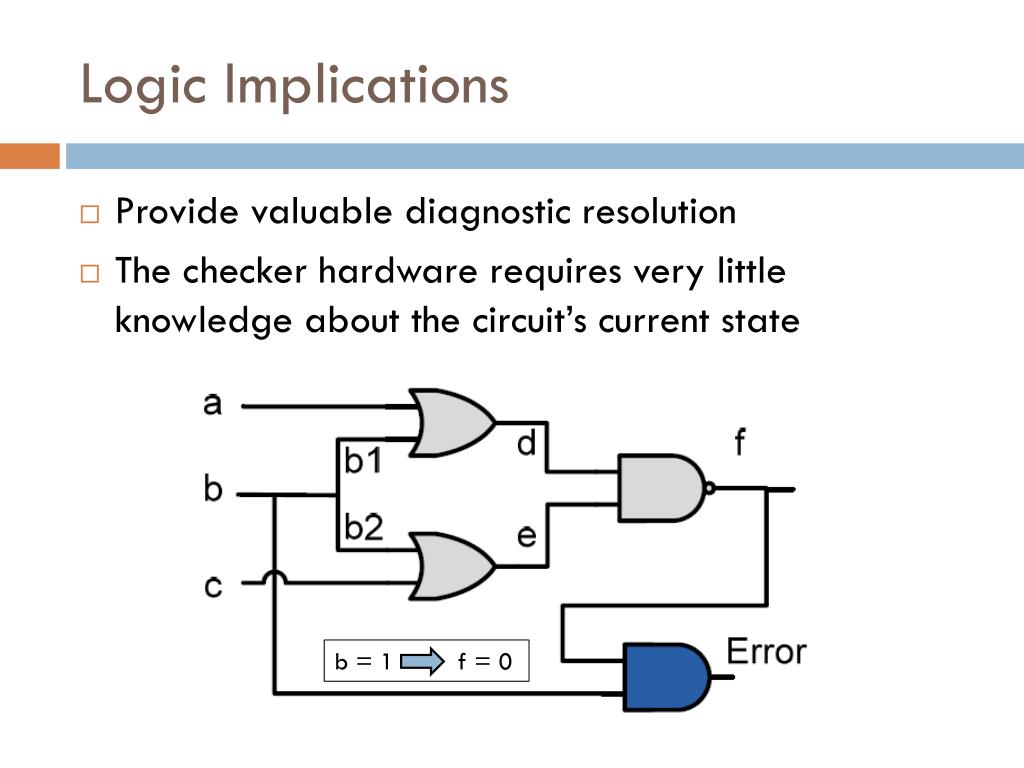

  7. Logic Implications • Provide valuable diagnostic resolution • The checker hardware requires very little knowledge about the circuit’s current state b = 1 f = 0

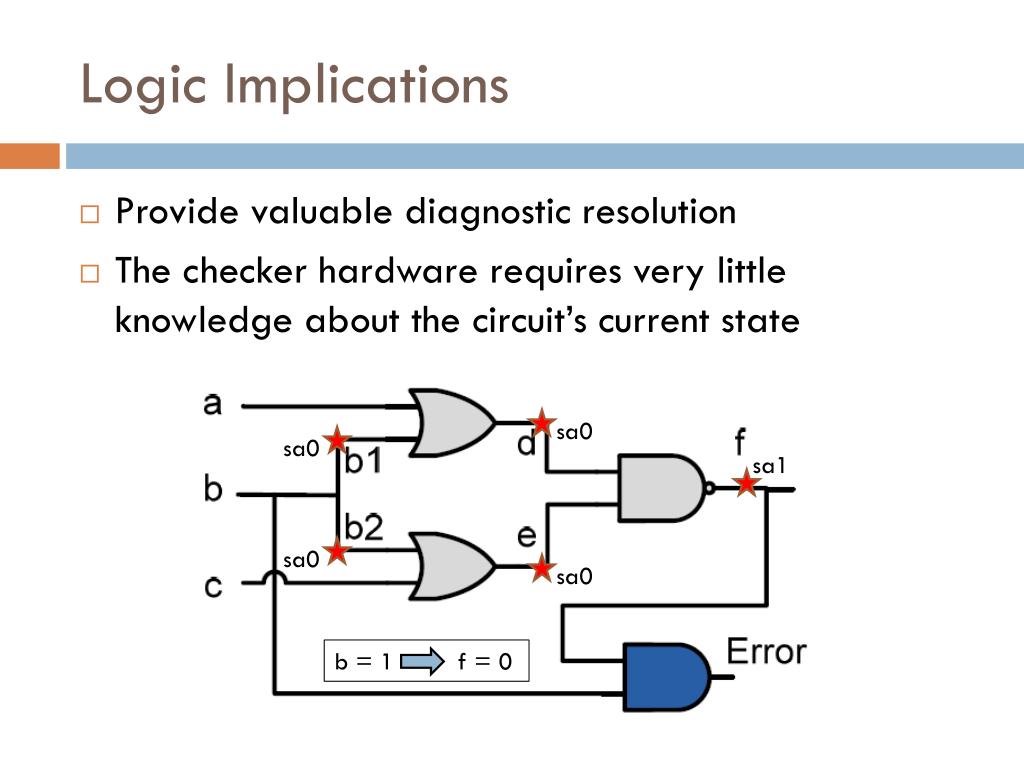

  8. Logic Implications • Provide valuable diagnostic resolution • The checker hardware requires very little knowledge about the circuit’s current state sa0 sa0 sa1 sa0 sa0 b = 1 f = 0

  9. Hardware Implementation

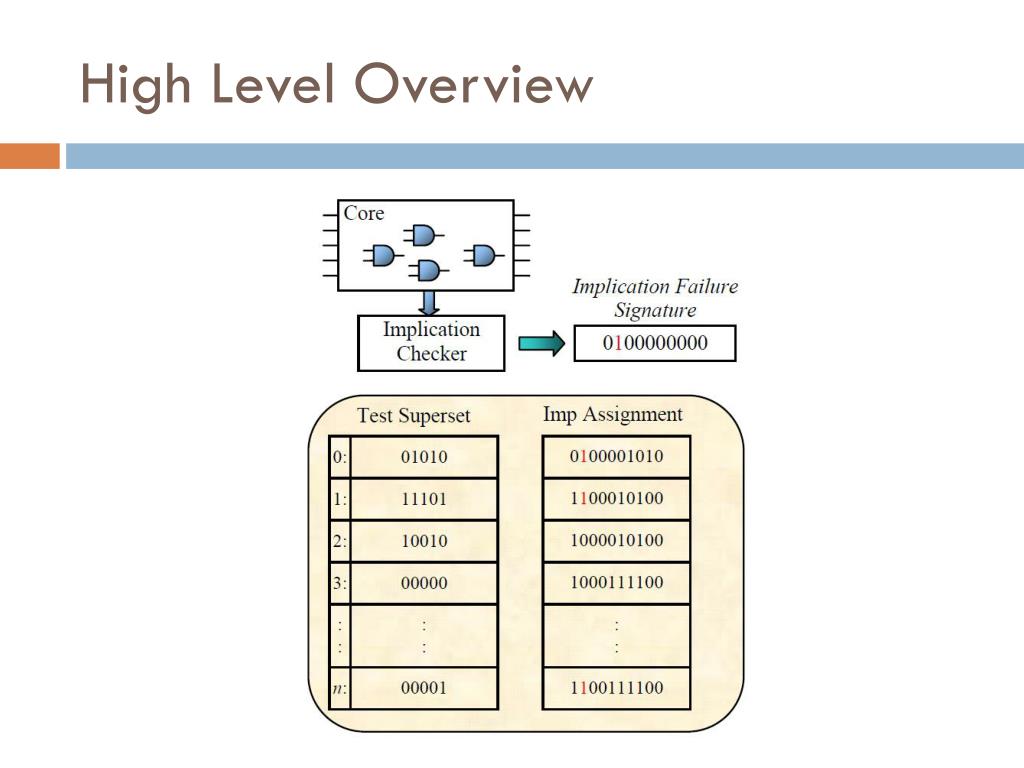

  10. High Level Overview

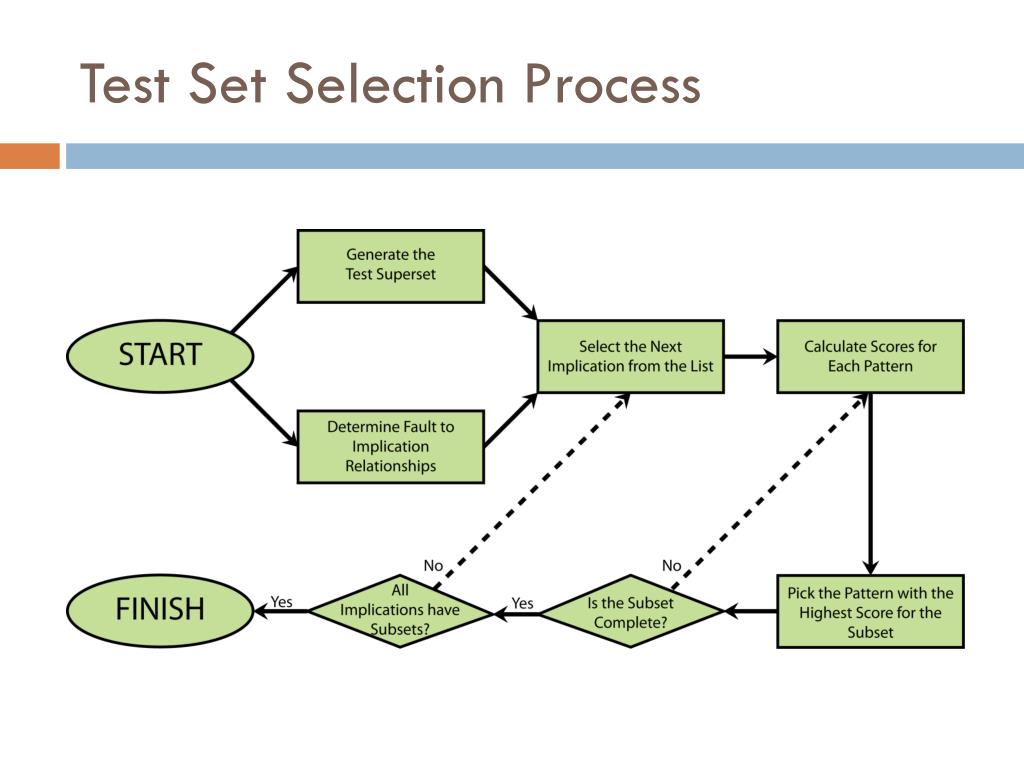

  11. Test Set Selection Process

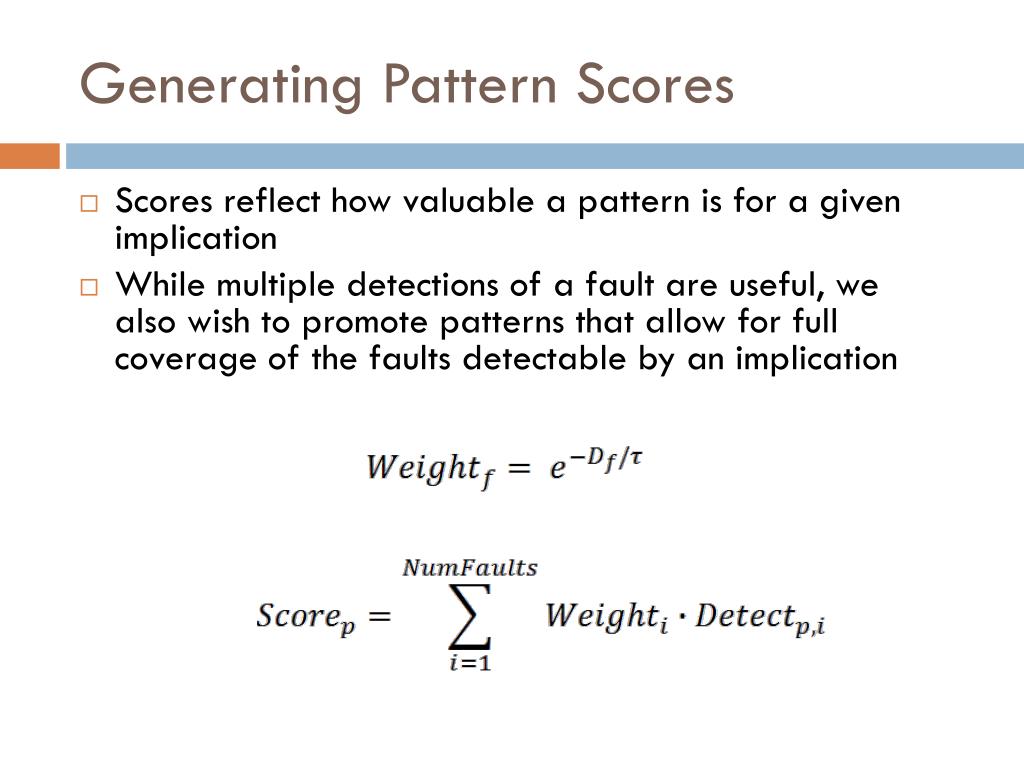

  12. Generating Pattern Scores • Scores reflect how valuable a pattern is for a given implication • While multiple detections of a fault are useful, we also wish to promote patterns that allow for full coverage of the faults detectable by an implication

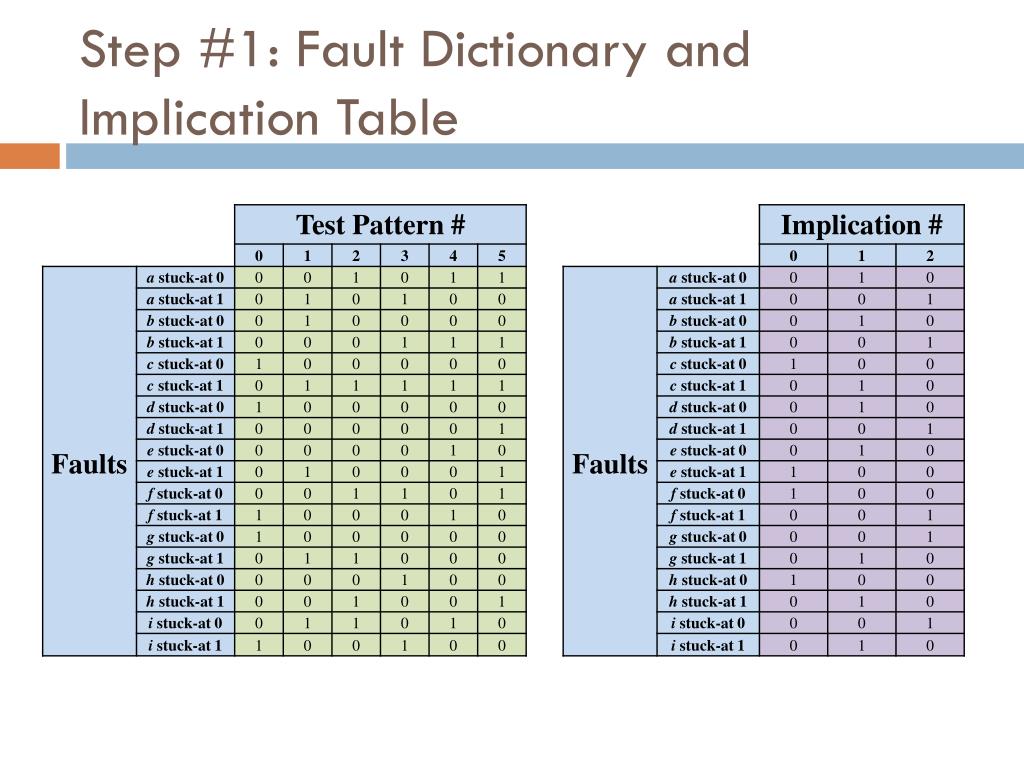

  13. Step #1: Fault Dictionary and Implication Table

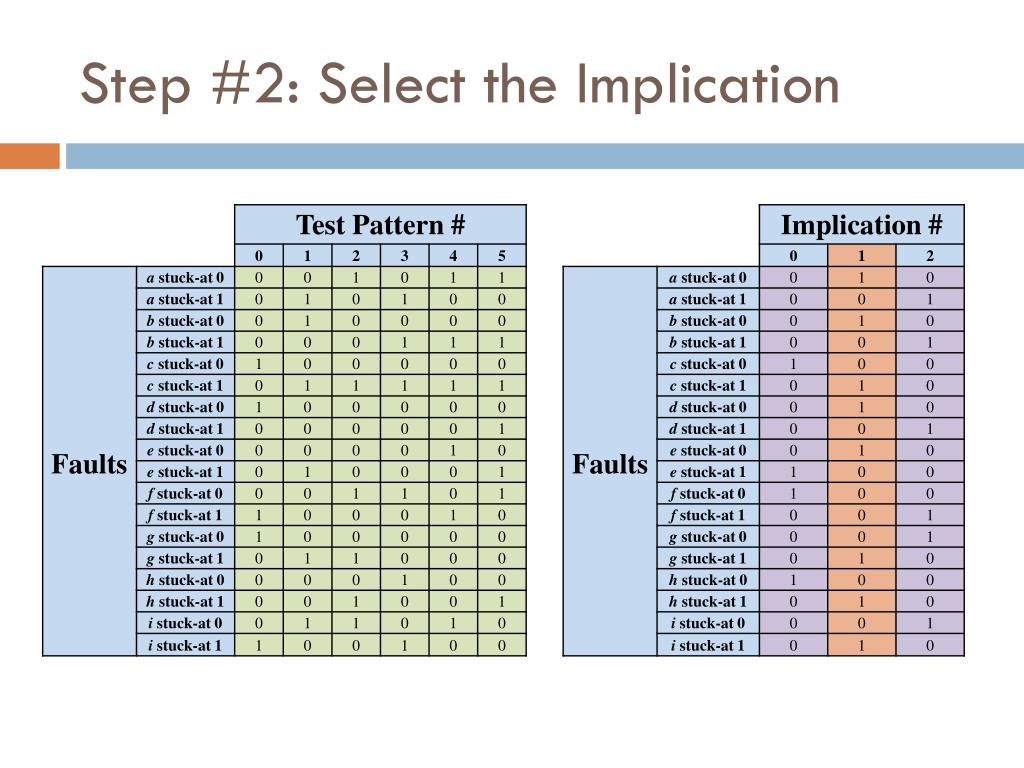

  14. Step #2: Select the Implication

  15. Step #2: Select the Implication

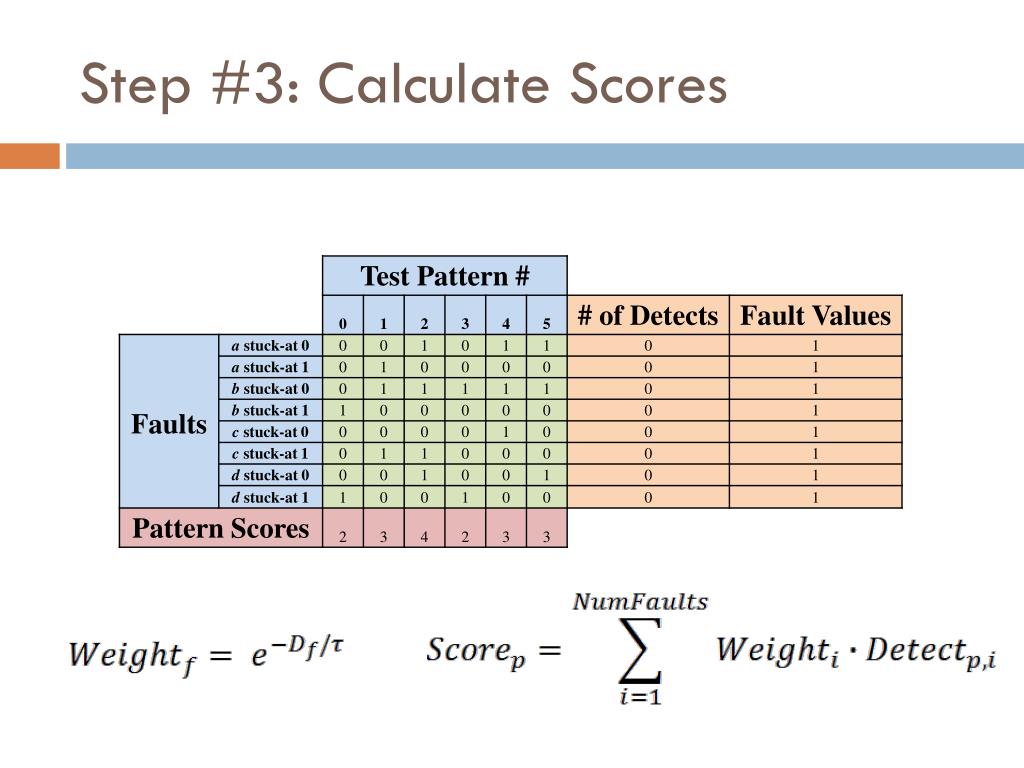

  16. Step #3: Calculate Scores

  17. Step #4: Pick the Pattern with the Highest Score

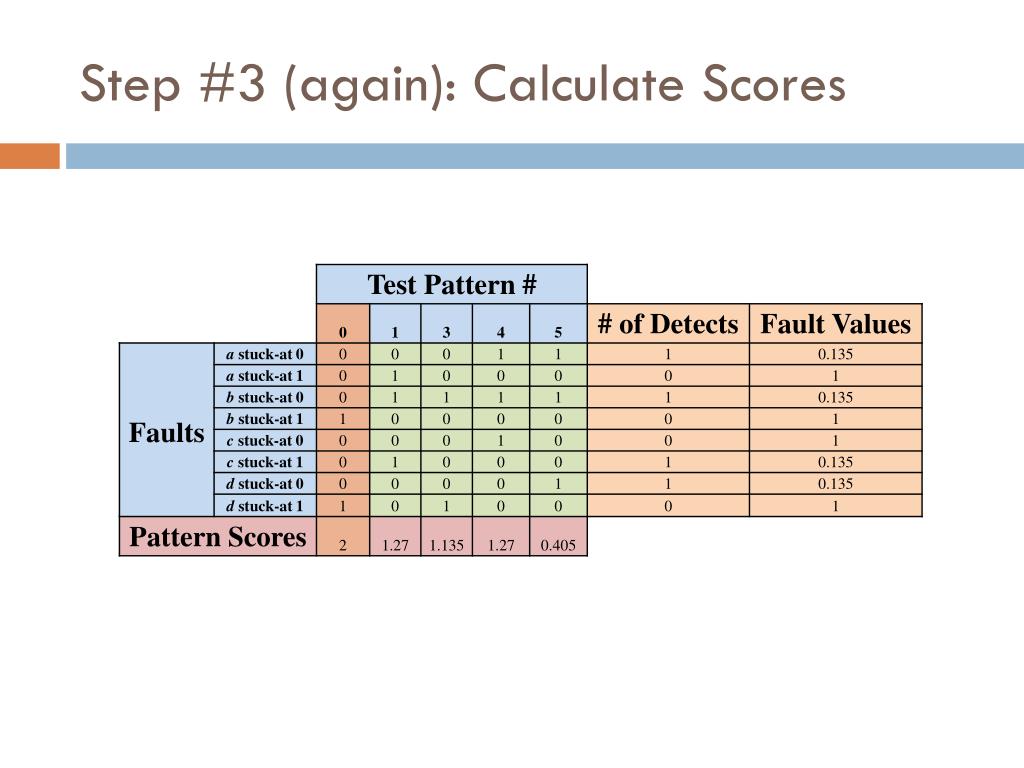

  18. Step #3 (again): Calculate Scores

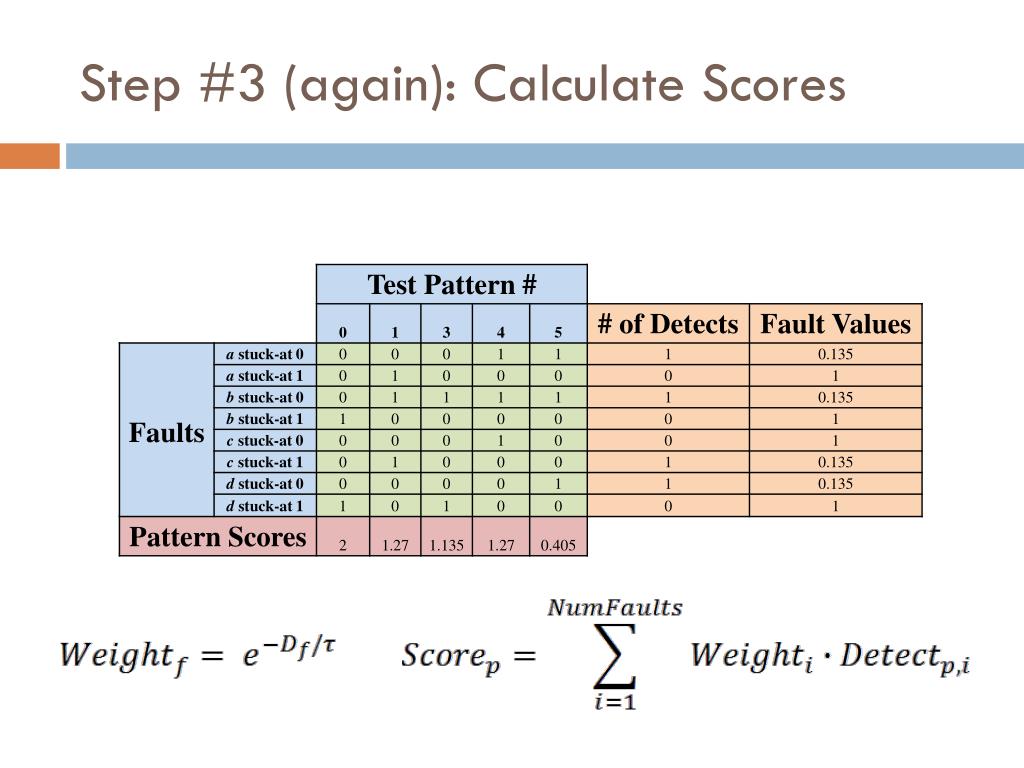

  19. Step #3 (again): Calculate Scores

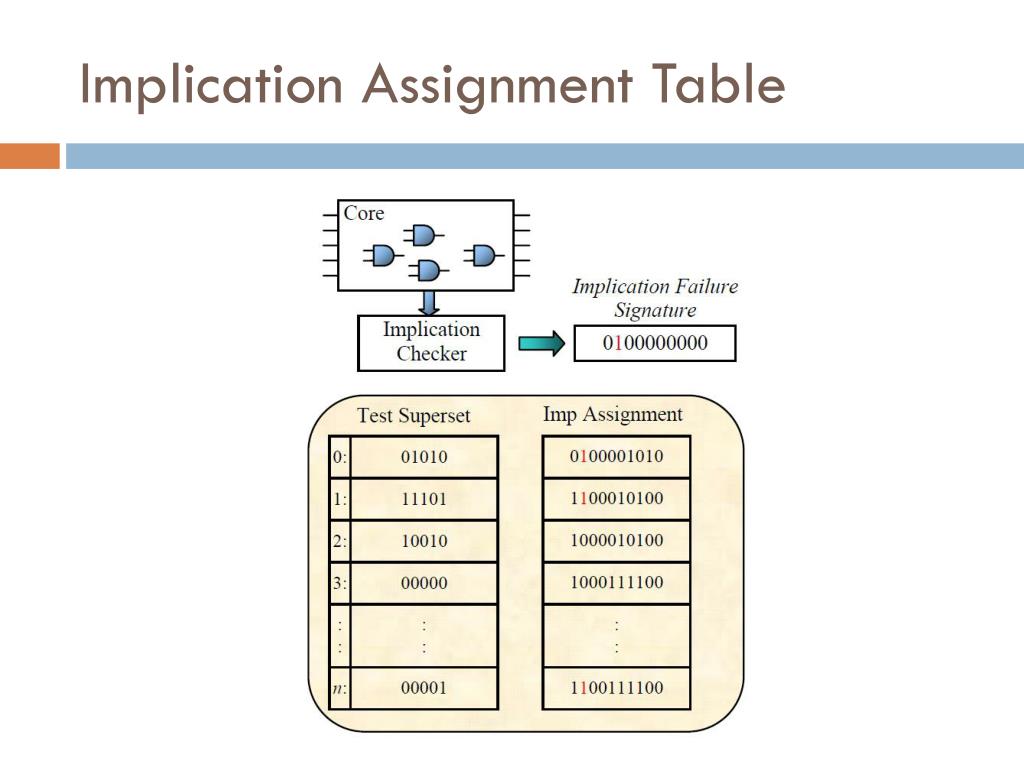

  20. Implication Assignment Table

  21. Experimental Setup

  22. Experimental Results

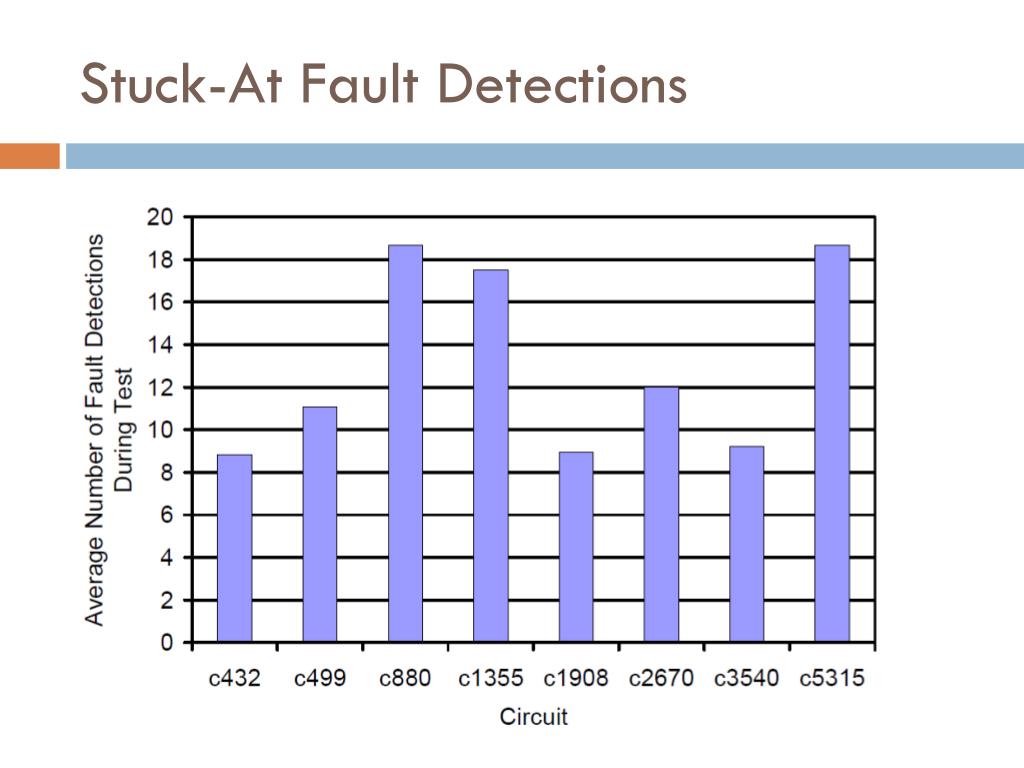

  23. Stuck-At Fault Detections

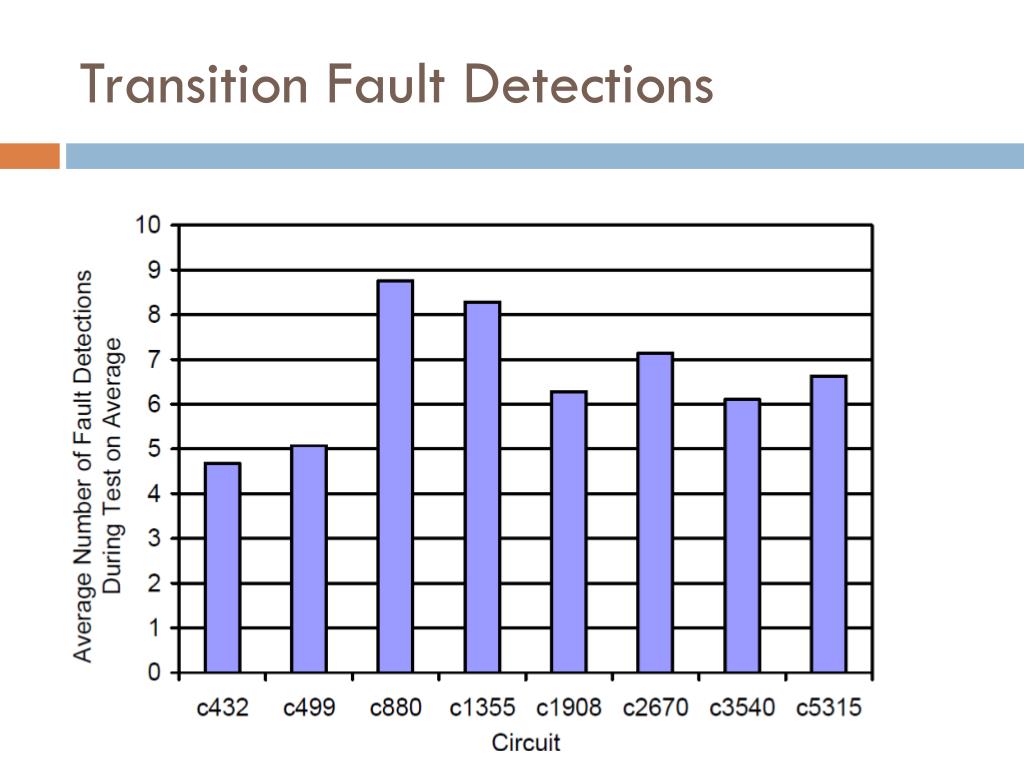

  24. Transition Fault Detections

  25. Experimental Results

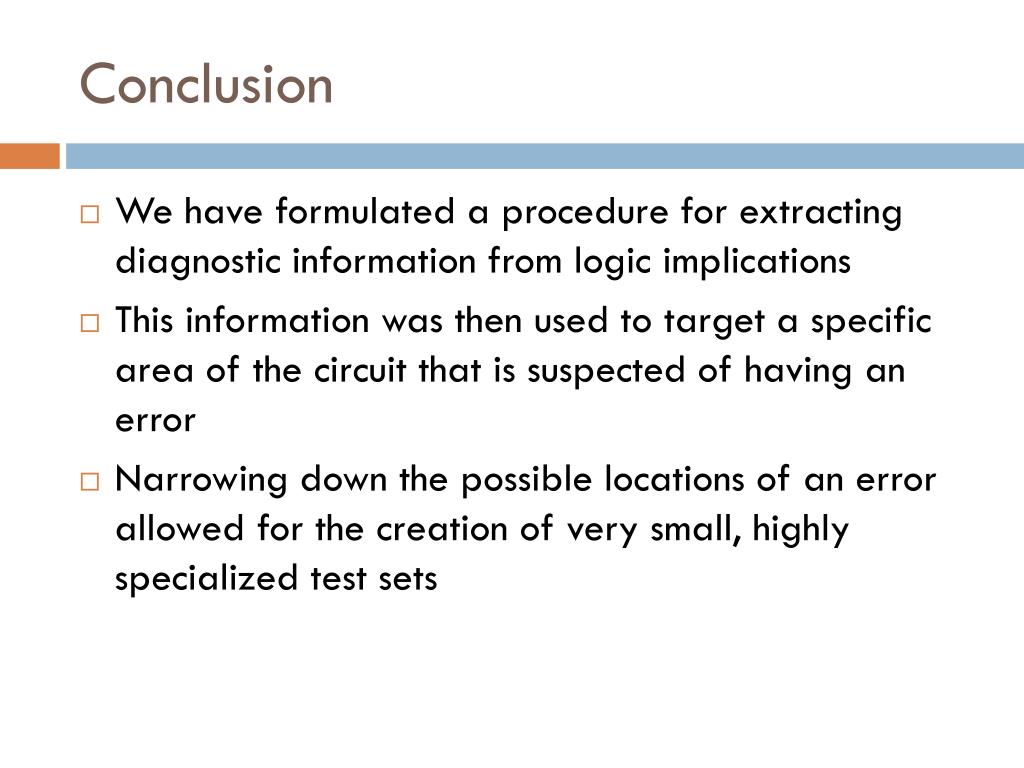

  26. Conclusion • We have formulated a procedure for extracting diagnostic information from logic implications • This information was then used to target a specific area of the circuit that is suspected of having an error • Narrowing down the possible locations of an error allowed for the creation of very small, highly specialized test sets

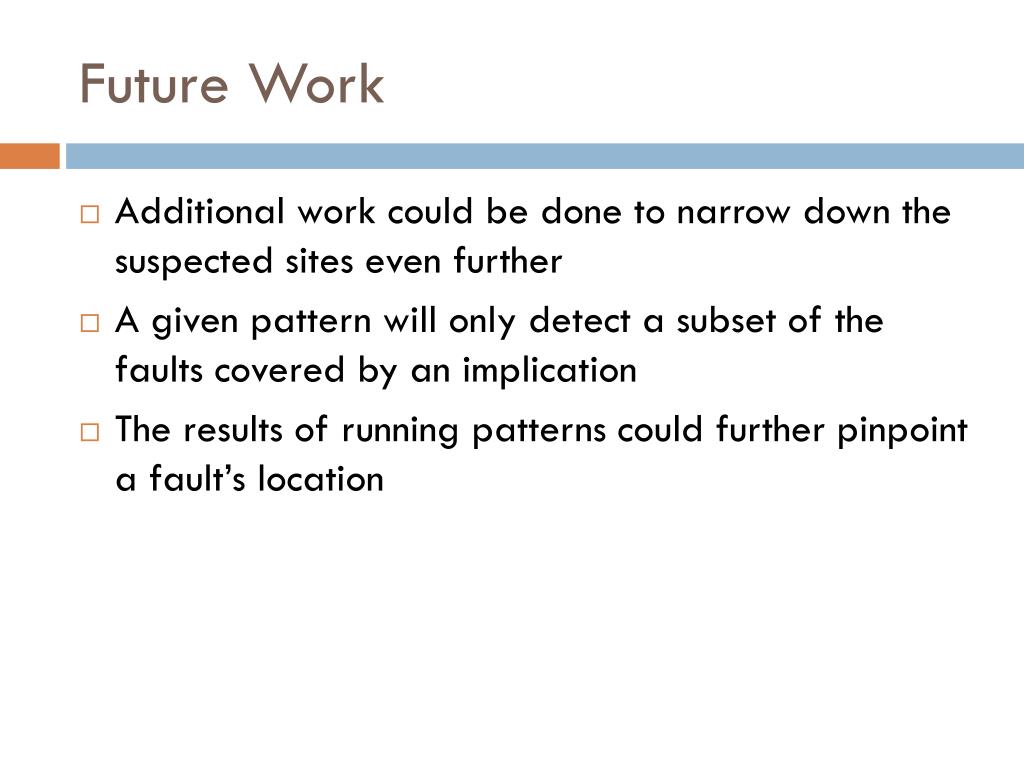

  27. Future Work • Additional work could be done to narrow down the suspected sites even further • A given pattern will only detect a subset of the faults covered by an implication • The results of running patterns could further pinpoint a fault’s location
