Optimising XML Schema for IODEF Data model

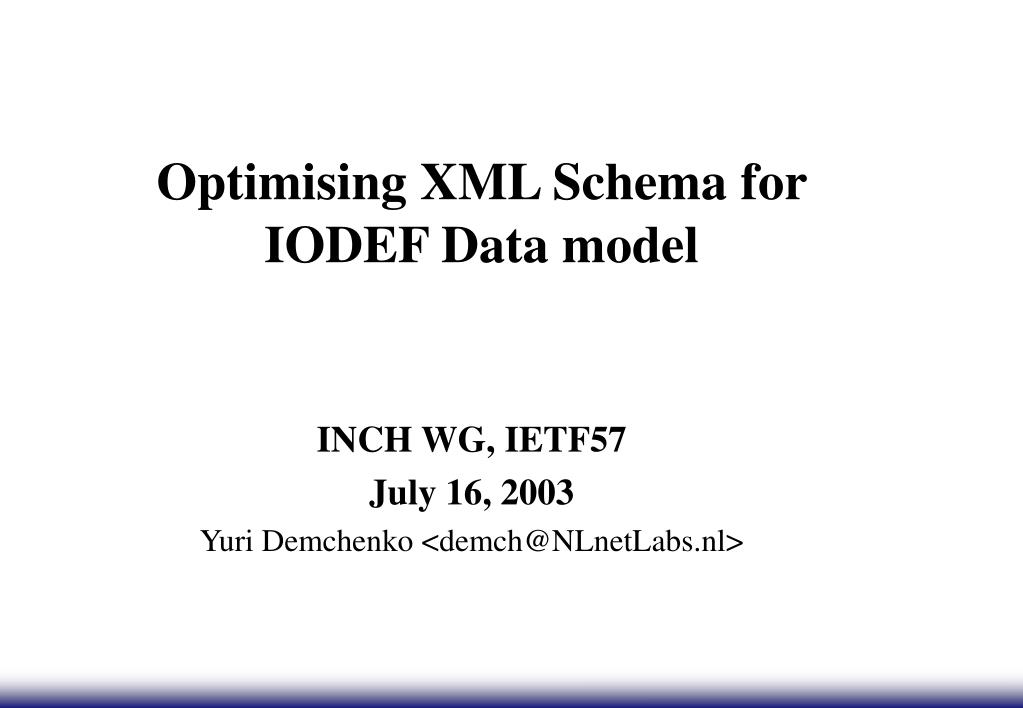

1. Optimising XML Schema for IODEF Data model INCH WG, IETF57 July 16, 2003 Yuri Demchenko <demch@NLnetLabs.nl>

2. Outlines • Motivation for moving to Schema definition • Changes and Optimisations to IODEF elements semantics • Extra features: XML Signature and Multilingual text type XML Security

3. Motivation for moving to XML Schema • DTD is document-oriented • Like HTML • Schema is data-oriented • More object oriented • Integrated into development tools • Easier maintenance (validation, modification, documentation - using tools) • Enabling other useful features • XML Signature • SAML • XPath, XSL and XSLT, XLink, XPointer XML Security

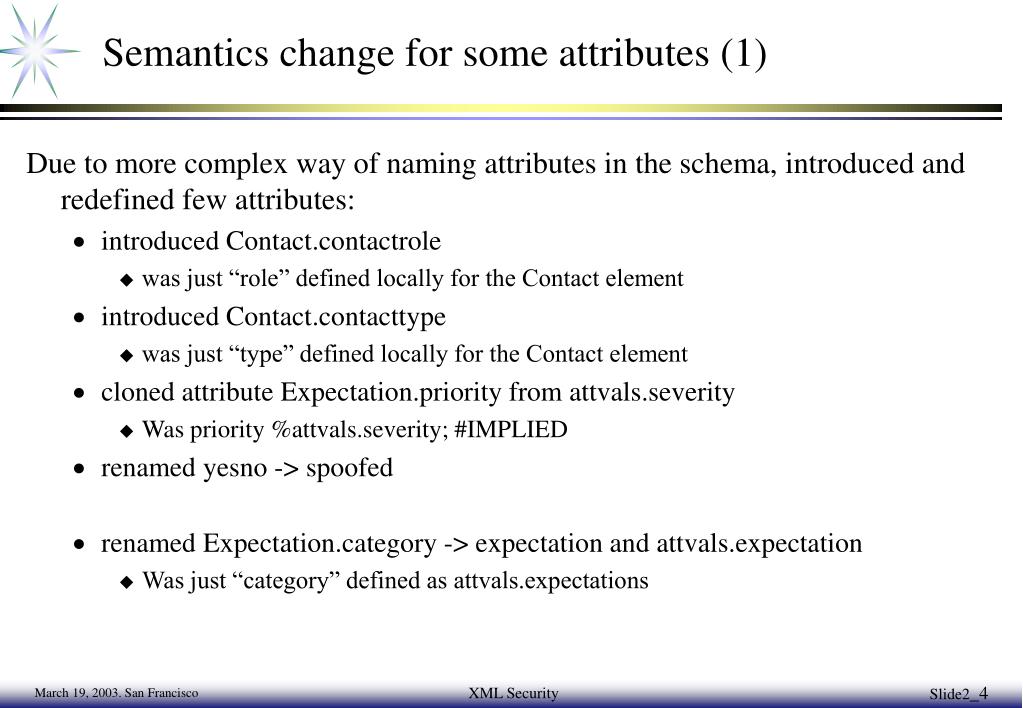

4. Semantics change for some attributes (1) • Due to more complex way of naming attributes in the schema, introduced and redefined few attributes: • introduced Contact.contactrole • was just “role” defined locally for the Contact element • introduced Contact.contacttype • was just “type” defined locally for the Contact element • cloned attribute Expectation.priority from attvals.severity • Was priority %attvals.severity; #IMPLIED • renamed yesno -> spoofed • renamed Expectation.category -> expectation and attvals.expectation • Was just “category” defined as attvals.expectations XML Security

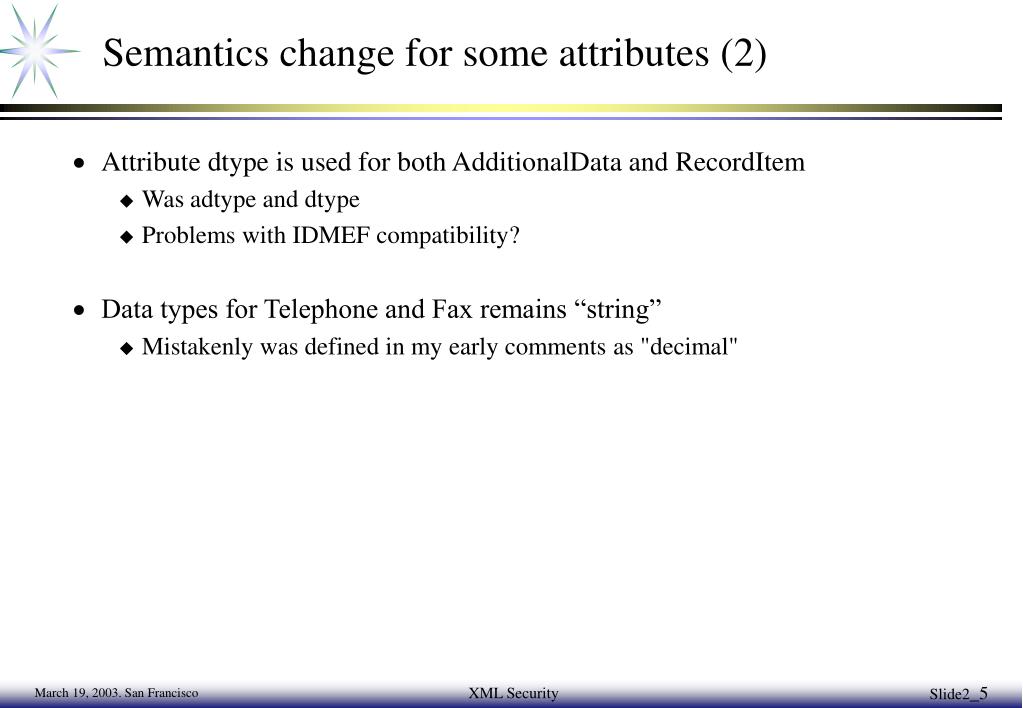

5. Semantics change for some attributes (2) • Attribute dtype is used for both AdditionalData and RecordItem • Was adtype and dtype • Problems with IDMEF compatibility? • Data types for Telephone and Fax remains “string” • Mistakenly was defined in my early comments as "decimal" XML Security

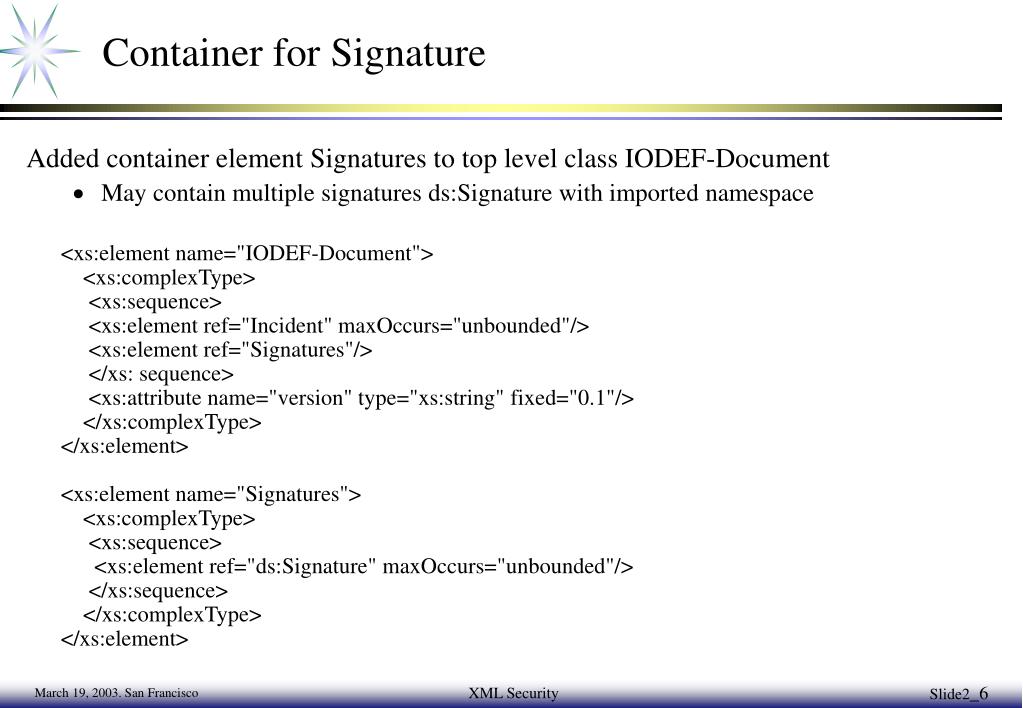

6. Container for Signature • Added container element Signatures to top level class IODEF-Document • May contain multiple signatures ds:Signature with imported namespace • <xs:element name="IODEF-Document">     <xs:complexType>      <xs:sequence>      <xs:element ref="Incident" maxOccurs="unbounded"/>      <xs:element ref="Signatures"/>      </xs: sequence>      <xs:attribute name="version" type="xs:string" fixed="0.1"/>     </xs:complexType> </xs:element> <xs:element name="Signatures">     <xs:complexType>      <xs:sequence>       <xs:element ref="ds:Signature" maxOccurs="unbounded"/>      </xs:sequence>     </xs:complexType> </xs:element> XML Security

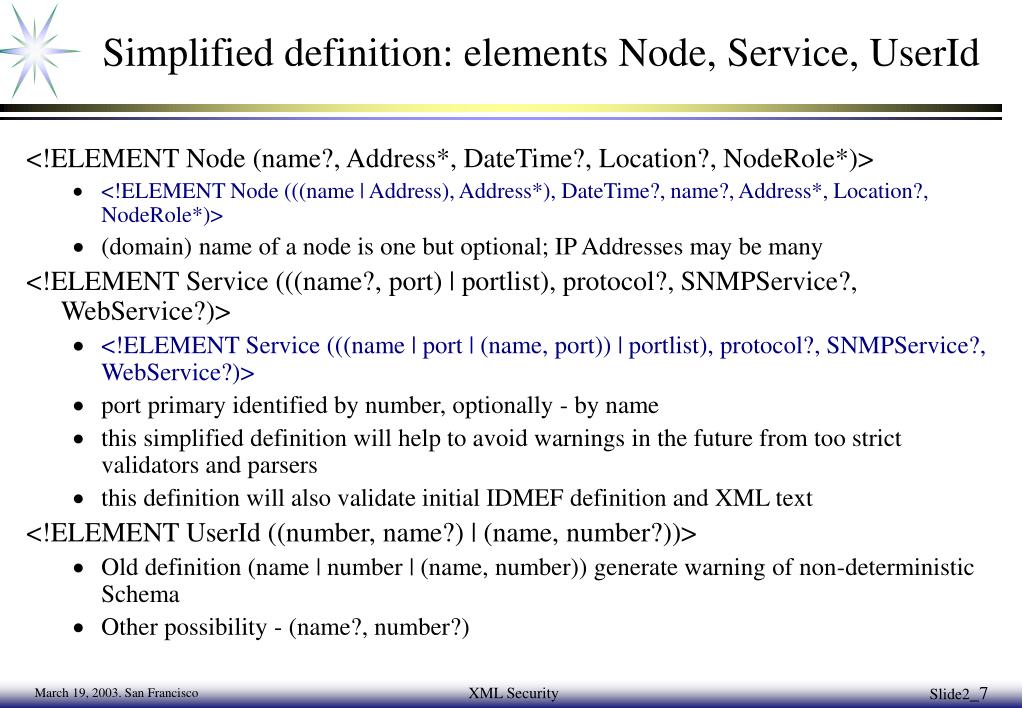

7. Simplified definition: elements Node, Service, UserId • <!ELEMENT Node (name?, Address*, DateTime?, Location?, NodeRole*)> • <!ELEMENT Node (((name | Address), Address*), DateTime?, name?, Address*, Location?, NodeRole*)> • (domain) name of a node is one but optional; IP Addresses may be many • <!ELEMENT Service (((name?, port) | portlist), protocol?, SNMPService?, WebService?)> • <!ELEMENT Service (((name | port | (name, port)) | portlist), protocol?, SNMPService?, WebService?)> • port primary identified by number, optionally - by name • this simplified definition will help to avoid warnings in the future from too strict validators and parsers • this definition will also validate initial IDMEF definition and XML text • <!ELEMENT UserId ((number, name?) | (name, number?))> • Old definition (name | number | (name, number)) generate warning of non-deterministic Schema • Other possibility - (name?, number?) XML Security

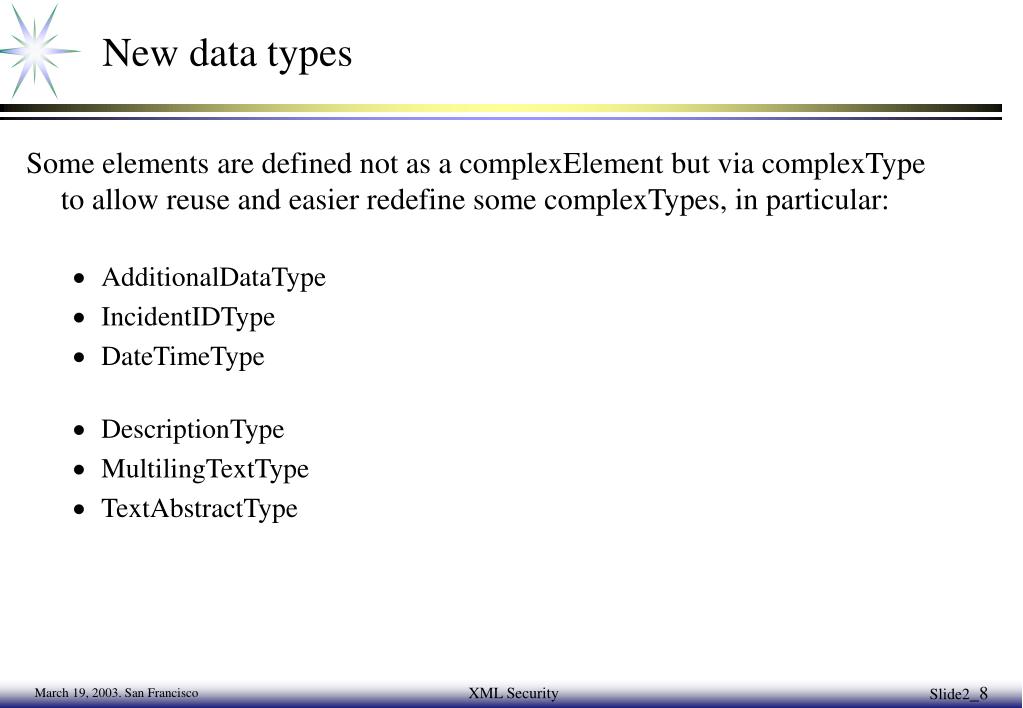

8. New data types • Some elements are defined not as a complexElement but via complexType to allow reuse and easier redefine some complexTypes, in particular: • AdditionalDataType • IncidentIDType • DateTimeType • DescriptionType • MultilingTextType • TextAbstractType XML Security

9. MultilingualTextType and TextAbstractType • To mark-up multilingual text preservation features, introduced two new classes: • TextAbstractType to carry language attribute • MultilingTextType to describe possible multilingual text transformation by Transform class imported from XMLSig Schema • Introduced new element "Name" for Contact class instead of more simple "name" • Name defined via MultilingTextType <xs:element name="Name" type="MultilingTextType"/> XML Security

10. ds:Transform element • <xs:schema xmlns:ds="http://www.w3.org/2000/09/xmldsig#" xmlns:xs="http://www.w3.org/2001/XMLSchema"> • <xs:element name="Transforms" type="TransformsType"/> • <xs:complexType name="TransformsType"> • <xs:sequence> • <xs:element ref="Transform" maxOccurs="unbounded"/> • </xs:sequence> • </xs:complexType> • <xs:element name="Transform" type="TransformType"/> • <xs:complexType name="TransformType" mixed="true"> • <xs:choice minOccurs="0" maxOccurs="unbounded"> • <xs:any namespace="##other" processContents="lax"/> • <xs:element name="XPath" type="string"/> • ## (1,1) elements from (0,unbounded) namespaces ## • </xs:choice> • <xs:attribute name="Algorithm" type="xs:anyURI" use="required"/> • </xs:complexType> XML Security

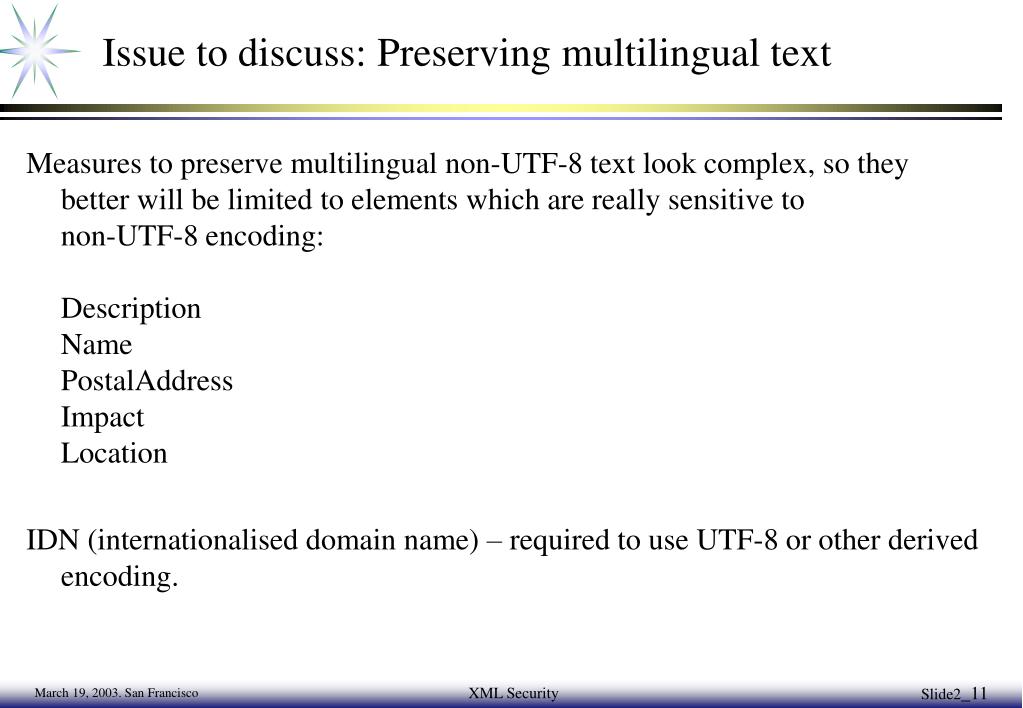

11. Issue to discuss: Preserving multilingual text • Measures to preserve multilingual non-UTF-8 text look complex, so they better will be limited to elements which are really sensitive to non-UTF-8 encoding: Description Name PostalAddress Impact Location • IDN (internationalised domain name) – required to use UTF-8 or other derived encoding. XML Security

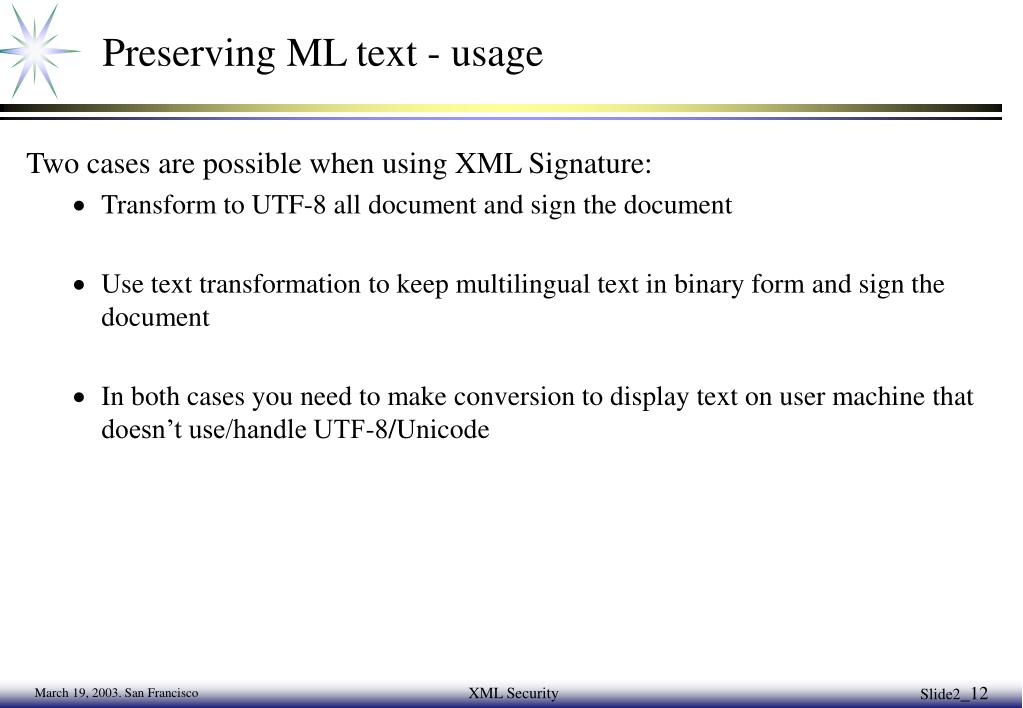

12. Preserving ML text - usage • Two cases are possible when using XML Signature: • Transform to UTF-8 all document and sign the document • Use text transformation to keep multilingual text in binary form and sign the document • In both cases you need to make conversion to display text on user machine that doesn’t use/handle UTF-8/Unicode XML Security

13. Future steps • Make changes to current DTD-01 • Include Schema into next IODEF draft? XML Security
