  1. An Environment for Java Servlet & JSP Development~ Apache Tomcat ~

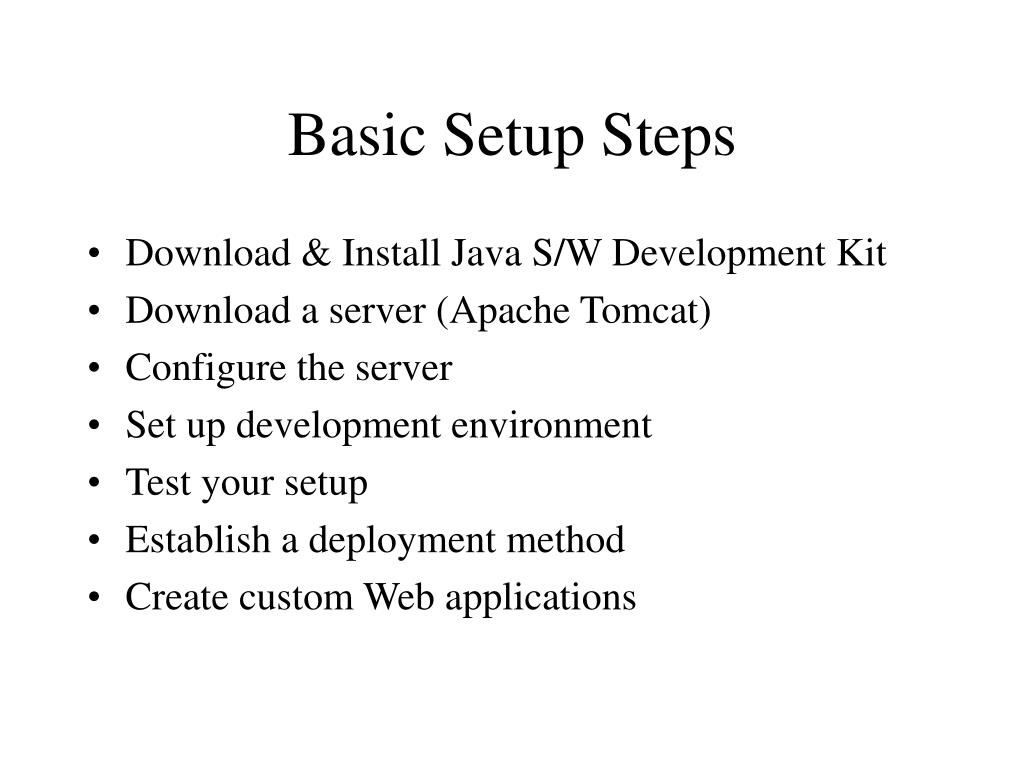

  2. Basic Setup Steps • Download & Install Java S/W Development Kit • Download a server (Apache Tomcat) • Configure the server • Set up development environment • Test your setup • Establish a deployment method • Create custom Web applications

  3. http://tomcat.apache.org

  4. Install Instructions • Get & install 5.5.15 Core Windows Executable (apache-tomcat-5.5.15.exe) • Configuration • Port? (8080 or 80) • User: admin • Password: webtech

  5. Installation Configuration(pswd: webtech)

  6. Set Path to the Installed JVM(Tomcat 5.5 is designed to run on J2SE 5.0 and later.)

  7. What’s Running on Port 80? • IIS • Apache HTTP Server • Tomcat • May need to shut-down other servers or services prior to starting Tomcat. • Start/Control/Administrative Tools/Services • Select the service, properties, set to Manual

  8. http://localhost(index.jsp) or http://localhost:8080

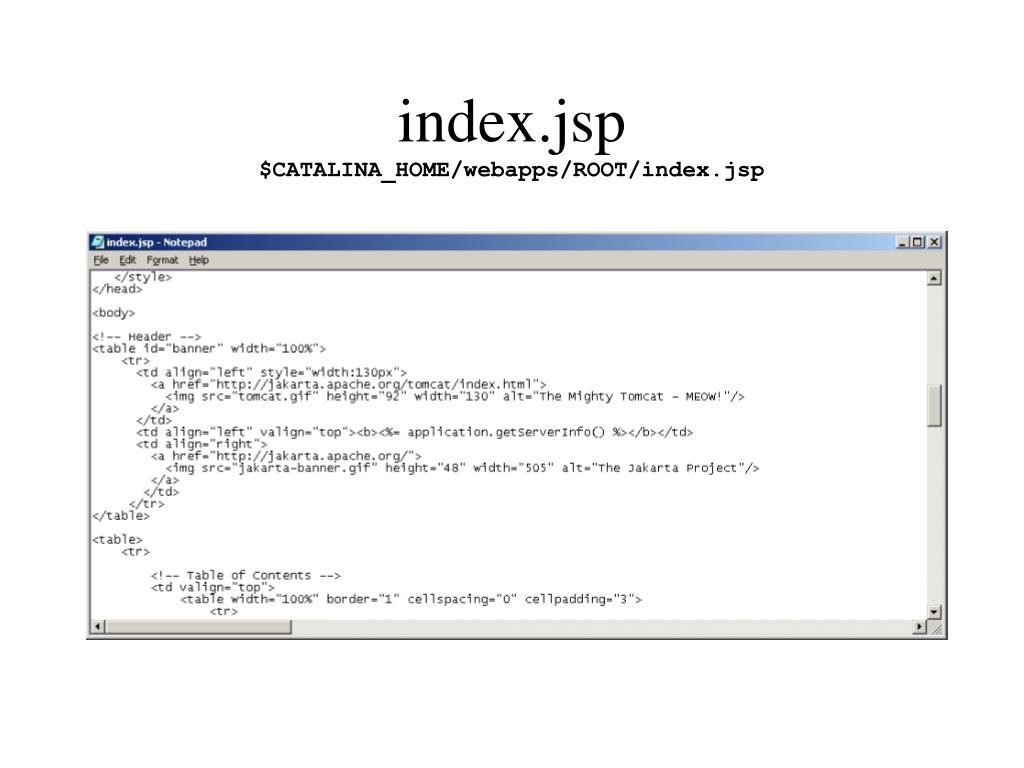

  9. index.jsp$CATALINA_HOME/webapps/ROOT/index.jsp

  10. $CATALINA_HOME(root of Tomcat Install)

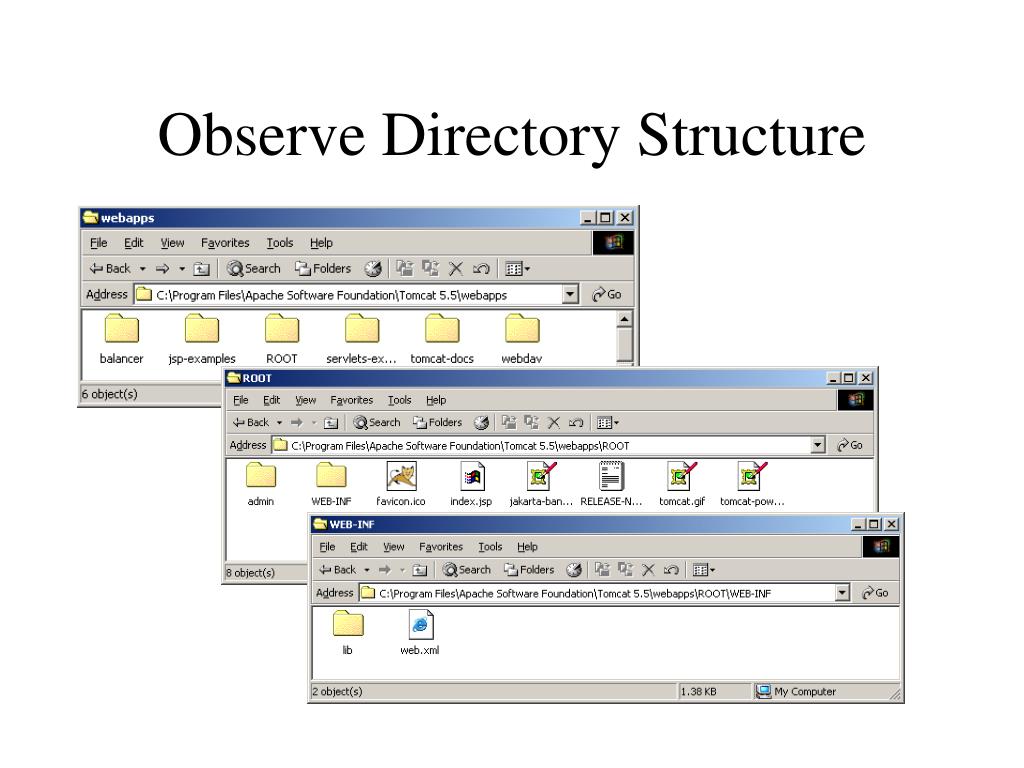

  11. Observe Directory Structure

  12. Test Install - HTML, JSP, Servlets • Need to test • Static HTML • JSP • Servlets • Test files provided • Testing.html, Testing.jsp, TestingServlet.java • Use default setting (webapps/ROOT)

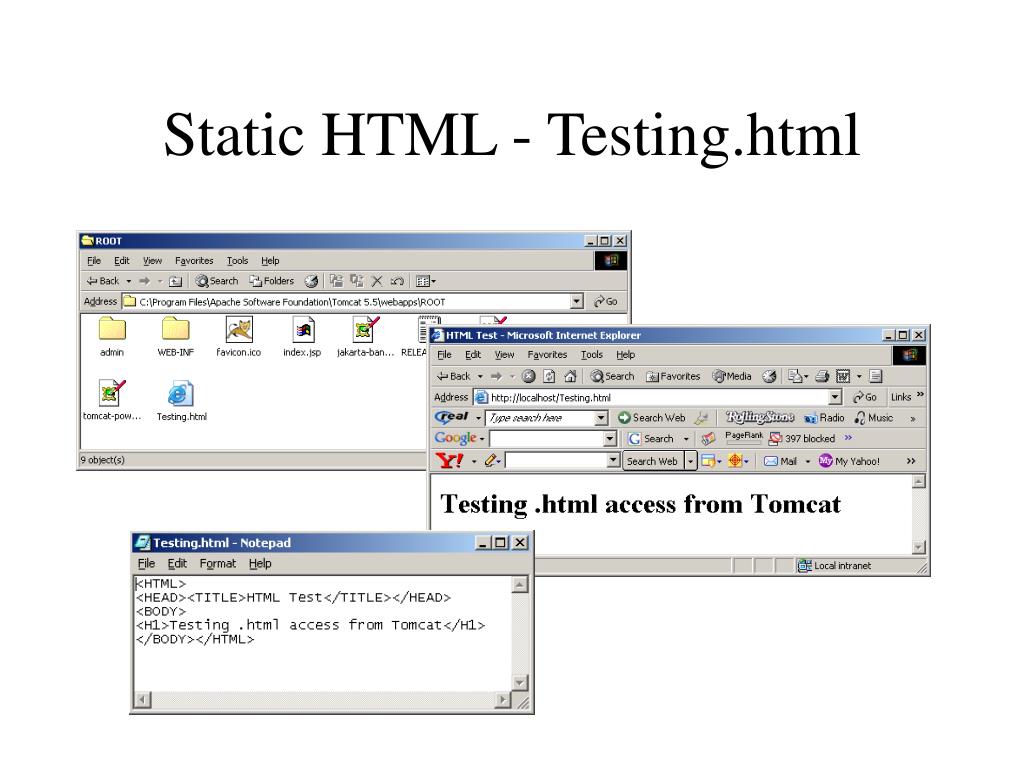

  13. Static HTML - Testing.html

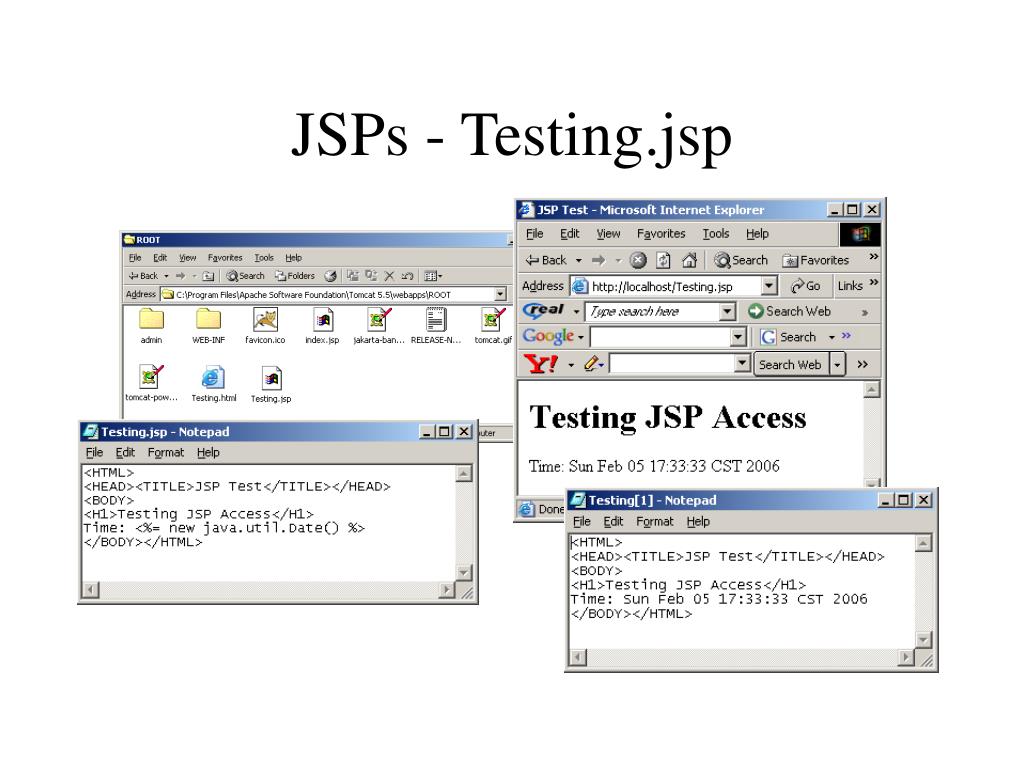

  14. JSPs - Testing.jsp

  15. Servlets – TestingServlet.java • Must be compiled, put in appropriate directories, and referenced correctly.

  16. Check Java 2 Installation & Path(will compile from command line) >java –version >javac –help

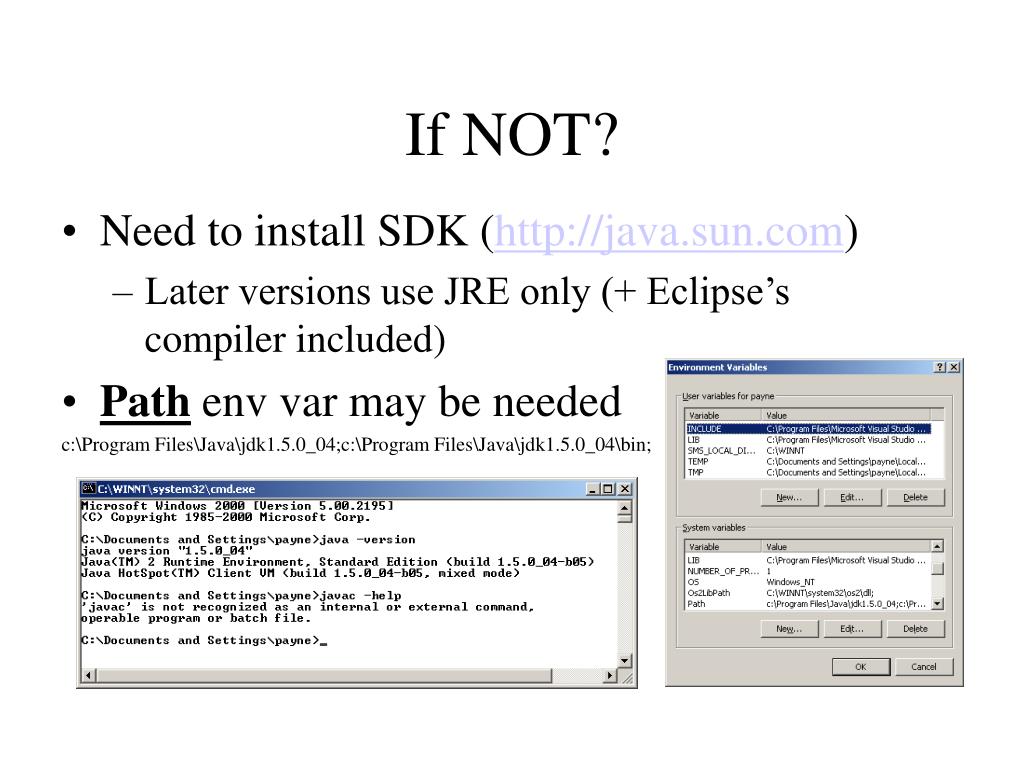

  17. If NOT? • Need to install SDK (http://java.sun.com) • Later versions use JRE only (+ Eclipse’s compiler included) • Path env var may be needed c:\Program Files\Java\jdk1.5.0_04;c:\Program Files\Java\jdk1.5.0_04\bin;

  18. Need servlet Packages

  19. CLASSPATH Environment Variable .;C:\Program Files\Apache Software Foundation\Tomcat 5.5\common\lib\servlet-api.jar; C:\Program Files\Apache Software Foundation\Tomcat 5.5\common\lib\jsp-api.jar

  20. Clean Compile

  21. Additional Server Configuration • Enable invoker servlet • Eliminates need for deployment descriptors • Handy during development • Turn on servlet reloading • Checks if servlet has been modified and will be reloaded • Handy during development

  22. Enable Invoker Servlet • Can run servlets without modifying deployment descriptor • Allows you to just drop compiled servlets into WEB-INF/classes directory • Modify $CATALINA_HOME\conf\web.xml • Uncomment 2 elements (servlet & servlet-mapping) • Use URL http://localhost/servlet/ServletName

  23. Servlet Reloading • Turn on servlet reloading • Ck if has been modified since last load • Off by default for production • Modify $CATALINA_HOME\conf\context.xml <Context reloadable=“true”> • Backup prior to changing

  24. Servlet Execution

  25. JSPs - Testing.jsp
