Collimation optimizations. Yuri setup 9 collimators for PCAP; we still use these collimators but their apertures are significantly optimized here. We add collimators: 1 @ PCAP, 1 @ PPATEL and 3 @ LTR. It turns out that the primary-beam power loss in magnets and drifts smaller than 100 W/m.

rupali
Télécharger la présentation

Collimation optimizations

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

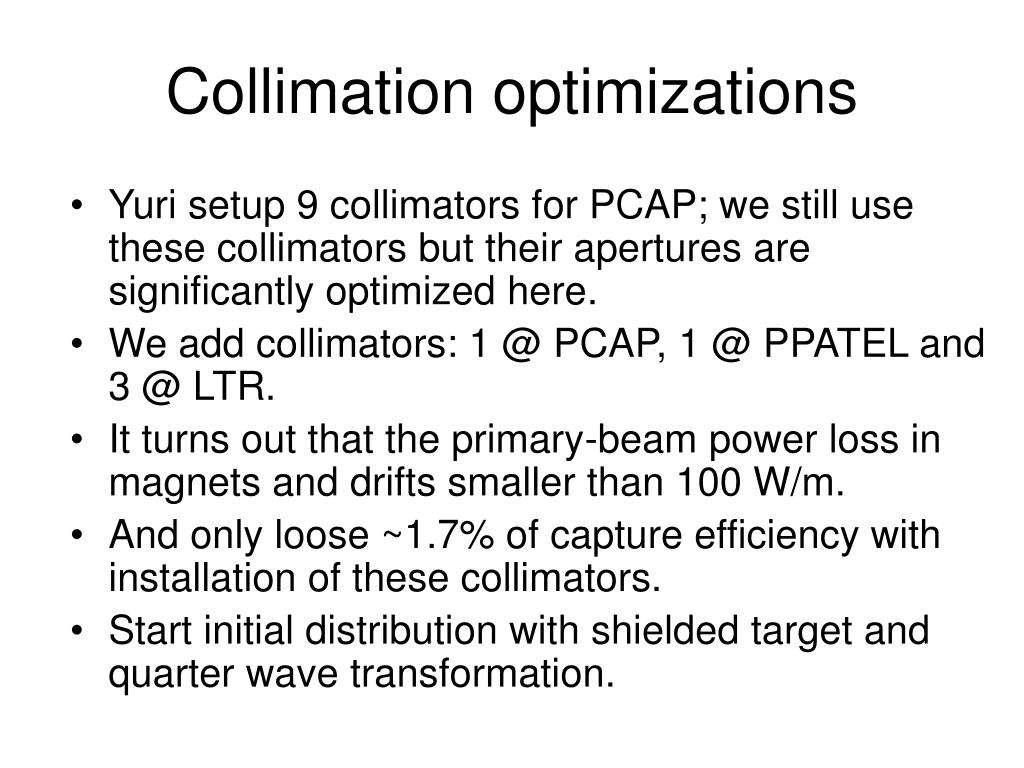

  1. Collimation optimizations • Yuri setup 9 collimators for PCAP; we still use these collimators but their apertures are significantly optimized here. • We add collimators: 1 @ PCAP, 1 @ PPATEL and 3 @ LTR. • It turns out that the primary-beam power loss in magnets and drifts smaller than 100 W/m. • And only loose ~1.7% of capture efficiency with installation of these collimators. • Start initial distribution with shielded target and quarter wave transformation.
